Ozito DSL-4000 User manual

CORDLESS
DETAIL
SANDER
12V Li-ion
INSTRUCTION MANUAL
SPECIFICATIONS
Input: 12V
No Load Speed: 10,000/min
Pad Size: 140 x 140 x 100mm
Paper Fitment: Hook & Loop
Battery: 1.3Ah Li-ion
Charge time: 3 - 5 hours
Weight with Battery: 0.72kg
DSL-4000
WHAT’S IN THE BOX
Cordless Detail Sander
ozito.com.au
Sand Paper x 3
Charging Cradle
Charging Adaptor

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

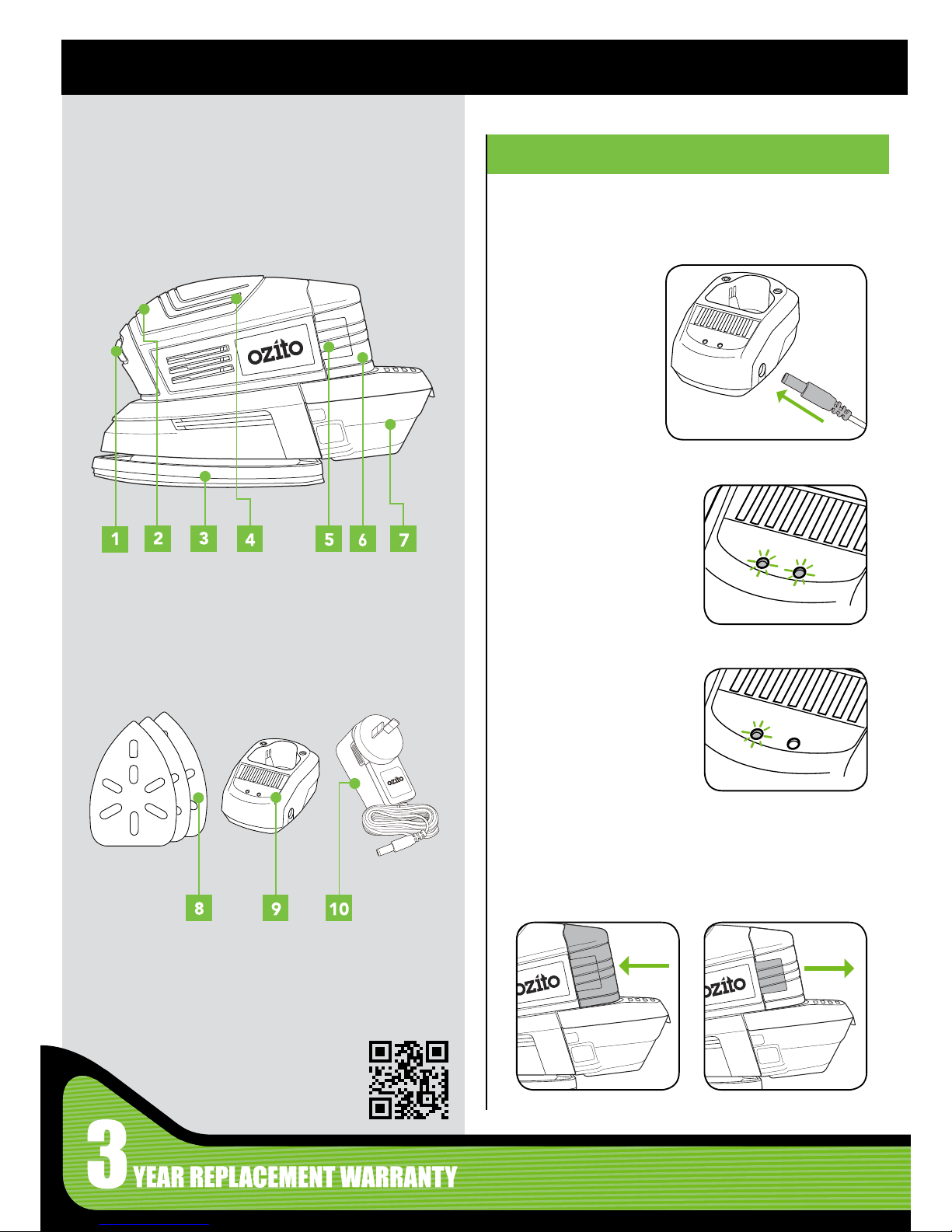

KNOW YOUR PRODUCT SETUP & PREPARATION
1. BATTERY
1 On/Off Switch
2 Charge Check
3 Sanding Pad
4 Sure Grip Handle
5 Battery Release Button
6 12V Li-ion Battery
7 Dust Canister
CORDLESS DETAIL SANDER
Installing and Removing
To insert, push the battery into
the base of the detail sander
until it clicks into place.
This charger is recommended for use with a residual current
device with a rated residual current of 30mA or less.
Charging
To remove, press & hold the
battery release button and pull
the battery out.
8 Sanding Paper x 3
9 Charging Stand
10 Adaptor
ACCESSORIES
2. Insert battery into charger.
The red and green light will
illuminate when battery is
properly connected.
1. Plug charging jack
into the charger.
The green light will
illuminate when
properly connected.
3. The red light will extinguish
when the battery is fully
charged.

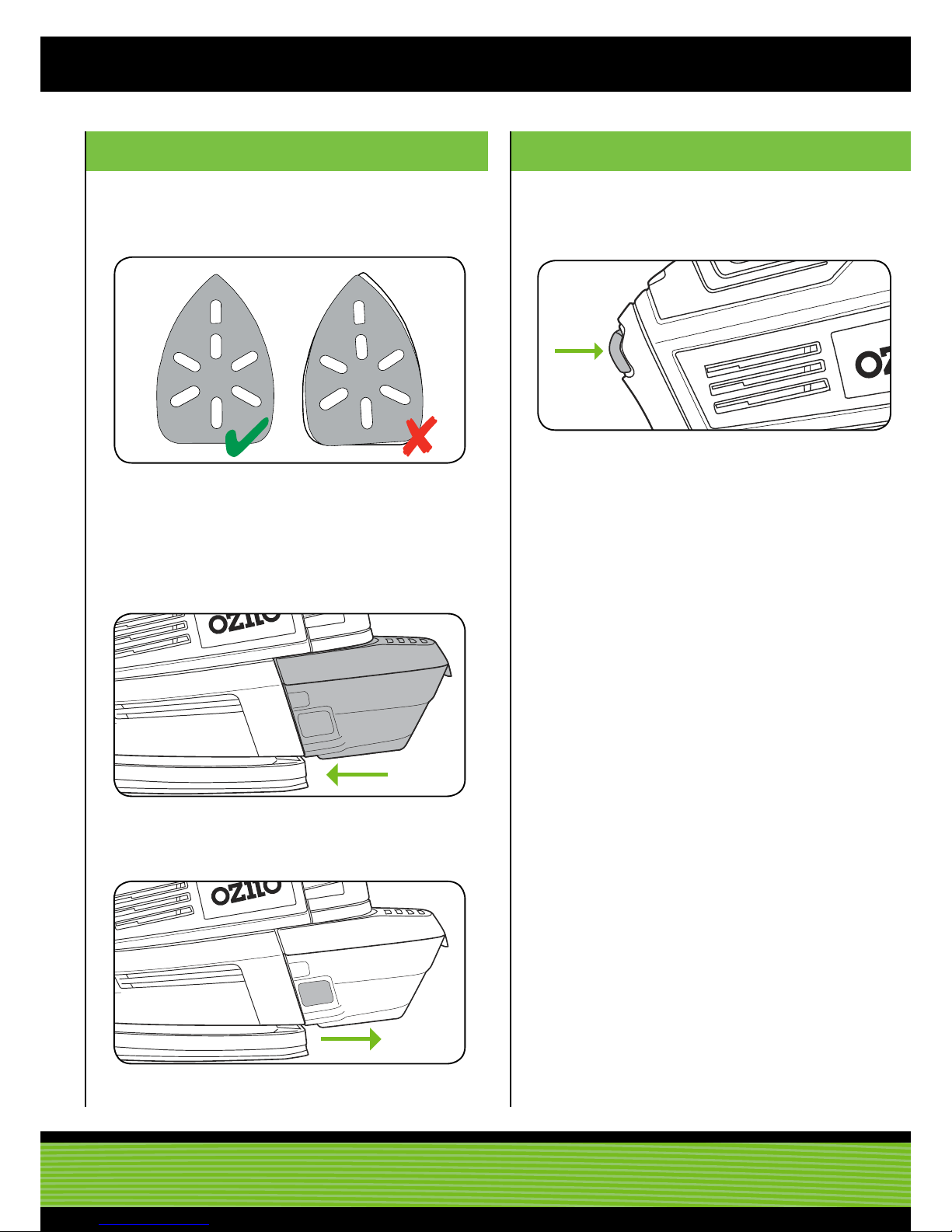

2. ASSEMBLY 3. CONTROLS
OPERATION
Attaching Sandpaper
1. Align the sanding sheet with the sanding pad and press on.
2. Replace the sanding sheet when it is worn.
1. Push the dust canister into dust extraction port until it clicks into
place.
Fitting the Dust Canister
1. To turn on, press the on/off switch. To turn off, press the on/off
switch again.
On / Off Switch
2. To remove, squeeze the tabs on the side of dust canister and pull
away from the dust extraction port.
Note: For optimum dust extraction, empty when dust canister is
1/3 full.
Note: Ensure the sander is turned off before removing the
battery. Do not touch the on/off button while the battery is
removed. If the On/off button is activated, when we insert the
battery it will automatically start.

DSL-4000

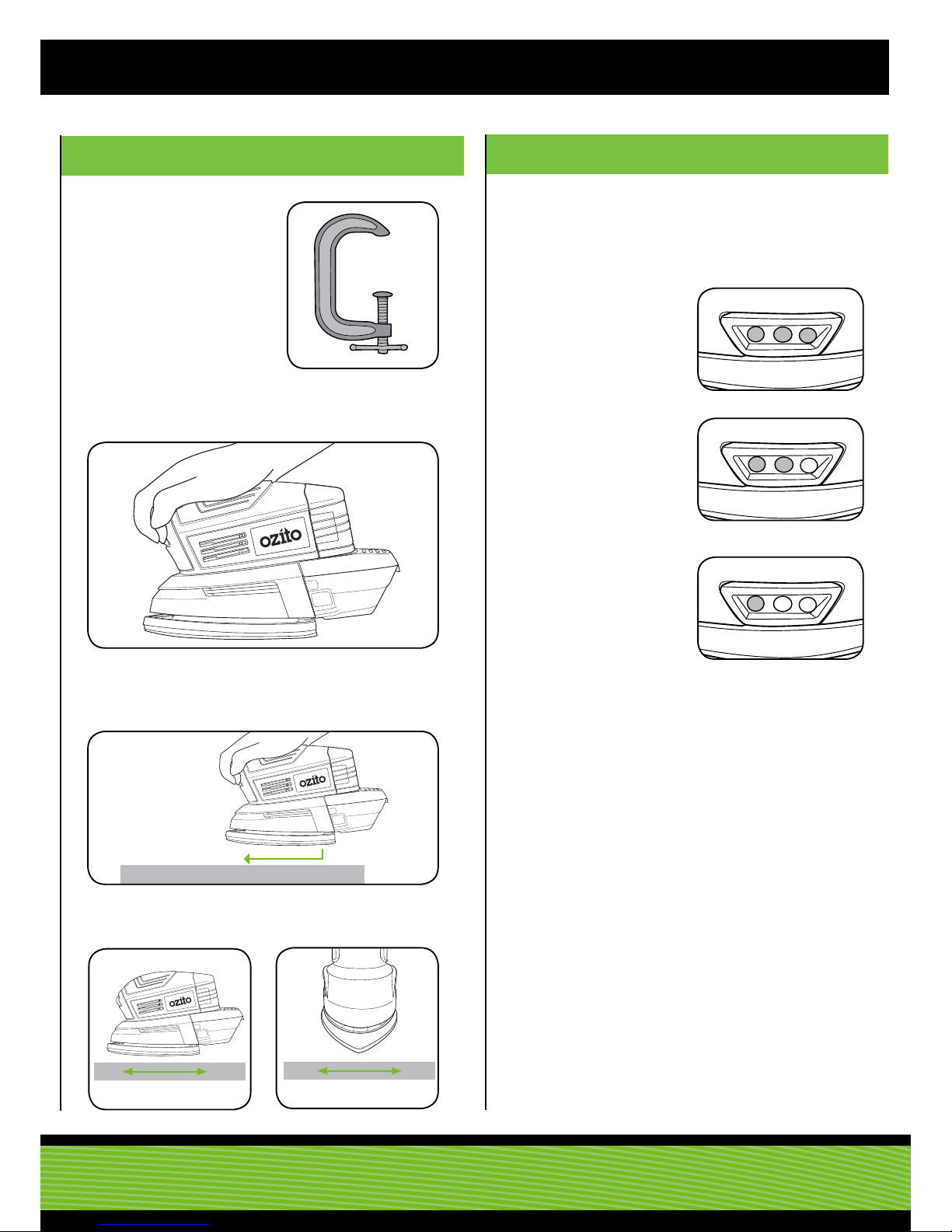

4. SANDING 5. SANDING TIPS
1. Secure the material to be
sanded where possible.
2. Witharmgrasponthesander,turnthesanderon.
3. Gradually lower the sander onto the workpiece with a slight
forward movement.
4. For optimum results, use either of these strokes.
Never force the sander. The weight of the sander supplies adequate
pressure, allowing the sandpaper to do the work. Applying additional
pressure will slow the motor, rapidly wear the sandpaper, and
greatly reduce the sander speed. This will slow the removal rate and
produce an inferior quality surface.
CAUTION: Excessive pressure will overload the motor, causing
possible damage to the sander by overheating the motor; or
damage to the workpiece.
Be sure to check your workpiece often. The sander is capable of
removing material rapidly, especially with coarse paper.
The orbital action of your sander allows you to sand with the grain,
oratanyangleacrossitformostsandingjobs.Inthenalstagesa
betternishwillbeachievedbysandingwiththegrain.
Do not sand on one spot for too long. The sander’s rapid action may
remove too much material, creating an uneven surface.
Side to Side
Backward/ Forward
Charge Check
The sander has an in-built charge check feature. While the sander
isturnedon,thechargechecklightswillilluminatetoreectthe
amount of charge remaining in the battery. The lights indicate the
following:
Full Charge
Half Charge
Very Low Charge/ Flat

Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority for
recycling advice.
Recyclingpackagingreducestheneedforlandllandrawmaterials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your local
council authority for recycling advice.
MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLESHOOTING
1. When not in use, the detail sander should be stored in a dry,
frost free location, keep out of children’s reach.
2. Keep ventilation slots of the detail sander clean at all times and
prevent anything from entering.
3. If the housing of the detail sander requires cleaning, do not use
solvents. Use of a cloth only is recommended.
4. Blow out the ventilation slots with compressed air periodically .
Note: Ozito Industries will not be responsible for any damage or
injuries caused by repair of the detail sander by an unauthorised
person or by mishandling.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS BATTERY AND CHARGER SAFETY WARNINGS
Warning Read instruction manual
ø Diameter
mA Milliamperes
Recycle battery Do not put in the rubbish
Polarity
Do not incinerate Do not get battery wet
Thermal cut-out protection
Transformer Energy
Rating (MEPS)
Double insulated
/min Revolutions or reciprocation per minute
Ah Amp hour
Indoor use only
Lithium Ion battery Do not use or store battery in
temperatures exceeding 50ºC
Electrical Emissions
Conformity (EMC)
Nm Newton Meters no No load speed
VVolts Hz Hertz
ac/~ Alternating current WWatts
Direct current
dc/
12V Li-ion Battery Pack SPDSL4000-02
Charging Stand SPDSL4000-30
Charging Adaptor SPDSL4000-29
Sanding Base Assembly SPDSL4000-09A
LED lights do not illuminate on charger
Check the charging adaptor is securely plugged into the wall out let.
Checkthebatteryisrmlyconnectedtothechargingcradle.
Check that the charging jack is securely connected to the charging cradle.
The battery has a short run time
Ensure the battery is properly charged. It will take 4-5 charging cycles
before the battery reaches optimum charge and run time. On the initial
charge, the battery requires 5 hours of charging. Subsequent charging
only requires 3-5 hours.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.
Sandpaper Selection
Selecting the correct grit of sandpaper is an important step in achieving
optimum results. Coarse grit will remove the most material. Finer grit will
produceasmoothernish.Theconditionoftheworkpiecewilldeterminethe
gritofthesandpapertobeused.Thehigherthegritnumber,thenerthe
grade of sandpaper.
If the surface is rough, start with a coarse grit and sand until the surface is uniform.
Medium grit may then be used to remove scratches left by the coarser grit. Finer
gritisthenusedtonishthesurface.Alwayscontinuesandingwitheachgradeof
sandpaper until the surface is uniform.
MATERIAL APPROPRIATE GRIT
Coarse Sanding Fine Sanding
Paintwork 180 400
Wood: Softwood 60 240
Hardwood 60 180
Veneer 240 320
Note: If intermediate sanding is required, choose a grit rating between coarse and
ne.Theabovetableisintendedasaguideonly.Toensureasatisfactoryresult,
asmall,inconspicuousareashouldrstbetestedtoensurethegritofsandpaper
chosenissuitableforthedesirednish.
THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS FOR YOUR
BATTERY CHARGER.
1. Before using the charger read all instructions and cautionary markings on the charger, battery pack
and the product using the battery pack.
2. This charger is not intended for any uses other than charging rechargeable batteries. Any other use
mayresultinriskofre,electricshockorelectrocution.
3. Do not place any object on top of the charger or place the charger on a soft surface that may result
in excessive internal heat. Place the charger in a position away from any heat source.
4. To reduce risk of damage to the electric plug and cord, pull by the plug rather than the cord when
disconnecting the charger.
5. Make sure the cord is located so that it will not be stepped on, tripped over, or otherwise subjected
to damage or stress.
6. An extension cord should not be used unless absolutely necessary. Use of an improper extension cord
couldresultintheriskofre,electricshockorelectrocution.
7. Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in
any way. Have it checked by an electrician or power tool repairer.
8. Do not disassemble charger. Take it to an electrician or power tool repairer when service or repair is
required.Incorrectreassemblymayresultinariskofelectricshock,electrocutionorre.
9. To reduce risk of electric shock, unplug the charger from the outlet before attempting any cleaning.
Removing the battery pack will not reduce this risk.
10. Never attempt to connect 2 chargers together.
11. DO NOT store or use the tool and battery pack in locations where the temperature may reach or exceed
40ºC (such as inside sheds or metal buildings in summer).
12. The charger is designed to operate on standard household electrical power (240 volts). Do not
attempt to use it on any other voltage!
13. The battery pack is not fully charged out of the carton. First read the safety instructions and then
follow the charging notes and procedures.
14. The longest life and best performance can be obtained if the battery pack is charged when the air
temperature is between 18 - 24ºC. Do not charge the battery pack in an air temperature below 10ºC
or above 40ºC. This is important and will prevent damage to the battery pack.
15. Do not incinerate the battery pack even if it is seriously damaged or is completely worn out. The battery
canexplodeinare.
16. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks
or cracks, immediately discontinue use and do not recharge.
17. During charging, the battery must be placed in a well ventilated area.

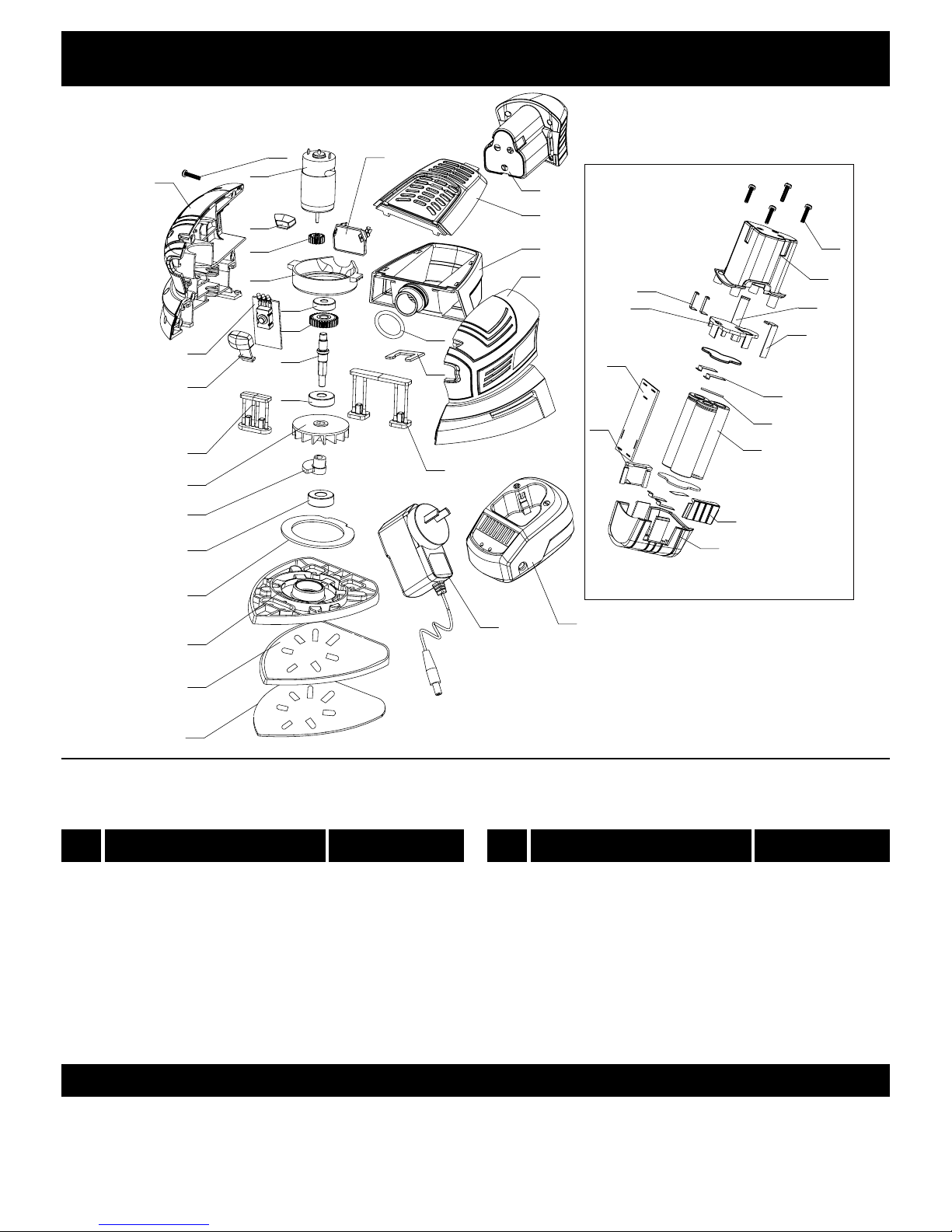

SPARE PARTS Tool: 12V Detail Sander
Model No. DSL-4000
Item
No. Description Part No.
How To Order
2
9
29
30
12V Lithium-Ion Battery
Sanding Base Assembly
Charging Adaptor
Charging Stand
SPDSL4000-02
SPDSL4000-09A
SPDSL4000-29
SPDSL4000-30
Available spare parts can be ordered through the Special Orders Desk at any Bunnings Warehouse. If you have any
further questions, please contact Ozito Customer Service on:
Australia: 1800 069 486
New Zealand: 0508 069 486
[email protected]
The following is a list of spare parts carried by Ozito.
Please contact Customer Service for any parts not
listed.
Tool: 12V Li-ion Detail Sander
Model No. DSL-4000
21
27 26
25
24
23
22
1
20
14
19
18
17
16
15
29 30
31
41
43
42
40
39
38
37
34
35
32
33
36
28
5
2
3
4
6
13
12
11
10
9
8
7
Item
No. Description Part No.

WARNING! When using mains-powered tools, basic safety precautions, including the
following, should always be followed to reduce risk of re, electric shock, personal injury
and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before
operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
The electric motor has been designed for 230V and 240V only. Always check that the power supply
corresponds to the voltage on the rating plate.
Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.
This tool is double insulated in accordance with AS/NZS 60335-1;
therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitableforthepowerinputofthetoolorwhichisdamagedordefectivemayresultinariskofreandelectric
shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/orseriousinjury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carryingpowertoolswithyourngeron
the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specied by the manufacturer. A charger that is suitable for one
 typeofbatterypackmaycreateariskofrewhenusedwithanotherbaterypack.
b. Use power tools only with specically designated battery packs. Use of any other battery packs may
 createariskofinjuryandre.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shortingthebatteryterminalstogethermaycauseburnsorare.
d. Under abusive conditions, liquid may be ejected from the battery; aviod contact. If contact
accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritationor burns.
6. Service
a. Have your power tool serviced by a qualied repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
b. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualiedpersonsinordertoavoidahazard.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
DETAIL SANDER SAFETY WARNINGS
WARNING!
Recommendation that the tool always be supplied via a residual current device
with a rated residual current of 30 mA or less.
Disposing of dust.Beextremelycarefulofdustdisposal,materialsinneparticle
formmaybeexplosive.Donotthrowsandingdustonanopenre.Spontaneous
combustion, may in time, result from a mixture of oil or water with dust particles.
Always wear eye protection and a dust mask for dusty applications and when
sanding overhead. Sanding particles can be absorbed by your eyes and inhaled
easily and may cause health complications.
Use special precautions when sanding chemically pressure treated timber,
paint that may be lead based, or any other materials that may contain
carcinogens. A suitable breathing respirator and protective clothing must be worn
by all persons entering the work area. Work should be sealed by plastic sheeting and
persons not protected should be kept out until work area is thoroughly cleaned.
Do not ‘wet sand’ with this sander. Liquids entering the motor housing are an
electrical shock hazard.
Do not use sandpaper intended for larger sanding pads. Larger sandpaper will
extend beyond the sanding pad causing snagging, tearing of the paper or kick-back.
Extra paper extending beyond the sanding pad can also cause serious lacerations.
WARNING!
Some dust created by power sanding, sawing, grinding, drilling and other
construction activities contain chemicals known to cause cancer, birth defects or
other reproductive harm.
Some examples of these chemicals are:
• Leadfromlead-basedpaints;
• Crystallinesilicafrombricks,cementandothermasonryproducts,and;
• Arsenicandchromiumfromchemically-treatedtimber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemicals: work in a well ventilated area and
work with approved safety equipment, such as dust masks that are specially
designedtolteroutmicroscopicparticles.

IN ORDER TO MAKE A CLAIM UNDER THIS
WARRANTY YOU MUST RETURN THE PRODUCT
TO YOUR NEAREST BUNNINGS WAREHOUSE WITH
YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY
PLEASE TELEPHONE OUR CUSTOMER SERVICE
HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
WARRANTY
TO ENSURE A SPEEDY RESPONSE PLEASE
HAVE THE MODEL NUMBER AND DATE OF
PURCHASE AVAILABLE. A CUSTOMER SERVICE
REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.
The benefits provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer
service helpline above.
1113
3 YEAR REPLACEMENT WARRANTY
Your product is guaranteed for a period of 36 months from the
original date of purchase and is intended for DIY (Do It Yourself)
use only. If a product is defective it will be replaced in accordance
with the terms of this warranty.
Warranty excludes consumable parts, for example: sanding paper,
dust canister, etc.
WARNING
The following actions will result in the warranty being void.
• If the tool has been operated on a supply voltage other
than that specified on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the
instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
