ozone generators BLUE 7000 User manual

Read the instructions carefully before using this device
BLUE 7000 (HE-141D)
COMMERCIAL OZONE GENERATOR
USER MANUAL
Read the instructions carefully before using this device

WARNING
This air unit is not a medical device.
Do not stop or modify any treatment or medication programmes
without consulting your doctor.
Excessive ozone concentrations can irritate the mucous
membranes or the respiratory tract.
CAUTION
DANGER OF INJURY
BY ELECTRIC
CURRENT WHEN
OPENING THE
DEVICE
CAUTION
WARNING: DO NOT REMOVE THE COVER OR ANY
EXTERNAL SERVICE PARTS - DANGER OF INJURY BY
ELECTRIC CURRENT. FOR SERVICING, CONTACT
QUALIFIED SERVICE PERSONNEL.
The “lightning bolt” means that uninsulated material inside the
unit can cause injury by electric current. For everyone’s safety,
do not remove the product’s cover.
1

INTRODUCTION
This air purifier is designed for the advanced and comfortable
remediation of contaminants. Powerful oxidation in a compact size,
with a light weight and simple design. It uses controlled ozone
technology developed especially for the reduction of odours, bacteria
and viruses in unoccupied spaces. Ideal for the treatment of
households, offices, cars and others.
WHAT IS OZONE?
Ozone (O3) is a toxic gas with a typical odour, which is a normal
component of the Earth’s atmosphere. Ozone is deliberately
manufactured for various industrial purposes; it is produced naturally
from oxygen by ultraviolet radiation, electric discharge, e.g. at high
altitudes, or lightning. Ozone itself is a visibly blue gas which is
approximately one and a half times as heavy as air (density of 2,144
g/l). Ozone cannot be stored or transported in containers, because it
decomposes spontaneously in the presence of oxidizable impurities
and moisture, as well as on solid surfaces. The speed of the
decomposition increases along with the temperature.
CAUTION!
No people, animals or plants may be present in the
room during operation. You can only enter the room
1 hour after the device stops operating.
2

TECHNICAL SPECIFICATION
Model:
BLUE 7000 (HE-141D)
Input voltage:
AC 220-240V/50-60Hz
Energy consumption:
100 W
Number of ozone plates:
90 x 50 mm, 2 pcs
Air volume:
Maximum 100 CFM (2.8 M3/min.)
Active oxygenation:
3.5 - 7.0 g/h
Noise level:
45 dB
Dimensions:
260 x 210 x 180 mm
Weight:
2.9 Kg
3

USING THE BLUE 7000 DEVICE:
(front view)
USE
Operation timer: Used to set the device’s operating period (ozone
production) for up to 3 hours.
Switching between low and high output: High output at 7,000 mg,
low output at 3,500 mg.
Operation indicator: Illuminated if the device is operating (producing
ozone).
4

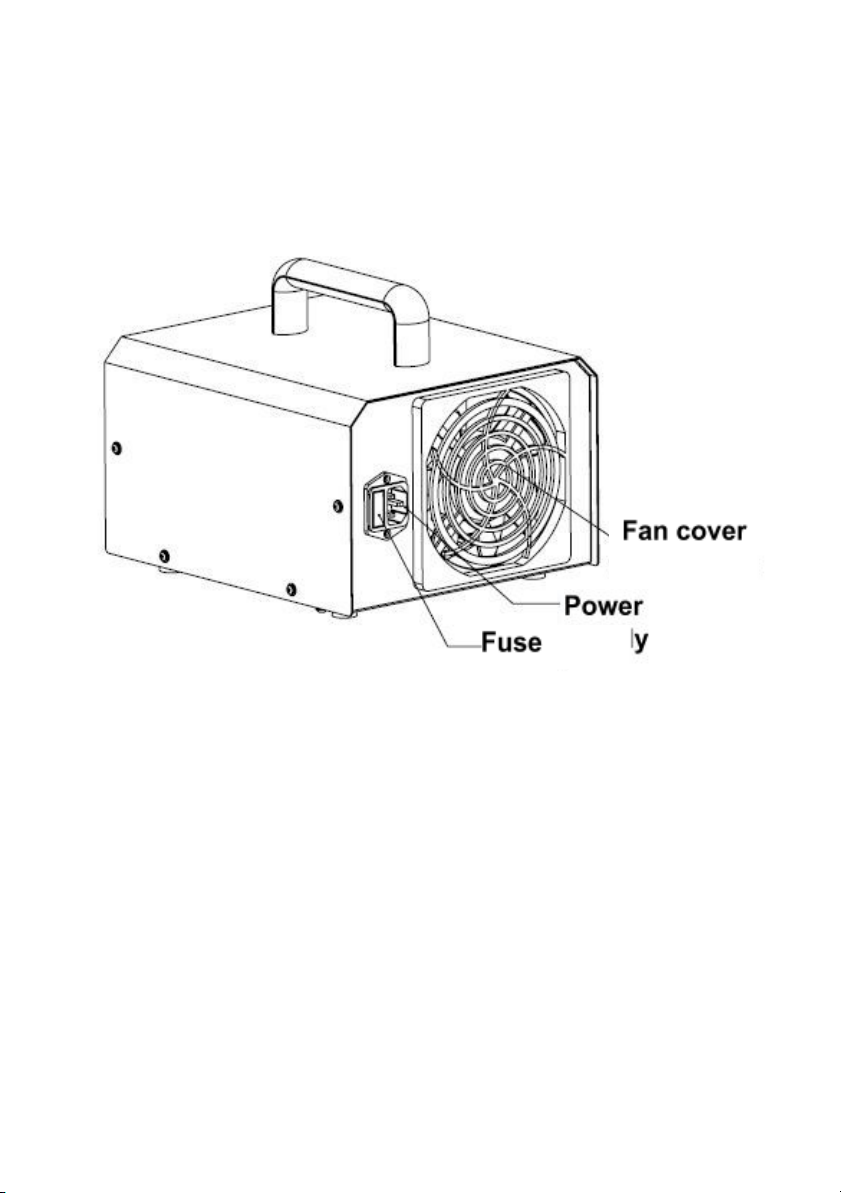

(rear view)
USE
Fuse: A replaceable fuse (1A, length 0.79 inches) is located here.
Power supply: Power supply connector, 220V-240V.
5

PROCEDURE FOR USING THE DEVICE
The industrial air purifier is designed to remove odours from
unoccupied spaces (spaces in which no people, animals or plants are
present). The device is equipped with a timer which enables the setting
of an operating period of up to 3 hours. At the end of the set operating
period, the device switches off.
Ozone has very strong oxidizing effects, and at higher
concentrations can damage surfaces which have a tendency to
corrode, as well as bring about the accelerated degradation of some
plastics and rubber products. We recommend that you safely cover, or
remove from the area which is to be cleaned, all objects which meet
these criteria, or if you are unsure of their resistance or they are objects
of a higher or artistic value.
You can only enter the room 1 hour after the device stops
operating.
FOLLOW THESE STEPS:
1. Close the space which is to be cleaned.
2. No people, animals or plants may be present in the room
(during cleaning).
3. Place the device as close as possible to the source of the odour.
4. In spaces which are equipped with their own air conditioning system
(heating or cooling), switch on this system and set internal
circulation.
5. Set the timer for the required operating period, and leave the room.
6. After the device stops operating, wait at least 1 hour before you
enter the room.
7. Enter the cleaned space, and ventilate it.
6

ELIMINATION OF PROBLEMS
If you suspect that there may be a problem with your unit, check
the following:
● The unit is properly connected.
● The ceramic plates are clean and dry.
● There are no cracks in the plates, and each plate is aligned with
the rear part of the unit.
● It is important that the ozone generator is properly earthed, in
order to prevent injury by electric current.
● The fuse is installed correctly, and in a good condition.

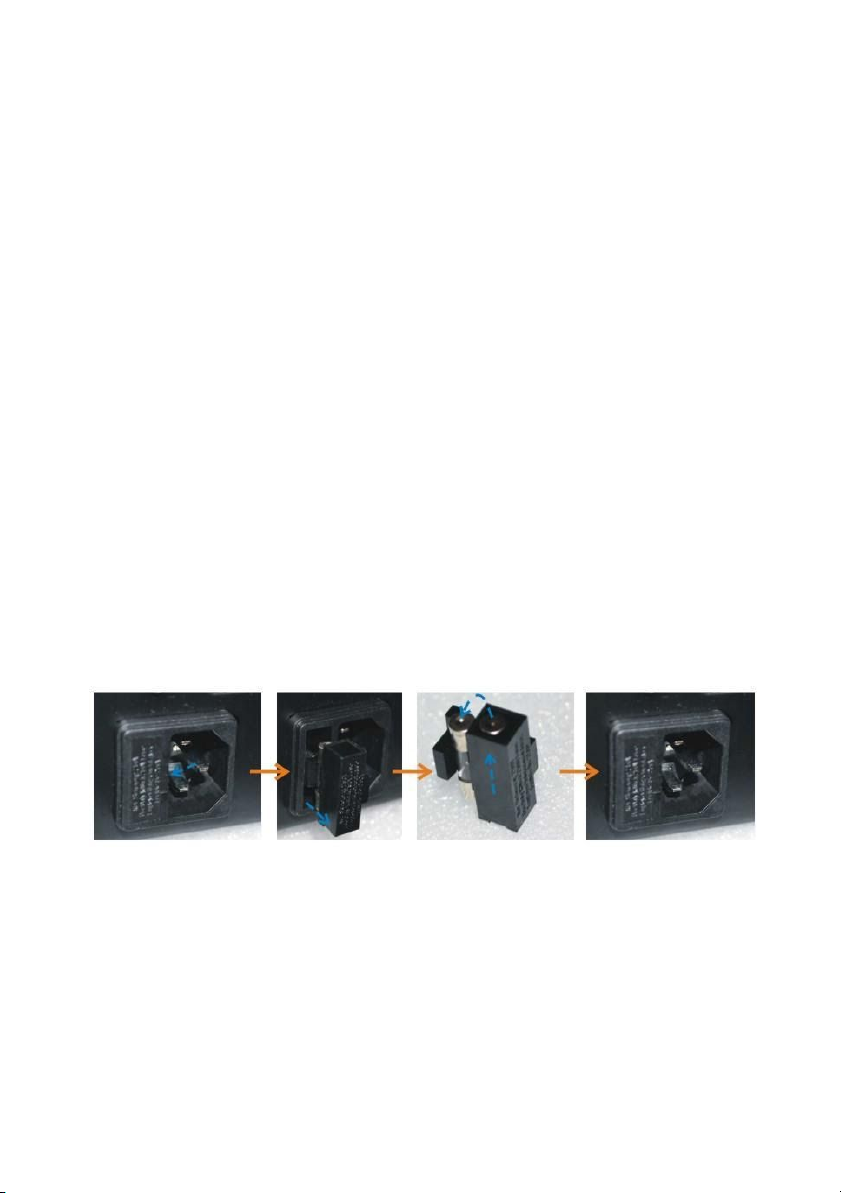

When replacing the fuse, pull out the plastic fuse holder, take out
the old fuse and insert the new one. The replacement fuse must
be 1-ampere (0.79 inches). See the picture below:
Caution: You should not try to remove the unit cover, because there
are no parts which the user could repair themselves. Opening the unit
voids the warranty.
7

MAINTENANCE
If the device has not been producing a sufficient amount of ozone for a
longer period, it is not efficient enough and the ozone plates must be
replaced. They are normally changed after 6,000 hours of operation.
WARNING:
The warranty does not apply to the parts of the unit which require
replacement during normal use. To damage or faults caused by
negligence, misuse or use which is not in accordance with the user
manual. The same applies to any defects or damage caused by
unauthorised servicing.
8

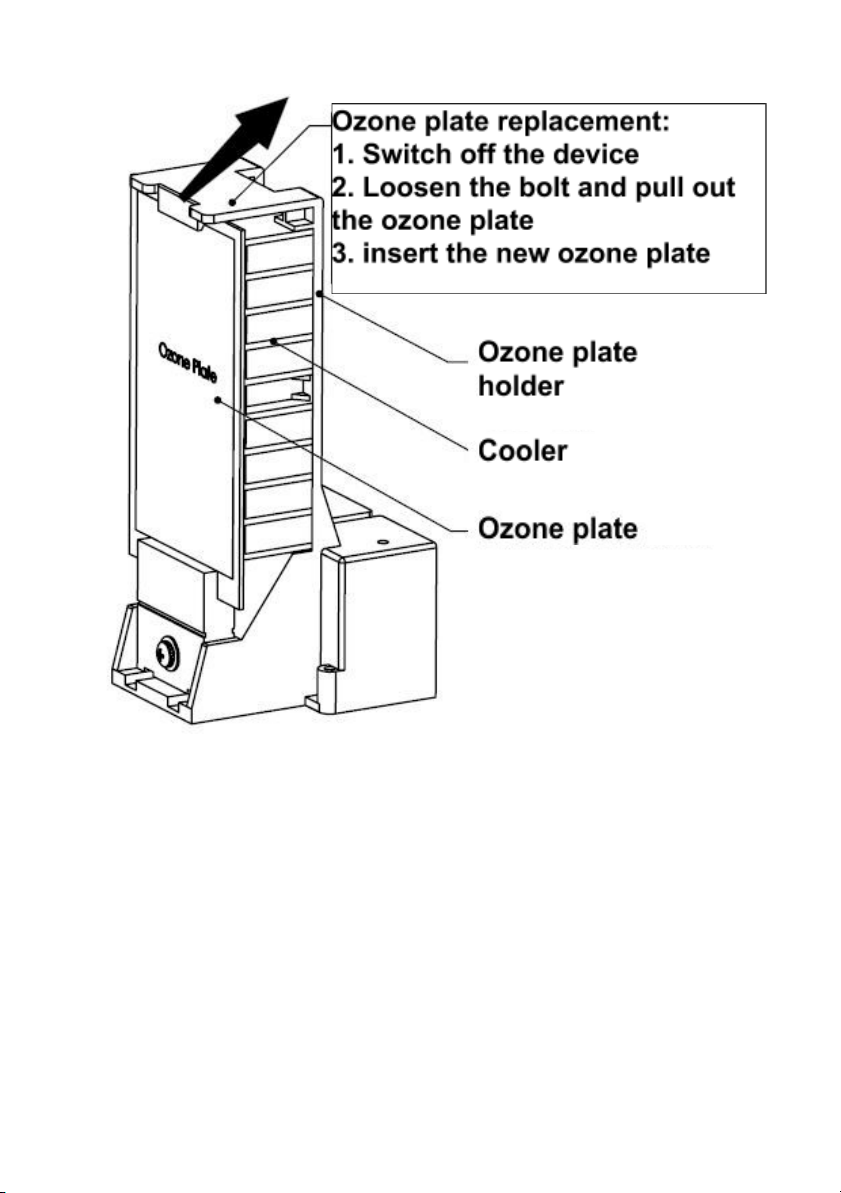

To replace an ozone plate:
1. Switch off the device, and disconnect it from the socket.
2. Use a screwdriver to loosen the cover screw, and remove the
cover.
3. Pull the ceramic plate out of the ozone generator module.
4. Install the ceramic plate as illustrated in the picture above
(make sure that the plate does not fall).
9

10

11

Read the instructions carefully before using this device
BLUE 7000 (HE-141D)
COMMERCIAL OZONE GENERATOR
USER MANUAL
Read the instructions carefully before using this device
Version 20/05/2020
