P800 Solar Eclipse User manual

Solar Eclipse Manual
KEEP THIS MANUAL IN A SAFE PLACE!
IMPORTANT SAFETY INFORMATION INSIDE!
REV. no. 12 made on 10/04/2017
P800SRL
Via Valdilocchi, 6/F
19126 La Spezia
VAT n. 01353280116
This manual contains important safety instructions that must be followed during installation and start-
up of the device. It is advisable to pay particular attention to the installation instructions in order to
reduce the risk of electrical shock and to prevent damage to the device.
This document contains information of P800 SRL properties. The content of this document, or any part
thereof should not be reproduced or communicated to any third party without the express written
consent of P800 SRL.
Any changes / modifications not approved by the party responsible could void the user's authority to
USE the equipment

Index
1GENERAL INFORMATIONS...................................................................................... 6
1.4 Warranty 7
1.5 Quality 8
1.6 Responsibility 8
1.7 Safety information 8
1.8 Type label and symbols explanation 10
2GUIDELINES AND SAFETY MEASURES ................................................................... 12
2.1 Symbols and warnings 12
2.2 Specific requirement 12
2.3 Before installing 13
2.4 Safety and installation guidelines 13
2.5 Batteries use warning 13
3INSTALLATION ..................................................................................................... 14
3.1 Unpacking 14
3.2 Environment 14
3.3 Solar Eclipse fixing 15
3.4 Solar Eclipse board wiring 15
3.5 Grid-tied sensor installation and wiring 20
4SOLAR ECLIPSE CONFIGURATION ......................................................................... 21
4.1 Installing software for the installer 23
4.2 Advance configuration operating parameters 24
4.3 Configuration with "free" parameters 25
4.4 Solar Eclipse reboot procedure 26
4.5 Solar Eclipse reset procedure 26
4.6 Notes on the battery pack sizing 27
4.7 Warnings and tips for the formation of the battery pack 48 V 30
4.8 Warnings and parameters to be set on the grid inverter 30
4.9 Inverter Power One / ABB 31
4.10 Inverter SMA 31
4.11 Inverter FRONIUS 31
5START-UP............................................................................................................. 32

3
5.1 Stopping the Solar Eclipse 33
5.2 Operation Modes 33
5.3 Battery Charger Mode 33
5.4 Night Mode delivery 34
5.5 Power mode 34
5.6 Battery charger maintenance Mode 34
5.7 Battery pack “full charge” mode 35
5.8 Power-up and Power-off 35
5.9 Indicator lights 35
5.10 Remote monitoring via Ethernet network jack 37
5.11 Fault search 38
5.12 Maintenance 40
6TECHNICAL FEATURES.......................................................................................... 41
6.1 Default parameters 42
6.2 Modules with a number of cells other than 60 43

4
Figures index
Figure 1 - Solar Eclipse............................................................................................................................... 6
Figure 2 - Label and certifications............................................................................................................. 10
Figure 3 - Included accessories................................................................................................................. 14
Figure 4 - Twisted-pair cable for Power Meter and house load sensors (Monitoring Kit) ............................ 16
Figure 5 - Power Meter and house load sensor connectors wiring............................................................. 17
Figure 6 - Power wiring scheme ............................................................................................................... 18

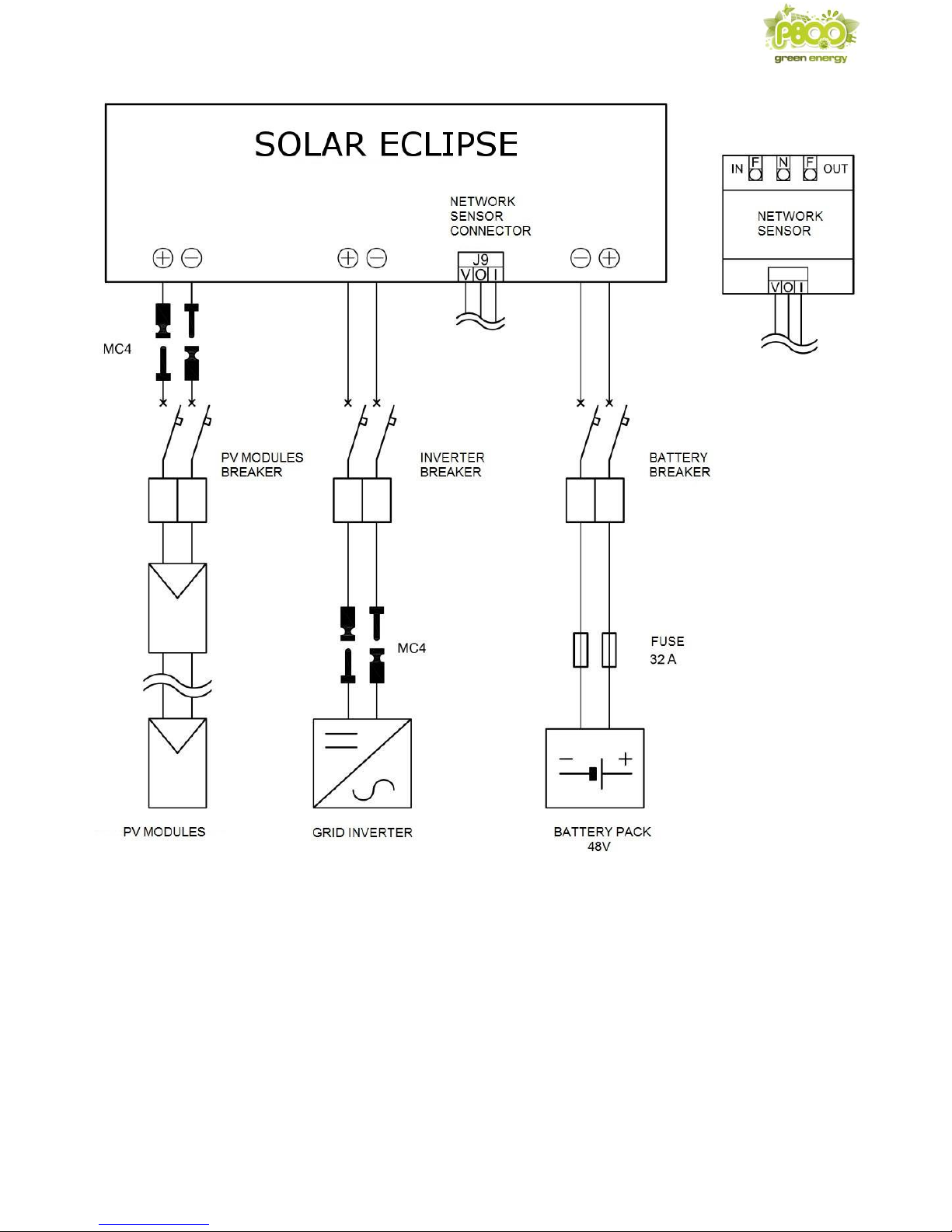

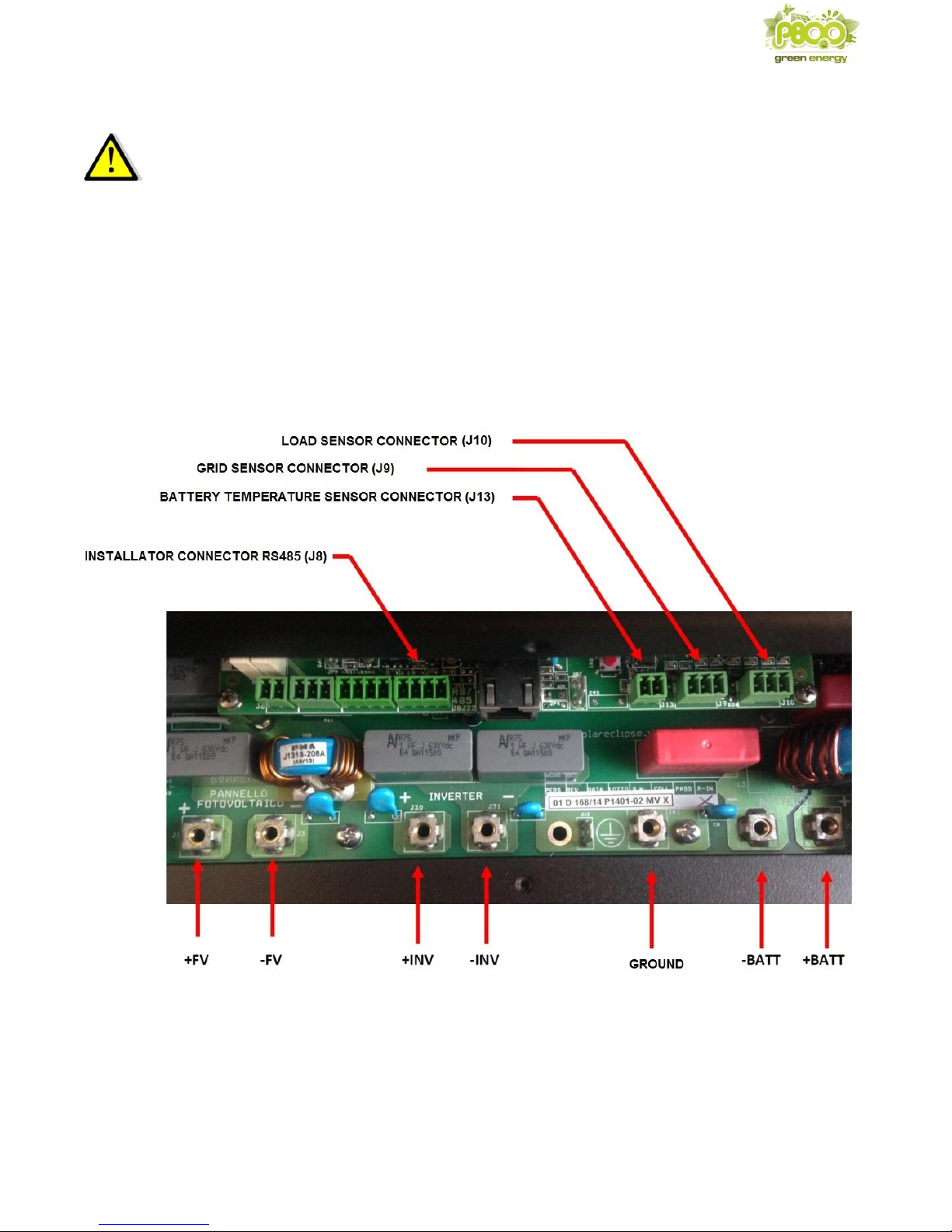

Figure 7 - Solar Eclipse wiring board......................................................................................................... 19

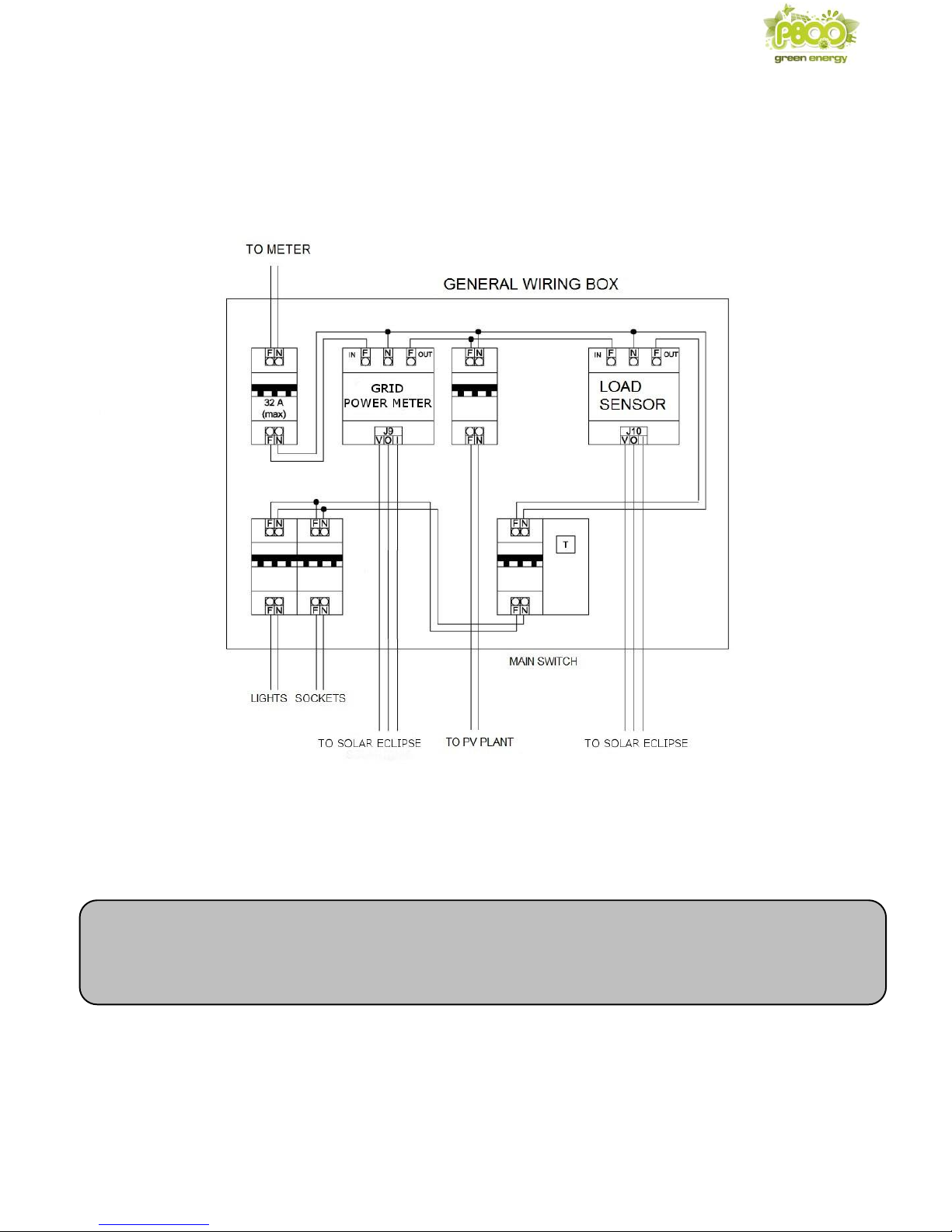

Figure 8 - Electrical panel wiring scheme.................................................................................................. 20
Figure 9 - Wiring grid Power Meter .......................................................................................................... 21
Figure 10 - Configuration dip-switches .................................................................................................... 21
Figure 11 - Battery configuration through dip-switches............................................................................. 22
Figure 12 - Configuration Software –Trend tab ........................................................................................ 23
Figure 13 - Configuration software –Parameters tab................................................................................ 24
Figure 14 - Scheme order closing / opening switches start / stop .............................................................. 32
Figure 15 - lights –Front LED’s ................................................................................................................. 36
Figure 16 - Ethernet port e Supply Fuse.................................................................................................... 36
Figure 17 –Installer monitoring portal ..................................................................................................... 37
Figure 18 - Solar Eclipse configuration with browser................................................................................. 38

5
Tables Index
Table 1 –Label symbols meaning ............................................................................................................. 11
Table 2 –Battery pack cables size ............................................................................................................ 15
Table 3 –Number of batteries depending of the nominal voltage ............................................................. 27
Table 4 –Energy reserve classes for 48V batteries.................................................................................... 28
Table 5 –Battery dimensioning depending on the loads and PV plant power ............................................ 29
Table 6 –Solar Eclipse datasheet ............................................................................................................. 41
Table 7 –Default parameters for generic batteries................................................................................... 42
Table 8 –PV modules conversion table .................................................................................................... 43

6
1GENERAL INFORMATIONS
1.1 About Solar Eclipse
Solar Eclipse totally works in DC and the only energy needed is from the sun!
Solar Eclipse is the smarter way to take advantage of all the energy produced by your PV plant (see picture
no. 1).
It stores electricity overproduced by the photovoltaic modules even before it arrives at your inverter,
charging standard batteries of any type (lead, gel, lithium, etc.) in DC, to re-use it when needed (at night or
in poor sunlight moments), making you inverter behaving like a sun irradiated panel!
Solar Eclipse totally works in DC and does not need external power supply, the only energy needed is from
the sun!
Figure 1 - Solar Eclipse

7
1.2 How the Solar Eclipse works
When the PV modules power exceeds the power required by the loads of the house, Solar Eclipse feels,
through the network sensor, that there is an electricity grid connection and begins to store energy into the
connected batteries.
On the contrary, when the power required by the loads of the house is higher than the one produced by
the PV modules (for example if it is cloudy or at night), Solar Eclipse picks the energy stored by the batteries
up and provides it via the inverter. Solar Eclipse works as a battery charger when the solar power is in
excess, and as a solar module string irradiated from the sun when the solar power is not sufficient or it is
totally absent.
This allows the inverter to deliver only the power required, minimizing unnecessary entries or withdrawals
from the grid.
Solar Eclipse complies with the following rules:
• No batteries charge through grid energy
• The available energy from the PV modules is used to power utilities
• The excess energy is used to charge the batteries
• The further energy produced by the plant is sold to grid network.
• Battery power used only if the sun is not enough to power utilities, or at night
1.3 Manual use
WARNING: the manual is a guideline for a safe and effective use as well as for the maintenance
and possible correction of minor Solar Eclipse malfunctions. It is therefore essential that the
person who uses or carries interventions on has acquired a complete familiarity with the contents
of this manual, and will closely follow the instructions.
WARNING: Solar Eclipse installation and maintenance must be carried on by qualified, trained
and authorized personnel only, compliant with the local regulations and applying the guidelines
and the safety measures. Keep the manual in a safe place.
1.4 Warranty
• The activation of this warranty is absolutely subject to the registration of the product within 30 days of its
installation, on the computer portal available on the website www.solareclipse.it as indicated on the
installer card inserted in the box. Computer registration will be faithful to any dispute and dispute, and is
an integral part of the warranty itself.
In the absence of such registration, the guarantee will not be valid without exception.

8
•P800 SRL guarantees that this product is manufactured in accordance with the law. Maintenance
not compliant with the guidelines, the instructions and the specifications contained in the user's
manual, may cause damages. This could result in voiding the warranty.
•The warranty covers repairing cost and / or replacement of the product. Defective parts shipping
cost and labour costs are not covered by this warranty.
•The warranty does not cover any damage to the batteries in any case, especially if the set
parameters do not match those specified by the manufacturer.
•The proper operation of Solar Eclipse is guaranteed only with a minimum daily radiation power of
at least 100 W.
•All verification, updating, repair and replacement operations will be carried out by qualified
p800srl personnel exclusively in p800srl laboratories, no work on works or works on private or
corporate clients will be provided.
1.5 Quality
All our products are tested and inspected during production and before delivery. The standard warranty
period is 24 months from the date of purchase.
1.6 Responsibility
P800 SRL disclaims any liability in the following cases:
• consequential damages related to the use of Solar Eclipse
• possible manual errors and the consequences thereof
• damage caused by improper use of Solar Eclipse
• damage caused by the battery pack and its connections
1.7 Safety information
WARNING: All the following operations must be carried out by qualified personnel only in
compliance with national and local security regulations.
WARNING: During the installation, you must follow manual instructions and warnings step-by-
step in order to avoid danger to the operator and damaging the equipment. Operations that are
not complying with the instructions will result in immediate warranty lapse.
WARNING: Some device parts can be live, non-insulated or have hot surfaces. Unauthorized
removal of the necessary protections, improper use, incorrect installation or incorrect operation,

9
the unit tampering (for example opening additional holes), can cause serious damage to persons
or things and leads to the immediate warranty voiding.
WARNING: to avoid the system damage and / or malfunction, please insert a standard
fuse between the Solar Eclipse and the battery pack 32A as shown in the wiring diagram
(see Figure 16).
CAUTION: The Solar Eclipse is INSULATION TRANSFORMERLESS. An inverter with insulation
transformer is needed or, in case of inverter also without insulation transformer, it is necessary to
maintain the battery pack floating: no pole must be connected to earth, also TERMINALS OF
BATTERIES MUST BE PROTECTED WITH A DOUBLE INSULATION as they are located at the same
potential of the grid IT CAN CAUSE BODILY HARM OR ELECTRIC SHOCK!!!
WARNING: PV plant design with Solar Eclipse must always respect the nominal ratings of voltage
and current phase.
CAUTION !!!: Always install the battery pack in a room equipped with air intake, and not used as
residential.
WARNING !!!: In case of liquid electrolyte batteries use, please put the battery pack in a widely
ventilated room, separated from the one in which other electrical devices such as inverters,
panels and Solar Eclipse are!!! The use of liquid electrolyte batteries can cause highly explosive
vapors !!!

10
1.8 Type label and symbols explanation
The type label (see Figure 2) is located on the right side of the Solar Eclipse. The label reports important
technical information about caring, maintening and shipment of parts. Do not remove the label.
Figure 2 - Label and certifications

11
The following table lists the meaning of the symbols.
Symbolis explanation
It shows the temperature range permitted for the inverter operation.
The values are expressed in degrees Celsius and in degrees Fahrenheit
It indicates the degree of environmental protection.
It indicates that you must always keep the manual at hand to consult
the documentation to operate properly and safely
It shows the risk of electric shock after the shut down and the
disconnection of the Solar Eclipse and the time span before you can
perform safely any maintenance operation.
It alerts of risk of burns for the presence of hot surfaces
This symbol alerts the user to the presence of “dangerous voltage”
inside the device that might cause bodily harm or electric shock.
This safety alert symbol alerts to potential hazards. Read and follow
instructions carefully to avoid possible harm.
Table 1 –Label symbols meaning

12
2GUIDELINES AND SAFETY MEASURES
2.1 Symbols and warnings
The following symbols are used throughout the manual to highlight important information:
CAUTION: indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
WARNING: indicates a hazardous situation which, if not avoided, could result in
death or serious injury..
2.2 Specific requirements
1Solar Eclipse is manufactured in accordance with safety and technical requirements
2Solar Eclipse is to be used under the following conditions only:
•To charge lead acid, gel, nickel, lithium-ion batteries and to provide power to grid
connected inverter.
•To convert the string voltage of the power supply modules for charging batteries.
•Connected to a battery pack with all the safety systems required for the accumulation
of chemical systems with nominal voltage of 48 V.
•In appropriate technical conditions.
•In an enclosed space, well ventilated, protected from rain, condensation, moisture and
dust.
•In compliance with the instructions in the manual.
CAUTION: set the parameters characteristic of the charge and discharge cycle of the battery
pack as recommended by the battery manufacturer. Refer to the installer software available in
the download area of website www.solareclipse.it download area.
WARNING: a misuse/improper use of the charge and discharge cycle can cause damage and / or
battery explosion.
WARNING: Do not use the Solar Eclipse in situations where there is a risk of gas or dust
explosions or in presence of potentially flammable products.
Any use of the product other than described in the Intended Use section does not
qualify as appropriate. P800 SRL is not responsible for any damage that may ensue.

13
2.3 Before installing
Users must always:
•Follow this manual during installation and maintenance. Before installing or
using the product, read all of the instructions, cautions, and warnings in this
manual.
•Be familiar with the contents of this manual. This applies particularly to Chapter
"guidelines and directives for safety."
2.4 Safety and installation guidelines
•Protect your Solar Eclipse from rain, snow, spray, moisture, excessive soiling and condensation
situations. In order to reduce the risk of fire, do not cover or obstruct the ventilation holes. Do not
install the Solar Eclipse in a room without ventilation because it could overheat.
•In case of fire, you must use a fire extinguisher suitable for electrical equipment.
•Short-circuiting the device or reversing the polarity will cause serious damage to batteries, Solar
Eclipse and wiring. The fuses are located between the batteries and the Solar Eclipse are not able to
avoid the damage caused by the reversal of the polarity, damage that will void the warranty.
•Protect the DC wiring with a fuse according to the guidelines of this manual.
•Connection and protection must be carried out in accordance with local regulations.
•Do not work on Solar Eclipse nor on the system if they are still connected to a power source. Allow
only qualified electricians to carry out modifications to the electrical system.
•Check the wiring and connections at least once a year. Defects such as loose connections, burnt
wiring etc. must be corrected immediately.
•Do not touch the equipment if wet or if you have sticky hands.
•Make sure that the product is mounted properly and safely and always use appropriate transport
equipment.
•The opening of the service door is the sole responsibility of qualified and licensed
2.5 Batteries use warning
•Remember that despite the battery pack voltage is 48 V, when the Solar Eclipse is connected to an
insulation transformerless inverter, the battery pack has the same voltage of the power grid and it
is potentially dangerous for the human body!
•In the case of liquid electrolyte batteries it is necessary to place the batteries in a well ventilated
room and not used for residential.
•Do not short circuit the batteries as this could cause an explosion and fire risk.
•Over-discharge of the batteries and / or high charging voltages can cause serious damage to the
batteries. Do not discharge / charge batteries beyond the limits recommended by the
manufacturer.
•The installation of the batteries and the Solar Eclipse adjustments are the sole responsibility of
authorized personnel.

14
3INSTALLATION
During installation and start up of Solar Eclipse, always refer to the guidelines and the safety instruction.
See Chapter 2 of this manual.
3.1 Unpacking
Apart from the Solar Eclipse, the box includes the following:
•n. 1 bracket;
•n. 1 grid power sensor;
•n. 2 grid power sensor connectors;
•n. 7 PG-9 clamp;
•n. 1 16 mm cap;
•n. 4 MC4 type solar connectors;
•n. 6 ring lug;
•n. 6 ring lug M6 screws;
•n. 1 ExtremeSpeed 6x32 mm 10 A FF spare fuse
Figure 3 –Accessories included
After unpacking the product, check for any damage. Do not use the product if it is damaged. In case of
doubt, contact your supplier.
3.2 Environment
During installation follow below instructions:
•Solar Eclipse is only suitable for indoor use
•Ambient temperature: -10 - 40° C.
•Humidity, non condensing: 0-95%.
•Mount the Solar Eclipse vertically on a stable surface, with the cables facing down.
•Ensure the hot air produced during operation discharge. The Solar Eclipse should be
mounted in such a way as not to prevent the blocking of the air flow through the ventilation
holes.
•Do not place any objects within a distance of 15 cm 25 cm laterally and vertically with
respect to Solar Eclipse.
•Do not place the Solar Eclipse in the same place with liquid electrolytes batteries.
•Do not install Solar Eclipse immediately above liquid electrolyte batteries, due to the risk of
corrosive vapors and explosives, in case these are to.
Figure 3 - Included accessories

15
3.3 Solar Eclipse fixing
To fix the Solar Eclipse, follow below instruction:
1Mark the two points for fixing the bracket on the wall using the two holes of the bracket itself,
taking into account the overall dimensions and the space needed for ventilation.
2Drill holes and secure the bracket with M6 bolts.
3Hook Solar Eclipse through the back hook to the bracket on the wall.
3.4 Solar Eclipse board wiring
CAUTION: Before removing the service door make sure you have disconnected Solar
Eclipse for at least 5 minutes to allow the internal parts to discharge to avoid risk of
electrocution.
Before starting the wiring make sure that:
• The PV modules are disconnetted from the inverter
• The inverter is electricity grid insulated
• The Solar Eclipse is insulated in relation to the inverter
• The battery pack is disconnetted
Proceed with the wiring as follows:
•Remove the service door (6) unscrewing the screws (5) see Figure 1
•Prepare the cables to connect to the inverter and the modules with lugs eyelet on one side and
MC4 solar connectors supplied on the other, remembering to insert the PG9
•Prepare the battery pack cables (solar photovoltaic double insulation cables can be used) with
ring terminals using a minimum section 4 mm cable remembering to insert the PG9.
The following table contains information for sizing the battery pack 48 V cables in mm2 depending
on the length:
48 V batteries pack
cables lenght
Up to 6 meters
Up to 12 meters
Over 12
meters
Cable section in
mm2
6 mm
10 mm
16 mm
Cable type
Double insulation
(solar PV cable can be used)
Double insulation
(solar PV cable can be
used)
Double
insulation
Table 2 –Battery pack cables size

16
NOTE: To prevent electromagnetic disturbances generated by power cables from generating
"bounced" voltage, current and frequency readings of the Power Meter, always wrap the
signal cables on dedicated cavities and appropriately separate, trying to avoid wiring lengths
greater than 100 meters.
NOTE: In the presence of electromagnetic disturbance, the voltage and frequency values
detected by the Power Meter could be "bumped" and this could cause the Solar Eclipse
"block" status, which detects network parameters outside the admitted range.
•Prepare the grid sensor wire with a three-pole
terminal using an UTP twisted pair cable or a
shielded STP twisted-pair cable with a minimum
0.25 mm square section (see image below).
WARNING: If the inverter has no isolating
transformer, double insulated signal cables
(double sheath in polyethylene) should be used
and do not ground any screen stocking.
•Use two pairs of twisted wires, making sure to connect the central PIN (O) to both pairs as shown
in figure 4. In the case of STP shielded cable, connect the braid to the central PIN (O),
remembering to insert the PG9 and note the color of the wires.
Figure 4 - Twisted-pair cable for Power Meter and house load sensors (Monitoring Kit)

17
Figure 5 - Power Meter and house load sensor connectors wiring
•Make sure the PV modules DC switch is open (see Figure 6)
•Connect the PV modules cables to the board (see Figure 7)
•Put a 32 A fuse box 32 A on the battery cables (see Figure 6)
•Verify that the battery switch is open (see Figure 6)
•Connect the battery pack cables to the Solar Eclipse board (see Figure 7)

18
Figure 6 - Power wiring scheme

19
CAUTION: Solar Eclipse is not protected against the DC power inputs polarity reversal.
•Connect the inverter to the board (see Figure 7)
•Connect the connector of the grid sensor (Power Meter) to the Solar Eclipse board (see Figure 7)
•Connect the house load sensor connector (if used)
•Close the service door (6) fastening the screws (5) see Figure 1
•Insert the MC4 connectors inverter side and PV modules
•Plug in MC4 inverter and pv mudules connectors
Figure 7 - Solar Eclipse wiring board

20
NOTE: The grid Power Meter must be traversed by the entire input and output current from
the exchange meter, then it should be installed immediately after the exchange meter
avoiding to have other power lines in parallel !!!
3.5 Grid-tied sensor installation and wiring
Install the Solar Eclipse grid Power Meter in the electrical panel or into the external panel, above the main
PV plant DC switch as shown in Figure 6 and wiring the connectors as shown in Figure 7. Protect the sensor
with a circuit 32A (max).
Figure 8 - Electrical panel wiring scheme
Installation can be made on DIN bar and it takes 4 modules.
