Pablo circa Instruction manual

CIRCA
ASSEMBLY & INSTALLATION INSTRUCTIONS
TABLE OF CONTENTS
pg. 2-5.............................................CIRCA TABLE
pg. 6-9............................................CIRCA FLOOR
pg. 10-13....................................CIRCA PEDESTAL
pg. 14-17............................................CIRCA WALL
pg. 18-21.....................................CIRCA PENDANT

CIRCA
TABLE
ASSEMBLY & INSTALLATION INSTRUCTIONS
pg. 2

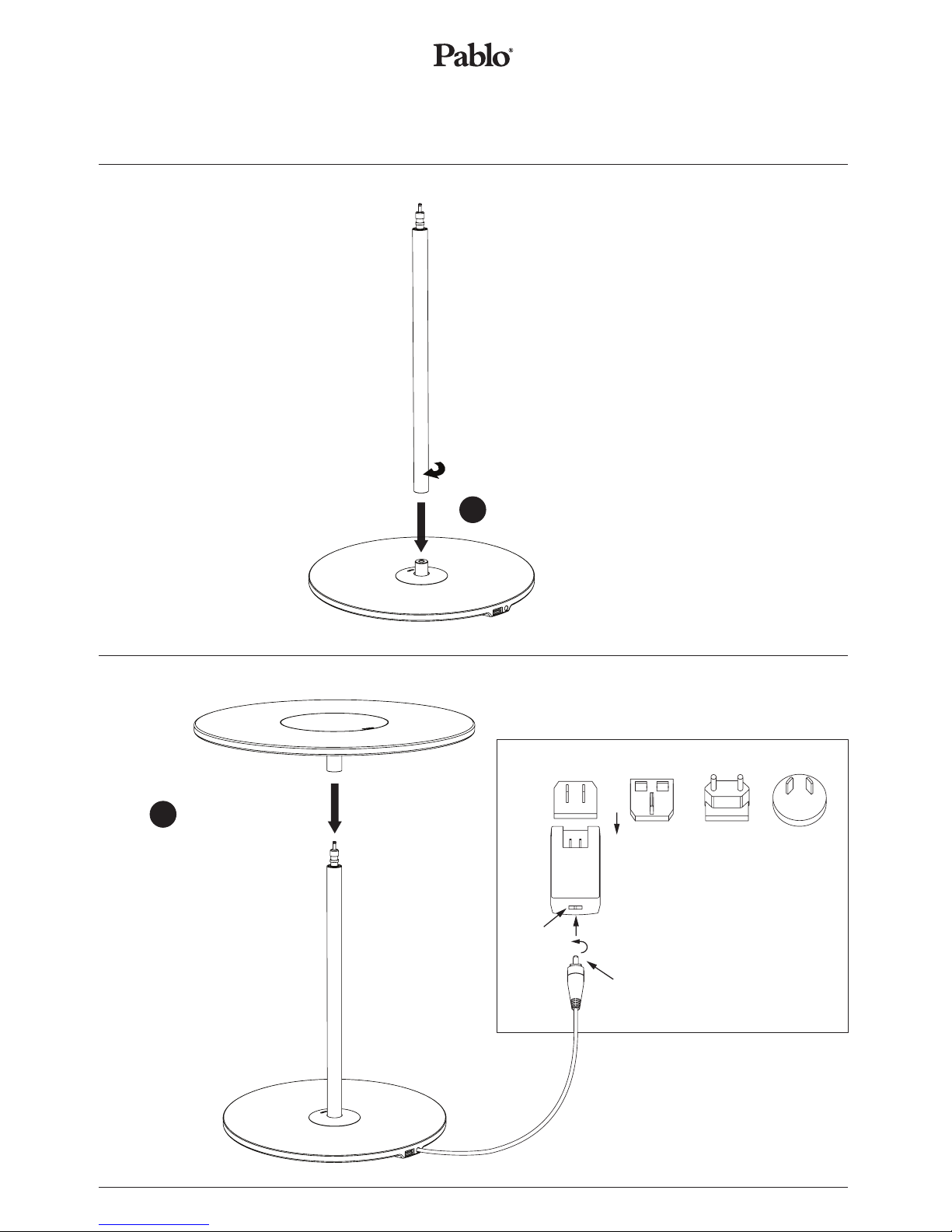

ASSEMBLY
CIRCA TABLE
pg. 3
SCREW STEM INTO BASE AS SHOWN
1
“CLICK” LAMP HEAD
INTO POSITION
2
CONNECTOR LOCK
A B CD
PLUG TYPES:
POWER
SUPPLY
LOCK
1. SLIDE PLUG INTO POWER SUPPLY
2. ALIGN CONNECTOR/POWER
SUPPLY LOCKING FEATURES
3. INSERT CONNECTOR
4. TURN CONNECTOR 90 DEGREES
TO LOCK
A. N AMERICA B. UK C. EU D. AU
NOTE: CONTACT MANUFACTURER FOR
ADDITIONAL PLUG TYPE REQUIREMENTS.

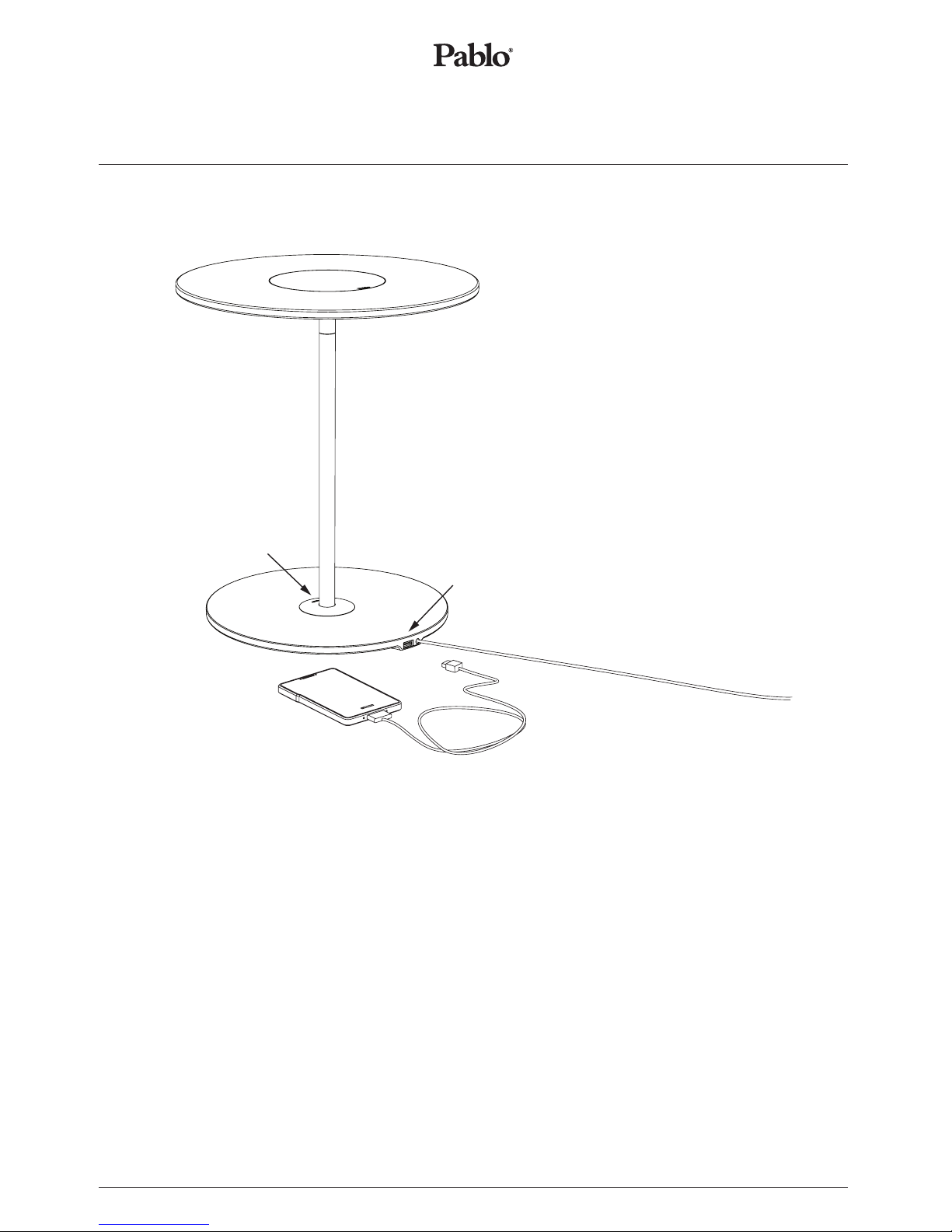

CIRCA TABLE SWITCH AND USB CHARGING
CIRCA TABLE
pg. 4
HIGHLIGHTS
SINGLE 5.0V USB OUTPUT SUPPORTS CHARGING FOR SMARTPHONES, TABLETS AND OTHER MOBILE DEVICES.
SPECIFICATIONS
USB 2.0 OR 1.1 STANDARD CORD REQUIRED (CORD NOT INCLUDED)
OUTPUT VOLTAGE: 5VDC + - 5%
OUTPUT CURRENT: 1A MAX
NOTE
CIRCA TABLE WILL CONTINUE TO CHARGE YOUR MOBILE DEVICE EVEN WHEN LAMP IS IN THE “OFF” POSITION.
PLEASE REFER TO YOUR MOBILE DEVICE’S USER MANUAL FOR COMPATIBILITY AND CHARGING TIME. PLEASE REFRAIN
FROM LEAVING YOUR DEVICE PLUGGED IN FOR LONGER THAN THE RECOMMENDED TIME, OTHERWISE IT MAY
RESULT IN OVER CHARGING.
PRESS AND HOLD OPTICAL SWITCH FOR 1.5 SECONDS TO TURN OFF. TAP BRIEFLY TO CYCLE THROUGH FOUR STAGES.
CARE INSTRUCTIONS
WIPE CLEAN WITH A SOFT DAMP CLOTH. AVOID AMMONIA-BASED CLEANERS.
FOUR-STAGE
OPTICAL SWITCH
USB CHARGING PORT

pg. 5
[e-mail]
888 MARIN STREET
SAN FRANCISCO, CA
94124
PABLODESIGNS.COM
CIRCA TABLE
ADJUSTMENT
360º
45º
TILT AND ROTATE LAMP HEAD AS DESIRED

CIRCA
FLOOR
ASSEMBLY & INSTALLATION INSTRUCTIONS
pg. 6
[e-mail]
888 MARIN STREET
SAN FRANCISCO, CA
94124
PABLODESIGNS.COM

ASSEMBLY
OPTIONAL ACCESSORY
CIRCA FLOOR
pg. 7
1
2
PEDESTAL FOR MOBILE DEVICES
SOLD SEPARATELY (SEE PEDESTAL
ASSEMBLY INSTRUCTIONS)
3
1. SCREW LOWER STEM INTO BASE
AS SHOWN
2. SCREW UPPER STEM INTO LOWER
STEM AS SHOWN
3. “CLICK” LAMP HEAD INTO POSITION

CIRCA FLOOR
pg. 8

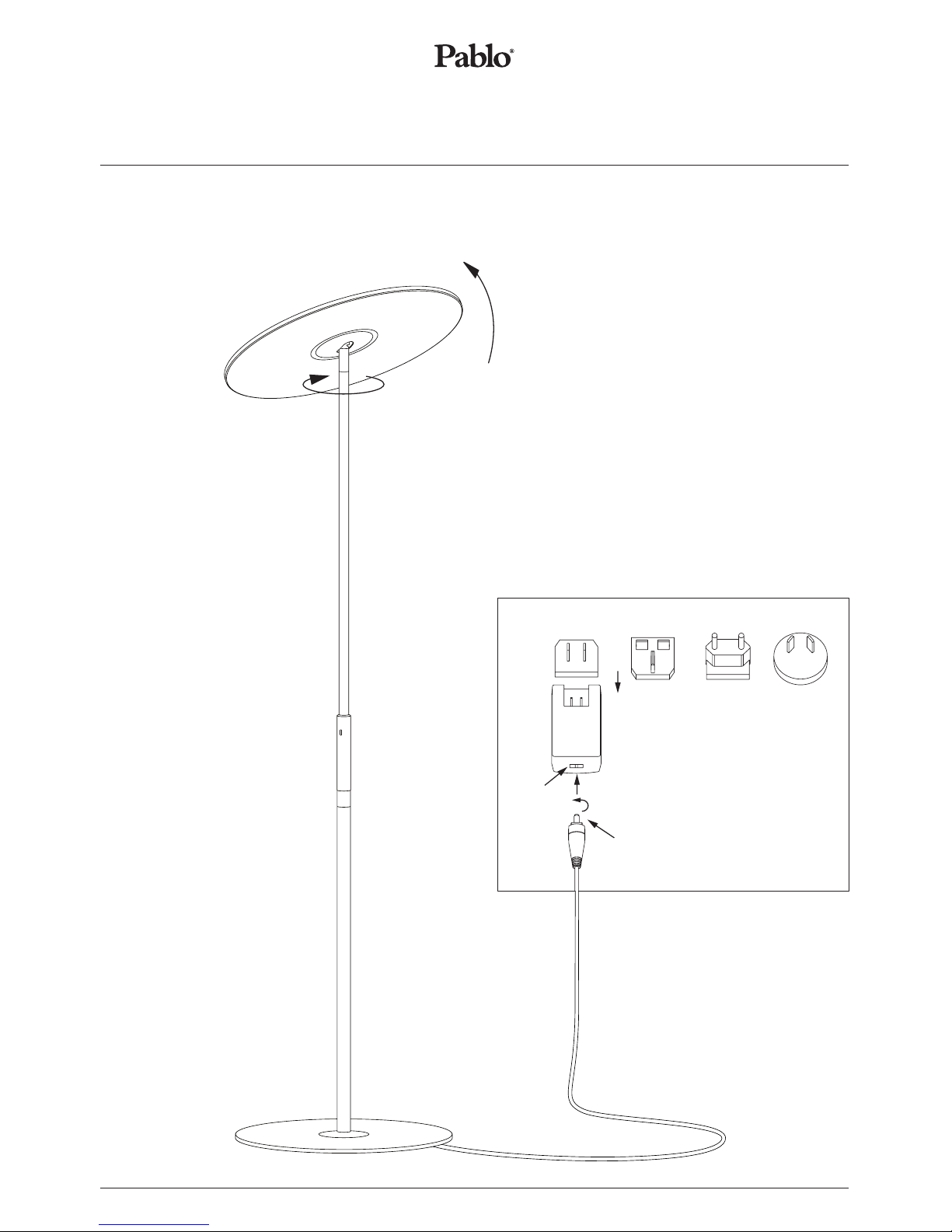

ADJUSTMENT
CONNECTOR LOCK
A B CD
PLUG TYPES:
POWER
SUPPLY
LOCK
1. SLIDE PLUG INTO POWER SUPPLY
2. ALIGN CONNECTOR/POWER
SUPPLY LOCKING FEATURES
3. INSERT CONNECTOR
4. TURN CONNECTOR 90 DEGREES
TO LOCK
A. N AMERICA B. UK C. EU D. AU
NOTE: CONTACT MANUFACTURER FOR
ADDITIONAL PLUG TYPE REQUIREMENTS.
360º
45º
TILT AND ROTATE LAMP HEAD AS DESIRED

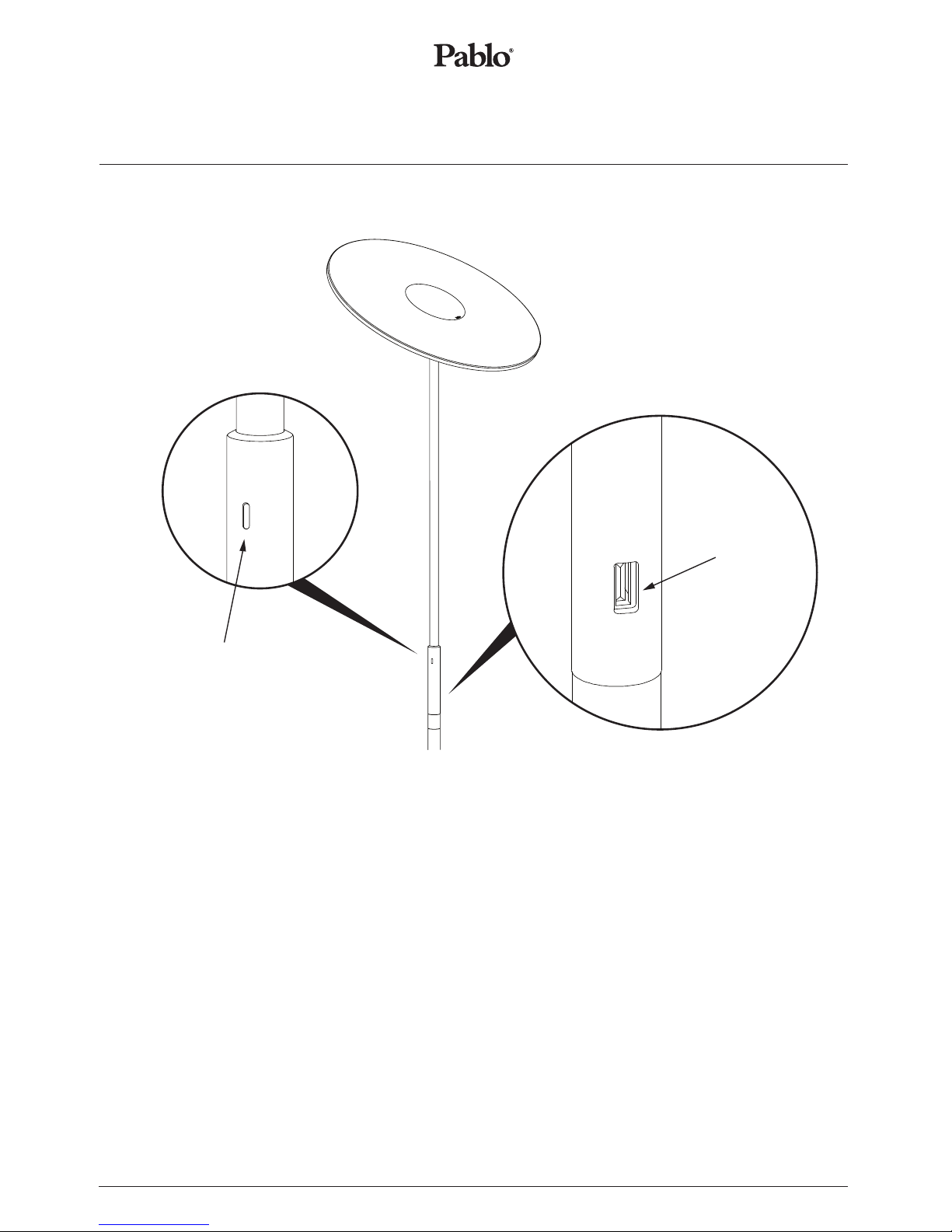

CIRCA FLOOR SWITCH AND USB CHARGING
pg. 9
CIRCA FLOOR
FOUR-STAGE
OPTICAL SWITCH
USB CHARGING PORT
HIGHLIGHTS
SINGLE 5.0V USB OUTPUT SUPPORTS CHARGING FOR SMARTPHONES, TABLETS AND OTHER MOBILE DEVICES.
SPECIFICATIONS
USB 2.0 OR 1.1 STANDARD CORD REQUIRED (CORD NOT INCLUDED)
OUTPUT VOLTAGE: 5VDC + - 5%
OUTPUT CURRENT: 1A MAX
NOTE
CIRCA FLOOR WILL CONTINUE TO CHARGE YOUR MOBILE DEVICE EVEN WHEN LAMP IS IN THE “OFF” POSITION.
PLEASE REFER TO YOUR MOBILE DEVICE’S USER MANUAL FOR COMPATIBILITY AND CHARGING TIME. PLEASE REFRAIN
FROM LEAVING YOUR DEVICE PLUGGED IN FOR LONGER THAN THE RECOMMENDED TIME, OTHERWISE IT MAY
RESULT IN OVER CHARGING.
PRESS AND HOLD OPTICAL SWITCH FOR 1.5 SECONDS TO TURN OFF. TAP BRIEFLY TO CYCLE THROUGH FOUR STAGES.
ACCESSORIES
OPTIONAL PEDESTAL FOR MOBILE DEVICES
CARE INSTRUCTIONS
WIPE CLEAN WITH A SOFT DAMP CLOTH. AVOID AMMONIA-BASED CLEANERS.

CIRCA
PEDESTAL
ASSEMBLY & INSTALLATION INSTRUCTIONS
pg. 10
[e-mail]
888 MARIN STREET
SAN FRANCISCO, CA
94124
PABLODESIGNS.COM

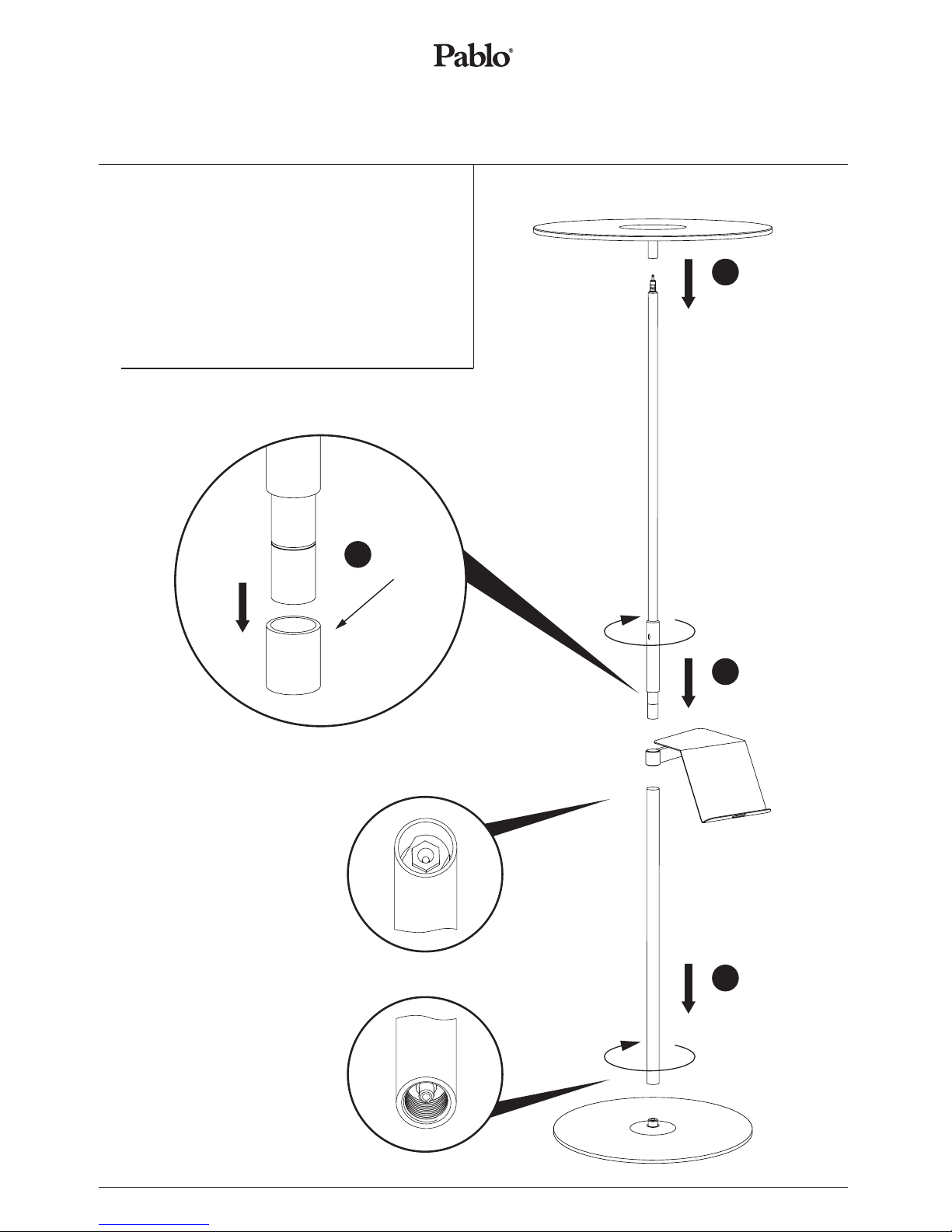

ASSEMBLY
CIRCA PEDESTAL
pg. 11
1
3
4
1. SCREW LOWER STEM INTO BASE AS SHOWN
2. REMOVE SPACER FROM UPPER STEM (PEDESTAL REPLACES
SPACER)
3. POSITION PEDESTAL BETWEEN UPPER AND LOWER STEM,
THEN SCREW TO TIGHTEN
4. “CLICK” LAMP HEAD INTO POSITION
REMOVE
SPACER
2

CIRCA PEDESTAL
pg. 12
ADJUSTMENT
ROTATE PEDESTAL
AS DESIRED
360º
360º
45º
TILT AND ROTATE LAMP HEAD AS DESIRED
CONNECTOR LOCK
A B CD
PLUG TYPES:
POWER
SUPPLY
LOCK
1. SLIDE PLUG INTO POWER SUPPLY
2. ALIGN CONNECTOR/POWER
SUPPLY LOCKING FEATURES
3. INSERT CONNECTOR
4. TURN CONNECTOR 90 DEGREES
TO LOCK
A. N AMERICA B. UK C. EU D. AU
NOTE: CONTACT MANUFACTURER FOR
ADDITIONAL PLUG TYPE REQUIREMENTS.

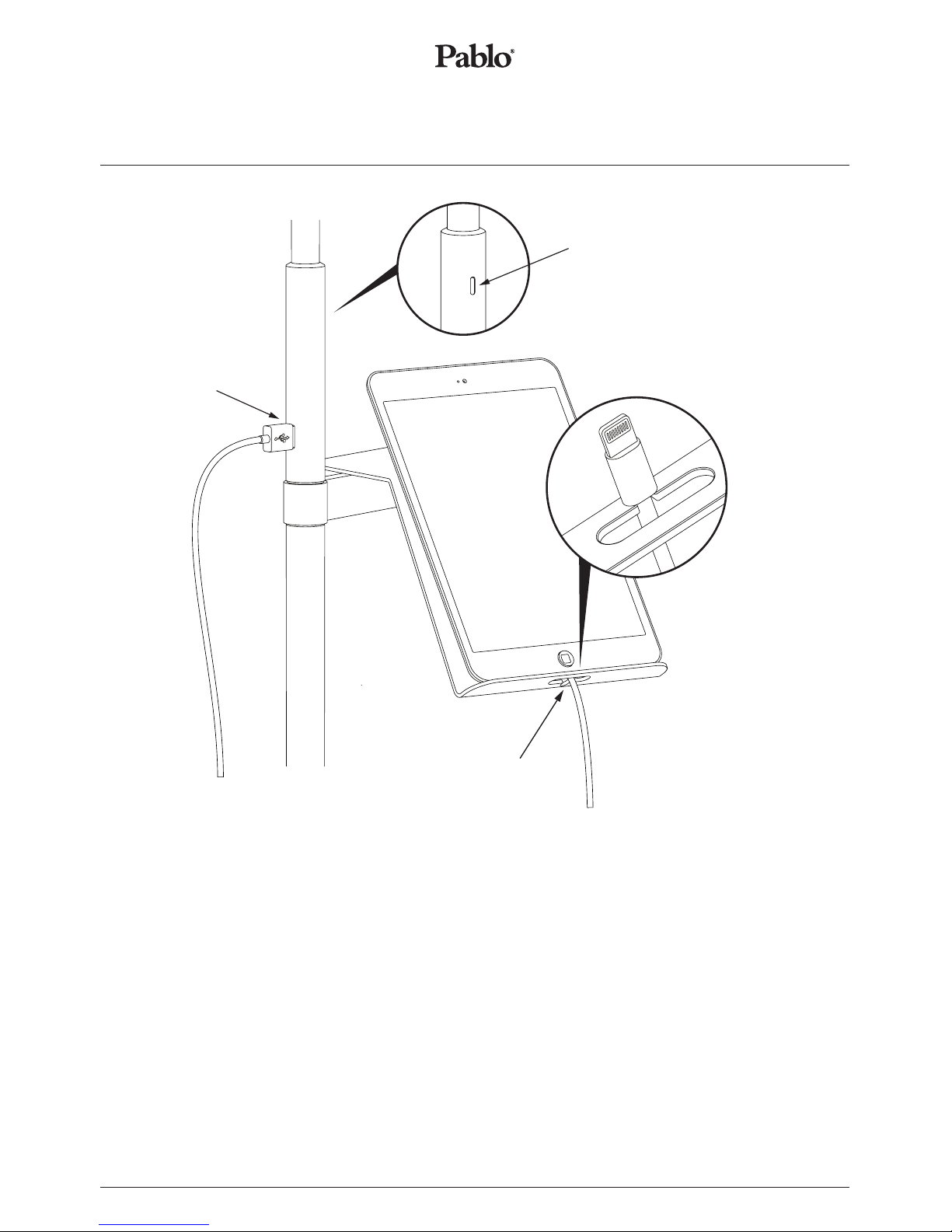

CIRCA FLOOR SWITCH AND USB CHARGING
pg. 13
CIRCA PEDESTAL
FOUR-STAGE
OPTICAL SWITCH
USB CHARGING PORT
HIGHLIGHTS
SINGLE 5.0V USB OUTPUT SUPPORTS CHARGING FOR SMARTPHONES, TABLETS AND OTHER MOBILE DEVICES.
SPECIFICATIONS
USB 2.0 OR 1.1 STANDARD CORD REQUIRED (CORD NOT INCLUDED)
OUTPUT VOLTAGE: 5VDC + - 5%
OUTPUT CURRENT: 1A MAX
NOTE
CIRCA PEDESTAL WILL CONTINUE TO CHARGE YOUR MOBILE DEVICE EVEN WHEN LAMP IS IN THE “OFF” POSITION.
PLEASE REFER TO YOUR MOBILE DEVICE’S USER MANUAL FOR COMPATIBILITY AND CHARGING TIME. PLEASE REFRAIN
FROM LEAVING YOUR DEVICE PLUGGED IN FOR LONGER THAN THE RECOMMENDED TIME, OTHERWISE IT MAY
RESULT IN OVER CHARGING.
PRESS AND HOLD OPTICAL SWITCH FOR 1.5 SECONDS TO TURN OFF. TAP BRIEFLY TO CYCLE THROUGH FOUR STAGES.
CARE INSTRUCTIONS
WIPE CLEAN WITH A SOFT DAMP CLOTH. AVOID AMMONIA-BASED CLEANERS.
CORD MANAGEMENT
SLOT
CORD
REST

CIRCA
WALL
ASSEMBLY & INSTALLATION INSTRUCTIONS
pg. 14
[e-mail]
888 MARIN STREET
SAN FRANCISCO, CA
94124
PABLODESIGNS.COM

CIRCA WALL
pg. 15
1

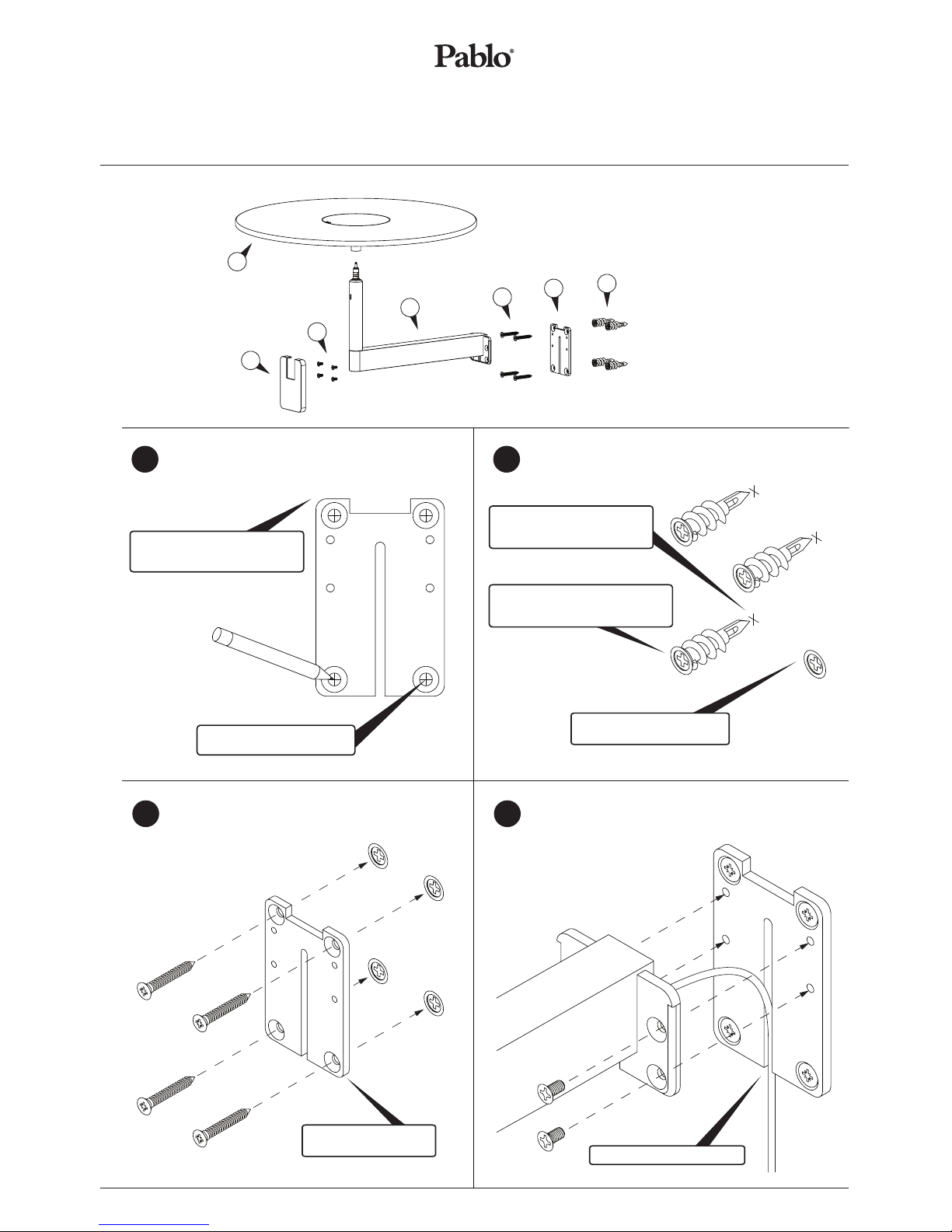

PARTS LIST
CIRCA WALL
ASSEMBLY INSTRUCTIONS
2
3SCREW LAMP ARM TO THE MOUNTING PLACE WITH
THE FOUR MACHINE SCREWS PROVIDED
4
USE THE MOUNTING PLATE AS A TEMPLATE FOR
MARKING THE LOCATION OF THE WALL ANCHORS
MARK THE CENTER OF ALL
FOUR HOLES AS SHOWN
PLACE THE MOUNTING PLATE
IN THE DESIRED LOCATION.
MAKE SURE TOP IS LEVEL
REMOVE THE PLATE FROM THE WALL AND INSTALL
ALL FOUR WALL ANCHORS
TAP THE UNTHREADED TIP
OF THE ANCHOR INTO THE
WALL
USE A PHILLIPS SCREWDRIVER
TO COMPLETE THE ANCHOR
INSTALLATION
THIS SURFACE SHOULD
BE FLUSH WITH THE WALL
NOTE ORIENTATION
OF MOUNTING PLATE ROUTE CORD AS SHOWN
SCREW THE MOUNTING PLATE TO THE ANCHORS
WITH THE SCREWS PROVIDED
A. LAMP HEAD
B. FACEPLATE
C. 4x MACHINE SCREWS
D. LAMP ARM
E. 4x SCREWS
F. MOUNTING PLATE
G. 4x WALL ANCHORS
A
F
EG
B
C
D

CIRCA WALL
pg. 16
ASSEMBLY
CIRCA WALL
ASSEMBLY INSTRUCTIONS
5PRESS FACEPLATE ONTO
WALL MOUNT UNTIL FLUSH
WITH WALL
6“CLICK” LAMP HEAD
INTO POSITION
CONNECTOR LOCK
A B CD
PLUG TYPES:
POWER
SUPPLY
LOCK
1. SLIDE PLUG INTO POWER SUPPLY
2. ALIGN CONNECTOR/POWER
SUPPLY LOCKING FEATURES
3. INSERT CONNECTOR
4. TURN CONNECTOR 90 DEGREES
TO LOCK
A. N AMERICA B. UK C. EU D. AU
NOTE: CONTACT MANUFACTURER FOR
ADDITIONAL PLUG TYPE REQUIREMENTS.

CIRCA WALL SWITCH AND USB CHARGING
pg. 17
CIRCA WALL
USB CHARGING PORT
HIGHLIGHTS
SINGLE 5.0V USB OUTPUT SUPPORTS CHARGING FOR SMARTPHONES, TABLETS AND OTHER MOBILE DEVICES.
SPECIFICATIONS
USB 2.0 OR 1.1 STANDARD CORD REQUIRED (CORD NOT INCLUDED)
OUTPUT VOLTAGE: 5VDC + - 5%
OUTPUT CURRENT: 1A MAX
NOTE
CIRCA WALL WILL CONTINUE TO CHARGE YOUR MOBILE DEVICE EVEN WHEN LAMP IS IN THE “OFF” POSITION.
PLEASE REFER TO YOUR MOBILE DEVICE’S USER MANUAL FOR COMPATIBILITY AND CHARGING TIME. PLEASE REFRAIN
FROM LEAVING YOUR DEVICE PLUGGED IN FOR LONGER THAN THE RECOMMENDED TIME, OTHERWISE IT MAY
RESULT IN OVER CHARGING.
PRESS AND HOLD OPTICAL SWITCH FOR 1.5 SECONDS TO TURN OFF. TAP BRIEFLY TO CYCLE THROUGH FOUR STAGES.
CARE INSTRUCTIONS
WIPE CLEAN WITH A SOFT DAMP CLOTH. AVOID AMMONIA-BASED CLEANERS.
360º
45º
TILT AND ROTATE LAMP HEAD AS DESIRED
FOUR-STAGE
OPTICAL SWITCH

CIRCA
PENDANT
120V / 220V ASSEMBLY & INSTALLATION INSTRUCTIONS
pg. 18
[e-mail]
888 MARIN STREET
SAN FRANCISCO, CA
94124
PABLODESIGNS.COM

CIRCA PENDANT
pg. 19
1
CIRCA PENDANT
ASSEMBLY INSTRUCTIONS
2
3
NOTE: IF JUNCTION BOX IS NOT LOCATED IN THE DESIRED
POSITION FOR CIRCA PENDANT, SEE BACK PAGE FOR SWAG
MOUNT INSTALLATION
IMPORTANT: WE RECOMMEND FIXTURE BE INSTALLED BY AN ELECTRICIAN
ADD 3
INCHES
(7.6 CM)
FOR
WIRING
BEFORE CUTTING, WRAP CORD
WITH ELECTRICAL TAPE TO PREVENT
THE FABRIC SLEEVE FROM FRAYING
USE FLAT HEAD
SCREWDRIVER
TO SET STRAIN
RELIEF
ROUTE BUILDING WIRING THROUGH MOUNTING
PLATE, THEN ATTACH PLATE TO JUNCTION BOX
CUT FIXTURE CORD TO DESIRED LENGTH, ADDING
AN ADDITIONAL 3 INCHES (7.6 CM) FOR WIRING
ROUTE FIXTURE AND BUILDING CORDS AS SHOWN,
THEN PULL CIRCA PENDANT TO DESIRED HEIGHT
AND SET STRAIN RELIEF

CIRCA PENDANT
pg. 20
CIRCA PENDANT
ASSEMBLY INSTRUCTIONS
6
4

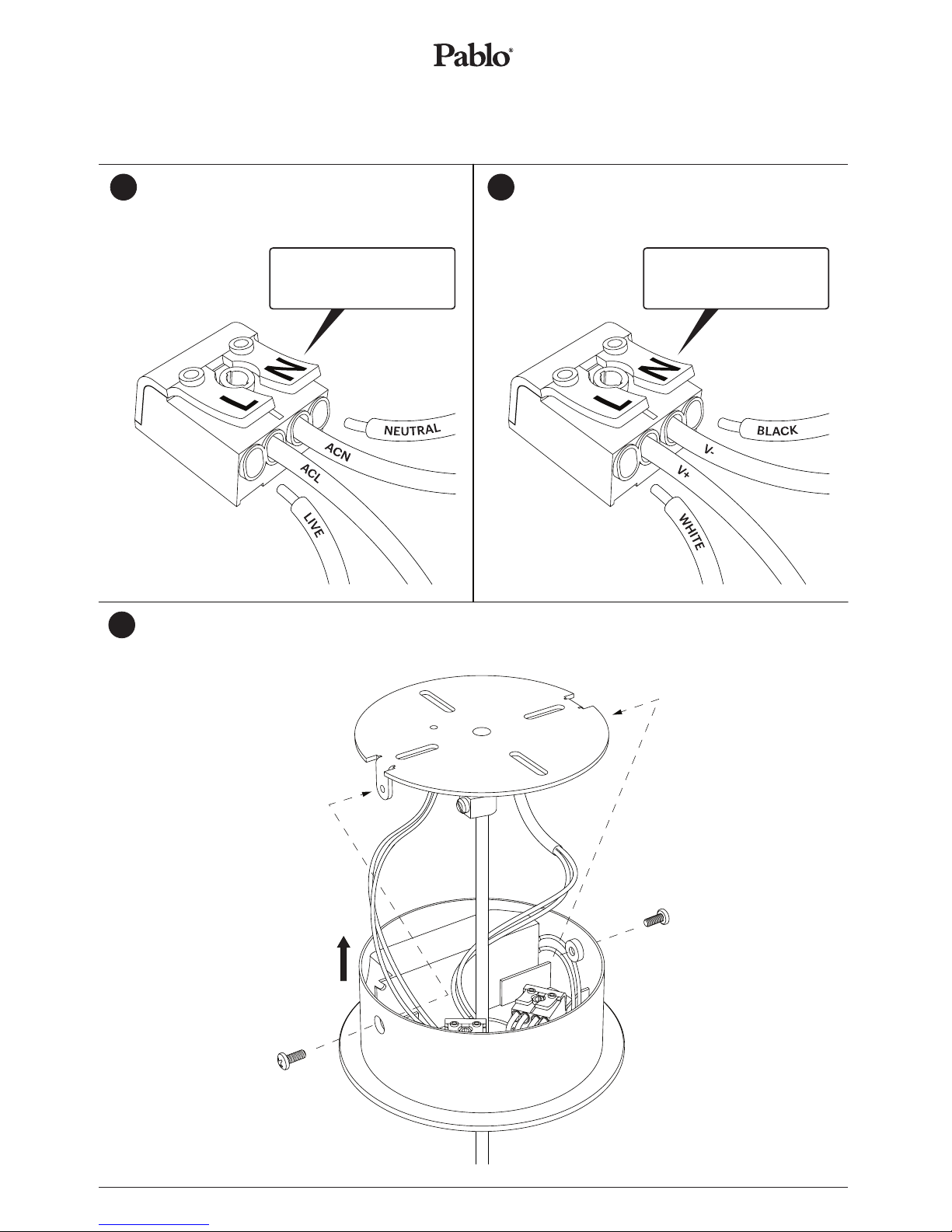

PUSH DOWN TAB AND INSERT
WIRES INTO HOLES AS SHOWN
THEN RELEASE TAB TO LOCK
WIRES INTO POSITION
PUSH DOWN TAB AND INSERT
WIRES INTO HOLES AS SHOWN
THEN RELEASE TAB TO LOCK
WIRES INTO POSITION
CONNECT BUILDING WIRING INTO 2 POLE CONNECTOR
AS SHOWN. REFER TO SPECIFICATION LABEL ON
TRANSFORMER
CONNECT FIXTURE WIRING INTO OTHER 2 POLE
CONNECTOR AS SHOWN. REFER TO SPECIFICATION
LABEL ON TRANSFORMER
5
TUCK WIRES AND POLE CONNECTIONS INTO CANOPY COVER, THEN SLIDE COVER PLATE UP TO CEILING AND SECURE
WITH SUPPLIED SCREWS
