PABX MS308 User manual

1
PABX MS308
www.call-connect.co.uk

2
TABLE OF CONTENTS Page
1. Introduction and Features 3
2. Installation & Connection 4
3. System Programming 6
3.2.1 Enter in to the System Programming Status 7
3.2.2 Flash Time Setting 7
3.2.3 Return the PABX to its Default Settings 7
3.3 Enable/Disable C.O. Lines 8
3.4 System Mode 9
3.5 Outgoing Message (OGM) 10
3.6 Hold Music 10
3.7 Setting Phones So They Ring for Incoming Calls 11
3.8 Auto-Attendant (AA) Mode Options 12
3.9 Dialling-Out Mode 12
3.10 Call Barring 13
3.13 Call Duration 16
3.14 CO Line Allow/Restrict 17
3.15 Change Extension Numbers 18
3.16 Abbreviated Dialling Central Memory 19
3.17 Extension Groups 20
4. Timers 20
5. Default Settings 21
6. Extension user Guide 22-27

3
1. Introduction & Features
1.1 Introduction
With the design and manufacture in accordance with G.712 and G.732 protocols of CCITT, the system
integrates features of various Key Telephone Systems with advanced functions of PABX’s. It has a unique
advantage in innovation with approximately 50 powerful functions for business and management, allowing for
a wide application in offices, enterprises, hotels etc. It is the ideal equipment for users to improve work
efficiency.
1.2 Features
1. Combining top-quality elements of system hardware to ISO 9000 standard with excellent circuit design -
a complete system of advanced technology and high integration.
2. Programming can be made via a regular phone.
3. Standard functions:
•Call Hold
•Call Pick up
•Call Transfer
•Music on hold (internal and external)
•Three Way Conference (internal and external)
•Call Forwarding (internal)
•Auto Attendant (AA) or Operator Mode
•Outgoing AA Message Recording 20 seconds
•Operator Setting
•Call Barring
•Do Not Disturb
•Call All Extensions
•Ringing Identify (internal)
•Flash (Hold) Time Programmable
•Call Duration Control
•Change Extension Numbering
•Assign Ringing Extensions
•Choice of Dialing-out Mode
•Priority Access and Monitoring
•Special Call out Number
•Extension Groups
•C.O. Line Caller ID (subscription service)
•C.O. Line Reservation
•C.O. Line Group (Assign Ext. to C.O.)
•Direct Access to C.O lines during Power Fail
•Memory Protection during Power Fail

4
2. Installation & Connection

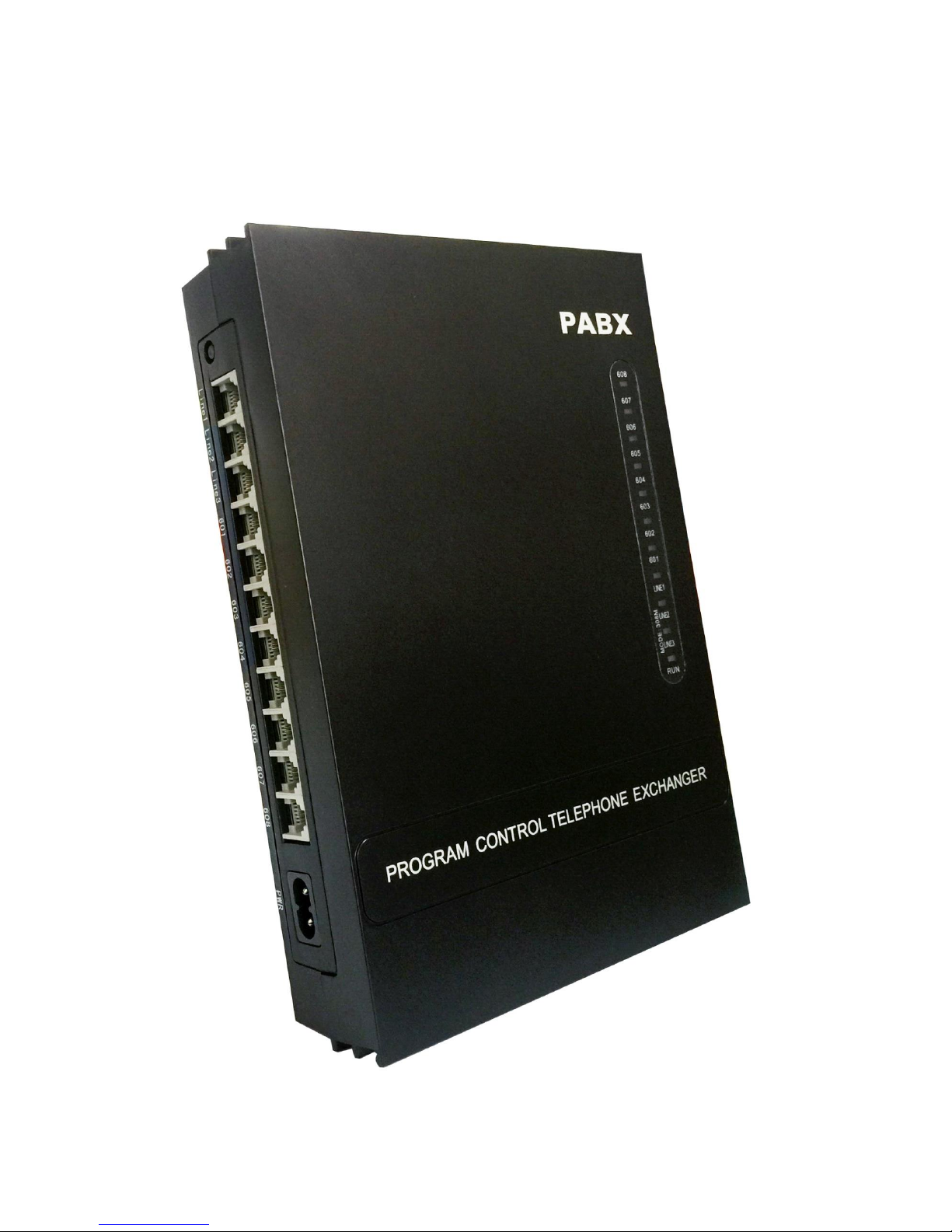

2.1 System Appearance

5
Connect your external music source to the Music socket using the supplied cable - the
system will automatically switch to external music. If you want to use internal music
disconnect the external music source otherwise there will be no music.
2.2 Technical Parameters
Power Supply Voltage ---------------- AC 220V or AC 110V, 50-60Hz
Power Dissipation ---------------------- ≤30VA
Exchange Mechanism----------------- Analog spatial division
Type of Telephone-----------------------Dual Tone Multi-Frequency
Communications Lines-----------------7
IC Power Supply ------------------------ ±5V
Distortion ---------------------------------≤10%
Ringing Voltage ------------------------- AC 70V±10% 50HZ
Crosstalk Attenuation -----------------70 dB
Transmission Loss---------------------- 0.37 dB
2.3 Attention
Please pay attention to the following important items:
1. The PABX should be installed in a stable indoor place within a dry, ventilated environment. (Temperature
Range: 0-45, Humidity Range: 20%-80%. Avoid direct sunlight and flammable or caustic gas.) Use specialist
telephone cable to each phone socket.
2. A marginal space around the PABX should be allowed for heat dissipation, inspection and maintenance of the
system. The earth connection on the PABX protects against lightning strike and C.O. line noise.
3. Mount the unit on the wall. When wall-mounting the unit, avoid any contact between screws and the circuit
board inside the mainframe.
4. Please keep the PABX away from other equipment producing large electromagnetic disturbances (such as
motors, photo copiers, large transformers etc.).
5. Extensions should not be wired adjacent to any power supplies or antennas.
6. Avoid damaging the power-supply cable. Keep it away from water. If there is a water leak near the PABX turn
off the power immediately.
7. Please do not knock or shake the PABX in any situation. Do not dismantle the PABX whilst it is in operation.
2.4 Warning
1. The wiring should not be done during a thunderstorm.
2. Avoid using any telephone during a thunderstorm.
3. Please do not use any telephone where flammable or leaking gas is present.
4. Unless the equipment is disconnected, please do not touch any broken part of the extension wiring.
Notes: Lightning strike is an accident, which is not covered in your warranty.
C.O. Line means Central Office Line which is a term used for a BT (or other) line.

6
2.5 Installation Procedure
2.5.1 Connecting C.O. Lines & Extensions to the unit:
1. Please use any cables (optional) to connect BT C.O. lines and extensions separately.
2. If you are installing or using your own cabling, avoid short circuits.
3. Connect extensions to positions 601-608 and BT lines to LINE 1, 2 and 3 on the unit.
2.5.2 Power-on inspection:
1. The operation voltage of this product is AC220V or AC110V. In the UK, use the supplied power lead to
plug into the mains electricity.
2. A green flashing light on the PABX indicates normal power supply and operation of the unit.
3. Pick up the handset of extension 601. A sharper internal dial tone indicates that the system is
working normally. You can now start to setup the PABX.
2.6 Direct Access during Power Failure
The C.O. lines will be connected directly to Special Extensions automatically during power failure.
The No.1 C.O. line will be connected to Ext. 601, No.2 to Ext.602 and No.3 to Ext.603.
You can only use these three extensions as normal phones during power failure.
For example, when someone calls in on No.1 C.O. line at the time of a power failure, Ext.601 will ring - you
can only pick up Ext. 601 and talk with the caller. Hold and transfer features etc. will not work.
3. System Programming
3.1 Before programming
•All the programming must be carried out from the phone connected to extension 601; all the
programming must be carried out after the system is in programming status.
•All the phones connected to 601-608 must be dual tone multi-frequency.
•Enter a program instruction and end the process by simply pressing #. You don’t have to hang up
if something wrong occurs, you can press * to start again.
•If the programming extension 601 is set to Direct-Dialing-Out mode, you need to press * to enter
the internal system, before you can start programming.
•When the setting is finished, a long beep indicates that the setting is done correctly and saved in
the system. If instead an array of short chirps is heard, that would indicate an error occurred in
the setting. You need to check it out and reset the system. It is only after the end of the long beeps
that you can continue with another system operation.

7
How to Program
As per instruction 3.2.1 below, you must first enter System Programming Status, before you can begin to
program the PABX.
3.2 Basic Command
3.2.1 Enter in to the System Programming Status
Format: # * EFGH (where EFGH is the password “0000”)
Example: To program the system, pick up your phone and dial # * 0000.
1. For programming, use the telephone connected to EXT. 601 on the PABX.
2. You are required to dial: * # * if you are using the Direct-Dialing-Out mode.
3. In default setting the PABX is in Indirect-Dialing-Out mode.
3.2.1a Change the Password
Format: 09EFGH# (where EFGH is the new system password)
Example: Change the existing password from “0000” to “1234”: Press 091234#
3.2.2 Flash Time Setting
Format: 00F #
F=1 ---------0.8s
F=2 ---------1.0s
F=3 ---------1.2s
F=4 ---------1.5s
F=5 ---------1.8s
Explanation: F means the flash time.
Description: If you are unable to transfer calls within your office using the Flash, Recall or “R” button
on your phone, change the flash time as above.
In default setting: F=2 (1.0s)
3.2.3 Return the PABX to its Default Setting
Format: 0000 #
Description: The system will restart with the default factory setting.
This program command will not “Enable C.O. Lines”.

8
3.3 Enable/Disable C.O. Lines
After you use program 0000# above you must use the following commands to enter the number of
actual BT (or other) C. O. lines connected to the PABX before using this product!
If you do not enable any C.O. lines, the system will think there are no lines –it will not auto-detect
the lines!
3.3.1 Enable All C.O. Lines
Format: 0600#
Description: Enable all C.O. lines
Default setting: All lines are disabled

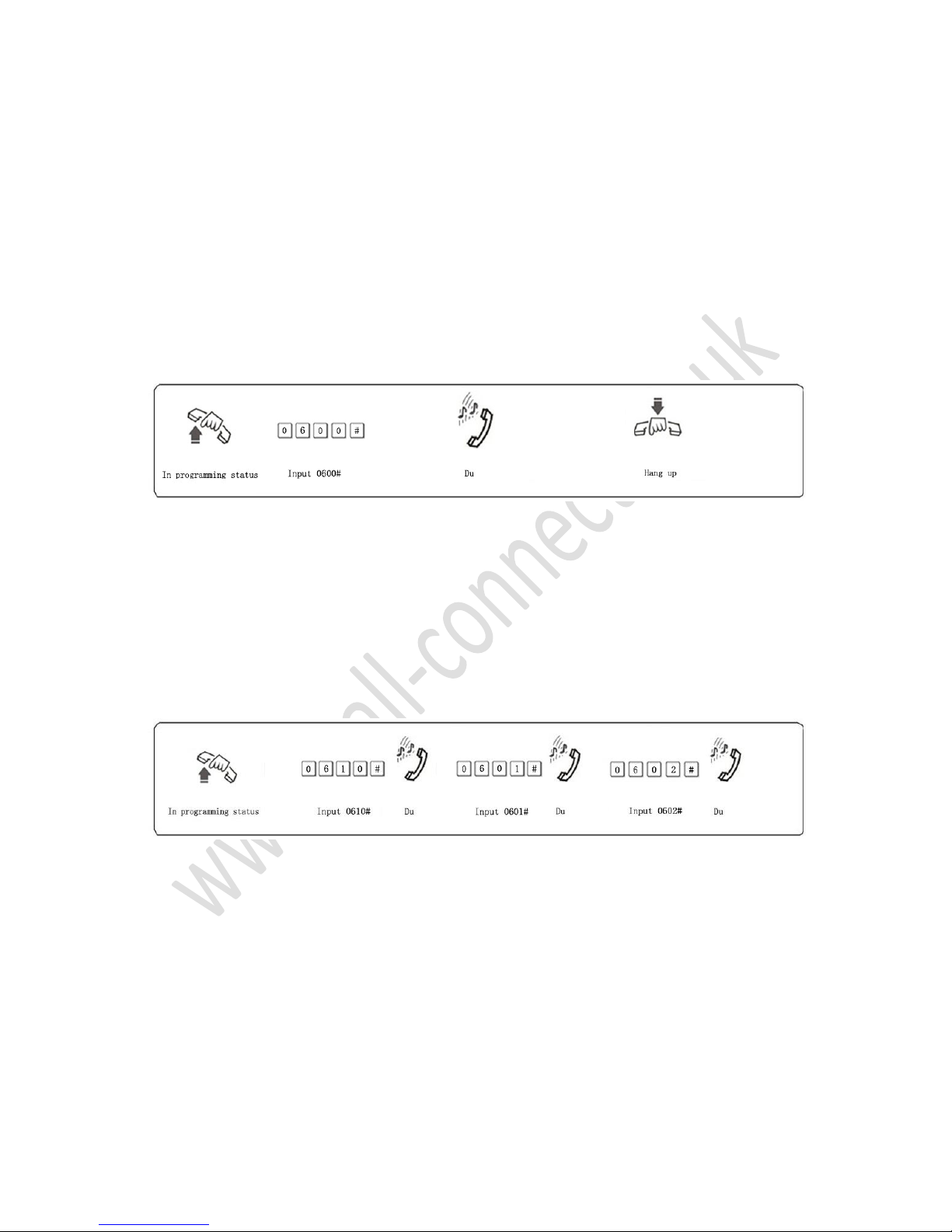

3.3.2 Enable Specific C.O. Lines
Format: 060M#
Explanation: Where M = the C.O. line number (either 1, 2, 3 or 4)
Description: Enable a specific C.O. line
Example: You want to enable C.O. line 1 and C.O. line 2; line 3 is not in use
3.3.3 Disable All C.O. Lines
Format: 0610#
Description: Disable all C.O. lines
3.3.4 Disable Specific C.O. Lines
Format: 061M#
Explanation: Where M = the C.O. line number (either 1, 2, 3 or 4)
Description: Disable a specific C.O. line

9
3.4 System Mode
The C.O. lines can be set to Auto-Attendant (AA) or Operator Mode or a mixture of both. In default
the system is set to Operator Mode for all C.O. lines.
3.4.1 Setting Auto-Attendant (AA) Mode for All C.O. Lines
Format: 1 0 #
Description: Places all the C.O. lines into Auto-Attendant (AA) mode. In this mode, a caller will hear your
recorded message (e.g. “Press 601 for Sales, 602 for Accounts, 603 for Technical”) and can dial in
directly to an extension (station) number - this is known as DISA.
1. If the caller doesn’t know the extension number, they can dial “0” for the Supervisor.
2. You MUST record your Outgoing Message (OGM) for this mode to work correctly.
3.4.2 Setting Auto-Attendant (AA) Mode for a Specific C.O. line
Format: 10M #
Explanation: Where M = C.O. line number (either 1, 2, 3 or 4)
Description: Places specific C.O. lines into Auto-Attendant mode
Example: Place C.O. line 1 into Operator mode; C.O. line 2 and 3 into Auto-Attendant mode
1. If the caller doesn’t know the extension number, they can dial “0” for the Supervisor.
2. You MUST record your Outgoing Message (OGM) for this mode to work correctly.
3.4.3 Setting Operator Mode for All C.O. Lines
Format: 11#
Description: Places all the C.O. lines into Operator mode. In this mode, the Operator extensions will ring
when an incoming call is received.
3.4.4 Setting Operator Mode for a Specific C.O. line
Format: 11M#

10
Explanation: Where M = C.O. line number (either 1, 2, 3 or 4)
Description: Places specific C.O. lines into Operator mode

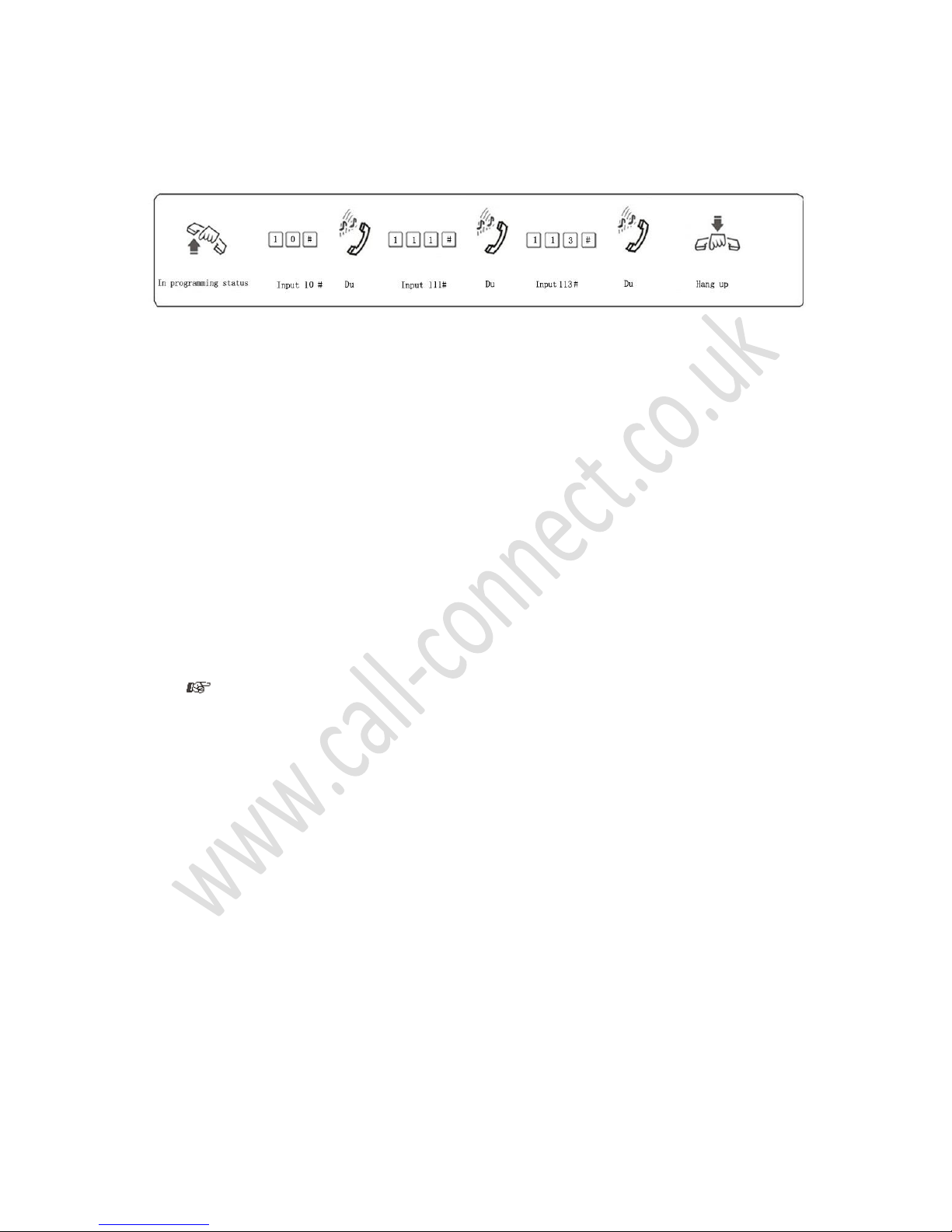

Example: Place C.O. line 1 and 3 into Operator mode, C.O. line 2 into Auto-Attendant mode
3.4.5 Enable / Disable OGM Fast Dialing Function
Format: 1546# Cancel AA fast dialing function (default setting)
1547# Set AA fast dialing function
Description: When enabled instead of callers having to dial the full ext number, allows them to Dial 1
for ext 601, dial 2 for ext 602, dial 3 for ext 603 and so on up to dial 8 for ext 608
3.5 Outgoing Message (OGM)
3.5.2 OGM Recording
Format: 1200 #
Description: Set OGM to allow one paragraph up to 20 seconds in length recording time
Record your message e.g. Press ‘601’ for Sales, ‘602’ for Accts - for use in AA Mode.
Initially the extension numbers are 601-608 so these will be the numbers the caller must press to get
to a department.
If you want to have “Press 1” for Sales, “2” for Accts then you must see section 3.4.5 above.
1. The recording time is a maximum of 20 seconds
2. A new message will overwrite the old one
3. Please use a high-quality telephone to ensure a high- quality recording
4. If a caller starts dialing an extension number before the system finishes playing your OGM, the
system will terminate playing the OGM and wait for the caller to complete dialing
5. If a caller dials ‘0’ they will be connected to the extension set as “Supervisor”

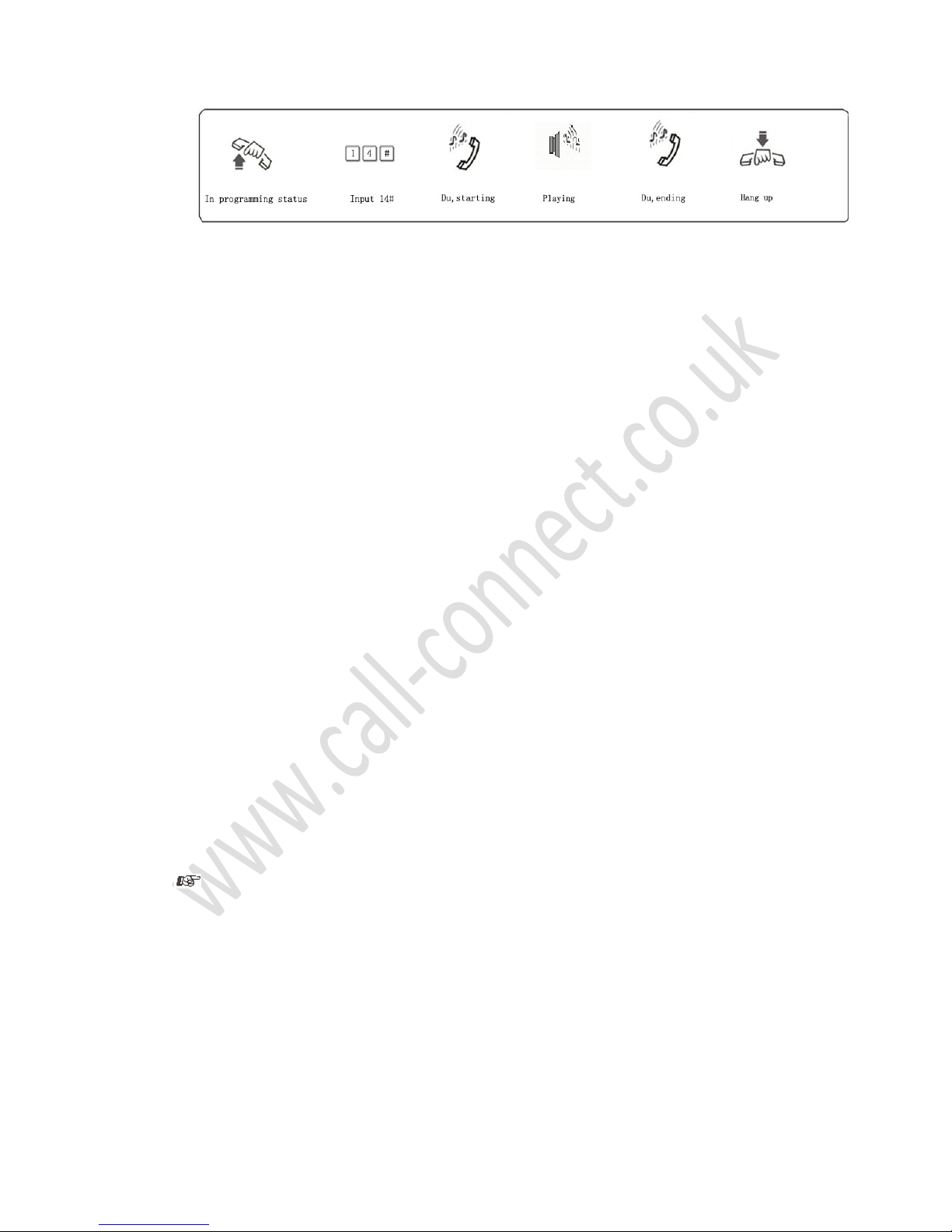

3.5.3 Checking your OGM
Format: 1300 #
Description: Listen to the OGM you have recorded. If you are not satisfied you can record it again.
3.6 Hold Music
Format: 14 #
Description: Listen to the internal tune that the system plays to your customers whilst they are on hold.

11
3.7 Setting Phones So That They Ring For Incoming Calls
3.7.1 Allow Specific Phones to Ring on Incoming Calls
Format: 30MN0#
Explanation: Where M = the C.O. line number (either 1, 2, 3 ); N = the extension number (from 1-8)
Description: If the C.O. lines are in Operator Mode you can set which phones will ring for incoming calls.
All phones that you set will ring almost simultaneously. Up to 8 can ring in this way.
Default setting: Extensions 601 and 602 only will ring for all incoming calls on C.O. lines 1, 2 and 3.
3.7.2 Stop Specific Phones Ringing on Incoming Calls
Format: 30MN1#
Description: Disables settings as per 3.7.2
3.7.3 Stop All Phones Ringing on a Specific C.O. Line
Format: 30M#
Explanation: Where M = the C.O. line number (either 1, 2, 3 )
Description: If a C.O. line is in Operator Mode you can turn the ringing off for all phones on incoming
calls.
3.7.4 Sequential Ringing
Format: 381# to set sequential ringing mode; 380# to set simultaneous mode (default).
499TT# to set ringing time for sequential mode (in units of 1 second; default is 10s)
Description: If the C.O. Line is in Operator Mode and you set to sequential ringing, when there is an
incoming call each extension will ring one by one.
1. The programs in 3.7 are only applicable to incoming calls for C.O. lines in Operator Mode.
2. Extensions not set to ring for an incoming call will still ring for Intercom Calls and Call Transfer.
3.7.5 Call Waiting Tone (Operator Mode Only)
Format: 1880#
Description: When a caller rings in and all the phones designated to ring are busy, you will hear a call
waiting beep every 5 seconds in your earpiece. This is default.
Format: 1881#

12
Description: When a caller rings in and all the phones designated to ring are busy, instead of sending
the call waiting beep, the system will find the first idle extension between 601 and 616 in sequence and
ring it.
3.8 Auto-Attendant (AA) Mode Options
Setting the Supervisor Extension
Format: 15N #
Explanation: Where N = the extension number (from 1-8*)
Description: If the C.O. lines are in Auto Attendant (AA) Mode and a caller dials “0” after listening to
your OGM they will ring the Supervisor. In the default setting, extension 602 is the Supervisor.
*1 = extension 601
2 = extension 602
3 = extension 603 and so on
3.8.1 Cut off C.O. Line
Format: 160 #
Description: In Auto-Attendant mode, if the incoming caller hears your outgoing message (OGM) Press
‘1’ for Sales, ‘2’ for Accts etc. but does not select an option (does nothing) for 5 seconds, then the C.O.
line will be cut off.
Default setting: The C.O. line will be cut off if the incoming caller does not select an option.
3.8.2 Transfer to Supervisor
Format: 161 #
Description: In Auto-Attendant mode, if the incoming caller hears your outgoing message (OGM) Press
‘1’ for Sales, ‘2’ for Accts etc. but does not select an option (does nothing) for 5 seconds, then the C.O.
line will be transferred to the Supervisor.
3.8.3 Called Extension Busy Process
Format: 1650 #
Description: A call to a busy extension will be transferred to the Operator rather than being cut off.
3.8.4 Called Extension No Answer Process
Format: 1660 #
Description: A call to an extension that does not answer will be transferred to the Operator, not cut off.
3.8.5 Incoming External Callers Hear OGM Whilst System Simultaneously Rings an Extension Group
Description: In Auto-Attendant mode, your callers can listen to your OGM and at the same time the
phones will ring (they do not have to choose an option).
For example, your OGM could say: “Welcome to ABC Company, your call is in a queue and will be
answered shortly”. Whilst they listen to this OGM the phones will be ringing at the same time.
Format: 167 #
Description: Disable this feature. This is default.

13
Format: 1670#
Description: Enable first and second operator extensions to ring
Format: 167 G # (where G is extension group number 1 or 2)
Description: Enable this feature and the ringing phones will be all members of the extension group (see
3.17)
3.9 Dialing-out Mode
3.9.1 Set Indirect-Dialing-Out Mode for All Extensions
Format: 21#:
Description: Choose this option if all phones should dial ‘9’ for an outside line
3.9.2 Set Indirect-Dialing-Out Mode for Specific Extensions
Format: 2M1#
Explanation: Where M = the extension number (from 1-8)
Description: Choose this option if a specific phone should dial ‘9’ for an outside line
Example: To set Indirect-Dialing-Out Mode for extension 608:
Press 281#
In default all phones are set to Indirect-Dialing-Out Mode
3.9.3 Set Direct-Dialing-Out Mode for All Extensions
Format: 20#
Description: Choose this option if all extensions should access an outside line on lifting their phone
3.9.4 Set Direct-Dialing-Out Mode for Specific Extensions
Format: 2M0#
Explanation: Where M = the extension number (from 1-8)
Description: Choose this option if a specific extension should access an outside line on lifting their
phone
Example: Set Direct-Dialing-Out Mode for extension 607:
Press 270#
In Direct-Dialing-Out Mode, extensions wishing to make an Intercom call should dial * before
the 3-digit extension number. There is no need to dial ‘9’before making an outgoing call.

14
3.10 Call Barring
3.10.1 Class Assignment for All Extensions
Format: 40 L#
Explanation: Where L = the class number (0-6)
Description: Assign a dialing-out class for all extensions
L=1: no restriction
L=2: all calls allowed except International
L=3: all calls allowed except long-distance dialing
L=4: calls are restricted to numbers in Item A
L=5: calls are restricted to numbers in Item B
L=6: intercom calls only
L=0: special calling numbers only
Example: Assign the dialing-out class 3 for all extensions.
1. In default the dialing-out class for all extensions is 2 which means International calls are barred.
2. This command enables a user to set a dialing-out class in a fast and convenient way, especially
when most extensions have the same class.
For example, if you want set extension 603 to class 3 and extension 608 to class 4 and the rest of
the extensions to class 5, then you can set class 5 for all extensions and change class to 3 for
extension 603 and 4 for 608.
3.10.2 Class Assignment for Specific Extensions
Format: 40 N L#
Explanation: Where N = the extension number (1-8); L = the class number (0-6)
Description: Assign a dialing-out class for specific extensions
Example: Assign class 3 for extension 606:
Press 4063#
3.11 Setting Restriction Item (A/B)
3.11.1 Setting Item A
Format: 4 1 Q ABCD#

15
Explanation: Where ABCD = the initial digits of the number you want to bar –this number can be from
1 to 4 digits in length; if less than 4-digits fill in the gaps with a #
Where Q = a group number from 01 to 16
Description: Bar numbers starting with ABCD
Example: Extension 608 is be assigned dialing-out class 4 and you want to stop it dialing numbers
beginning with the initial digits of 573 and 168
1. Item A comprises 16 groups (01-16) of initial digits
2. Item A only works when you assign dialing-out class 4 to the extension
3.11.2 Clear a Specific Group Number Within Item A
Format: 41 Q #
Explanation: Where Q = The group number (01-16)
Description: Clears all numbers programmed in group Q.
Example: Clear numbers programmed within Item A (in group 01, with initial digits 573)
3.11.3 Clear All Group Numbers Within Item A
Format: 4 1 #
Description: Clears all numbers programmed in all groups within Item A
3.11.4 Setting Item B
Format: 4 2 Q ABCD#
Explanation: Where ABCD = the initial digits of the number you want to bar –this number can be from
1 to 4 digits in length; if less than 4-digits fill in the gaps with a #.
Where Q = A group number from 01 to 16
Description: Bar numbers starting with ABCD

16
Example: Extension 606 is to be assigned dialing-out class 5 and you want to stop it dialing numbers
beginning with the initial digits –575,161
1. Item B comprises 16 groups (01-16) of initial digits
2. Item B only works when you assign dialing-out class 5 to the extension
3.11.5 Clear a Specific Group Number Within Item B
Format: 42 Q #
Explanation: Where Q = The group number (01-16)
Description: Clears all numbers programmed in group Q.
3.11.6 Clear All Group Numbers Within Item B
Format: 4 2 #
Description: Clears all numbers programmed in all groups within Item B
3.12 Special Calling Numbers
3.12.1 Assign Special Calling Numbers for Class 0
Format: 4 3 P ABCD#
Explanation: Where ABCD = the initial digits of the calling number to be assigned, this number can be
from 1 to 4 digits in length; if less than 4-digits fill in the gaps with a #.
Where P = A group number from 01 to 16
Description: Permit an extension to only dial phone numbers starting with initial digits ABCD
Example: Extension 608 is be assigned dialing-out class 0 and you want to allow it to only dial the
numbers beginning with initial digits –0592, 179
1. 16 groups (01-16) of initial digits can be set
2. This function only works when you assign dialing-out class 0 to the extension
3.12.2 Clear a Specific Group

17
Format: 43P #
Explanation: Where P = The group number (01-16)
Description: Cancels all Special Calling Numbers programmed in group P
3.12.3 Clear All Group Numbers
Format: 4 3 #
Description: Clears all programmed Special Calling numbers in all groups
3.13 Call Duration
3.13.1 Call Duration Setting
Format: 6NTT#
Explanation: Where N = The extension number (1-8)
Where TT = The amount of time a call is allowed to continue before it cuts off in minutes (01-99)
Description: Allow extension N to make outgoing calls lasting only TT minutes. This function can only
limit the time of an outgoing call.
Example: Set all outgoing calls from Extension 604 to a maximum call duration of 8 minutes:-
Press 6408#
3.13.2 Clear Call Duration
Format: 6N00#
Explanation: Where N = The extension number (1-8)
Description: Clear extension N setting - allow unlimited call duration for extension N outgoing calls
Example: Clear setting for Extension 604 - allow unlimited call duration for Extension 604 outgoing calls:
Press 6400#
3.14 C.O. Line Allow/Restrict
3.14.1 Allow All Extensions the Use of Specific C.O. Lines for Outgoing Calls
Format: 70M0#
Explanation: Where M = C.O. line number (either 1, 2 or 3)
Description: This allows all extensions the use of C.O line M
This function is for outgoing calls only
3.14.2 Allow Specific Extensions the Use of a Specific C.O. Line for Outgoing Calls
Format: 70MN0#
Explanation: Where M = C.O. line number (either 1, 2 or 3); N = Extension number (1 –8)
Description: This allows an extension N the use of C.O. line M for outgoing calls.

18
Example: Allow extension 606 the use of C.O. line 3 for outgoing calls-
Press 70360#
3.14.3 Prevent Specific Extensions from Using Specific C.O. Lines for Outgoing Calls
Format: 70MN1#
Explanation: Where M = C.O. line number (either 1, 2 or 3); N = Extension number (1-8)
Description: This prevents extension N from using C.O. line M for outgoing calls
Example: Prevent extension 608 from using C.O. line 2 for outgoing calls
Press 70281#
3.14.4 Trunk Lines (C.O. Lines) Usage
Select how the system will choose an outgoing line for dialing out - circular or sequential.
Format: 0620# this is default.
The system will choose line1, then line 2, then line 3 in a circular order. This means it will give fair
usage to all lines in a uniform way.
Format: 0621#
The system will always choose the trunk line with the lowest number if it is available. (Line 1 is the
lowest number).
3.15 Change Extension Numbers
3.15.1 Assign Extension Numbers
Format: 9Nabcd#
Explanation: Where N = The extension number (1-8)
Where abcd = the new extension number consisting of between 1 and 4 digits; if the new extension
number is less than 4 digits fill in the gaps with #.
Description: Change existing extension numbers to new extension numbers “abcd”
Example: Change extension number 606 to 806:
Press 96806#
1. In default the extension number range is 601-608
2. Extension numbers can be any number from 1-8999; do not duplicate any extensions numbers
3. Extension numbers cannot begin with a 0 or 9
4. The number of digits chosen for the new extension numbers must be consistent and sequential
throughout the range. If you change one you must change them all. You cannot have a mixture of
numbers with different length digits (e.g. 1 digit and 2 digit extension numbers)

19
For example, to change the extensions from default to the 1-digit number range 1-8, first dial 911#,
then dial 922#, 933#, 944#, 955#, 966#, 977# and 988#. After you program this you can use it with AA
Mode (Press ‘1’ for Sales will now go to extension number 1, Press ‘2’ for Accts will now go to extension
number 2 and so on).
3.15.2 Restoring Original Extension Numbers
Format: 9000#
Description: return the extension numbers back to the default setting (601-608)
3.16 Abbreviated Dialing Central Memory
96 memory numbers can be stored in a central location on the system enabling any
extension to call them using the code #70 + group number
46# to clear all numbers
46K# to clear numbers in group K
46KABCD…# to set the numbers within group K (where K = the group number 01-96 and
ABCD is the abbreviated dialing number which can be up to 16 digits in length)
3.17 Extension Groups
Explanation: Each extension number can be a member of a group. There are two groups
available. The length of the group number should be the same as the length of your
extension numbers (i.e. if your extension numbers have 3 digits then your group should also
have 3 digits).
Group numbers must be different from individual extension numbers.
Format: 990abcd# (to set up group 1)
Where abcd = a new extension group number consisting of between 1 and 4 digits; if the new
extension group number is less than 4 digits fill in the gaps with #.
Example: My extensions are numbered 601-608. I want to set up an extension group 1 which
has the number 501:
Press 990501##
Note: in default setting extension numbers 601-604 are members of group 1
Format: 390# Delete all extension members of group 1
Format: 991abcd# (to set up group 2)
Example: My extensions are numbered 601-608. I want to set up an extension group 2 which
has the number 502:
Press 990502##
Note: in default setting extension numbers 605-608 are members of group 2
Format: 391# Delete all extension members of group 2

20
3.17.1 Insert Extension Numbers into Group 1
Format: 390 N1, N2, N3, N4, N5, N6, N7, N8# (where N = extensions 01-08)
Example: To insert extensions 601,602,605,606 as members of group 1:
Press 390#, 39001020506#
3.17.2 Insert Extension Numbers into Group 2
Format: 391 N1, N2, N3, N4, N5, N6, N7, N8# (where N = extensions 01-08)
Example: To insert extensions 606,607,608 as members of group 2:
Press 391#, 391060708#
4.Timers
Transferring Calls to an Extension that Does Not Answer
Format: 162# Revert back to the originator after 15 seconds. This is default.
If you transfer a call to an extension that does not answer, the call will revert back to you
after 15 seconds. If you are busy when the call tries to bounce back the system will release
the line.
Format: 163# Do not revert back to the originator.
Transferring Calls to an Extension that is Busy
Format: 1530# This is default.
If you transfer a call to an extension that is busy, you will hear the busy tone then be
automatically re-connected to the call after 5 seconds. This is default.
Format: 1531#
If you transfer a call to an extension that is busy, you will hear the busy tone for 10 seconds
then to go back to the caller you must press the Recall (R) button.
Internal Call Ringing
Format: 494TT# (where TT is 01 to 99 seconds). Default is 30 seconds.
When one extension calls another and they do not answer, the phone will continue to ring
for this set time followed by busy tones.
You must set this time greater than the Call Forward and Transfer Ringing time.
Transfer Ringing
Format: 496TT# (where TT is 01 to 99 seconds). Default is 25 seconds.
After a caller listens to OGM and selects an extension or when a call is transferred, the
system will ring the called extension for this set time.
You must set this time less than the Call Forward time.
Call Forward
Format: 184TT# (where TT is 01 to 99 seconds). Default is 30 seconds.
When an extension sets Call Forward on Busy or No Answer (BNA) this timer will activate.
Call Hold
Format: 186TT# (where TT is 01 to 99 seconds, in units of 10). Default is TT=12 (120
seconds).
When an extension holds a call (Extension Guide 1.4) use this timer.
