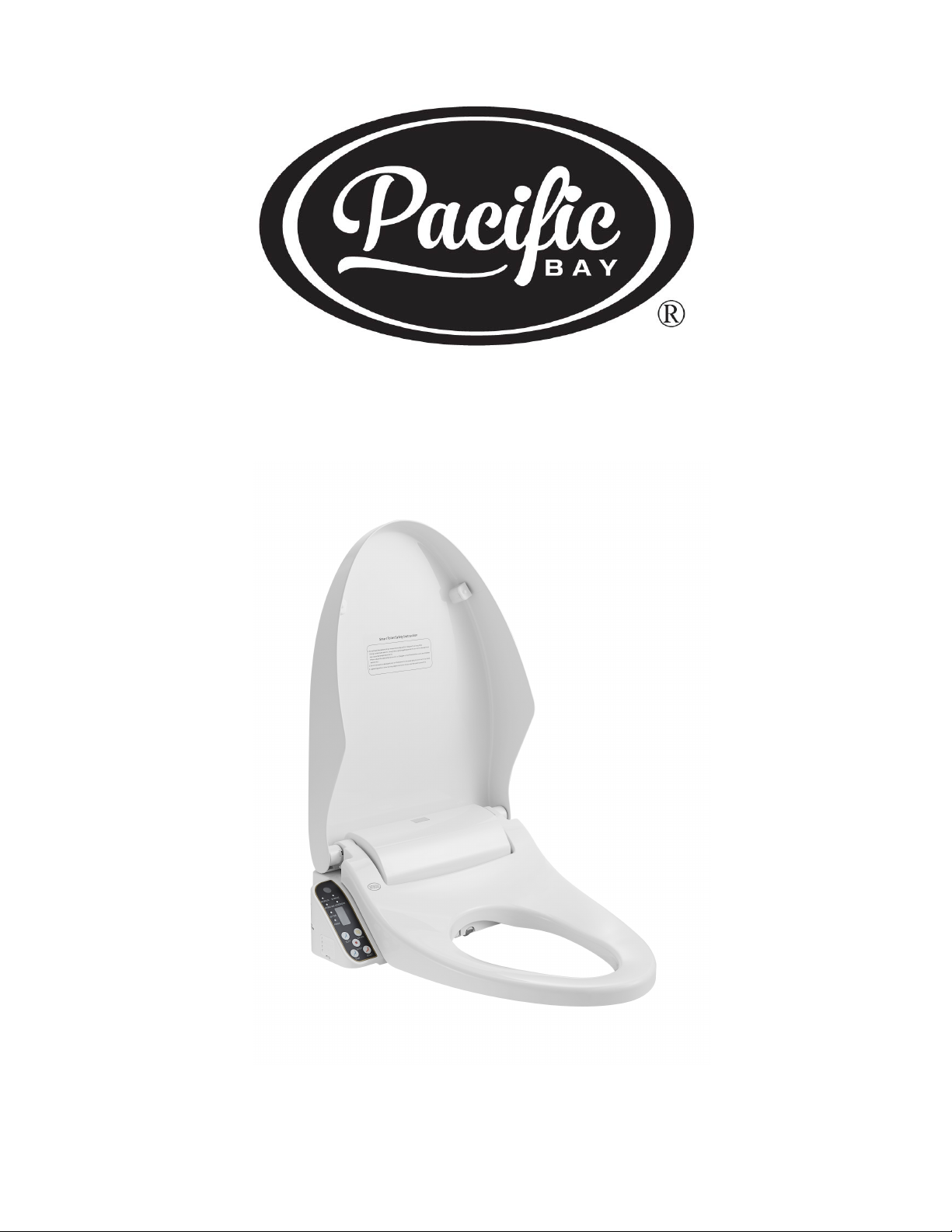

Pacific Bay CASCADIA PB-TS03 User manual

!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
INSTALLATION GUIDE
CASCADIA SMART TOILET SEAT
Automatic Open/Close, Instant Heating
with Remote Control
PB-TS03

BEFORE INSTALLATION
• Before use, please read this installation guide to ensure you use the product
correctly. Pay special attention to the “Safety Precautions” section, making sure you
have read it thoroughly before you use the product so that you can safely operate
everything.
• After reading, please keep this installation guide for use in the event that an error
with the product occurs.
• This installation guide is for reference only, and extraneous circumstances may void
some parts of the manual.

TABLE OF CONTENTS
Product Model and Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cautions Before Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Necessary Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Parts and Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control Panel Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Preparation Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Using Your Smart Toilet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Preventing Damage Due to Frozen Water Pipes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
and when not in use for Long Periods
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Before Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

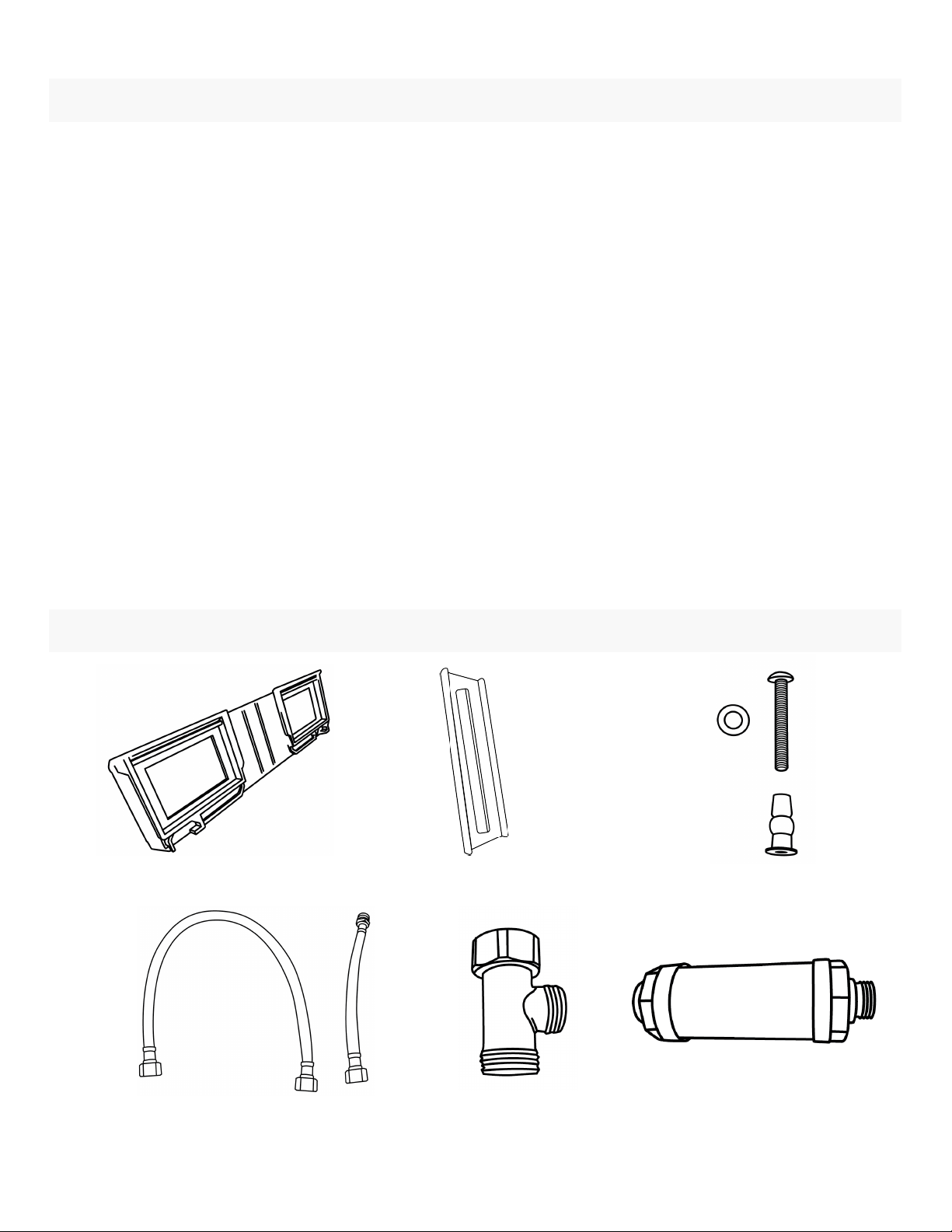

Parts in Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installing Your Smart Toilet Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installing the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Testing Your Smart Toilet Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Remote Control Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleaning the Water Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Getting Power to Your Smart Toilet Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

!
!
-!1!-!

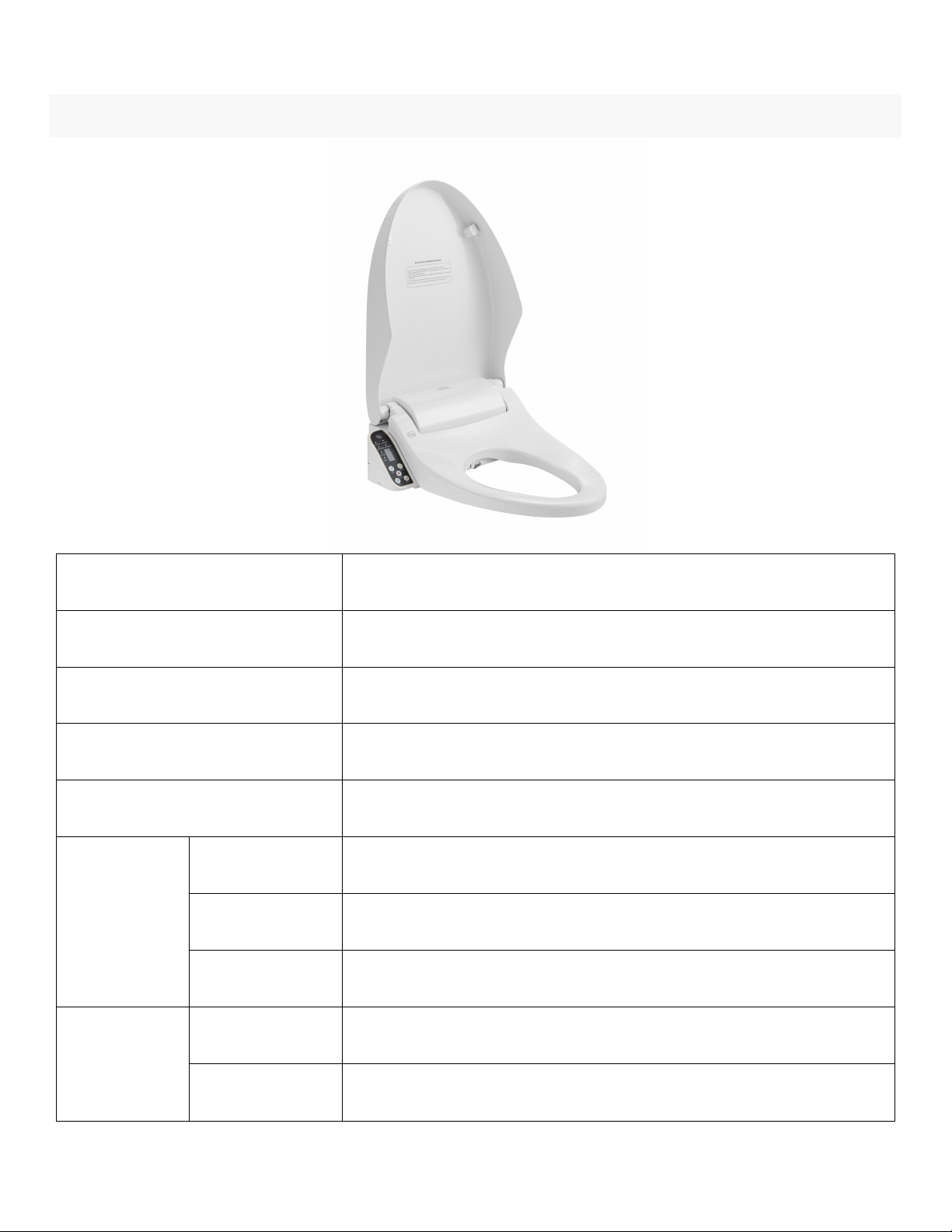

PRODUCT MODEL AND PARAMETERS
Input Water Type
Pipe Directly
Rated Power Supply
Alternating Current (AC) 110V 60Hz
Rated Power
1200W
Standard Daily Power
Consumption
0.415kWh
Toilet Seat Surface Cover
Automatic Open/Close
Heated Seat
Surface
Temperature
Temperature adjustment range 86-100°F (Automatic Power
Savings at About 79°F)
Heater Power
40W
Safety Device
Temperature Fuse
Deodorizing
Device
Mode
Catalyst and Absorption Dually
Airflow Rate
0.37m3/min

!
!
-!2!-!
Flushing
Device
Water Rate for
Spray
About 350-550mL/min (when the water pressure is 0.2MPa)
Water Rate for Soft
About 350-550mL/min (when the water pressure is 0.2MPa)
Water Rate for
Front
About 350-550mL/min (when the water pressure is 0.2MPa)
Water Temperature
Temperature Adjustment Range 86-104°F
Heater Power
Maximum: 1200W
Safety Device
Leakage Protection, Temperature Fuse, High Temperature
Protective, Dry Heating Prevention
Backflow
Prevention Device
Reflux Valve
Drying Device
Drying Airflow
0.52m3/min
Temperature
Regulation
Adjustment Range Around 104-138°F
Power
350W
Safety Device
Temperature Fuse
Water
Requirements
Temperature
32-95°F
Water Pressure
0.05MPa (Flow Pressure) – 0.75MPa (Static Pressure)
Operating Temperature Range
32-104°F
Standard Dimensions
Width 450mm / Length 531mm / Height 171mm
Standard Weight
About 6Kg

!
!
-!3!-!
SAFETY PRECAUTIONS
Please carefully read the following safety precautions to ensure you use the product
correctly. The precautions listed here are important security-related concerns that must
be obeyed.
Annotation and meanings are described below:
CAUTION
MUST COMPLY WITH
WARNING
If ignored, may cause personal injury or
property damage
Mandatory Steps
Forbidden or prohibited

!
!
-!4!-!
Mandatory
1. Must comply with installation and use instructions.
Caution
1. If you do not operate this product in accordance to the following, it may cause a
fire or electric shock:
o This product requires electricity to function properly, so do not install it in a
place that it may get wet easily. Make sure the power plug and socket
connection is reliable and that the area around the connection is
waterproofed.
o Make sure the socket mounting is positioned over 1.2m above the ground,
and as far away from the bath as possible to avoid splashing water.
o Product wire must be grounded, so be sure to pick the ground line. (Note:
grounded means the ground resistance is lower than 100Ω. The ground wire
of the switchboard should use bronze wire with a diameter more than
1.6mm).
o When the bathroom is used, ventilating fans or ventilation opening needs to
be installed to maintain good air circulation in the bathroom. Do not spill
water or detergent on the body of the product or the power plug.
o When cleaning the product, be sure the power is disconnected.
o Children should not play with the appliance.
o Lit cigarettes or other combustible substances cannot be put into the toilet.
o If the power cord is broken, it must be repaired or replaced by the
manufacturer or another qualified service personnel to avoid danger.
2. In order to prevent low temperature burns the following requirements must be
complied with to operate:
o When sitting on the seat for a long time, the seat temperature should be
placed in the [OFF] position.
o When the following people are using the warm seat and warm air drying
functions, the seat should be placed in the [OFF] position, and the air
temperature should be set to the [LOW] position.
§ Children and elderly people who are unable to adjust the temperature
to comfortable levels on their own.
§ The sick or disabled, and any other person with reduced mobility.

!
!
-!5!-!
§ Anyone using medicine that may cause sleepiness (e.g., sleeping pills,
cold medicine, etc.), impaired by alcohol, or extremely fatigued.
3. If you do not use the tank containing products for an extended period of time,
close the inlet valve and release the water stored in the product. Once done,
remove power to the product. The next time you use the product, run water
through the product thoroughly before use.
4. If the product is in a place where it may encounter freezing temperatures,
measures should be taken to avoid damage.
Warning
1. Failure to operate this product according to the following statements may cause
fire or electric shock:
o Do not use with an electrical socket with power stronger than AC110V or
use a loose electrical socket.
o Never dissemble, repair or modify the product.
o Never use wet hands when inserting the plug into the socket.
o Never insert a needle or other metal object into the socket.
o Do not pull, heat, or forcibly bend the power cord or place heavy objects on
the power cord.
2. Do not use any source other than tap water with this product, as it may cause
skin irritation and/or other issues.
3. Do not carry the product by the seat or top cover only; carry the toilet’s body
during transport.
4. Do not place heavy objects on the seat or stand on the cover or face of the body,
or it may cause the body to be fractured, leaking, and/or damaged.
5. Do not put your fingers or other objects into or block the exit of heated air.
6. If you do not operate according to the following, it may cause the body or cover
to be damaged, scratched, or the toilet to malfunction and trigger to fail:
o Do not modify the main body or the nozzle with using a child seat. Children’s
seats should be placed on the toilet’s seat when in use, and removed after
use.
o Avoid direct sunlight as this may cause discoloration and uneven
temperature dispersion on the seat.
o Disconnect product from the outlet during lightning storms.
o Do not wipe the product body, seat, or cover with a dry cloth or paper towel.
o Don’t cover the sitting sensors or lean backwards on the opened cover.

!
!
-!6!-!
o Stay away from the toilet when using radios and other electronics
equipment, or noise may be heard in the radio or electronic equipment.
7. Unplug the power cord and close the inlet valve when you encounter the following
situations:
o Leaks from piping and/or inside the product
o Abnormal heat
o Abnormal sounds or smells
o Cracks in the product
o Smoke is coming from the toilet
8. Do not continue to use the product in the case of a defect, or it may cause fire,
electric shock, or indoor water damage problems.
CAUTIONS BEFORE INSTALLATION
Do not put the leakage protection plug into an electrical outlet before completing
installation. Otherwise, it may cause the toilet seat to break down.
• Pressure range: 0.05MPa (flowing pressure) – 0.75MPa (resting pressure).
• Transfer the toilet to a warm room for melting before installing the toilet when
residual water in the toilet is frozen.
• Do use the accessories included with the toilet.
• Use the new hose assemblies included in the packaging and do not reuse old
hoses or assemblies.
NECESSARY TOOLS AND EQUIPMENT
Monkey Wrench Phillips Screw Driver
You may also need any or all of the following: square, electric drill, hammer, marker
pen, glass glue, or glass glue gun.

!
!
-!7!-!
PARTS AND FEATURES

!
!
-!8!-!

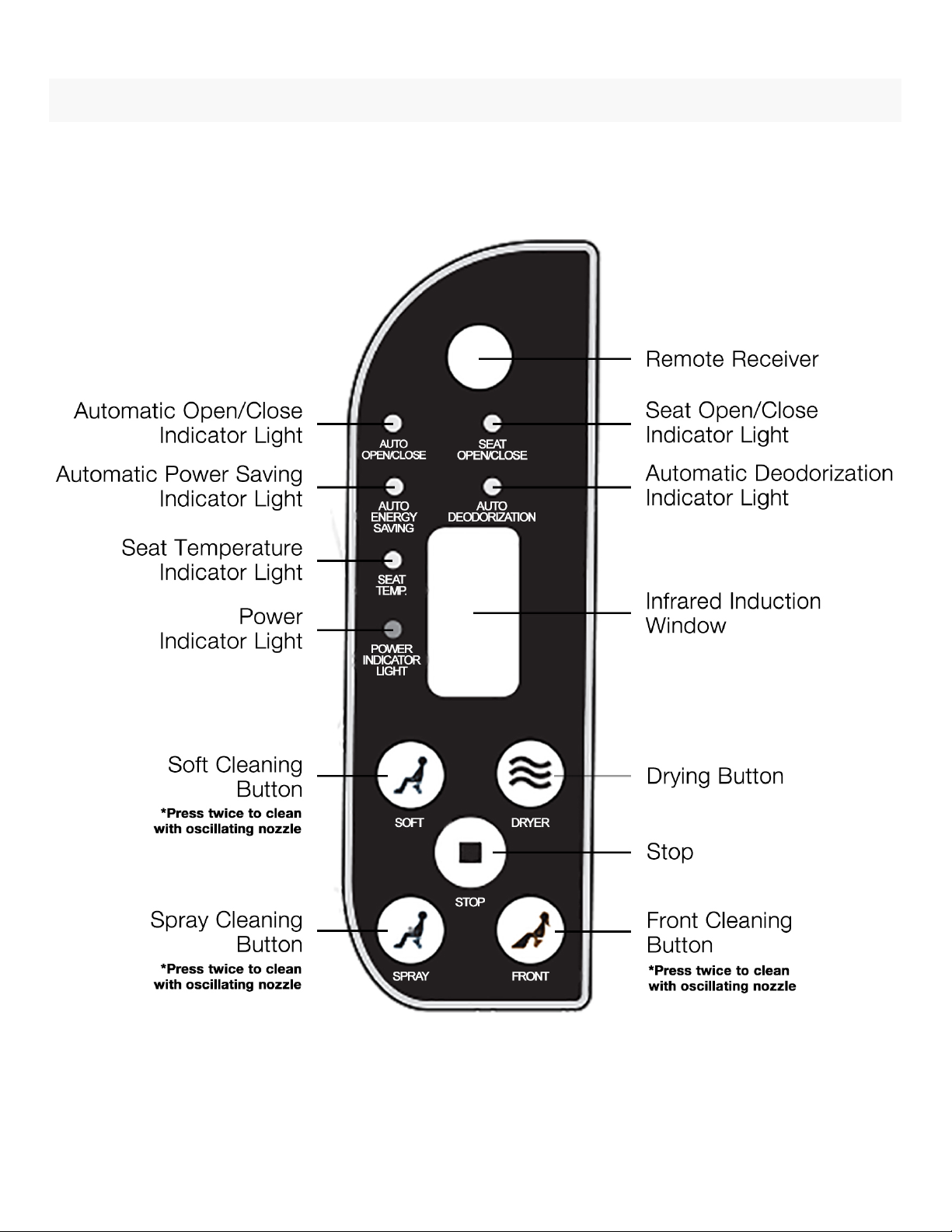

CONTROL PANEL OPERATION

!
!
-!9!-!
PREPARATIONS BEFORE USE
Preparation
1. Confirm that the power plug is inserted into the plug socket firmly.
2. Once confirmed, turn on the water valve.
Troubleshooting
1. If [POWER] light on side panel is still off, all functions cannot be used.
2. Please press the [RESET] button on the plug. (Indicator light will turn on).
USING YOUR SMART TOILET
1. Sit on the toilet seat
o Sit as far back as possible to ensure you are covering the entire opening
with your hips. This will help prevent splashing while using the spray
function.
2. Sitting sensor will activate, deodorizer will begin, and all functions may be used.
3. Once finished using the toilet, clean using preferred spray function, and dry using
the dryer.
o It is not abnormal for the water to flow out from the wand base during
washing, but if water flows out continually when toilet is not in use, please
turn off the water valve.
o Wipe excess water away with a piece of toilet paper for faster drying.
4. Stand up from toilet seat
o Deodorizing stops automatically 6 seconds after standing and toilet flushes
automatically after 6 seconds if feature is available.
5. Move away from toilet
o Toilet cover closes automatically after 60 seconds.

!
!
-!10!-!

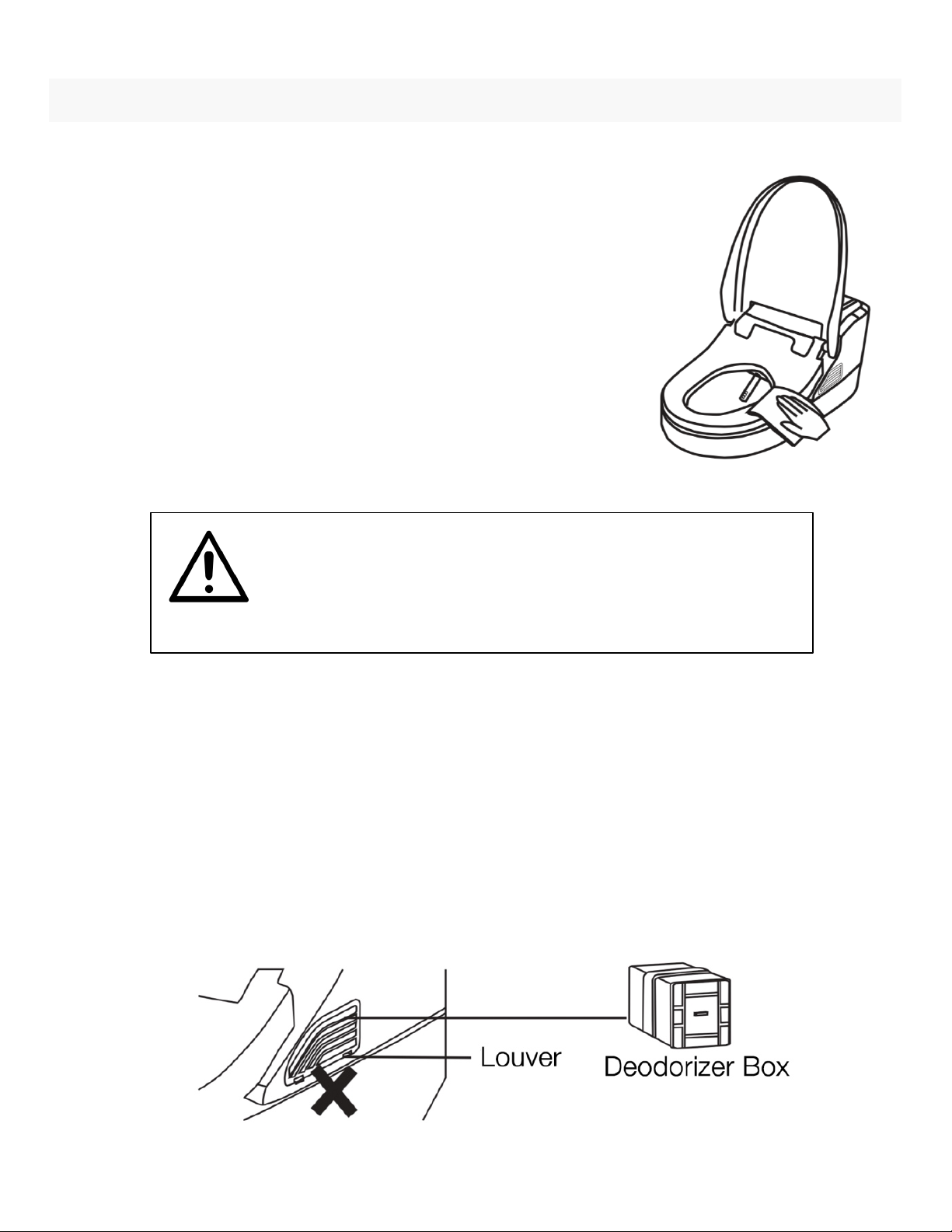

CLEANING AND MAINTENANCE
Clean and maintain the toilet as directed below to extend its life
• Do not sprinkle water or cleaners on the main unit and/or plug, or it
may cause electric shock and fire.
• Do not use improper cleaners on the plastic parts (e.g., toilet
chemicals, household detergents, bleach, benzene, paint thinner,
decontamination powder, or cresol).
• Turn off the power and make sure the power light is off before
cleaning or doing maintenance work.
• Turn of the power when cleaning the wand.
• Toilet may break if unauthorized cleaners or methods are used.
Please do not use the tools on the list below:
WARNING
CAUTION
Safety Power Plug

!
!
-!11!-!
Main Unit, Toilet Seat,
Surface Cover
Diluent, Gasoline, Cleaners, Nylon Brush, Dry Cloth,
Toilet Paper
Ceramic Body
High-Acid Detergents, Strong Alkaline Detergents,
Detergents that Contain Abradants, Metal Brush, or
Nylon Brush
Water Valve
Brush, Nylon Brush, Cleansers, Abrasive Powders,
Detergents that Contain Coarse Particles, Diluent,
Gasoline, Chlorine Detergents, Strong Alkaline Medicine
Basic Tools for Routine Maintenance
Toilet Brush Soft Cloth Kitchen Detergent

!
!
-!12!-!
ROUTINE MAINTENANCE
• Cleaning and maintenance of toilet cover, seat and
external plastic components.
1 Wipe with a soft cloth
o Wring dry a water-wet soft cloth, then
wipe the product.
2 When particularly dirty
o Wipe using the soft cloth with a diluted
neutral detergent for the toilet, and then
clean with fresh water.
3 When there is detergent residue
o Wipe again with a wet soft cloth.
• Wand cleaning and maintenance
1 To clean nozzle, simply pull it out
2 Once out, wipe with a soft cloth
o Please do not apply force when pushing or pulling the wand and do
not shake the nozzle from side to side or it may cause it to break.
3 Retract the wand
• Maintenance of deodorizer box
1 Do not break the Louver and clean the deodorizer box separately.
•Please do not wipe the product with a dry cloth or tissues.
•Easy to cause surface damage.
•Do not clean with hot water above 140°F or it may cause a
toilet breakdown.
CAUTION

!
!
-!13!-!
• Maintenance of water filter
o Please clean the water filter when the water flow is weak.
o Please clean with water and not detergents.
o Avoid pinching the water filter.
1 Turn off the water valve to stop inflowing water.
o Turn off the water valve.
o Press [Nozzle Cleaning] button.
o When the nozzle extends out, press the button again. (Release the
pressure in the water hose).
2 Remove the water filter.
3 Clean the water filter
o Use a toothbrush to clean any residue and use a cotton swab to clean
the refuse in the mounting hole of the water filter.
4 Reinstall the water filter being sure to tighten the hoses to avoid leaking.
5 Turn back on the water supply.
PREVENTING DAMAGE DUE TO FROZEN WATER PIPES AND
WHEN NOT IN USE FOR LONG PERIODS
Please drain the toilet when freezing temperatures are anticipated or when not using for
long periods of time
Please drain the toilet water tank in the following situations:
• The water in the toilet might be freezing and could cause a leak in the cold when
not drained.
• When not used for a long time (more than one week), it may cause inflammation
due to water metamorphosis if the water is not removed.
To drain water supply:
1 Shut off water supply valves completely to prevent additional water from entering
the toilet.
2 Pull out the water drain lever to drain the water in the tank. (the water drain lever
only applies to some models)
o Please tighten up the water drain lever (no need to screw out the lever
entirely, enough that water flows out).
3 Press [Nozzle Cleaning] button to drain the remaining water.
4 Unplug the leakage protection plug (if not, it may cause the toilet to break).
Please don’t remove the water filter when the water valve is still open

!
!
-!14!-!
TROUBLESHOOTING
Please check the following before calling for servicing
Problem
Possible Cause
Solution
Completely Fails
to Operate
The power or the circuit breakout is
out
Wait until the power is restored, or turn the circuit
breaker back ON
The power light on the main unit is
off
Press [power/stop] on the control panel
No Water Flow
The water supply is cut off
Push the [power/stop] button and wait until the main
water supply is restored.
The water supply valve is closed
Open up the water shutoff valve completely
The seat sensor is not working
properly
Refer to the “Seat Sensor” instructions
The Spray Water
Pressure is Low
The water pressure setting is too
low
Press the water pressure adjustment button on the
main unit controls
The water filter is blocked
Clean and check the water supply filter for blockages
Low Water
Temperature
Water Temperature is set to [Off] or
is too low
Push the [ON] or [HIGH] buttons on the main unit
controls
Cold water sprays out first
Due to low temperature of the main water supply and
washing room, the front of the sprayer may be cold
The Wash Water
Stops While the
Unit is in Use
Approximately 5 minutes after
pressing the spray, soft, or front
cleansing buttons, the water will
turn off automatically
Press the Spray, Soft, or Front cleansing buttons
again
The seat sensor isn’t working
properly
Refer to the “Seat Sensor” Instructions
The Toilet Seat
Goes Cold After
Prolonged Use
The seat heater is set to [OFF] or is
too low
Press the [OPEN] or [HIGH] buttons on the main unit
controls
Timed energy saving is activated
The heater turns on when someone is seated on the
toilet and will warm in approximately 3 minutes
The seat sensor isn’t working
properly
Refer to the “Seat Sensor” instructions
The Dryer Does
Not Get Warm
The heater will turn off
automatically for about 1 hour after
sitting on the toilet and turn on
automatically after leaving the seat
Turn off the heating function

!
!
-!15!-!
Problem
Possible Cause
Solution
Dryer Turns Off
While in Use
The dryer will stop automatically
about 5 minutes after [DRYER]
button is pressed
Press [DRYER] button again
The seat sensor isn’t working
properly
Refer to the “Seat Sensor” instructions
Water Flows Out
After Wand
Retracts
Wand cleaning function; not a fault
in the system
______________
Dryer Does Not
Get Warm
Temperature is set too low
Please adjust the [DRYER + - ] on the control panel
Dryer Fails to
Operate
Seat sensor is not working properly
Refer to “Seat Sensor” instructions
Deodorizer Fails
to Operate
Seat sensor is not working properly
Refer to “Seat Sensor” instructions
Odors are not
Completely
Eliminated
The Deodorizer Filter is blocked
Clean the filter
The Deodorizer
Turns on
Automatically
Under the following conditions, the
seat sensor will detect something
and activate the deodorizer. This is
not a malfunction:
1. When cleaning the toilet
2. When manually flushing the
toilet
______________
The Automatic
Energy Saving
Doesn’t Work
When Pressing
[Timer]
It may take 2-3 days to detect low-
use periods
______________
It may not work when used at the
same time around three times a
week (not a fault)
______________
Seat and Cover
do not Open and
Close
Automatically
There is something covering the
sensors
Remove any possible obstacles
Energy Saving
Does Not Work at
the Proper Time
Power plug has been cut off or
pulled out
Press the [TIMER] switch (timer indicator lights will be
flashing once the power is cut off)
It will generally work normally starting the next day

!
!
-!16!-!
Problem
Possible Cause
Solution
Pressing the
Buttons Runs the
Rear Cleansing
and Deodorizer
Runs Even
Though no one is
Seated on the
Toilet
Seat sensor is on self-test
Please keep the sensor uncovered and remove
debris, drops or dust
The Rear
Cleansing and
Deodorizer or the
Auto Open/Close,
Auto Flush do not
Work Even when
Someone is
Sitting on the
Toilet
Seat sensor is not on self-test
while the indicator light is off
When seated, sit back as far as possible to ensure
your hips cover the toilet seat fully, or raise clothes to
make sensors detect bare skin. Once done, remove
debris, drops, or dust.
Toilet Makes
Noise when the
Cover is
Obstructed While
Turning Up
Product is designed to do this to
protect its gears (not a fault)
______________
Remote
Controller
Failure
Batteries have run out of power
Replace the batteries in the remote
The positive and negative
electrodes are installed incorrectly
Install the batteries correctly
The transmitter or receiving part of
the remote is covered
Remove any foreign objects on the remote
The seat sensor is not functioning
Refer to the “Seat Sensor” instructions
The battery alarm light is on
Replace the batteries in the remote
Seat Cover
Closes on its
Own
The button [auto open/close] on
the remote controller is activated; if
so, it indicates that the malfunction
is with the motion detection sensor
Please confirm the position of the motion detection
sensor and seat sensor and remove any obstacles.
When seated, lean back as far as possible to ensure
your hips cover the toilet seat, or raise your clothes to
allow the sensor to detect your bare skin. Make sure
your clothes do not cover the sensor.
Seat Cover
Opens on its
Own
Direct Exposure to bright lights
may lead to malfunction
Avoid direct exposure to bright lights
Toilet Seat and
Cover Close
Automatically
and Instantly
when a Man
Urinates
The user is standing further than
30cm away from the unit
Stand within 30cm of the unit while urinates
The Seat Sensor
has no Response
The skin does not come into direct
contact with the seat, which may
cause the seat sensor to not
respond
Change your sitting position, and make sure your skin
touches the sensor

!
!
-!17!-!
BEFORE INSTALLATION
• Do not connect the toilet with electricity and water before finishing the installation
completely.
• Do not install the mounting plate on the main unit and connect the product to
electricity before installing the main unit on the ceramic body. The warm water
groove is still empty at that time, and if connected to the heater, it might cause
malfunction.
• The standard power supply is AC 110V (60HZ). Please refer to the specific model
for the power rating.
• The length of the power line is about 1.2 meters. Please confirm that the socket
is set in appropriate range to reach.
• Use the toilet in the water pressure range: 0.05Mpa (flowing pressure) – 0.75Mpa
(static pressure).
• Use the toilet in the water temperature range of 32-95°F.
• Install a waterproof box on the power socket.
PARTS IN PACKAGING
Mounting Plate Metal Plates Rubber Anchors and Bolts
Metal Braided Hose (Length: 0.6m) T-Cock Water Filter
