PACIFIC CYCLE KT1220WM User manual
6V CAPTAIN AMERICA
TODDLER QUAD
KT1220WM
OWNER’S MANUAL
The owner’s manual contains assembly, use and
maintenance instrucons. The vehicle must be
assembled by an adult who has read and
understands the instrucons in this manual.
Keep the packaging away from children and
dispose of all packaging before use. Note: For
best performance use on at, hard surfaces.
Always use with adult supervision.
Age: 18mos +
Weight: Maximum, 45 lbs (20 KG)
Max Speed: 2 MPH
6 volt
2
result in a roll away or loss of control, which may cause serious
injury or death.
• Using the vehicle near streets, motor vehicles, drop-os such as:
steps, water (swimming pools) or other bodies of water, sloped
surfaces, hills, wet areas, ammable vapors, in alleys, at night or
in the dark could result in an unexpected accident. Always use
the vehicle in a safe, secure environment with connuous
adult supervision.
• Using the vehicle in unsafe condions such as snow, rain, loose
dirt, mud, sand or ne gravel may result in unexpected acon
such as p over and skidding, and damage to the electrical system
and baery.
• Using the vehicle in an unsafe manner. Examples include but are
not limited to:
Pulling the vehicle with another vehicle or similar device
Allowing more than one rider
Pushing the user from the back
Traveling at an unsafe speed
Always use common sense and safe pracces when using the vehicle
This product contains or emits chemicals known to the state
of California to cause cancer or birth defects or other
reproducve harm.
The owner’s manual contains assembly, use and maintenance
instrucons. The vehicle must be assembled by an adult who has
read and understands the instrucons in this manual. Keep the pack-
aging away from children and dispose of all packaging before use.
Note: For best performance use on at, hard surfaces.
The following safety hazards may result in serious injury or death to
the user of the vehicle:
• This product contains small parts that are for adult assembly only.
Keep small children away when assembling. Remove and dispose
of all protecve material and poly bags before assembly. Be sure
to remove all packaging materials and parts from underneath the
vehicle body.
• Baery posts, terminals and related accessories contain lead and
lead compounds (acids) chemicals known to the state of California
to cause cancer, reproducve harm, and are toxic and corrosive.
Never open the baery.
• Body parts such as hands, legs, hair and clothing can get caught in
moving parts. Never place a body part near a moving part or wear
loose clothing while using the vehicle. Always wear shoes when
using the vehicle.
• This toy does not have brakes or any braking capability. Do not
leave a child unaended while using this toy or allow use of this
toy in any locaon that requires braking capability, as this could
1
-- WARNING!
3
• Use of a baery or charger other than the supplied 6V
rechargeable baery and charger may cause a re or
explosion. Only use the supplied 6V rechargeable
baery and charger with the vehicle.
• Using the 6V rechargeable baery and charger for any
other product may result in overheang, re or
explosion. Never use the 6V rechargeable baery and
charger with another product.
• Explosive gases are created during charging. Charge
the baery in a well venlated area. Do not charge
the baery near heat or ammable materials.
• Contact between the posive and negave terminals
may result in re or explosion. Avoid direct contact
between the terminals. Picking up the baery by the
wires or charger can cause damage to the baery and
may result in a re. Always pick up the baery by it’s
case or handles.
• Liquids on the baery may cause re or electric
shock. Always keep all liquids away from the baery
and keep the baery dry.
• Contact or exposure to baery leakage (lead acid) may
cause serious injury. If contact or exposure occurs
immediately call your physician. If the chemical is on
the skin or in the eyes, ush with cool water for 15
minutes. If the chemical was swallowed, immediately
give the person water or milk. Do not give water or
milk if the paent is voming or has a decreased level
of alertness. Do not induce voming.
• Baery posts, terminals and related accessories
contain lead and lead compounds (acid), chemicals
known to the State of California to cause cancer,
reproducve harm and are toxic and corrosive. Never
open the baery.
• Tampering or modifying the electric circuit system may
cause a shock, re or explosion and permanently
damage the system. Exposed wiring, circuitry in the
charger may cause electric shock. Always keep the
charger housing closed.
WARNING!
BATTERY WARNINGS
4
FCC WARNING
Age 18 months +
Max Weight 45 lbs (20 kgs)
USER REQUIREMENTS AND WARNINGS
Before using the vehicle the child should understand the vehicle
controls and safety issues. They must also demonstrate the
capability to handle the vehicle and operate
its controls. It is the responsibility of the adult to educate the child
and supervise the vehicles use. Read the following safety warnings
to any child using the vehicle before riding.
• Never leave child unaended. Always supervise the child.
• Always sit in the seat when using the vehicle.
• Keep your hands, hair and clothes away from moving parts.
• Always wear shoes when using the vehicle.
• Only one rider is allowed on the vehicle at a me
• Children under 18 months of age cannot use the vehicle.
• Only drive on level ground.
• Do not go near swimming pools or other bodies of water,
drop-os or up and down steep inclines.
• Do not drive the vehicle into loose dirt, mud, sand or ne gravel.
• Do not drive the vehicle on streets or near cars.
Any changes or modicaons to this unit not expressly approved
by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protecon against harmful interference in a residenal
installaon. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instrucons, may cause harmful
interference to radio communicaons. However, there is no
guarantee that interference will not occur in a parcular
installaon. If this equipment does cause harmful interference to
radio or television recepon, which can be determined by
turning the equipment o and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separaon between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
WARNING!
WARNING!
5
• Damage to the baery may occur if it is allowed to drain
completely. Do not allow the baery to drain completely.
• Check the baery and charger (supply cord, connector) for wear
and damage before charging. Do not charge the baery if
damage has occurred.
• On average you will need to charge the baery between 10 and
12 hours. Do not charge the baery for more than 15 hours.
Failure to charge the baery as directed could cause permanent
damage to the baery and void the warranty.
• Park the vehicle indoors or cover it with a tarp to protect it
from wet weather.
• Do not leave the vehicle in the sun for long periods of me
or fading may occur. Store in shade or cover with tarp.
• Do not wash the vehicle with a hose.
• Do not wash the vehicle with soap and water.
CARE WARNINGS
WARNING!
6
2Parts
7
3
8
9
10
11
12
13
14
15+
10
15
16
4Use
17

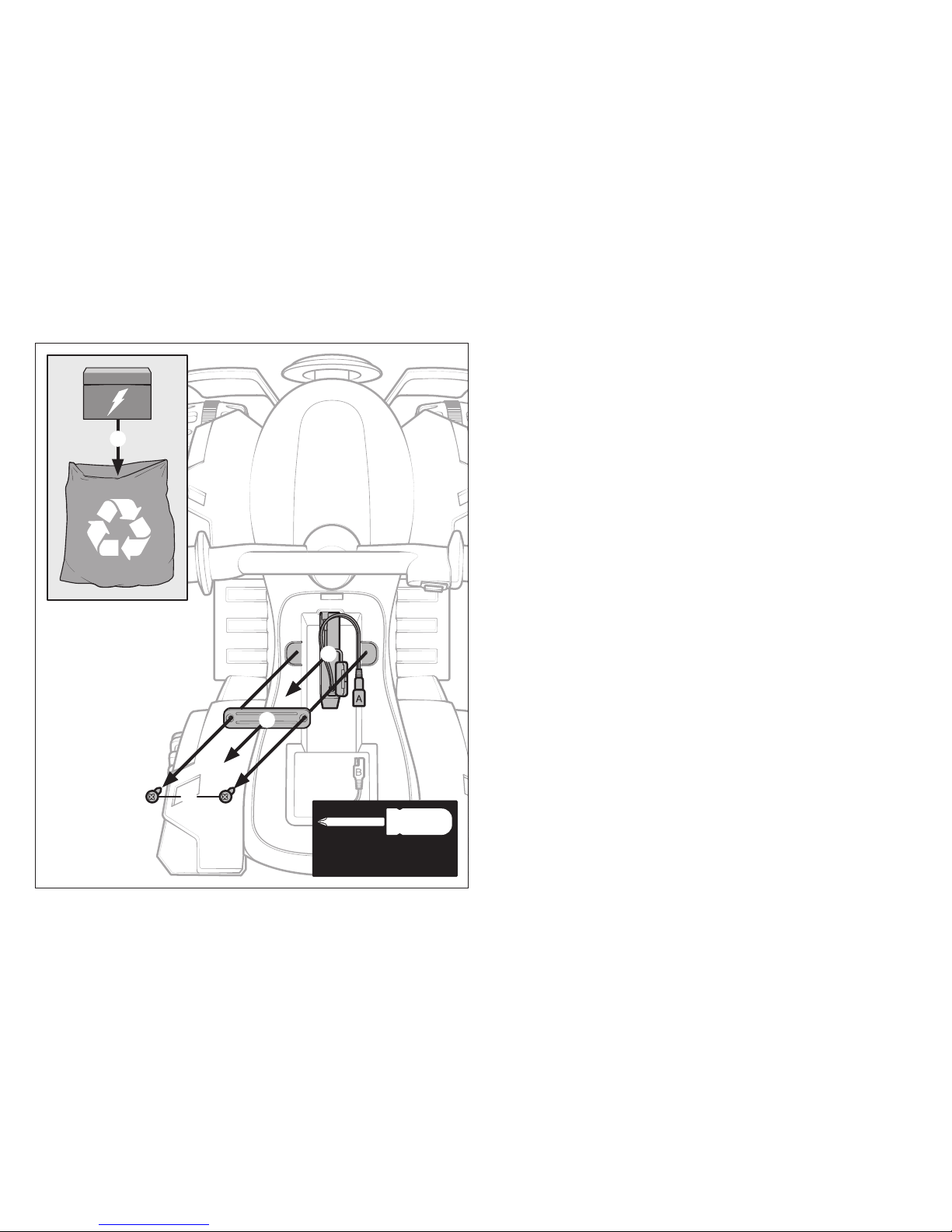

BATTERY REPLACEMENT AND DISPOSAL
The baery will eventually lose the ability to hold a charge.
Depending on the amount of use, and varying condions, the
baery should operate for one to three years. Follow these steps to
replace and dispose the baery.
Recycle the dead baery responsibly. The baery
contains lead acid (electrolyte) and must be disposed of properly
and legally. It is illegal in most areas to incinerate lead acid baeries
or dispose of them in landlls. Take it to a federal or state-approved
lead acid baery recycler, such as an authorized service center or
your local automove baery retailer. Do not throw the baery
away with your regular household trash!
5 Maintenance
18
• Check the ghtness of the fasteners before each use.
• Check the ghtness of the wheels.
• Ensure the baery is securely in place before use
• Occasionally use lightweight oil to lubricate moving parts such as
wheels and steering linkage. Do not use oil on plasc or nylon
parts. No lubricaon is required.
• Store the vehicle indoors or cover it with a tarp to protect it from
the wet weather. Keep it away from sources of heat, such as
stoves and heaters.
• Clean the vehicle with a so, dry cloth. To restore shine to plasc
parts, use a non-wax furniture polish. Do not use car wax,
abrasive cleaners or wash the vehicle with soap and water. Water
will damage the motor, electrical system and baery.
• Pacic-Cycle recommends that you take the vehicle to an
authorized service center for periodic maintenance and service.
Call Pacic-Cycle Consumer Relaons at 877-741-6154 for an
authorized service center.
19
Do not return this product to the place of purchase. If your vehicle
needs service, repairs or replacement parts, call:
8:00 am – 5:00 pm (CST) Monday - Friday
Phone: 877-741-6154
customerservice@pacic-cycle.com
For service and repairs you will be directed to an authorized service
center. To order parts have the model and serial number, found
underneath the seat on the baery cover.
The following is a list of available replacement parts:
• Wheels
• Hardware bag for wheel assembly
• Steering assembly
• 6-volt baery
• Baery Charger
Your electric vehicle is warraned by Pacic Cycle for 90 days from
the date of original purchase against defects in materials or
workmanship. This warranty covers normal use and the coverage is
not extended if the unit was damaged by unreasonable use, neglect,
accident, abuse/misuse, improper service or other causes not
arising out of defects in material workmanship. This warranty does
not cover any liability claims for breach of warranty. Please save
your original receipt from the original purchase in case of any
warranty claims. Save your box in the event the toy has to be
returned. Should you need service or assistance with your vehicle
during the warranty period.
6 Service 7Warranty
20
© 2016 Pacic-Cycle Inc.
4902 Hammersly Rd.
Madison, WI 53711
Styles and colors may vary.
Made in China
This manual suits for next models
1
Table of contents
Other PACIFIC CYCLE Motorized Toy Car manuals
PACIFIC CYCLE
PACIFIC CYCLE MARVEL SPIDER-MAN KT1506WM User manual
PACIFIC CYCLE
PACIFIC CYCLE MERCEDES G63 User manual
PACIFIC CYCLE
PACIFIC CYCLE Disney Pixar Cars KT1191WMA User manual
PACIFIC CYCLE
PACIFIC CYCLE KT1165 User manual
PACIFIC CYCLE
PACIFIC CYCLE Disney PIXAR Cars KT1193I User manual
PACIFIC CYCLE
PACIFIC CYCLE Disney Pixar Cars KT1193WM User manual
PACIFIC CYCLE
PACIFIC CYCLE KT1550I User manual
PACIFIC CYCLE
PACIFIC CYCLE KT1246 User manual
PACIFIC CYCLE
PACIFIC CYCLE KT1551I User manual
PACIFIC CYCLE
PACIFIC CYCLE RAM 3500 Firetruck User manual
