Pacific GSM PGM1-3G User manual

PGM1-3G
Micro 3G Communicator
Instructions: November 1, 2017, refers to the firmware version: 0.32EN
Pacific GSM company expanded its range of miniature
communication module for 3G version of popular GSM dialler
PGM1. PGM1-3G is available in a plastic enclosure with wiring for
quick installation. –PGM1-3G is designed to be built into other
devices to monitor status or control devices remotely or can be
used as standalone alarm with ARM/DISARM function.
Through PGM1-3G module can be remotely controlled
such as lighting, pumps, garage doors and gates or reboot servers.
May indicate a malfunction Alarms or loss of liquid in tanks,
emergency conditions, or simply using a suitable sensor to watch
object or temperature limits with thermostat function.
All easily through standard mobile phone.
PGM1-3G module is a fully pre-programmed, for most common
function (alarm report), you just call the unit SIM number from
phone which you want to contact if a PGM1-3G input connected to
GND, PGM1-3G will send you confirmation SMS with saved
number and that is all. If the PGM1-3G input will connect to a GND
the stored number will receive SMS "Alarm Activated". If you need change setting for different application or
customize name of the unit and input, please refer manual below.
Basic specification:
•PGM1-3G module dimensions: 52 x 33 x 14 mm (H x W x D)
•PGM1-3G module dimensions include aerial and enclosure: 128 x 37 x 27 mm (H x W x D)
•UMTS 3G Global 800/ 850/ 900/ 1900/ 2100 MHz
•GSM/EDGE 2G Global 850/ 900/ 1800/ 1900 MHz
•Power supply voltage: 5-15V DC
•Current consumption –3G Module connected to network, standby: approx. 22 mA
•Max current consumption (3G module transmits): peak of 1.5Amax.
•Max current start consumption (3G module logs in to the network module power up): peak max 2A max.
The power adapter must be able to deliver a peak current of at least 2A, otherwise it can lead to problems with
PGM1-E connecting to the network. If you are testing PGM1-3G using laboratory power supply, set the current limit
minimum (maximum current) and source terminals to connect the parallel capacitor 1000uF or greater.
•Operating temperature: -20°C to +50°C
•1 logic input, active level GND.
Input is designed for connection of potential-free contacts!
•1 input for digital temperature sensor with a measuring range from -20°C to 125°C.
(Temperature sensor sold separately with cable length 2m or 5m)
•1 output transistor open collector with load max 100 mA 12V
•UART interface voltage level 3V3 and 5V0
•PGM1 is designed in a dry environment. For outdoor installation, use the box with corresponding protection.
•6 authorized phone numbers can be set up
Basic Features:
•one universal input with adjustable reaction to change, connection or disconnection of the loop.
•Communicator can be named (SMS text).
•input can be named (SMS text).
•in case it is necessary to have an input permanently enabled (the watchdog state), can be switched into mode 24h. loop.
•input for digital temperature sensor with automatic output control (thermostat).
•Information SMS in case of exceeding the set temperature or the temperature drops below the set limit.
•Device Status, you can always check the status via SMS.
•Easy configuration via SMS commands
•Automation status SMS function available

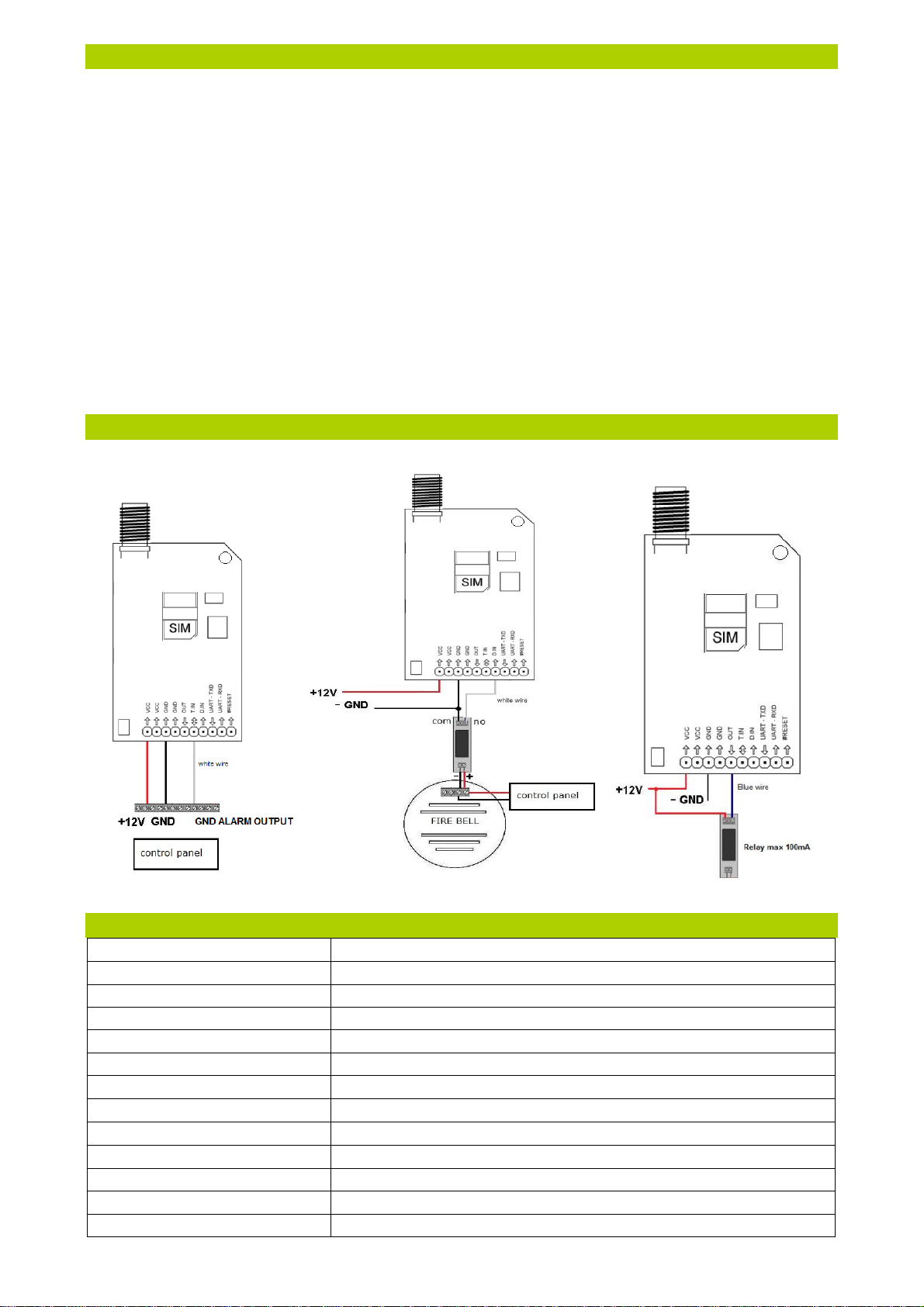

Wiring Connection PGM1-3G
LED indicator:
STATUS (Green)
Green flashing slowly - the communicator is activated *
Green LED off –communicator is deactivated *
Network (Blue)
Blue lights - Network is not ready / no signal
Blue flashing rapidly - a weak signal (<20%)
Blue flashing slowly - a good signal
* The communicator is activated means that the logic input modeARM / DISARM isArmed
Normal operating status:
•Green LED OFF (DISARM), blue LED flashes (device has GSM signal).
Process or the inability to start up networking, respectively. another problem:
•The green and blue LEDs ON.
New Zealand Pre Pay SIM Card Activation
1) It is recommended to only use new Nano SIM cards with no data stored. The PGM1-3G has been tested with Nano SIM cards
provided by Vodafone NZ, Spark NZ, 2Degrees NZ, Telstra AU, Optus AU, Vodafone AU, AT&T USA, T mobile USA
2) Place the new SIM card in an existing mobile phone.
3) Make a call to 777 Vodafone, *333 Spark or 200 2Degrees and follow the voice prompts to set up your PIN number to activate
the service and SIM, then it's ready to use.
4) We recommended register SIM online to manage SIM quick and easy any time. Registration process is quite quick. Click
on the Register for my account tab from the www.vodafone.co.nz, www.spark.co.nz or www.2degreesmobile.co.nz website
and to follow the prompts and fill in the required details. Wait to receive a validation TXT to complete the registration.
5) Insert the SIM card into the Communicator.
New Zealand On Account SIM Card
Pacific GSM provide on account SMS plans for PGM1-3G Communicator
1) 50 SMS’s to any network $9+GST per month
2) 150 SMS’s to any network $12+GST per month
Contact us for more information

PGM1-3G Communicator Installation
The Communicator PGM1-3G series is user friendly and easy to set up.
1) Before connecting the power, connect the corresponding GSM antenna.
2) After connecting the power supply and SIM card, the module will go undergo a self-test cycle. While in this cycle, the Status
and Network Led’s continuously on. After unit successfully connects to the network the blue Network LED will flash and green
status led will be off. Now the unit is ready for programming.
3) Send TXT report command to the unit 1234 stat? If the command was correct, you will receive a TXT confirmation contain-
ing network signal strength. If the network signal is not sufficient (below 40%), the move unit to better network signal area or
use of an external boost aerial AN-05.
The Communicator PGM1-3G series is a fully pre-programmed from manufactory, just call the PGM1-3G SIM phone number
from phone which you want to receive in future report, the PGM1-3G will automatically save called number under position 1
(NUMBER1).
From this moment if the input connected to GND for more like 6 sec. the PGM1-3G module will send the pre-programmed SMS (Alarm:
Activated) to this number, you can easily add additional phone numbers (up to 6) via simple SMS command. Output can be operated via
default commands 1234 OUTPUT ON or 1234 OUTPUT OFF
Newer remove SIM card or aerial when power is connected!
Example of PGM1-E Communicator Connection
Default setting
Password
1234
Digital input
016200
Output
01000000
Thermostat and temperature info
0+320+25000+300+1801
Automatic SMS and status after reboot
011122
Telephone numbers 1 settings
100100
SMS –module name
Alarm:
SMS –input name
Activated
SMS –command to activate digital input
ARM
SMS - command to deactivate digital input
DISARM
SMS –output name
OUTPUT
SMS –command to switch output on
OUTPUT ON
SMS - command to switch output off
OUTPUT OFF

SMS commands
Principles for using SMS commands:
The PGM1-3G Communicator can be programmed via TXT message from any mobile phone from any network. All commands and
setting must always start with a four digit security PIN, pre-set by the manufacturer to 1234. The PIN is followed by a space and the
appropriate TXT command. It is necessary to adhere to correct spacing (PIN –space –command –space –indication)
-PIN space command space indication -
Examples: 1234 arm or 1234 ARM (arming the unit)
All commands are confirmed and acknowledged by the 3G Communicator with a reply TXT confirmation. Even if the command was
incorrect the unit will send an error message.
•SMS commands are not case sensitive. Eg. command to determine the status, you can send STAT? / stat? / STat?
STAT?
Determines the current status of the communicator (Network operator, signal strength, temperature)
NPIN
Changes the password for. Example.1234 NPIN 1111 changes the original password to1111.
DEVNAME
To program a device name
INNAME
To program a name of input
CLEAR ALL NUMBERS
Clears all programmed phone numbers.
NUMBER1
Stores the phone number to the list. Example.: 1234 NUMBER1 [phone]
OUTPUT ON
Command to switch output on Example.: 1234 OUTPUT ON
OUTPUT OFF
Command to switch output off Example.: 1234 OUTPUT OFF
Table 1- Storing phone numbers which would be inform when the input is triggered:
The 3G Communicator is able to contact up to six different mobile numbers via TXT or call.
Command:
NUMBER1 to NUMBER6, send SMS: 1234 NUMBERX
CLEAR ALL NUMBERS
Clears all programmed phone numbers.
Example :
1234 NUMBER1 [phone] means that the number one receives alarm information from input 1,
*A new number will overwrite old number
Table 2 - Setting of telephone numbers:
Command:
SNUMBER1 to SNUMBER6, send SMS: 1234 SNUMBERX ABCDEF
Parameter A
A=1 –input1 report alarms to phone number, A=0 –input1 alarms does not reported to phone number
Parameter B
B=1 –phone number control output by dialling, B=0 - phone number not control output by dialing.*
Parameter C
C=1 –alarm are reported to phone number via call, C=0 –alarm not reported via call.
Parameter D
D=1 –alarm are reported to phone number via SMS, D=0 –alarm not reported via SMS.
Parameter E
E=1 –phone number control activation and deactivation by dialling, E=0 - phone number not control activation
and deactivation by dialling. *
Parameter F
F=1 –phone number receive service SMS, F=0 –phone number not receive service SMS.
Example :
1234 SNUMBER1 100100 means that the number one receives alarm information from input 1,
dial control output is off, the alarm reported via SMS, dial control ARM/DISARM is off, service SMS deactivated
*The call control can operate output 1 or the activation / deactivation of the communicator.
These functions can not be the used from one phone numbers at the same time.
*The Service SMS are: SMS message from network provider about credit and SIM card validation and automatic status SMS which can
inform you daily about unit status ( see table 3 for setting)
Table 3 - Automatic SMS status setting and the status after reset:
Command:
SETSYS, send SMS: 1234 SETSYS ABCDEF
Parameter A
A=1-Sending automatic status SMS enabled,A = 0 - automatic status SMS sending is disable.
Parameter B
Specifies which day SMS sent. You can enter 1 to 9
Parameter C
Tens of hours. You can enter 0-2. *
Parameter D
Units of hours. You can enter 0-9. *
Parameter E
E = 0 - communicator is arm after the restart, E = 1 - communicator is disarm after restart, E = 2 –
communicator status is same like last status before restart.
Parameter F
F = 0 - output 1 is switched on after the restart, F = 1 - output 1 is switched off after restart, F = 2 - Output 1
status is same like last status before restart.
Example:
1234 SETSYS 011122 means automatic SMS deactivated, if activated will sent each day at 11:00 hours. After
restart the communicator last status will be restored.
* Clock can be set from 0 to 23

Table 4 - Digital input setting:
Command:
SETIN1, send SMS: 1234 SETIN1 ABCDEF
Parameter A
A = 0 - input reacts to a connection to GND,A = 1 - input reacts to a disconnect GND,A = 2 –input reacts to the
any change
Parameter B
B = 0 –input is subject to activation / deactivation communicator, B = 1 - input is a 24-hour loop (permanent
watch).
Parameter C
Input delay –unit seconds. You can enter 0-9. *
Parameter D
Input delay - tenth seconds. You can enter 0-9. *
Parameter E
E = 1 - when the input is activated the output will switch , E = 0 - input activation does not switching output
Parameter F
F = 1 - after the input is activated the reporting will be blocked for 15 min, F = 0 –the reporting does not blocked
Example:
1234 SETIN1 010200 means that input react to connection of GND, input is under continuous monitoring (24h
loop), delay input is 0.2 seconds, when input activated does not switch output and after an alarm no blockage
of input.
* Input delay (transient treatment) can be adjusted from 0.2 to 9.9 seconds
Table 5 - Output settings:
Command:
SETOUT1, send SMS: 1234 SETOUT1 ABCDEFGH
Parameter A
A = 1 –after the output switched on or off via dialling or SMS the unit will confirm switching via call back to the
same number, A = 0 –unit does not confirm switching via call.
Parameter B
B=1 - after the output switched on or off via dialling or SMS the unit will confirm switching via SMS to the same
number, A = 0 –unit does not confirm switching via SMS.
Parameter C
Timer output - tens of hours. You can enter 0-1. *
Parameter D
Timer output - unit of hours. You can enter 0-9. *
Parameter E
Timer output - tens of minutes. You can enter 0-5. *
Parameter F
Timer output - tens of minutes. You can enter 0-9. *
Parameter G
Timer output - tens of seconds. You can enter 0-5. *
Parameter H
Timer output - tens of seconds. You can enter 0-9. *
Example:
1234 SETOUT1 01000000 means that a change in the output is only confirmed by SMS, timer output is
set to 00hour, 00minutes and 00 seconds.
*The timer output can be set from 0 to 10 hours. If you do not use a timer, entre value to 0
Table 6 - Setting the thermostat: NOTE: the thermostat function only available with
connected temperature sensor
Command:
SETTHERM, send SMS: 1234 SETTHERM ABCDEFGHIJ
Parameter A
A = 1 - thermostat controls output 1, A = 0 - thermostat does not control output 1
Parameter B
Upper thermostat limit - mark. You can set the + or -
Parameter C
Upper thermostat limit - tens ° C. You can set 0-9. *
Parameter D
Upper thermostat limit - units ° C. You can set 0-9. *
Parameter E
Upper thermostat limit - tenths ° C. You can set 0-9. *
Parameter F
Lower thermostat limit - mark. You can set the + or -
Parameter G
Lower thermostat limit - tens ° C. You can set 0-9. *
Parameter H
Lower thermostat limit - units ° C. You can set 0-9. *
Parameter I
Lower thermostat limit - tenths ° C. You can set 0-9. *
Parameter J
K = 0 - thermostat is in the heating mode, K = 1 - thermostat is in cooling mode
Example:
1234 SETTHERM 0+320+2500 means that the thermostat does not controls output 1, the upper limit is set to
+32.0 ° C, lower at +25.0 ° C and the thermostat is in heating mode. In other words: the thermostat stops
heating to 32.0 ° C and starts heating at 25.0 ° C.
* The temperature can be controlled in the range of -20 to +99.9 ° C.

Table 7 - Setting the SMS temperature limits:
Command:
SETTEMP, send SMS: 1234 SETTEMP ABCDEFGHIJ
Parameter A
A = 1 - Exceeding temperature SMS information limits is ON
A = 0 - Exceeding temperature SMS information limits is OFF
Parameter B
Upper limit of temperature monitoring - mark. You can set the + or -
Parameter C
Upper limit of temperature monitoring - tens ° C. You can set 0-9. *
Parameter D
Upper limit of temperature monitoring - units ° C. You can set 0-9. *
Parameter E
Upper limit of temperature monitoring - tenths ° C. You can set 0-9. *
Parameter F
Lower limit of temperature monitoring - mark. You can set the + or -
Parameter G
Lower limit of temperature monitoring - tens ° C. You can set 0-9. *
Parameter H
Lower limit of temperature monitoring - units ° C. You can set 0-9. *
Parameter I
Lower limit of temperature monitoring - tenths ° C. You can set 0-9. *
Parameter J
Hysteresis temperature setting ° C. You can set 1 to 9
Example:
1234 SETTEMP 0+300+1801 means that the exceeding temperature SMS information limits is OFF upper
limit is 30.0, lower limit is 18.0 Again, sending SMS
exceeding the upper limit is possible if the temperature drops below 29 ° C and lower limits when it goes above
19 ° C (set hysteresis).
* The temperature can be monitored in the range of -20 to +99.9 ° C.
Reset a forgotten password:
If you forget the password for SMS, you can reset default password (the default password is 1234) as follows:
- Send SMS to the SIM number in PGM1-3G, which contains only IMEI number. ( IMEI number can be located on 3G module)
- No password or command only IMEI number.
- Wait until the PGM1-3G blue LED will flash quickly (SMS was received)
- Disconnect power from PGM1-3G within 20 seconds.
- PGM1-3G password is restored to 1234
- If the power not disconnect within 20 seconds after PGM1-3G receive an SMS with the IMEI number, password will not be restored.
Guidelines for Safe and efficient use:
Please read this information before using your PGM1-3G Communicator. These instructions are intended for your safety. Please follow
these guidelines. If the product has been subject to any of the conditions listed below or you have any doubt as to its proper function,
make sure you have the product checked by a certified service partner before using it. Failure to do so might entail a risk of product
malfunction or even a potential hazard to your health or property.
Recommendations for Safe use of product:
•Always treat your product with care and keep it in a clean and dust-free place.
•Do not expose your product to liquid or moisture or humidity.
•Do not expose your product to extreme high or low temperatures.
•Do not drop, throw or try to bend your product.
•Do not attempt to disassemble or modify your product. Only authorised personnel should perform service.
•Do not use your product in an area where a potentially explosive atmosphere exists.
Antenna:
The PGM1-3G Communicator has an antenna. Use of antenna devices not marketed by Pacific GSM Limited specifically for this model
could damage your PGM1-3G Communicator, reduce performance, and produce SAR levels above the established limits (see below).
Radio Frequency (RF) Exposure and Specific Absorption Rate (SAR):
The PGM1-3G Communicator is a low-power radio transmitter and receiver. When it is turned on, it emits low levels of radio frequency
energy (also known as radio waves or radio frequency fields).
Governments around the world have adopted comprehensive international safety guidelines, developed by scientific organizations,
through periodic and thorough evaluation of scientific studies. These guidelines establish permitted levels of radio wave exposure for the
general population. The levels include a safety margin designed to assure the safety of all persons, regardless of age and health, and to
account for any variations in measurements. Specific Absorption Rate (SAR) is the unit of measurement for the amount of radio fre-
quency energy absorbed by the body. The SAR value is determined at the highest certified power level in laboratory conditions, but the
actual SAR level of the 3G Communicator while it is operating can be well below this value. This is because the 3G Communicator is
designed to use the minimum power required to reach the network. Variations in SAR below the radio frequency exposure guidelines do
not mean that there are variations in safety. While there may be differences in SAR levels among 3G Communicators, all Pacific GSM
communicator models are designed to meet radio frequency exposure guidelines.

Disposal of old Electrical and Electronic Equipment:
This symbol indicates that all electrical and electronic equipment included shall not be treated as household waste. Instead it
shall be left at the appropriate collection point for recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve
natural resources. For more detailed information about recycling this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
End User Licence Agreement:
This wireless device, including without limitation any media delivered with the device, (“Device”) contains software owned by Pacific
GSM Limited and its third party suppliers and licensors (“Software”). As user of this Device, Pacific GSM Limited grants you a non-
exclusive, non-transferable, non-assignable license to use the Software solely in conjunction with the Device on which it is installed
and/or delivered with. Nothing herein shall be construed as a sale of the Software to a user of this Device. You shall not reproduce,
modify, distribute, reverse engineer, decompile, otherwise alter or use any other means to discover the source code of the Software or
any component of the Software. For avoidance of doubt, you are at all times entitled to transfer all rights and obligations to the Software
to a third party, solely together with the Device with which you received the Software, provided always that such third party agrees in
writing to be bound by these rules. You are granted this license for a term of the useful life of this Device. You can terminate this license
by transferring all your rights to the Device on which you have received the Software to a third party in writing. If you fail to comply with
any of the terms and conditions set out in this license, it will terminate with immediate effect.
Disclaimer:
This device is designed for indoor use only unless protected in appropriate enclosure. The 3G Communicator is reliant on adequate
3G/2G coverage. In the event of inadequate or no 3G or 2G coverage, Pacific GSM Limited cannot be held liable for any damages.
The GSM Communicator was tested with SIM cards provided by “Vodafone NZ, Spark NZ, 2Degrees NZ, Telstra AU, Optus AU, Voda-
fone AU, AT&T USA, T mobile USA”. Pacific GSM Limited cannot be held liable for any malfunction with the use of other SIM cards.
Only use auxiliary equipment tested and approved by Pacific GSM Limited. Do not attempt to take apart, open, service, or modify the
hardware device. Doing so could present the risk of electric shock or other hazard. Any evidence of any attempt to open and/or modify
the device, including peeling punching, or removal of any labels, will void the Limited Warranty.
Never pass security code or the mobile number of the 3G Communicator to an unauthorised third party.
All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated,
downloaded or stored in any storage medium, for any purpose without the express prior written consent of Pacific GSM Limited.
Information in this document is subject to change without any notice. Pacific GSM Limited reserves the right to change or improve its
products and to make changes in the content without obligation to notify any person or organisation of such changes or improvements.
Visit the Pacific GSM Web site (www.pacificgsm.com) for current updates and supplemental information concerning the use and opera-
tion of this and other Pacific GSM products.
Warranty:
Subject to the condition of this Limited Warranty, Pacific GSM Limited warrants this product to be free from defects in design, material
and workmanship at the time of its original purchase by a customer. This Limited Warranty will last for a period of two year as from the
original day of purchase and for a period of one year for all original accessories (aerial).
The warranty does not cover any damages caused due incorrect installation and the use of any auxiliary devices not approved by
Pacific GSM Limited.
PGM1-3G complies with requirements of the following regulations:
•EN 55032:2015 Class B
•EN 55024:2010
•EN 61000-4-2:2008, Performance Criterion A
•EN 61000-4-3:2006, Performance Criterion A
•EN 61000-4-4:2013, Performance Criterion B
•EN 61000-4-6:2014, Performance Criterion A
Australia / New Zealand Responsible Supplier number E4647 R-NZ
Technical Support:
Pacific GSM Limited
Contact No: [phone] [phone]
E-mail: [e-mail]
Web: www.pacificgsm.com
© Published: 1 November 2017 by Pacific GSM Limited
No part of this booklet may be reproduced without written permission

DIN-3G Communicator available now
•230V or 8-25 AC/DC supply
•Battery Back up
•2 Inputs
•2 Relay Outputs 5A
•1 Temperature Input
•USB PC software configuration
•3G Global coverage
www.pacificgsm.com
