I
ixtremeM5801
Service Guide
PRINTED INTAIWAN

II
RevisionHistory
Please refertothe tablebelowfor theupdates made onixtremeM5801seriesguide.
Date Chapter Updated

III
Copyright
Copyright 2010byAcerIncorporated.Allrightsreserved.Nopartofthispublicationmaybe
reproduced,transmitted,transcribed,storedinaretrievalsystem,ortranslated intoanylanguageor
computerlanguage,inanyformorbyanymeans,electronic,mechanical,magnetic,optical,chemical,
manual orotherwise, withoutthe priorwritten permissionof AcerIncorporated.
Disclaimer
Theinformationinthisguideissubject tochangewithoutnotice.
AcerIncorporatedmakes no representationsorwarranties,eitherexpressed orimplied,withrespectto
the contentshereofandspecificallydisclaimsanywarrantiesofmerchantabilityorfitnessforany
particularpurpose.AnyAcerIncorporatedsoftwaredescribedinthismanualissoldorlicensed"as is".
Shouldtheprogramsprovedefectivefollowingtheirpurchase,the buyer (andnotAcerIncorporated,its
distributor,oritsdealer)assumestheentirecost ofall necessaryservicing, repair, andanyincidentalor
consequential damagesresulting fromanydefect inthesoftware.

IV
Conventions
Thefollowing conventionsareused inthismanual:
SCREEN
MESSAGES Denotes actual messages that appear
on screen.
NOTE Givesbitsandpieces of additional
informationrelated tothecurrent
topic.
WARNING Alertsyourtoanydamage that might
result fromdoing ornot doingspecific
actions.
CAUTION Givesprecautionarymeasures to
avoidpossiblehardwareorsoftware
problem.
IMPORTANT Remindsyoutodo specificactions
relevant totheaccomplishmentof
procedures.

V
Preface
Beforeusing thisinformation andthe product it supports, pleasereadthe followinggeneralinformation.
1. ThisServiceGuide providesyouwithalltechnicalinformationrelatingtothe BASIC
CONFIGURATIONdecidedforAcer's"global" productoffering.To betterfitlocalmarket
requirementsandenhanceproductcompetitiveness,yourregionalofficeMAYhavedecidedto
extendthefunctionalityofamachine(e.g.add-on card,modem,orextramemorycapability).
TheseLOCALIZEDFEATURES willNOTbe coveredinthisgenericservice guide. Insuch cases,
please contactyourregionaloffices orthe responsiblepersonnel/channeltoprovideyouwith
furthertechnicaldetails.
2. Please noteWHEN ORDERING FRUPARTS,thatyoushouldcheckthe mostup-to-date
informationavailableon yourregionalweborchannel. If,forwhateverreason,apart number
changeismade,itwill notbenotedintheprintedService Guide.ForACER-AUTHORIZED
SERVICEPROVIDERS,yourAceroffice mayhaveaDIFFERENTpart numbercodetothose
given intheFRU listof thisprinted Service Guide. YouMUSTusethe listprovidedbyyourregional
Acer office toorder FRUpartsforrepairandserviceofcustomer machines.

VI
Introducing theMotherboard.................................................................................1
Features...................................................................................................2
MainboardComponents........................................................................4
BlockDiagram.........................................................................................6
ixtremeM5801......................................................................................7
I/OPortIntroduction............................................................................11
HardwareSpecificationsandConfigurations......................................14
Using BIOS...............................................................................................................18
Setup UtilityMenus..............................................................................19
ProductInformation.............................................................................21
Standard CMOSFeatures......................................................................22
AdvancedBIOSFeatures.......................................................................24
AdvancedChipsetFeatures..................................................................28
IntegratedPeripherals..........................................................................29
PowerManagementSetup..................................................................30
PCHealth Status....................................................................................32
Frequency/VoltageControl..................................................................33
BIOSSecurityFeatures..........................................................................34
LoadDefaultSettings...........................................................................35
MachineDisassemblyandReplacement................................................................36
GeneralInformation.............................................................................37
Standard AssemblyProcess..................................................................38
Standard DisassemblyProcess..............................................................54
Troubleshooting.....................................................................................................70
Power-OnSelf-Test(POST)...................................................................71
POSTErrorMessagesList......................................................................75
Error SymptomsList..............................................................................77
UndeterminedProblems......................................................................81
JumperandConnector Information......................................................................82
FRU(FieldReplaceableUnit)List...........................................................................97
ExplodedDiagram................................................................................97
FRUList................................................................................................103

1
Introducing the Motherboard
Introduction
Thank you forchoosingthe H57H-AM2motherboard.Thismotherboardisahighperformance,
enhancedfunctionmotherboarddesignedtosupport theLGA1156socketforIntel®Lynnfield
/Havendale/Clarkdaleprocessorsfor high-endbusiness orpersonaldesktopmarkets.
Thismotherboardisbased onIntel®H57Express Chipsetforbestdesktop platformsolution.TheH57 is
asingle-chip,highlyintegrated,highperformanceHyper-Threading peripheralcontroller,unmatchedby
anyothersinglechip-device controller.Thismotherboardsupportsupto16GBof systemmemorywith
dualchannelDDR31333/1066MHz.OnePCIslotissupported,fullycompliantwithPCIrev2.3
specificationat33MHz.HighresolutiongraphicsviaonePCIExpressslot, intendedforGraphics
Interface,isfullycomplianttothePCIExpressBaseSpecificationrevision2.0.ItimplementsanEHCI
compliantinterfacethatprovidestwelveUSB2.0ports(fourUSBportsandfourUSB 2.0headers
support additionaleightUSBports).
Themotherboardisequippedwithadvancedfull set ofI/Oportsintherear panel,includingPS/2mouse
and keyboardconnectors,oneVGAport, oneLAN port, fourUSBports,and audiojacksfor microphone,
line-inand line-out.
Chapter1

2
Features
Operatingsystem
Windows®7HomePremiumx86/x64,Windows®7HomeBasicx86,Windows®7Starter x86
Processor
Themotherboarduses anLGA1156 type of socketthatcarriesthe following
Features:
lAccommodatesIntel®Lynnfield/Havendale/Clarkdaleprocessors
lSupports “Hyper-Threading”technologyCPU
“Hyper-Threading”technologyenables theoperatingsystemintothinkingit’shookedup totwoprocessors,
allowingtwothreadstoberuninparallel,bothon separate “logical”processorswithinthe samephysical
processor.
ThisboardsupportsCPUupto95WTDPonly.
Chipset
TheIntelH57 ExpressChipset isasingle-chipwithproven reliabilityandperformance.
lOnex16PCIExpressGen2portseachsupportingupto8GB/sdirectionpeakbandwidth
lCompliantwithPCI Rev2.3interface at33 MHz
lIntegratedSATA3.0Gb/sHostController
lFourteen USB2.0portssupported
lSerialPeripheralInterface(SPI)support
lEnhancedDMAController,interruptcontroller, andtimerfunctions
Memory
lSupportsDDR31333/1066 DDR3SDRAMwithDual-channelarchitecture
lAccommodatesfour unbufferedDIMMs
lUpto4GBperDIMMwithmaximummemorysizeupto16GB
OnboardLAN
TheonboardLANprovidesthefollowing features:
lSupportsPCIExpressTM1.1
lIntegrated10/100 /1000transceiver
lWake-on-LANandremotewake-up support
Audiol5.1ChannelHigh DefinitionAudioCodec
lADCssupport44.1k/48k/96kHzsamplerate
lMeetsMicrosoft WLP3.10 Vistapremiumand mobilePCsaudiorequirements
lDirect Sound 3DTM compatible

3
ExpansionOptions
Themotherboardcomeswiththefollowing expansion options:
lOnePCIExpressx16 slotfor GraphicsInterface
lTwoPCIExpressx1slot
lOne32-bit PCIv2.3compliantslot
lSix7-pinSATAconnectors
IntegratedI/O
Themotherboardcomeswiththefollowing expansion options:
lTwoPS/2portsformouse andkeyboard
lOneVGAport
lSixUSBports
lOneLAN port
lAudiojacksformicrophone,line-inandline-out
BIOSFirmware
Themotherboarduses AMIBIOSthatenables userstoconfiguremanysystemfeaturesincluding the
following:
lPower management
lWake-up alarms
lCPU parameters
lCPU and memorytiming
Thefirmwarecanalsobe used tosetparametersfor different processorclockspeeds.
1.Somehardwarespecifications and softwareitemsaresubject tochange
withoutprior notice.
2. Due tochipsetlimitation, werecommendthat motherboardbeoperated
intheambiancebetween0and 50 C.
Dimensionsandweight
l355 (H)x382.5(D) x180(W)mm(withoutbezel)
l11.4Kg

4
MainboardComponents
No Label Component
1 CPU SocketLGA1156socketfor Intel®Lynnfield/Havendale
/Clarkdaleprocessors
2 CPU_FAN CPU coolingfan connector
3 DIMM1~4 240-pinDDR3SDRAMslots
4 TPMTPMmoduleheader
5 PRINTEROnboardparallelportheader
6 FDD1Floppydiskheader
7 GPIO0~1GeneralPurpose I/OSignals
8 ATX1Standard24-pinATXpowerconnector
9 SPI_DEBUG SPIdebug header-factoryuseonly
10 COM2Onboardserialport header
11 SATA1~6SerialATA connectors
12 F_USB3~4 Frontpanel USBheaders
13 F_PANELFrontpanelswitch/LEDheader
14 CLR_CMOSClearCMOSjumper
15 ME_DISABLEMEdisablejumper

5
No Label Component
16 C_INTRUSION Chassisdetect header
17 OBR One buttonrecoveryjumper
18 F_USB2Frontpanel USBheader
19 F_USB1Frontpanel USBheader (CardReader)
20 SPDIF_OUT1SPDIFoutheader
21 INT_SPK1Speaker header
22 F_AUDIO1Frontpanel audioheader
23 PCI132-bit add-oncardslots
24 PCIE1Х-1~2 PCI Expressx1slot
25 PCIE16ХPCI Expressx16slot
26 SYS_FANSystemcooling fan connector
27 ATX_12VAuxiliary4-pinpower connector
ThisconcludesChapter1. Thenext chapterexplainshowtoinstallthemotherboard.

6

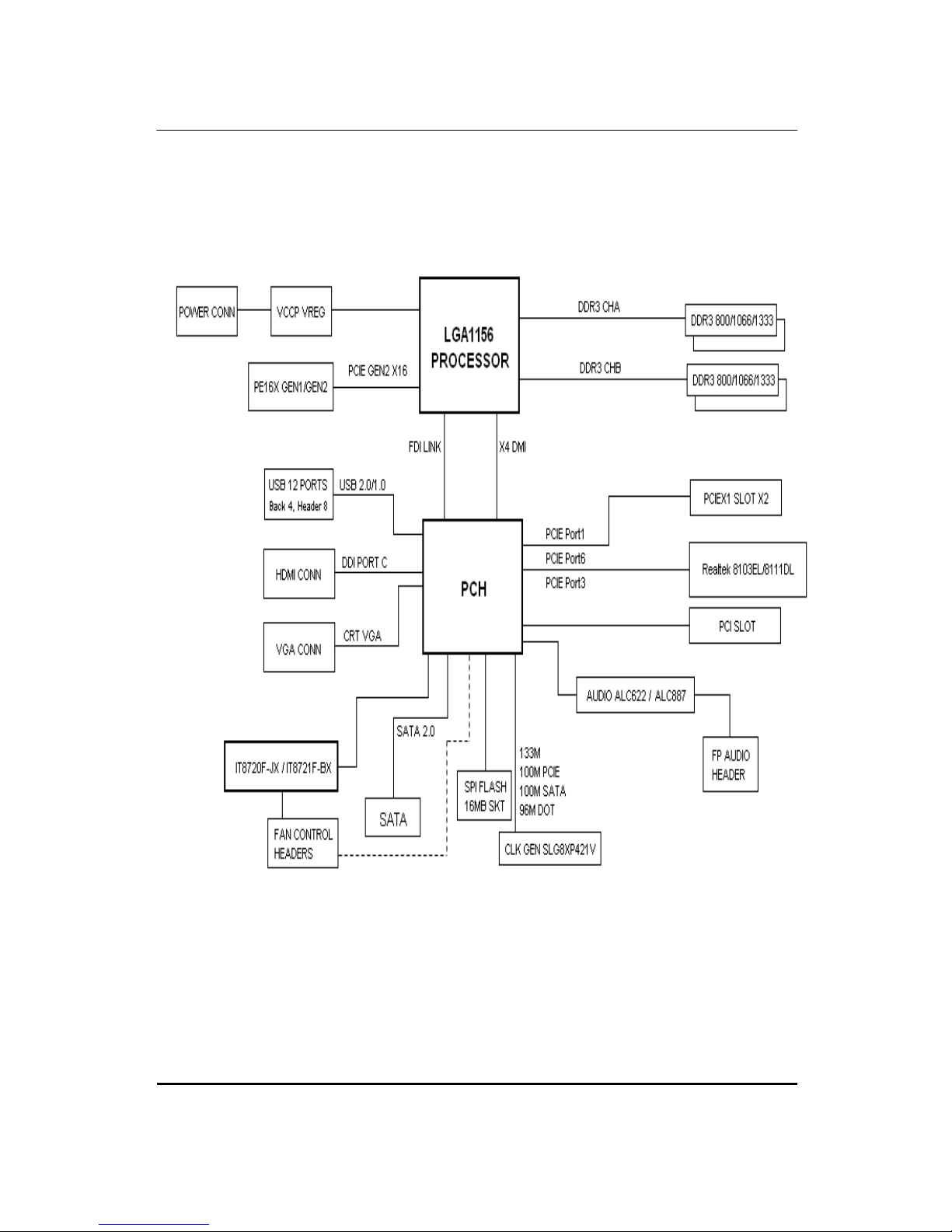

BlockDiagram

7
ixtremeM5801
Thecomputer’sfront panelconsistsof thefollowing
Frontview
No Icon Component Description
1 USB ports. ConnectstoUSB2.0devices
(e.g.,USB mouse,USBcamera).
2 xD
3 CF Compact flash.
4 MS/MSPro
MS:MemoryStick
MSPro:MemoryStick PRO
5 MicroSD MicroSecureDigital.
6 SD/MMC SDPlus: UltraII SD PLUSMemoryCard
MMCPlus: MultiMediaCardPLUS

8
No Icon Component Description
7 Headphone/Speaker-out/line-outport. Connectstoaudioline-indevices
(e.g.,speakers,headphones).
8 Microphone-injack. Acceptsinput fromexternalmicrophones.
9 USB ports. ConnectstoUSB2.0devices
(e.g.,USBmouse, USBcamera).

9
Rearview
No Icon Component Description
1 Keyboardconnector.
2 USBports. ConnectstoUSB2.0devices
(e.g.,USBmouse,USB camera).
3 Microphone-injack. Acceptsinput fromexternalmicrophones
4 Mouseconnector.
5 Networkport. Lightstoindicatethestatusof wireless
LANcommunications.
6 Line-injack Acceptsaudioline-in devices
7 Line-out jack Acceptsaudioline-outdevices

10
AudioJackFunctionTable
Color/Use Headphone 2CH 4CH 5.1CH
Blue Line-in Line-in RearSpeaker RearSpeaker
Green Headphone Frontspeaker Frontspeaker Front speaker
Pink Mic-in Mic-in Mic-in Center&bass

11
I/O Port Introduction
Thebackplaneofthe motherboardhas thefollowing I/Oports:
No Component Description
1 PS2Mouse Usetheupper PS/2port toconnectaPS/2pointing
device.
2 PS2Keyboard UsethelowerPS/2port toconnectaPS/2keyboard.
3 VGAPort Connect yourmonitor totheVGAport.
4 LANPort Connectan RJ-45jack tothe LANporttoconnectyour
computertotheNetwork.
5 USBPorts UsetheUSBportstoconnect USBdevices.
6 Line-in/ Line-out /Microphone
Usethethree audioportstoconnectaudiodevices.The
firstjackisforstereo line-insignal. Thesecondjackisfor
stereoline-out signal. Thethirdjackisformicrophone.
7 Serialport COM(option) Connect yourserialport devices.
8 DVI port(option) Connect yourmonitor totheDVIport.

12
System Peripherals
The ixtremeM5801 seriescomputer consistof thesystemitself, andsystemperipherals,likeamouse,
keyboard,cardreaderand aset ofspeakers(optional). Thissection providesabrief descriptionofthe
basicsystemperipherals.
Mouse(PS/2orUSB,manufacturing option)
Theincludedmouse isastandardtwo-button wheelmouse.Connectthe mousetothePS/2mouse port
or USBport onthe back panel ofthe system.
Keyboard(PS/2orUSB,manufacturingoption)
Connectthe keyboardtothePS/2keyboardport orUSB port onthebackpanelof thesystem.
Speakers
Forsystemsbundledwithspeakers, beforepoweringon the system, connect thespeakercabletothe
audioout (externalspeaker) port on theback panelofthe system.
Formoredetailed informationabout thespeakers, pleaserefertothe includedoperating instructions.
NOTE: speakersareoptionalandtheappearance might be different depending onthe actualproduct.

13
Card Reader(Option)
Memorycardsareusedinawideselectionof digitalcameras,PDAs,MP3playersandmobilephones.
Selectedcomputersinclude an “all-in-one”memorycardreaderthatallowsyou readand writethemost
common types, suchas SD (SecureDigital)™/MMC(Multi MediaCard™), CF(CompactFlash®), xD
(XD-PICTURECARD), MicroSDandMS/MSPro(MemoryStick®).
NOTE:Cardreader areoptional andtheappearance mightbedifferentdependingonthe actual product.

14
HardwareSpecificationsandConfigurations
Processor Item Specification
Type LGA1156 socket forIntel®Lynnfield/Havendale
/Clarkdaleprocessors
Socket socketLGA1156
Speed DependsonCPUwhichisconfigured
FSB DependsonCPUwhichisconfigured
BIOS Item Specification
BIOScode programmer Afudos
BIOSversion R01-A0(ornewerversion)
BIOSROMtypeFlashROM
BIOSROMsize 16MB
BIOSROMpackage32-pinDIPpackage(SST)
Support protocolACPI2.0, APM1.2,SMBIOS2.3,WFMsupport,
ASD
BootfromCD-ROMfeatureYes
Support toLS-120 FDD driveYes
NOTE: The BIOScanbe overwritten/upgradedbyusing the flashutility.
BIOSHotkeyList
Item Specification Specification
DEL EnterBIOSSetup Utility
Presswhilethesystemisbooting toenterBIOS
setup Utility.
F12 EnterBootMenu Presswhilethesystemisbooting toenterBoot
Menu.
MainBoardMajorChips
Item Specification
Chipset Intel H57
AGPcontroller Intel H57
SuperI/Ocontroller ITEIT8721F/BX
Audiocontroller RealtekALC662VC-0
LANcontroller REALTEK RTL8111DLGiga LAN
HDDcontroller Intel H57
Keyboardcontroller ITEIT8721F/BX
