Packard Bell oneTwo L5860 / L5861
All-In-One Computer Service Guide
PRINTED IN TAIWAN
Service guide files and updates are available
on the Acer/CSD web site; for more
information, go to http://csd.acer.com.tw

ii Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide
Revision History
Refer to the table below for changes made on this version of the Packard Bell oneTwo L5860 / L5861 All-In-One Computer
Service Guide.
Date Chapter Updates

Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide iii
Copyright
Copyright © 2010 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this guide is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Incorporated.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.

iv Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide
Conventions
The following textual conventions are used in this service guide.
SCREEN MESSAGES Denotes actual messages that appear on screen.
NOTE Gives additional information related to the current topic.
WARNING Alerts you to any physical risk or system damage that might result from
doing or not doing specific actions.
CAUTION Gives precautionary measures to avoid possible hardware or software
problems.
IMPORTANT Reminds you to do specific actions relevant to the accomplishment of
procedures.

Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide v
Service Guide Coverage
This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for our "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on
card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic
service guide. In such cases, please contact your regional offices or the responsible personnel/channel to
provide you with further technical details.
FRU Information
Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available
on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in
the printed service guide. For AUTHORIZED SERVICE PROVIDERS, your office may have a DIFFERENT
part number code to those given in the FRU list of this printed service guide. You MUST use the list provided
by your regional Acer office to order FRU parts for repair and service of customer machines.

vi Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide

vii Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide
Chapter 1 – Features and Specifications . . . . . . . . . . . . . . . . . . . . . . . 1
System Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Physical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
System Tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

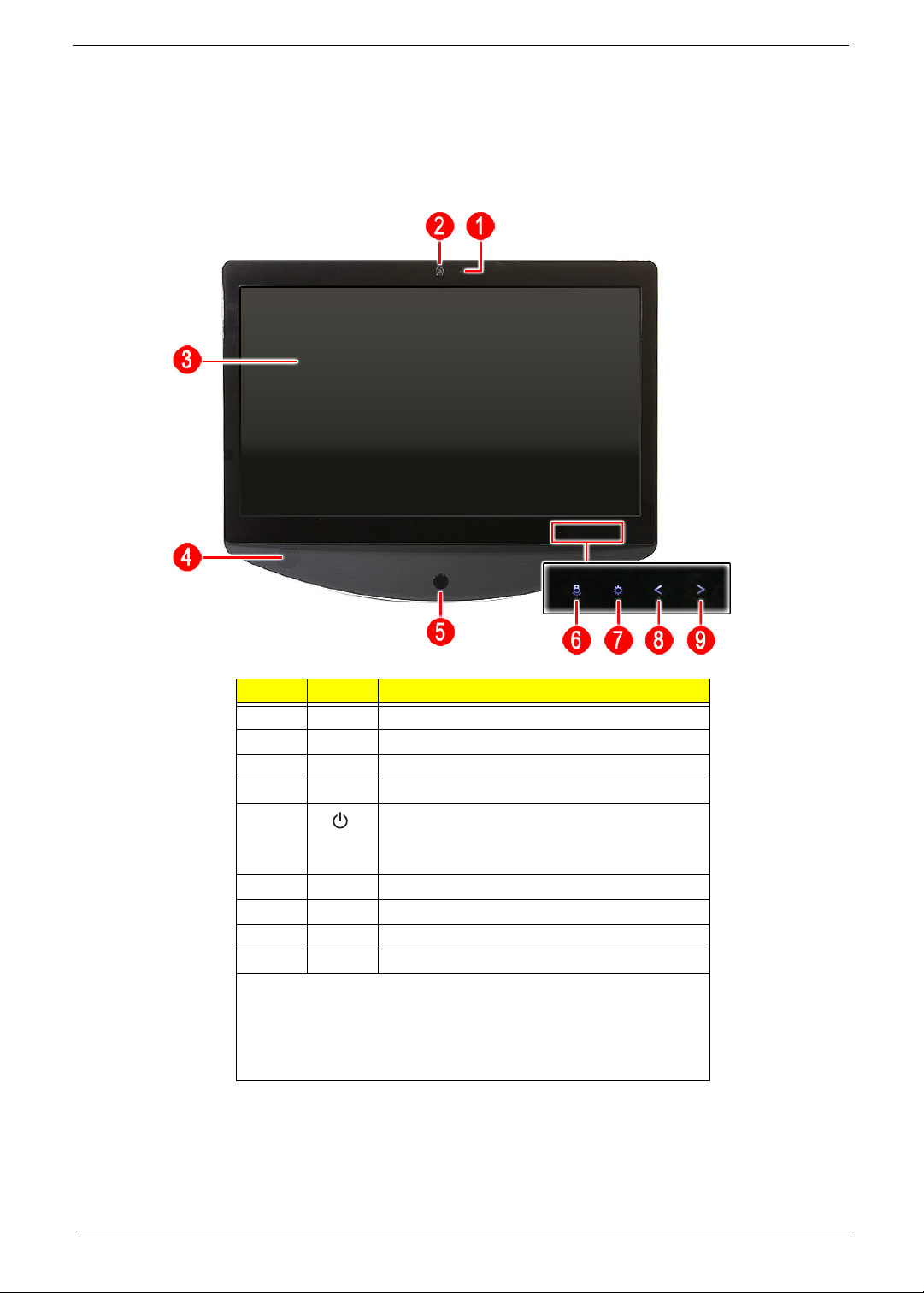

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Left View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

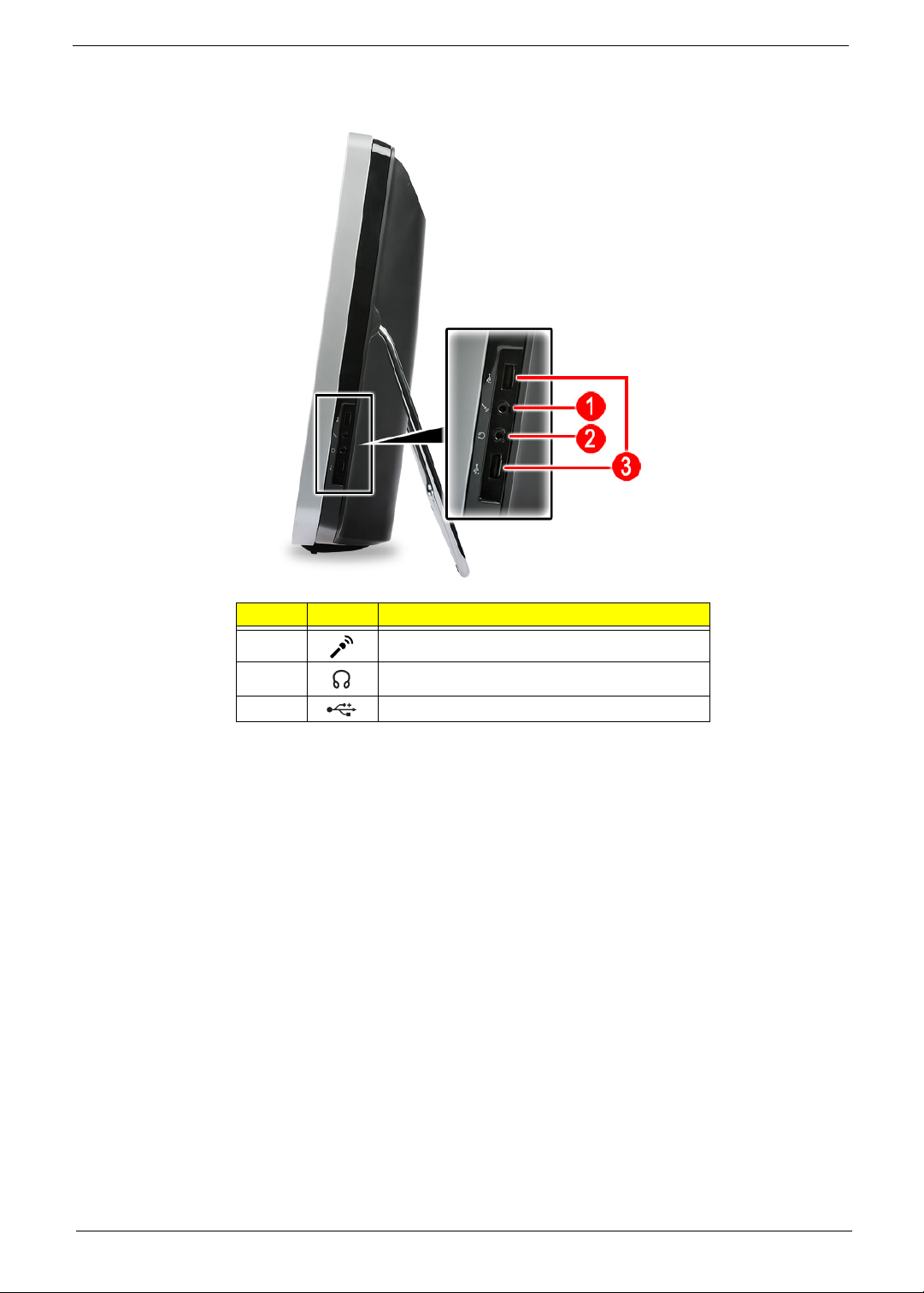

Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Hardware Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Chipsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Hard Disk Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Optical Disc Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Wireless LAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Webcam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Power Supply Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Chapter 2 – System Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
CMOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Accessing the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Navigating through the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Setup Utility Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Chapter 3 – System Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Disassembly Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Pre-disassembly Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Disassembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Removing the Computer Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Removing the I/O Cable Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Removing the Rubber Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Removing the Rear Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Removing the I/O Cable Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Removing the Optical Disc Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Removing the Wireless Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Removing the Scaler Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Removing the USB/Audio Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Removing the Wall Mount Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Removing the Side Board Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Removing the TV Tuner Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Removing the Graphics Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Removing the System Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Removing the Hard Disk Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Removing the Heat Sink Fan (HSF) Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Removing the Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Table of Contents

Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide viii
Removing the Memory Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Removing the Power Supply Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Removing the Mainboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Removing the I/O Shield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Removing the Converter Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Removing the Touchscreen Control Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Removing the Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Removing the Power Button Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Removing the Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Removing the LCD Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
Removing the Chassis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Removing the LCD LVDS Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Removing the LCD Panel Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Removing the Webcam Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Removing the Capacitive LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Removing the Light Bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Chapter 4 – Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Hardware Diagnostic Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
System Check Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Checkpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
POST Error Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Configuring the ME Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Clearing CMOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
BIOS Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
BIOS Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Updating the BIOS in DOS Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Updating the BIOS in Windows Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Chapter 5 – System Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Mainboard Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Chapter 6 – Field Replaceable Unit (FRU) List . . . . . . . . . . . . . . . . . . . 89
Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
FRU Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Appendix A – Model Definitions and Configurations . . . . . . . . . . . . 111
Appendix C – Test Compatible Components . . . . . . . . . . . . . . . . . . . . 113
Approved Vendor List (AVL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Appendix C – Online Support Information . . . . . . . . . . . . . . . . . . . . . 123
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Table of Contents

Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide 1
This chapter lists the features and specifications of the Packard Bell oneTwo L5860 / L5861 AIO computer.
System Features
NOTE The items listed in this section are for reference only. The exact configuration of your PC depends
on the model purchased.
Component Description
Processor • LGA1155 socket
• Supports the Intel Core Second Generation Processor Family
Chipset • Intel H67 Chipset (PCH)
• SIO ITE 8728F-CX (Super I/O)
Memory • Four DIMM slots
• Supports 1066/1333 MHz DDR3 UNB-DIMM (unbuffered)
•16GB maximum memory capacity (using four 4 GB modules)
PCI expansion options • One PCI Express 2.0 x16 slot (for graphics card installation)
• One PCI Express 2.0 x1 slot (for TV tuner or USB 3.0 card installation)
Display •Displaysize
– oneTwo L5860: 23-inch LCD panel
– oneTwo L5861: 23-inch LCD touchscreen panel
• Windows 7 compliant multi-touchscreen function for oneTwo L5861
Audio • Two built-in 5W stereo speakers
• Realtek ALC662VC 5.1+2 channel high definition audio codec
I/O ports • Right panel
– USB ports (two)
– Headphone jack
– Microphone jack
• Left panel
– HD dual digital TV tuner (optional)
– PS/2 keyboard and mouse ports
– Line-in, line-out, and microphone jacks
– USB 2.0 ports (six)
– HDMI port
– Ethernet jack (RJ-45)
– External display (VGA) port
– DVI port (optional)
– PS/2 keyboard and mouse ports
Media storage • 3.5-inch 25.4 mm 5400/7200 rpm SATA hard disk drive (HDD)
• Slim type SATA optical disc drive (ODD)
Card reader • 9-in-1 card reader slot
• Supports MultiMediaCard (MMC), Reduced-Size MultiMediaCard
(RS-MMC), Secure Digital (SD), xD-Picture Card (xD), Secure Digital
High Capacity (SDHC), Memory Stick (MS), Memory Stick PRO
(MS PRO) cards, CompactFlash Type I and II (CF-I, CF-II), and
microdrives
Features and Specifications
Chapter 1

2 Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide
Physical Specifications
Connectivity • Wired LAN: Onboard 10/100/1000 Ethernet support
• WLAN option: Mini Card wireless network adapter (802.11 b/g/n)
• WPAN option: Bluetooth®2.1+EDR (Enhanced Data Rate)
• Integrated 2.0 MP webcam
DIgital TV tuner (optional) • AVerMedia H753-A TV Tuner Card PCIe Hybrid ATSC card
• AVerMedia H753-D TV Tuner Card PCIe Hybrid DVB-T card
Digital media protection • Support Blu-ray Disc content protection
•B-CAS card – This optional card allows users to access protected digital
TV broadcasts.
Power supply 220 W power supply unit with PFC or non-PFC option (power factor
correction)
Ventilation • Heat sink fan for the processor
•PSUfan
• System fan (only for systems with certain graphics card models installed)
Operating system support Microsoft Windows 7 Home Premium
Antivirus software Norton Internet Security
Security • BIOS-based user and supervisor passwords
• Kensington lock
Power management • ACPI 2.0-compliant
• Energy Star 5.0 compliant (option)
Aspect Description
System dimension (W × H × D) 104 × 400 × 500 mm (4.09 × 15.75 × 19.66 in)
Mainboard form factor Standard DTX
Mainboard dimensions (W × H) 200 × 244 mm
Component Description

Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide 3
System Tour
The pictures and tables in this section illustrate the physical outlook of the computer.
Front View
Item Icon Component
1Integrated microphone
2Integrated webcam
3Display screen
4Speakers
5Power button/indicator
• Blue – System is in power-on mode
• Flashing blue – System is in standby mode
6Auxiliary lighting capacitive key
7LCD brightness capacitive key
8Volume decrease capacitive key
9Volume increase capacitive key
NOTES:
• Icons for the capacitive keys are only visible when the system is
turned on.
•Theauxiliary lighting capacitive key is designed to provide a light
source when using a keyboard in low-light conditions.

4 Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide
Left View
Item Icon Component
1B-CAS card (optional) cover
2Optical disc drive (ODD)
3I/O cable cover
49-in-1 card reader
5HD dual digital TV tuner (optional)
6Line-in jack
7Line-out jack
8Microphone jack
9USB ports
10 Ethernet port (RJ-45)
11 HDMI port
12 Monitor port (VGA)
13 DVI port (optional)
14 PS/2 keyboard port
15 PS/2 mouse port
16 AC power jack

Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide 5
Right View
Item Icon Component
1Microphone jack
2Headphone jack
3USB ports

6 Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide
Rear View
Item Component
1Ventilation slots
2Mounting holes for wall mount option
3Kensington slot
4Computer stand
Note: Item # 1 is compliant with the 100 × 100 mm VESA standard.

Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide 7
Hardware Specifications
Processor
• Socket: LGA1155
• Package type: 32 nm
Chipsets
BIOS
Memory
Item Specification
Series Intel Core Second Generation Processor Family
Model i3-2100 i5-2500 i5-2400 i5-2300 i5-2400S i7-2600S
CPU speed 3.1 GHz 3.3 GHz 3.1 GHz 2.8 GHz 2.5 GHz 2.8 GHz
Bus speed 1333 MHz 1333 MHz 1333 MHz 1333 MHz 1333 MHz 1333 MHz
No. of cores 244444
L3 cache size 3 MB 6 MB 6 MB 6 MB 6 MB 8 MB
TDP 65 W 95 W 95 W 95 W 65 W 65 W
Item Specification
PCH Intel H67
I/O controller SIO ITE 8728F-CX
Item Specification
BIOS chip AMI BIOS with 32 MM SPI Flash ROM
Setup utility CMOS Setup Utility
Item Specification
Controller Integrated in the Intel processor
Number of DIMM slot 4
Maximum memory 16 GB (using four 4 GB modules)
Data rate 1066/1333 MT/s
Supported capacities 1, 2, or 4 GB
DIMM type DDR3 UNB-DIMM
Supported brands A-Data, Apacer, Kingston, Nanya, Samsung, Unifosa
Population rule You can install memory modules in any combination as long as they match the above
specifications.

8 Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide
Hard Disk Drive
Optical Disc Drive
Ethernet
Item Specification
Controller Integrated in the Intel H67 chipset
Form factor 3.5-inch 9.5 mm
Interface SATA or SATA II
Supported capacities
320 GB • HGST HDS721032CLA362 (7200 rpm)
• Seagate ST3320418AS (7200 rpm)
•WDWD3200AAJS-22L7A0 (7200 rpm)
500 GB • HGST HDS721050CLA362 (7200 rpm)
• Seagate ST3500418AS (7200 rpm)
• WD WD5000AAKS-22V1A0 (7200 rpm)
1 TB •HGST HDS721010CLA332 (7200 rpm)
• Seagate ST31000528AS (7200 rpm)
• WD WD10EARS-22Y5B1 (5400 rpm)
1.5 TB • Seagate ST31500341AS (7200 rpm)
•WDWD15EARS-22MVWB0 (5400 rpm)
Item Specification
Controller Integrated in the Intel H67 chipset
Type DVD-Super Multi double-layer, Blu-ray Disc combo, or Blu-ray Disc-RW drive option
Form factor Slim type
Tray height (mm)) 12.7 mm
Interface SATA
Supported models
DVD-Super Multi
double-layer drive
•HLDSGT31N
• PLDS DS-8A5SH
Blu-ray Disc
combo drive
• HLDS CT21N
• Panasonic UJ141AL
Blu-ray Disc-RW
drive
Panasonic UJ240A
Item Specification
Controller Intel 82579V Gigabit Ethernet Controller
LAN protocol 10/100/1000 Mbps
LAN connector type RJ-45

Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide 9
Wireless LAN
Bluetooth
Audio
Webcam
Item Specification
Model • Lite-On WN6607LH
• Realtek RTL8191SU
Protocol 802.11 b/g/n
Form factor PCIe Mini Card
Item Specification
Model Chicony BC10B-04C1
Version Bluetooth 2.1 + EDR
Item Specification
Controller Realtek ALC662VC 5.1+2 channel high definition audio codec
Features • Two built-in 5W stereo speakers
• Right panel audio jacks: Headphone and microphone jacks
• Left panel audio jacks: Line-in, line-out, and microphone jacks
Item Specification
Resolution 2.0 MP
Supported models • Chicony CNFA21321004590L
• Park Orchid C04PL037F
• Primax W202N / 50-704A4WNT8
• Simplo C04PL037F

10 Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide
Display
Power Supply Unit
Item Specification
Panel model LGD LM230WF5-TLC1
Screen size (diagonal, inch) 23-inch
Active area (H × V) 509.184 × 268.416 mm
Backlight White LED
Interface LVDS 2-port
Supported resolutions 1920 × 1080 (Full HD)
Brightness (typical) 250 nits
Viewing angle (typical, H/V) 170/160
Contrast ratio (typical) 1000:1
Response time (typical) 5 ms
Display colors 16.7M (6bit+A-FRC)
Aspect ratio 16:9
Surface treatment Anti-glare, 3H
Module size (W × H × D) 533.2 × 312 × 11.5 mm
Module weight (typical) 1900 g
Power consumption (typical, without converter) 18.95 W
Power supply input voltage (typical) 5.0 V
Temperature
Operating
Storage (shipping)
0 to 50 °C (90% RH)
-20 to 60 °C (90% RH)
Touchscreen • oneTwo L5860: No
• oneTwo L5861: Yes (Quanta optical touch solution)
Item Specification
Output (max.) 220 W
Supported models • Chicony CPB09-D220R / CPB09-D220A / CPB09-D220E (FR 220W, ES)
• Delta DPS-220UB-3A / DPS-220UB-4A / DPS-220UB-5A
• Lite-On PS-5221-06A2 / PE-5221-08AF / PS-5221-9AB

Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide 11
CMOS Setup Utility
CMOS Setup Utility is a hardware configuration program built into the system ROM. Since most systems are
already properly configured and optimized, there is normally no need to run this utility.
You will need to run this utility under the following conditions:
• When changing the system configuration including:
• Setting the system time and date
• Configuring the system drives and peripherals
• Specifying the boot device sequence
• Configuring the power management modes
• Setting up system passwords or making other changes to the security setup
• When trying to resolve IRQ conflicts
• When a configuration error is detected by the system and you are prompted ("Run Setup" message) to
make changes to the BIOS settings.
The Setup Utility loads the configuration values in a battery-backed nonvolatile memory called CMOS RAM.
This memory area is not part of the system RAM, which allows configuration data to be retained when power is
turned off. The values take effect when the system is booted. POST uses these values to configure the
hardware. If the values and the actual hardware do not agree, POST generates an error message. You must
run this utility to change the hardware settings from the default or current configuration.
IMPORTANT If you repeatedly receive “Run Setup” messages, the RTC battery located on the mainboard
(BT1) may be defective. In this case, the system cannot retain configuration values in CMOS.
Replace the RTC battery with a new one.
NOTE For ease of reading, CMOS Setup Utility will be simply referred to as “Setup” or “Setup Utility” in this
Service Guide.
System Utilities
Chapter 2

12 Packard Bell oneTwo L5860 / L5861 AIO Computer Service Guide
Accessing the Setup Utility
1. Turn on the computer.
If the computer is already turned on, save your data and close all open applications, then restart the
computer.
2. During POST, press Delete.
If you fail to press Delete before POST is completed, you will need to restart the computer.
Use the Left/Right arrow keys to move between the menu screens, then press Enter to view that menu tab.
Use the Up/Down arrow keys to move between the menu options, then press Enter to execute that option.
Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other
options lead to dialog boxes that prompt you for information.
Some options (marked with a ) lead to submenus that enable you to change the values for the option. Use
the Up/Down/Left/Right arrow keys to scroll through the items in the submenu
