Palm Garden WBT420 User manual

(WBT420)
User Manual
Version 1.4
PALM GARDEN ENTERPRISES CORP.
Copyright © 2005. All rights reserved

Notice: The changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance
requirements, no change to the antenna or the device is permitted. Any
change to the antenna or the device could result in the device exceeding the
RF exposure requirements and void user’s authority to operate the device.
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.

PALM GARDEN ENTERPRISES CORP.
Copyright © 2005. All rights reserved 1
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions
for satisfying RF exposure compliance. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Bluetooth Introduction
Bluetooth is a global wireless standard for enabling short-range wireless
connections. It is a simple and instant radio solution that allows different
devices to talk to one another. Bluetooth eliminates the need for
cables/wires/cords between devices such as mobile phones and headphones.
Bluetooth facilitates fast and secure transmissions of both voice and data
between devices even if they are not in line-of-sight. Most Bluetooth devices
are described as 'Class 2'. These are very low power and have a range of
about 10 meters. Some devices are Class 1. These have range comparable to
that of Wi-Fi and have a range up to 100 meters.
A limited, but growing number of devices use Bluetooth at present. Devices
that are starting to have Bluetooth connectivity built in include:
• Headsets
• Headphone
• Cell Phones
•PDAs
•Laptops
•Digital cameras and camcorders
•Printers
•Scanners
•Keyboards and Mice
•In-car handsfree kits
•GPS navigation receivers
•Home appliances (microwaves, washers, driers, refrigerators)
In addition, add on Bluetooth adapters are available for computers (i.e. with a
USB interface) and for PDAs.

PALM GARDEN ENTERPRISES CORP.
Copyright © 2005. All rights reserved 2
Package List
The following checked items should be in the package.
Items Quantity
Transmitter (TX) 1
Audio Cable 1
WANSTONIC Stereo Headset Kit
The music source for this headset can be any consumer device such as a
Portable MP3 Player, a Mobile Phone, a PC, a Music System, or an In-car
Entertainment System that is compliant with the Bluetooth specification
version 1.1 or 1.2 and is supporting the Advanced Audio Distribution Profile
(A2DP).
TX Features
zAuto Pairing – Search any Bluetooth receivers automatically and show
the link status on the status LED indicator.
zEasy to link with the music source – Plug an audio cable in TX and
connect the other side of the cable to audio source.

PALM GARDEN ENTERPRISES CORP.
Copyright © 2005. All rights reserved 3
How to Use
WANSTONIC Stereo Headset performs well with the Bluetooth TX and can
be used to demonstrate the following usage scenarios:
zEnjoying the superior music quality
Connect a Bluetooth TX with any audio source with a 3.5ψmm audio jack
and play music. Let the music be streamed to the Stereo Headset. Users
can also use another Bluetooth enabled device that minimally supports
the A2DP profile of the Bluetooth specification, version 1.1 to play music.
In this scenario the ability of the headset to pick up / drop phone calls is
not utilized.
Before You Use
Please make sure the battery power of the headset and the TX is sufficient. If
the power is low, the charging LED indicator of headset or TX will start to
flash.
Please charge the headset and the TX when you see the low power signal.
When you are charging the battery, TX or headset charging LED indicator will
constantly on. When the battery is full, the light of headset or TX will shut off
automatically.

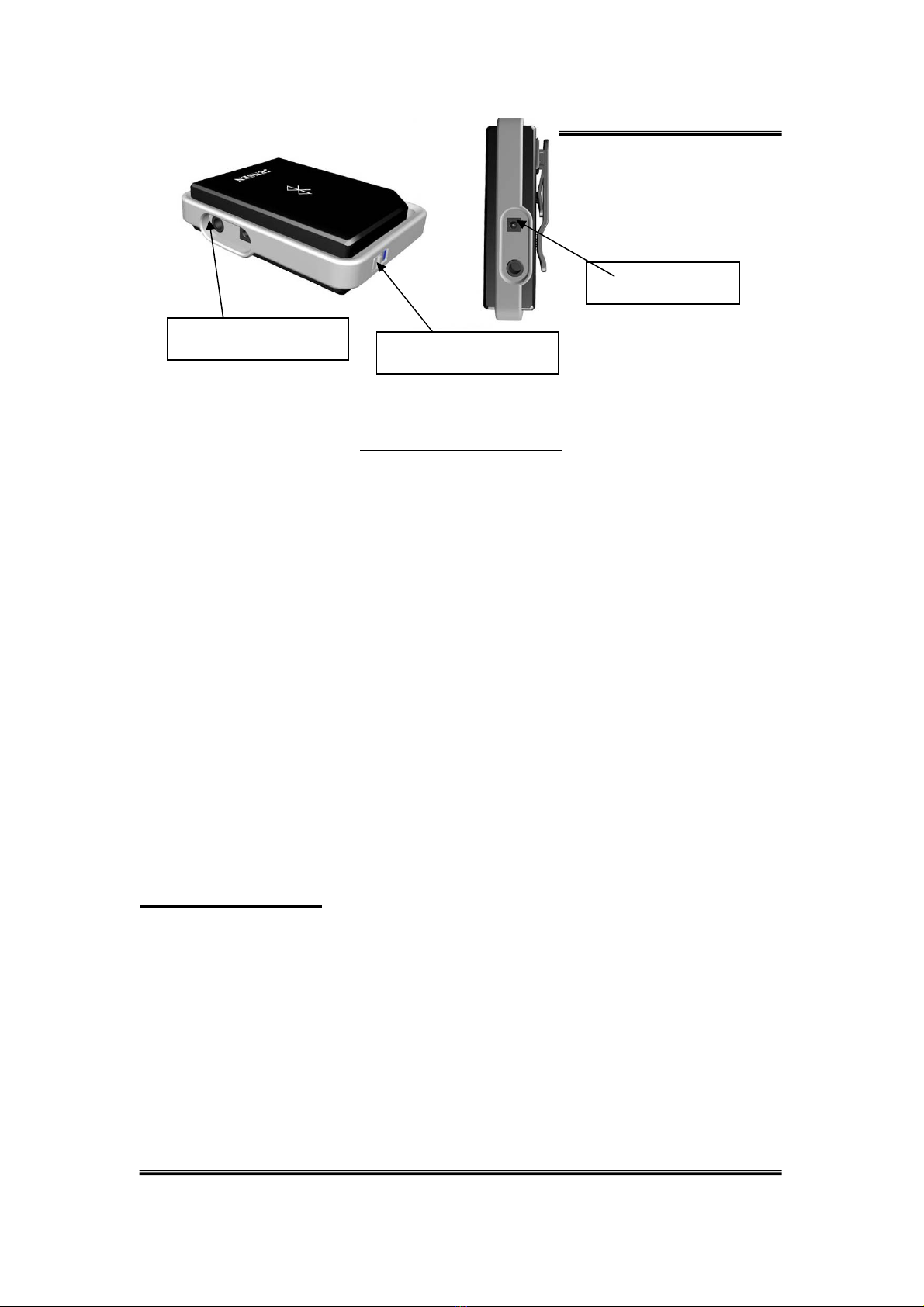

Figure 3 – Bluetooth TX
DC Power I/P
3.5m/m Phone Jack POWER ON/OFF

PALM GARDEN ENTERPRISES CORP.
Copyright © 2005. All rights reserved 4
LED indicators
Location LED Status Function
Status LED lights up
steady
Pairing modeHS (Module Side)
Status LED flashes Standby / Linked
Charging LED flashes
slowly
Low battery outputHS (Power Side)
Charging LED lights up
steady
Charging (Indicator turns off when charging
is completed.)
zTX Dongle
Function Keys
Location Keys Function
TX Dongle Power Key Power on / off
LED indicators
Location LED Status Function
Flashes Pairing mode
Flashes slowly Standby / Linked
Status
LED
Lights up steady Indication that HS is operating in phone
mode
Flashes slowly Low battery output
TX Dongle
Charging
LED Lights up steady Charging (Indicator turns off when charging
is completed.)
Enjoying the Superior Music Quality
Before using the headset to listen to music, you should make a music
connection as follows:

PALM GARDEN ENTERPRISES CORP.
Copyright © 2005. All rights reserved 5
1. Setting Up Music Source
(1) Please make sure you have 3.5ψmm audio jack in your music source, i.e
CD Player, a MP3 player or a PC.
(2) Link the TX to the audio source with an audio cable.
(3) Press the Power Key on TX about 5 seconds until the LED indicator is
flashing. Release it and the TX will be turned on.
2.Connecting TX / Headset
(1) Turn on the headset. Meanwhile, you can hear the opening sound from
the headset.
(2) The TX and the headset will be paired automatically after a few seconds.
(3) When the pairing is done, the LED indicator on headset will start flashing.
(4) Play music.
(5) You can hear music from the headset.
*Note:
1. It may take you a few seconds in paring headset with TX for the first time. It
will be quicker in searching after that.
2. During the pairing mode, the status LED indicator on TX will flash quickly.
When the pairing is done, the LED indicator on TX will flash slowly and
steadily.
3.Turning Off
(1) If you don’t want to use the headset, turn off the headset by the power
switch.
(2) Turn off the TX.

PALM GARDEN ENTERPRISES CORP.
Copyright © 2005. All rights reserved 6
Specification
Product Name BluePacket Bluetooth Transmitter
Standard Bluetooth 1.2 compliant
Power Class Class 2
Frequency Band 2.402~2.480 GHZ unlicensed ISM band
Profile Supported A2DP Profile
Audio Format SBC
Memory 8M flash external memory
Rx Sensitivity < 0.1% BER at -86 dBm
RF Output Power -6dBm~4 dBm
Sampling Rate 48KHz
SNR <90 dB
Antenna embedded antenna
Working Distance up to 10 meters (in open space)
Note: The maximum operating range depends on the paired
phone model, battery power, and environmental factors.
Power Consumption Music Streaming 75 mA(Typical)
Power Supply 380mA Lithium Ion Battery
Operating Temperature -10 ~ +55℃℃

PALM GARDEN ENTERPRISES CORP.
Copyright © 2005. All rights reserved 7
Dimensions 47.54(L)×47.54mm(W)× 29.52mm(H)
Weight About 20 grams
FAQ
1. Q : How do I know that the battery of the headset have insufficient power?
A : The battery power is almost exhausted when one or more following
scenarios happen:
(1) The headset starts to reset automatically.
(2) You can constantly hear breaks on the audio link, or
(3) You cannot connect the headset to the TX after several tries.
2. Q : Why cannot I create a connection to the headset?
A :
(1) Verify that the battery power of headset is not running low.
(2) Check if the headset is powered on and the indicator LED is steadily light
on.
(3) Verify that the headset is within the specified range of 10 meters from the
audio source.
(4) Check if any other Bluetooth device has connected to the headset. If
headset is connected with other devices, the indicator LED on the
headset will flash slowly.
(5) Turn both the headset and the audio source device off. Power on the
headset on and then power on the audio source and try connecting again.
3. Q : Can I adjust volume when I am in the phone mode?

PALM GARDEN ENTERPRISES CORP.
Copyright © 2005. All rights reserved 8
A: The volume keys can be adjusted in both music and phone mode.
4. Q : Why do I hear beep from the headset?
A: The beep means the headset is in the low power status. The headset will
beep every 20 seconds to remind you to charge it. Meanwhile, the charging
LED indicator is flashing.
5. Q : How do I know the maximum and minimum volume?A: You can hear beep if
you adjust the volume up key to the maximum. If you adjust the volume down key
to the minimum, you can also hear beep.
6. Q : Why does TX turn off automatically?
A: If you turn on TX but it cannot find any device to pair with after 3 minutes, it will
turn off automatically to save power.
Technical Support
If you have further questions, please contact our Technical Support Department.
Thank you!
