Paloform KODO 72 User manual

DANGER - IF YOU SMELL GAS
1. Shut o gas to the appliance.
2. Extinguish any open ame.
3. If odor continues, keep away from the appliance and immediately call your gas
supplier or re department.
WARNING
Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this
or any other appliance. An LP-cyllinder not connected for use shall not be stored in the
vicinity of this or any other appliance.
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent, car
or home.
WARNING:
Improper installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Read the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
WARNING: FOR OUTDOOR USE ONLY!
DANGER
KODO 72 OUTDOOR FIREPLACE Match-lit
Installation + Owner's Manual
Meets the essential requirements as described in the European Gas Appliance Regulation (EU) 2016/426 (9 March 2016)
INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference
0063

2KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
SAFETY INFORMATION
WARNINGS:
IMPORTANT: This appliance should
be inspected before use and at least
once annually by a qualied service
person.
More frequent cleaning may be
required as necessary. It is imperative
that the control compartment,
burners and circulating air
passageways of the appliance be
kept clean.
DANGER: Carbon monoxide
poisoning can lead to death!
CARBON MONOXIDE POISONING:
Early signs of carbon monoxide
poisoning resemble the u, with
symptoms including headache, dizziness,
or nausea. If you experience these
signs, the replace may not be working
properly. Get fresh air at once! Have the
replace serviced. Some people are more
aected by carbon monoxide than others,
including pregnant women, people with
heart or lung disease or anemia, those
under the inuence of alcohol, and those
at high altitudes.
NATURAL GAS AND PROPANE:
To assist in detecting leaks, an odorant
has been added to natural gas and
propane. However, this odorant can fade,
and gas may be present even though no
odor exists. Make certain you read and
understand all warnings. Keep this manual
for reference. It is your guide to safe and
proper operation of this appliance.
WARNING: Any modication to this appliance or its
controls can be dangerous.
Read instructions before installation and use.
1. This appliance, as supplied, is only for use with the
type of gas indicated on the rating plate.
2. This appliance is intended to be connected to a xed
piping system. The installation must conform to local
and/or national codes.
3. Never leave the re unattended.
4. Keep the appliance area clear and free from
combustible materials, gasoline and other ammable
vapors and liquids
5. Use only the type of gas that is specied by the
manufacturer.
6. Do not burn solid fuel in this appliance. Do not use
this appliance to cook food or to burn paper or other
objects.
7. Children and adults should be alerted to the hazards
of high surface temperatures and should stay away
to avoid burns or clothing ignition.
8. Clothing or other ammable materials should not be
hung from the appliance, or placed on or near the
appliance.
9. Young children should be carefully supervised when
they are in the area of the appliance.
10. Do not use the appliance if any part has been under
water. Immediately call a qualied service technician
to inspect the appliance and to replace any part of
the control system and any gas control which has
been under water.
11. In case of violent wind particular attention must be
taken against the tilting of the appliance.
12. Inspect the appliance before each use.
13. Do not move the appliance when in operation. Shut
o gas at source before moving the appliance
14. Turn the appliance o and let cool before servicing,
installing, repairing or covering. Any guard or other
protective device removed for servicing the appliance
must be replaced prior to operating the appliance.
Only a qualied service person should install, service,
or repair the appliance.
FOR OUTDOOR USE OR IN AMPLY VENTILATED AREAS
• An amply ventilated area must have a minimum of
25% of the surface area open.
• The surface area is the sum of the walls surface

3KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
BASIC ASSEMBLY
1. UNPACK: Account for all parts (see p. 13)
2. FRAGILE: Handle with care

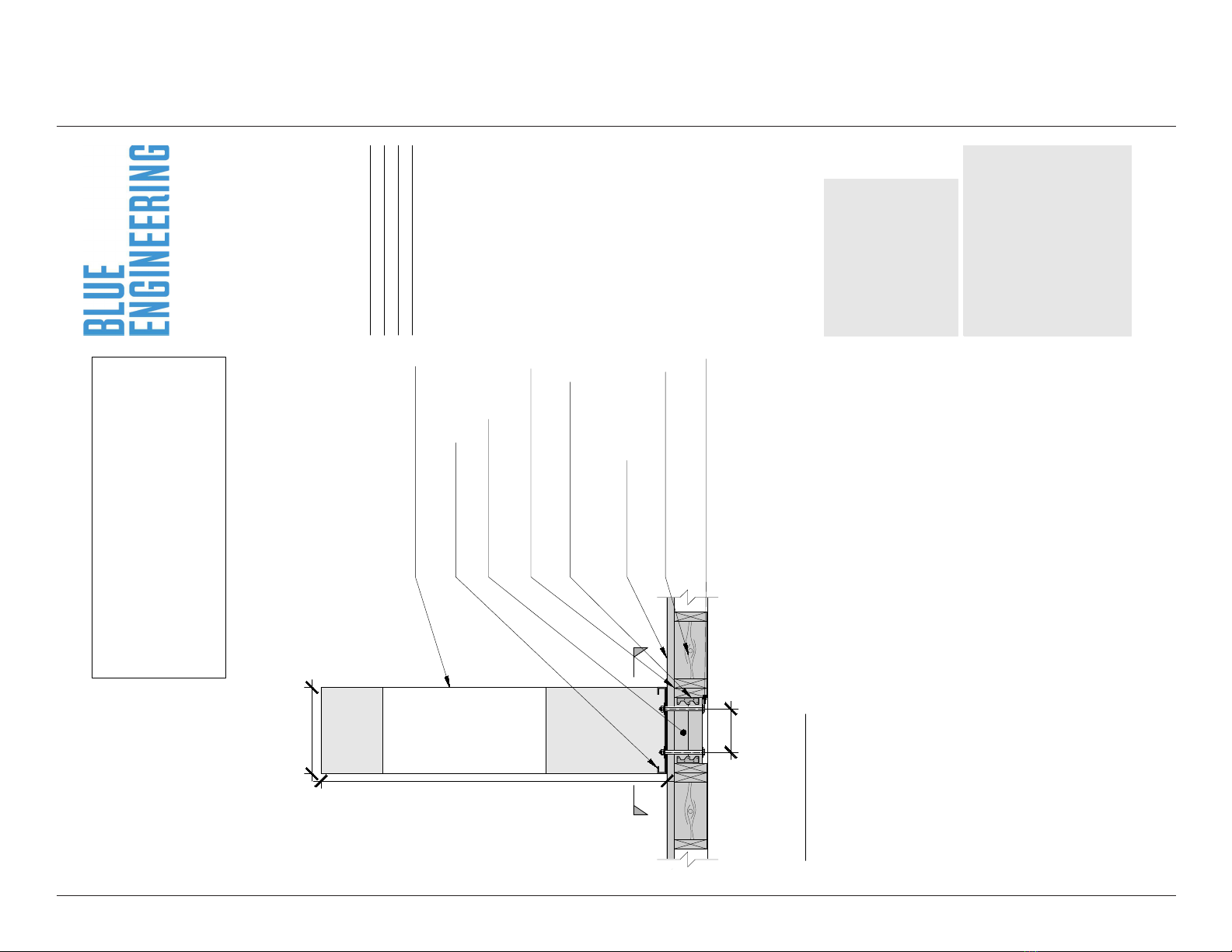

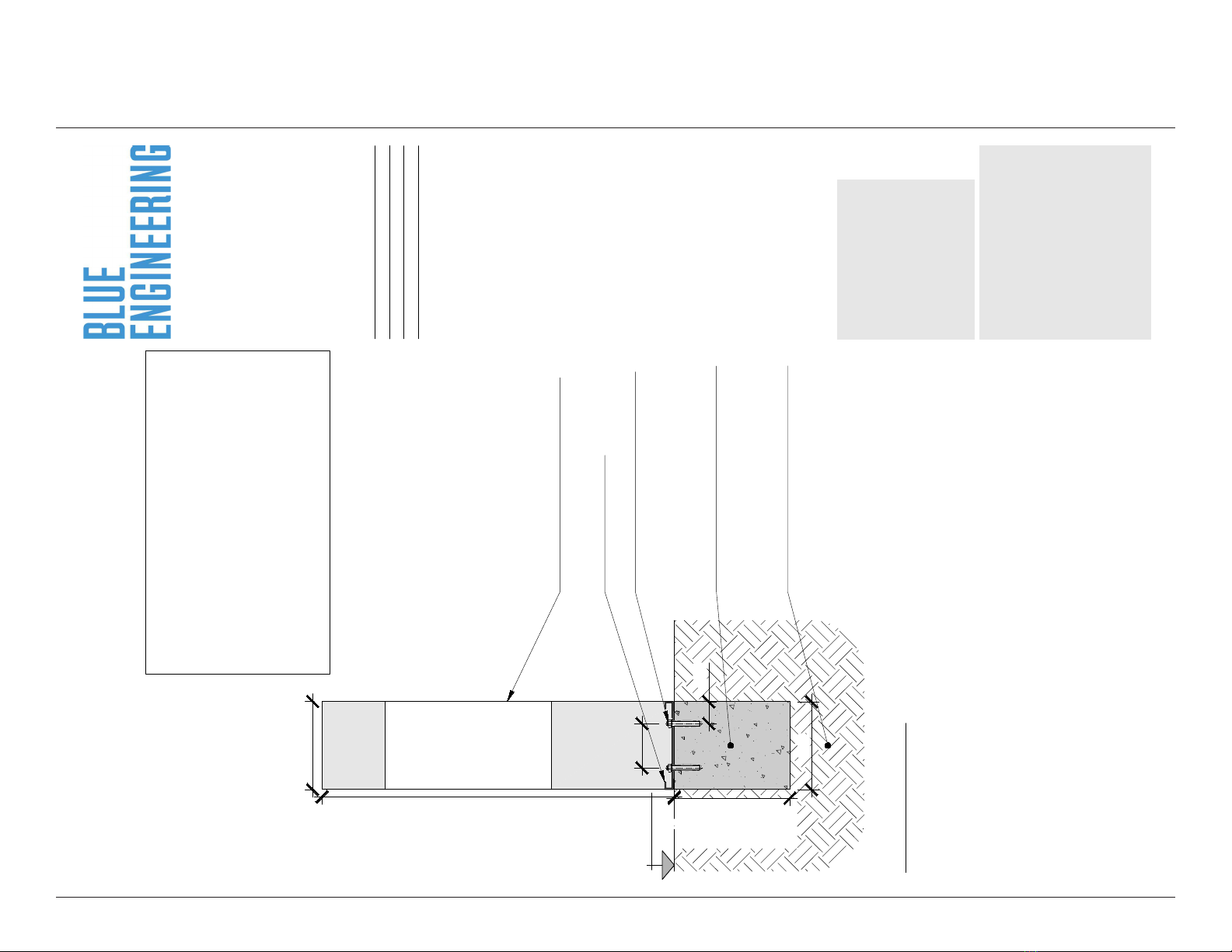

3. ANCHOR: Anchor surround to slab or
decking surface (see pp 17-20)
4. AIR VENTS: Do not block ventilation gaps
in base
5. GAS / PROPANE: Supply line is routed
through the base of the unit and must be
installed by licensed trades.
Space is tight! Keep risers as low and
compact as possible
6. MEDIA TOPPINGS: Review correct
placement (p. 6-7)
COR-TEN STEEL is designed to oxidize
and form a protective layer that resists
corrosion. This layer can take several
months to stabilize depending on climate
and weather conditions. Rust will bleed
until it stabilizes.
Do not place Cor-Ten replaces on
surfaces that will be permanently
damaged or stained by rust bleed.
GAS SUPPLY
CONTROL KEY
CORTEN SURROUND
BURNER / TOPPING TRAY
BURNER ASSEMBLY
ANCHOR BOLTS

4KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
FOLD 72
NATURAL GAS
FOLD 72
PROPANE
Burner Model # LIN-M-36 LIN-M-36P
Heat Input G20, 20 mbar
20 kW
G31, 37 mbar
18 kW, 1210 gr/h
Burner Pressure 8.7 mbar 25 mbar
Orice Size 26 43
Burner Ports 35 35
Port Size 1/8” (~3 mm) 1/8” (~3 mm)
DIMENSIONS & SPECIFICATIONS
FACE SIDE
BOTTOM
VENTILATION GAP
DO NOT OBSTRUCT
ACCESS PANEL
(OPTIONAL)
UNDERSIDE OPEN TO GROUND
18”
457 mm
34”
864 mm
72”
1829 mm
18”
457 mm
43-5/8”
1108 mm
14-1/8”
359 mm
48”
1219 mm
24”
610 mm
72”
1829 mm
9”
229 mm
44”
1118 mm
12-1/4”
311 mm
19-1/4"
489

5KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
MINIMUM CLEARANCES TO COMBUSTIBLES
REQUIRED CLEARANCES
12”
96”
Zero Clearance to Side
2438 mm
305 mm
0 mm CLEARANCE BELOW

6KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
WARNING:
Failure to position parts in accordance
with these diagrams and instructions
and/or failure to use parts specically
approved for use with this appliance may
result in property damage or personal
injury.
Do not remove the data plates attached
to the Outdoor Fireplace Burner. These
plates contain important information.
NOTICE:
Installation and repair should be done by
a qualied service person. The appliance
should be inspected before use and at
least once annually by a qualied service
person. More frequent cleaning may be
required as necessary. It is imperative
that control compartment, burner ports
and circulating air passageways of the
appliance be kept clean.
CAUTION:
New Lava Rock may pop or crackle when
rst heated. This should subside after 30
minutes to one hour or more of operation.
Maintain safe distance during this time.
ASSEMBLY
TO ASSEMBLE THE FIREPLACE
1. Ensure the replace surround is anchored per specications.
2. Connect the Burner Assembly to the gas supply using the supplied
ex connector, following the instructions on p 9.
3. Carefully leak test all connections following the procedure on p 9.
Check the air shutter on venturi. For NG it is sealed. For LP it is fully
open (see part 2a, pg 13)
4. Fill the burner trough evenly with burner media (crushed tempered
glass for natural gas; volcanic rock for propane). Do not obstruct the
pilot ignition port with burner media! Do not use media not supplied
by Paloform!
5. Place the burner assembly on a stable surface. Ensure burner is
level.
6. Follow the Initial Lighting Instructions on page 10. Make sure that
the ame is even along the burner length and appliance is fully
operational and safe for use. Turn OFF the appliance and let it cool
before proceeding to the next step.
7. Carefully lift the burner and place it in the replace body. (See p 3)
8. Place and evenly distribute decorative topping media (lava rock
or tempered glass pebble) on top of burner media. (See page 7).
Decorative media should be brought level with the top of the pilot
cover. An uneven or excessively thick layer of topping can result in
an uneven ame.
Do not obstruct PILOT IGNITION PORT!
9. Correct ame appearance:
DECORATIVE
TOPPING
BURNER
MEDIA
IGNITION
PORT

7KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
BURNER MEDIA & DECORATIVE TOPPING
METAL COVER
DECORATIVE TOPPING MEDIA
(VARIOUS):
FILL TOPPING TRAY
- COVER BURNER MEDIA
- KEEP BELOW LID LINE
BURNER MEDIA:
CRUSHED GLASS (NG); LAVA
ROCK (LP)
- FILL BURNER MEDIA TRAY
CAUTION: Do not use any media over the
burner that have not been supplied by Paloform.
Landscape stone or other natural or manufactured
materials may explode when heated.

8KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
CONNECTING TO GAS SUPPLY
WARNING:
A qualied service person must connect
the appliance to the gas supply. Follow all
local codes.
CAUTION:
Use only new black iron or steel pipe.
Internally tinned copper tubing may be
used in certain areas. Use pipe of 1/2”
diameter or greater to allow proper gas
volume to Outdoor Fireplace Burner. If
pipe is too small, undue loss of pressure
will occur.
INSTALLATION ITEMS NEEDED:
Before installing the Outdoor
Fireplace, make sure you have all items
listed bellow:
• piping (check local codes)
• sealant
• manual shuto valve
• adjustable (crescent) wrench or pliers
• sediment trap
• tee joints
• pipe wrench
INSTALLATION REQUIREMENTS
This appliance must be installed and serviced by trained
gas installation and service technician only. All pipework
must be supported and installed in accordance with local
and/or national regulations.
• The gas supply to the appliance must terminate
with an isolation cock and a exible connector.
This will allow the appliance to be disconnected for
maintenance or repair. The appliance is supplied with
a 1/2” BSP male pipe tting.
• Check that the main gas supply line is of proper
diameter to supply the required fuel pressures. Pipes
of a smaller size than the heater inlet gas connection
must not be used.
• If utilizing used pipe, verify that its condition is clean
and comparable to a new pipe. Test all gas supply
lines in accordance with local codes.
• Test and conrm that inlet pressures are correct.
Refer to the heater data plate and packaging to verify
fuel type.
• Install a sediment trap/drip leg for condensation
which may occur at any point of the gas supply line.
This will decrease the possibly of loose scale or dirt
in the supply line entering the appliance’s control
system and causing a malfunction.
CHECKING GAS CONNECTION
WARNING: Test all gas piping and connections
for leaks after installing or servicing. Correct all leaks
immediately.
WARNING: Never use an open ame to check for
a leak. Apply a mixture of liquid soap and water to all
joints. Bubbles forming on joints while the gas is running
indicate a leak. Correct all leaks at immediately.
Test Pressures in Excess Of 37 mbar
This appliance and its individual shuto valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 37 mbar.
Test Pressures Equal To or Less Than 37 mBar
This appliance must be isolated from the gas supply
piping system by closing its individual manual shuto
valve during any pressure testing of the gas supply piping
system at test pressures equal to or less than 37 mbar.

9KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
LIGHTING YOUR FIREPLACE
INITIAL LIGHTING INSTRUCTIONS
Before placing burner assembly into a housing:
1. Purge air from the supply line.
2. Test for leaks in each of the following locations:
• The gas supply line connection to the main valve;
• The Burner connections and pilot;
• All joints on the valve and control body;
• All eld made joints and gas shuto valves;
• All factory made joints and connections.
3. You may check for gas leaks using one of the following methods only:
• Soap and water solution. WARNING: If using a soap and water solution to test
for leaks, DO NOT spray the solution onto electronic parts;
• An approved leak testing spray;
• An electronic snier. NOTE: Remove any excess pipe compound from
connections if using this method, as the compound can set o electronic sniers.
DANGER: NEVER USE AN OPEN FLAME TO CHECK FOR GAS LEAKS.
WARNINGS:
Failure to follow these instructions exactly may result in re or
explosion causing property damage, personal injury or loss
of life.
Before operating the appliance, check all around the appliance
area and on the surrounding oor for the smell of gas - some
gas is heavier than air and may settle on the oor in the event
of a leak. IF YOU SMELL GAS, follow the safety instructions
on page 1 of this manual.
This appliance is equipped with an ignition device that
automatically lights the pilot. Do not try to light the pilot
manually.
Do not use this appliance if any part of it has been under
water. Immediately call a qualied service technician to
inspect the appliance and to replace any part of the control
system and any gas control that has been under water.
Improper installation, adjustment, alteration, service or
maintenance can result in injury or property damage. For
assistance or additional information, consult a qualied
installer, service agency or the gas supplier.
Do not store or use gasoline or other ammable vapors or
liquids in the vicinity of this appliance.

10KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
STOP!
Review the safety information
on pages 1, 2 and 9 of this
manual.
Use only your hand to push
in or turn the gas control key.
Never use tools. If the key will
not push in or turn by hand,
don’t try to repair it, call a
qualied service technician.
Force or attempted repair
may result in a re or
explosion.
Please ensure that you
are familiar with the safe
operation of the re pit
controls before replacing the
instructional control knob
with the Paloform key.
The control key/knob is
meant to t tight and be left
in place. Remove only for
winterization.
The gas valve has three positions: PILOT, ON and OFF.
To light your re pit, you rst light the pilot ame, then turn on the gas to main burner.
1. Insert the control key (or control knob). Make sure the "half-moon"-shaped hole
in the end of the key and the valve stem are aligned.
2. The key should turn freely 90°. Turn the key to the PILOT position (clockwise until
it stops)
3. Push the control key in until it stops, and hold in this position.
4. Apply a ame to the lighting port with a barbecue lighter. The pilot ame will
ignite.
5. Continue to hold the key down for up to thirty seconds after lighting the pilot.
6. When the control key is released, the pilot ame should continue to burn (if the pilot goes out, repeat the above steps).
7. Rotate the gas control key from PILOT to ON position (full counterclockwise position) to supply full ow to main burner.
Failure to turn the control key to the full ON position will reduce the ow and could result in poor ignition of main burner.
8. To extinguish main burner, rotate the gas control key clockwise to the PILOT position.
9. To extinguish pilot, push the control key in slightly and turn to the OFF position (fully clockwise).
NOTE: We do not recommend leaving the re pit unattended with the pilot lit. Please turn to the OFF position.
LIGHTING YOUR FIRE PIT
VALVE POSITIONS
PILOT
Push key in PILOT position to start the
ow of gas to the pilot. Light the pilot
while holding the key in
ON
Turn the key 90° counter-clockwise to
turn on the main burner. To turn the
main burner o, turn clockwise 90°
back to the PILOT position
To turn the pilot o, push slightly and
turn clockwise 90° to the OFF position.
OFF

11KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
CLEANING AND MAINTENANCE
BURNER TUBE
IGNITION PORT PILOT ASSEMBLY
THERMOCOUPLE
KEEP YOUR FIREPLACE BURNER COVERED
Covering your replace burner when not in use will prolong the life of all its
components.
WARNING: Turn o gas before servicing replace.
We recommend that a qualied service technician perform the following
check-ups at the beginning of each season.
If any irregularities are apparent with operation. Please refer to Troubleshooting guide,
page 13.
BURNER ELEMENT AND PILOT
Keep the burner and pilot area clean by vacuuming or brushing at least twice a year.
Make sure the burner porting and burner air openings are free of obstructions at all
times. Remove pilot cover to inspect pilot.
Remove topping from top of burner ring and Inspect area around the burner. Remove
any lint or foreign material with a brush or vacuum cleaner.
PILOT FLAME
The ames from the pilot should be
visually checked as soon as the unit is
installed, and periodically during normal
operation. The pilot ame must always be
present when the replace is in operation.
The pilot ame has two distinct ames:
one engulng the thermocouple and the
other reaching to the main burner.

12KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
TROUBLESHOOTING
WARNING:
Turn o appliance and let cool before
servicing. Only a qualied service person
should service and repair this appliance.
IF YOU SMELL GAS:
Shut o gas supply.
Do not try to light any appliance.
Do not touch any electrical switch; do
not use any phone in the vicinity of the
appliance.
Immediately call your gas supplier
from a safe distance. Follow your gas
supplier’s instructions.
IMPORTANT: Operating unit where
impurities in air exist may create
odors. Cleaning supplies, paint, paint
remover, cigarette smoke, cements
and glues, new carpet or textiles,
etc., create fumes. These fumes may
mix with combustion air and create
odors. These odors will disappear
over time.
OBSERVED PROBLEM POSSIBLE CAUSE REMEDY
Unit is smoking / sooting excessively. (Note:
It is natural and unavoidable for appliance
sets to produce moderate levels of carbon
(soot) where ames contact the media.)
1. Poor fuel quality
2. Excessive ame impingement or block-
age
3. Improper fuel/air mixture
1. Contact local natural gas company
2. Separate the stones to allow more
ame passage
3. Remove any foreign items from the
ame pattern and/or check for proper
orice sizing
Burner is excessively noisy
(Note: The movement and combustion of gas
will create low, unavoidable levels of noise.)
1. Passage of air/gas across irregular
surfaces
2. Excessive gas pressure on natural gas
units
1. Relieve any tight bends or kinks in
gas supply line
2. Check/reset gas regulator pressure
Gas odor even when manual valve is in the
OFF position
1. Gas leak. See Warning statement below.
2. Main gas valve defective.
1. Locate and correct all leaks (see
Checking Gas Connections, pg 8)
2. Replace gas valve
Unit produces unwanted odors 1. Gas leak. See Warning statement below. 1. Locate and correct all leaks (see
Checking Gas Connections, pg 8)
Pilot cannot be lit 1. Gas supply turned o or manual shuto
valve closed
2. Air in gas lines when installed
3. Pilot adjustment screw closed
4. Pilot is clogged
1. Turn o gas supply or open manual
shuto valve
2. Purge air from the supply line
3. Adjust pilot ame for approximately
1” blue ame
4. Clean pilot (see Cleaning and Main-
tenance, page 11) or replace pilot
assembly
Pilot does not stay lit after control is released 1. Flame sensor/thermocouple is not hot
enough
2. Thermocouple is damaged
1. Retry, holding control 0key for a
longer period of time (20 seconds or
more) before releasing
2. Replace thermocouple
Burner does not light after pilot is lit 1. Burner orice is clogged
2. Inlet gas pressure is too low
3. Burner orice diameter is too small
4. Flame sensor lead loose or disconnected
1. Clean burner orice
2. Contact local gas or propane supplier
3. Replace burner orice
4. Reconnect or tighten lead
Delayed burner ignition 1. Pilot ame is obstructed 1. Clear media/debris from lighting port
Burner ame is too low 1. Incorrect gas supply or pressure
2. Blocked burner orice or burner ports
3. Improper burner orice size
1. Check for proper gas supply pressure
2. Free burner orice and burner ports of
any burrs, paint, or other blockage
3. Verify proper burner orice sizing (see
page 4)

13KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual

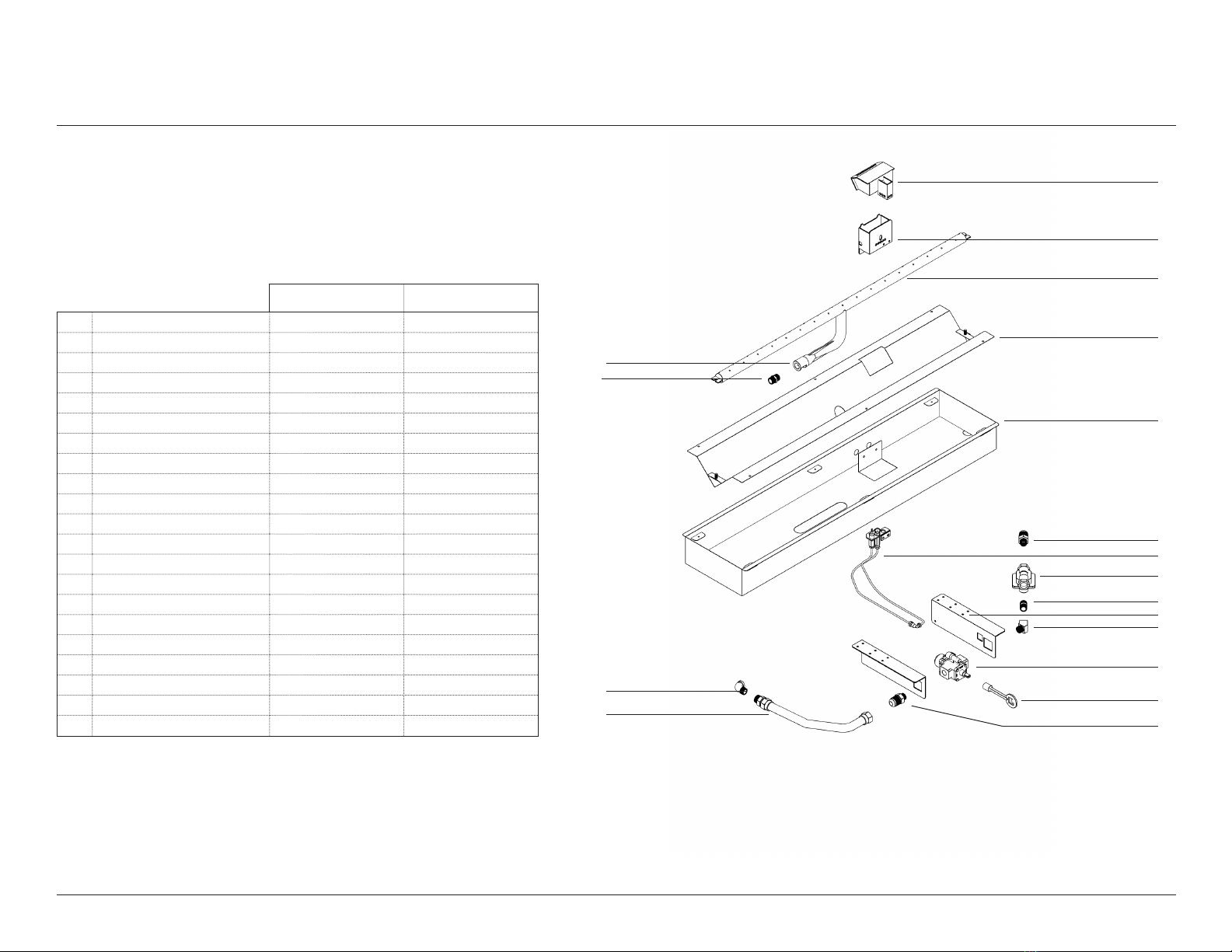

ILLUSTRATED PARTS LIST
WARNING: Failure to position parts in accordance with diagrams or failure
to use parts specically approved for this appliance may result in property
damage or personal injury.
REPLACEMENT PARTS ARE AVAILABLE FROM PALOFORM
1
1a
2
2a
3
14
15
4
5
7
10
12
13
8
9
11
6
Natural Gas Propane
1Pilot Cover LIN-EPC same
1a Pilot Shroud LIN-EPC same
2LIN-36 Burner Tube LIN-36-ASSY same
2a Air Shutter - -
3Orice FIT-ORI-26 FIT-ORI-43
4 Media Tray LIN-36-ASSY-A same
5Burner Tray LIN-36 -ASSY-B same
6 Pipe Adpater - -
7Pilot Assembly PIL-M-388 PIL-M-388LP
8Regulator M-REG-RV47-NG M-REG-RV47-LP
9 3/8” Close Nipple - -
10 Valve Bracket (set of 2) BEN32-BRA-WR109 same
11 3/8” 135° Street Elbow - -
12 Main Gas Valve M-VAL-WR-764-109 same
13 Control Key M-KEY-WR109 same
14 3/8” Street Elbow - -
15 Flex Connector CON-SS-5MM-24 same
16 Burner Media (not shown) Crushed Glass Lava Pebbles
17 Topping Media (not shown) Various Various
19 Metal Cover see p. 3 same
20 Vessel (not shown) KOD72-(colour code) same
6

14KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual

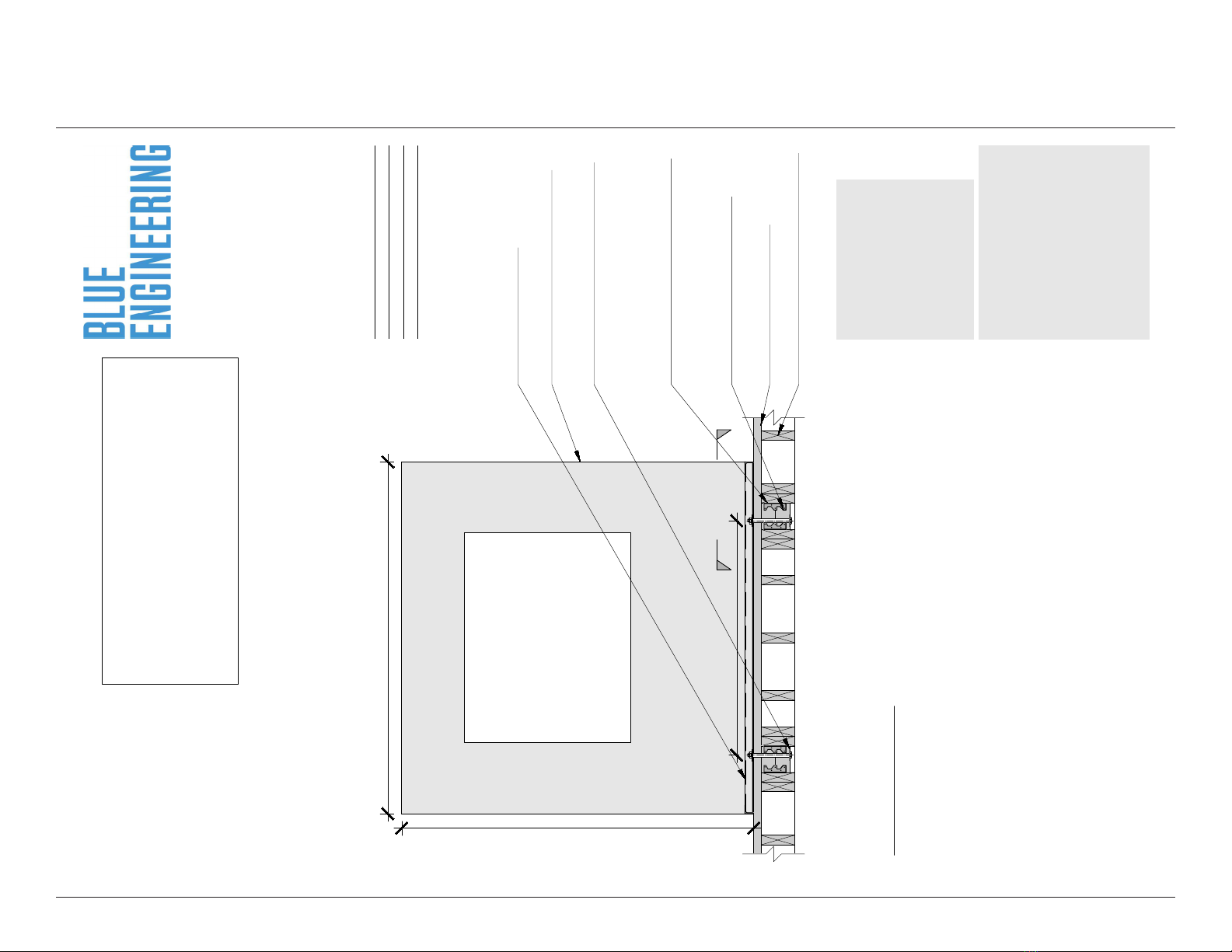

Ground Level
Minimum - 600mm
(Minimum 1000mm in
shrinkable clay) 1829
457
229
114
457
1. Location to suit manufacturer's
guidance and fire regulations
2. Soil bearing capacity to be minimum
50kN/m2founded on natural undisturbed
ground
3. Design wind pressure maximum 0.50kN/m2
4. Fireplace weight is 300kg (2.94kN)
5. Force on anchor bolts
T - 2.87kN/anchor
V - 0.55kN/anchor
6. All corten components by others
Fireplace frame made from Corten
Steel
6mm thick baseplate with 4no. M16
Hilti HIT-Y 200 HIT-V anchor bolts
with minimum 125mm embedment
Strip foundation to be trench filled
with FND2 concrete mix. Depth may vary based on local requirements
45x35mm L's (Corten)
Sub soil to be undisturbed and
verified by structural or geotechnical
engineer
United Kingdom
1 18.10.19 1st Issue WW CG
204.12.19 2nd Issue HB CG
86-90 Paul Street, London, EC2A 4NE
[phone] [email protected]
Blue Structural Engineering LLP
www.blueengineering.co.uk T E
Drawing History
DO NOT SCALE FROM THIS DRAWING
All dimensions to be verified on site before
commencing work. All error and omissions are to be
reported to the Engineer. This drawing is to be read in conjunction with all relevant Design Team
drawings and specifications
© Copyright Blue Engineering
A4
Revision Scale
Drawing No.
Job No.
Client
Project
Title
Rev Date Description Drawn Checked
Concrete Ground Mount 2
100
5497
Paloform Kodo Freestanding Fireplace
Paloform
1:20 at A4
ANCHORING - CONCRETE FOOTING
ATTENTION: Drawings are guidelines only. Customer is responsible for ensuring that installation complies with local codes/regulations.

15KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
1829
457
D1 D1
229
Solid timber noggins each side at
800mm centres
Fireplace frame made from Corten
Steel
6mm thick baseplate with 2no. M16
through bolts each end of fireplace.
Hot-dip galvanised with 50mm
square galvanised washers
Minimum 200x50mm timber joists.
By others
Decking design by
others
45x35mm L's (Corten)
Solid timber packing 2no.
150x75mm C16 timber
Simpson A35E framing anchors
each side and 12no. 3.75x30mm
square twist galvanised nails
United Kingdom
1. Location to suit manufacturer's
guidance and fire regulations
2. Design wind pressure maximum 0.50kN/m2
3. Fireplace weight is 300kg (2.94kN)
4. Force on anchor bolts
T - 2.87kN/anchor
V - 0.55kN/anchor
5. All corten components by others 86-90 Paul Street, London, EC2A 4NE
[phone] [email protected]
Blue Structural Engineering LLP
www.blueengineering.co.uk T E
Drawing History
DO NOT SCALE FROM THIS DRAWING
All dimensions to be verified on site before
commencing work. All error and omissions are to be
reported to the Engineer. This drawing is to be read in conjunction with all relevant Design Team
drawings and specifications
© Copyright Blue Engineering
A4
Revision Scale
Drawing No.
Job No.
Client
Project
Title
Rev Date Description Drawn Checked
Wood Deck Mount Joists Parallel 2
101
5497
Paloform Kodo Freestanding Fireplace
Paloform
1:20 at A4
1 18.10.19 1st Issue WW CG
204.12.19 2nd Issue HB CG
ANCHORING - WOOD DECK
ATTENTION: Drawings are guidelines only. Customer is responsible for ensuring that installation complies with local codes/regulations.

16KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
ANCHORING - WOOD DECK cont’d
ATTENTION: Drawings are guidelines only. Customer is responsible for ensuring that installation complies with local codes/regulations.
1829
1829
D2 D2
1219
6mm thick baseplate with 2no. M16
through bolts each end of fireplace.
Hot-dip galvanised with 50mm
square galvanised washers
Fireplace frame made from Corten
Steel
Minimum 200x50mm timber joists. By
others
45x35mm L's (Corten)
Decking design by others
Simpson A35E framing anchors each
side and 12no. 3.75x30mm square
twist galvanised nails
Solid C16 timber packing 2no.
150x75mm
1. Location to suit manufacturer's
guidance and fire regulations
2. Design wind pressure maximum 0.50kN/m2
3. Fireplace weight is 300kg (2.94kN)
4. Force on anchor bolts
T - 2.87kN/anchor
V - 0.55kN/anchor
5. All corten components by others
United Kingdom
86-90 Paul Street, London, EC2A 4NE
[phone] [email protected]
Blue Structural Engineering LLP
www.blueengineering.co.uk T E
Drawing History
DO NOT SCALE FROM THIS DRAWING
All dimensions to be verified on site before
commencing work. All error and omissions are to be
reported to the Engineer. This drawing is to be read in conjunction with all relevant Design Team
drawings and specifications
© Copyright Blue Engineering
A4
Revision Scale
Drawing No.
Job No.
Client
Project
Title
Rev Date Description Drawn Checked
Wood Deck Mount Joists Perpendicular 2
102
5497
Paloform Kodo Freestanding Fireplace
Paloform
1:20 at A4
1 18.10.19 1st Issue WW CG
204.12.19 2nd Issue HB CG

17KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
ANCHORING - WOOD DECK cont’d
ATTENTION: Drawings are guidelines only. Customer is responsible for ensuring that installation complies with local codes/regulations.
Detail D2 (Refer to Sheet 102)
Scale 1:10
United Kingdom
Simpson A35E framing
anchors each side and
12no. 3.75x30mm
square twist galvanised
nails
M16 galvanised bolts
50mm with square
galvanised washers
Detail D1 (Refer to Sheet 101)
Scale 1:10
United Kingdom
Simpson A35E framing
anchors each side and
12no. 3.75x30mm
square twist galvanised
nails
M16 galvanised bolts
50mm with square
galvanised washers
Decking not shown
for clarity
86-90 Paul Street, London, EC2A 4NE
[phone] [email protected]
Blue Structural Engineering LLP
www.blueengineering.co.uk T E
Drawing History
DO NOT SCALE FROM THIS DRAWING
All dimensions to be verified on site before
commencing work. All error and omissions are to be
reported to the Engineer. This drawing is to be read in conjunction with all relevant Design Team
drawings and specifications
© Copyright Blue Engineering
A4
Revision Scale
Drawing No.
Job No.
Client
Project
Title
Rev Date Description Drawn Checked
Wood deck joists Parellel and Perpendicular 2
103
5497
Paloform Kodo Freestanding Fireplace
Paloform
1:10 at A4
1 18.10.19 1st Issue WW CG
204.12.19 2nd Issue HB CG

18KODO 72 OUTDOOR FIREPLACE CE Match-lit | Installation & Owner’s Manual
WARRANTY INFORMATION
RETAIN FOR WARRANTY
MODEL: (circle) Kodo 72-M
Natural Gas
Propane
SERIAL NO:
DATE PURCHASED:
`
Paloform’s priority is to meet or exceed your expectations with our products and service—we take pride in our products and
unequivocally stand behind them. If your product has issues, we will work with you to make things right.
This said, res pit's are mechanical appliances that are installed in uncontrolled and unpredictable environments. For this
reason it is critical that your unit be inspected by a qualied service technician regularly, dependent on use and site conditions,
but at minimum once per year. This will ensure that it receives the type of general cleaning and maintenance that will maximize
its performance and lifespan. Furthermore, there are various “wear” components which have a limited lifespan due to the fact
that their function is to sustain extreme conditions. Over the functional life of your re pit, you can expect that parts such as
pilots, control devices and valves, may need to be replaced periodically. Materials such as cast concrete and Corten Steel are
expected to weather naturally over their lifetime and changes in appearance are normal and do not constitute failure in the
materials.
WARRANTY - This product is warranted to the original owner, subject to proof of purchase:
Paloform warrants the components and materials in your appliance to be free from manufacturing and material defects for a
period of one year from date of delivery. During this time, if any of the components in the appliance are found to be defective in
materials or workmanship, Paloform will, at its option, replace or repair the defective components at no charge to the original
owner. Paloform will also pay for reasonable labor cost incurred in replacing or repairing such components. Any products
presented for warranty repair must be accompanied by a dated proof of purchase.
This Warranty will be void if:
• the appliance is not installed by a qualied installer in accordance with installation instructions.
• the appliance is not operated and maintained according to the operating instructions supplied with the appliance, including
regular inspections by a qualied technician
• the appliance is damaged by accident, neglect, misuse, abuse, alterations, negligence of others, including the installation
thereof by unqualied installers, incidental or consequential damage
• the appliance is partially or totally submerged under water for any length of time
This Warranty does not cover normal wear and tear, including but not limited to extraordinary environmental factors such as
salt-saturated environments or extreme weather events.
All service work must be performed by an qualied service technician.
Paloform reserves the right to investigate any and all the claims against this Warranty and decide upon method of settlement.
For information about this warranty contact:
Paloform Distribution (UK) Limited | [phone] | [email protected] | paloform.co.uk
Unit 6B Metnor business Park
Hadrian Road
Wallsend NE286HH
United Kingdom
