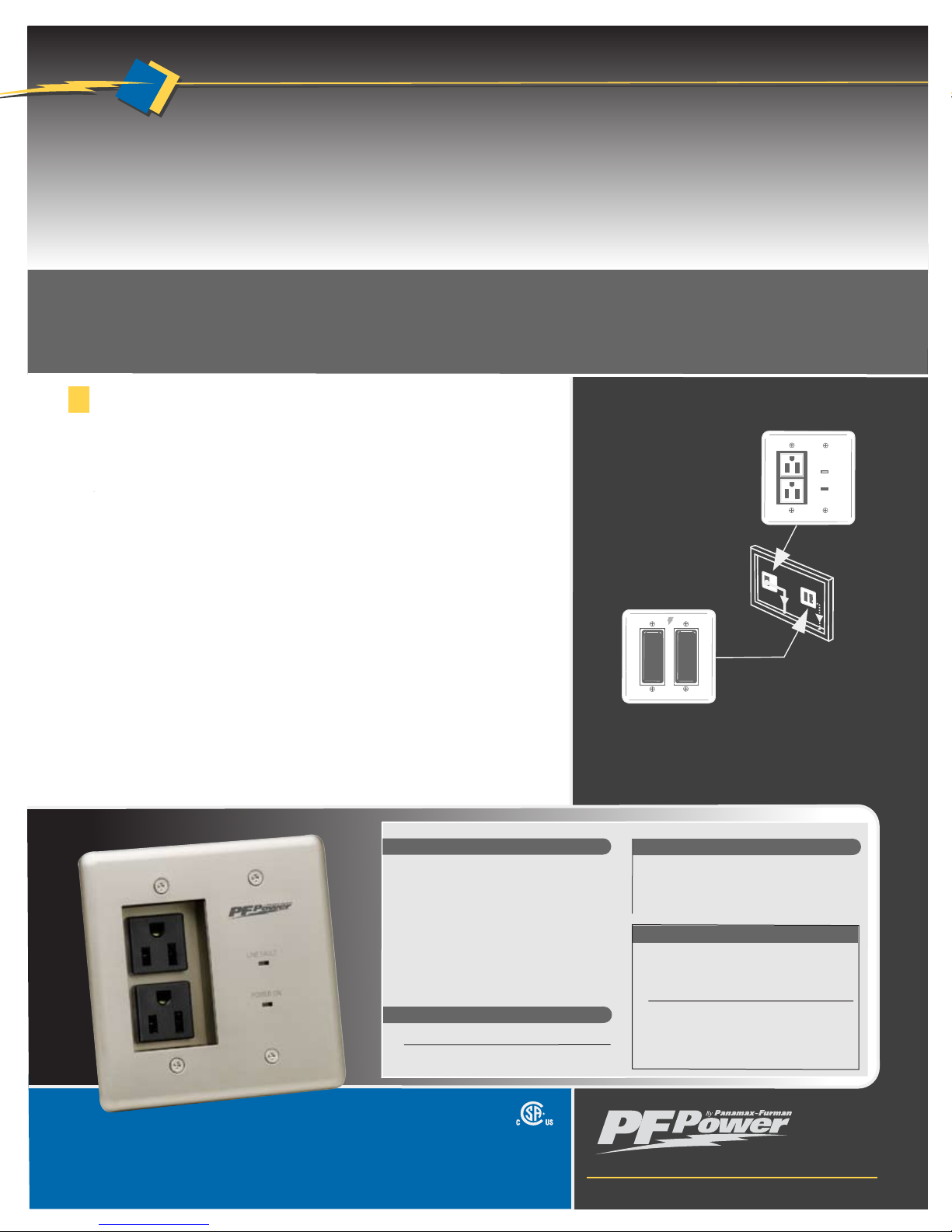

MODEL: MIW-POWER-PRO-PFP
In-Wall Home Theater Power Management
MIW-POWER-PRO-PFP
Power to Remotely Located Devices
wo recessed AC receptacles deliver power to remotely located
devices. Enlarged faceplate (4.5” x 4.5”) accommodates oversized wall
cutouts. Line fault LED to indicate an overvoltage condition with the
power to the MIW-POWER -PRO-PFP. Power ON LED indicates power is
being supplied to the MIW-POWER-PRO-PFP outlets.
Voltage monitoring Circuit protects equipment against prolonged over
voltages by disconnecting the power and reconnecting it when safe
power returns.
May be used in conjunction with MIW-DUAL-SIGNAL BAY PFP and signal
line modules (sold separately).
3 Year Product Warranty and Limited Lifetime Connected Equipment
Protection Policy when properly installed using MIW-DUAL-SIGNAL BAY
PFP and appropriate MIW Module (both sold separately).
Provides Safe and Noise Filtered Power to remote Plasma Screens,
LCD’s and Ceiling Projectors
T
L600 PFP REV. C
MIW-DUAL SIGNAL BAY-PFP
INSTALLED BEHIND
DISPLAY MONITOR
(modules sold separately)
(sold separately).
May be used in conjunction in conjunction with
MIW-DUAL SIGNAL BAY PFP (sold separately).
Contact PFP for information.
POWER ON
UNSAFE VOLTAGE
1690 Corporate Circle, Petaluma, CA 94954 • 800-472-5555 • 707-283-5900
AC CIRCUIT
AC Outlets, Total............................................... 2
Line Voltage..................................... 120V, 60Hz
Total Current Capacity.................................. 15A
Voltage Protection Rating
(UL1449 3rd Edition, 3,000A):....................500V
Protection Modes......................... L-N, L-G, N-G
Energy Dissipation.............................546 Joules
Peak Impulse Current....................32,500 Amps
Catastrophic Surge Circuit............................Yes
Thermal Fusing.............................................Yes
Design and specifications subject to change without
notice due to product improvement.
Single Pack Dimensions....... 4.5”W x 2”D x 4.5’H
Single Pack Weight...................................... 2 lbs.
Single Unit UPC........................ 0 50616 00840 2
SHIPPING DIMENSIONS, WEIGHTS & UPC CODES
Master Pack Dimensions........ 11”W x 7”D x 11’H
Master Pack Quantity......................................... 8
Single Pack Weight.....................................16 lbs.
Single Unit UPC...................5 00 50616 00840 7
VOLTAGE MONITORING CIRCUIT
Over-voltage Shutoff................142 VAC ± 5 VAC
POWER OUTLET FACEPLATE
Over-voltage Shutoff................... 142 VAC ± 5 VAC
Noise Filtration............................................ Level 1
Signal Line Protection..........Not Included/Modules
Sold Separatly
