Panasonic CS-Z25YKEA User manual

Italiano Deutsch Español Français English
ACXF55-32681
Operating Instructions
Air Conditioner
Model No.
Indoor Unit Outdoor Unit
CS-Z25YKEA
CS-Z35YKEA
CS-Z42YKEA
CS-Z50YKEA
CS-Z71YKEA
CU-Z25YKEA
CU-Z35YKEA
CU-Z42YKEA
CU-Z50YKEA
CU-Z71YKEA
Operating Instructions
Air Conditioner
2-19
Before operating the unit, please read these operating
instructions thoroughly and keep them for future reference.
Before installation, the installer should:
Read the Installation Instructions, then request the customer
keep them for future reference.
Remove the remote control packed with the indoor unit.
Comment utiliser l’appareil
Climatiseur
20-37
Avant d’utiliser l’appareil, veuillez lire ce mode d’emploi dans
son intégralité et conservez-le pour toute référence ultérieure.
Avant de commencer l’installation, l’installateur doit:
Lire les instructions d’installation, puis demander au client de
les conserver pour plus tard.
Retirer la télécommande fournie avec l’unité intérieure.
Instrucciones de funcionamiento
Climatizador de aire
38-55
Antes de utilizar la unidad, sírvase leer atentamente estas
instrucciones de funcionamiento y conservarlas para futuras
consultas.
Antes de la instalación, el instalador debe:
Lea las Instrucciones de instalación y pida al cliente que las
conserve para futuras consultas.
Retire el mando a distancia incluido con la unidad interior.
Bedienungsanleitung
Klimagerät 56-73
Bevor Sie das Gerät in Betrieb nehmen, lesen Sie bitte diese
Bedienungsanleitung aufmerksam durch und bewahren Sie
sie als künftige Referenz auf.
Vor der Installation sollte der Installateur Folgendes tun:
Die Installationsanleitung lesen und den Kunden bitten, diese
als künftige Referenz aufzubewahren.
Die in der Verpackung des Innengeräts enthaltene
Fernbedienung entfernen.
Istruzioni di funzionamento
Condizionatore d’aria
74-91
Prima di utilizzare l’unità, leggere attentamente le istruzioni
e conservare questo opuscolo per potervi fare riferimento in
futuro.
Prima dell’installazione, l’installatore deve:
Leggere le istruzioni d’installazione, quindi richiedere al
cliente di conservarle per riferimento futuro.
Rimuovere il telecomando nella scatola dell’unità interna.
ACXF55-32681.indb 1ACXF55-32681.indb 1 1/20/2022 6:14:39 PM1/20/2022 6:14:39 PM

2
Table of Contents
Indoor Unit indicator ……………………………3
Remote Controller buttons and display ………3
Initialization ………………………………………4
Quick Guide ………………………………………5
Quick Menu …………………………………… 6-8

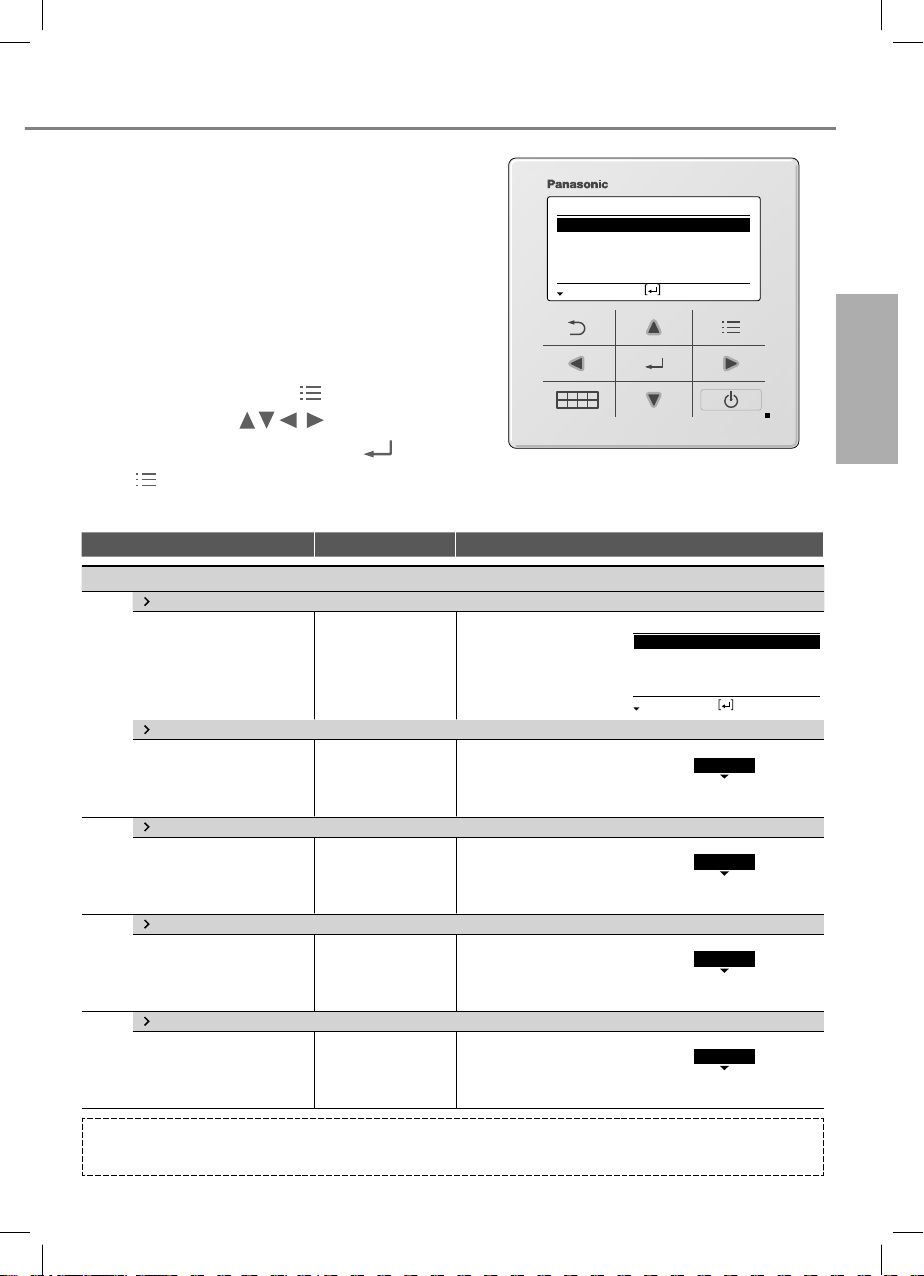

Main Menu ………………………………… 9-12
Thank you for purchasing Panasonic product.
Before operating the system, please read these operating instructions thoroughly and keep them for future reference.
Installation Instructions attached.
Any translation into other language shall be deemed as reference and English version shall prevail in any case.
Serial number and production year please refer to name plate.
1Function setup .......................................9-10
1.1 Model type
1.2 Heat mode
1.3 Left/Right swing
1.4 Powerful
1.5 Quiet
1.6 Filter check
1.7 WLAN
1.8 Duty rotation
1.9 Diagnosis
2System check ........................................... 11
3Personal setup .....................................11-12
3.1 Touch sound
3.2 LCD contrast
3.3 Backlight
3.4 Backlight intensity
3.5 Clock format
3.6 Date & Time
3.7 Set temp. unit
3.8 Set temp. decimal
3.9 Language
3.10 Unlock password
4Service contact .........................................12
4.1 Contact 1 / Contact 2
5Custom setup ...........................................12
5.1 Custom No.
To Learn More... ……………………………… 13

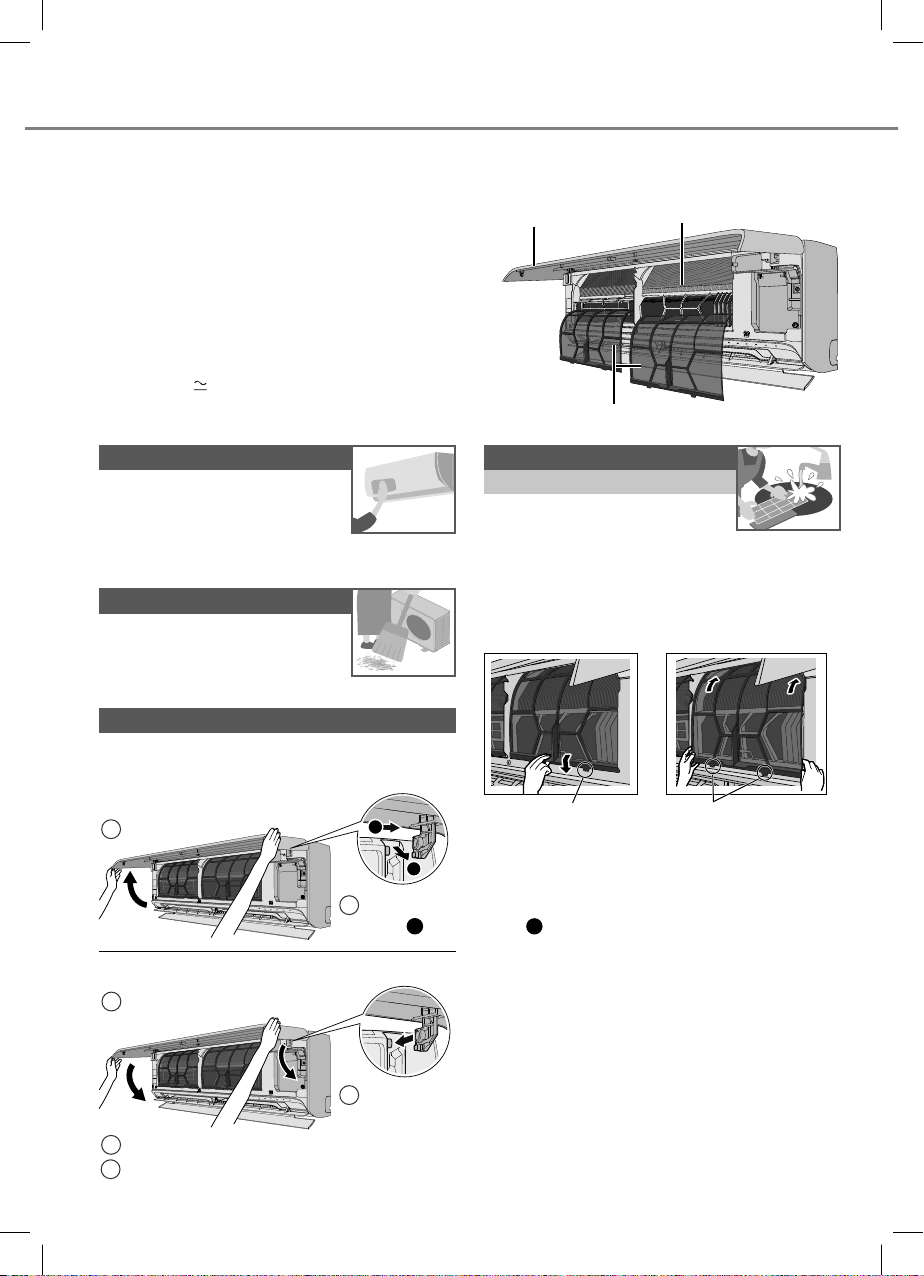

Cleaning the Air Conditioner ………………… 14
Troubleshooting ……………………………15-19
ACXF55-32681.indb 2ACXF55-32681.indb 2 1/20/2022 6:14:40 PM1/20/2022 6:14:40 PM

3
English
Remote Controller buttons and display
Indoor Unit indicator
Indoor Unit indicator / Remote Controller buttons and display
Buttons / Indicator
1Quick Menu button
2Back button
Returns to the previous screen
3LCD Display
4Main Menu button
For function setup
5ON/OFF button
Starts/Stops operation
6
Operation indicator
Illuminates during operation, blinks
during alarm.
Press centre
No glove
No pen
2
3
1
4
5
6
Cross key buttons
Selects an item.
Enter button
Fixes the selected content.
Up
Down
Left Right
12:00,Mon
SET TEMP.
FAN SPEED
25.0
FLAP
AUTO
AUTO
MODE
AUTO
Note:
Timer LED turns on only if the Weekly Timer
is activated within Comfort Cloud App.
Blinking of Timer LED indicates an error.
Refer to "Troubleshooting" for details.
ACXF55-32681.indb 3ACXF55-32681.indb 3 1/20/2022 6:14:40 PM1/20/2022 6:14:40 PM

4
Initialization
Please initiate the Remote Control by selecting the language of operation and set the date
and time accordingly before setting up the operation menu preferences.
During first power ON, Remote Controller will automatically prompt setting screen as default.
It can also be access from Personal Setup in the Main Menu.
Blinking
12:00,Mon
Initialization
Initializing
12:00,Mon
Default data
EEPROM setup
12:00,Mon
Start
12:00,Mon
Language
Select Confirm
ENGLISH
ESPAÑOL
ITALIANO
NEDERLANDS
12:00,Mon
Clock format
Select Confirm
24h
am/pm
12:00,Mon
Date & Time
Year/Month/Day Hour : Min
12 : 00 pm
/ 01 / 01
Select Confirm
2021
12:00,Mon
Set temp. unit
Select Confirm
˚C
˚F
12:00,Mon
Heat mode
Select Confirm
Enable
Disable
12:00,Mon
Start
Selecting the language
Wait while the display is initializing.
When initializing screen ends, it turns to
normal screen.
When any button is pressed, language setting
screen appears.
1Scroll with and to select the language.
2Press to confirm the selection.
Setting the clock
1Select with or to display the time, either
24h or am/pm format (for example, 15:00 or
3:00 pm).
2Press to confirm the selection.
3Use and to select year, month, day, hour
and minutes. (Select and move with and
press to confirm.)
4Once the time is set, time and day will appear
on the display even if the Remote Controller is
turned OFF.
Setting the temperature unit
1Scroll with and to select the unit.
Selecting the Heat mode
1Scroll with and to select Enable or
Disable.
ACXF55-32681.indb 4ACXF55-32681.indb 4 1/20/2022 6:14:40 PM1/20/2022 6:14:40 PM

5
English

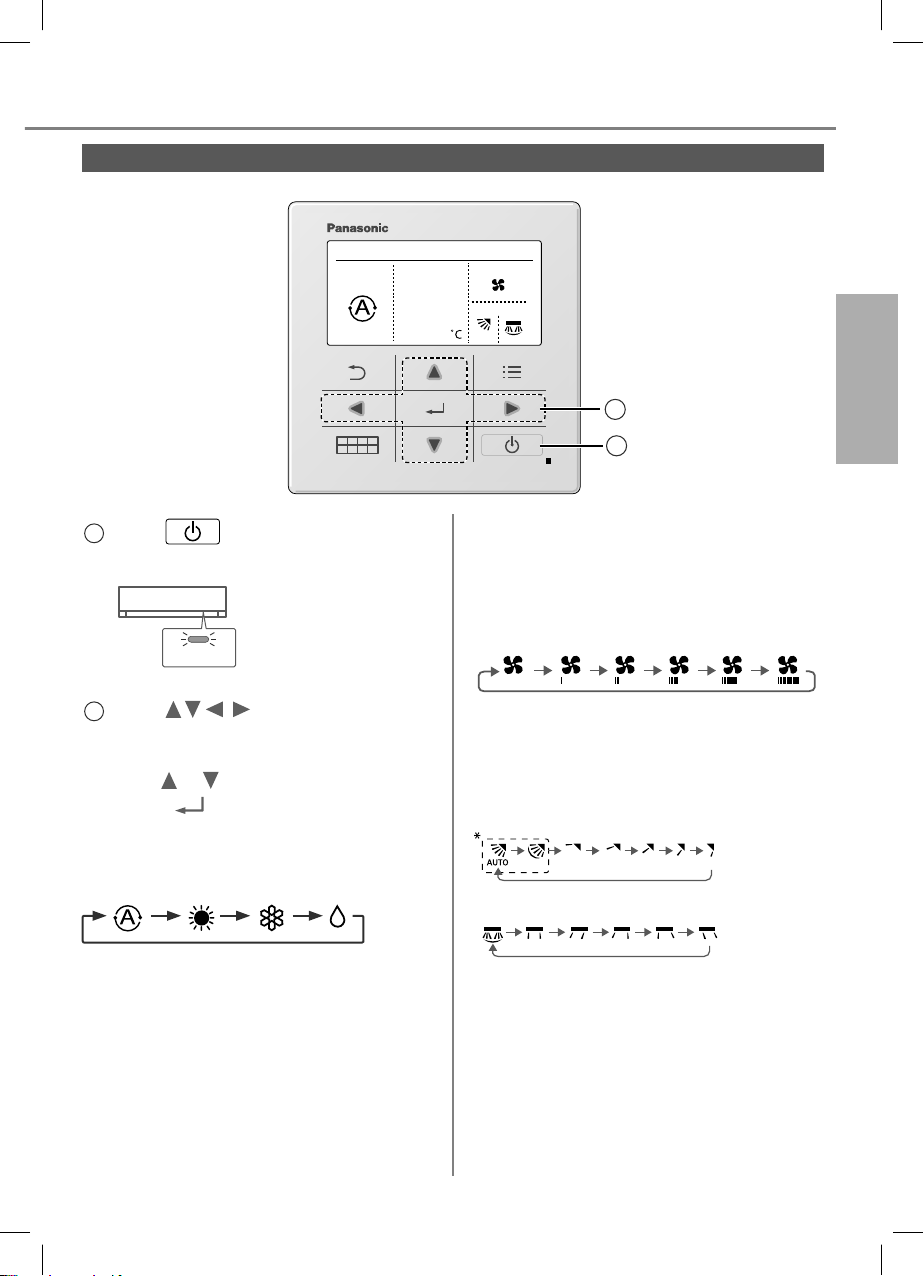

Quick Guide
1Press to start/stop the
operation.
POWER
2Press to select either
mode, set temperature, fan speed or
air swing section.
•Use or to select setting.
•Press to confirm the selection.
Mode section
Default setting for Mode is Auto.
AUTO HEAT COOL DRY
Set temperature section
Selection range:
16.0 °C ~ 30.0 °C / 60 °F ~ 86 °F.
Fan speed section
• When FAN AUTO is selected, the fan
speed is adjusted automatically according
to the operation mode.
• Select the lowest fan speed to have a low
noise operation.
AUTO
Air swing section
• Do not adjust the flap by hand.
* For details operation, refer “To Learn
More....”
Up/Down Air Swing
Left/Right Air Swing
Initialization / Quick Guide
Basic operation
12:00,Mon
SET TEMP.
FAN SPEED
25 .0
FLAP
AUTO
AUTO
MODE
AUTO
1
2
ACXF55-32681.indb 5ACXF55-32681.indb 5 1/20/2022 6:14:40 PM1/20/2022 6:14:40 PM

6
Quick Menu
1Press .
2Use to select quick menu.
3Press to turn on/off the select
mode.
To return to the Main Screen, Press
or .
Select each setting and confirm the setting according to the instructions displayed at the bottom of
the screen. (The icons refer to each selection key.)
Quick Menu
Powerful Quiet Weekly timer LED intensity dim
R/C Lock AC Reset RC Reset
2 3
1
SetSelect
Powerful *1
Select this icon to operate Powerful mode.
Press to confirm your selection.
When Powerful mode is selected, an icon will appear on top left of Main Screen.
* Refer to "Remote Controller buttons and display"
• Powerful is OFF
• Powerful is ON: To reach desired temperature quickly
Note:
Powerful is automatically stop after 20 minutes.
Powerful will be disabled in below conditions:-
• when fan speed is changed,
• when Quiet is enabled.
*1Not available when 'Duty rotation' is turned on.
ACXF55-32681.indb 6ACXF55-32681.indb 6 1/20/2022 6:14:40 PM1/20/2022 6:14:40 PM

7
English

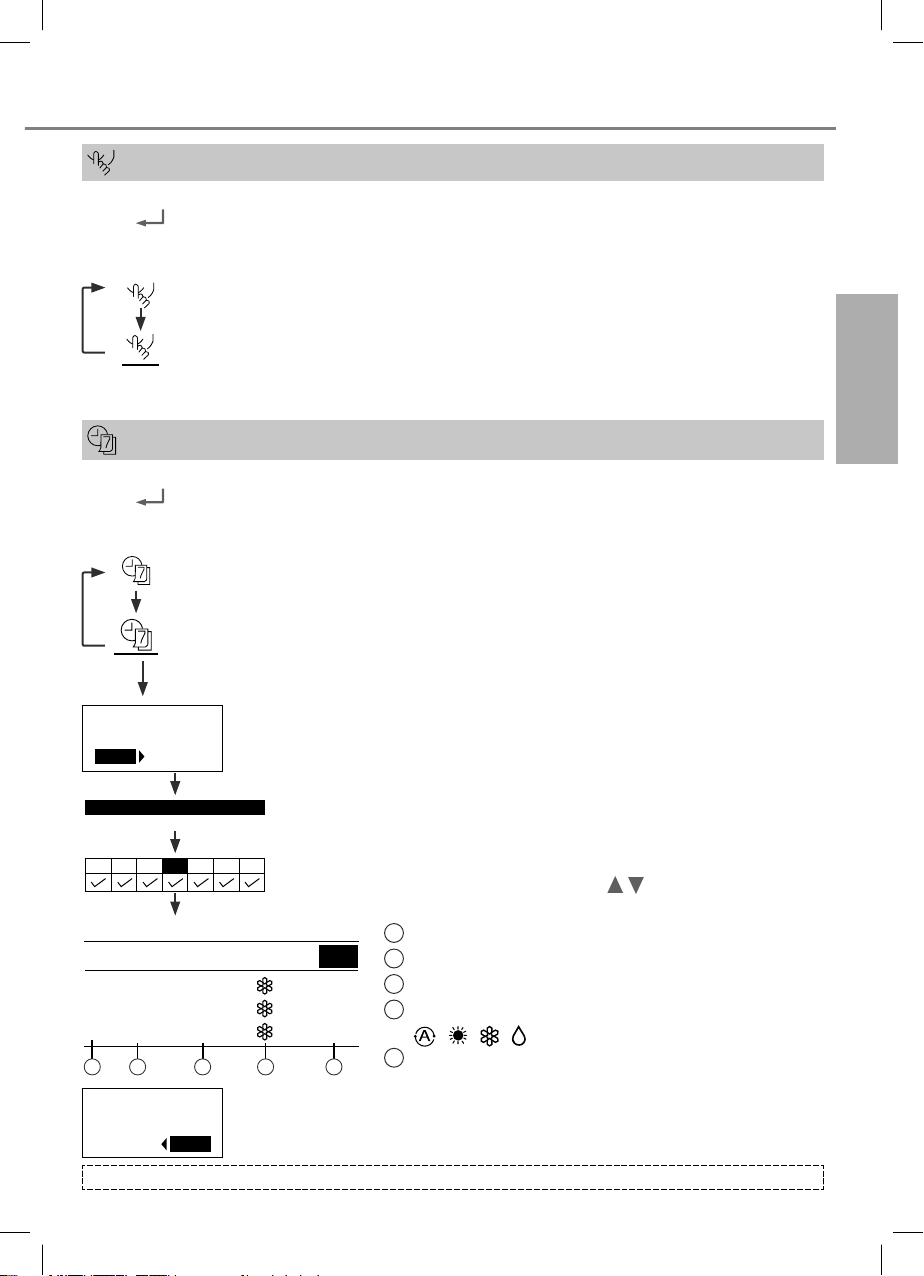

Quiet *1
Select this icon to enjoy quiet operation. Quiet mode reduces airflow noise.
Press to confirm your selection.
When Quiet mode is selected, an icon will appear on top left of Main Screen.
* Refer to "Remote Controller buttons and display"
• Quiet is OFF
• Quiet is ON
Note:
Quiet is disabled when fan speed is changed or Powerful is enabled.
Weekly timer *1
Select this icon to delete (cancel) or change the pre-set Weekly Timer.
Press to confirm your selection.
When Weekly Timer mode is selected, an icon will appear on top left of Main Screen.
* Refer to "Remote Controller buttons and display"
• Timer is OFF.
• Timer is set.
After 1 sec delay.
Yes No
Do you want to edit
Weekly timer pattern?
Select “Yes”.
• If you select “No”, the screen will return to the Quick Menu Screen.
Timer setup
Timer copy
• Timer setup: Select Timer setup to edit the Weekly Timer.
• Timer copy: Select to copy a timer setting.
Sun Mon Tue Wed Thu Fri Sat [Example of a Timer setup]
Select the day(s) which you wish to edit using buttons.
Sun
1. 6:00am ON 25.0˚C
2. 8:00am ON 25.0˚C
3. 10:00am ON 25.0˚C
Mon Tue Wed Thu Fri Sat
12 3 4 5
12:00,Mon
Weekly timer 1Select pattern “1” ~ “6”.
2Set the hour and minutes of the Timer.
3Select ON/OFF of the Timer.
4Select the operation mode.
/ / /
5Set the temperature.
All 6 patterns are not set!
Do you want to edit?
Yes No
If all 6 patterns are not set in a day, this screen will be displayed.
Note:
If all entries are found to be reset to default, this could be due to 'Heat mode' setting is
disable.
Quick Menu
*1Not available when 'Duty rotation' is turned on.
ACXF55-32681.indb 7ACXF55-32681.indb 7 1/20/2022 6:14:40 PM1/20/2022 6:14:40 PM

8
LED intensity dim *1
Select this icon to dim or restore the indicators’ brightness on the unit.
R/C Lock
Select this icon to lock the Remote Controller.
Press to confirm your selection.
(When the mode has been accepted, below screen will be displayed.)
Yes No
Do you want to
lock remote control?
Select “Yes”.
(The Main Screen will be locked.)
• If “No” is selected, the screen will return to the Quick Menu Screen.
To unlock the Remote Controller
Press any key.
(When the mode has been accepted, below screen will be displayed.)
Press or to scroll and choose the digits. Press or to move to
adjacent digit. Press to confirm the four-digit code. (if the number is
correct, the screen will be unlocked).
To reset forgotten password
Press , and continuously for 5 seconds.
(When the mode has been accepted, below screen will be displayed.)
12:00,Mon
Reset password
Confirm
Request
Press .
12:00,Mon
Reset password
Confirm
Request
Password is reset to 0000
and remote control
unlocked
Password will be reset after 3 seconds.
Main screen will be unlocked.
AC Reset *1
Select this icon to reset the air conditioner and turn it off.
RC Reset
Select this icon to reset the remote controller and perform initialization again.
Quick Menu
*1Not available when 'Duty rotation' is turned on.
ACXF55-32681.indb 8ACXF55-32681.indb 8 1/20/2022 6:14:40 PM1/20/2022 6:14:40 PM

9
English
Main Menu
Select menus and determine settings according to
the system available in the household.
• After initial installation, you may manually adjust
the settings.
• The initial setting remains active until the user
changes it.
• The Remote Controller can be used for multiple
installations.
• The system may not work properly if set wrongly.
Please consult an authorised dealer.
To display <Main menu>:
To select content:
To confirm the selected content:
Press to return to main screen
Menu Default Setting Setting Options / Display
1Function setup
1.1 Model type *1 / *2
To select model type.
Wall mounted
12:00,Mon
Model type
Select Confirm
Wall mounted
Floor console
Cassette
Ducted
1.2 Heat mode *1 / *2 / *3
To enable or disable
heat mode. Enable Enable
Disable
1.3 Left/Right swing *1 / *2
To enable or disable
left/right swing. Enable Enable
Disable
1.4 Powerful *1 / *2
To enable or disable
powerful mode. Enable Enable
Disable
1.5 Quiet *1 / *2
To enable or disable
quiet mode. Enable Enable
Disable
12:00,Mon
Main menu
Select Confirm
Function setup
System check
Personal setup
Service contact
Quick Menu / Main Menu
*1Not available when 'Duty rotation' is turned on.
*2This function will become hidden when unit is turned on.
*3'Heat mode' becomes hidden when 'Weekly timer' is activated and has entries with heat mode inside.
ACXF55-32681.indb 9ACXF55-32681.indb 9 1/20/2022 6:14:41 PM1/20/2022 6:14:41 PM

10
1.6 Filter check *1
To enable or disable
filter check reset option
in Quick Menu. Disable Enable
Disable
1.7 WLAN *1
To apply the WLAN
settings in Panasonic
Comfort Cloud phone
app.
* Please refer to Setup
Instructions Manual.
http://aircon.panasonic.eu/
comfortcloud
WLAN ON/OFF
Easy Setting (WPS)
Advance setting (AP)
Device registration
WLAN strength
WLAN initialization
Learning reset
12:00,Mon
WLAN
Select Confirm
WLAN ON/OFF
Easy setting (WPS)
Advance setting (AP)
Device registration
Request
1.8 Duty rotation
In Duty Rotation, air-conditioning is managed by a running unit and backup unit which rotates
between two units after rotation interval has elapsed.
* Only applicable if 2 indoor units are connected through optional part, Part No. CZ-RCC5 or
equivalent.
1.8.1 Rotation ON/OFF
To set the rotation ON
or OFF.
OFF
12:00,Mon
Duty rotation
Select Confirm
Rotation ON/OFF
Rotation interval
Rotation status
1.8.2 Rotation interval
To set the rotation
interval range.
Interval range: 1h ~ 23h 12h
12:00,Mon
Rotation
Interval
Range: (1h~23h)
Step: ±1h
Select Confirm
12
1.8.3 Rotation status
To view the rotation
status of unit.
Select and retrieve
12:00,Mon
Status
Main unit comm. :
Sub unit comm. :
Main unit :
Sub unit :
Page 2 Close
1.9 Diagnosis *1
To enable operations in
the indoor unit AUTO
OFF/ON switch. Select and retrieve Request
Menu Default Setting Setting Options / Display
Main Menu
*1Not available when 'Duty rotation' is turned on.
ACXF55-32681.indb 10ACXF55-32681.indb 10 1/20/2022 6:14:41 PM1/20/2022 6:14:41 PM

11
EnglishMain Menu
Menu Default Setting Setting Options / Display
2 System check
To perform failure
diagnosis.
If the Error code
matches with the error
encountered, you will
hear a beeping sound.
* Please refer to
"Troubleshooting" for
error codes.
Select and retrieve
12:00,Mon
System check
No memory of failure
H00
3 Personal setup
3.1 Touch sound
To enable or disable the
operation sound. Enable Enable
Disable
3.2 LCD contrast
To set the screen
contrast.
3
12:00,Mon
LCD contrast
Select Confirm
Low High
3.3 Backlight
To set the duration of
screen backlight.
1 min
12:00,Mon
Backlight
Select Confirm
OFF
15 secs
1 min
5 mins
10 mins
3.4 Backlight intensity
To set the screen
backlight brightness.
4
12:00,Mon
Backlight intensity
Select Confirm
Dark Bright
3.5 Clock format
To set the type of clock
display format.
24h
12:00,Mon
Clock format
Select Confirm
24h
am/pm
3.6 Date & Time
To set the present date
and time.
Year / Month / Day / Hour / Min
12:00,Mon
Date & Time
Year/Month/Day Hour : Min
12 : 00 pm
Select Confirm
2021 / 01 / 01
ACXF55-32681.indb 11ACXF55-32681.indb 11 1/20/2022 6:14:41 PM1/20/2022 6:14:41 PM

12
3.7 Set temp. unit
To set the temperature
unit.
˚C
12:00,Mon
Set temp. unit
Select Confirm
˚C
˚F
3.8 Set temp. decimal
To set the temperature
decimal unit. Enable Enable
Disable
3.9 Language
Sets the display
language for the top
screen.
• For Greek and
Bulgarian, please refer
to the English version
ENGLISH / ESPAÑOL / ITALIANO /
NEDERLANDS / PORTUGUÊS /
FRANÇAIS / DEUTSCH / HRVATSKI /
TÜRKÇE / SWEDISH / NORWEGIAN /
DANISH / SUOMI / MAGYAR
12:00,Mon
Language
Select Confirm
ENGLISH
ESPAÑOL
ITALIANO
NEDERLANDS
3. 10 Unlock password
4 digit password for all
the settings.
0000
12:00,Mon
Unlock password
Select Confirm
4 Service contact *1
4.1 Contact 1 / Contact 2
Preset contact number
for installer.
Select and retrieve
12:00,Mon
Service contact
Contact 1
Contact 2 Edit
: Bryan Adams
: 08812345678
Name
5 Custom setup *1
5.1 Custom No.
Preset custom setup.
Range: 1~15
* Wrong setting
can affect system
operations.
Please consult an
authorised dealer.
Custom No Range Descriptions
1 : Remote controller number
2 : Solar radiation sensitivity level adjustment
3 : Cool & Dry mode set temperature [Low]
4 : Cool & Dry mode set temperature [High]
5 : Heat mode set temperature [Low]
6 : Heat mode set temperature [High]
7 : Filter cleaning
8 : nanoe / nanoe-G default ON
9 : Dust sensor monitoring & LED
10 : Auto restart
11 : Dust sensor sensitivity level adjustment
12 : Auto mode set temperature [Low]
13 : Auto mode set temperature [High]
14 : Indoor unit installation position
15 : Eco status memorize
12:00,Mon
Custom setup
Custom No.
Range: (1~15)
Step: ±1
Select Confirm
1
Menu Default Setting Setting Options / Display
Main Menu
*1Not available when 'Duty rotation' is turned on.
ACXF55-32681.indb 12ACXF55-32681.indb 12 1/20/2022 6:14:41 PM1/20/2022 6:14:41 PM

13
English
Energy saving temperature setting
You may save energy when operating the unit within the recommended temperature range.
HEAT : 20.0 °C ~ 24.0 °C / 68 °F ~ 75 °F.
COOL: 26.0 °C ~ 28.0 °C / 79 °F ~ 82 °F.
Air flow direction
In COOL/DRY mode:
The horizontal flap swings up/down automatically.
Once the temperature is achieved, the horizontal flap is fixed at upper position.
In HEAT mode:
The horizontal flap fixed at the predetermined position.
The vertical flap swings left/right when the temperature rises.
In COOL/DRY mode:
The horizontal flap swings up/down automatically.
In HEAT mode:
The horizontal flap is fixed to upper position when discharge air temperature is cold.
The horizontal flap swings up-down automatically when discharge air temperature is warm.
Auto restart control
When power is resumed after a power failure, the operation will restart automatically with the
last operation mode and airflow direction.
•This control is not applicable when TIMER is set.
To Learn More...
Operation mode
AUTO : The POWER indicator blinks at the initial stage.
•The unit will select an operation mode every 10 minutes depending on the setting
and room temperature.
HEAT : The POWER indicator blinks at the initial stage. The unit will take some time to
warm up.
COOL : Provides efficient comfort cooling to suit your needs.
DRY : Operates at low fan speed for a gentle cooling operation.
Operating conditions
Use this air conditioner in the temperature range indicated in the table.
Temperature °C (°F) Indoor Outdoor
DBT WBT DBT WBT
COOL Max. 32 (89.6) 23 (73.4) 43 (109.4) 26 (78.8)
Min. 16 (60.8) 11 (51.8) -25 (-13) -
HEAT Max. 30 (86.0) - 24 (75.2) 18 (64.4)
Min. 16 (60.8) - -15 (5.0) -
DBT: Dry bulb temperature, WBT: Wet bulb temperature
Main Menu / To Learn More...
ACXF55-32681.indb 13ACXF55-32681.indb 13 1/20/2022 6:14:41 PM1/20/2022 6:14:41 PM

14
Cleaning the Air Conditioner
Cleaning has to be carried out at regular
intervals to ensure the unit is at optimal
performance. A dirty unit may cause
malfunction and you may retrieve “H 99”
error code. Consult an authorised dealer.
•Before cleaning, switch off the power supply
and unplug the unit.
•Do not touch the aluminium fin as the sharp
parts may cause injury.
•Do not use benzine, thinner or scouring
powder.
•Use soap ( pH 7) or neutral household
detergent only.
•Do not use water hotter than 40 °C / 104 °F.
Indoor unit
(Structure of the unit may vary depending
on the model)
Aluminium fin
Front panel
Air filters
Indoor unit
Wipe the unit gently with a soft
and dry cloth.
The coils and fans should be
cleaned periodically by an
authorised dealer.
Outdoor unit
Clean the debris that surround
the unit.
Clear any blockage from the
drain pipe.
Front panel
Wash gently and dry.
How to remove front panel
1Raise up.
B
A
Close it securely
1Hold horizontally.
3Close down.
4Press both ends and center of the front panel.
Air filters
Once every 2 weeks
•Wash/rinse the filters gently
with water to avoid damaging
the surface.
•Dry the filters thoroughly under a shade,
away from fire or direct sunlight.
•Replace any damaged filters.
Remove air filter Attach air filter
Remove from the unit Insert into the unit
2Slide the front panel to
right Aand pull out B.
2Match and push in.
ACXF55-32681.indb 14ACXF55-32681.indb 14 1/20/2022 6:14:41 PM1/20/2022 6:14:41 PM

15
English
Troubleshooting
The following symptoms do not indicate malfunction.
Symptom Cause
POWER indicator blinks during HEAT mode
with no warm air supply (and flap is closed).
• The unit is in defrost mode (and AIR SWING has been
set to AUTO).
Operation is delayed a few minutes after
restarting.
• The delay is a protection to the unit’s compressor.
Cooling/heating capacity is reduced during
lowest fan speed setting.
• The lowest fan speed is to have a low noise operation,
so cooling/heating capacity may be reduced depending
on the condition. Increase the fan speed to increase the
capacity.
In COOL mode, when the room temperature
reaches near the set temperature, the
compressor stops, then the indoor unit fan
speed reduced.
• To prevent the room humidty rising. The indoor fan will
resume running according to the set fan speed when
room temperature increase.
Indoor fan stops occasionally during heating
operation.
• To avoid unintended cooling effect.
Indoor fan stops occasionally during automatic
fan speed setting.
• This is to help remove the surrounding odour.
Airflow continues even after operation has
stopped.
• To extract the remaining heat from the indoor unit
(maximum 30 seconds).
The room has a peculiar odour. • This may be due to damp smell emitted by the wall,
carpet, furniture or clothing.
Cracking sound during operation. • Changes in temperature caused the unit to expand and
contract.
Water flowing sound during operation. • Refrigerant flow inside the unit.
Mist emerges from indoor unit. • During cooling operation, the discharged cold air may
condense to water vapour.
Outdoor unit emits water or steam. • During cooling operation, condensation occurs on
cold pipes and the condensed water may drip from the
outdoor unit.
• During heating operation, frost formed on the outdoor
unit during deice cycle melts and is discharged as
water or steam.
Discoloration of some plastic parts. • Discoloration is subjected to the types of materials
used in plastic parts. It is accelerated when exposed to
heat, sun light, UV light or environmental factors.
Wireless LAN indicator is ON when the unit
is OFF.
• The unit’s wireless LAN connection with the router has
been activated.
Cleaning the Air Conditioner / Troubleshooting
ACXF55-32681.indb 15ACXF55-32681.indb 15 1/20/2022 6:14:43 PM1/20/2022 6:14:43 PM

16
Check the following before calling for servicing.
Symptom Check
Operation in HEAT/COOL mode is not working
efficiently.
• Set the temperature correctly.
• Close all doors and windows.
• Clean or replace the filters.
• Clear any obstruction at the air inlet and air outlet
vents.
Noisy during operation. • Check if the unit has been installed at an incline.
• Close the front panel properly.
The unit does not work. • Check if the circuit breaker is tripped.
• Check if timers have been set.
Troubleshooting
ACXF55-32681.indb 16ACXF55-32681.indb 16 1/20/2022 6:14:43 PM1/20/2022 6:14:43 PM

17
EnglishTroubleshooting
When...
■Use when remote control is a malfunction occurs
AUTO
OFF/ON
(Structure of the
unit may vary
depending on the
model)
1. Raise the front panel.
2. Press AUTO OFF/ON once to use in AUTO mode.
3. Press AUTO OFF/ON until you hear 1 beep, then release to use in
forced COOL mode.
4. Repeat step 3. Press AUTO OFF/ON until you hear 2 beeps, then
release. Press AUTO OFF/ON until you hear 3 beeps, then release to
use in forced HEAT mode.
5. Press AUTO OFF/ON again to turn off the unit.
■The indicators are too bright
•To dim or restore the indicators’ brightness on the unit, refer "Quick Menu" for more detail.
■Conducting a seasonal inspection after extended period of non-use
•Check that there is no obstruction around the air inlets and outlet vents.
•Use AUTO OFF/ON on the unit to select COOL or HEAT mode. After 15 minutes of
operation, it is normal to have the following temperature difference between the air inlet and
outlet vents:
COOL: ≥8 °C / 14.4 °F HEAT: ≥14 °C / 25.2 °F
■The units will be not used for an extended period
•Activate HEAT mode for 2~3 hours to remove any moisture left in the internal parts
thoroughly. This is to prevent mould growth.
•Turn off the power supply and unplug the unit.
NON SERVICEABLE CRITERIAS
TURN OFF THE POWER SUPPLY AND UNPLUG THE UNIT. Then consult an authorised
dealer in the following conditions:
•Abnormal noise during operation.
•Water/foreign particles have entered the remote control.
•Water is leaking from the indoor unit.
•The circuit breaker switches off frequently.
•The power cord becomes unnaturally warm.
•The switches or buttons are not functioning properly.
ACXF55-32681.indb 17ACXF55-32681.indb 17 1/20/2022 6:14:43 PM1/20/2022 6:14:43 PM

18
Diagnostic
display Abnormality/Protection control
H 00 No memory of failure
H 11 Indoor/outdoor abnormal
communication
H 12 Indoor unit capacity unmatched
H 14 Indoor intake air temperature sensor
abnormality
H 15 Compressor temperature sensor
abnormality
H 16 Outdoor current transformer (CT)
abnormality
H 17 Outdoor suction temperature sensor
abnormality
H 19 Indoor fan motor mechanism lock
H 21 Indoor float switch abnormality
H 23
Indoor heat exchanger temperature
sensor 1 abnormality
H 24
Indoor heat exchanger temperature
sensor 2 abnormality
H 25 Indoor ion device abnormality
H 26 Ion generator breakdown abnormality
H 27 Outdoor air temperature sensor
abnormality
H 28
Outdoor heat exchanger temperature
sensor 1 abnormality
H 30 Outdoor discharge pipe temperature
sensor abnormality
H 31 Indoor humidity sensor abnormality
H 32
Outdoor heat exchanger temperature
sensor 2 abnormality
H 33 Indoor/outdoor misconnection
abnormality
Diagnostic
display Abnormality/Protection control
H 34 Outdoor heat sink temperature sensor
abnormality
H 35 Indoor drain water backflow
abnormality
H 36 Outdoor gas pipe temperature sensor
abnormality
H 37 Outdoor liquid pipe temperature
sensor abnormality
H 38 Indoor/outdoor mismatch (brand code)
H 39 Abnormal indoor operating unit or
standby units
H 41 Abnormal wiring or piping connection
H 50 Ventilation fan motor abnormality
H 51 Filter cleaning nozzle lock abnormality
H 52
Filter cleaning left-right limit switch
abnormality
H 58 Indoor gas sensor abnormality
H 59 Eco sensor
abnormality
H 64 Outdoor high pressure sensor abnormality
H 67 nanoe abnormality
H 70 Light sensor abnormality
H 71
DC cooling fan inside control board
abnormality
H 72 PCB temperature sensor abnormality
H 85 Abnormal communication between
indoor & wireless LAN module
H 97 Outdoor fan motor mechanism lock
H 98 Indoor high pressure protection
H 99 Indoor operating unit freeze protection
Troubleshooting
12:00,Mon
SET TEMP.
FAN SPEED
25 .0
FLAP
AUTO
AUTO
MODE
AUTO H11
Indoor/outdoor abnormal
communication
Error number
To retrieve an error code, go to 'System check' and press
or button until you hear beep sound.
When the display shows an error code as indicated below,
contact the number registered in the Remote Controller or a
nearest authorised installer.
Below is a list of error codes that may appear on the display
when there is some trouble with the system setting or
operation.
keys are disabled.
ACXF55-32681.indb 18ACXF55-32681.indb 18 1/20/2022 6:14:43 PM1/20/2022 6:14:43 PM

19
EnglishTroubleshooting
* Some error code may not be applicable to your model. Consult an authorised dealer for clarification.
Diagnostic
display Abnormality/Protection control
F 11 4-way valve switching abnormality
F 16 Cooling dehumidification switching
abnormality
F 17 Indoor standby units freezing
abnormality
F 18 Dry circuit abnormality (Indoor valve
abnormality)
F 87 Electronic component overheat
protection
F 90 Power factor correction (PFC) circuit
protection
F 91 Refrigeration cycle abnormality
Diagnostic
display Abnormality/Protection control
F 93 Compressor abnormal revolution
F 94 Compressor discharge pressure
overshoot protection
F 95
Outdoor cooling high pressure protection
F 96 Power transistor module overheating
protection
F 97 Compressor overheating protection
F 98 Total running current protection
F 99 Outdoor direct current (DC) peak
detection
ACXF55-32681.indb 19ACXF55-32681.indb 19 1/20/2022 6:14:43 PM1/20/2022 6:14:43 PM

20
Table des matières
Témoin de l’unité intérieure ………………… 21
Boutons et affichage de la télécommande … 21
Initialisation …………………………………… 22
Guide Rapide ………………………………… 23
Menu rapide …………………………………24-26
Menu principal ………………………………27-30
Nous vous remercions d’avoir porté votre choix sur ce produit Panasonic.
Avant d’utiliser le système, veuillez lire ce mode d’emploi dans son intégralité et conservez-le pour toute référence ultérieure.
Instructions d’installation jointes.
Toute traduction dans une autre langue sera considérée comme une référence et la version anglaise prévaudra dans
tous les cas.
Numéro de série et année de production veuillez vous référer à la plaque signalétique.
1Param. fonction ...................................27-28
1,1 Type modèle
1,2 Mode chaud
1,3 Gauche/droite
1,4 Puissant
1,5 Silence
1,6 Vérif. filtre
1,7 WLAN
1,8 Duty rotation
1,9 Diagnostique
2Ctrl système ..............................................29
3Param. Perso .......................................29-30
3,1 Sonorité desTouches
3,2 Contraste LCD
3,3 Luminosité
3,4 Intensité luminosité
3,5 Format Horloge
3,6 Date & Heure
3,7 Régler unité de t°
3,8 Régler décimales t°
3,9 Langue
3,10 Déverrouillage code
4Contact maintenance ................................30
4,1 Contact 1 / Contact 2
5Config. zone client ....................................30
5,1 Num. personnalisé
Pour en savoir plus... ………………………… 31
Nettoyage du Climatiseur …………………… 32
Dépannage …………………………………33-37
ACXF55-32681.indb 20ACXF55-32681.indb 20 1/20/2022 6:14:43 PM1/20/2022 6:14:43 PM
