1 Features
2
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

2 Functions

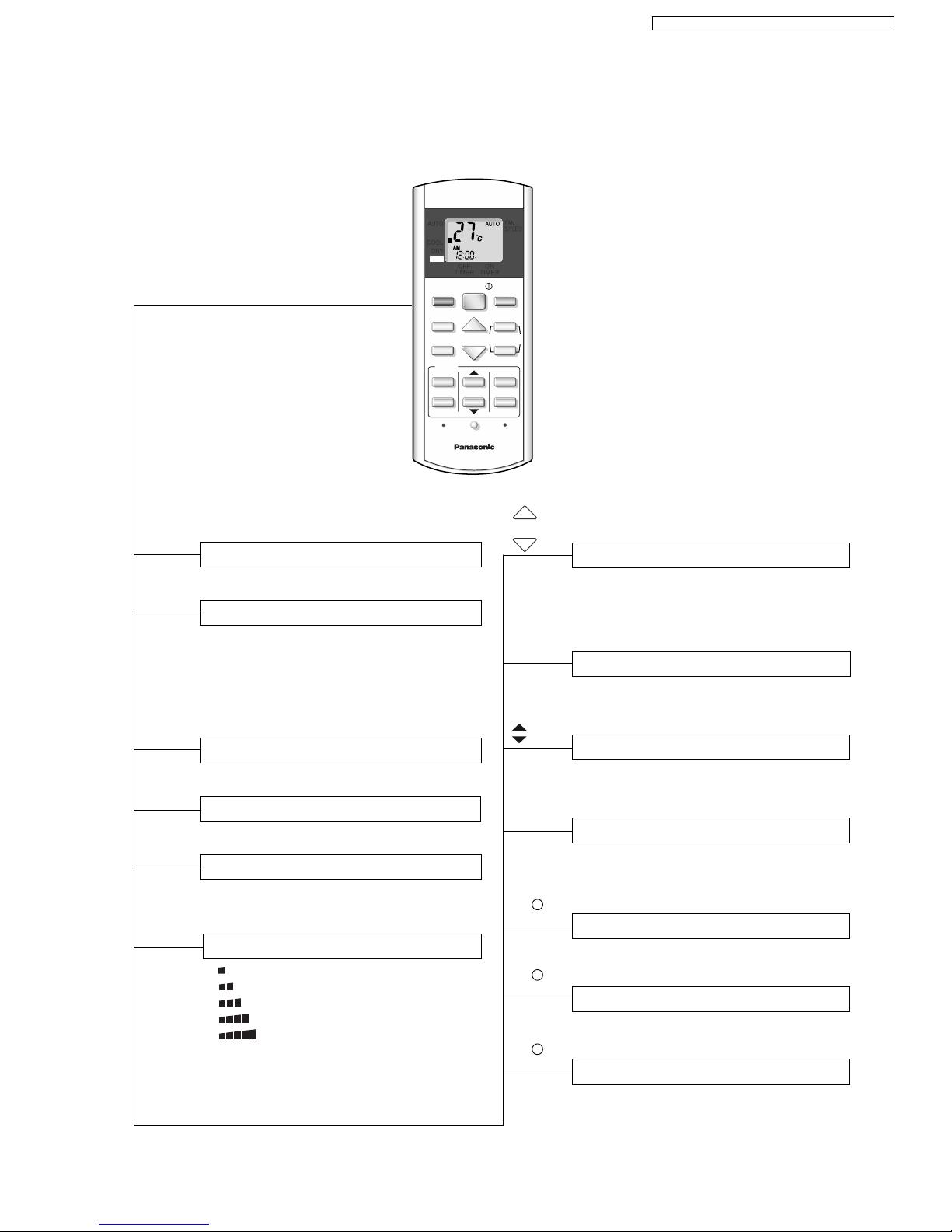

2.1. Remote Control
Operation OFF / ON Room Temperature Setting
TEMP
Operation Mode Selection
•AUTO Automatic Operation
•HEAT Heating Operation
•COOL Cooling Operation
•DRY Soft Dry Operation
Time / Timer Setting
• Hours and minutes setting.
Clock Setting
• Current time setting.
Quiet Mode Operation
QUIET
Airflow Direction Control
• 24-hour, OFF / ON Real Timer Setting.
Timer Setting
Timer Operation Set / Cancel
• ON Timer and OFF Timer setting and
cancellation.
CLOCK
Powerful Mode Operation
POWERFUL
• Increase or decrease set temperature.
(16°C to 30°C)
• Air Swing is not applicable.
FAN SPEED
Check Point
Reset Point
RESET
CHECK
AIR SWING
• Breakdown self diagnosis function.
• Clear memory data.
CANCEL
OFF
TIMER
ON
TIMER
FAN
SPEED
AUTO
HEAT
DRY
COOL
OFF
MODE
TIMER
ON
123
OFF
CLOCK RESET
SET
CANCEL
TEMP
POWERFUL
FAN SPEED
AIR SWING
OFF/ON
QUIET
AUTO
MANUAL
CHECK
INVENTER
OFF / ON I
MODE
Indoor Fan Speed Selection
•Low
•Medium-
•Medium
•Medium+
•High
•AUTO Automatic Fan Speed
TIMER-ON
TIMER-OFF
SET
CANCEL
3
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

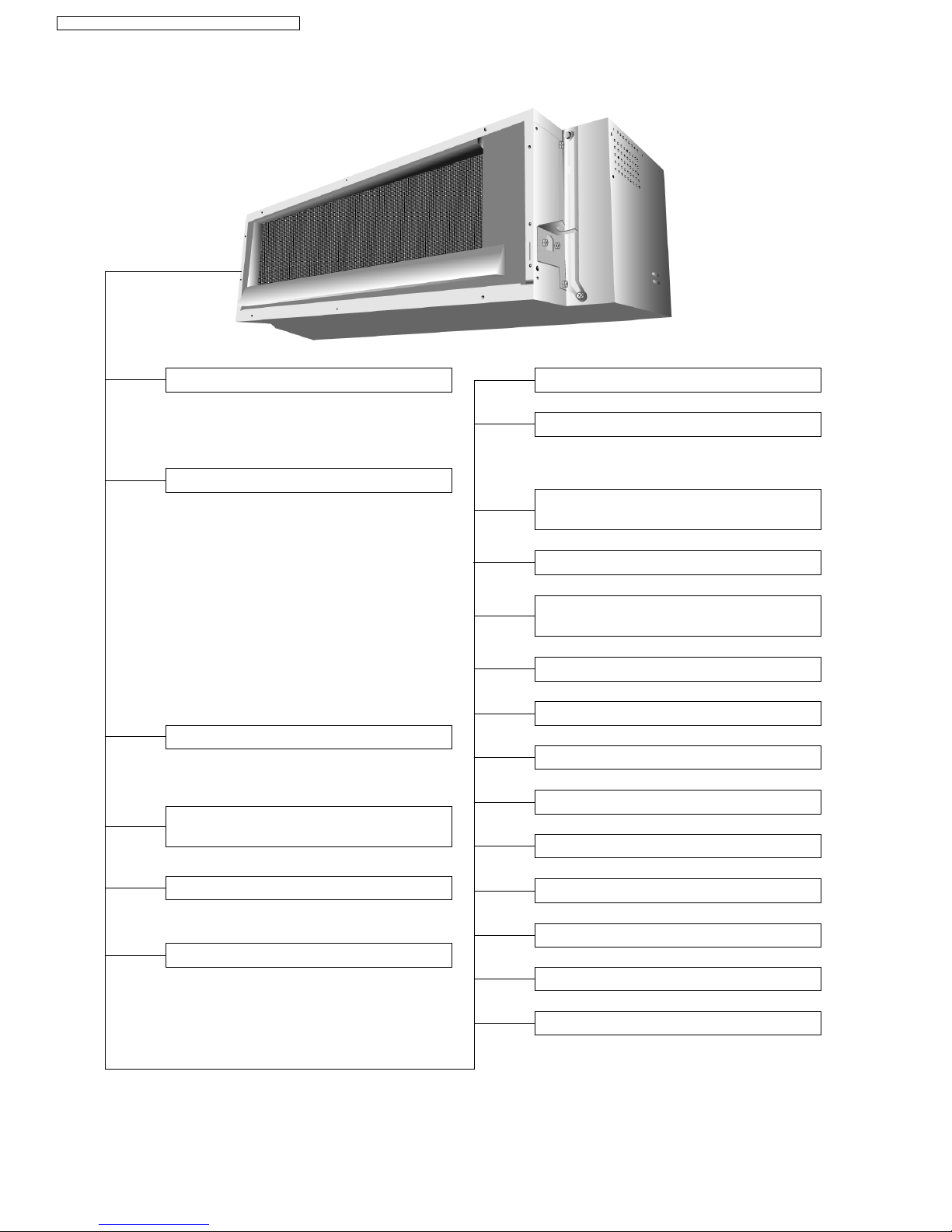

2.2. Indoor Unit
Automatic Operation Switch
•To run automatic operation, force cooling or
heating operation, or change remote control
signal type.
Automatic and 5 Manual Indoor
Fan Speeds
24-Hour Real Time Timer Control
Microcomputer-controlled Room
Temperature Control
Breakdown Self Diagnosis Function
Indoor Power Relay Control
Anti-Dew Formation Control
Anti Freezing Control
Anti-Cold Draft Control
Hot Start
Intake Air Temperature Control
Quiet Mode
•To provide quiet operation.
Automatic Restart Control
•Operation is restarted after power failure at
previous setting mode.
Low Pressure Control
(Gas Leakeage Detection)
Deodorizing Control
Four Operation Modes
•Automatic, Heating, Cooling and Soft Dry
Operation.
Operation Indication Lamps (LED)
•POWER (Green) ........ Lights up in operation,
blinks in Automatic
Operation Mode judging,
deice, On Timer sampling
and Hot Start operation.
•TIMER (Orange) ...... Lights up in Timer Setting.
Blinks in Self Diagnosis
Control.
•QUIET (Orange) ...... Lights up in Quiet Mode
Operation.
•POWERFUL (Orange) ... Lights up when Powerful
Mode is selected.
Powerful Mode
•For quick cooling or heating.
High Pressure Control
Deice Operation
4
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

2.3. Outdoor Unit
30 seconds Forced Operation
Time Delay Safety Control
Overload Protection Control
Deice Operation
Standby Control
Compressor Overheating
Prevention Control
IPM (Power Transistor)
Overheating Protection Control
Total Running Current Control
Mininum Operation Frequency
Protection Control
Low Operation Frequency
Protection Control
Outdoor Air Temperature
Control
5
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

3.1. CS-E15DD3EW CU-E15DBE
3 Product Specifications
Unit CS-E15DD3EW CU-E15DBE
Cooling Capacity kW
kcal/h
BTU/h
4.10 (0.90 - 4.70)
3,530 (770 - 4,040)
14,000 (3,070 - 16,000)
Heating Capacity kW
kcal/h
BTU/h
4.80 (0.90 - 5.50)
4,130 (770 - 4,730)
16,400 (3,070 - 18,800)
Moisture Removal l/h
Pint/h
2.3
(4.9)
Power Source (Phase, Voltage, Cycle) ø
V
Hz
Single
230 - 240
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Lo m3/min (cfm) Cooling; 5.5 (190) —
Heating; 6.0 (210)
Me m3/min (cfm) Cooling; 6.7 (240) —
Heating; 7.1 (250)
Hi m3/min (cfm) Cooling; 7.9 (280) Cooling; 48.5 (1,710)
Heating; 8.9 (315) Heating; 48.5 (1,710)
dB (A) Cooling; High 33, Low 27 Cooling; 46
Heating; High 35, Low 28 Heating; 47
Noise Level
Power level dB Cooling; High 49 Cooling; High 59
Heating; High 51 Heating; High 60
Electrical Data Input Power WCooling; 1,240 (255 - 1,500)
Heating; 1,820 (260 - 2,090)
Running Current ACooling; 5.7 - 5.6
Heating; 8.2 - 8.1
EER W/W Cooling; 3.31 (3.53 - 3.13)
BTU/hW Cooling; 11.3 (12.0 - 10.7)
COP W/W Heating; 2.64 (3.46 - 2.63)
BTU/hW Heating; 9.0 (11.8 - 9.0)
Starting Current A8.2
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
6
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

Unit CS-E15DD3EW CU-E15DBE
Pipe Size
(Flare piping)
inch
inch
G (gas side) ; 1/2”
L (liquid side) ; 1/4”
G (gas side) ; 1/2”
L (liquid side) ; 1/4”
Drain
Hose
Inner diameter mm 14 —
Length m0.255 —
Power Cord Length
Number of core-wire
—— —
—
Dimensions Height inch (mm) 9 - 1/4 (235) 29 - 17/32 (750)
Width inch (mm) 29 - 17/32 (750) 34 - 7/16 (875)
Depth inch (mm) 14 - 9/16 (370) 13 - 19/32 (345)
Net Weight lb (kg) 37 (17) 106 (48)
Compressor Type —Involute scroll
Motor Type —Brushless (4-pole)
Rated Output W—900
Air Circulation Type Sirocco Propeller Fan
Material ABS + GF 10% P.P
Motor Type Transistor (8-poles) Transistor (8-poles)
Rate Output W30 40
Fan Speed Lo (Cool/Heat) rpm 900 / 980 —
Me (Cool/Heat) rpm 1,100 / 1,170 —
Hi (Cool/Heat) rpm 1,300 / 1,370 660 / 660
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium
Fin Type Louver Fin Corrugated Fin
Row / Stage (Plate fin configuration, forced draft)
2/12 1/28
FPI 20 18
Size (W × H × L) mm 857 × 252 × 25.4 871.7 × 711.2 × 22
Refrigerant Control Device —Expansion Valve
Refrigeration Oil (cm3) — RB68A (400)
Refrigerant (R410A) kg (oz) —1.23 (43.4)
Thermostat Electronic Control —
Protection Device Electronic Control Electronic Control
• Specifications are subjected to change without notice for further improvement.
7
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

3.2. CS-E18DD3EW CU-E18DBE
Unit CS-E18DD3EW CU-E18DBE
Cooling Capacity kW
kcal/h
BTU/h
5.10 (0.90 - 5.70)
4,390 (770 - 4,900)
17,400 (3,070 - 19,400)
Heating Capacity kW
kcal/h
BTU/h
6.10 (0.90 - 7.10)
5,250 (770 - 6,110)
20,800 (3,070 - 24,200)
Moisture Removal l/h
Pint/h
2.8
(5.9)
Power Source (Phase, Voltage, Cycle) ø
V
Hz
Single
230 - 240
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Lo m3/min (cfm) Cooling; 7.4 (260) —
Heating; 8.7 (310)
Me m3/min (cfm) Cooling; 8.8 (310) —
Heating; 10.2 (360)
Hi m3/min (cfm) Cooling; 10.4 (365) 40.0 (1,410)
Heating; 13.0 (460)
dB (A) Cooling; High 41, Low 30 Cooling; 47
Heating; High 41, Low 32 Heating; 48
Noise Level
Power level dB Cooling; High 57 Cooling; High 60
Heating; High 57 Heating; High 61
Electrical Data Input Power WCooling; 1,620 (255 - 1,840)
Heating; 1,850 (260 - 2,200)
Running Current ACooling; 7.3 - 7.1
Heating; 8.3 - 8.0
EER W/W Cooling; 3.15 (3.53 - 3.10)
BTU/hW Cooling; 10.7 (12.0 - 10.5)
COP W/W Heating; 3.30 (3.46 - 3.23)
BTU/hW Heating; 11.2 (11.8 - 11.0)
Starting Current A8.3
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G (gas side) ; 1/2”
L (liquid side) ; 1/4”
G (gas side) ; 1/2”
L (liquid side) ; 1/4”
8
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

Unit CS-E18DD3EW CU-E18DBE
Drain
Hose
Inner diameter mm 14 —
Length m0.255 —
Power Cord Length
Number of core-wire
—— —
—
Dimensions Height inch (mm) 11 - 7/32 (285) 29 - 17/32 (750)
Width inch (mm) 29 - 17/32 (750) 34 - 7/16 (875)
Depth inch (mm) 14 - 9/16 (370) 13 - 19/32 (345)
Net Weight lb (kg) 40 (18) 106 (48)
Compressor Type —Involute scroll
Motor Type —Brushless (4-pole)
Rated Output W—900
Air Circulation Type Sirocco Propeller Fan
Material ABS + GF 10% P.P
Motor Type Transistor (8-poles) Transistor (8-poles)
Rate Output W30 40
Fan Speed Lo (Cool/Heat) rpm 1,020 / 1,200 —
Me (Cool/Heat) rpm 1,220 / 1,410 —
Hi (Cool/Heat) rpm 1,430 / 1,630 660 / 660
Heat Exchanger Description Evaporator Condenser
Tube material Copper Copper
Fin material Aluminium (Pre Coat) Aluminium
Fin Type Louver Fin Corrugated Fin
Row / Stage (Plate fin configuration, forced draft)
2/12 2/34
FPI 20 16
Size (W ×H×L) mm 857 ×252 ×25.4 849.3
878
×714 ×36.4
Refrigerant Control Device —Expansion Valve
Refrigeration Oil (cm3)—RB68A (400)
Refrigerant (R410A) kg (oz) —1.06 (37.4)
Thermostat Electronic Control —
Protection Device Electronic Control Electronic Control
• Specifications are subjected to change without notice for further improvement.
9
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

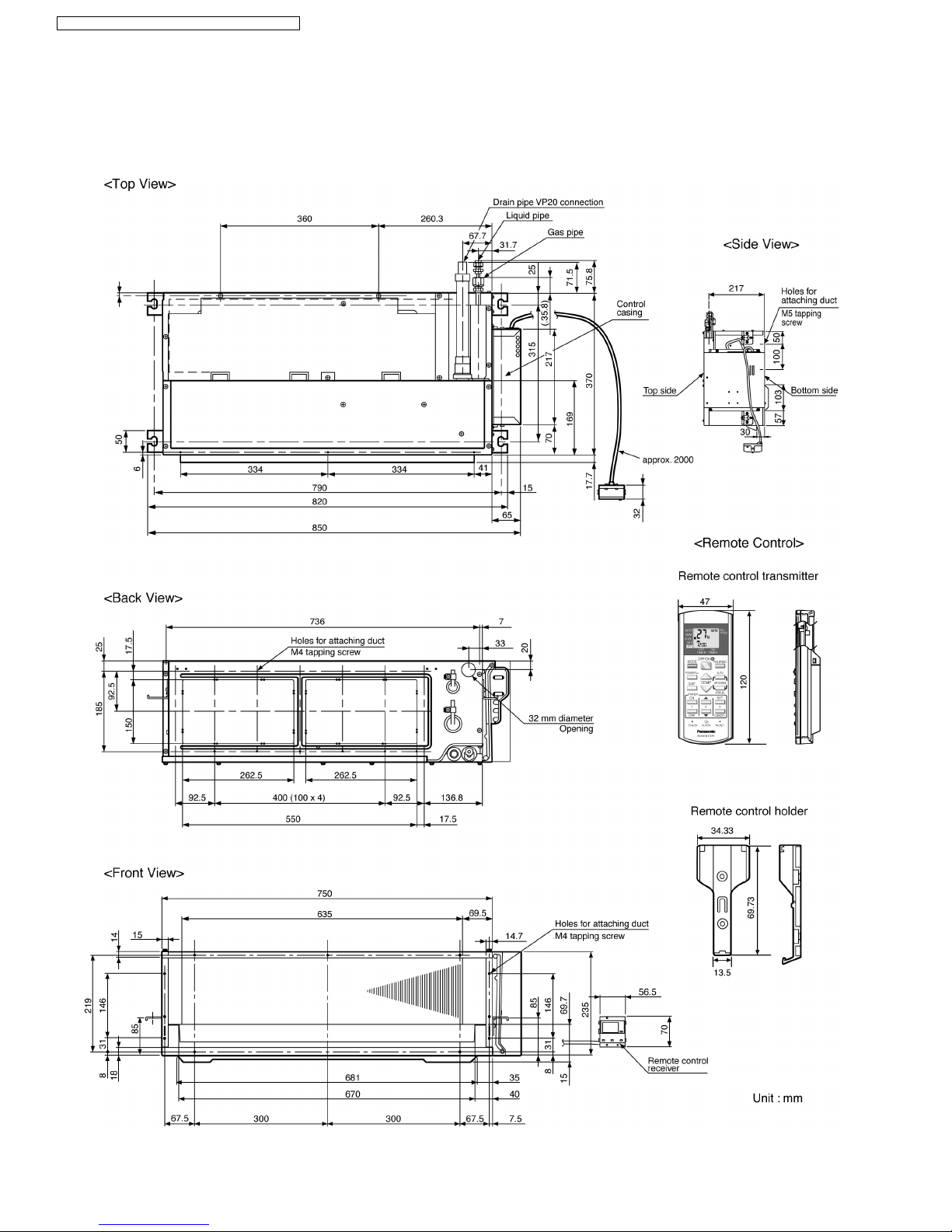

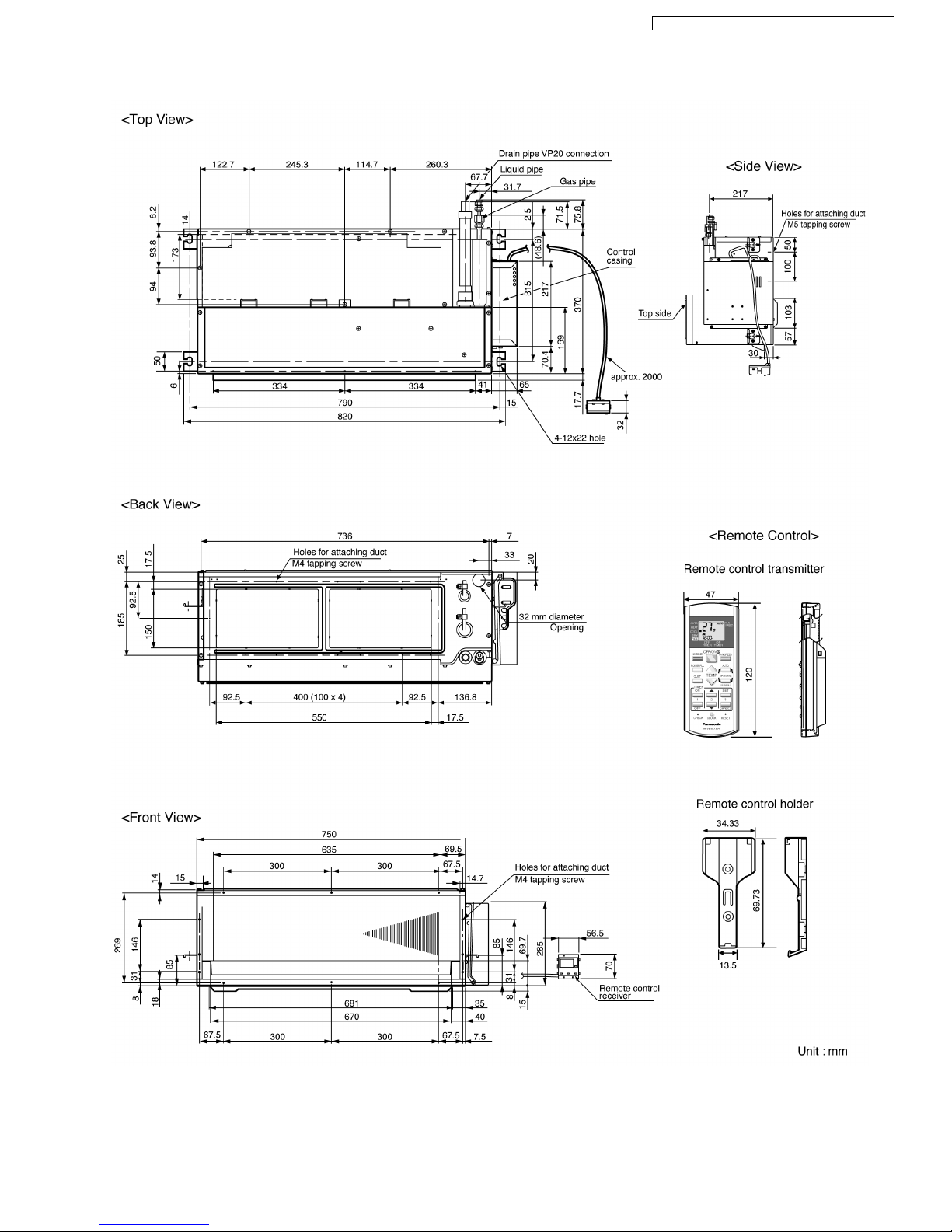

4 Dimensions
4.1. Indoor Unit & Remote Control
4.1.1. CS-E15DD3EW
10
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

4.1.2. CS-E18DD3EW
11
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

4.2. Outdoor Unit
4.2.1. CU-E15DBE CU-E18DBE
12
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

5 Refrigeration Cycle Diagram
13
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

6 Block Diagram
14
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

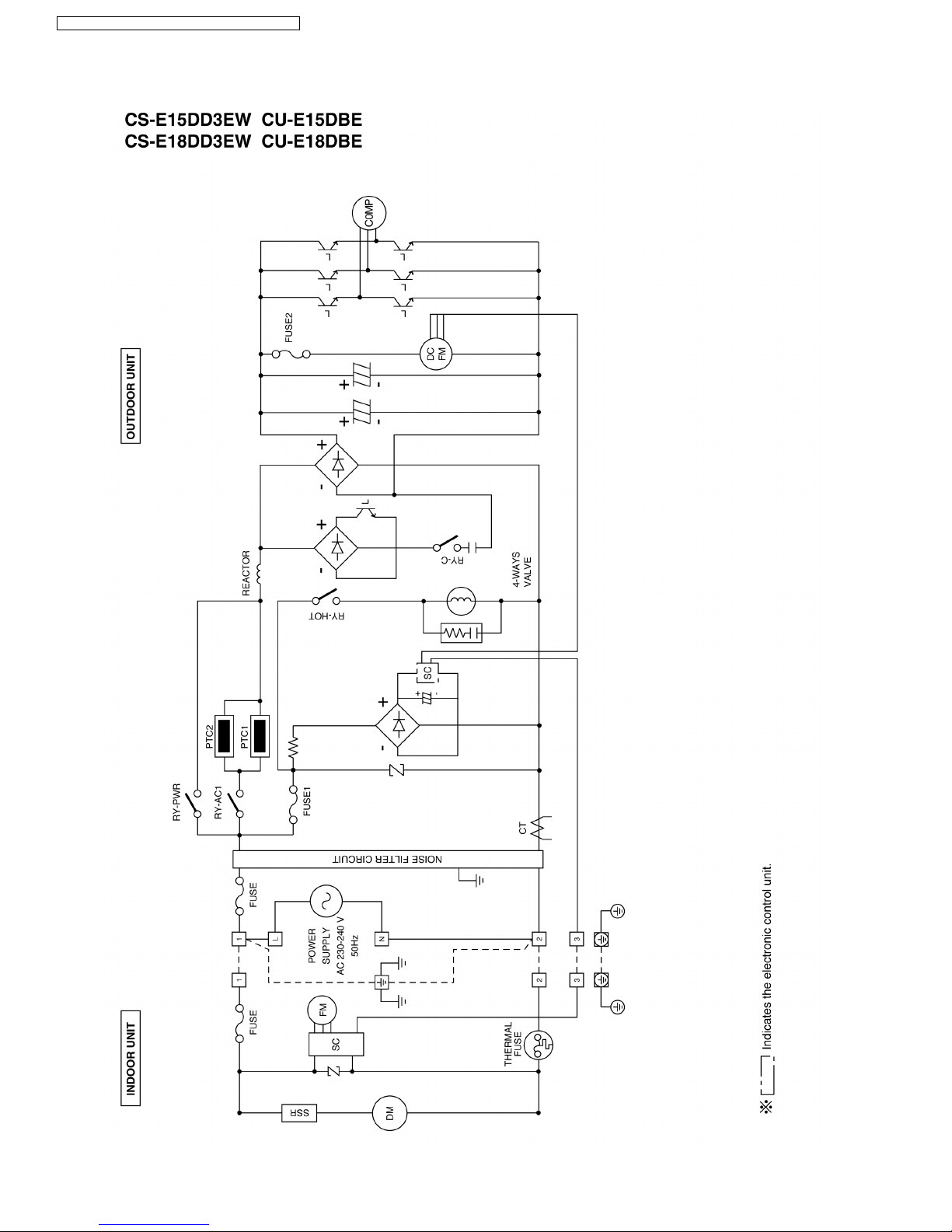

7 Wiring Diagram
15
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

8 Operation Details
8.1. Basic Operation
Inverter control, which equipped with a microcomputer in determining the most suitable operating mode as time passes,
automatically adjust output power for maximum comfort always.
In order to achieve the suitable operation mode, the microcomputer maintains the set temperature by measuring the
temperature of environment and performing temperature shifting.
8.1.1. Temperature Shifting Flow
The compressor at outdoor unit is operating following the frequency instructed by the microcomputer at indoor unit that judging the
condition according to internal setting temperature.
16
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

8.1.2. Cooling Operation

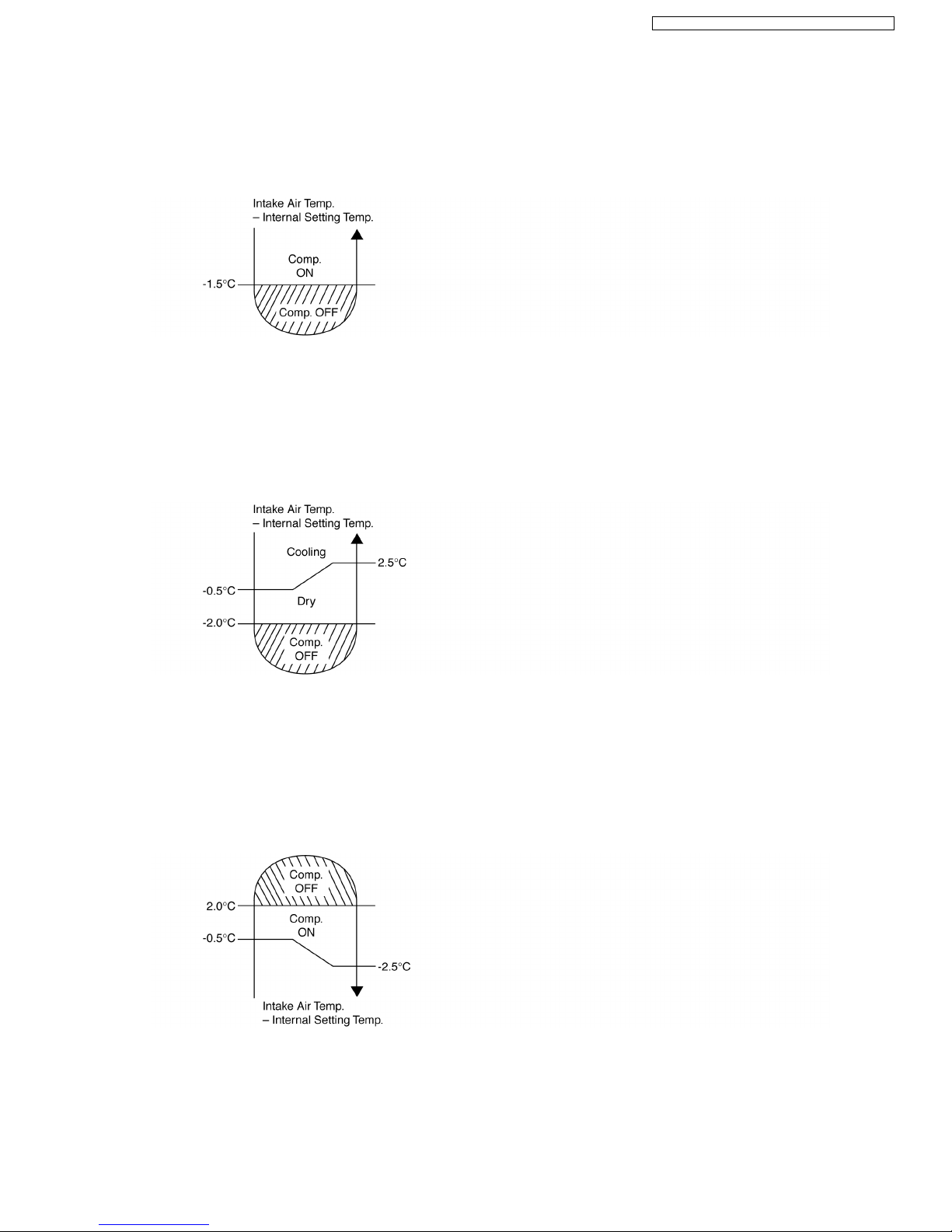

8.1.2.1. Thermostat control
• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -1.5°C.
• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature > Compressor OFF
point.
8.1.3. Soft Dry Operation
8.1.3.1. Thermostat control
• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature < -2.0°C.
• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature > Compressor OFF
point.
8.1.4. Heating Operation
8.1.4.1. Thermostat control
• Compressor is OFF when Intake Air Temperature - Internal Setting Temperature > +2.0°C.
• Compressor is ON after waiting for 3 minutes, if the Intake Air Temperature - Internal Setting Temperature < Compressor OFF
point.
17
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

8.1.5. Automatic Operation
This mode can be set using remote control and the operation is decided by remote control setting temperature, indoor intake air
temperature and outdoor air temperature.
During operation mode judgment, indoor fan motor (with speed of Lo-) and outdoor fan motor are running for 30 seconds to detect
the indoor intake and outdoor air temperature. The operation mode is decided based on below chart.
Values of T1, T2, and T3 depend on remote control setting temperature, as shown in below table. After the adjustment of T1, T2
and T3 values, the operation mode for that particular environment and remote control setting is judged and performed, based on
the above operation mode chart, every 30 minutes.
Remote Control Setting Temperature (°C) T1 T2 T3
16 ~ 18 +10 -3 -5
19 ~ 22 +8 -3 -7
23 ~ 26 +7 -3 -7
27 ~ 30 +6 -3 -8
There is a temperature shifting on T1, T2, and T3 if the operation mode judged is changed from Cooling/Soft Dry to Heating or vice
verse.
Operation Mode change from Temperature shifts (°C)
Cooling/Soft Dry →Heating -2
Heating →Cooling/Soft Dry +2
Example of operation mode chart adjustment:
From the above table, if remote control setting temperature = 25,
T1 = 25 + 7 = 32; T2 = 25 - 3 = 22; T3 = 25 - 7 = 18

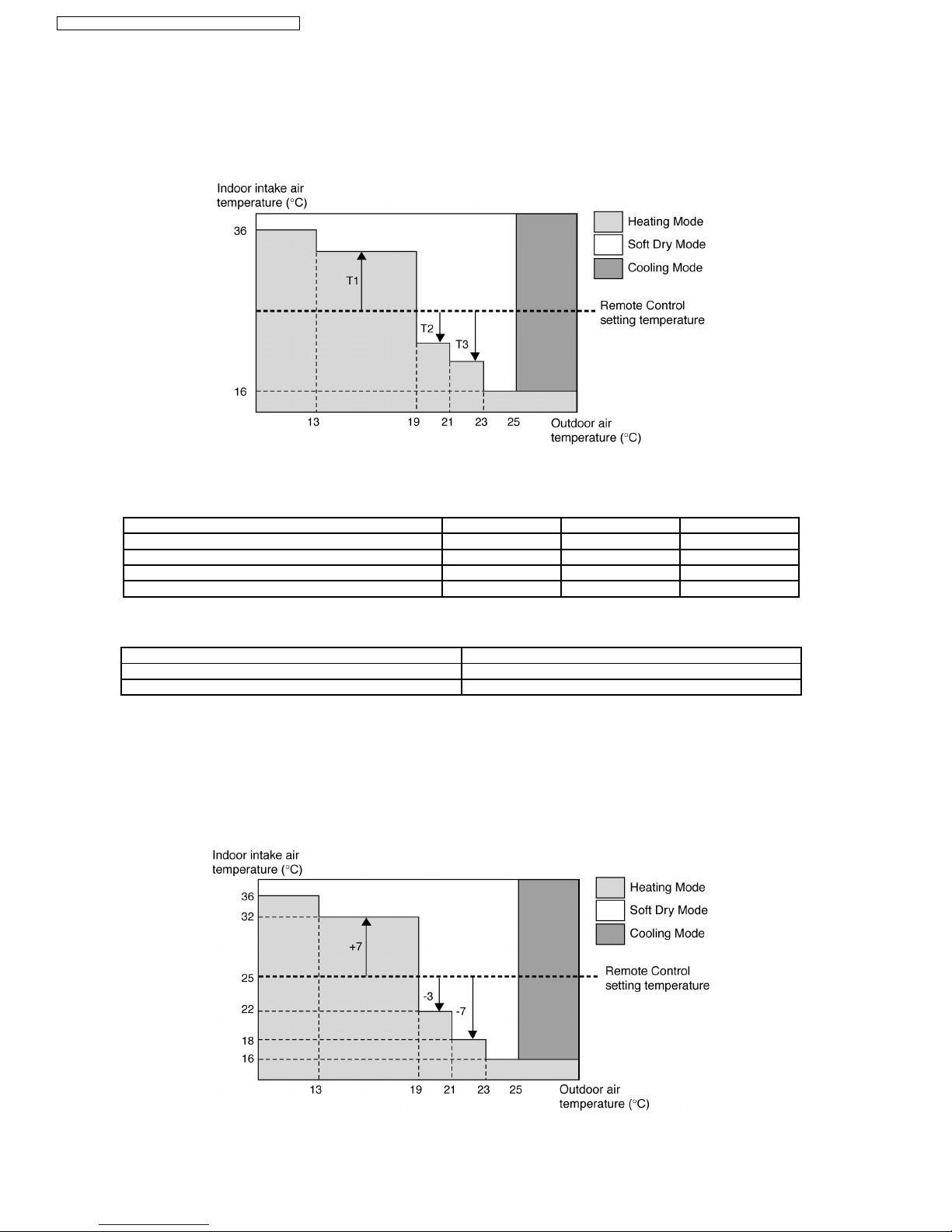

The operation mode chart for this example is as shown in below figure and the operation mode to be performed will depend on
indoor intake air temperature and outdoor air temperature at the time when the judgment is made.
18
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

8.1.6. Indoor Fan Motor Operation
A. Basic Rotation Speed (rpm)
• Required rotation speed for fan is set to respond to the remote control setting (10 rpm unit)
[Cooling, Dry, Fan]
Remote Control — — OOOOO— — —
Tab (rpm) PSHI SHI Hi Me+ Me Me- Lo Lo- SLo SSLo
E15D 1400 1400 1300 1200 1100 1000 900 800 750 750
E18D 1530 1530 1430 1320 1220 1120 1020 900 800 800
[Heating]
Remote Control — — OOOOO— — —
Tab (rpm) PSHi SSHi SHi Me+ Me Me- Lo Lo- SLo SSLo
E15D 1440 1440 1370 1270 1170 1070 980 900 750 750
E18D 1700 1700 1630 1520 1410 1300 1200 1080 800 800

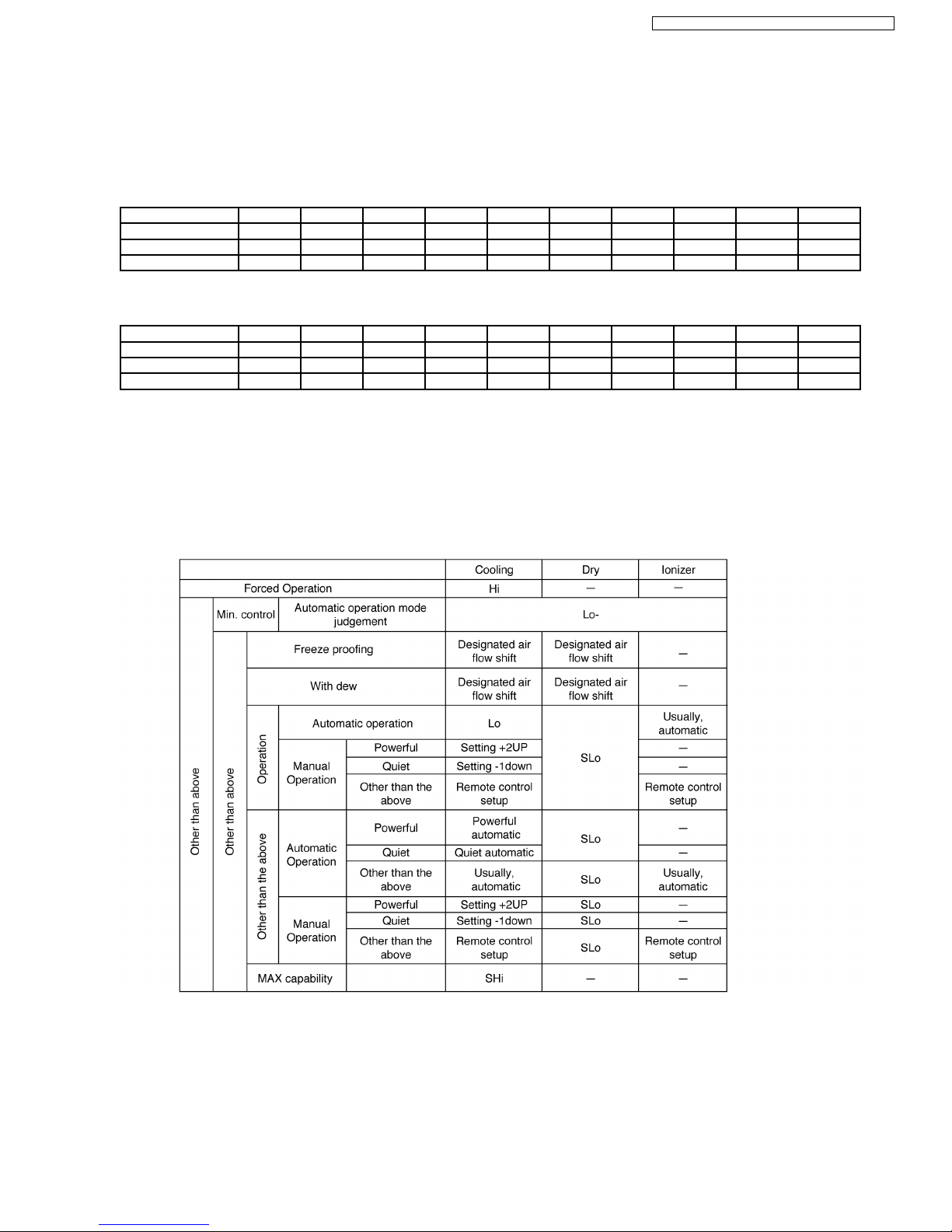

B. Indoor Fan Control
i. Indoor fan control operation outline
1. Cooling / Dry
19
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE

2. Heating

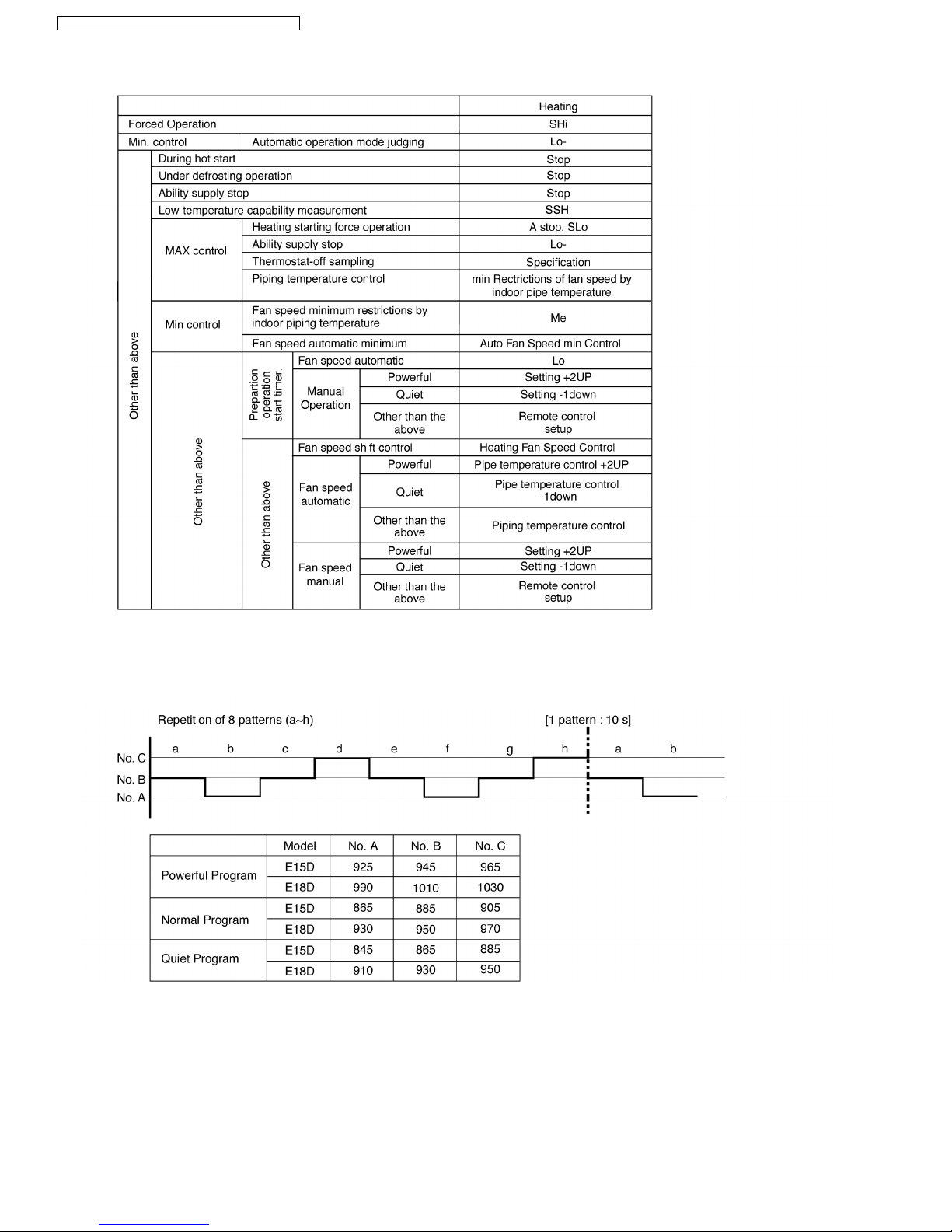

ii. Auto Fan Speed
1. Cooling
20
CS-E15DD3EW CU-E15DBE / CS-E18DD3E W CU-E18DBE
