Panasonic S-22NA1E5 User manual

Operating Instructions
FS Multi Air Conditioner
F567161
QUICK GUIDE / PANDUAN SEGERA
ㇵᯧᣛ/ !"#$%&'()*+,'-%."',."%
PEDOMAN CEPAT / !"!# $
%&'#"( )%* / +,-. -/ 0!'%1&-
© Panasonic HA Air-Conditioning (M) Sdn. Bhd. 2009.
Unauthorized copying and distribution is a violation
of law.
ENGLISH
Before operating the unit, read these operating instructions thoroughly and keep them for future reference.
2 ~ 13
B.MALAYSIA
Sebelum menggunakan unit ini, baca arahan operasi ini dengan teliti dan simpan untuk rujukan masa depan.
14 ~ 25
Ё᭛
೼᪡԰ぎ䂓఼ࠡˈ䂟㌄䅔ℸ᪡԰䁾ᯢˈϺֱᄬℸ᳌ҹ٭᮹ᕠগ㗗DŽ26 ~ 37
/'0'12.
!"#$%&'()*!"+ ,"$-&"!.#(/0#1#/ $# .)$%&+.#$-&21'"345 021' 6789&:/-);7$%&"&.+"<+$#"#.(=.
38 ~ 49
B.INDONESIA
Sebelum mengoperasikan unit, baca terlebih dahulu petunjuk penggunaan secara teliti dan simpan untuk referensi
selanjutnya.
50 ~ 61
"(CCK-/
!"!# $%&%'() *+,-'.%/%011 #%$$(2( .,/"(3,/4% 4$1)%/!'5$( -"(&1/%3/! 1$,/".+011 -( *+,-'.%/%011 1
,(6"%$1/! 16.
63 ~ 76
(KPA2HCBKA
74%8$( -"(&1/%3/! 09 :$,/".+0:9 -!"!# !+,-'.%/%0:;9 +($#10:($!"% :<=!"!8:/5 >> #'? #(4:#(+ .)%3=./$5()..
77 ~ 90
Indoor Unit Outdoor Unit
S-22NA1E5 U-4LA1E5
S-28NA1E5 U-5LA1E5
S-32NA1E5 U-6LA1E5
S-36NA1E5 U-4LA1E5-1
S-45NA1E5 U-5LA1E5-1
S-56NA1E5 U-6LA1E5-1
F567161.indb 1 11/23/2009 10:07:32 AM

2
SAFETY PRECAUTIONSSAFETY PRECAUTIONS
To prevent personal injury, injury to others, or property damage, please
comply the following.
Incorrect operation due to failure to follow instructions may cause harm or
damage, the seriousness of which is classiÞed as below:
WARNING
This sign warns of death or serious injury.
CAUTION
This sign warns of injury or damage to property.
The instructions to be followed are classiÞed by the following symbols:
This symbol denotes an action that is
PROHIBITED.
This symbol denotes an action that is
COMPULSORY.
Thank you for purchasing
Panasonic Air Conditioner
TABLE OF CONTENTS
SAFETY PRECAUTIONS
2~3
INFORMATION
4
MULTI AIR CONDITIONER
FUNCTION
5
PRODUCT OVERVIEW &
OPERATIONS
(WIRELESS REMOTE
CONTROL)
6~7
PRODUCT OVERVIEW &
OPERATIONS
(WIRED REMOTE
CONTROL)
8~10
CARE & CLEANING
11
TROUBLESHOOTING
12~13
QUICK GUIDE
BACK COVER
NOTE
The illustrations in this manual are for
explanation purposes only and may
differ from the actual unit. It is subjected
to change without notice for future
improvement.
WARNING
INDOOR UNIT AND OUTDOOR UNIT
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
Please consult authorized dealer or specialist to repair, install,
remove and reinstall the unit. Improper installation and handling
will cause leakage, electric shock or Þre.
Do not install the unit in a potentially explosive or ßammable
atmosphere. Failure to do so could result in Þre accident.
Do not insert your Þngers or other objects into the
air conditioner indoor or outdoor unit, rotating parts
may cause injury.
Do not touch the outdoor unit during lightning, it may cause
electric shock.
REMOTE CONTROL
Do not allow infants and small children to play with the remote
control to prevent them from accidentally swallowing the
batteries.
F567161.indb 2 11/23/2009 10:07:36 AM

3
ENGLISH
CAUTION
INDOOR UNIT AND OUTDOOR UNIT
Do not wash the indoor unit with water, benzene,
thinner or scouring powder.
Do not use for other purpose such as
preservation of food.
Do not use any combustible equipment in front of
the airßow outlet to avoid propagate Þre.
Do not expose directly to cold air for a long
period.
Do not sit or step on the unit, you may
fall down accidentally.
Do not touch the sharp aluminium Þn,
sharp parts may cause injury.
Do not switch ON the indoor when waxing the
ßoor. After waxing, aerate the room properly
before operating the unit.
Do not install the unit in oily and smoky areas.
Ensure drainage pipe is connected properly.
Otherwise, leakage may occur.
Aerate the room regularly.
After long period of use, make sure the
installation rack is not deteriorate to prevent the
unit falls down.
REMOTE CONTROL
Do not use rechargeable (Ni-Cd) batteries.
It may damage the remote control.
Remove the batteries if the unit is not going to be
used for a long period of time.
New batteries of the same type must be inserted
following the polarity stated to prevent
malfunction of the remote control.
WARNING
POWER SUPPLY
Do not use modiÞed cord,
joint cord, extension cord or
unspeciÞed cord to prevent
overheat and Þre.
Do not share the same power outlet with other
equipment to prevent overheat and Þre.
Do not operate with wet hands to prevent electric
shock.
If the supply cord is damage, it must be replaced
by the manufacturer, its service agent or similarly
qualiÞed persons in order to avoid a hazard.
Strongly recommended to be installed with Earth
Leakage Circuit Breaker (ELCB) or Residual
Current Device (RCD) to prevent electric shock
or Þre.
This equipment must be earthed to prevent
electrical shock or Þre.
In case of emergency or abnormal conditions
(burnt smell, etc), turn off the power supply, and
please consult authorized dealer.
Prevent electric shock by switch off the power
supply when:
- Before cleaning or servicing.
- Extended non-use.
- Abnormally strong lightning activity.
Air outlet
Air inlet
Indoor Unit
Power Supply
Outdoor Unit
Remote Control
Air inlet
F567161.indb 3 11/23/2009 10:07:36 AM

4

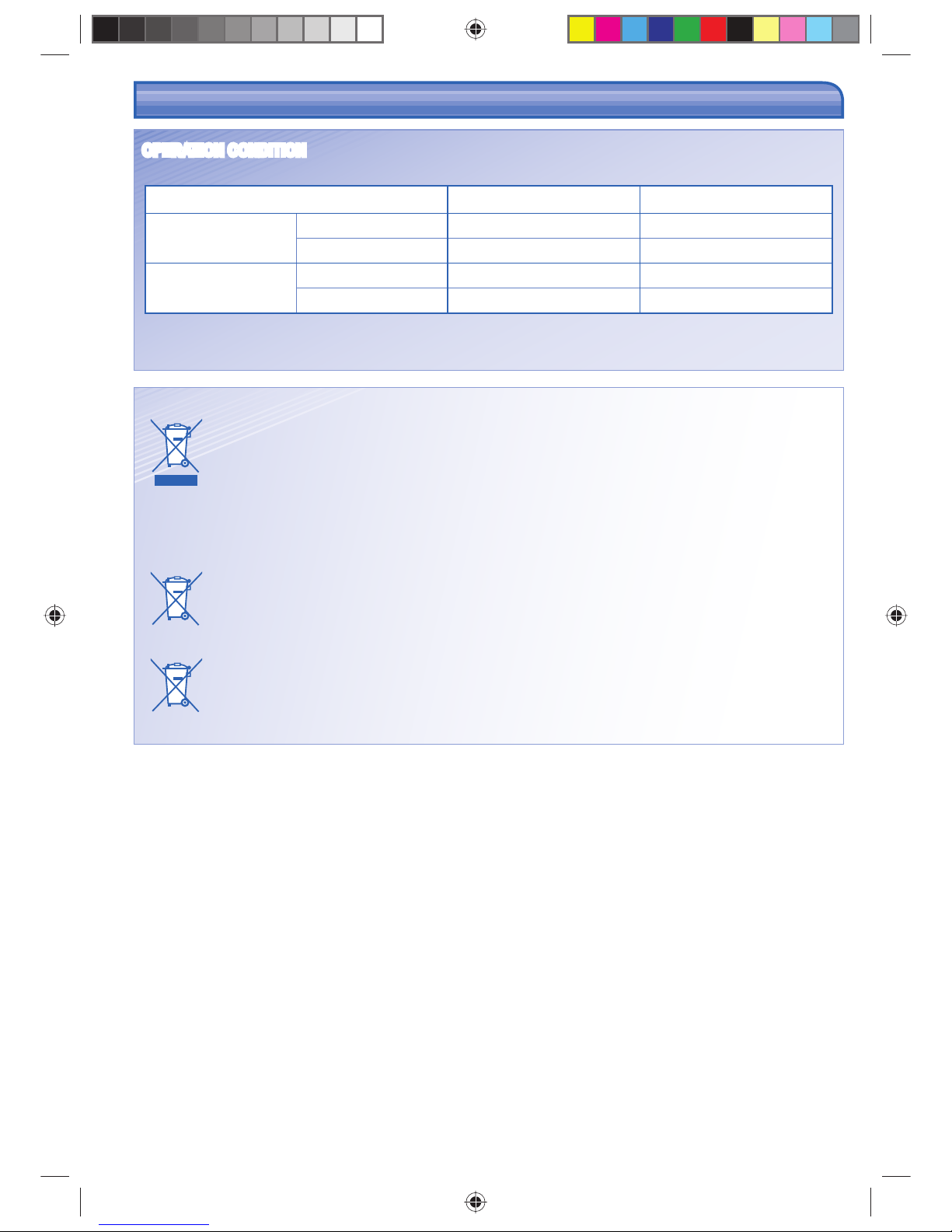

INFORMATIONINFORMATION
OPERATION CONDITION
Use this air conditioner under the following temperature range
Temperature (°C) Indoor Outdoor
COOLING Maximum 32 43
Minimum 21 -5
HEATING Maximum 27 24
Minimum 16 -15
NOTICE: • This unit is still able to operate as a cooler with outdoor temperature as low as -5°C in a non-living room, such
as a computer room, with a room temperature of 21°C or above, and room humidity up to 80%.
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and
electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and
2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent
any potential negative effects on human health and the environment which could otherwise arise from
inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your local
municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact your
local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement
set by the Directive for the chemical involved.
Pb
F567161.indb 4 11/23/2009 10:07:37 AM

5
ENGLISH
MULTI AIR CONDITIONER FUNCTIONMULTI AIR CONDITIONER FUNCTION
DEFINITION
Multi air conditioner system has one outdoor unit connected to multiple indoor units.
Outdoor unit
Room B
Room A
• It is possible to operate the indoor units individually or simultaneously.
• The operation mode priority is given to the Þrst unit that turned on.
• During operation, heating and cooling mode could not be activated at the same time for different indoor unit.
• The power indicator blinks to indicate the indoor unit is standing by for different operation mode.
INDOOR UNIT
Room C
Room D
F567161.indb 5 11/23/2009 10:07:37 AM

ADDRESS
A TOA TO
TIMER
ON
MODE
MODE
AIR SWING
FAN SPEED
OFF/ON
SET AC RESETRC RESET ADDRESS
AIR SWING
TIMER
SET
CANCEL
SELECT
CLOCK
FAN SPEED
FILTER RESET
MAN AL
MODE
A TO
6
POWER
TIMER
AUTO
FILTER
Air outlet
Air inlet
Control Panel (CZ-RWRM1)
Ray receiver
Remote control
display Remote Control Preparation
1Press and pull out 4Set time
2Insert AAA or R03 batteries
(can be used ~ 1 year) 5ConÞrm
3Press CLOCK 6Close the cover
5
Auto OFF/ON button
• To operate the unit if the wireless remote control
is misplaced or malfunctioning.
Action Mode
Press once. Auto
Press and hold until you hear 1 beep,
then release. Cooling
1.Press and hold until you hear 2
beeps then release.
2.Press the
SE
button for 5 seconds.
Heating
Press the button to turn off.
PRODUCT OVERVIEW & OPERATIONS
(WIRELESS REMOTE CONTROL)
PRODUCT OVERVIEW & OPERATIONS
(WIRELESS REMOTE CONTROL)
4
3
1
2
6
Transmitter
Maximum distances: 8m
Error Code Display
(For servicing use only)
CZ-RWS1 (Heat Pump Model)
CZ-RWC1 (Cooling Model)
INDICATOR
POWER
(Green)
TIMER
(Orange)
FILTER
(Orange)
F567161.indb 6 11/23/2009 10:07:37 AM

7
ENGLISH

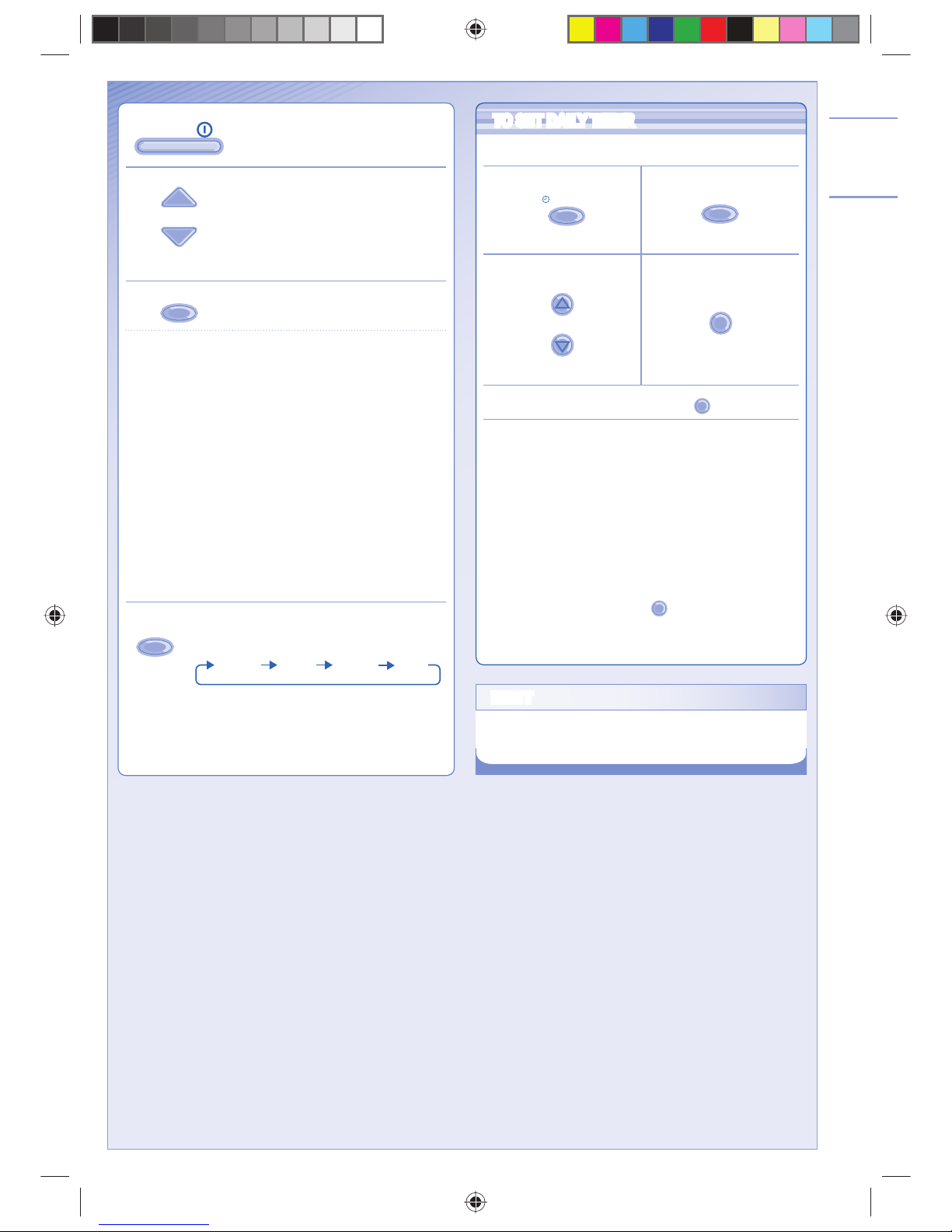

TO SET DAILY TIMER
• To turn ON or OFF the unit at a preset time.
SE ECT
TIMER
SET
Select ON or
OFF timer.
Set the time. ConÞrm.
• To cancel ON or OFF timer, press
CANCE
.
• When ON timer is set, the unit may start early before
the actual set time in order to achieve the desired
temperature on time.
• Timer operation is based on the clock set in the remote
control and repeats daily once set. For clock setting,
please refer to Remote Control preparation.
• The timer closest to the current time will be activated
Þrst.
• If timer is cancelled manually, you can restore the
previous setting by pressing SET .
• If the main power is switched off for an hour or more,
the clock and timer will need to be set again.
ADDRESS
• To avoid unintentional operation, you can
assign a different address to each indoor
unit.
• Press repeatedly to select your desired
address setting.
Address 1 Address 2Group Address 3
• By default, ADDRESS 1 is selected. You
do not need to change this setting for
normal operation.
• If the address is set to GROUP, more
than one indoor unit can be operated at
the same time.
R RESET
Press to restore the remote control’s default
setting.
SET
A RESET
Not used in normal operations.
HINT
• Use curtains to screen off sunlight and outdoor heat to
reduce power consumption during cool mode.
OPTIONAL SETTINGS
FAN SPEED
TO SELECT FAN SPEED (3 OPTIONS)
LOW MEDIUMAUTO HIGH
• For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
• If the operation mode is set to Fan, the fan speed will
be Þxed at MEDIUM regardless of the temperature
setting.
OFF/ON
TO TURN ON OR OFF THE
UNIT POWER
TO SET TEMPERATURE
• Selection range: 16°C ~ 31°C.
MODE TO SELECT OPERATION MODE
AUTO mode - For your convenience
• Unit selects operation mode according to temperature
setting, outdoor and room temperature.
HEAT mode - To enjoy warm air
• Unit takes a while to warm up.
FAN mode - To enables air circulation in the room
COOL mode - To enjoy cool air
DRY mode - To dehumidify the environment
• Unit operates at low fan speed to give a gentle cooling
operation.
• During soft dry operation, the indoor fan operates at a
low fan speed.
• The louvers movement might not align with the remote
control display.
F567161.indb 7 11/23/2009 10:07:38 AM

HE K ODOUR WASH VENTILATION TEST RUN FILTER RESET
TEMP/
A/ No.
UP
DOWN
MODE
SELE T
SET
AN EL
OFF /ON
TIMER/ LO K
AIR SWING
E ONOMY
AUTO
AUTO
AUTO 123
FAN SPEED
AIR SWING
MON TUE WED THU FRI SAT SUN
ON
UP
DOWN
FAN
SPEED
AUTO
MODE
MANUAL
Z-RT1
8
Remote Control Preparation
1Press
S
E ECT
2Press to set day
3ConÞrm
4Repeat steps 2 and 3 to set the
current time.
• For normal operation, the
ODOUR WASH
,
ECONOMY
,
VENTI ATION
and
TEST RUN
buttons are not in use.
3
1
2
PRODUCT OVERVIEW & OPERATIONS
(WIRED REMOTE CONTROL)
PRODUCT OVERVIEW & OPERATIONS
(WIRED REMOTE CONTROL)
CZ-RT1
Air inlet
Air outlet
F567161.indb 8 11/23/2009 10:07:38 AM

9
ENGLISH
TO SET DAILY TIMER
• To turn ON or OFF the unit at a preset time.
1 2
MODE SE ECT
Enter daily timer mode. Select ON or OFF timer.
3 4
UP
DOWN
SET
Set the time. ConÞrm.
• To cancel ON or OFF timer, press
CANCE
.
• When ON timer is set, the unit may start early before
the actual set time in order to achieve the desired
temperature on time.
• Timer operation is based on the clock set in the remote
control and repeats daily once set. For clock setting,
please refer to Remote Control preparation.
• The timer closest to the current time will be activated
Þrst.
• If timer is cancelled manually, you can restore the
previous setting by pressing
SET
.
• If the main power is switched off for an hour or more,
the clock and timer will need to be set again.
FAN
SPEED
TO SELECT FAN SPEED (3 OPTIONS)
LO MEDAUTO HI
• For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
• If the operation mode is set to Fan, the fan speed will
be Þxed at MED regardless of the temperature setting.
HINT
• Use curtains to screen off sunlight and outdoor heat to
reduce power consumption during cool mode.
OFF /ON
TO TURN ON OR OFF THE UNIT
UP
DOWN
TO SET TEMPERATURE
• Selection range: 16°C ~ 31°C.
MODE
TO SELECT OPERATION MODE
AUTO mode - For your convenience
• Unit selects operation mode according to temperature
setting, outdoor and room temperature.
HEAT mode - To enjoy warm air
• Unit takes a while to warm up.
FAN mode - To enables air circulation in the room
COOL mode - To enjoy cool air
DRY mode - To dehumidify the environment
• Unit operates at low fan speed to give a gentle cooling
operation.
• During soft dry operation, the indoor fan operates at a
low fan speed.
• The louvers movement might not align with the remote
control display.
F567161.indb 9 11/23/2009 10:07:39 AM

• Weekly timer is only applicable for wired remote
control, press
MODE
for 3 seconds to select daily
timer or weekly timer.
• Daily timer and weekly timer could not be set at the
same time.
• Promotes energy saving by allowing you to set up to
6 timers in any given day.
• Same timer program cannot be set on the same day.
Check Timer
Modify Or Add Timer
• Perform check timer operation to select the day.
Repeat steps 4 to 8 to modify existing timer program,
or add any new timer program.
Cancel Timer
• Perform the step below to cancel the timer program
for a particular day.
10
ON
OFF
TIMER
1
MON TUE WED THU FRI SAT SUN
2 3 4 5 6
4. Press to cancel the
timer set.
Will light up if Timer
operation is selected
6 different programs can
be set in a day (1 ~ 6)
Time to be
selected (Interval
10 minutes)
ON-Timer. To automatically switch “ON” the unit.
OFF-Timer. To automatically
switch “OFF” the unit.
Day to be selected
Indicate the
selected day
HE K ODOUR WASH VENTILATION TEST RUN FILTER RESET
TEMP/
A/ No.
UP
DOWN
MODE
SELE T
SET
AN EL
OFF /ON
TIMER/ LO K
AIR SWING
E ONOMY
AUTO
AUTO
AUTO 123
FAN SPEED
AIR SWING
MON TUE WED THU FRI SAT SUN
ON
UP
DOWN
FAN
SPEED
AUTO
MODE
MANUAL
Z-RT1
HE K ODOUR WASH VE
MODE
SELE T
SET
AN EL
OFF /O
TIMER/ LO K
E ONOMY
UP
DOWN
Z-RT1
MODE
SELE T
SET
AN EL
TIMER/ LO K
E ONOMY
UP
DOWN
MODE
SELE T
SET
AN EL
TIMER/ LO K
E ONOMY
UP
DOWN
TO SET WEEKLY TIMER
Change Display
1. Press
MODE
for 3 seconds to change the display to
weekly timer.
Select days to run timer
2. Press
SE ECT
to enter day setting.
3. Press to select your desired day.
The selected day will be highlighted with .
Press
SET
to deselect or select mark.
Repeat this step includes other day.
Select ON/OFF Timer
4. Press
SE ECT
to enter Timer 1.
5. Press to choose ON or OFF.
6. Press
SET
to conÞrm the selection.
Select Timer
7. Press to select your desired time.
If you want to set together with your desired
temperature, press
P
DOWN
to select the temperature.
8. Press
SET
to conÞrm the setting.
• Repeat steps 5 to 8 to set Timer 2 to 6, or press
CANCEL
to cancel the related timers.
Disable Weekly Timer
• To disable weekly timer setting, press
MODE
, then
press
CANCEL
.
Enable Weekly Timer
• To enable previous weekly timer setting, press
MODE
,
then press
SET
.
OPERATION DETAILS
1. Enter timer mode.
2. Select the day.
3. The display will show the program for each of the
selected day.
1. Enter timer mode.
2. Select the day.
3. Press to enter day
setting.
F567161.indb 10 11/23/2009 10:07:39 AM

11
ENGLISH
CARE & CLEANINGCARE & CLEANING
•Switch off the power supply before cleaning.
•Do not touch the aluminium Þn, sharp parts may cause injury.
WASHING INSTRUCTIONS
• Please consult your nearest dealer for any section or discharge air grille (optional parts) cleaning.
• Do not use benzene, thinner or scouring powder.
• Use only soap ( pH7) or neutral household detergent.
• Do not use water hotter than 40°C.
CAUTION
Air Filter Maintenance
Cleaning is needed when: • lt is recommended to clean the air Þlter every 6
weeks.
• After the air Þlter is cleaned, press
FILTER RESET
/
FILTER RESET
to
reset.
• Do not operate without an air Þlter.
• Wash/rinse the air Þlter gently with water to avoid
damage to the air Þlter surface.
• Do not dry the part with a hair dryer or a stove.
• Replace any damaged air Þlter.
“FILTER RESET” appears on
the remote control display.
(For wired remote control)
“FILTER” lights up on the
indicator display.
(For wireless remote control)
A TO FAN
COOL DRY
FILTER
RESET
A TO
A TO 123
FAN SPEED
AIR SWING
POWER
TIMER
AUTO
FILTER
FOR SEASONAL INSPECTION AFTER EXTENDED NON-USE
• No obstruction at air inlet and air outlet vents.
• These units are mounted inside the ceiling. It uses external air intake vent and air outlet vent to operate. Please consult
your nearest dealer for seasonal inspection.
FOR EXTENDED NON-USE
• Activate Heat Mode for 2~3 hours to remove moisture left in the internal parts thoroughly.
• Turn off the power supply.
F567161.indb 11 11/23/2009 10:07:41 AM

12
TROUBLESHOOTING
TROUBLESHOOTING
Symptom Cause
Mist emerges from indoor unit. • Condensation effect due to cooling process.
Water ßowing sound during operation. • Refrigerant ßow inside the unit.
The room has a peculiar odour. • This may due to damp smell emitted by the wall, carpet, furniture or
clothing.
Indoor fan stops occasionally during automatic
fan speed setting.
• This helps to remove the surrounding odours.
Operation is delayed a few minutes after
restart.
• The delay is a protection to the unit’s compressor.
Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
Timer indicator is always on. • The timer setting repeats daily once set.
Indoor fan stops occasionally during heating
operation.
• To avoid unintended cooling effect.
Cracking sound can be heard during
operation.
• Changes of temperature cause the expansion/contraction of the unit.
Unit switch to FAN operation and air become
humid.
• This happens when the room temperature reaches the set temperature,
operation switches to FAN mode and the humidity increase.
Outdoor unit emits noise during heating
operation.
• This is due to changes inßow of refrigerant gas when operation stops
and starts.
Operation does not stop immediately after
pressed the OFF/ON button.
• Discharging heat is in process. Operation will stops automatically after
approximately 60 seconds.
Operation stops occasionally. (“DEFROST”
appears on the remote control display)
• The unit is in defrosting mode, and the melted frost is drained from the
outdoor unit.
Airßow does not start immediately after
operation is started. (“PRE HEAT” appears on
the remote control display)
• The unit is warming up to provide warm air.
Operation starts after power resumes. • Auto restart is in function and operates under previous setting.
During dry mode, cold air blow out. • The unit is running cooling operation with low fan speed to dehumidify
the room.
Fan speed change occasionally during heating
mode.
• The room temperature has reached the remote control setting. When the
room temperature drops again, the fan speed will resume to the remote
control settings.
Outdoor unit emits steam during heating
mode.
• This is due to defrost operation happens at the heat exchanger.
The following symptoms do not indicate malfunction.
F567161.indb 12 11/23/2009 10:07:41 AM

13
ENGLISH
Symptom Check
Heating/Cooling operation is not working
efÞciently.
• Set the temperature correctly.
• Close all doors and windows.
• Clean or replace the Þlters.
• Clear any obstruction at the air inlet and air outlet vents.
Heating mode cannot be operated. • The unit is forced to operate at cooling mode only in a non-living room,
such as a computer room.
Noisy during operation. • Check if the unit has been installed at an incline or the intake grille is not
closed properly.
Remote control does not work.
(Wireless remote control display is dim or
transmission signal is weak.)
• Insert the batteries correctly.
• Replace weak batteries.
The unit does not work. • Check if the circuit breaker is tripped.
• Check if timers have been set.
The unit does not receive the signal from the
remote control.
• Make sure the receiver not obstructed.
• Make sure the address is set correctly.
• Make sure the remote control signal transmission is within the range.
• Certain ßuorescent lights may interfere with signal transmitter. Please
consult your nearest dealer.
The unit stopped and TIMER indicator blinks. • Turn OFF the power supply to reset the unit (TIMER indicator stop
blinking).
• Turn ON the power supply and restart the unit.
• If TIMER indicator blinks again, please consult your nearest dealer.
Check the following before calling for servicing.
NON SERVICEABLE CRITERIAS
TURN OFF POWER SUPPLY then CALL Authorized Distributor under the following conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.
F567161.indb 13 11/23/2009 10:07:41 AM

MEMOMEMO
F567161.indb Sec1:91 11/23/2009 10:08:22 AM

QUICK GUIDE/PANDUAN SEGERA/ ㇵᯧᣛ /!"#$%&'()*+,'-%."',."%/PEDOMAN
CEPAT/ !"!# $ %&'#"( )%*/+,-. -/ 0!'%1&-
ADDRESS
A TOA TO
TIMER
ON
SET AC RESETRC RESET ADDRESS
MODE
MODE AIR SWING FAN SPEED
AIR SWING
TIMER
SET
CANCEL
SELECT
CLOCK
FAN SPEED
FILTER RESET
MAN AL
MODE
A TO
OFF/ON
CHECK ODO R WASH VENTILATION TEST R N FILTER RESET
EMP/
A/C No.
UP
DOWN
MODE
SELEC
SE
CANCEL
OFF /ON
IMER/CLOCK
AIR SWING
ECONOMY
AU O
AU O
AU O 123
FAN SPEED
AIR SWING
MON UE WED HU FRI SA SUN
ON
UP
DOWN
FAN
SPEED
AU O
MODE
MANUAL
CZ-R 1
Panasonic Corporation
Website: http://panasonic.net
F567161
Printed in China
OYYF0909-00
1
FF /N
Start/stop the operation • Untuk memulakan/
menghentikan operasi • 䭟ྟذℶ᪡԰
• !"#$/%&'( )*!+,-*. • Menghidupkan/
mematikan pengoperasian unit • !"#$%&'/
()&*+(,%&' -*.(&/ • 0($*&(!/1*,2-32++4
-(.(&%
2
M DE
AUTO HEAT
COOL
DRY FAN
Select the desired mode • Memilih mod
yang dikehendaki •䙌᪛᠔䳔㽕ⱘ῵ᓣ•
/01)2%$(+3#451-)*! •Memilih mode yang
diinginkan • 5.2-%&2 +2(.6(7%859 -2:%8 •
;.2-<&' =(&-<.+%9 -2:%8
3
UP
D WN
Select the desired temperature • Memilih suhu
yang dikehendaki • 䙌᪛᠔䳔㽕ⱘ⑿ᑺ•
/01)1'6%78$"+3#451-)*! • Memilih suhu
yang diinginkan • 5.2-%&2 +2(.6(7%8/#
&28=2-*&/-/ • >)&*+(,<&' =(&-<.+/
&28=2-*&/-/
WIRELESS REMOTE CONTROL • ALAT KAWALAN JAUH TANPA DAWAI • ⛵㎮䘭᥻఼• !"#$%&'"$ () *+,- • REMOT KONTROL NIRKABEL • !"#$%&%'(%)
#*+,- '."-/(0.%((%1% *#$/&+!(.2 • !3'$%-%&.) #*+,- '."-/(04)(%1% *#$/&+4((2
WIRED REMOTE CONTROL • ALAT KAWALAN JAUH TERDAWAI • ᳝㎮䘭᥻఼• !"#$%&'"$ (#!+,- • REMOT KONTROL BERKABEL •
#$%&%'(%) #*+,- '."-/(0.%((%1% *#$/&+!(.2 • '$%-%&.) #*+,- '."-/(04)(%1% *#$/&+4((2
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Service Europe, a division of
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany
1
M DE
AUTO HEAT
COOL
DRY FAN
Select the desired mode • Memilih mod yang dikehendaki
•䙌᪛᠔䳔㽕ⱘ῵ᓣ• /01)2%$(+3#451-)*! •
Memilih mode yang diinginkan • 5.2-%&2 +2(.6(7%859
-2:%8 • ;.2-<&' =(&-<.+%9 -2:%8
2
OFF/ON
Start/stop the operation • Untuk memulakan/menghentikan
operasi • 䭟ྟذℶ᪡԰• !"#$/%&'( )*!+,-*. •
Menghidupkan/mematikan pengoperasian unit • !"#$%&'/
()&*+(,%&' -*.(&/ • 0($*&(!/1*,2-32++4 -(.(&%
3
Select the desired temperature • Memilih suhu
yang dikehendaki • 䙌᪛᠔䳔㽕ⱘ⑿ᑺ•
/01)1'6%78$"+3#451-)*! • Memilih suhu yang diinginkan
• 5.2-%&2 +2(.6(7%8/# &28=2-*&/-/ • >)&*+(,<&'
=(&-<.+/ &28=2-*&/-/
QUICK GUIDE/PANDUAN SEGERA/ ㇵᯧᣛ /!"#$%&'()*+,'-%."',."%/PEDOMAN
CEPAT/ !"!# $ %&'#"( )%*/+,-. -/ 0!'%1&-
F567161.indb 2 11/23/2009 10:07:35 AM
