Split System Submittal Data

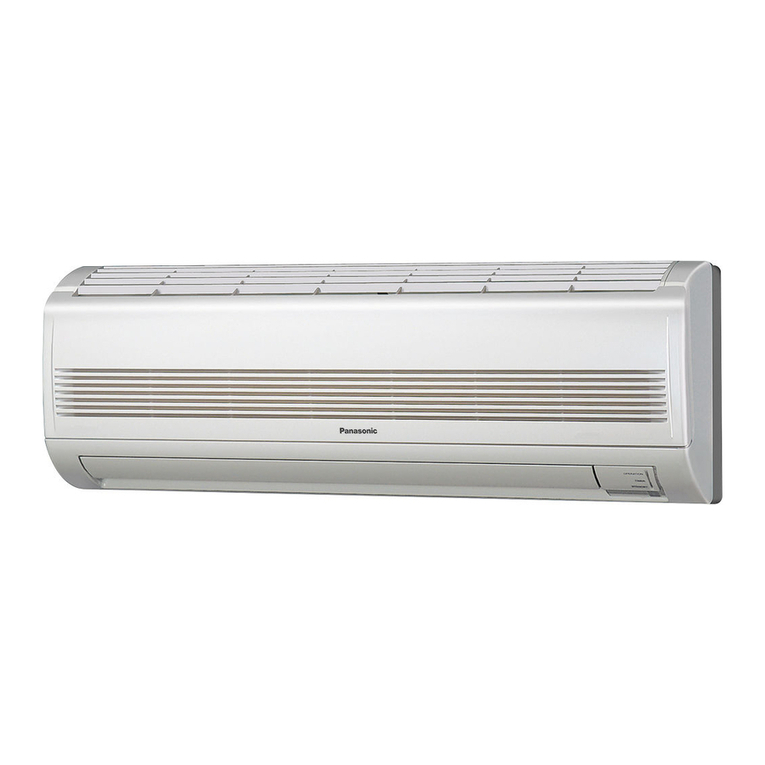

Indoor: CS-MKE9NKU
Multi System Indoor Units - Wall Mounted
Approval:
Date:
Construction:
Unit#:
Drawing#:
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
General Data
Power (V/P/Hz) 208 - 230/1/60
Circuit Ampacity (A) 15
Fuse Size, Max.(A) 20
Running Amps (A) 0.15
Power Input (W) 35
Indoor Unit Cool/Heat
Fan type Cross Flow
Dia & Length (in.) - No. Speeds D3-11/16 L24-31/32 -1
No. Speeds 3 & Auto
No. Poles (RPM, High) 8 - 1100/1150
No. Motors (W) 1-(47)
CFM (HI) 259/282
Operation Sound (HI/Med/Lo/
QT*dB-A)
34/31/28/23
Coil Type Aluminum Plate Fin & Copper
Tube
Fin Type - Pipe Type Slit Plate - Inner Rifled
Rows - F.P.I. 2 - 19.5
Face Area (sq.ft.) 2.02
Tube Size (in) 9/32
Drain Connection Size 23/32
Refrigerant R410A
Line Size (in. O.D. Discharge) 1/4” (Flare)
Line Size (in. O.D. Discharge) 3/8” x 3 (Flare)
Dimensions (HxWxD)
Indoor Unit (Crated) (in.) 3-25/32 x 35-7/16 x 10-1/32
Indoor Unit (Uncrated) (in.) 11-7/32 x 32-15/32 x 7-7/16
Weight (lbs.) Indoor
Net 19.8
Shipping 24.3
Shipping Volume (cu.ft.) 2.82
Performance Data @ ARI Standard Conditions (230V)
Cooling
Total Capacity (BTU/H) 9000
Moisture Removal (HI, Pint/H) 3.4
Features
Controls Microprocessor
Remote Control LCD Wireless Type, Built-in Temp
Sensor
Temperature Control IC Thermostat
Timer 24 Hr. Program, 1 Hr. Off
Night Setback Built-In
Air Louver, Horizontal Manual
Air Louver, Vertical Automatic
Power Failure Automatic Restart Built-In
Heating/Cooling Automatic
Changeover
Built-In
Self-Diagnosis Built-In
Quiet Operation Built-In
Air Filter Washable, Anti-Mold
Ion Generator N/A
Air Clean Apatite Filer N/A
Option
Refrigerant Line Set Available
Fresh Air Intake N/A
Airduct Extension N/A
Indoor Frame Extension N/A
Condensate Drain Pump Available
Non-Removeable Remo-con
Bracket
Available
Operating Range Indoor Air Intake Temp Outdoor Air Intake Temp
Cooling (Max) 95F DB/71F WB 115F DB
Cooling (Min) 67F DB/57F WB 14F DB
Heating (Max) 80F DB/67F WB 75F DB/65F WB
Heating (Min) -DB/-WB 0F DB
Heating
Total Capacity (BTU/H) 12200

Panasonic North America
Air Conditioning Division
1690 Roberts Blvd., NW, Suite 110
Kennesaw, GA 30144
us.panasonic.com/aircon
Indoor Dimensions
3. DIMENSIONAL DATA Indoor Unit CS-MKS7NKU CS-MKS9NKU CS-MKS12NKU
Unit: inch(mm)
(852-0-0010-215-00-0)
