Panasonic SE-HD560E User manual

ORDERNo.AD0203061C2
Amplifier
SE-HD560E / SE-HD560EB / SE-HD560EG / SE-HD560EP
Colour
(N)...........GoldType
System
SC-HD560:
Tuner; ST-HD560, Amplifier; SE-HD560,
CD Player; SL-HD560, Cassette Deck; RS-HD560,
Speakers; SB-HD560 (Made inSpain.)
SPECIFICATIONS
Specifications
1

Amplifier section (Low
frequency)
Power output:
DIN 1kHz, THD 1%
bothchannelsdriven; 2x23W(6 )
RMS 1kHz, THD 10 %
bothchannelsdriven; 2x30W(6 )
Total hormonicdistortion:
Half power at 1kHz; 0.07 %(6 )
Loadimpedance: 6
Amplifier section (High
frequency)
Power output:
DIN 10 kHz, THD 1%, / both
channelsdriven;
2x7 W(6 )
RMS 10 kHz, THD 10%, / both
channelsdriven;
2x10 W(6 )
Loadimpedance: 6
S/N:
(E), (EG), (EP) areas; 83dB
(EB) area; 78dB
Headphones
Jack type: 3.5mm STEREO
Loadimpedance: 16 - 32
General
Power supply:
(E), (EG), (EP) areas; AC 230 V, 50 Hz
(EB) area; AC 230 - 240 V, 50 Hz
Power consumption: 130 W
STANDBY condition: 0.9W
Dimensions(WxHxD): 210x104.8x309 mm
Mass: 3.4kg
Notes:
Specificationsare subject tochangewithout notice.
Mass and dimensionsare approximate.
Total harmonicdistortion ismeasuredbythedigital
spectrumanalyzer.
2002 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. Note
2

Because of unique interconnecting cables, whena component requires service, send orbring in
the entire system.
2. Before Repair
1. Turn off the power supply. Using a10 , 10 Wresistor, connect
both ends of power supplycapacitors (C601, C602) inorder to
discharge the voltage.
2. Before turning the power supplyon, after completion of repair,
slowlyapplythe primaryvoltage byusing apower supplyvoltage
controller to make sure that the consumed current at 50 HzinNO
SIGNALmode shouldbe shownbelow with respecttosupply
voltage 230/240 V.
Powersupply
voltage AC 230 V AC 240 V
Consumedcurrent
50 Hz 50 - 180 mA
3. Protection Circuitry
The protection circuitrymayhave operatedif eitherof the following conditions is noticed:
-Nosound isheard when the power issupplied.
-Sound stops during aperformance.
The functions of this circuitryis toprevent circuitrydamage if, forexample, the positive and
negative speakerconnection wires are shorted, orif speakersystems withanimpedance less
thanthe indicatedratedimpedance of this unit are used.
If this occurs, followthe procedure outlinedbellow:
1. Press the Standby/on button, switch to standbymode.
2. Determine the cause of the problem and correct it.
3. Press the Standby/on button once again, supplythe power.
Note:
When the protection circuitryfunctions, the unitwill not operate
unless the Standby/on button isfirst switched Standbyand then
ONagain.
4. Accessories
-AC power supplycord for (E), (EG), (EP) areas
(RJA0019-2X)...........................................1pc.
3

-AC power supplycord for (EB)area
(RJA0053-3X)...........................................1pc.
-AMloop antenna set
(RSA0033B-1)..............................................1pc.
-FM indoor antenna
(RSA0007).................................................1pc.

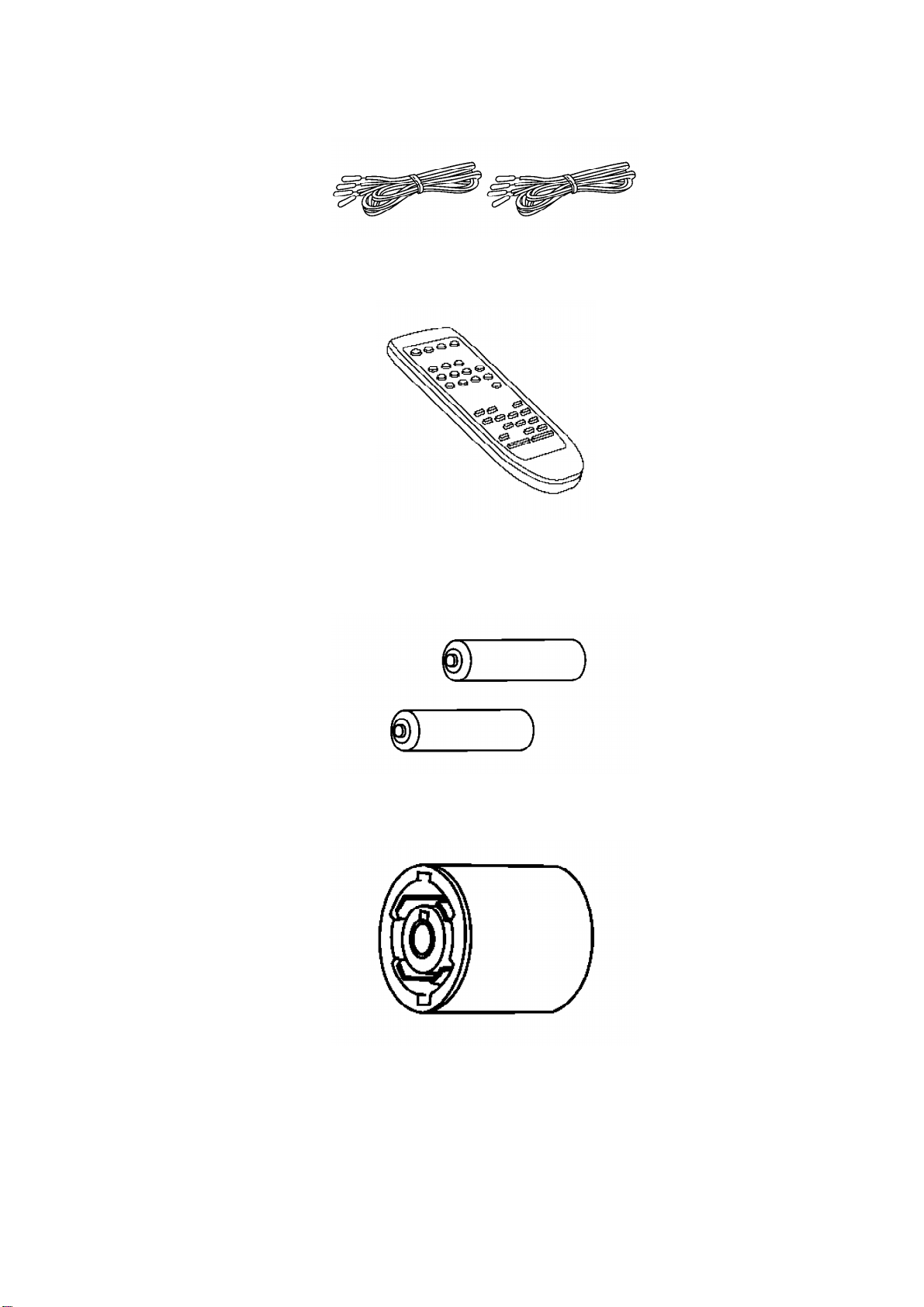

-Speaker cords
(REE1195).........................2pcs.
4

-Remote control transmitter
(EUR7702010).........................................1pc.
-Remote control batteries
(R6/LR6, AA, UM-3)..................................2pcs.
Note: These are availableon sales route.
-Antenna plug adaptor for (EB)area
(SJP9009)..............................................1pc.
5. Caution for AC Mains Lead
5

6. Location of Controls
7. Operation Checks and Component Replacement
Procedures
-Thissection describes procedures for checking the operation of
the major printed circuitboards and replacing the main
components.
-For reassemblyafter operation checks or replacement, reverse the
respective procedures. Special reassemblyprocedures are
6

described onlywhen required.
7.1. Checking for the power supplyP.C.B.
-Check the power supplyP.C.B. as shownbelow.

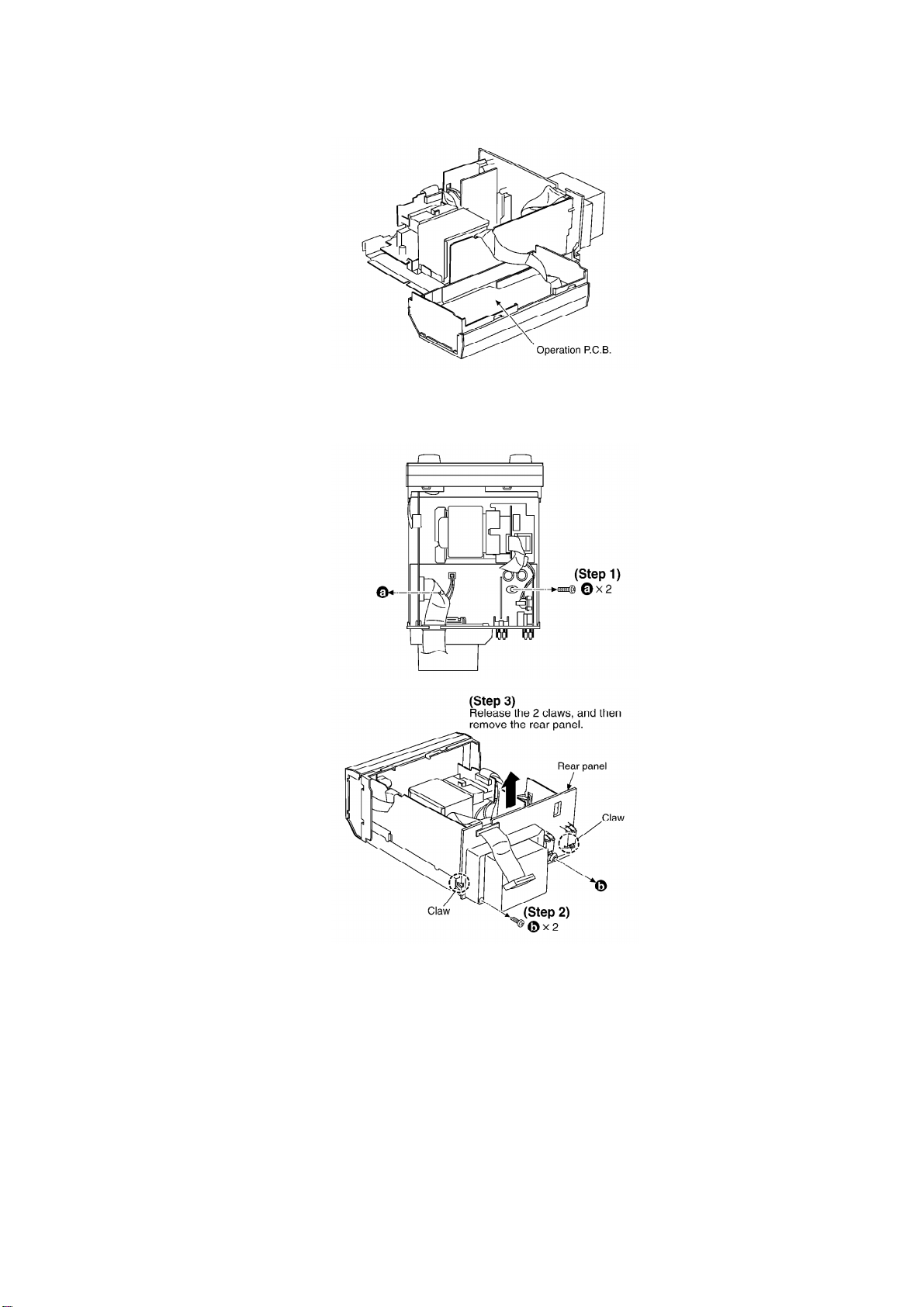

7.2. Checking for the operation P.C.B.
-Follow the (Step 1) -(Step 3) of item 7.1.
-Check the operation P.C.B. as shownbelow.
7

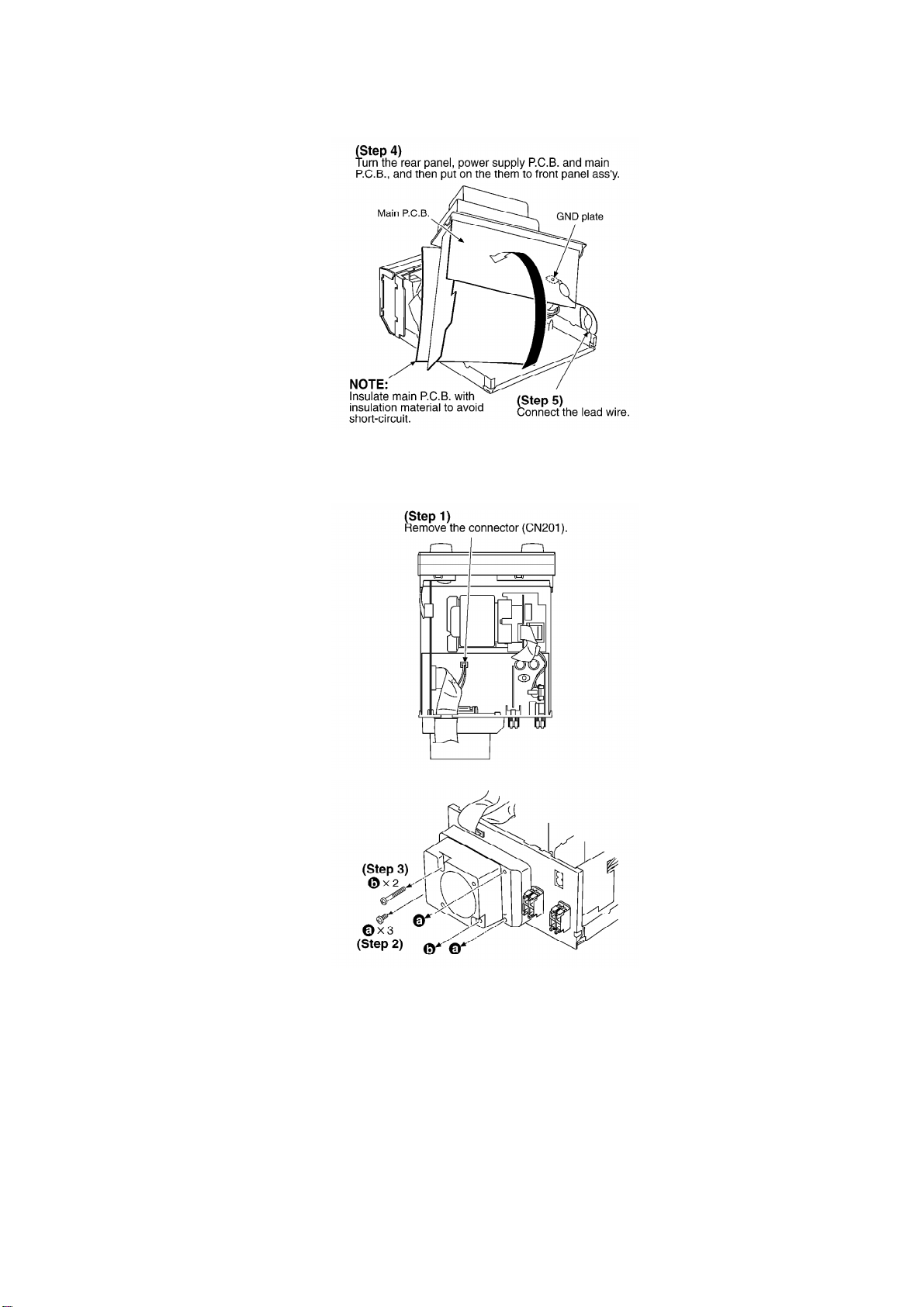

7.3. Checking for the mainP.C.B.
-Follow the (Step 1) -(Step 3) of item 7.1.
-Check the mainP.C.B. as shownbelow.
8

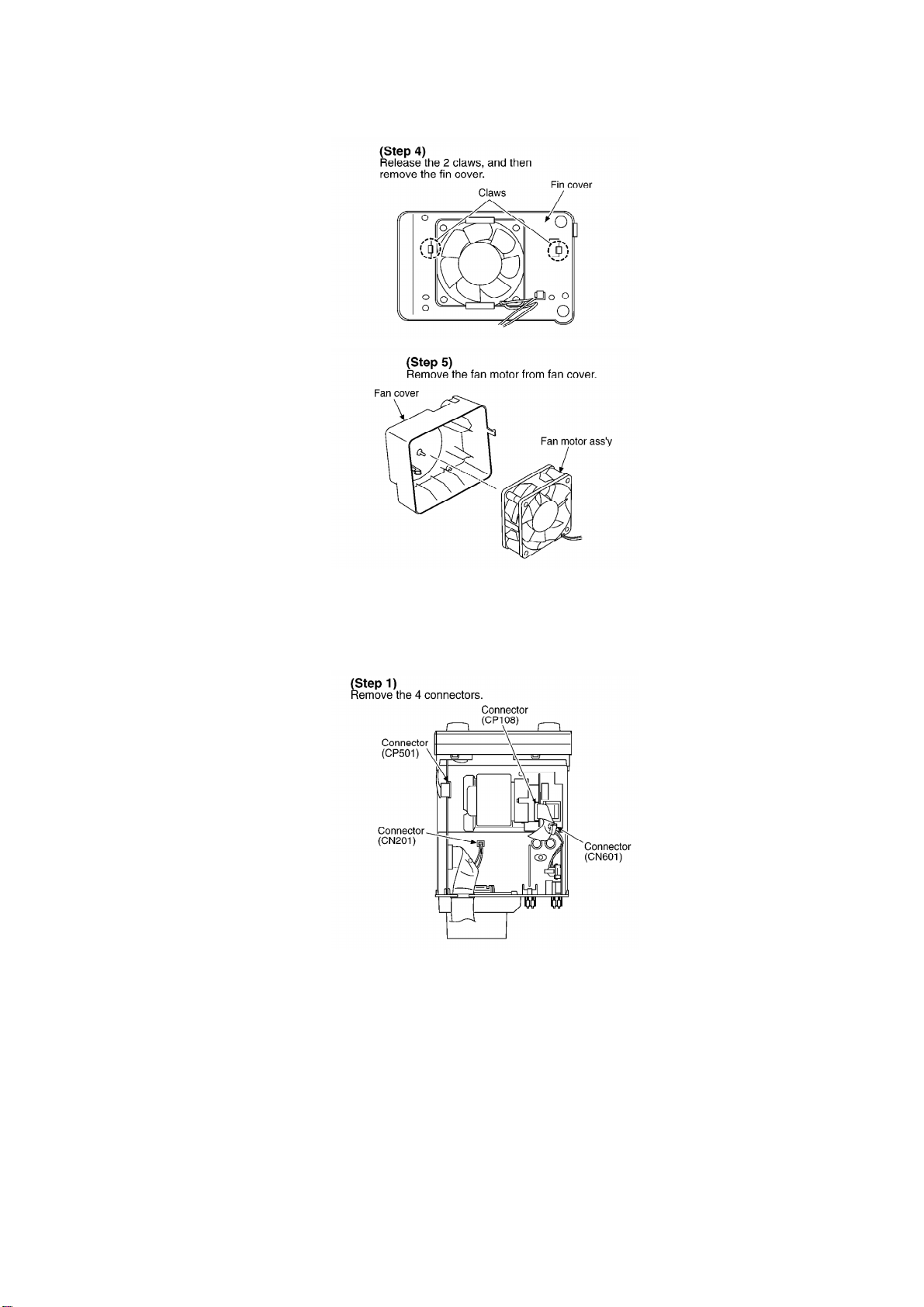

7.4. Replacement for the fan motor ass’y
-Follow the (Step 1) -(Step 3) of item 7.1.
9

7.5. Replacement for the power IC
-Follow the (Step 1) -(Step 3) of item 7.1.
-Follow the (Step 1) -(Step 3) of item 7.3.
10

8. To Supply Power Source and Signal Check
To operate this unit SE-HD560 normally, it is necessarytoconnect tothe unit ST-HD560. When
operating the unit SE-HD560, be sure toconnect tothe unit ST-HD560 byconnection cable.
1. Connect with the Tuner (ST-HD560). Refer to Fig. 8-1.
2. Connect the AC power supplycord to the Amplifier / (SE-HD560).
Refer to Fig. 8-1.
3. Connect the speakers to speaker terminal. / Refer to Fig. 8-1.
4. Turn on the power of the Amplifier (SE-HD560).
5. Set INPUTSELECTERto select the external source (EXT) of the
Amplifier (SE-HD560).
6. Input asound signal to external input terminal of the Tuner (ST-
HD560), and confirm to be outputted from the speaker. (Both High
and Low.)
Fig. 8-1.
11

9. Schematic Diagram Notes
-Thisschematicdiagram maybe modified at anytime with the
development of new technology.
Notes:
S501:
Power standby/on switch ( /I)
S503:
Bass downswitch (BASS )
S504:
Bass up switch (BASS )
S505:
VGCA (variablegaincontrol amplifier) switch (VGCA)
S506:
Trebledownswitch (TREBLE )
S507:
Trebleup switch (TREBLE )
VR501:
Input selector VR(INPUTSELECTOR)
VR502:
Volume control VR(VOLUME)
-Indicated voltage values are the standard values for the unit
measured bythe DC electroniccircuittester (high-impedance)
with the chassistaken as standard. Therefore, there mayexist
some errors inthe voltage values, depending on
12

theinternalimpedance of the DC circuittester.
Nomark
:Power ON
-Important safetynotice:
Components identified bymark have special characteristics
important for safety.
Furthermore, special parts which have purposes of fire-retardant
(resistors), high-qualitysound (capacitors), low-noise (resistors),
etc. are used.
When replacing anyof components, be sure to use only
manufacturer’sspecified parts showninthe parts list.
-The supplypart number isdescribed alone inthe replacement
parts list.
-Caution!
ICand LSI are sensitive to staticelectricity.
Secondarytroublecan be prevented bytaking care during repair.
Cover the parts boxes made of plastics with aluminum foil.
Ground the soldering iron.
Put aconductive mat on the work table.
Donot touch the legs of ICor LSI with the fingers directly.
-Voltage and signal line
:Positive voltage line
:Negative voltage line
:Audiosignal line
10. Schematic Diagram
13

11. Printed Circuit Board Diagram
12. Type Illustration of ICs, Transistors and Diodes
13. Wiring Connection Diagram
14. Block Diagram
15. Replacement Parts List
Notes:
-Important safetynotice:
Components identified bymark have special characteristics
important for safety.
Furthermore, special parts which have purposes of fire-retardant
(resistors), high-qualitysound (capacitors), low-noise (resistors),
etc. are used.
When replacing anyof components, be sure to use only
manufacture’sspecified parts showninthe parts list.
-The <IA> <IB> <IC> <ID> <IE> marks inRemarks indicate language
of instruction manual.
<IA>:Spanish
<IB>:Netherlands, Swedish, Danish
<IC>:English
<ID>:Germany, French, Italian
<IE>:Russian, Polish, Czech
-The parenthesized indications inthe Remarks columns specifythe
areas. (Refer to the cover page for area.)
-The marking [RTL] indicates that the Retention Time islimited for
thisitem. After the discontinuation of thisassemblyinproduction,
itwill no longer be available.
-All parts are supplied byMESA.
14

Ref. No. PartNo. PartName& Description Pcs Remarks
1REM0094A FAN MOTOR ASS’Y 1
2RMZ0339 ZNR COVER 1
3RGN2281-K2 NAMEPLATE 1 (E,EG)
3 RGN2281A-K2 NAMEPLATE 1 (EB)
3 RGN2281B-K2 NAMEPLATE 1 (EP)
4RGQ0328-K FAN COVER 1
5RGQ0329-K FIN COVER 1
6RKA0114-K FOOT 4
6-1 RKA0083-K CUSHION 4
7XTB3+5JFZ SCREW 4
8REE1087-1 FFC(14P) 1
9RGG0186G-S FRONTPANEL 1
10 RGK1328-S SIDEORNAMENT(L) 1
11 RGK1329-S SIDEORNAMENT(R) 1
12 RGK1463-N VOLUMEORNAMENT 2
13 RGL0531-Q INDICATOR,VGCA 1
14 RGL0541-Q INDICATOR,STANDBY 1
15 RGW0378-S KNOB,VOLUME 1
16 RGW0379-S KNOB,SELECTOR 1
17 RHD26016 SCREW 1
18 RHN90001 NUT 2
19 RKW0628-Q WINDOW 1
20 RKW0630-W VGCASHEET 1
21 RGP0838-S SUB PANEL 1
22 RGU1936-S POWER BUTTON 1
23 XTBS26+8J SCREW 4
24 XTB3+20JFZ SCREW 4
25 XTB3+35JFZ SCREW 2
26 XTBS3+8JFZ1 SCREW 12
27 XTW3+15T SCREW 2
28 XTB3+6JFZ SCREW 4
29 RGK1324-M SIDEPANEL(L) 1
30 RGK1325-M SIDEPANEL(R) 1
31 RHD30082-K1 SCREW 4
32 RKM0412G-N CABINET 1
33 RMN0709 HOLDER 1
34 RMN0623 LED HOLDER 1
35 RKQ0089-4 P.C.B.SUPPORT 4
36 RMN0709 P.C.B.HOLDER 1
A1 EUR7702010 REMOTECONTROLLER 1
A1-1 UR64EC2337E BATTERYCOVER 1
A2 RSA0007 FMINDOOR ANTENNA 1 N1EAYY000002
A3 SJP9009 ANNTENAPLUG ADAPTOR 1 K1YZ02000013 (EB)
A4 REE1195 SPEAKER CORD 2
A5 RJA0019-2X AC POWER SUPPLYCORD 1 (E,EG,EP)
A5 RJA0053-3X AC POWER SUPPLYCORD 1 (EB)
A6 RQCA0920 QUICK SET-UPGUIDE 1 (EB)
A7 RQCB0169 SERVICECENTER LIST 1
A8 RQT6188-E INSTRUCTION MANUAL 1 (E)<IA>
A8 RQT6186-H INSTRUCTION MANUAL 1 (EG)<IB>
A8 RQT6187-B INSTRUCTION MANUAL 1 <IC>
A8 RQT6185-D INSTRUCTION MANUAL 1 (EG)<ID>
15

A8
RQT6185
-
D
INSTRUCTION
MANUAL
1
(
EG)<
ID>
16

Ref. No. PartNo. PartName& Description Pcs Remarks
A8 RQT6189-R INSTRUCTION MANUAL 1 (EP)<IE>
A9 RSA0033B-1 AMLOOPANTENNA 1
C149,50 ECBT1H223KB5 50V0.022U 2 F1D1H223A012
C151-54 ECBT1H821KB5 50V820P 4 F1D1H821A012
C155,56 ECBT1H104ZF5 50V0.1U 2 F1E1H104A001
C183,84 ECA1CAK100XB 16V10U 2
C187,88 ECA1CAK330XB 16V33U 2
C189 ECBT1H104KB5 50V0.1U 1 F1D1H1040002
C190 RCE0JKA470BG 6.3V47U 1 F2A0J470A014
C191 ECBT1H103KB5 50V0.01U 1
C192 ECA1HAK2R2XB 50V2.2U 1
C193,94 ECBT1H103KB5 50V0.01U 2
C195 ECA1EAK100XB 25V10U 1
C197 ECA1EAK100XB 25V10U 1
C198 ECA0JAK101XB 6.3V100U 1
C199 ECBT1C222KR5 16V2200P 1 ECBT1C222KR3
C200 ECA1CAK220XB 16V22U 1
C201 ECA1CAK100XB 16V10U 1
C202 ECBT1H102KB3 16V1000P 1
C301 ECA1EAK4R7XB 25V4.7U 1
C302 ECBT1H103KB5 50V0.01U 1
C303 ECA1EAM101XB 25V100U 1
C304 ECA1HAM101XB 50V100U 1
C305 ECA1EAM101XB 25V100U 1
C308 ECA1EM222 25V2200U 1
C309 RCE1EM471BV 25V470U 1 F2A1E471A013
C311 ECKR1H103ZF5 50V0.01U 1 F1B1H1030001
C312,13 ECBT1H103KB5 50V0.01U 2
C314 ECBT1H104KB5 50V0.1U 1 F1D1H1040002
C315 ECBT1H103KB5 50V0.01U 1
C316 ECBT1H104ZF5 50V0.1U 1 F1E1H104A001
C317 ECA1VAM101XB 35V100U 1
C319 ECA1EAM331XB 25V330U 1
C321 RCE1VKA100BG 35V10U 1 F2A1V1000011
C322 ECBT1H103KB5 50V0.01U 1
C323 ECA2AM100 100V10U 1
C324 ECA1JAM101XB 63V100U 1
C325 ECA1HAM470XB 50V47U 1
C326,27 ECBA1H101KB5 50V100P 2
C328 ECBT1H104ZF5 50V0.1U 1 F1E1H104A001
C329 ECA1EAM101XB 25V100U 1
C330 ECA1JAM101XB 63V100U 1
C331-34 ECBT1H821KB5 50V820P 4 F1D1H821A012
C335,36 ECBA1H101KB5 50V100P 2
C337,38 ECBT1H150JC3 50V15P 2
C339,40 ECBT1H271KB5 50V270P 2 F1D1H271A012
C341,42 ECBT1H103KB5 50V0.01U 2
C343,44 ECA1HPX100B 50V10U 2
C345 ECBT1H103KB5 50V0.01U 1
C346,47 ECA1EAK100XB 25V10U 2
C348 ECBT1H103KB5 50V0.01U 1
C349,50 ECBA1H101KB5 50V100P 2
C351,52 ECBT1H102KB3 16V1000P 2
17

Ref. No. PartNo. PartName& Description Pcs Remarks
C353,54 ECBT1H103KB5 50V0.01U 2
C355,56 ECBT1H333KB5 50V0.033U 2 F1D1H333A012
C357,58 ECA1HPX100B 50V10U 2
C359,60 ECEA1HKAR22B 50V0.22U 2
C361,62 ECA1EAK100XB 25V10U 2
C107-10 ECBT1H473KB5 50V0.047U 4 F1D1H473A012
C111,12 ECBT1H102KB3 16V1000P 2
C119,20 ECBT1H470J3 50V47P 2
C123,24 ECBT1H104ZF5 50V0.1U 2 F1E1H104A001
C125,26 ECBT1H102KB3 16V1000P 2
C127,28 ECBT1H473KB5 50V0.047U 2 F1D1H473A012
C129 ECA1CAM331XB 16V330U 1
C130,31 ECBT1H105ZF5 50V1U 2 F1E1H105A001
C132 ECA1EAK100XB 25V10U 1
C134 ECBT1H223KB5 50V0.022U 1 F1D1H223A012
C136 ECA0JAK101XB 6.3V100U 1
C137-40 ECBT1H473KB5 50V0.047U 4 F1D1H473A012
C141 ECBT1H471KB3 50V470P 1
C142 ECA1HAM470XB 50V47U 1
C143 ECKR2H102ZF5 500V1000P 1
C146,47 ECBT1H223KB5 50V0.022U 2 F1D1H223A012
C148 ECA0JAK101XB 6.3V100U 1
C501,02 ECBT1H103KB5 50V0.01U 2
C503-06 ECBA1H101KB5 50V100P 4
C507,08 ECBT1H331KB3 50V330P 2
C509,10 ECBT1H103KB5 50V0.01U 2
C511,12 ECA1EAK4R7XB 25V4.7U 2
C513,14 ECA1HAK010XI 50V1U 2
C515,16 ECBT1H473ZF5 50V0.047U 2 F1E1H473A001
C517 ECA0JAK221XH 6.3V220U 1
C520,21 ECA1HAK010XI 50V1U 2
C601,02 EEUPL1V362E 35V3600U 2
C603 ECQE1104KF3 100V0.1U 1
CN106 RJU100W11 CONNECTOR(11P) 1 K1KB11A00020
CN109 RJU100W11 CONNECTOR(11P) 1 K1KB11A00020
CN110 RJU100W07 CONNECTOR(7P) 1 K1KB07A00018
CN112 RJU100W07 CONNECTOR(7P) 1 K1KB07A00018
CN113 SJT30845JQ CONNECTOR(8P) 1 K1KA08B00125
CN201 K1KA02A00008 CONNECTOR(2P) 1
CN202 SJS305-1 CONNECTOR(3P) 1 K1ML03B00002
CN401-08 RJS1A1101T1 CONNECTOR(1P) 8
CN501 RJS1A6214-1 CONNECTOR(14P) 1 K1MN14C00002
CN601 RJS1A6604T1 CONNECTOR(4P) 1 K1MP04A00008
CP106 RJT100W11 CONNECTOR(11P) 1 K1KA11A00093
CP108 RJS9T6ZA CONNECTOR(9P) 1 K1MP09B00005
CP109 RJT100W11 CONNECTOR(11P) 1 K1KA11A00093
CP110 RJT100W07 CONNECTOR(7P) 1 K1KA07A00082
CP112 RJT100W07 CONNECTOR(7P) 1 K1KA07A00082
CP113 SJS50878JQ CONNECTOR(8P) 1 K1KB08A00060
CP201 RJP1A4204-1 CONNECTOR(4P) 1 K1KA03A00143
CP501 RJS1A6714-Q CONNECTOR(14P) 1 K1MN14B00054
18

Ref. No. PartNo. PartName& Description Pcs Remarks
D101-04 RL1N4003N02 DIODE 4 B0AAMM000009
D105-07 MA165 DIODE 3 MA2C165
D108 RL1N4003N02 DIODE 1 B0AAMM000009
D109 MA4051M DIODE 1 MAZ40510M
D110 MA4150-M DIODE 1 MAZ41500M
D113,14 MA165 DIODE 2 MA2C165
D117 MA4120M DIODE 1 MAZ41200M
D119,20 MA165 DIODE 2 MA2C165
D121 MA4068M DIODE 1 MAZ40680M
D122 MA719TA DIODE 1 MA2C71900A
D303 MAZ41600MF DIODE 1
D304 1N5402BF DIODE 1
D305,06 RL1N4003N02 DIODE 2 B0AAMM000009
D307 1N5402BF DIODE 1
D308-10 RL1N4003N02 DIODE 3 B0AAMM000009
D312 MA4051M DIODE 1 MAZ40510M
D313 RL1N4003N02 DIODE 1 B0AAMM000009
D314 MA4091MTA DIODE 1 MAZ40910MF
D315 MA4240H DIODE 1 MAZ42400H
D316-22 RL1N4003N02 DIODE 7 B0AAMM000009
D328,29 MA4120M DIODE 2 MAZ41200M
D330,31 MA165 DIODE 2 MA2C165
D501-04 MA165 DIODE 4 MA2C165
D505 SLR-325VC LED 1 B3AAA0000487
D508,09 SELS5923C LED 2 B3ADA0000083
D510 SLR-325MC LED 1 B3ABA0000187
D601-04 1N5402BF DIODE 4
F1 K5D102BA0003 FUSE,T1A 1
F2 XBA2C20TB0 FUSE,T2A 1 K5D202BL0004
FP401,02 K5G702AA0003 FUSE PROTECTOR 2
FP403,04 K5G402AA0003 FUSE PROTECTOR 2
IC101 RSN314H41 IC 1
IC301,02 NJM4558MTE1 IC 2 C0ABBB000109
IC501 M5218AFPE3 IC 1 C0ABBB000163
JK101 K2AA2B000002 AC JACK 1
JK102,03 K4BC04B00029 SYSTEMCONNECTOR(29P) 2
JK501 RJJ37TN01-2C H.P. JACK 1 K2HC103B0106
L101 RLQZ371 COIL 1 ELF15N035AN
L103-06 RLQYR73MW1-0 COIL 4 G0ZZ00001606
P1 RPG5244 PACKING CASE(RS-HD560) 1
P1 RPG5245 PACKING CASE(ST/SL-HD560) 1
P1 RPG5451 PACKING CASE(SE-HD560) 1
P2 RPN1390 CUSHION(RS-HD560) 1
P2 RPN1389 CUSHION(ST/SL-HD560) 1
P2 RPN1429-1 CUSHION(SE-HD560) 1
P3 SPP740-1 PROTECTION BAG(UNIT) 1
P4 RPG5763 PACKING CASE(SYSTEM) 1 (EG)
19

Ref. No. PartNo. PartName& Description Pcs Remarks
P4 RPG5764 PACKING CASE(SYSTEM) 1 (E)
P4 RPG5765 PACKING CASE(SYSTEM) 1 (EB)
P4 RPG5766 PACKING CASE(SYSTEM) 1 (EP)
P5 RPQ1187-1 SPACER 1
P6 RPQ1230 SPACER 1
P7 RPQ1351 PAD 1
P8 RPF0139-1 PROTECTION BAG 1
PCB1 REP3297AA-M MAIN P.C.B. ASS’Y 1 [RTL]
PCB2 REP3297AB-M POWER SUPPLYP.C.B. ASS’Y 1 [RTL]
PCB3 REP3126A-S PANEL P.C.B. ASS’Y 1 [RTL]
PT102 RTP1H3E001 POWER TRANSFORMER 1 ETP28KBZ21BG
PT701 ETP69VPU611A POWER TRANSFORMER 1 (E,EG,EP)
PT701 ETP69VPU612A POWER TRANSFORMER 1 (EB)
Q105 2SA1309ATA TRANSISTOR 1 2SA1309AWA
Q106,07 2SC3311ATA TRANSISTOR 2 2SC3311A0A
Q117,18 2SC3311ATA TRANSISTOR 2 2SC3311A0A
Q120 2SC3311ATA TRANSISTOR 1 2SC3311A0A
Q122 2SA1309ATA TRANSISTOR 1 2SA1309AWA
Q124,25 2SC3311ATA TRANSISTOR 2 2SC3311A0A
Q126 UN4211 TRANSISTOR 1 UNR4211
Q127,28 2SC3311ATA TRANSISTOR 2 2SC3311A0A
Q129 2SA1309ATA TRANSISTOR 1 2SA1309AWA
Q130 2SD0592AWA TRANSISTOR 1
Q131,32 2SC3311ATA TRANSISTOR 2 2SC3311A0A
Q301 2SC3940AQSTA TRANSISTOR 1 2SC3940ARA
Q307 2SC3311ATA TRANSISTOR 1 2SC3311A0A
Q308 2SB621A-R TRANSISTOR 1 2SB0621AH
Q311 2SC3311ATA TRANSISTOR 1 2SC3311A0A
Q312 2SD2137PQTA TRANSISTOR 1 2SD21370PA
Q313 2SB1417PQTA TRANSISTOR 1 2SB14170JA
Q317 UN4211 TRANSISTOR 1 UNR4211
Q318 UN4111 TRANSISTOR 1 UNR4111
Q319 2SC3311ATA TRANSISTOR 1 2SC3311A0A
Q320 UN4211 TRANSISTOR 1 UNR4211
Q501-04 2SD2144S TRANSISTOR 4 B1AAGC000006
Q505 UN4111 TRANSISTOR 1 UNR4111
Q506 UN4115 TRANSISTOR 1 UNR411500A
R111 ERD2FCG100 1/4W10 1
R112 ERDS2FJ102 1/4W1K 1
R113,14 ERDS2FJ182 1/4W1.8K 2
R115,16 ERDS2FJ273 1/4W27K 2
R117,18 ERDS2FJ100 1/4W10 2
R119,20 ERDS1FJ100 1/2W10 2
R121 ERDS2TJ823T 1/4W82K 1
R122 ERDS2TJ124 1/4W120K 1
R123,24 ERDS2FJ473 1/4W47K 2
R137,38 ERDS2FJ182 1/4W1.8K 2
R139,40 ERDS2FJ473 1/4W47K 2
R143,44 ERDS2FJ100 1/4W10 2
20
