Panasonic KX-HN3001W User manual

Operating Instructions
Baby Monitor
Model No. KX-HN3001
Before initial use, see “Getting Started”
on page 9.
Thank you for purchasing a Panasonic product.
Please read these operating instructions before using the unit and save them for
future reference.
Consulte “Guía Rápida Española”, página 32.
For assistance, please contact us at 1-800-272-7033 or visit our Web site:
http://shop.panasonic.com/support for customers in the U.S.A.
Please register your product: http://shop.panasonic.com/support
HN3001_(en_en)_0110_ver.410.pdf 1 2018/01/10 11:43:20

Introduction
About the baby monitor ................................3
Accessory information ..................................3
Important Information
Graphical symbols for use on equipment and
their descriptions ..........................................5
About this system .........................................5
For your safety .............................................5
Important safety instructions ........................7
For best performance ...................................7
Other information .........................................8
Getting Started
Part names and functions ............................9
Setting up the camera unit .........................10

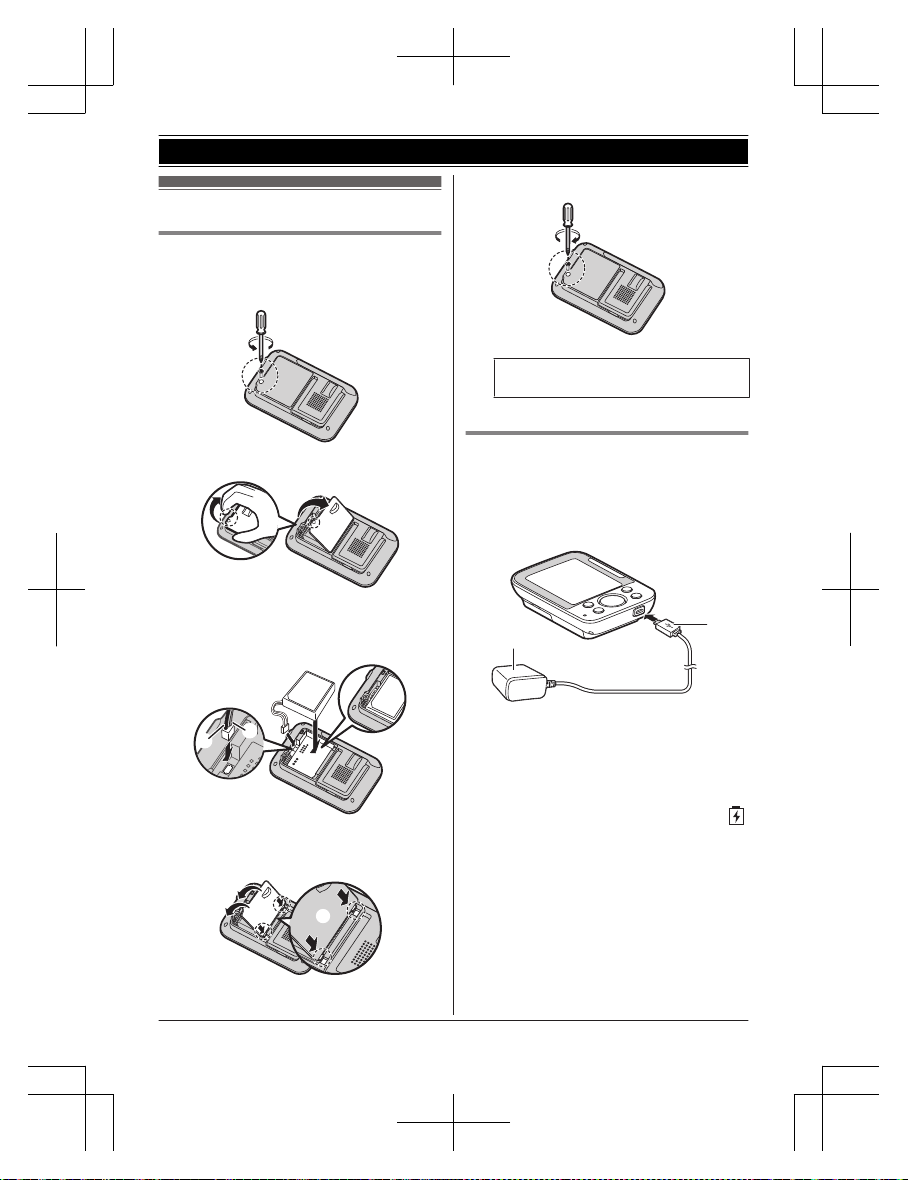

Setting up the monitor unit .........................14
Turning the power on/off ............................16
Language setting ........................................16
Smart LED indicator and display icon
colors ..........................................................16
Display icons ..............................................16
Confirming the usage area .........................17
Testing the baby monitor system ...............17
Using the Baby Monitor
Baby monitor ..............................................19
Viewing live camera images .......................19
Listening/talking to the camera unit ............19
Adjusting the speaker volume ....................20
Adjusting the chime/beep volume ..............20
Adjusting the brightness of camera
images ........................................................20
Adjusting the sleep mode ...........................20
Configuring the temperature sensor ...........20
Playing/canceling lullabies manually ..........21
Selecting camera units/using auto scan .....21
Programming
Menu list .....................................................22
Smart features ............................................25
Sensors ......................................................27
Timer ..........................................................28
Managing camera units ..............................28
Useful Information
Troubleshooting .........................................29
Specifications .............................................31
Guía Rápida Española
Guía Rápida Española ...............................32
Appendix
FCC and other information .........................36
Customer services .....................................37
Limited Warranty (ONLY FOR U.S.A.) .......38
2
Table of Contents
HN3001_(en_en)_0110_ver.410.pdf 2 2018/01/10 11:43:20

About the baby monitor
The baby monitor system helps you keep an eye on your baby from anywhere in your house. The
system consists of a camera unit and a monitor unit that are connected wirelessly using DECT
technology, which provides secure, stable, and clear sound and picture without interference from
microwave ovens, wireless routers, etc.
The monitor unit features a compact design and a long-lasting rechargeable battery that provides
hours of use on a single charge, and the camera unit features a camera, speaker, and
microphone that let you see, talk, and listen to your baby. The system’s smart features give you
peace of mind to go about your day. For example, you can use auto lullaby (page 26) to play a
lullaby automatically when your baby is crying, and smart notification (page 26) to display
notifications on the monitor unit when your baby wakes or cries.
Model composition
Model No. Monitor unit Camera unit
Part No. Part No. Quantity
KX-HN3001 KX-HNM300 KX-HNC300 1
Accessory information
Supplied accessories
No. Accessory item/Part number Quantity
AAC adaptor for the camera unit/PNWYAC300W00 1
BAC adaptor for the monitor unit/PNWYAM300W00 1
CWall mounting adaptor for the camera unit/PNWYAC300W01 1
DRechargeable battery for the monitor unit/PNWYBM300W00 1
A B C D
For assistance, please visit http://shop.panasonic.com/support 3
Introduction
HN3001_(en_en)_0110_ver.410.pdf 3 2018/01/10 11:43:20

Expanding the baby monitor system
Camera unit (optional): KX-HNC301
You can expand your baby monitor system by
registering optional camera units (3 max.) to the
monitor unit.
Other information
RDesign and specifications are subject to change without notice.
RThe illustrations in these instructions may vary slightly from the actual product.
4For assistance, please visit http://shop.panasonic.com/support
Introduction
HN3001_(en_en)_0110_ver.410.pdf 4 2018/01/10 11:43:20

Graphical symbols for use on equipment and their
descriptions
Symbol Explanation Symbol Explanation
Alternating current (A.C.) Class P equipment
(equipment in which
protection against electric
shock relies on Double
Insulation or Reinforced
Insulation)
Direct current (D.C.) “ON” (power)
Protective earth “OFF” (power)
Protective bonding earth Stand-by (power)
Functional earth “ON”/“OFF” (power;
push-push)
For indoor use only Caution, risk of electric
shock
About this system
RThis system is an auxiliary system; it is not
designed to provide complete protection from
property loss. Panasonic will not be held
responsible in the event that property loss
occurs while this system is in operation.
RThis product should not be used as substitute for
a medical or caregiver’s supervision. It is the
caregiver’s responsibility to stay close enough to
handle any eventuality.
RThe system’s wireless features are subject to
interference, therefore functionality in all
situations cannot be guaranteed.
Panasonic will not be held responsible for injury
or damage to property that occurs in the event of
wireless communication error or failure.
RIf a power failure occurs or the power is
disconnected, the temperature will not be
accurate for up to an hour.
For your safety
To prevent severe injury and loss of life/
property, read this section carefully before
using the product to ensure proper and safe
operation of your product.
WARNING
Power connection
RUse only the power source marked on the
product.
RDo not overload power outlets and
extension cords. This can result in the risk
of fire or electric shock.
RCompletely insert the AC adaptor/power
plug into the power outlet. Failure to do so
may cause electric shock and/or excessive
heat resulting in a fire.
For assistance, please visit http://shop.panasonic.com/support 5
Important Information
HN3001_(en_en)_0110_ver.410.pdf 5 2018/01/10 11:43:20

RRegularly remove any dust, etc. from the
AC adaptor/power plug by pulling it from
the power outlet, then wiping with a dry
cloth. Accumulated dust may cause an
insulation defect from moisture, etc.
resulting in a fire.
RUnplug the product from power outlets if it
emits smoke, an abnormal smell, or makes
an unusual noise. These conditions can
cause fire or electric shock. Confirm that
smoke has stopped emitting and contact us
at http://shop.panasonic.com/support
RUnplug from power outlets and never touch
the inside of the product if its casing has
been broken open. Danger of electric shock
exists.
RNever touch the plug with wet hands.
Danger of electric shock exists.
RDo not connect non-specified devices.
Installation
RTo prevent the risk of fire or electrical
shock, do not expose the product to rain or
any type of moisture.
RDo not place or use this product near
automatically controlled devices such as
automatic doors and fire alarms. Radio
waves emitted from this product may cause
such devices to malfunction resulting in an
accident.
RWARNING:
Strangulation Hazard: Children have
STRANGLED in cords.
Keep this cord out of the reach of children
(more than 1 m (3 feet) away).
RDo not allow the AC adaptor to be
excessively pulled, bent or placed under
heavy objects.
RKeep small parts, such as screws, out of
the reach of children. There is a risk of
swallowing. In the event they are
swallowed, seek medical advice
immediately.
Operating safeguards
RUnplug the product from power outlets
before cleaning. Do not use liquid or
aerosol cleaners.
RDo not disassemble the product.
RNever put metal objects inside the product.
If metal objects enter the product, turn off
the circuit breaker and contact an
authorized service center.
Medical
RConsult the manufacturer of any personal
medical devices, such as pacemakers or
hearing aids, to determine if they are
adequately shielded from external RF
(radio frequency) energy. DECT features
operate between 1.92 GHz and 1.93 GHz
with a peak transmission power of 115 mW
(max.).
RDo not use the product in health care
facilities if any regulations posted in the
area instruct you not to do so. Hospitals or
health care facilities may be using
equipment that could be sensitive to
external RF energy.
Lithium Ion (Li-Ion) Polymer battery
RDo not open, puncture, crush, or drop the
battery. A damaged battery must not be
used. This can result in the risk of fire,
explosion, overheating, and leaking of the
electrolyte.
RDo not touch the terminals and with
metal objects.
RIf any electrolyte should come into contact
with your hands or clothes, wash it off
thoroughly with water.
RIf any electrolyte should come into contact
with your eyes, never rub your eyes. Rinse
your eyes thoroughly with water, and then
consult a doctor.
6For assistance, please visit http://shop.panasonic.com/support
Important Information
HN3001_(en_en)_0110_ver.410.pdf 6 2018/01/10 11:43:20

CAUTION
Installation and location
RNever install wiring during a lightning storm.
RThe AC adaptor is used as the main disconnect
device. Ensure that the AC outlet is installed
near the product and is easily accessible.
RMount the product on the stable location where
the camera unit can be adequately supported
when installing.
RDo not mount the product on soft material. It
may fall down, break or cause injury.
RDo not mount the product on the following
materials: gypsum board, ALC (autoclaved
lightweight cellular concrete), concrete block,
plywood less than 25 mm (1 inch) thick, etc.
Lithium Ion (Li-Ion) Polymer battery
RUse only the specified battery.
RInsert the battery correctly.
RDo not leave the battery in an automobile
exposed to direct sunlight for a long period of
time with the doors and windows closed.
RRemove the battery if you do not use the product
for a long period of time. Keep it in a cool, dark
area.
RDo not replace a battery with wet hands.
RCAUTION:
Risk of explosion if battery is replaced by an
incorrect type. Dispose of used battery
according to local regulations.
RStop using the battery immediately and keep
away from fire if it emits an abnormal smell or
leaks electrolyte. Released electrolyte may
cause fire or burns.
RExercise care when handling the batteries. Do
not allow conductive materials such as rings,
bracelets, or keys to touch the batteries,
otherwise a short circuit may cause the batteries
and/or the conductive material to overheat and
cause burns.
RDo not put any conductive materials such as
coins or hairpins onto the battery terminals. This
can result in the risk of overheating.
RCharge the battery provided with or identified for
use with this product only, in accordance with
the instructions and limitations specified in this
manual.
Attention:
The lithium ion/polymer battery you have purchased
is recyclable.
Please call 1-800-8-BATTERY (1-800-822-8837)
for information on how to recycle this battery.
Preventing accidents and injuries
RDo not put your ear(s) near the speaker, as
loud sounds emitted from the speaker may
cause hearing impairment.
Important safety
instructions
When using your product, basic safety
precautions should always be followed to
reduce the risk of fire, electric shock, and
injury to persons, including the following:
1. Do not use this product near water for
example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet
basement or near a swimming pool.
2. Use only the power cord and batteries
indicated in this manual. Do not dispose of
batteries in a fire. They may explode.
Check with local codes for possible special
disposal instructions.
SAVE THESE INSTRUCTIONS
For best performance
Product location/avoiding noise
The monitor unit and camera units use radio
waves to communicate with each other.
RFor maximum coverage and noise-free
communications, place your monitor unit:
– at a convenient, high, and central
location with no obstructions between
For assistance, please visit http://shop.panasonic.com/support 7
Important Information
HN3001_(en_en)_0110_ver.410.pdf 7 2018/01/10 11:43:21

the monitor unit and the camera unit in
an indoor environment.
– away from electronic appliances such as
TVs, radios, personal computers,
wireless devices, or other phones.
– facing away from radio frequency
transmitters, such as external antennas
of mobile phone cell stations. (Avoid
putting the product on a bay window or
near a window.)
RIf the reception for a monitor unit location is
not satisfactory, move the monitor unit to
another location for better reception.
Environment
RKeep the product away from electrical noise
generating devices, such as fluorescent
lamps and motors.
RThe product should be kept free from
excessive smoke, dust, high temperature,
and vibration.
RDo not expose this product to direct
sunlight or other forms of powerful light
such as halogen lights for long periods of
time. (This may damage the image sensor.)
RDo not place heavy objects on top of the
product.
RWhen you leave the product unused for a
long period of time, unplug the product from
the power outlet.
RThe product should be kept away from heat
sources such as heaters, kitchen stoves,
etc. It should not be placed in rooms where
the temperature is less than 0 °C (32 °F) or
greater than 40 °C (104 °F). Damp
basements should also be avoided.
ROperating the product near electrical
appliances may cause interference. Move
away from the electrical appliances.
Other information
Routine care
RWipe the outer surface of the product
with a soft moist cloth.
RDo not use benzine, thinner, or any
abrasive powder.
Camera image quality
RCamera images may have the following
characteristics.
– Colors in images may differ from the
actual colors.
– Faces or objects may appear dark when
there is light behind the subject (i.e.,
backlighting).
– Image quality may be reduced in dark
locations.
– Images may appear hazy when there
are outdoor lights in use.
When the subject is lit by sunlight or
halogen lights, black areas of the image
may appear purplish. This is not a
malfunction.
Notice for product disposal, transfer,
or return
RAlthough the monitor unit does not have
recording functions, to protect your privacy/
confidentiality, we recommend that you
reset the registered camera units
(page 28) before you dispose of, transfer,
or return the product.
Notice:
8For assistance, please visit http://shop.panasonic.com/support
Important Information
HN3001_(en_en)_0110_ver.410.pdf 8 2018/01/10 11:43:21

Part names and functions
Camera unit
2
4
1
3
5
7
6
8
9
j
k
ALight sensor
Allows the camera unit to switch
automatically to night vision mode in
low-light conditions.
BCamera lens
CMicrophone
DCamera base
ESpeaker
FAntenna
GDC jack
HLED indicator
IMN (Pairing button)
JTemperature sensor
KScrew
Used to secure the camera base
(page 13) or wall mounting adaptor to the
camera unit (page 12).
LED indicator
You can use the LED indicator to confirm the camera unit’s status.
Check the color of the LED indicator after connecting the camera unit (page 12).
Indicator Status
Off No power
Green, lit Normal operation
Green, blinking slowly Registration mode
Green, blinking quickly Device malfunction
For assistance, please visit http://shop.panasonic.com/support 9
Getting Started
HN3001_(en_en)_0110_ver.410.pdf 9 2018/01/10 11:43:21

Monitor unit
3
4
5
7
8
9
1
6
2
j
k
Using the stand
n
l
m
ASmart LED indicator
BDisplay
CM N (Power)
Press to temporarily turn off the
display or press for about 2 seconds
to turn on/off the monitor unit
(page 16).
DMMENUN
EMSMARTN/MOKN
Use MSMARTN to access the
shortcut menu.
FNavigator key
MFN, MEN, MDN, or MCN:
– Scroll through various lists and
items
– Adjust the pan/tilt range
GMN (Talk)
HMicrophone
IMN (Volume/Brightness)
MN (Back)
JAntenna
KSpeaker
Lmicro-USB connector
MBattery cover
NStand
Setting up the camera unit
Information about pan/tilt range
The pan/tilt can be used to adjust the area
viewable from the camera unit by using MFN,
MEN, MDN, or MCN on the monitor unit.
If the area that you wish to view is not visible
even after adjusting the pan/tilt, change the
location or position of the camera unit so that it
can be viewed.
Pan range
2
1
1
Range of visibility: 37°
2
Range of movement: 309°
10 For assistance, please visit http://shop.panasonic.com/support
Getting Started
HN3001_(en_en)_0110_ver.410.pdf 10 2018/01/10 11:43:21
