Panasonic EW-3109 User manual

Panasonic
Portable Automatic Arm Blood Pressure Monitor
Monitor de Presion Arterial Automatico Portatil
Operating Instructions
Instrucciones de
funcionamiento
Model No. EW3109
Modelo No. EW3109
Before operating this device, please read these instructions completely and save this
manual for future use.
Antes de usar este dispositivo, lea completamente estas instrucciones y guarde este
manual para utilizarlo como referenda en el futuro.

Panasonic Oscillometric Diagnostec ™ Portable Automatic Arm Blood
Pressure Monitor Model EW3109 is a device intended to measure
systolic and diastolic blood pressure and pulse rate of an adult
individual by using a pressurized cuff on the arm. The device is not
intended for use on infants and children. The device is designed
for home use only, not for ambulatory measurement (measurement
recorded continuously during the day).
Specification of this device including pulse rate (30 - 160 pulse/min.
+/- 5%) are listed in page 19.
Blood pressure measurements determined with this device are
equivalent to those obtained by a trained observer using the cuff/
stethoscope auscultation method, within the limits prescribed by
the American National Standard, Manual, Electronic or automated
sphygmomanometers.
If you suffer from disorder of heart rhythm, known as arrhythmia only
use this blood pressure monitor in consultation with your doctor. In
certain cases oscillometric measurement method can produce incorrect
readings.
Flashing System for hypertensive readings are based on blood
pressure values classified in the paper: “JNC 7 Express; The Seventh
Report of the Joint National Committee on Prevention, Detection,
Evaluation and Treatment of High Blood Pressure; U.S. DEPARTMENT
OF HEALTH AND HUMAN SERVICES; National Institute of Health;
National Heart, Lung, and Blood Institute; National High Blood Pressure
Education Program; NIH Publication No. 03-5233; May 2003.” The
display values are generally known, but not proven, to be an indicator
of your blood pressure.
The EW3109 is not intended to be a diagnostic device. Contact your
physician if prehypertensive or hypertensive values are indicated.
1

Table of Contents
Introduction. 3
Basics of Blood Pressure. 3
Important Instructions Before Use. 4
Precautions to Ensure Safe, Reliable Operation. 6
Easily Check Your Blood Pressure Readings Against
the JNC 7 Classification. 8

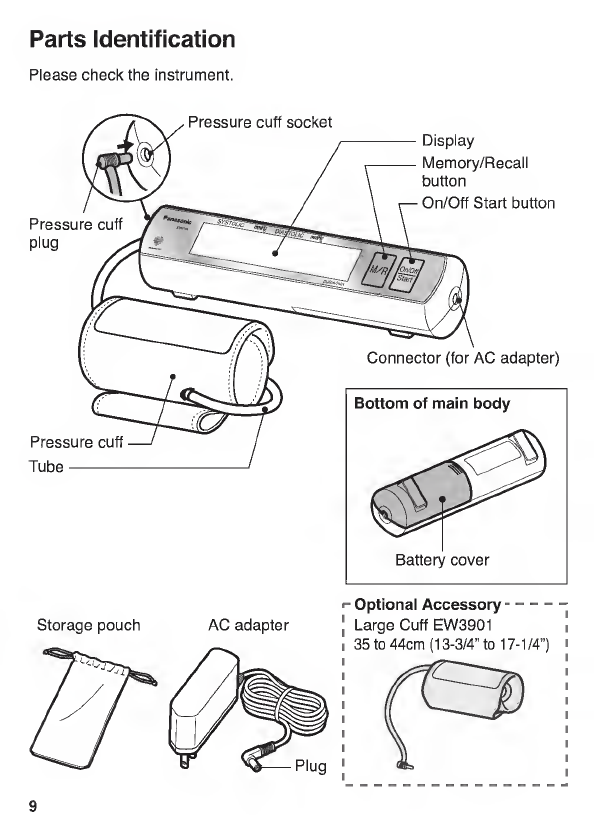

Parts Identification. 9
Installing Batteries. 10
When Using the AC Adapter. 11

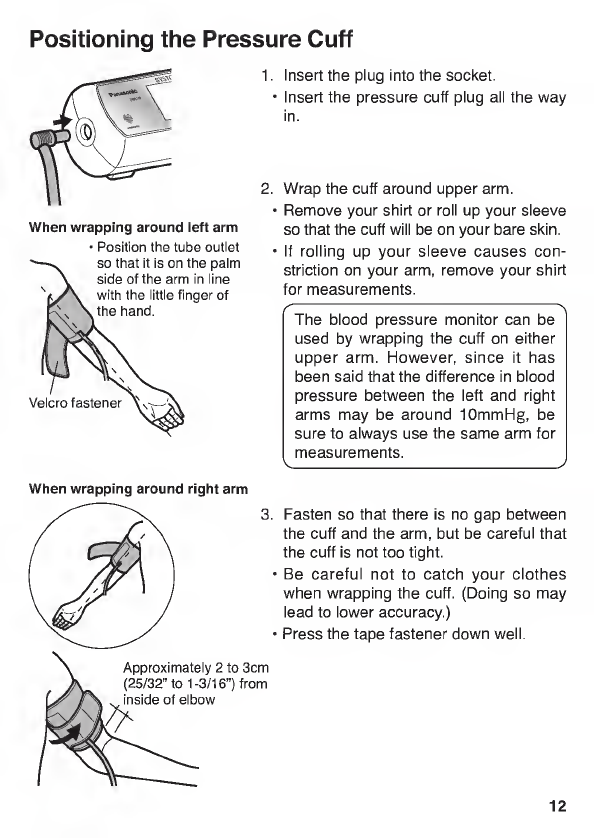

Positioning the Pressure Cuff. 12

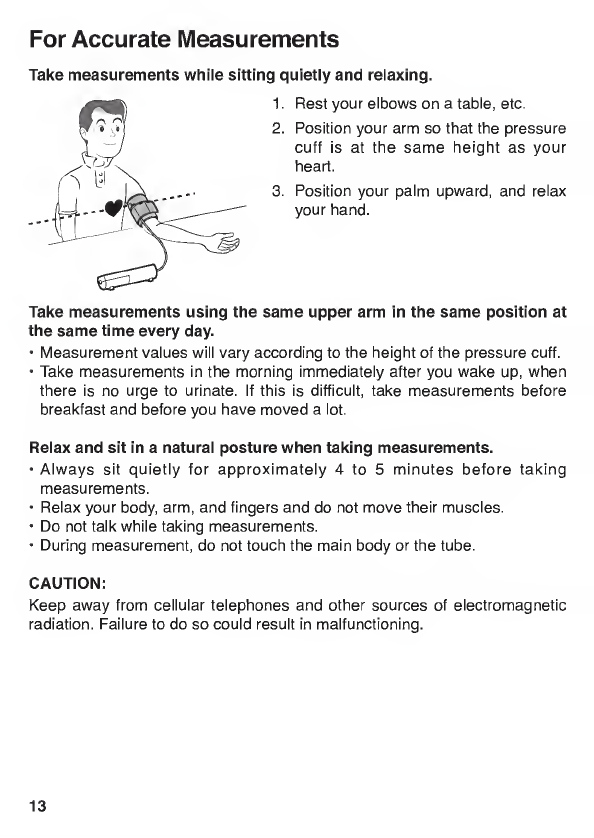

For Accurate Measurements. 13
Cautions During Measurements. 14

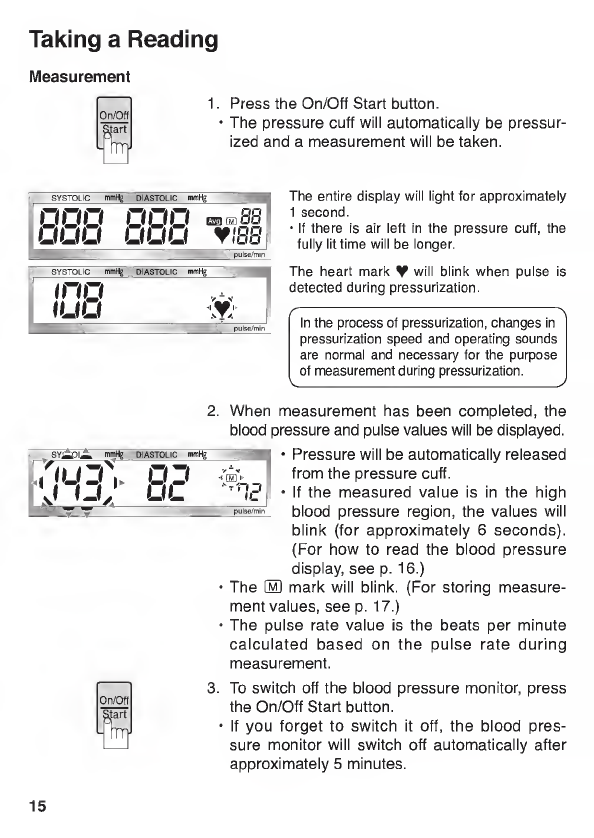

Taking a Reading. 15
Storing Measurement Values. 17
Recalling Stored Measurement Values. 18
After Use. 19
Specifications. 19
Q & A. 20
Care and Maintenance. 22
Troubleshooting. 23
2

Introduction
Thank you for purchasing the Panasonic Portable Automaic Arm Blood
Pressure Monitor EW3109.
Measuring your own blood pressure is an important way of monitoring your
health. High blood pressure (hypertension) is a major health problem which
can be treated effectively once detected. Measuring your blood pressure
between doctor visits on a regular basis in the comfort of your home, and
keeping a record of the measurements, will help you monitor any significant
changes in your blood pressure. Keeping an accurate record of your blood
pressure will help your doctor diagnose and possibly prevent any health
problems in the future.
Basics of Blood Pressure
Your heart acts like a pump, sending blood surging through your blood
vessels each time it contracts. Blood pressure is the pressure exerted
by blood pumped from the heart on the walls of blood vessels. Systolic
pressure is the pressure exerted when the heart contracts and pumps blood
into the arteries. Diastolic pressure is the pressure exerted when the heart
expands, or relaxes. When you or your doctor take your blood pressure,
both your systolic and diastolic pressures are measured. If your blood
pressure measurement is 120 over 80 (120/80), for example, your systolic
pressure is 120 while your diastolic pressure is 80.
3

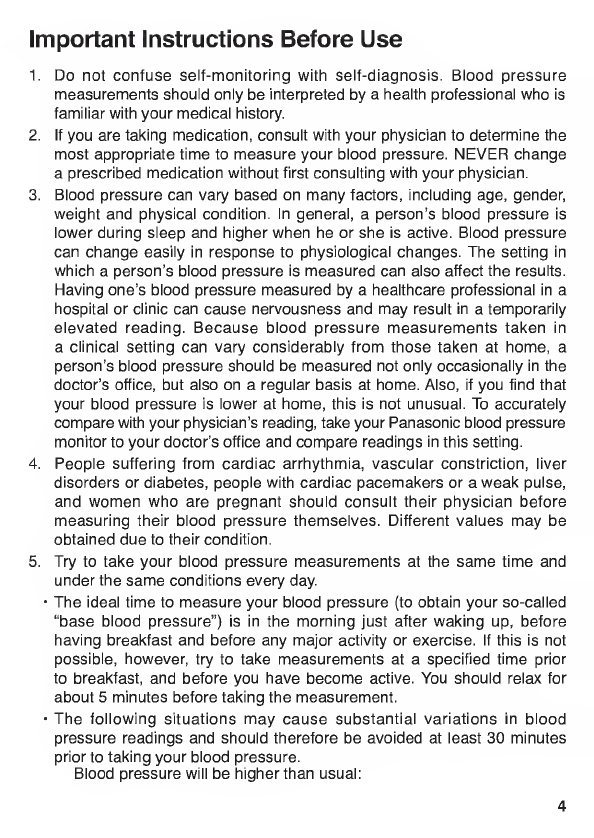

Important Instructions Before Use
1. Do not confuse self-monitoring with self-diagnosis. Blood pressure
measurements should only be interpreted by a health professional who is
familiar with your medical history.
2. If you are taking medication, consult with your physician to determine the
most appropriate time to measure your blood pressure. NEVER change
a prescribed medication without first consulting with your physician.
3. Blood pressure can vary based on many factors, including age, gender,
weight and physical condition. In general, a person’s blood pressure is
lower during sleep and higher when he or she is active. Blood pressure
can change easily in response to physiological changes. The setting in
which a person’s blood pressure is measured can also affect the results.
Having one’s blood pressure measured by a healthcare professional in a
hospital or clinic can cause nervousness and may result in a temporarily
elevated reading. Because blood pressure measurements taken in
a clinical setting can vary considerably from those taken at home, a
person’s blood pressure should be measured not only occasionally in the
doctor’s office, but also on a regular basis at home. Also, if you find that
your blood pressure is lower at home, this is not unusual. To accurately
compare with your physician’s reading, take your Panasonic blood pressure
monitor to your doctor’s office and compare readings in this setting.
4. People suffering from cardiac arrhythmia, vascular constriction, liver
disorders or diabetes, people with cardiac pacemakers or a weak pulse,
and women who are pregnant should consult their physician before
measuring their blood pressure themselves. Different values may be
obtained due to their condition.
5. Try to take your blood pressure measurements at the same time and
under the same conditions every day.
• The ideal time to measure your blood pressure (to obtain your so-called
“base blood pressure") is in the morning just after waking up, before
having breakfast and before any major activity or exercise. If this is not
possible, however, try to take measurements at a specified time prior
to breakfast, and before you have become active. You should relax for
about 5 minutes before taking the measurement.
• The following situations may cause substantial variations in blood
pressure readings and should therefore be avoided at least 30 minutes
prior to taking your blood pressure.
Blood pressure will be higher than usual:
4

- when you are excited or tense
- when you are taking a bath
- during exercising or soon after exercising
- when it is cold
- within one hour after eating
- after drinking coffee, tea or other beverages containing caffeine
- after smoking tobacco
- when your bladder is full
- when in a moving vehicle
Blood pressure will be lower than usual:
- after taking a bath
- after drinking alcohol
6. Measurements may be impaired if this unit is used near a television,
microwave oven, X-ray equipment or other devices with strong electrical
fields. To prevent such interference, use the unit at a sufficient distance
from such devices or turn the devices off.
7. This unit is designed for use by adults. Consult with your physician
before using this unit on a child. Do not use on infants or toddlers.
8. This unit is not suitable for continuous monitoring during medical
emergencies or operations.
9. Do not use the unit for any purpose other than measuring blood
pressure. Do not use the unit together with other devices.
10. Improper handling of batteries may result in battery rupture or in
corrosion from battery leakage. Please observe the following to ensure
proper use of batteries.
a. Be sure to turn off the power after use.
b. Do not mix different types or sizes of batteries.
c. Change all batteries at the same time. Do not mix old and new batteries.
d. Be sure to insert batteries with correct polarity, as instructed.
e. Remove batteries when they are worn out, and dispose of them
properly according to all applicable environmental regulations.
f. Do not disassemble batteries or throw them into a fire.
g. Do not short-circuit batteries.
h. Do not attempt to recharge the batteries included with the unit.
5

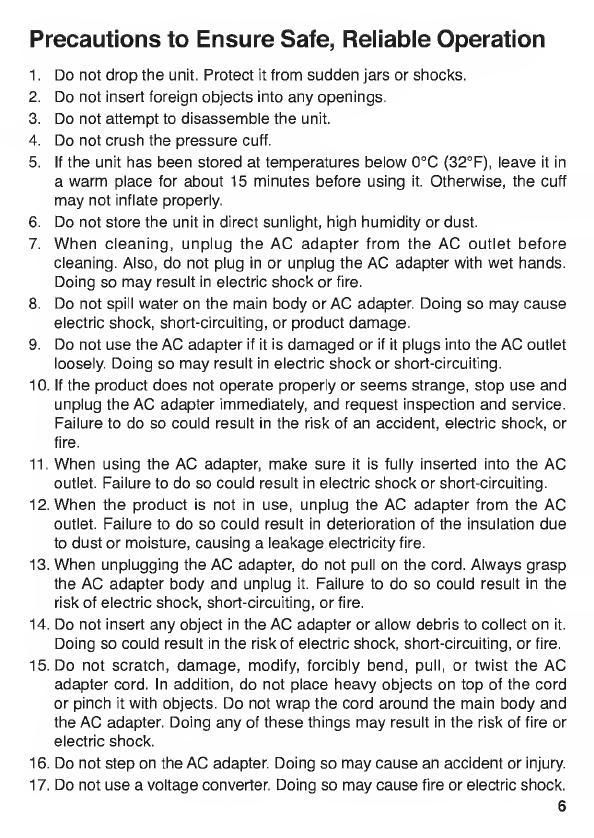

Precautions to Ensure Safe, Reliable Operation
1. Do not drop the unit. Protect it from sudden jars or shocks.
2. Do not insert foreign objects into any openings.
3. Do not attempt to disassemble the unit.
4. Do not crush the pressure cuff.
5. If the unit has been stored at temperatures below 0°C (32°F), leave it in
a warm place for about 15 minutes before using it. Otherwise, the cuff
may not inflate properly.
6. Do not store the unit in direct sunlight, high humidity or dust.
7. When cleaning, unplug the AC adapter from the AC outlet before
cleaning. Also, do not plug in or unplug the AC adapter with wet hands.
Doing so may result in electric shock or fire.
8. Do not spill water on the main body or AC adapter. Doing so may cause
electric shock, short-circuiting, or product damage.
9. Do not use the AC adapter if it is damaged or if it plugs into the AC outlet
loosely. Doing so may result in electric shock or short-circuiting.
10. If the product does not operate properly or seems strange, stop use and
unplug the AC adapter immediately, and request inspection and service.
Failure to do so could result in the risk of an accident, electric shock, or
fire.
11. When using the AC adapter, make sure it is fully inserted into the AC
outlet. Failure to do so could result in electric shock or short-circuiting.
12. When the product is not in use, unplug the AC adapter from the AC
outlet. Failure to do so could result in deterioration of the insulation due
to dust or moisture, causing a leakage electricity fire.
13. When unplugging the AC adapter, do not pull on the cord. Always grasp
the AC adapter body and unplug it. Failure to do so could result in the
risk of electric shock, short-circuiting, or fire.
14. Do not insert any object in the AC adapter or allow debris to collect on it.
Doing so could result in the risk of electric shock, short-circuiting, or fire.
15. Do not scratch, damage, modify, forcibly bend, pull, or twist the AC
adapter cord. In addition, do not place heavy objects on top of the cord
or pinch it with objects. Do not wrap the cord around the main body and
the AC adapter. Doing any of these things may result in the risk of fire or
electric shock.
16. Do not step on the AC adapter. Doing so may cause an accident or injury.
17. Do not use a voltage converter. Doing so may cause fire or electric shock.
6

18. This AC adapter is designed for use only with Panasonic Blood Pressure
Monitor, model EW3109. Use with other electrical devices may result in
death or serious personal injury.
19. ALWAYS unplug the AC adapter from the power outlet before performing
maintenance.
20. Do not let this product to be used by children.
21. Do not let this product to be used by people who cannot express their
feelings, or who cannot operate the product by themselves. Such use
may result in an accident or injury.
22. Do not allow any material to drape over the AC adapter. Doing so could
result in the risk of fire.
23. Do not modify or attempt to repair the product or AC adapter by yourself.
Doing so could result in the risk of fire, electric shock, or personal injury.
7

Easily Check Your Blood Pressure Readings
Against the JNC 7* Classification
Blood Pressure Categories
A
(mmHg)
£ ■
m
o 100
3
CO
CO
£ 90
Q-
■ o
O
£ 80
CO
o
o
w
re
Q
120 140 160 (mmHg)'
Systolic Blood Pressure (SBP)
If the two blood pressure measurements (systolic, diastolic) fall into separate
categories, your level is classified in the higher of the two categories. For
example, a Stage 2 systolic reading, but a diastolic pressure reading in the
normal range.
* JNC 7: The Seventh Report of the Joint National Committee on Prevention,
Detection, Evaluation and Treatment of High Blood Pressure
National Institute of Health (NIH) Publication; No. 03-5233, May 2003
IMPORTANT:
• Do not be alarmed by temporarily high or low readings because
fluctuations in a person’s blood pressure are not uncommon. If possible,
measure and record your blood pressure at the same time every day, and
consult your physician if you have questions or concerns.
■ If abnormal variations in blood pressure are observed in measurement,
please consult your physician.
Stage 2 Hypertension e.g.:SBP165
DBP 105
Stage 1 Hypertension e.g.:SBP 150
DBP 95
Prehypertension e.g.:SBP 130
DBP 85
Normal e.g.:SBP 115
DBP 75
8

Parts Identification
Please check the instrument.
, Pressure cuff socket
Display
Memory/Recall
button
On/Off Start button
Pressure cuff
plug
Pressure cuff
Tube
Storage pouch
Battery cover
AC adapter
Optional Accessory --
Large Cuff EW3901
35 to 44cm (13-3/4” to 17-1/4”)
9

Installing Batteries
'Always use alkaline batteries. (Four AA-size LR6 alkaline batteries)
1. Turn the main unit over and remove
the battery cover by sliding it in the
direction of the arrow while pressing
lightly on the ® mark.
2. Check the polarities of the batter¬
ies and install them correctly.
3. Replace the battery cover and slide
it closed.
CAUTION:
• Always follow the cautions printed on the batteries.
• Check the polarities of the batteries and install them correctly.
• Remove exhausted batteries promptly.
• If the product will not be used for a long time, remove the batteries.
• Batteries should be used before their expiration date.
Use after the expiration date may result in injury or staining of the
surrounding area due to generation of heat, bursting, or leakage.
Replace batteries when:
• The mark shown at left appears during use.
• All displays are lit for a moment after the
Start/Stop button is pressed, and then the display goes blank.
• No display appears even if the On/Off Start button is pressed.
• Approximately 500 measurements (approximately 5 months when measurements
are taken 3 times per day) can be taken with a set of fresh Panasonic alkaline
batteries (four AA-size LR6 batteries). (Measurement conditions: Room temperature
23°C (73°F); Pressurized to 170mmHg; Upper arm circumference: 30cm (11-51/64”))
(The batteries included are not guaranteed for the full life of brand new alkaline
batteries as specified.)
• When batteries other than Panasonic alkaline batteries are used, battery life may be
shorter. When manganese batteries are used, battery life may become as short as
1 /6th the life of alkaline batteries.
• Even if the product is not used for a long time, be sure to replace batteries once a
year. If battery replacement is delayed, damage due to battery leakage may occur.
• When replacing batteries, always use four fresh alkaline batteries of the same type
from the same manufacturer.
• When room temperature is low, battery life may become shorter.
10

When Using the AC Adapter
* Use only the exclusive AC adapter (included accessory). (See p. 9.)
1. Insert the AC adapter plug into the connector on the right side of the
main unit.
2. Plug the AC adapter fully into the AC outlet.
(An operating sound may be heard momentarily when the AC adapter is
plugged into the outlet.)
Be sure to use only the exclusive AC adapter (included accessory).
Use of other AC adapters could cause an accident.
11

Positioning the Pressure Cuff
When wrapping around left arm
• Position the tube outlet
so that it is on the palm
side of the arm in line
with the little finger of
. the hand.
Velcro fastener
1. Insert the plug into the socket.
• Insert the pressure cuff plug all the way
in.
2. Wrap the cuff around upper arm.
• Remove your shirt or roll up your sleeve
so that the cuff will be on your bare skin.
• If rolling up your sleeve causes con¬
striction on your arm, remove your shirt
for measurements.
— ^
The blood pressure monitor can be
used by wrapping the cuff on either
upper arm. However, since it has
been said that the difference in blood
pressure between the left and right
arms may be around lOmmHg, be
sure to always use the same arm for
measurements.
v_
When wrapping around right arm
Approximately 2 to 3cm
(25/32" to 1-3/16”) from
inside of elbow
Fasten so that there is no gap between
the cuff and the arm, but be careful that
the cuff is not too tight.
Be careful not to catch your clothes
when wrapping the cuff. (Doing so may
lead to lower accuracy.)
Press the tape fastener down well.
12

For Accurate Measurements
Take measurements while sitting quietly and relaxing.
1. R est your elbows on a table, etc.
2. P osition your arm so that the pressure
cuff is at the same height as your
heart.
3. P osition your palm upward, and relax
your hand.
Take measurements using the same upper arm in the same position at
the same time every day.
• Measurement values will vary according to the height of the pressure cuff.
• Take measurements in the morning immediately after you wake up, when
there is no urge to urinate. If this is difficult, take measurements before
breakfast and before you have moved a lot.
Relax and sit in a natural posture when taking measurements.
• Always sit quietly for approximately 4 to 5 minutes before taking
measurements.
• Relax your body, arm, and fingers and do not move their muscles.
• Do not talk while taking measurements.
• During measurement, do not touch the main body or the tube.
CAUTION:
Keep away from cellular telephones and other sources of electromagnetic
radiation. Failure to do so could result in malfunctioning.
13

Cautions During Measurements
In the following situations, accurate measurements cannot be taken.
Within 1 hour of eating or
drinking alcohol
Immediately after drinking coffee
or tea, or smoking
Immediately after exercising In a moving vehicle
or taking a bath
measurement while staying quiet.
In cold places
Take measurements at ambient
temperatures of 10°C to 40°C
(50°F to 104°F).
When you need to urinate
Wait several minutes after urinating
before taking measurements.
14

Taking a Reading
Measurement
On/Off
1. P ress the On/Off Start button.
• The pressure cuff will automatically be pressur¬
ized and a measurement will be taken.
SYSTOLIC
nmHg DIASTOLIC mmHg
000
000
!_/ III I m hi SO
000 VI8EI
pulse/min.
SYSTOLIC
nmHg DIASTOLIC mmHg
in o
IUO
pulse/min.
The entire display will light for approximately
1 second.
• If there is air left in the pressure cuff, the
fully lit time will be longer.
The heart mark V will blink when pulse is
detected during pressurization.
C I ^
In the process of pressurization, changes in
pressurization speed and operating sounds
are normal and necessary for the purpose
of measurement during pressurization.
2. W hen measurement has been completed, the
blood pressure and pulse values will be displayed.
• Pressure will be automatically released
from the pressure cuff.
• If the measured value is in the high
blood pressure region, the values will
blink (for approximately 6 seconds).
(For how to read the blood pressure
display, see p. 16.)
The CM] mark will blink. (For storing measure¬
ment values, see p. 17.)
The pulse rate value is the beats per minute
calculated based on the pulse rate during
measurement.
3. T o switch off the blood pressure monitor, press
the On/Off Start button.
• If you forget to switch it off, the blood pres¬
sure monitor will switch off automatically after
approximately 5 minutes.
15

Flash warning system for hypertensive readings
If the measured values fall within the hypertension range, the reading
displayed on screen flashes on and off to alert user.
According to JNC 7 Classification, values consistently in excess of 140 mmHg
(Sys.) and/or 90 mmHg (Dia.) are considered to constitute high blood pressure.
Diastolic
(mmHg)
90
80
Blood pressure readings will flash for approx.
6-seconds when in the high blood pressure
range.
Systolic blood pressure: 140 mmHg and over
Diastolic blood pressure: 90 mmHg and over
(Only when measurement is complete)
Hypertension
(Stage 1, Stage 2)
Prehypertension
Normal
120 140 (mmHg)
Systolic
SYSTOLIC mmHg DIASTOLIC mmHg
When an Error Occurs During Measurement
An E will appear on the display to
indicate that measurement was
unsuccessful and should be performed
^ pulse/miir again.
Before performing another measure¬
ment, always press the On/Off and Start button to turn off the unit and make
sure to allow a rest period of 4 to 5 minutes before starting again.
C
L
Please consult your doctor without delay if the blood pressure indicator
repeatedly draws attention to elevated blood pressure values.
Advice:
In general, blood pressure measurements are lower for the second
measurement because you are less nervous and are more tranquil.
For people who easily get tense, measuring twice each time is very effective.
When two measurements are taken, normally the smaller measurement is
stored.
When taking two measurements, always stay quiet for 4 to 5 minutes after
the first measurement before taking the second measurement.
16

Storing Measurement Values
This product can store 90 measurement values.
After measurement, press the Memory/Recall button
while the (M) mark is blinking.
SYSTOLIC iwnHg DIASTOLIC mmHg
I JO
I JO
OJ
00
’E?
M/R
On/Otf
1 /
Storing is completed.
• Up to 90 measurement values can be stored. When
the memory is full and additional values are stored,
the oldest value in memory will be deleted and the
new value will be stored.
• If measurements could not be taken properly (the E
mark is shown instead of the blood pressure value),
measurement values cannot be stored.
• However, even if the E mark is shown for the blood
pressure value, the pulse value will still be stored.
Number of stored data
r \
To erase all measured values stored in memory:
1. Press the Memory/Recall button. The stored measurement values will
be displayed.
2. Press the same Memory/Recall button again, and hold it pressed until
the measurement values disappear (approximately 3 seconds or more).
* It is not possible to erase single measurement values.
3. The HD mark and U 0 will be shown when all data is deleted.
v_
To switch off the blood pressure monitor, press the
On/Off Start button.
• If you forget to switch it off, the blood pressure
monitor will switch off automatically after
approximately 5 minutes.
17

Recalling Stored Measurement Values
Measurements can be recalled after measurement is completed or after
the power has been switched off.
• If no measurement values are stored, no value will be shown.
1. P ress the Memory/Recall button for the person
whose data you want to recall.
The average of all measured values in memory
will be shown.
• GEO will be shown at the top right of the display.
■ For example, if 90 measured values are stored,
the average of the 90 measurements will be
shown. (If only 1 measurement is stored, the ^0
will not be shown.)
2. P ress the Memory/Recall button again.
Each time you press the Memory/Recall button,
the previously stored measurement values will be
shown in order, starting with the newest data.
Do not press the Memory/Recall button for an
extended length of time. If you hold the button
pressed for approximately 3 seconds or longer, all
data in memory will be erased, so please be careful.
3. T o cancell measurement value recall, press the
On/Off Start button.
• If you forget to switch it off, the blood pressure
monitor will switch off automatically after
approximately 30 seconds.
18

After Use
Storage
1. Unplug the plug from the main body.
2. Roll up the pressure cuff loosely and place the
main unit inside it.
3. P lace the cuff and main body in the storage
pouch.
(Please take care not to create kinks in the tube.)
• Do not place the AC adapter in the storage pouch.
Specifications
Power source
DC 6V (Four AA/LR6 size alkaline batteries)
AC 120V 60Hz (when using AC adapter)
Display Digital LCD
Method of measurement Oscillometric system
Measurement range
Blood pressure: 0 to 280mmHg
Pulse rate: 30 to 160 beats per minute
Accuracy
Blood pressure: Within ±3mmHg
Pulse rate: Within ±5%
Operation temperature/
humidity range
10 to 40°C (50 to 104°F), 15 to 90% RH
Storage temperature/
humidity range
-20 to 60°C (-4 to 140°F), 10 to 95% RH
Measurable arm
circumference
Approx. 20 to 40cm (7-3/4" to 15-3/4")
Weight Approx. 260g (9.2 oz.) (not including batteries)
Dimensions 5.2 x 20.8 x 5.2cm (2" x 8-2/8" x 2")
Protection against electric
shock
Internally powered equipment, Type BF applied part
AC adapter
Input AC 120V 60Hz
Output DC 6V 0.6A
19
