Panasonic EW-BU58N011 User manual

1
M/R
SYS.
DIA.
Pulse
/min
Model NO. EW-BU58N011
Digital Blood Pressure Monitor
Operating Instructions
Thank you for purchasing our products.
Please read these in structions carefully before using
this product, and save this manual for future use.
Version: NO.01.1
Issued date: March 2023

2
How to take a proper
measurement 3
Product functions 4
List of products and
accessories 4
Safety precautions 5
Parts identification 9
Operating instructions 20
• Start measurement 20
• Call-up of measured values 22
• Delete all of the memorized
measured values 23
• About each instruction 24
Preparation 12
• Inserting batteries 12
• Power-on prompt 12
• Setting the time and date 13
• Setting the volume
adjustment 15
• Before measurement 16
• Wrapping the cuff 18
Others 25
• Storage 25
• Care and maintenance 26
• FAQ 27
• Troubleshooting 29
• Specifications 31
Table of Contents
Product name: Digital Blood Pressure Monitor
Model: EW-BU58N011
Structure and composition: It is composed of a main unit and a cuff
Scope of application: This product can measure diastolic blood pressure,
systolic blood pressure and pulse rate of human body by oscillometry, and
its values are for diagnostic reference.
The circumference of the upper arm that can be measured by this device is
about 20 cm~34 cm.
Contraindications: None
Product object: It is suitable for adults with an upper arm circumference of
20 cm~34 cm.
It is not suitable for newborns.
However, users warned or prohibited in the Operating Instructions and
prohibited by doctors are excluded.

3
Lean on
the back of
a chair and
relax
How to take a proper measurement
Relax for 4~5 minutes before measurement and be sure to take the measurement in a
relaxed state.
The posture and physical condition of the user will affect the blood pressure measurement.
Measuring posture
Wrap the cuff
Wrap the
cuff around
the bare skin
Relax your arm,
put it on the table,
with the palm up
and nails against
the table
Align the height
of the cuff to
the heart.
Keep your
feet on the
ground side
by side
When the height of the cuff cannot be aligned with your heart
It is the best to
keep the room
temperature
at 20 °C
Adjust by a back cushion or
a seat cushion on the chair Adjust the height by cushioning the elbow wrist with a towel
Wrap the cuff tightly
Do not wrap it too loose or
too tight, and wrap the cuff
with a gap of 1 or 2 fingers.
Wrap position
Reserve
(2~3) cm
Tube
Rotary part
•Coincide with the extension
of the middle finger

4
List of key parts
(1) Booster pump
(2) Circuit chip
(3) Pressure sensor
EW-BU58N011
EW-BU58N011
List of products and accessories:
Product functions: Please confirm the function of purchased product
※The accompanying batteries are for test-run.
They are used to confirm the function of the device at the time of
purchase and their service life will be shorten.
●
90 times × 1 person
●
●
●
●
●
●
Hypertension flash
Memory number
Movement warning
Irregular pulse
Morning and evening comparison
Clock function
Voice function
Backlight function
1 set
1 copy
4 pcs
1 pc
1 pc
Main unit
Operating Instructions
Test-run batteries
Cuff
Pouch

5
Safety precautions
※Before use, please read these [Safety Precautions]
carefully for proper use.
※To prevent users from suffering harm or loss due to
improper use, please refer to the [Safety Precautions]
and use this device correctly.
For safety reasons, be sure to observe these safety precautions.
CAUTION：
indicates prohibited
behaviors
indicates no disassembly
indicates the contents of caution and warning.
WARNING：
WARNING indicates a hazardous situation whih, if
not avoided, could result in death or serious injury.
CAUTION indicates a hazardous situation which, if
not avoide,could result in minor or moderate injury.

6
Forbid
Be sure to
observe
Do not
disassemble
Warning
Please do not allow children or people who can't express
their self-awareness to use this device.
While measuring with this device, do not use the unit
on an arm where a catheter has been inserted.
Otherwise, it may cause an accident.
Do not spill water on the main unit.
Otherwise, there is a risk of electric shock, short circuit or fire.
Persons with serious obstructions of blood flow in the arm
should consult a doctor before using this instrument.
Failure to do so may result in deterioration of physical condition.
When you feel any abnormality in use, please stop using it
immediately. And please be sure to entrust the service centre
designated by the Company for inspection and repair.
Otherwise, there is a risk of electric shock, short circuit or fire.
Never modify the product，disassemble or attempt to
repair it yourself.
Otherwise, it may cause fire, accident or malfunction.

7
Forbid
Be sure to
observe
Caution
Do not judge the measurement results by yourself, and
take medicine and other treatments on such basis.
It may cause physical discomfort.
For the measurement results, please consult a professional
doctor to explain the measured blood pressure value.
If you are on medication, please follow the doctor's advice.
Please do not use it for purpose other than blood pressure
measurement.
Otherwise, it may cause an accident or malfunction.
If the device needs to be repaired for various reasons,
please contact the After-sales Service Office designated
by Panasonic Appliances (China) Co., Ltd. to consult the
maintenance methods or ask for maintenance information.
Caution:
If the device needs to be repaired for various reasons, please contact the After-sales
Service to consult the maintenance methods or ask for maintenance information.

8
Please note that
Description of markings
※During the measurement process, do not use devices that generate
electromagnetic interference near this product, such as mobile phones,
as the strong radiation field generated by such devices will interfere with
the normal use of the product.
Otherwise, this product may cause mis-operation or inaccurate measurement.
※In the case of common arrhythmia (such as atrial premature beat,
ventricular premature beat and atrial fibrillation), the measurement will
cause errors.
※The main unit is not likely to cause interference to electronic devices
around (such as TV, computer, mobile phone)
※There may be a risk when the air cuff is in the state of persistent
hyperinflation. (causing discomfort such as blood stasis or paralysis in
the arm.) If such abnormality occurs, please remove the cuff.
※Be sure to use the parts provided by the manufacturer for replacement.
Otherwise, measurement errors may be caused.
Note: If the original parts are replaced by parts not provided by the
manufacturer, measurement errors may occur.
※Disposal suggestion: The disposal method of the main unit, cuff and
batteries shall be subject to the relevant environmental protection
regulations of the city.
※For the potential electromagnetic interference or other interference
between this device and other devices, see the manufacturer's statement
on electromagnetic compatibility for details.
indicates direct current
Caution! Consult the accompanying documents
Protection against electric shock Type B applied part
(main unit of the device)

9
DIA.
M/R
SYS.
DIA.
Pulse
/min
M/R
Cuff socket Display
Bottom Battery cover
On/Off button
Operation
part
(see below)
Loudspeaker
hole
Operation part
Backward button
Time button
Forward button
Voice button Memory/Recall button
Parts identification
Main unit
Structure and composition:
The product is composed of a main unit and a cuff.
Please confirm
the product

10
Backlight display
Pouch Batteries
Anti-curling
fastener
For test run
About backlight function: The device has
backlight function.
When measuring and calling up the measured
value, the backlight displays.
If the display is facing the light, sometimes the user
cannot see the display clearly when looking from the
right angle. Meanwhile, the display is facing away
from the light and it is easy to see the display from
an oblique angle.
As shown in the figure, the LCD display of the device
displays in black characters on a bright background.
Parts identification
Cuff
Includes
Cuff plug
Tube
Velcro fastener

11
Parts identification Display
Memory number/Date/
Time identification
Pulse mark
Indication of the detected pulse
during measurement
Battery indicator
Indication when the battery is
out of power
Voice mark
Voice prompt, with adjustable
volume
See the following table
Systolic blood
pressure
Indicates the systolic
blood pressure value
Diastolic blood
pressure
Indicates the diastolic
blood pressure value
Pulse rate
Indicates the number
of pulses
Irregular pulse warning
Irregular pulse that can be detected
during the measurement
Movement warning
Indication of possible body movement
during the measurement
Memory mark
When the measured value
is stored, this mark will flash
Morning average
(between 3: 00 - 10: 59 a.m.)
indicates the comparison of
past morning averages
Average mark.
Indicates the average
number of memory number
Evening average
(between 18:00 - 2:59 a.m. of
the next day) indicates the
comparison of past evening averages

12

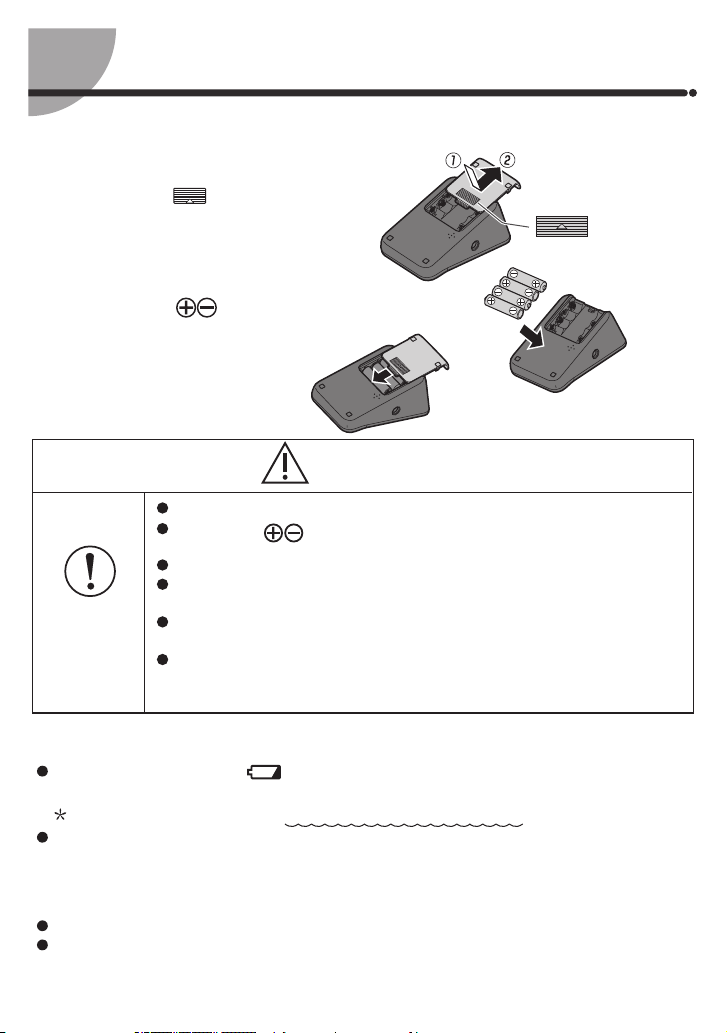

Preparation Inserting batteries
Turn the main unit over, gently
press the part of the battery
cover and take out the battery
cover in the direction indicated
by the arrow.
1.
2.
3.
※The product can be powered by batteries.
Check the polarities of the batteries,
and install them correctly.
Close the battery cover
until you hear a click.
Caution
Be sure to
observe
Always follow the cautions printed on the batteries.
Check the polarities of the batteries and install them
correctly.
Take out the batteries with insufficient power immediately.
When this device is not used for a long time, take out the
batteries from the device.
When replacing batteries, new batteries of the same type must
be used and all 4 batteries shall be replaced at the same time.
Please use the batteries within the expiration date.
Failure to comply with the above matters may result in injury
or damage due to battery heating, cracking or liquid leakage.
About batteries:
If the low battery mark ( ) appears on the display, please turn off the device
and replace all batteries.
Voice prompt (cantonese) "Low battery, please replace it"
Batteries last for approx. 300 times, which is 3 times/day for 3 months (when
using a pack of new Panasonic zinc carbon batteries). (Under the condition
that the room temperature is 23 °C, 22.7 kpa (170 mmHg) pressured, and the
circumference of upper arm is 30cm.)
If the ambient temperature is low, the battery life will be shortened.
The service life of other brands of batteries may be very short, so it is recommended
to use Panasonic zinc carbon or alkaline batteries.
part

13
Preparation Setting the time and date
Set in the power-off state.
When using or replacing the batteries for the first time, please reset
the date and time.
•Display the date and time setting screen.
•It is set in the order of [year] → [day] →
[month] → [hour] → [minute]
•Select the number
•Long press for quick switch
: forward
: backward
Preparation Power-on prompt
1.
Power-on prompt
Note: When the product is under standby mode,
“0” will be displayed on the monitor.
This is a normal condition, not malfunction.

14
The setting of date/time cannot be completed in the following
circumstances
When replacing the batteries, please reset the date and time.
(The recorded data will still be saved)
Even if the date and time are not set, the measurement can be carried out,
however, the year/month/day/hour/minute will be displayed as [- --] [--/-- -:--]
during measurement or when memory call-up.
Press the button, and the set screen
will be displayed
(Example: Setting range: 7:30 on March 15, 2024)
Please turn off the power before restarting the operation from
Step 1 on this page
•When no operation is made for more than 1 minute and 30 seconds
during the setting process.
•When the [minute] setting is completed, the button is not pressed.
1
Set [Year]
Press or button
•The setting range of the year: 2020~2099
Press button to confirm
Press button to confirm
Press button to confirm
Press button to confirm
2
Set the [day]
Press or button
3
Set the [month]
Press or button
4
Set the [hour]
Press or button
5
Preparation Setting the time and date

15
Preparation Setting the time and date
Preparation
Setting the volume adjustment
Press button to complete
Set the [minute]
Press or button
6
Press the button to adjust the volume.
(This device is set to a high volume by the factory setting)
Voice prompt (cantonese) “Please press the Voice button to adjust the volume”
1
Select the volume according to the prompt
tone: high volume, off, low volume, medium
volume. You can repeatedly press the
button to select the volume that suits you.
2
Alternate display
every 2 seconds
•The display disappears
after 10 seconds
During measurement and other operations, the volume cannot be adjusted.
When the volume selection is completed,
turn off the button and re-press
the button to measure.
3
High
volume Off Low volume Medium volume

16
Preparation Before measurement
For correct measurement, please read the following key points carefully,
and observe the exact environment and posture. Please refer to P3 (How
to take a proper measurement).
Measuring time
The blood pressure is constantly changing throughout the day.
Therefore, take the period with the least movement after getting up and
before sleeping as the measuring time.
It is closest to the blood pressure at night and basically with no
influence due to physical activities.
•Before breakfast
•Before taking medicine (in case of antihypertensive drugs, etc.)
•After urination
•Relax for 4~5 mins
The measured value is closest to the average blood pressure
in a day
•Relax for 4~5 mins
Prompt of measuring place and measuring time
Blood pressure is affected by climate, emotion, exercise, sleep time, food or
other conditions. In addition, blood pressure tends to rise because of blood
vessel contraction due to low outdoor temperature in winter.
Before sleep
Within 1 hour
after getting up
Within 1 hour
after getting up
No measurement
shall be taken in
case of the right
circumstances
Before sleep
•Outdoor and cold places
•After exercise or showering
•Within 1 hour after meals
•After drinking
•Shortly after drinking caffeinated
beverages or smoking
•When feeling restless
•When experiencing signs of urination
or defecation
Measure in a room with stable temperature, and in a non-anxious and calm
state, take five deep breaths and relax for 4~5 mins before measurement.
As the blood pressure is affected by various conditions, it is difficult to judge
whether or not the blood pressure value is true if only one measurement is
taken.
It is necessary to measure 2 to 3 times to confirm the change.

17
Preparation Before measurement
Posture Method of cuff wrapping
Height of cuff to heart
Do not lean forward
When the abdomen
is stressed, the blood
pressure will rise.
Do not talk
Talking will raise
blood pressure.
Keep your hands,
fingertips, arms
and body still
Subtle changes in blood
pressure cannot be detected.
So no proper measurement
can be taken.
Do not wrap the cuff
on your clothes
The pressure of the cuff
cannot be transmitted
to the blood vessels and
the blood pressure will rise.
Do not roll up the
shirtsleeve
The blood vessels in
the arm will be under
pressure and no proper
measurement can be taken.
Do not wrap the cuff
too loose
The pressure of the
cuff cannot be
transmitted to the
blood vessels and no
proper measurement
can be taken.
The height of 10 cm
will cause an error
of 7 mmHg.
•Please refer to P.3
for measurement in
correct posture
Do not touch the cuff
It will cause confusion
of measurement data.
So no proper
measurement can
be taken.
Do not compress the
tube
Once the tube is pressed
by the arm, it will cause
failure to take a proper
measurement.
Any blood pressure measurement will be influenced by the
posture of the user and his/her physical condition.

18
Rotary part
Rotary
part
Preparation Wrapping the cuff
※Be sure to use a dedicated cuff
It can be wrapped on either left or right arm for measurement.
Take the measurement of left arm as an example.
The measurement results of the left and right arms may vary to
different extent due to different conditions of each user.
Therefore, please measure with the same arm every time.
1.
Wrap the cuff on your arm
2.
Wrapping position of
the cuff
When measuring by
the right arm
(1)Wrap the cuff (2~3) cm
above the elbow joint.
(2)The tube shall coincide
with the extension of
the middle finger.
Reserve
(2~3) cm
Reserve
(2~3) cm

19
M/R
SYS.
DIA.
Pulse
/min
Anti-curling
fastener
•If the Velcro fastener is curled, fix it
with the anti-curling fastener
Preparation Wrapping the cuff
3.
Hold down the hook and loop fastener and wrap the cuff with
a gap of 1 or 2 fingers.
Please insert the cuff plug into the cuff
socket until a click is heard
Velcro fastener
Velcro fastener
If it is wrapped too loose, the cuff will swell and inflate, and
the blood vessel will be locally tightened, which will cause
an indication error, and the measured value will tend to rise
slightly.
If it is wrapped too tight, before air entering, the blood
vessel will be pressed by the cuff, so the measured value
will tend to decrease slightly.
Partially
tightened
Loose wrapping
•To prevent falling off, it shall be inserted
deeply. Click

20
1.
With the power off, press the button.
After the display is fully lit, the cuff will be pressurized and measurement
will be taken automatically
Voice prompt (cantonese) “Please relax and then start measurement in proper posture”
Note: When the pressurization value is more than 280 mmHg, the cuff will
automatically exhaust.
Example:
under inflation
(during
measurement)
End of measurement •Pulse is detected, and [ ]
mark flashes
•Display the measured value
• Flash
When recording the measured value, please
go to step 2 during the flashing process
Voice prompt (cantonese)
“Your measurement result is:
Systolic blood pressure: XX mmHg;
Diastolic blood pressure: XX mmHg;
Pulse: XX beats per minute;
This measurement result is normal, please keep it.”
During or at the end of the measurement, it displays [ ]
P.24 [About prompt]
SYS.
DIA.
Pulse
/min
SYS.
DIA.
Pulse
/min
SYS.
DIA.
Pulse
/min
Operating instructions
Start measurement
