Routine care
LTo clean the product, use a dry soft cloth. The outer surface of the product can
be scratched by wiping or rubbing with a hard cloth.
Setting up

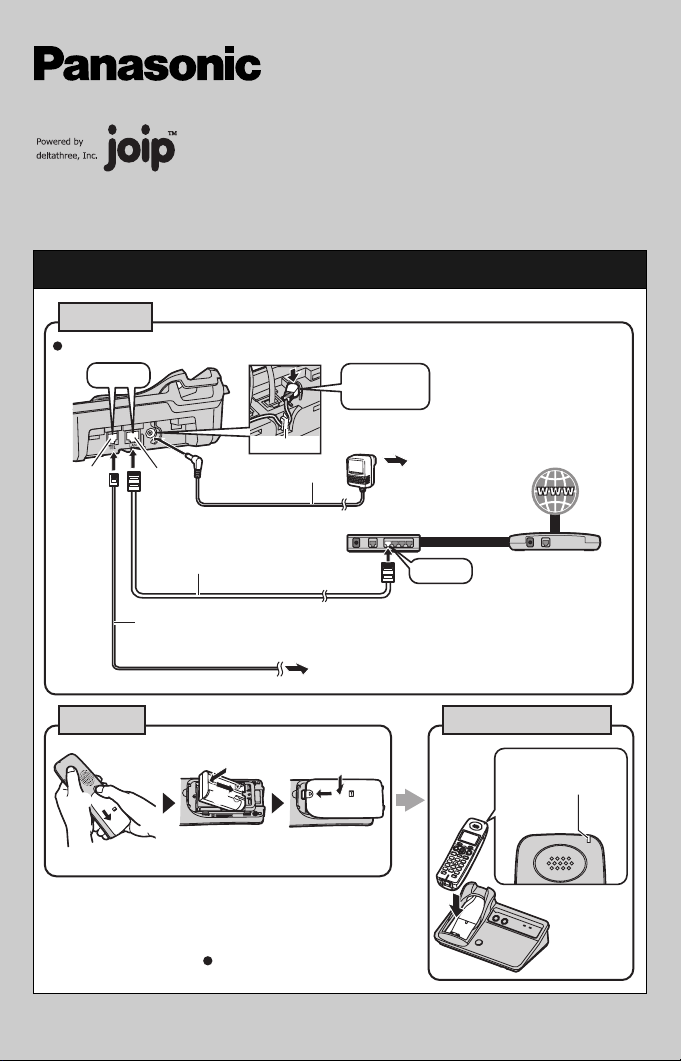

Base unit
Handset CHARGE 7 HOURS
Confirm the
charge indicator
is on.
Model shown is BB-GT1500.
AC adaptor
Telephone line cord
Ethernet cable
Router
Cable or
DSL modem
Internet
TEL LAN
B
A
C
Use only the supplied Panasonic AC adaptor PQLV203E.
To AC mains outlet
(220-240 V, 50 Hz)
To telephone network
Hook
Press
plug firmly.
“Click”
“Click”
ABE
D
C
Model No. BB-GT1500E/BB-GT1520E
BB-GT1522E/BB-GT1540E
Quick Guide
BB-GT15xxE_QG(e).fm Page 1 Sunday, July 1, 2007 10:43 AM

– 2 –
Setting up
Note:
LIf “Please read joip Terms of Use. Agree?” is not displayed in step 2,
press {IP}.
LWhen the 4indicator on the base unit does not light in green even if you wait for
a few minutes, see “4(Status) indicator” (page 6).
Viewing the Atext messages
1Ki{#}{3}{6}{0}
2{V}/{^}: Select the desired item. iM
3{i}
For product assistance, visit www.globarange.com
For Aassistance, visit www.joip.com
joip
Model shown is BB-GT1500.
Amber Green
[
Please read joip
Terms of Use.
Agree?
OK
To use the AIP line, read the Terms of Use for the Aservices on the
supplied leaflet or at www.joip.com
1
Wait for a Atext message for the Awebsite password (www.joip.com).
To view the message, see below.
5
Press M.
2Wait until the 4
indicator turns green.
3Confirm your A
number.
4
joip:#1001060429
Set Date & Time
Charger*1
*1 BB-GT1522
Use only the supplied Panasonic AC adaptor
PQLV208E.
(220-240 V, 50 Hz)
To AC mains outlet
Confirm the
charge indicator
is on.
BB-GT15xxE_QG(e).fm Page 2 Sunday, July 1, 2007 10:43 AM

– 3 –
Operating tips

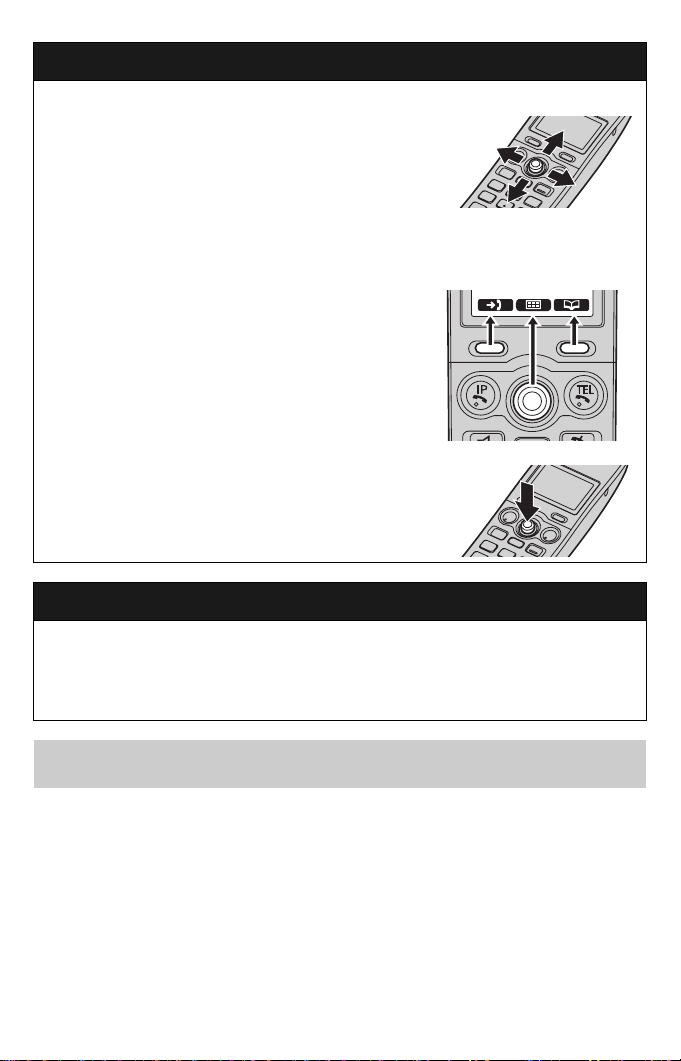

Using the joystick
The handset joystick can be used to navigate
through menus and to select items shown on the
display, by pushing it up {^}, down {V}, left {<}, or
right {>}.
Adjusting audio volume
Push the joystick up {^} or down {V} repeatedly
while talking.
Handset soft keys
The handset features 2 soft keys and a joystick. By
pressing a soft key, or by pressing the centre of the
joystick, you can select the feature shown directly
above it on the display.
M, n, and additional other functions are
assigned to soft keys. Pay attention to soft keys to
find functions you need during handset operation.
Middle soft key
The joystick can be used to select the centre soft
key icon, by pressing down on the centre of the
joystick.
Date and time (Handset)
1Ki{#}{1}{0}{1}
2Enter the current date, month, and year by selecting 2 digits for each.
3Enter the current hour and minute by selecting 2 digits for each.
4s: Select the desired setting. iMi{i}
For product assistance, visit www.globarange.com
For Aassistance, visit www.joip.com
BB-GT15xxE_QG(e).fm Page 3 Sunday, July 1, 2007 10:43 AM

– 4 –
Basic operation (Handset)
Making calls 1Dial the phone number.
2To make a landline call, press {TEL}.
To make a Ainternet call, press {IP}.
Note:
LTo call a Panasonic GLOBARANGE phone, dial the
Anumber consisting of a # followed by 10 digits.
Answering calls To answer the landline call, press ], {TEL}or {s}.
To answer the Ainternet call, press ], {IP}or
{s}.
Adjusting the receiver/
speaker volume
Push the joystick up {^} or down {V} while talking.
Viewing the caller list and
calling back
\i{V}/{^}: Select the desired item. i{TEL}/
{IP}
Ringer volume 1Ki{#}{1}{6}{0}{1}(IP line)/
{#}{1}{6}{0}{2}(landline)
2{^}/{V}: Select the desired volume. iM
BB-GT1520/BB-GT1522/BB-GT1540 Basic
operation (Base unit)
Making calls
(BB-GT1540)
1To make a landline call, press {TEL}.
To make a Ainternet call, press {IP}.
2Dial the phone number, and then speak into the
MIC.
Note:
LTo call a Panasonic GLOBARANGE phone, dial the
Anumber consisting of a # followed by 10 digits.
Answering calls
(BB-GT1540)
To answer the landline call, press {TEL}or {s}.
To answer the Ainternet call, press {IP}or {s}.
Adjusting the speaker
volume (BB-GT1540)
Press {>}or {<}repeatedly while talking.
Ringer volume 1Press {IP/TEL}repeatedly until the display shows
the desired line (nor m).
2Press {>}or {<}repeatedly to select the desired
volume.
LTo turn the ringer off, press and hold {<}until
the unit beeps.
For product assistance, visit www.globarange.com
For Aassistance, visit www.joip.com
BB-GT15xxE_QG(e).fm Page 4 Sunday, July 1, 2007 10:43 AM

– 5 –
BB-GT1520/BB-GT1522/BB-GT1540 Answering
system (Base unit)
Auto answer on 1Press {IP/TEL}repeatedly until the display
shows the desired line(s) (nand/or m).
2Press {s}.
Auto answer off Press {s}.
Recording your greeting
message (max. 2 minutes)
1Press {IP/TEL}repeatedly until the display
shows the desired line(s) (nand/or m).
2{dr}
3Within 10 seconds, press {dr} again.
4Speak clearly about 20 cm away from the MIC.
5To stop recording, press {■}.
Listening to new messages When {6}flashes on the centre of navigator key,
press {6}.
Erasing a message Press {4}during playback.
Quick troubleshooting
4(Status) indicator
Status Cause/solution
Colour Light pattern
Green On LReady to make/receive Ainternet calls.
Flashing LDownloading data, please wait.
Red On LOn for about 3 seconds during initial startup.
(Normal)
Flashing LThe base unit is registering a handset. Please wait.
Flashing rapidly LThe base unit is paging handsets. (BB-GT1500)
BB-GT15xxE_QG(e).fm Page 5 Sunday, July 1, 2007 10:43 AM

– 6 –
For further information, refer to the 4(Status) indicator section in the Operating
Instructions.
Amber On LThe base unit’s IP address may conflict with the IP
addresses of other devices on your local network if
you have set the static IP address. We recommend
using the automatic setup (default):
1. Ki{#}{5}{0}{0}
2. {V}{^}: “On” iMi{i}
Flashing LThe base unit is registering with the Aservice.
Please wait.
LIf the 4indicator continues flashing:
– If you have set the static address, we recommend
using the automatic setup (default):
1. Ki{#}{5}{0}{0}
2. {V}{^}: “On” iMi{i}
– Many installation issues can be resolved by
resetting all the equipment. First, shut down your
modem, router, base unit, and computer. Then
turn the devices back on one at a time in this
order: modem, router, base unit, computer.
– If you cannot access Internet Web pages using
your computer, check to see if your Internet
service provider is having connection issues in
your area.
– For more troubleshooting help, visit www.joip.com
or contact the Aservice provider.
OFF —LAinternet calls are not available. Check the
following:
– The base unit’s AC adaptor is connected.
– Set up for Ause (page 2).
– The Ethernet cable is connected.
– Your network devices (hub, router, etc.) are turned
on. Check the LEDs for the link status of the
devices.
Quick troubleshooting
4(Status) indicator
Status Cause/solution
Colour Light pattern
BB-GT15xxE_QG(e).fm Page 6 Sunday, July 1, 2007 10:43 AM

– 7 –
For other questions, please refer to the Operating Instructions.
Frequently asked questions
Question Cause/solution
The unit does not work. LMake sure the battery is installed correctly and
fully charged.
LUnplug the base unit’s AC adaptor to reset the
unit. Reconnect the adaptor and try again.
LThe handset has not been registered to the base
unit. Register the handset as explained later in
this guide.
I cannot hear a dial tone for
the IP line.
LConfirm the Ethernet cable is properly connected.
LYou have not agreed to the Terms of Use for the
Aservices. To use the AIP line, you need to
agree to it using the handset.
LIf you cannot make or receive internet calls or if
you are experiencing any other issues with your
VoIP telephone service provided by deltathree,
Inc., visit www.joip.com
I cannot hear a dial tone for
the landline.
LConfirm the telephone line cord is properly
connected.
LDisconnect the unit from the telephone line and
connect a known working telephone. If the
working telephone operates properly, contact
Panasonic service personnel to have the unit
repaired. If the working telephone does not
operate properly, contact your landline service
provider.
How can I increase handset
volume level?
LPush the joystick up repeatedly while talking.
The 0indicator on the
base unit flashes.
Example: BB-GT1540
LYou have new voice mail messages received by
A. For further information, refer to the Voice
Mail section in the Operating Instructions.
BB-GT1520/BB-GT1522/
BB-GT1540: The message
indicator on the base unit
flashes.
LYou have new messages received from the
landline and/or AIP line by the unit’s
answering system. For further information, refer
to the answering system section in the Operating
Instructions.
For product assistance, visit www.globarange.com
For Aassistance, visit www.joip.com
0
BB-GT15xxE_QG(e).fm Page 7 Sunday, July 1, 2007 10:43 AM

– 8 –
Quick troubleshooting
Place the handset on the base unit, then
check if the charge indicator is on.
LModel shown is BB-GT1500.
The charge indicator is OFF.
The charge indicator
is ON.
Unplug the AC adaptor of the base unit and remove the
battery from the handset, then plug in the AC adaptor and
insert the battery into the handset again. Try re-registration
as explained later in this guide.
Lift the handset, then try again.
If handset still shows the same
message, try re-registration as
explained later in this guide.
Re-registration failed.
Re-registration failed.
Your telephone may need service.
“No link to base. Move closer to base, try again.”
Handset shows:
Unplug and then plug AC
adaptor properly to both the
base unit and AC outlet.
BB-GT15xxE_QG(e).fm Page 8 Sunday, July 1, 2007 10:43 AM

– 9 –
Registering a handset to base unit
The supplied handset and base unit are preregistered. If for some reason the
handset is not registered to the base unit, register the handset.
For product assistance, visit www.globarange.com
For Aassistance, visit www.joip.com
Handset
Press K, then press {#}{1}{3}{0}.
Handset
Press [.
Wait until “Enter Base PIN” is displayed,
then enter the base unit PIN (default:
“0000”), then press M.
Base unit
BB-GT1500
Press and hold {x} until the 4
indicator flashes in red.
LComplete next step within 90 seconds.
BB-GT1520/BB-GT1522/BB-GT1540
Press and hold {x} until the registration
tone sounds and the 4indicator flashes
in red.
LComplete next step within 90 seconds.
[
Press x
on base for 4sec
Then press
OK
K
{x}
{x}
{x}
BB-GT15xxE_QG(e).fm Page 9 Sunday, July 1, 2007 10:43 AM

IMPORTANT!
If your product is not working
properly. . .
For your phone’s functions or features, please contact Panasonic.
Customer Care Centre
LFor customers within the UK: 0844 844 3898
LFor customers within the Republic of Ireland: 01289 8333
LVisit our website for product information: www.panasonic.co.uk
LE-mail: customer[email protected]
Direct Sales at Panasonic UK
LOrder accessory and consumable items for your product with
ease and confidence by phoning our Customer Care Centre
Monday - Thursday 9:00am - 5:30pm, Friday 9:30am - 5:30pm
(Excluding public holidays).
LOr go on line through our Internet Accessory ordering application
at www.panasonic.co.uk
LMost major credit and debit cards accepted.
LAll enquiries transactions and distribution facilities are provided
directly by Panasonic UK Ltd.
LIt couldn’t be simpler!
LAlso available through our Internet is direct shopping for a wide
range of finished products, take a browse on our website for
further details.
Customer Care Helpline Tel. No.: U.K. 0844 844 3898 / R.O.I. 01289 8333
Acustomer support
Ais the VoIP service provided by deltathree, Inc. for this phone.
If you cannot make or receive internet calls or if you are
experiencing any other issues with your VoIP telephone services,
please contact Acustomer support:
LVisit www.joip.com or send an email to [e-mail]
LCall *JOIP (*5647) from your GLOBARANGE phone using the
IP line.
LFor customers within the UK, call 020 7100 7403 using the
landline.
LFor customers within the Republic of Ireland, call 01529 0157
using the landline.
BB-GT15xxE_QG(e).fm Page 10 Sunday, July 1, 2007 10:43 AM
