Panasonic KX-DT390 User manual

Model No. KX-DT390
Thank you for purchasing a Digital DSS Console. Please read this
manual carefully before using this product and save this manual for
future use. This manual is designed to be used with your Digital
DSS Console and a Panasonic PBX.
The Digital DSS Console can be used with the following Panasonic Digital
Proprietary Telephones (DPTs): KX-DT333, KX-DT343, and KX-DT346.
The Digital DSS Console must be connected directly to the main unit.
Note: In this manual, the suffix of each model number is omitted unless
necessary.

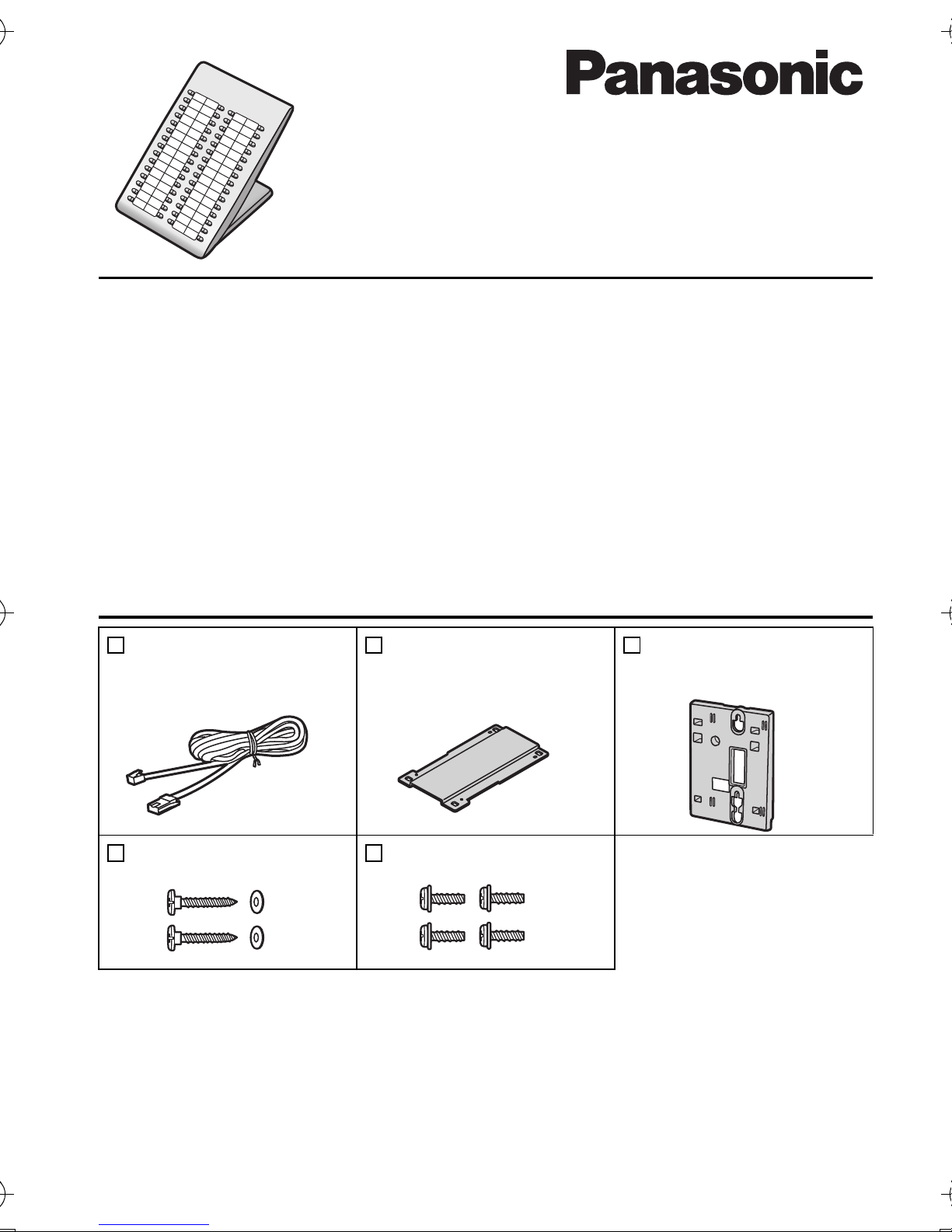

Accessories (included)
*1 This telephone comes with the wall mounting adaptor already attached.
To remove the adaptor, refer to step 1 on page 4.
Telephone Line
Cord: 1
Plate: 1 Wall Mounting
Adaptor*1: 1
Screws for wall: 2 Screws for plate: 4
Quick Reference Guide
Digital DSS Console
DT390UK_QRG_CE1731.fm Page 1 Monday, June 30, 2008 5:15 PM

2
Location of Controls
Connection
Operation Board Angle Adjustment
DSS Buttons with Busy Lamp Field (BLF):
To access an extension, simply press a DSS
button.
These buttons also can be assigned for the
One-touch Dialling and reassigned to other
features.
The BLF indicates the current status of the
corresponding extension.
CAUTION:
Ensure the cord is inserted in the grooves and the hook ( ) to prevent
damage to the connector or the cord itself.

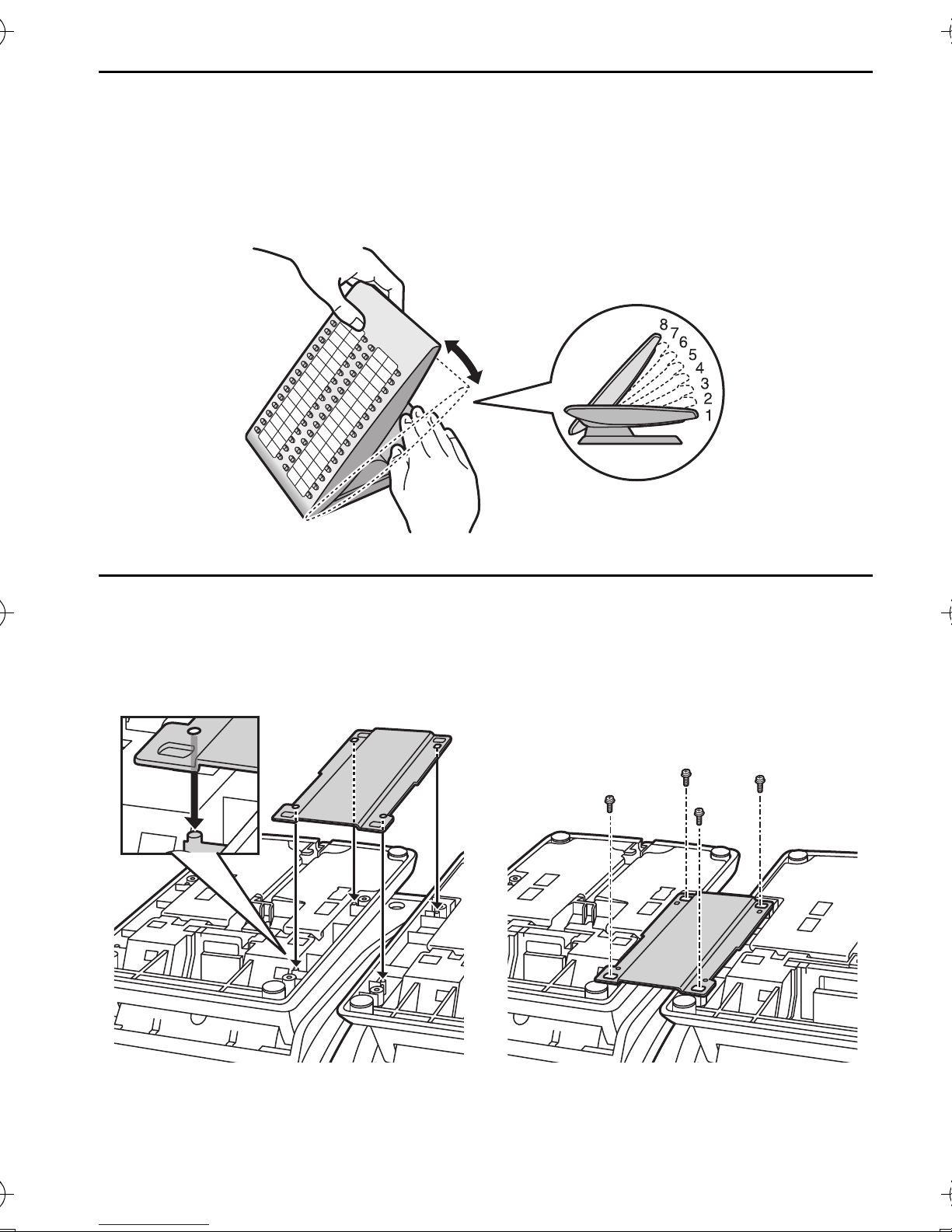

The angle of the operation board can be set to one of eight angles
(level 1 = 0°, level 8 = 45°).
CAUTION:
Hold the operation board until the operation board is secured at the
desired angle. Make sure you do not pinch your fingers when
raising or lowering the operation board.
To raise:
Gently lift the operation board one level at a time.
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
<Back view> Connect to a PBX.
The telephone line cord
(included)
A
DT390UK_QRG_CE1731.fm Page 2 Monday, June 30, 2008 5:15 PM

3
Operation Board Angle Adjustment
Attaching a DPT
To lower:
Raise the operation board to level 8. Next, with one hand on the
base of the unit, lift the operation board again to release the latch,
then slowly push the operation board down to level 1. If the
operation board cannot be lowered to level 1, repeat this step.
1. Fit the protrusions on the
KX-DT390 and a DPT into the
4 holes on the plate
(included).
2. Attach the plate with the 4
screws (included).
DT390UK_QRG_CE1731.fm Page 3 Monday, June 30, 2008 5:15 PM

4
Wall Mounting
CAUTION:
Do not mount this unit on a wall while attached to a DPT.
Doing so may damage the wall mounting adaptor or, may cause
the unit to fall, possibly resulting personal injury.

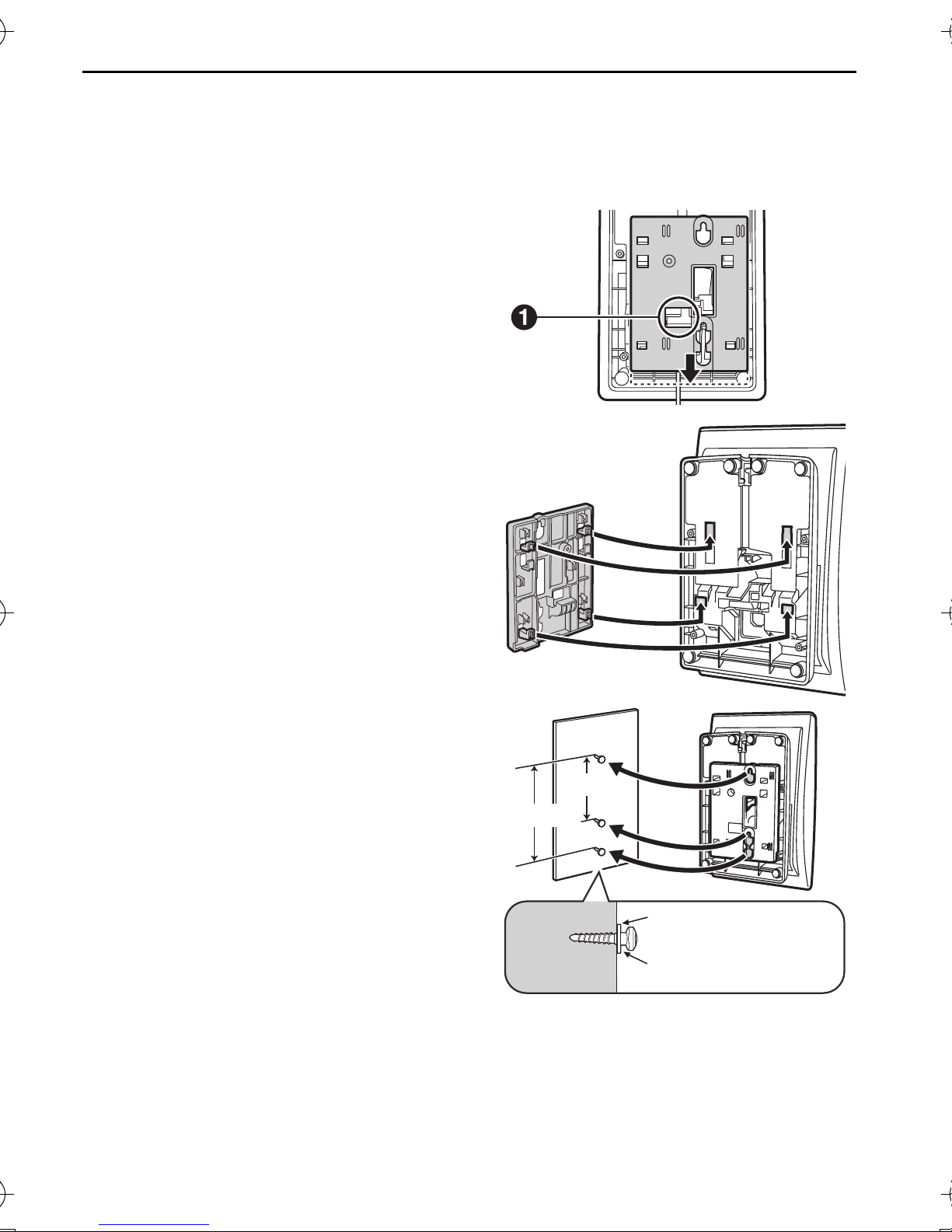

1. Remove the wall mounting
adaptor from the unit as shown.
2.Set the operation board to level
1, then connect and secure the
telephone line cord.
3.Attach the wall mounting adaptor
as shown.
•Make sure the cord is not pinched
by the wall mounting adaptor.
When running the cord from the top
of the unit, look through the
opening in the wall mounting
adaptor (A) to confirm that the
cord is not being pinched.
4.Drive the 2 screws (included)
into the wall either 83 mm or 100
mm apart, and mount the unit on
the wall.
•You can find a wall mounting
template on page 8.
•Make sure that the wall that the unit
will be attached to is strong enough
to support the unit (approx. 1 kg).
•Make sure the cord is securely
fastened to the wall.
•When this unit is no longer in use,
make sure to detach it from the
wall.
83 mm
100 mm
Washer
Drive the screw
to this point.
DT390UK_QRG_CE1731.fm Page 4 Monday, June 30, 2008 5:15 PM

5
Important Information
When using a KX-DT390 Digital DSS Console, keep the
following conditions in mind.
•If you are having problems making calls, unplug the extension line and
connect a known working Digital DSS Console. If the known working DSS
Console operates properly, have the defective DSS Console repaired by
an authorised Panasonic factory service centre. If the known working
DSS Console does not operate properly, check the PBX and the internal
extension wiring.
•Wipe the unit with a soft cloth. Do not clean the unit with abrasive
powders or with chemical agents such as benzene or thinner.
•This unit is designed to aid the visually handicapped to locate dial keys
and buttons.
•This unit is designed to be installed under controlled conditions of
ambient temperature and a relative humidity.
•Avoid installing the unit in damp or humid environments, such as
bathrooms or swimming pools.
•999 and 112 can be dialled on the product after accessing the outside
line for the purpose of making outgoing calls to the BT emergency (999)
and (112) services (United Kingdom only).
Take special care to follow the safety suggestions listed below.
Installation
Environment
1) Do not use this unit near water, for example, near a bathtub, washbowl
or sink. Damp basements should also be avoided.
2) Keep the unit away from heating appliances and devices that generate
electrical noise, such as fluorescent lamps, motors and televisions.
These noise sources can interfere with the performance of the unit. It
also should not be placed in rooms where the temperature is less than
5 °C or greater than 40 °C.
Placement
1) Do not place heavy objects on top of this unit.
2) Care should be taken so that objects do not fall onto, and liquids are
not spilled into, the unit. Do not subject this unit to excessive smoke,
dust, moisture, mechanical vibration, shock or direct sunlight.
3) Place the unit on a flat surface.
DT390UK_QRG_CE1731.fm Page 5 Monday, June 30, 2008 5:15 PM

6
Important Information
WARNING:
TO PREVENT POSSIBLE FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE.
DISCONNECT THE TELEPHONE LINE CORD FROM THIS PRODUCT IF
THIS PRODUCT EMITS SMOKE, AN ABNORMAL SMELL OR MAKES
UNUSUAL NOISE. THESE CONDITIONS CAN CAUSE FIRE OR
ELECTRIC SHOCK. CONFIRM THAT SMOKE HAS STOPPED AND
CONTACT AN AUTHORISED SERVICE CENTRE.
This product is intended to be connected to a Panasonic PBX only.
Panasonic Communications Company (U.K.) Ltd. declares that this
equipment is in compliance with the essential requirements and other
relevant provisions of Radio & Telecommunications Terminal Equipment
(R&TTE) Directive 1999/5/EC.
Declarations of Conformity for the relevant Panasonic products described in
this manual are available for download by visiting:
http://www.doc.panasonic.de
Contact to Authorised Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
1731
DT390UK_QRG_CE1731.fm Page 6 Monday, June 30, 2008 5:15 PM

7
Important Information
Information for Users on Collection and Disposal of Old
Equipment and used Batteries
These symbols on the products, packaging, and/or
accompanying documents mean that used electrical and
electronic products and batteries should not be mixed with
general household waste.
For proper treatment, recovery and recycling of old products
and used batteries, please take them to applicable collection
points, in accordance with your national legislation and the
Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will
help to save valuable resources and prevent any potential
negative effects on human health and the environment which
could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old
products and batteries, please contact your local municipality,
your waste disposal service or the point of sale where you
purchased the items.
Penalties may be applicable for incorrect disposal of this waste,
in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment,
please contact your dealer or supplier for further information.
Information on Disposal in other Countries outside
the European Union
These symbols are only valid in the European Union. If you
wish to discard these items, please contact your local
authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol
examples):
This symbol might be used in combination with a chemical
symbol. In this case it complies with the requirement set by the
Directive for the chemical involved.
DT390UK_QRG_CE1731.fm Page 7 Monday, June 30, 2008 5:15 PM

PSQX4705ZA-GQ KK0708YH0 (UK)
83 mm
100 mm
100 mm
83 mm
for DPT
for KX-DT390 DSS Console (with 60 Keys)
157 mm
One screw here
One screw at either point One screw at either point
One screw here

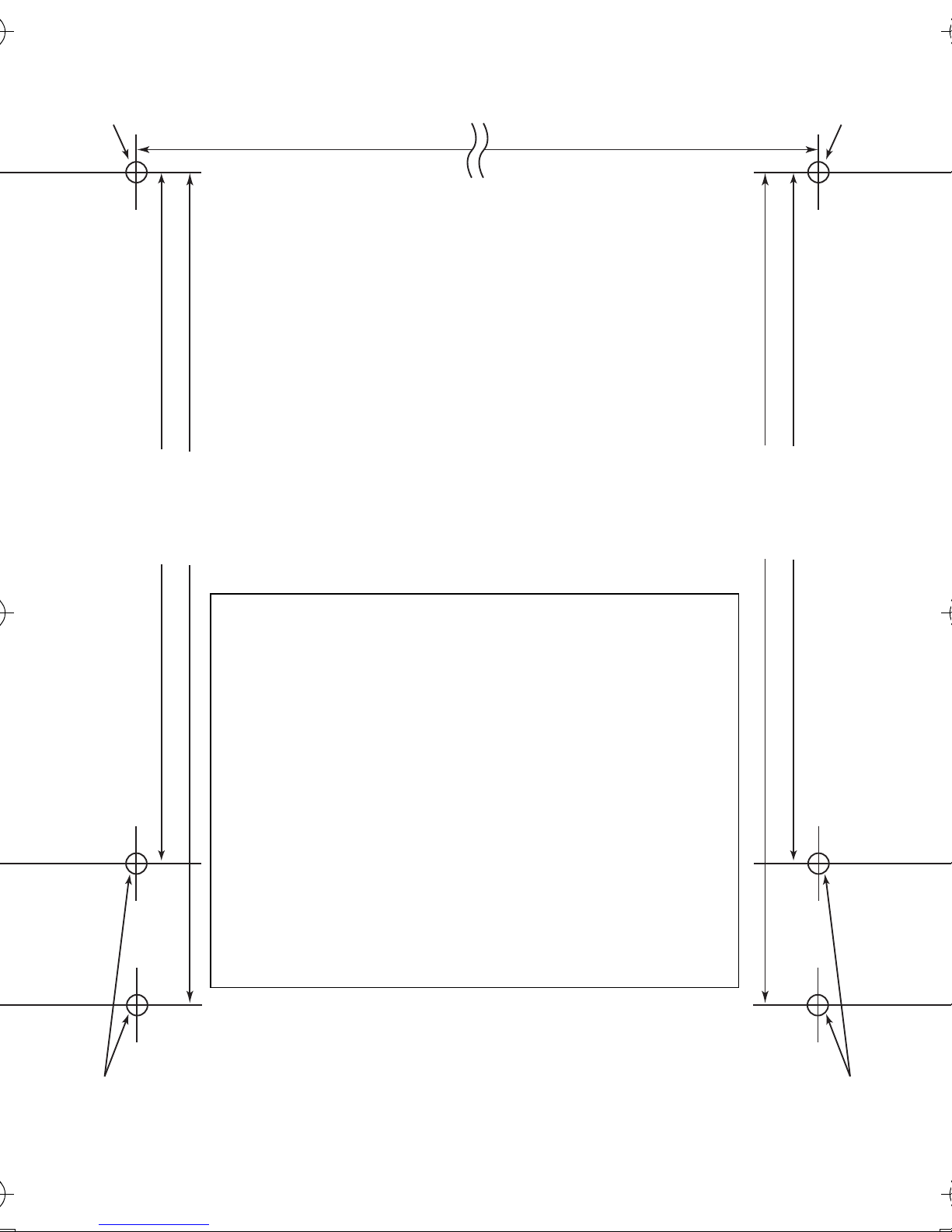

WALL MOUNTING TEMPLATE
