Gemini Dual CD Mixing Console 36 User manual

Volume 36

DJ Kid Swift spinning on his Gemini CDT-05 MKII Hybrid Turntables and PS-04 Mixer
Photo by Kathleen Riley

3
Turntables
Mixers
CD / MP3 / USB Players
DJ Software
Speakers
Amplifiers
Outboards
Wireless
Headphones & Mics
Cases & Accessories
8
4
14
20
22
28
30
31
34
35
C
O
N
T
E
N
T
S
In the late 70’s, Gemini’s avant-garde
commitment and dedication to pushing the art
form of DJing into the forefront with its affordable
and functional products was instrumental in
transforming the DJ’s conventional role from music
manipulator to accredited artist and/or performer.
Embodying the complete “Evolution of the DJ”,
Gemini has the proud history of laying the
groundwork for this one time ‘subculture’ to
evolve into a well respected, fine-tuned musical
machine. Turntablists, club and mobile DJ’s,
nightclubs, recreation facilities, contractors,
hobbyists, professional installers and designers
throughout the world rely on Gemini products for
dependable and affordable DJ audio equipment.
Flash forward to the present, Gemini continues to
add to its countless contributions to the DJ realm
by forging ahead into the digital revolution, all the
while gracefully preserving the legacy of vinyl.
*Users, by being shown, do not necessarily imply endorsement
Volume 36

Performance DJs have only dreamed of a solution that
would combine the classic feel of a turntable with the ability to play both CDs and vinyl simultaneously. That dream
has now become a reality with the state-of-the-art CDT-05 MKII. Equipped with on-the-money CD playback and
accurate scratching functions, anti-skip straight tone-arm and steady platter, plus a myriad of essential features
for uncompromising reliability, sound quality and performance versatility, Gemini’s CDT-05 MKII is more than
capable of handling abuse from scratch junkies while still versatile enough to appease mixing DJs.
The Best of Both Worlds
DJ Oliver cuts on two Gemini CDT-05 MKII’s and CS-02 Club Mixer

5
Turntables
CDT-05 MKII
Professional Hybrid CD Player / Turntable
•Audio CD, CD-R, CD-RW, MP3 CD, and vinyl compatible
•Removable, virtually unskippable straight tone arm system
•High-Torque Direct Driven platter (3.6 kg/cm) provides full control over CD playback
•Independent audio outputs for turntable and CD sections
•3-position CD/TT mode switch allows simultaneous playback of both CD and vinyl
•3 DSP effects: Filter, Echo, and Flanger with variable parameters
•Reverse switch for CD & vinyl
•3 Hot-Startable cue points with memo button
•Master cue w/ hot-start feature
•Key Lock (Master Tempo)
•Anti-Shock Protection using RAM buffer memory
•Single auto-cue/continuous play modes
•Seamless looping with reloop/stutter & loop editing
•Pitch bend via platter or buttons
•Variable Pitch control with ranges of 4%, 8%, 16%, and 50%
Dimensions: 18 x 14.5 x 5” (457 x 368 x 127 mm)
Weight: 24.75 lbs (11.23 kg)
“In the ten years I’ve been working with Gemini, nothing has impressed
me more than the CDT-05 MKII.”
DJ Get Down
DJ / Producer (France)
“The CDT-05 MKII is the ultimate tool. The unit’s ability to seamlessly
integrate the best of both worlds makes it ideal for both the mobile DJ and
the seasoned scratch professional.”
DJ Johnny ‘Juice’ Rosado
DJ/Producer (Public Enemy) / Emmy Nominated Composer
“The Gemini CDT-05 MKII is the most innovative & versatile hybrid
turntable / CD player on the market. Gemini has definitely taken it to the
next level with this one.”
DJ Juice
DJ / 8x Justo Mixtape Award Winner
“If you’re looking for a hybrid turntable which achieves accuracy on par
with vinyl, the Gemini CDT-05 MKII never jumps. It is the smoothest
player on the market.”
DJ Kid Swift
DJ / Producer
“I love the responsiveness and flexibility of my Gemini CDT-05 MKII’s...
I can’t keep my hands off them!”
DJ Jacquie Jack
DJ / Producer

Turntable Accessories
TT-04
Direct Drive Turntable
•Ultimate High Torque (5 kg) direct drive turntable
•CPU controlled magnetic platter motor system
•Adjustable ±10% or 20% pitch button w/ LED
•Convenient retractable start/brake delay rotary controls
•Straight tone arm for superior tracking
•Tone arm height finger groove adjustment up to 6 mm with lock
•Fully adjustable counter weight & anti-skating controls
•33/45/78 RPM
•Push button quartz lock and reverse w/ LED
•Felt slip mat, TL-01 and HD-01 headshell included
Dimensions: 17.5 x 14 x 3.5” (445 x 356 x 89 mm)
Weight: 27.82 lbs (12.62 kg)
HD-01
Universal Headshell
•Sturdy silver body with tracking arm
•Rubber washer for snug fit to tone arm
CN-1000
Semi-Professional DJ Cartridge
•Elliptical stylus for strong tracking
•Stylus cover for extended life span
•Screws to connect to universal headshell included
TL-01
Target Light for TT Series Turntables
•Sturdy aluminum body
•Convenient RCA connection for easy replacement
•Bright white LED for tracking
“Gemini’s TT-04 is club tested and studio proven...
unquestionably one of the best turntables you can buy.”
DJ Journey
DJ / Producer
TT-04 Platter
•Magnetic rotor under platter for superior torque (5 kg)
RUE
URN TABLISM
Photo by Stephan Mckenzie

Turntables
7
TT-02 MKII
Direct Drive Turntable
•10% Variable pitch slide control
•Fully adjustable counter weight & anti-skating control
•Dual speed RPM (33/45)
•LED illuminated soft touch start/stop & RPM buttons
•CN-1000 cartridge, felt slipmat and HD-01 headshell included
(TL-01 target light not included)
Dimensions: 18 x 14 x 3.5” (457 x 356 x 89 mm)
Weight: 14.88 lbs (6.75 kg)
TT-01 MKII
Belt Drive Turntable
•10% Variable pitch slide control
•Fully adjustable counter weight & anti-skating control
•Dual speed RPM (33/45)
•LED illuminated soft touch start/stop & RPM buttons
•CN-1000 cartridge, felt slipmat and HD-01 headshell included
(TL-01 target light not included)
Dimensions: 18 x 14 x 3.5” (457 x 356 x 89 mm)
Weight: 10.07 lbs (4.57 kg)
“Gemini’s TT line of direct drive turntables are
perfectly suited for the scratch DJ.”
DJ Psycho D
DJ / Producer
RUE
URN TABLISM

Complete Control: DJ Little Charlie with his Gemini CS-02 Club Mixer and TT-04
Any DJ with ‘next-level’ aspirations knows that in order to set
themselves apart from the rest of the pack, they need to make their performances unique. Today,
just playing the newest, freshest tracks isn’t enough. Incorporating an array of EFX and multiple
inputs to accommodate a broad range of sources allows the DJ to bring a greater level of creativity
and personality into their sets. With that in mind, Gemini has answered the ‘next-level’ DJ’s call
with a full-featured unit that provides exciting functional possibilities to your endless creativity: the
CS-02 Professional 5-channel Club Mixer.
Masterful Mixing

CS-02
12.5” Professional 5-Channel Stereo Club Mixer
•5 Channels with pre-fader LED VU meters and 3-band rotary EQ
•3 Mic, 10 Line, and 3 Phono / Line Convertible Inputs
•25 Channel-Assignable DSP Effects with bright blue backlit LCD display
and 5-bank memory recall
•6-Device Input routing matrix on each channel
•30 mm linear DSP parameter control
•Auto & Tap BPM counter with optional EFX tempo syncronization
•Face-mounted RCA Rec Output and Aux Input
•Dedicated faceplate-mounted ¼” XLR combo mic input with 3-band EQ
and Auto-Talkover Function
•Master, Booth, and Zone outputs with independent rotary volume controls
•XLR Master Balanced Output with master attenuation switch
•Replaceable faders with X-Fader Curve Control
•X-Fader assignment on each audio input channel
•Rack ears included
Dimensions: 14 x 12.5 x 5” (356 x 318 x 127 mm)
Weight: 14.86 lbs (6.74 kg)
Rear Panel
9
Mixers
“Gemini’s CS-02 Mixer is spectacular for clubbing & party rocking! The
DSP effects tempo-sync feature is amazing and extremely useful.”
DJ G.U.S.
DJ / Producer (Spain)
“My Gemini CS-02 Club Mixer handles beautifully. Simply one of the
best club mixers out there... period.”
DJ Little Charlie
DJ / Producer (United Kingdom)

NEW FOR 2008

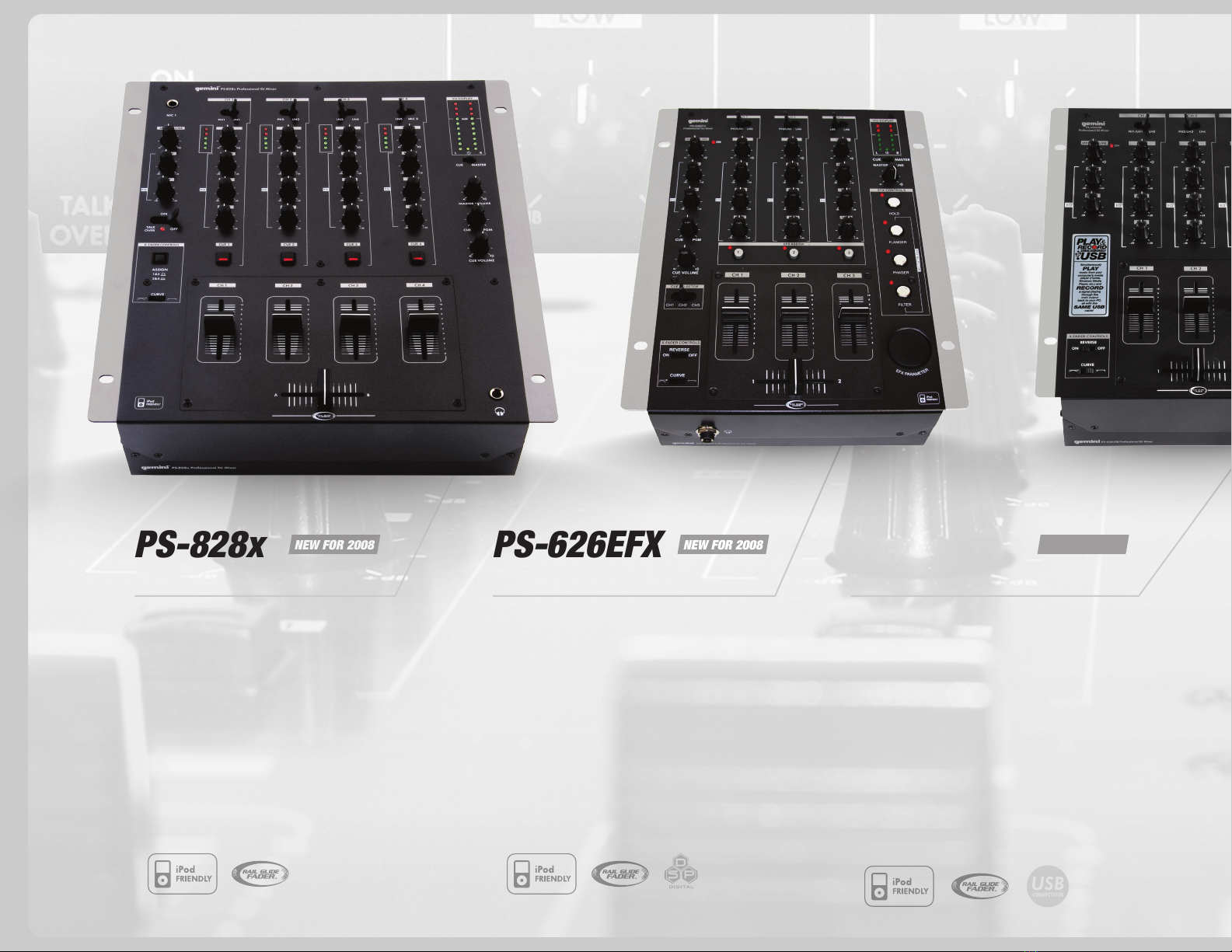

PS-626EFX
10” 3-Channel Mixer with Effects
•10” 6 line 3 channel mixer with 2 convertible Phono/Line RCA inputs
•3 built in effects including Filter, Flanger & Phaser
•One touch effects control with adjustable EFX parameter wheel
•Individual effect send on each channel
•Master and Record RCA outputs
•Master Volume Rotary knob
•Removable face plate for user replaceable Rail Glide™ Crossfader
•Crossfader Curve and Reverse selector switches
•Cue section with rotary cue volume & CUE/PGM controls with split cue switch
•3 band rotary line EQ with rotary gain channel control
•Mic section with rotary Mic volume, high & low EQ controls
•VU meters with Master/Cue option
•Front panel mounted ¼”(6.35 mm jack) headphone connector
•iPod™ friendly cable included in package
Dimensions: 10 x 12 x 3.3” (254 x 304 x 84 mm)
Weight: 6.24 lbs (2.83 kg)
NEW FOR 2008
PS-626USB
10” 3-Channel Mixer with USB
•10” 5 line 3 channel mixer with 2 convertible Phono/Line RCA inputs
•USB connectivity for your Mac or PC’s Media player (iTunes™,
Windows Media etc.)
•Simultaneously play and record to your computer through the same
USB cable
•Master and Record RCA outputs
•Master volume rotary knob
•Removable face plate for user replaceable Rail Glide™ Crossfader
•Crossfader Curve and Reverse selector switches
•Cue section with rotary cue volume & CUE/PGM controls with split cue switch
•3 band rotary line EQ with rotary gain channel control
•Mic section with rotary Mic volume, high & low EQ controls
•VU meters with Master/Cue option
•Front panel mounted ¼”(6.35 mm jack) headphone connector
•iPod™ friendly cable included in package
Dimensions: 10 x 12 x 3.3” (254 x 304 x 84 mm)
Weight: 6.1 lbs (2.76 kg)
NEW FOR 2008
PS-828x
12.5” 4-Channel Stereo Mixer
•12.5” 5 line 4 channel mixer with 2 Phono inputs
•Balanced (XLR) outputs
•Rotary gain channel control
•3 band rotary EQ per channel with -30db cuts
•Individual VU meter on each channel
•Main VU meters with Master/Cue option
•Recessed screw bottom panel for unobstructed mixing
•User-replaceable Rail Glide™ Crossfader
•Assignable Crossfader with Curve control
•Separate microphone volume with talkover and 2 band EQ
•Individual channel Cue buttons with Rotary Cue/PGM Fader
•2 ¼” (6.35 mm jack) Mic inputs (one in back and one on top)
•¼” (6.35 mm jack) Headphone output with separate volume control
•RCA Master and Record outputs
•iPod™ Friendly cable included in package
Dimensions: 12.5 x 14 x 3.2” (317.5 x 355.6 x 88.9 mm)
Weight: 8.5 lbs (3.85 kg)
