Thank you for purchasing a Panasonic facsimile.
●This guide explains some basic features and operations, but not all of them.
For further details, see the Japanese operating instructions.
●This product is designed for use in Japan.
Panasonic cannot provide service for this product if used outside Japan.
●Any details given in this guide are subject to change without notice.
KX-L5CL has one portable handset.
KX-L5CW has two portable handsets.
KX-L5CL

22
Finding the controls
Main unit (control panel)
(KX-L5CL is shown.)
Microphone
Call indicator
Liquid crystal display
Memory button & indicator shows the
list of received fax data.
Call memory button & indicator starts a
search in the Number Display log.
(For caller ID display service users.)
Speed Dial button
Auto Answer button
—light on: answering device activated.
—light off: used as a regular telephone.
Replay button plays back recorded
messages. / Record button records
telephone calls.
Mail button & indicator
Stop button
Copy button starts copying.
Start/Fax button starts faxing.
Function button initiates programming.
Multi-operation buttons refer to the
function displayed on the display panel.
Menu button
Redial button
Search button searches the directory
by pressing the up and down buttons.
Volume button adjusts ringer, speaker
and handset volume by pressing the up
and down buttons.
Phonebook button uses the
phonebook.
L-mode button
Intercom button
Clear button
Speakerphone button
Tone button switches to tone dialing.
Power indicator
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1 32 4 5 6
12
10
11
13 16 17 20 21 2314 15 19
7
9
8
18 22 24

3
Finding the controls

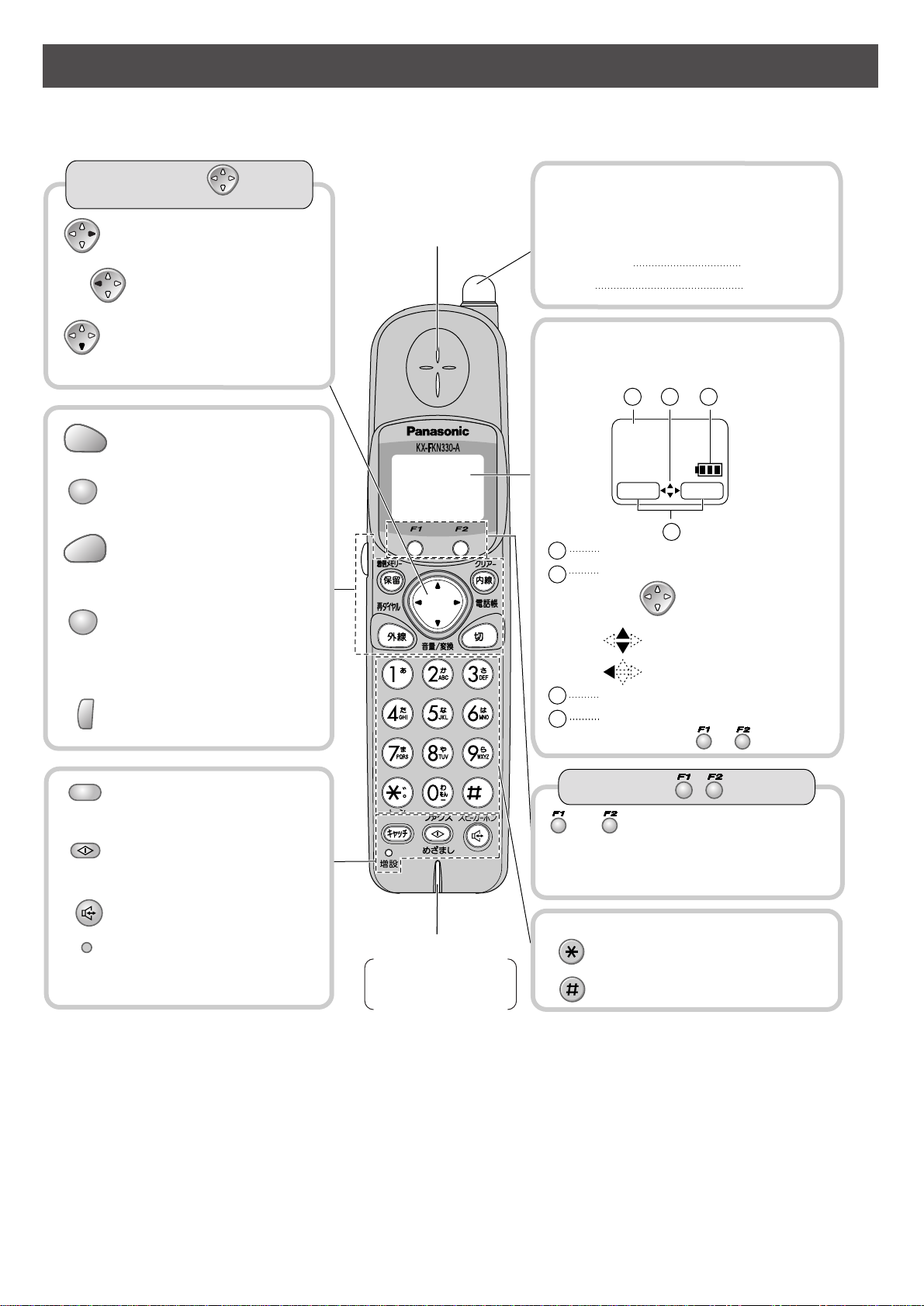

Portable handset



Tone button
● 
To switch to Tone dialing mode.
● 
To make/answer calls.
● 
To page the main unit or
another portable handset.
● 
To clear letters/numbers.
● 
To end a call.
● 
To end or exit from editing
or other operations.
● 
To put a call on hold.
● 
To start a search in the
Number Display log.
(For caller ID display
service users.)
● 
For call waiting service
users.
● 
To receive faxes.
● 
To use the speakerphone.
● 
Used when installing
additional portable
handsets. Sharp button
and buttons refer to the function
displayed on the bottom of the display.
They function differently depending on
the mode.
Call/Charge indicator
Dial buttons
Charging
Full
On
Off
LCD (with back light)
Speaker
Microphone
Do not cover the
microphone while
talking.



1
2
● 
Displays battery strength, telephone
numbers etc.
● 
When receiving a call, the indicator
will blink.
● 
When placed on a charger
Portable handset number

3Battery strength
1 2 3
4
機能
子機 1
留守電
Indicates which directions the
key can be tilted.
up and down
left
4Function menu that is
controlled by or .
外線
クリアー
内線
切
着信 メモリー
保留
ファクス
めざまし
キャッチ
スピーカーホン
増設
電話帳
再ダイヤル
音量/変換
トーン
How to use buttons
● 
To talk to another portable
handset.
ト
ー
ク

● 
To adjust the volume.
● 
To change Hiragana into
Kanji.
● 
To redial the last number
dialed.
● 
To use the phonebook.
How to use key
電話帳
再ダイヤル
音量/変換
再ダイヤル
電話帳
音量/変換

44
Installations and connections
Installing the ink film
2Insert the ink film.
Insert the white core into the slots shown in the
picture below.
1Open the control panel.
Find the “T”shaped gear (blue).
1
Ink film
Insert the blue core into the right slot of the main
unit.
Insert the “T”shaped gear (blue) into the left slot of
the main unit.
3
2
3
Blue core
“T” shaped
gear (blue)
Right slot
2
4
White core
“T”shaped gear (blue) Do not be
slacken.
Control panel
Press here.
1
Open the control
panel until it locks.
2
If the ink film is slack, tighten it by winding the “T”
shaped gear.
5
3Close the control panel until it locks.

55
Installations and connections
Installing recording paper (A4 size)
1Install the recording paper tray.
Remove the recording paper cover.
Insert the left tab on the recording paper tray into
the left slot of the main unit.
Insert the right tab into the right slot of the main
unit.
3
2
1
3Close the paper entrance cover by leaning it back.
4Install the recording paper cover on the recording
paper tray by sliding it down from the top.
Recording
paper tray
2
3
1
Slot Tab
Recording
paper cover
Paper entrance cover
Printing
side is on
the back
Paper entrance cover
Recording paper
tray
Recording paper
cover
Fan the stack of recording paper (A4 size).
Insert the recording paper into the recording paper
tray. (Up to 30 sheets)
3
2
2Insert the recording paper into the recording paper tray.
Open the paper entrance cover until it locks.
1

66
Connecting the main unit
Installations and connections
3Charge the battery in the charger for 10 hours.
Plug
Charger
AC adaptor
Power outlet
(AC 100 V)
Black
Red
Connector
Battery
Click
Battery cover
Charge indicator
–lights on:
while charging.
–lights off:
charging completed.
Setting up the portable handset
1
2
●After your Panasonic battery is fully charged,
it will last up to about 7 hours of conversation.
Power cord
Telephone line cord Wall jack
Power outlet
AC 100V
Click
Click
1Raise the antenna.
2Connect the cord and
place the handset on
the main unit.
3Connect the telephone line
cord (Supplied accessory).
4Connect the power cord.
(電話回線へ)
回線
電話機
停電用
(電話回線へ)
回線電話機
停電用
Click
After the Power On...
This unit will automatically select the dialing
mode (Tone/Pulse).

7
Setting the date and time

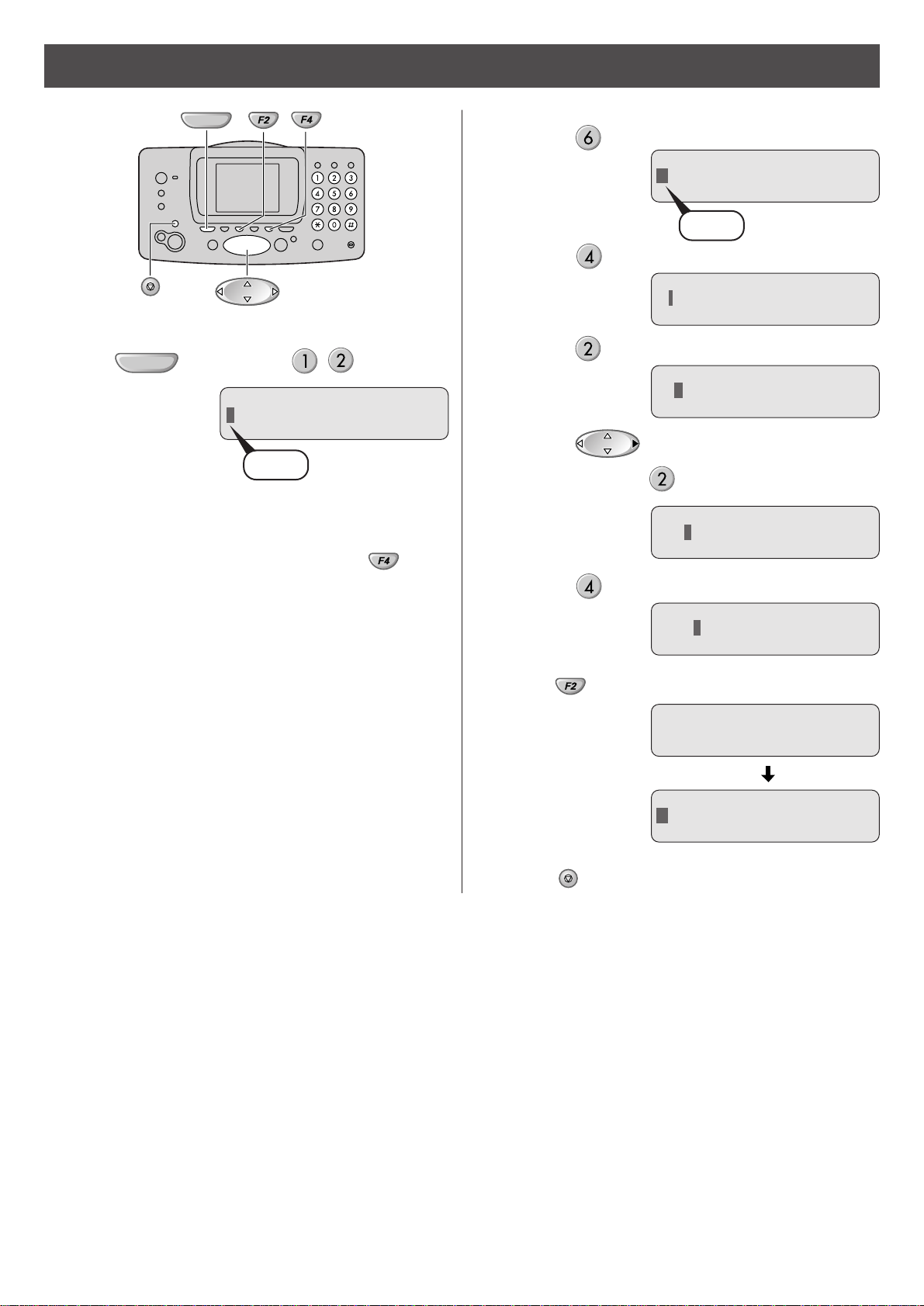

1Press (Function) and .
機能
1Press (Function) and .
機能
2Enter the correct year/month/day.
Example: October 1, 2002
Press . 2Enter your facsimile telephone number, up to
20 digits.
Example: 098 765 43 · ·
3Enter the correct hour/minute in a 24-hour clock entry.
Example: 15:45 (3:45 PM)
Press .
3Press (Register).
登録
4Press (Register).
登録
5Press (Stop).
ストップ
4Press (Stop).
ストップ
Setting your facsimile
telephone number
機能
ストップ
機能
ストップ
日付時刻
2002 年 10 月 01 日
14：30
Cursor
Example :
日付時刻
2002 年 10 月 01 日
15：45
登録しました
日付時刻
2002 年 10 月 01 日
15：45
あなたの電話番号 ?
.....................
Cursor
あなたの電話番号
?
09876543・・・.......
登録しました
あなたの電話番号 ?
09876543・・........
The (Space) button
replaces the digit with a space.
スペース

8
1Press (Function) and .
機能
2Enter your logo, up to 30 characters, using the dial
keypad.
●To enter English characters easily, press
(Character input mode) repeatedly and select
“半角英字” (English and sign input mode).
●For details, see the table on page 9 for instructions.
4Press (Stop).
ストップ
Setting your logo
機能
電話帳 再 ダイヤル
ストップ
2. Press six times.
3. Press six times.
4. Press to move the cursor to the next
space and press four times.
電話帳 再 ダイヤル
5. Press five times.
Example: Micah
1. Press once.
3Press (Register).
登録
名前(印刷用) ?
Cursor
名前 ( 印刷用
)
?
M
Cursor
名前 ( 印刷用 ) ?
Mi
名前 (
印刷用 ) ?
Mic
名前
( 印刷用 )
?
Mica
名前
( 印刷用 ) ?
Micah
登録しました
名前 ( 印刷用 ) ?
Micah

9
Character input and command key table
、、。、。
“かな”
Hiragana
“半角英字／／英”
English
“カナ”
Katakana
“半角数字／／数”
Numbers
!？/ー#‚;: ｜・’”
（）
[]
｛｝〈〉「」
ワヲンー！？ ( )
あいうえおぁぃぅぇぉ
かきくけこ
さしすせそ
たちつてとっ
なにぬねの
はひふへほ
まみむめも
やゆよゃゅょ
らりるれろ
わをんー！？ ( )
アイウエオァィゥェォ @・ｰ&＄¥%＋=
〜^
DEFdef
GHI gh i
JKL j k l
MNOmn o
PQRSpqrs
TUVtuv
WXYZwxyz
カキクケコ
サシスセソ
タチツテトッ
ナニヌネノ
ハヒフヘホ
マミムメモ
ヤユヨャュョ
ラリルレロ
1
2
3
4
5
6
7
8
9
0
ABCabc
、。
Pressing the dial keys will select a character as shown below.
Character
Dial key
Used to change the character input mode.
Used to move the cursor to the left and right.
Used to delete a character.
Used to insert a space.
Command keys
(Main unit), (Portable handset)
電話帳 再 ダイヤル
(Main unit), (Portable handset)
(Main unit), (Portable handset)
クリアー
内線
クリア ー
(Main unit), (Portable handset)
保留
スペース
●A space is counted as one character in the number of the maximum input characters.
●When entering e-mail address, the small letters are displayed before the capital letters.
●When entering e-mail address, you can not enter the following symbols: 、。ー.「」
●When entering e-mail message, pressing enables you to begin the new line. ( “ ” is displayed.)
●The display items of the main unit are somewhat different from those of the portable handset.

10
Automatic dialing on the main unit
Storing names and telephone
numbers in the phonebook
Making a voice call using the
phonebook

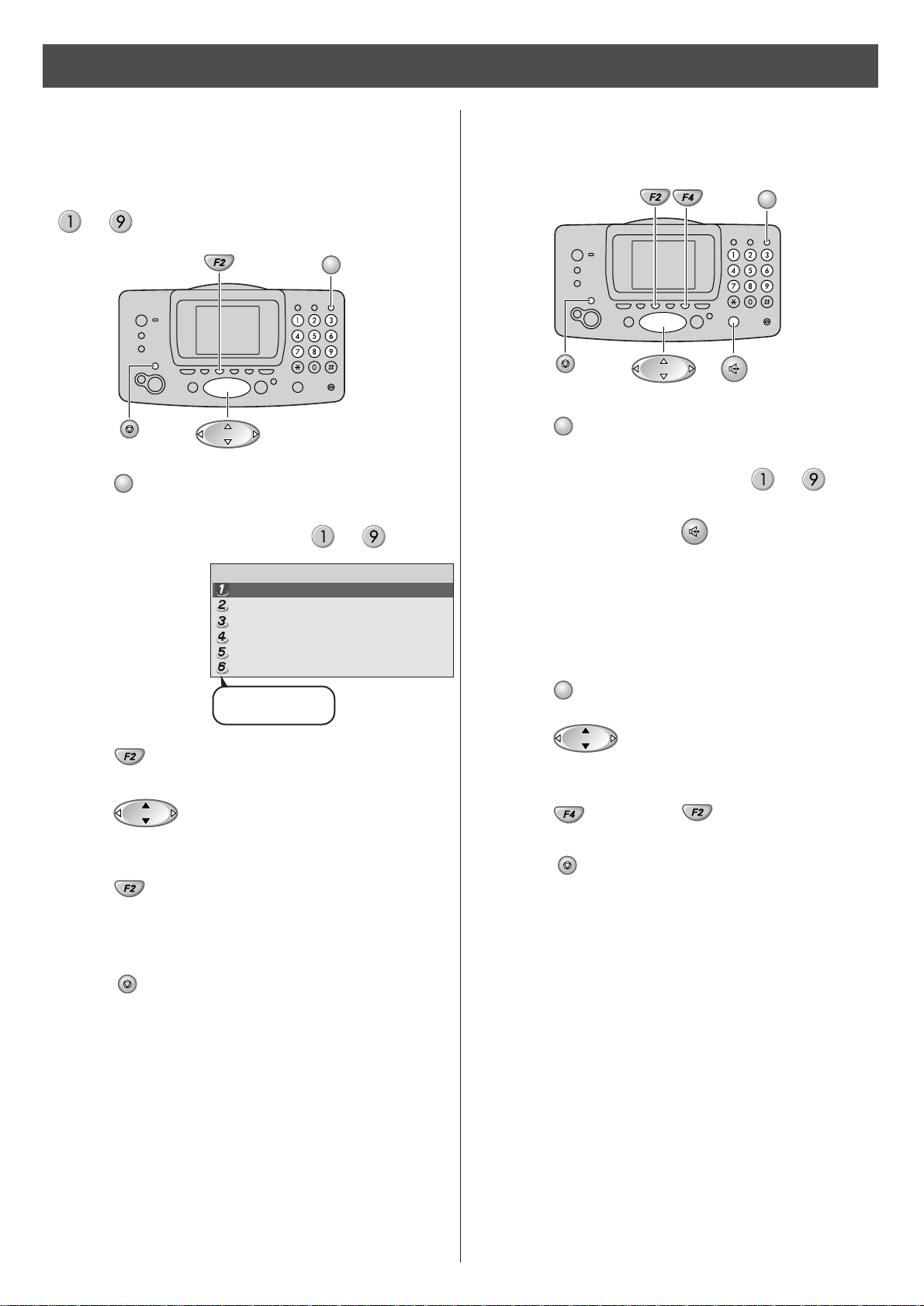

1Press (Phonebook) and (Register).
●“XXX” shows the number of remaining stations you
can store.
●You can program up to 150 stations, including 4
pre-programmed stations.
登録
電話帳 再 ダイヤル
2Press (Search button) repeatedly until the
desired name is displayed.
電話帳 再 ダイヤル
3Enter the name, up to 20 characters (see the table on
page 9 for instructions), then press (Register).
登録
3Lift the handset or press (Speakerphone).
スピーカーホン
5Enter the telephone number, up to 24 digits.
●To correct a mistake, press (Clear).
クリア ー
6Press (Register).
登録
7If necessary, press (Down) and (Set),
then enter the group number (1–9).
決定
電話帳 再 ダイヤル
8Press (Register).
●To program other items, press (Next station)
and repeat steps 2 to 9.
次の登録
登録
Editing a stored name or number
2Press (Search button) repeatedly until the
desired name is displayed.
電話帳 再 ダイヤル
3Press (Edit).
修正
4Press (Set) and edit the name (see the table on
page 9 for instructions), then press (Register).
●If you do not need to edit the name, skip to step 5.
登録
決定
6Press (Set) and enter the correct kana, then
press (Register).
登録
決定
9If necessary, press (Search button) to
select the group number column.
●If you do not need to edit the group number,
skip to step 11.
電話帳 再 ダイヤル
10Press (Set), and enter the group number
(1-9), then press (Register).
登録
決定
電話帳 再 ダイヤル
クリア ー
ストップ
2Press (Set).
決定
1Press (Phonebook).
電話帳 再 ダイヤル
1Press (Phonebook).
電話帳 再 ダイヤル
5Press (Search button) to select the kana
column.
●If you do not need to edit the kana, skip to step 7.
電話帳 再 ダイヤル
★★電話帳★★
電話帳検索
名前
？
電話帳空き XXX 件
画像 なし
★★電話帳★★
名前
フリカ
ﾞ ナ
電話番号
ｸﾞﾙｰﾌﾟ
1
4Press (Down) twice and (Set).
決定
電話帳 再 ダイヤル
画像 なし
★★電話帳★★
名 前 Micah
フリカ ﾞ ナ Micah
電話番号
ｸﾞﾙｰﾌﾟ
1
8Press (Set) and enter the correct telephone
number, then press (Register).
登録
決定
7Press (Search button) to select the
telephone number column.
●If you do not need to edit the telephone number,
skip to step 9.
電話帳 再 ダイヤル
11Press (Stop) to exit the program.
ストップ
9Press (Stop) to exit the program.
ストップ
Name
Kana
Group number
Telephone number

11
Automatic dialing on the main unit
Storing names and telephone
numbers in the speed dialer
Making a voice call using the
speed dialer
1Press (Speed dialer).
短縮
3Press (Register).
登録
4Press (Search button) repeatedly until the
desired name is displayed.
電話帳 再 ダイヤル
3Lift the handset or press (Speakerphone).
スピーカーホン
5Press (Register).
●To program other items in other stations, repeat
steps 2 to 5.
登録
6Press (Stop) to exit the program.
ストップ
Erasing a name and number
stored in the speed dialer
3Press (Erase) and (Yes).
はい
消去
短縮
電話帳 再 ダイヤル
ストップ
2Press the memory station number ( to ).
You can store up to 9 names and telephone numbers
which are stored in the phonebook. The dialing buttons
( to ) function as memory stations.
短縮
電話帳 再 ダイヤル
ストップ
スピーカーホン
1Press (Speed dialer).
短縮
2Press the memory station number ( to ).
1Press (Speed dialer).
短縮
2Press (Search button) repeatedly to select
the memory station number you want to erase.
電話帳 再 ダイヤル
4Press (Stop) to exit the program.
ストップ
★★短縮★★
1 .未登録
2 .未登録
3
.未登録
4
.未登録
5 .未登録
6 .未登録
Station number

12

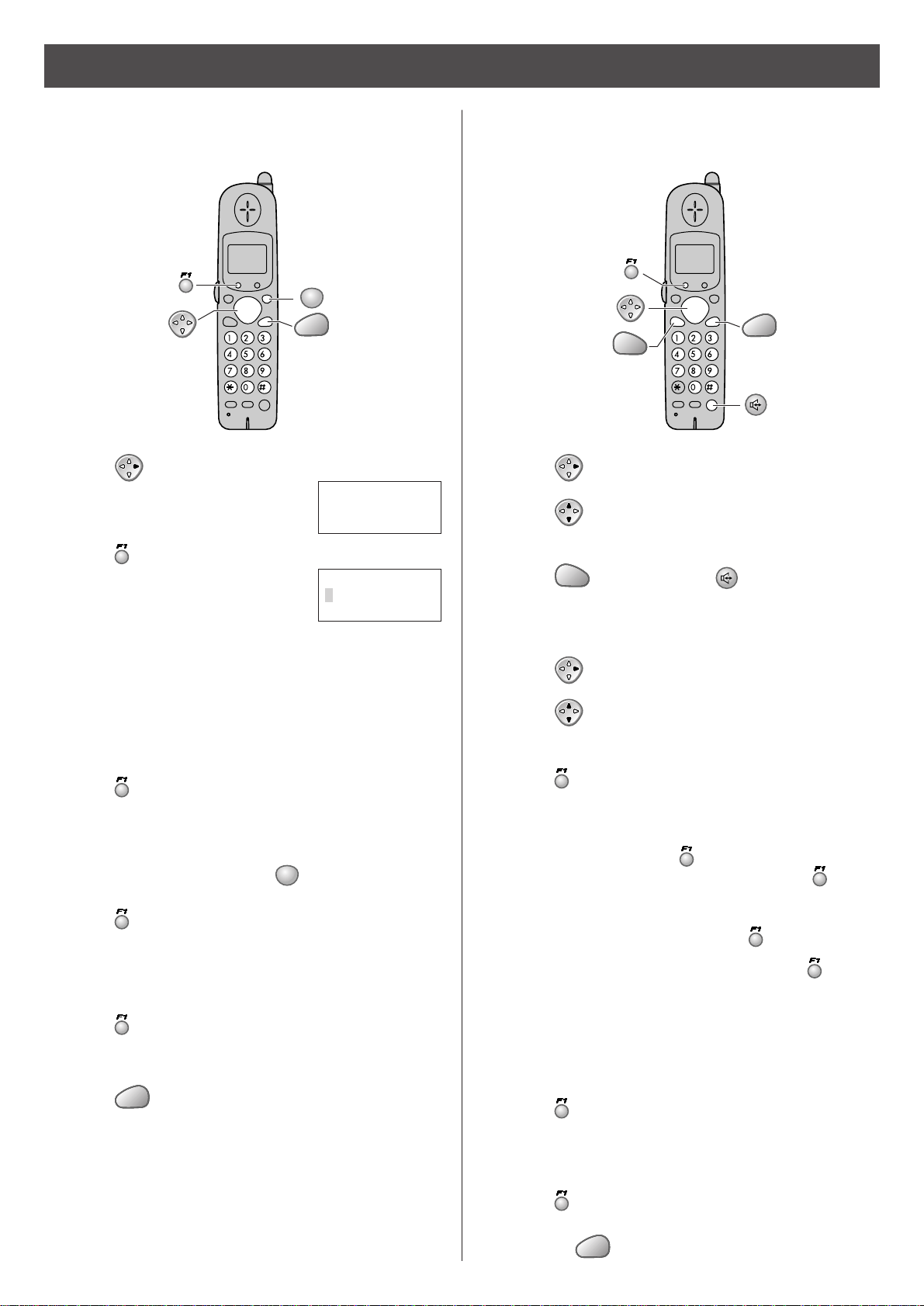

Automatic dialing on the portable handset
切
クリアー
内線
スピーカーホン
外線
切
Storing names and telephone
numbers in the phonebook
Making a voice call using the
phonebook
2Press (Register).
●“XXX” shows the remaining
station numbers you can store.
●You can program up to 150
stations, including 4 pre-
programmed stations.
登録
1Press (Phonebook).
電話帳
3Enter the name, up to 20 characters (see the table on
page 9 for instructions).
4Press (Register) twice.
登録
3Press (Talk) or press (Speakerphone).
スピーカーホン
外線
5Enter the telephone number, up to 24 digits.
●To correct a mistake, press (Clear).
クリアー
内線
6Press (Register).
登録
7If necessary, enter the group number (1–9).
8Press (Register).
●To program other items, repeat steps 3 to 8.
登録
9Press (Off) to exit the program.
切
Editing a stored name or number
3Press (Edit).
修正
4Edit the name (see the table on page 9 for
instructions), then press (Register).
●If you do not need to edit the name, press
(Register) and skip to step 5.
登録
5Enter the correct kana, then press (Register).
●If you do not need to edit the kana, press
(Register) and skip to step 6.
登録
6Enter the correct telephone number.
●If you do not need to edit the telephone number,
skip to step 7.
8If necessary, enter the correct group number.
9Press (Register).
登録
7Press (Register).
登録
1Press (Phonebook).
電話帳
2Press (Search button) repeatedly until the
desired name is displayed.
2Press (Search button) repeatedly until the
desired name is displayed.
1Press (Phonebook).
電話帳
電話帳検索
名前
？
名前 ?
空き
999 ××× 件
登録

登録

10Press (Off) to exit the program.
切

13
Intercom between the main unit and portable handset
An intercom is available between the main unit and portable handset.
Using the main unit: Using the portable handset:
スピーカーホン
子機
Handset
切
スピーカーホン
内線
2Start talking.
3Replace the handset or press
(Speakerphone) if using the speakerphone.
スピーカーホン
2Start talking.
●You can switch to the speakerphone by pressing
(Speakerphone).
スピーカーホン
3Press (Off) to end the intercom call.
切
内線呼出
1■For single portable handset users
Lift the handset.
● When pressing (Portable handset)
without lifting the handset, you can use the
speakerphone. Skip step .
Press (Portable handset).
■For multiple portable handset users
Lift the handset, then press (Portable
handset).
● When pressing (Portable handset)
without lifting the handset, you can use the
speakerphone.
Press the portable handset number ( to )
which you want to call.
2
子機
子機
1
子機
2
2
子機
1
1■For single portable handset users
Press (Intercom).
■For multiple portable handset users
Press (Intercom), then press .
内線
内線
子機 1 呼出中
Example : 子機
1 呼出中
内線番号
[
12．．．． ]を押す

14

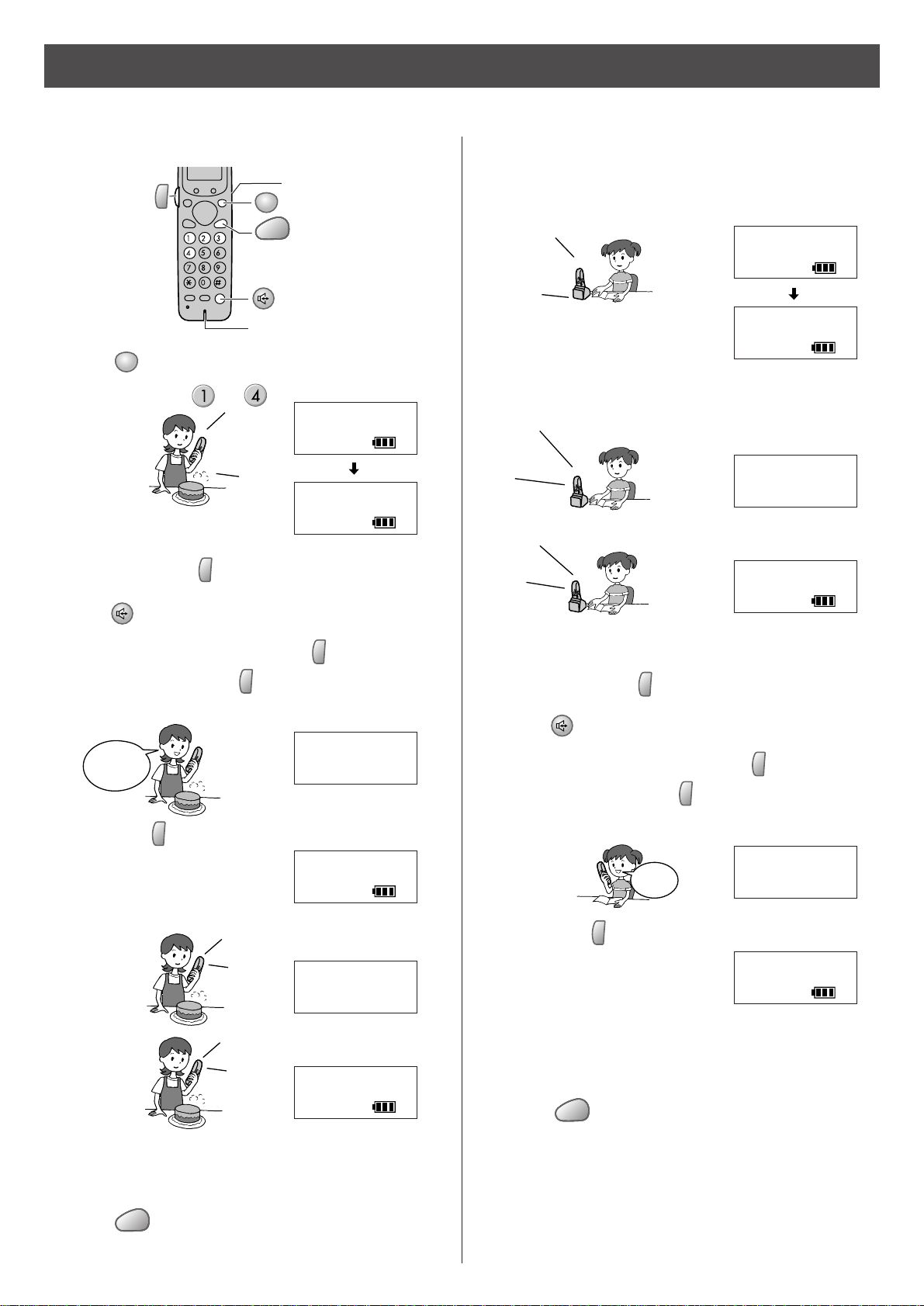

Intercom between portable handsets
Making an intercom call Answering an intercom call
Pi Pi Pi!
Ring
Ring!
Yes, Mom!
Pi Pi Pi!
Pi Peep!
Pi Pi Pi!
You want
some cake?
Pi Pi Pi!
A 2-way intercom is available between 2 portable handsets.
(For KX-L5CL users: An optional handset is needed when using this feature.)
1Press (Intercom) and the desired portable
handset number ( to ).
内線
4If you want to continue the conversation, repeat steps
2 and 3.
5Press (Off) to end the intercom call.
切
4If you want to continue the conversation, repeat steps
2 and 3.
5Press (Off) to end the intercom call.
切
1
2Listen to the caller.
3Listen to the response.
3Respond to the caller.
1. Press and hold (Talk) until a beep sounds.
●light on
2. Start talking while holding down (Talk).
●Keep holding down (Talk)
until you finish talking.
3. Release (Talk) after you finish talking.
ト
ー
ク

ト
ー
ク

ト
ー
ク

スピーカーホン
ト
ー
ク

子機間通話
子機間呼出
2Start talking.
1. Press and hold (Talk) until a beep sounds.
●light on
2. Start talking while holding down (Talk).
●Keep holding down (Talk)
until you finish talking.
3. Release (Talk) after you finish talking.
ト
ー
ク

ト
ー
ク

ト
ー
ク

スピーカーホン
ト
ー
ク

You want
some cake?
子機間通話
子機間通話
[ 送話 ]
子機間通話
子機間通話
ｱｱｱｱｱｱ
[ 受話 ]
子機間着信
子機間通話
子機間通話
ｱｱｱｱｱｱ
[ 受話 ]
子機間通話
子機間通話
子機間通話
[ 送話 ]
Yes,
Mom!
Microphone
スピーカーホン
ト
ー
ク

切
内線
Speaker (Back)

15
Sending faxes
1Open the document cover, and adjust the width of the
document guides to the size of the document.
2Insert the document (up to 5 pages) FACE DOWN
until a single beep is heard.
3If necessary, press (Resolution) repeatedly to
select the desired setting (see below).
画質
ファクス
スタート
Document
guide Document
cover
Document
FACE DOWN
4Dial the fax number.
5Press (Fax).
●The unit will start fax transmission.
ファクス
スタート
ファクス
スタート
電話帳 再 ダイヤル
短縮
Document
Document
guide Document
cover
FACE DOWN
Sending a fax manually Sending a fax using the
phonebook/speed dialer
1Open the document cover, and adjust the width of the
document guides to the size of the document.
2Insert the document (up to 5 pages) FACE DOWN
until a single beep is heard.
3If necessary, press (Resolution) repeatedly to
select the desired setting (see below).
画質
5Press (Fax).
●The unit will start fax transmission.
ファクス
スタート
To select the resolution
Select the desired resolution according to the type of document, by pressing (Resolution).
(Standard) for printed or typewritten originals with normal-sized characters.
(Fine) for originals with minute printing.
(Photo) for originals containing photographs.
画質
4■When using the phonebook
Press (Phonebook), then press
(Search button) until the desired name
is displayed.
■When using the speed dialer
Press (Speed dialer), then press memory
station number ( to ).
短縮
電話帳 再 ダイヤル
電話帳 再 ダイヤル
画質
= ふつう
画質 = 小さい
画質
= 写真

16

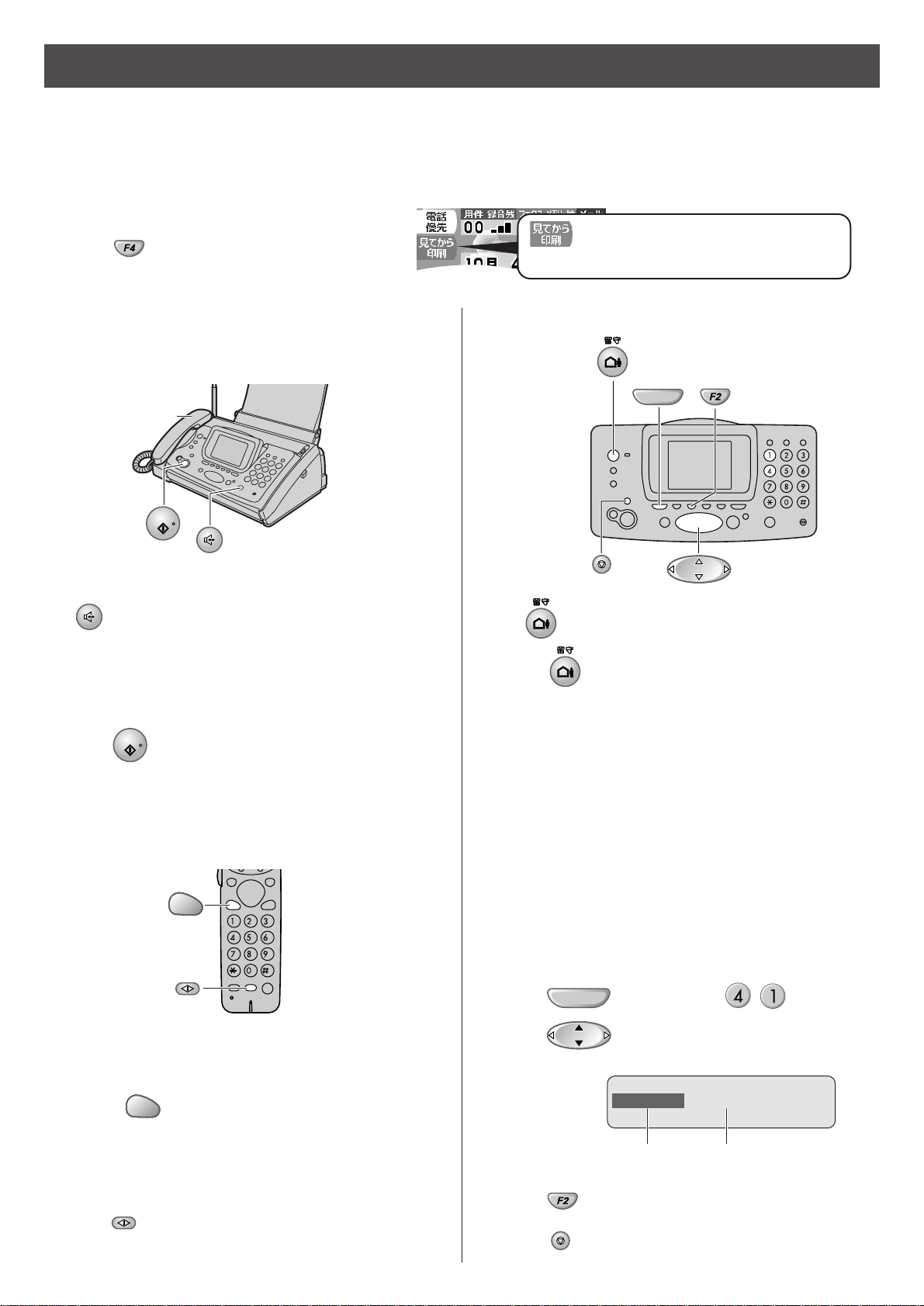

Receiving faxes
If the (Auto answer) light is on, turn it off by
pressing .
When AUTO ANSWER mode is off, the unit provides two
types of receiving modes: “電話優先”(Telephone) mode
and “ﾌｧｸｽ優先”(Fax/Telephone) mode.
Telephone mode (電話優先) –Pre-selected setting:
Select this mode when you plan to answer the calls
yourself.
When receiving calls, you have to answer all calls
manually.
Fax/Telephone mode (ﾌｧｸｽ優先): Select this mode
when you are near the unit and want to use it to receive
voice calls yourself and fax calls automatically.
Change the setting if you want to use this mode.
ファクス
スタート
スピーカーホン
Handset
ストップ
light off
機能
電話帳 再 ダイヤル
Receiving a fax manually
(AUTO ANSWER off)
Setting ANSWER mode
外線
ファクス
2When: –document reception is required,
–a fax calling tone (slow beep) is heard, or
–no sound is heard,
press (Fax).
ファクス
スタート
Using the main unit:
1When you hear a ring, lift the handset or press
(Speakerphone) to answer the call.
スピーカーホン
3Replace the handset if you are using it.
●The unit will start fax reception.
Using the portable handset:
1When you hear a ring, lift the portable handset from
the charger to answer the call.
●If the portable handset is not set on the charger,
press (Talk).
外線
2When: –document reception is required,
–a fax calling tone (slow beep) is heard, or
–no sound is heard,
press (Fax reception) until a single beep is heard.
●The main unit will start fax reception.
ファクス
1. Press (Function) and .
機能
2. Press (Search button) repeatedly to select
the desired mode.
電話帳 再 ダイヤル
3. Press (Register).
登録
4. Press (Stop).
ストップ
means “Telephone mode” means “Fax/Telephone mode”
You can select beforehand whether to receive faxes by “Receive in memory”or “Receive on recording paper”.
Receive in memory: The received fax will be stored in memory. You can check the contents on the display,
then print them if necessary.
Receive on recording paper: The received fax will be printed on recording paper.
■Setting/canceling “Receive in memory”
Press . (Changes each time it is pressed.)
ファクス 切替
:Receive in memory
With no display: Receive on recording paper
在宅時の受け方
電話優先,
ﾌｧｸｽ 優先
(Default setting)

17
Receiving faxes
ファクス 一覧
flash
Flashing will stop after
all new faxes have been
displayed or printed.
Display when faxes are received
in memory
1Press (Fax list).
ファクス 一覧
2Press (Search
button) to select the
desired fax to display.
電話帳 再 ダイヤル
3Press (Display) to see
the fax (see below for detail).
●To print the displayed page,
press (Start).
表示
4To view other faxes, press (Return) and repeat
steps 2–3. To exit the program, press (Stop).
ストップ
戻る
Viewing faxes stored in memory
新規（ﾏｰｸ） 02 件 合計 08 件（ 11 ﾍﾟｰｼﾞ）
日付 時刻
ﾍﾟｰｼﾞ 相手局名
01 9月10日 21：59 01 098765111.
02
9月10日 13：40 03 098765222.
03 ◆   9月 9日 8：05 01 098765333.
04 8月25日 22：15 02 098765444.
05 7月10日 9：00 01 
ページ切替
戻る 回転・ズーム
印刷は[ｽﾀｰﾄ]を押す    01/03
消去
■ To scroll display contents
Up
Down
Left Right
■ To enlarge or reduce content
パパへ
今日はママのお誕生日だから
ママの大好きなチューリップ
を買ってきてね！
ゆみより
パパへ
今日はママのお誕生日だから
ママの大好きなチューリップ
を買ってきてね！
ゆみより 好きなチ
ママのお誕生日
大好きなチュー
てきてね！
Reduce Normal
Enlarge
(2 times)
Enlarge
(4 times)
Enlarge：Press (Turn·Zoom) (Zoom+).
Reduce：Press (Turn·Zoom) (Zoom–).
ズーム ○
−
回転・ズーム
ズーム ○
+
回転・ズーム
■ Scroll pages
To show the next page: Press (Scroll page) (Next page).
To show the previous page: Press (Scroll page) (Previous page).
前ページ
ページ切替
次ページ
ページ切替
■ To turn display contents
Press (Turn·Zoom) (Turn).
回転
回転・ズーム
(Example)
● Normal display (can be
scrolled up and down.)
● Enlarge display (can be scrolled up,
down, left and right.)
(Example)
Information about display
電話帳 再 ダイヤル
ストップ
ファクス
スタート
ファクス 一覧
ファクス
スタート
Example :
The number of faxes stored
in memory is displayed.
When new faxes are received in memory, (Fax list)
will flash.
ファクス 一覧

18
Receiving faxes
電話帳 再 ダイヤル
ストップ
ファクス 一覧
3After printing, the following is displayed.
●If you want to delete the fax, press (Yes).
●If you want to hold the fax, press (No).
いいえ
はい
Printing a specific fax stored in
memory
1Press (Fax list).
ファクス 一覧
2■To print a specific fax
Press (Search button) to select the desired
fax to print, then press (Print a specific fax).
■To print new fax only
Press (Change button function) twice,
then press (Print new fax).
■To print only a required page
1. Press (Change button function) twice,
then press (Print a page).
2. Enter the start page and press (Set).
3. Enter the end page and press (Set).
■To print all faxes
Press (Change button function), then press
(Print all).
ボタン切替
決定
決定
ボタン切替
ボタン切替
電話帳 再 ダイヤル
電話帳 再 ダイヤル
ストップ
ファクス 一覧
3Press (Delete a specific fax).
個別消去
Deleting a specific fax stored in
memory
1Press (Fax list).
ファクス 一覧
2Press (Search button) to select the desired
fax to delete.
電話帳 再 ダイヤル
Do you delete the fax ?
or
Do you delete the new fax ?
4If you want to delete the fax, press (Yes).
●If you want to hold the fax, press (No).
いいえ
はい
5If you want to delete other faxes, repeat steps 2–4.
6Press (Stop).
ストップ
新規印刷
ページ 印刷
全件印刷
4Press (Stop).
ストップ
ボタン切替 表示 個別印刷 個別消去
新規（ﾏｰｸ） 02 件 合計 08 件（ 11 ﾍﾟｰｼﾞ）
日付 時刻
ﾍﾟｰｼﾞ 相手局名
01 9月10日 21：59 01 098765111.
02
9月10日 13：40 03 098765222.
03 ◆   9月 9日 8：05 01 098765333.
04 8月25日 22：15 02 098765444.
05 7月10日 9：00 01 
印刷した内容を
すべて消去しますか？
消去しました
新規（ﾏｰｸ） 02 件 合計 08 件（ 11 ﾍﾟｰｼﾞ）
日付 時刻
ﾍﾟｰｼﾞ 相手局名
01 9月10日 21：59 01 098765111.
02
9月10日 13：40 03 098765222.
03 ◆   9月 9日 8：05 01 098765333.
04 8月25日 22：15 02 098765444.
05 7月10日 9：00 01 
消去しますか？
新規の内容があります
消去しました
消去しますか？
Do you delete the
printed contents ?
個別印刷

19
Receiving faxes
2When receiving a call, the unit will receive a fax
document or record a voice message automatically
depending on the caller’s request.
light on
Receiving a fax automatically
(AUTO ANSWER on)
1If the (Auto answer) light is off, turn it on by
pressing .
ストップ
Handset
Recording your own greeting
message
You can record your own greeting message. When
receiving a call, it will be played to callers instead of the
pre-recorded Japanese greeting message.
1Press (Record), then press .
留守電
2Lift the handset.
3Press (Set) and record your greeting message,
up to 16 seconds, using the handset.
決定
4Press (Stop), then replace the handset.
●Your greeting message will be played back
automatically.
ストップ
AUTO ANSWER mode will work when the (Auto
answer) light is on.
AUTO ANSWER mode provides three types of receiving
modes: “ﾌｧｸｽ / 留守電”(Fax/Answering device) mode,
“ﾌｧｸｽ専用”(Fax only) mode and “留守電専用”
(Answering device only) mode.
Fax/Answering device mode (ﾌｧｸｽ / 留守電)
–Pre-selected setting:
Select this mode when you want to receive all voice and
fax calls automatically.
Fax only mode (ﾌｧｸｽ専用):
Select this mode when you wish to use the unit only as a
fax machine.
Answering device only mode (留守電専用):
Select this mode when you wish to use the unit only as a
telephone answering device.
Change the setting if you want to use the fax only mode
or answering device only mode.
機能
電話帳 再 ダイヤル
ストップ
light on
1. Press (Function), then press .
機能
3. Press (Register), then press (Stop).
ストップ
登録
Setting AUTO ANSWER mode
2. Press (Search button) repeatedly to select
the desired receiving mode.
電話帳 再 ダイヤル
留守時の受け方
ﾌｧｸｽ /留守電
ﾌｧｸｽ/留守電 (Fax/Answering device mode)
ﾌｧｸｽ専用 (Fax only mode)
留守電専用 (Answering device only mode)

20
Operating the built-in answering device
2When receiving a call, a greeting message will be
played and the unit will record a voice message.
●To record your own greeting message, see page 19.
light on/flash
機能
ストップ
聞き直し/
通話録音
電話帳 再 ダイヤル
Activating the answering device
Operating the answering device
from a remote location
1Turn the (Auto answer) light on by pressing .
Listening to recorded messages
When new messages are recorded, the (Auto
answer) light will flash.
Press to listen to recorded messages.
After the messages are played back, the following will be
displayed.
Listening to all of the recorded
messages
Erasing all of the recorded
messages
1Press (Record), then press (Set).
決定
留守電
2Press (Yes).
はい
Erasing your own greeting
message
2Press (Yes).
●The pre-recorded Japanese greeting message will
be played when you receive a call.
はい
Preparation: Programming the remote operation ID
1. Press (Function), then press .
2. Enter any 4-digit number (remote operation ID) except
or #.
3. Press (Register).
4. Press (Stop).
ストップ
登録
機能
Operation: Listening to a recorded message from a
remote location
Turn the (Auto answer) light on before you go out.
Remote operations are available only from a touch tone
telephone.
1. Call your unit.
2. Enter the remote operation ID during the greeting
message.
3. Press or wait 4 seconds.
●Only the new recorded messages will be played
back.
●To listen to all the recorded messages, press
after the new messages have been played back.
4
2
1Press (Record), then press .
留守電
Press (Replay/Record).
After the messages are played back, the following will be
displayed.
聞き直し/
通話録音
再生した用件を
消去しますか
?
Do you delete the
messages played back?
●To erase the messages, press (Yes).
●To save the messages, press (No).
いいえ
はい
Erasing a specific message
Press (Erase) while listening to the message you
want to erase, then press (Yes).
消去
はい
再生した用件を
消去しますか
?
Do you delete the
messages played back?
●To erase the messages, press (Yes).
●To save the messages, press (No).
いいえ
はい
