Panasonic KX-PW95CL User manual

Facsimile
Quick Reference Guide
Model No.
Table of Contents
Finding the controls ……………………………………………………………2
Installations and connections …………………………………………………4
Setting the date and time ………………………………………………………7
Setting your facsimile telephone number ……………………………………7
Setting your logo…………………………………………………………………8
Character input and command key table ……………………………………9
Automatic dialing on the main unit……………………………………………10
Automatic dialing on the portable handset …………………………………12
Intercom between the main unit and portable handset ……………………13
Sending faxes …………………………………………………………………14
Receiving faxes ………………………………………………………………15
Operating the built-in answering device ……………………………………16
Individual e-mail services ……………………………………………………18
Specifications…………………………………………………………Back cover
Thank you for purchasing a Panasonic facsimile.
●This guide explains some basic features and operations, but not all of them.
For further details, see the Japanese operating instructions.
●This product is designed for use in Japan.
Panasonic cannot provide service for this product if used outside Japan.
●Any details given in this guide are subject to change without notice.
KX-PW95CL
KX-PW95CL
KX-PW95CW

2
Finding the controls
Main unit (control panel)
1245
3
6
7
9
8
10
12
14 13
15
16
17
18
11

19

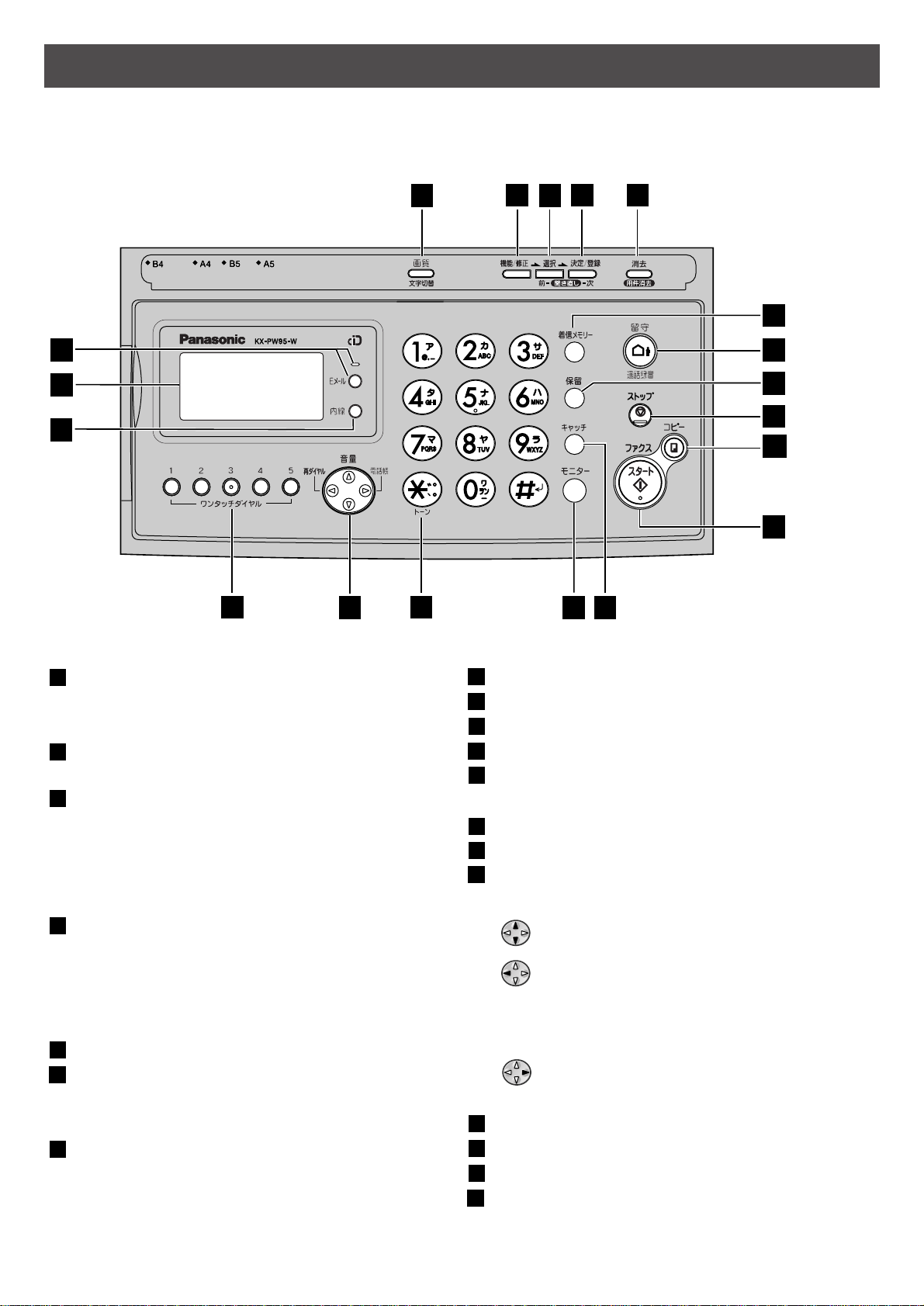

Resolution button selects the resolution
when faxing or copying.
Character Input Mode button
Function button initiates programming.
Edit button
Select button selects feature settings.
Previous Replay button
—plays back recorded messages.
—returns to the previous message while
listening to a recorded message.
Set/Register button stores a parameter.
Next Replay button
—plays back recorded messages.
—skips to the next message while
listening to a recorded message.
Erase button
Call Memory button starts a search in
the Number Display log.
(For caller ID display service users.)
Auto Answer button & indicator
—light on: answering device activated.
—light off: used as a regular telephone.
Record button records telephone calls.
Hold button
Stop button
Copy button starts copying.
Start/Fax button starts faxing.
Flash button
(For call waiting service users.)
Monitor button
Tone button switches to tone dialing.
Volume/Redial/Phonebook/
Addressbook key
To adjust the volume.
To redial the phone numbers in
the redial list. The last 10 phone
numbers dialed are stored in
memory.
To use the phonebook and the
addressbook.
One-touch dial buttons
Intercom button
Liquid crystal display
E-Mail button & indicator
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

3
Finding the controls
Portable handset


● 
To adjust the volume.
● 
To redial the phone
numbers in the redial
list. The last 10 phone
numbers dialed are
stored in memory.
● 
To insert a pause.
● 
To make/answer calls.
● 
To page the main unit.
● 
To change the character
input mode.
● 
To end a call.
● 
To end or exit from editing or
other operations.
● 
To put a call on hold.
● 
To start a search in the
Number Display log.
(For caller ID display service
users.)
● 
To clear letters/numbers.
● 
For call waiting service
users.
● 
To receive faxes.
● 
To use the speakerphone.
● 
Used when installing
additional portable
handsets.
Sharp button
● 
To use the phonebook.

and buttons refer to the function
displayed on the bottom of the display.
They function differently depending on
the mode.
Charge indicator
Dial buttons
Charging
Full
Red
Off
LCD (with back light)
Speaker
Microphone
Do not cover the
microphone while
talking.


How to use buttons
How to use key
1
3

● 
Displays battery strength, telephone
numbers etc.
Function menu that is
controlled by or .
Portable handset number
Battery strength
● 
To adjust the receiver
volume.

Tone button
● 
To switch to Tone dialing mode.
ｺｷ 1
1
32
2
2


4
Installations and connections
Installing the ink film
2Insert the ink film.
1Open the control panel.
Find the “T”shaped gear (blue).
Ink film
Right slot
Blue core
Insert the “T”shaped gear (blue)
into the left slot of the main unit.
Control panel
Press here.
1
Open the control
panel until it locks.
2
2
Insert the blue core
into the right slot of
the main unit.
1
Do not
be slacken.
Click
3If the ink film is slack, tighten it by winding the “T”
shaped gear.
4Close the control panel until it locks.
Insert the white core into the slots.
3
●When the unit runs out of ink film, the following
message will be displayed.
Install a new ink film.
・As of January 2004. ・Tax not included.
ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀ
ﾋﾝﾊﾞﾝ
: KX-FAN141
ﾌｨﾙﾑｶﾞｼﾅｸﾅﾘﾏｼﾀ
ｺｳｶﾝｼﾃｸﾀﾞｻｲｼ
U23
Replacement ink film:
KX-FAN141 (50 m) ¥1400

5
Installations and connections

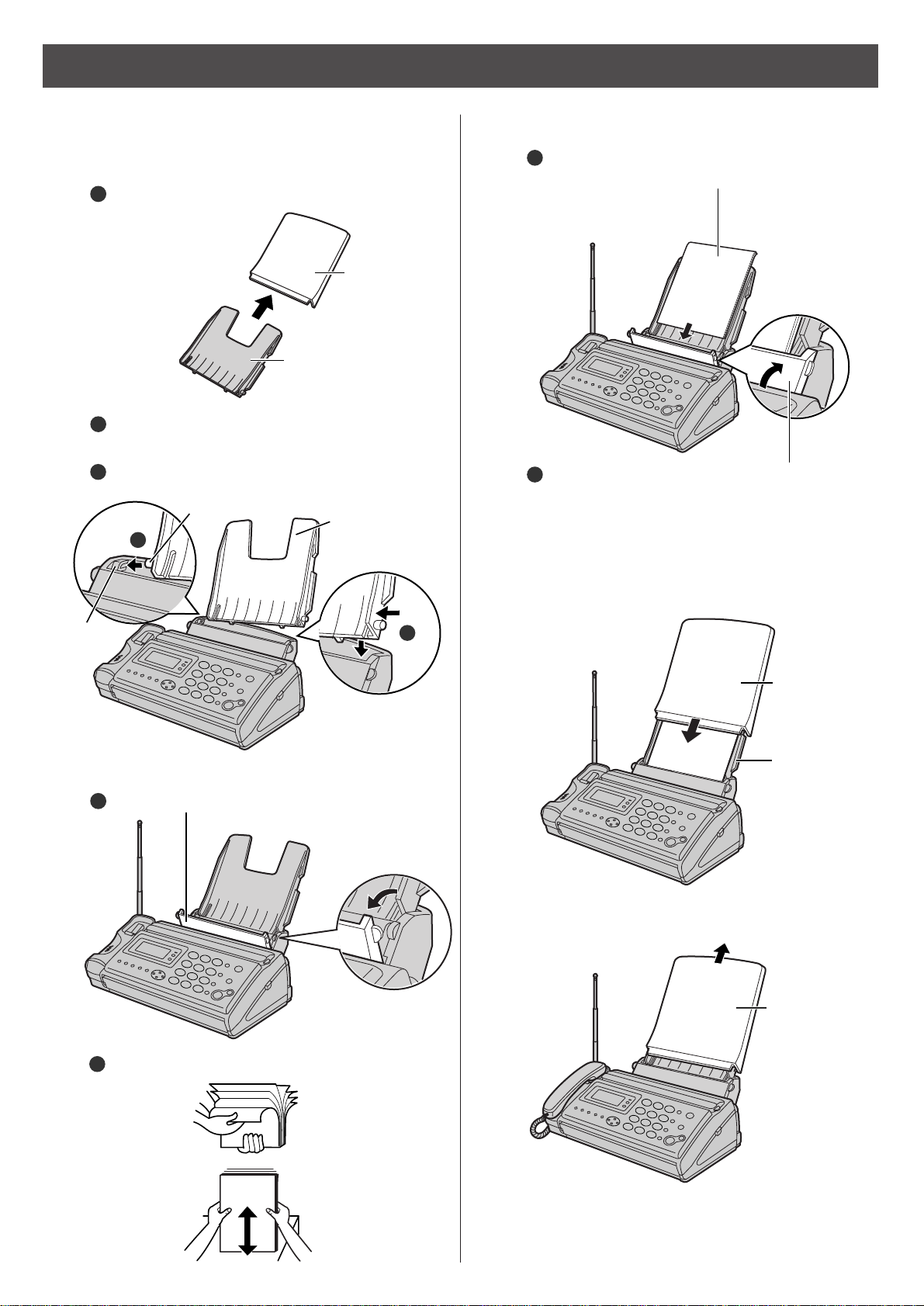

Installing recording paper (A4 size)
3Install the recording paper cover on the recording
paper tray by sliding it down from the top.
Recording
paper tray
Slot
Tab
Recording
paper cover
Recording
paper tray
Printing
side is on
the back
Recording
paper cover
Recording
paper tray
Remove the
recording
paper cover,
then follow
steps 2 to 3.
Fan the stack of recording paper (A4 size).
2
Insert the recording paper into the recording
paper tray. (Up to 30 sheets)
3
Close the paper entrance cover by leaning it
back.
4
2Insert the recording paper into the recording paper tray.
Open the paper entrance cover until it locks.
1
1Install the recording paper tray.
Separate the recording paper cover from the
recording paper tray.
1
Insert the left tab on the recording paper tray into
the left slot of the main unit.
Insert the right tab into the right slot of the main unit.
3
2
2
3
●To add paper

6
Connecting the main unit
Installations and connections
3Charge the battery in the charger for 10 hours.
Plug
Charger
AC adaptor
Power outlet
(AC 100 V)
Black
Red
Connector
Battery
Click
Battery cover
Setting up the portable handset
1
2
●After your Panasonic battery is fully charged,
it will last up to about 7 hours of conversation.
Charge indicator
–lights red:
while charging.
–lights off:
charging
completed.
(電話回線へ)
回線電話機
停電用
(電話回線へ)
回線
電話機
停電用
Power cord
Telephone line cord Wall jack
Power outlet
(AC 100V)
2Raise the antenna.
3Connect the telephone line
cord (Supplied accessory).
4Connect the power cord.
Click
1 Connect the cord and place the handset on the
main unit.
Click
Click
Handset
Click
After the Power On...
This unit will automatically select the dialing
mode (Tone/Pulse).

7
Setting the date and time

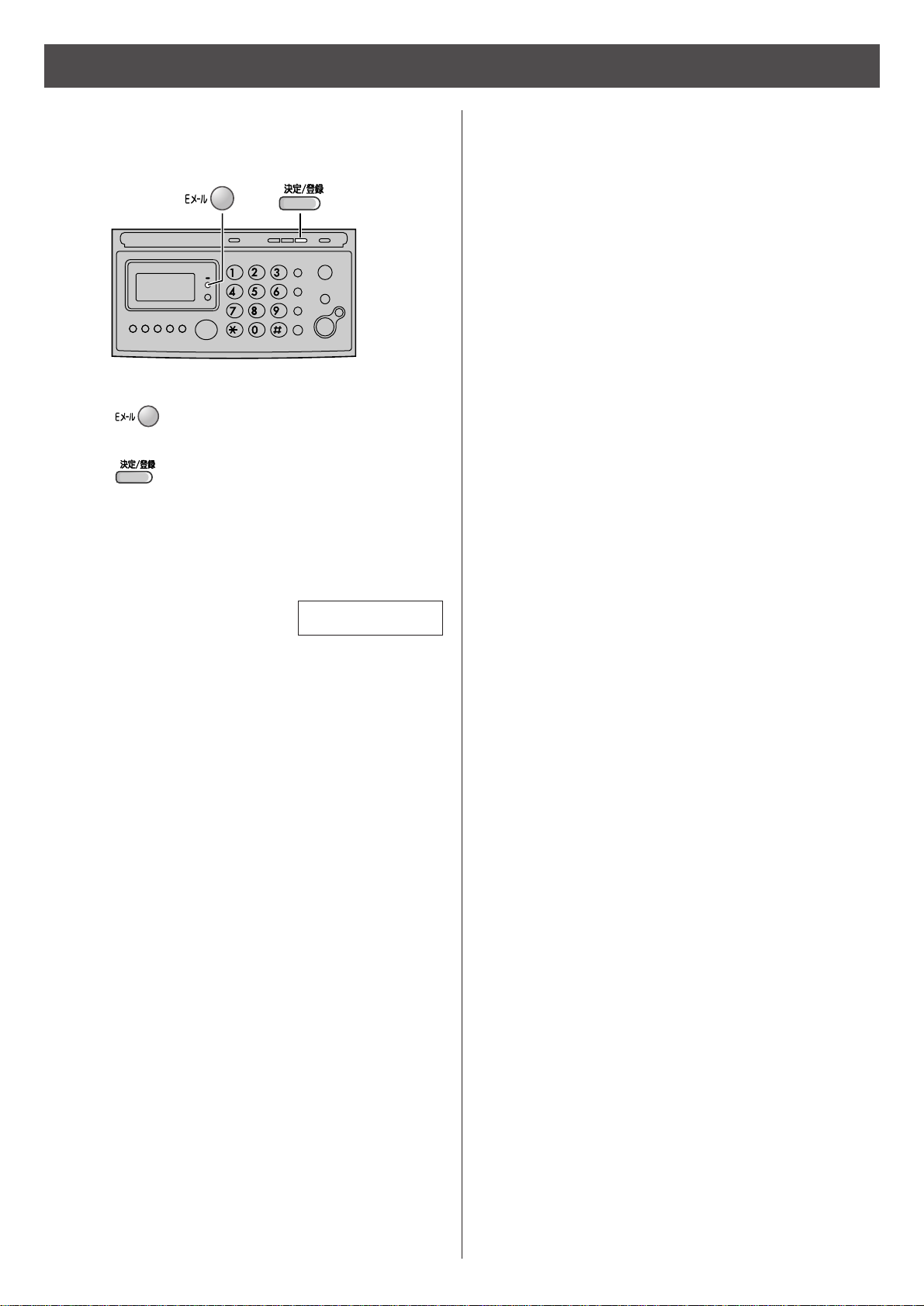

1Open the document cover and
press (Function/Edit).
1Open the document cover and
press (Function/Edit).
2Press .
3Enter the correct year/month/day.
Example: October 1, 2004
Press .
2Press .
3Enter your facsimile telephone number, up to 20
digits.
Example: 098 765 43 · ·
4Enter the correct hour/minute in a 24-hour clock entry.
Example: 15:45 (3:45 PM)
Press . 4Press (Set/Register).
5Press (Set/Register).
6Press (Stop).
5Press (Stop).
Setting your facsimile
telephone number
ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞ
ｶｲｾｼｼｼｼ[ｾﾝﾀｸ]ｵｽ
2004 年 06 月 01 日
20:10
2004
年 10 月
01 日
00:10
10 月 01 日 0015:45
ﾖｳｹﾝ 0 ﾛｸｵﾝ 0000 ｹﾝ
2004 年 10 月 01 日
15:45
ﾄｳﾛｸｱｼﾏｼﾀ
2004
年
10 月
01 日
15:45
ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞ
ｶｲｾｼｼｼｼ[ｾﾝﾀｸ]ｵｽ
ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ?
TEL=．．．．．．．．．．．
10 月 01 日 0015:45
ﾖｳｹﾝ 0 ﾛｸｵﾝ 0000 ｹﾝ
ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ?
TEL=80765043
..
2.
The (Space) button
replaces the digit with a space.
Example :
Cursor
Example :
Cursor
Example :
.
2
2
2
ｱﾅﾀﾉﾃﾞﾝﾜﾊﾞﾝｺﾞｳ?
TEL=098.765.43
.
ﾄｳﾛｸｱｼﾏｼﾀ
0

4. Press to move the cursor to the next space
and press four times.
8

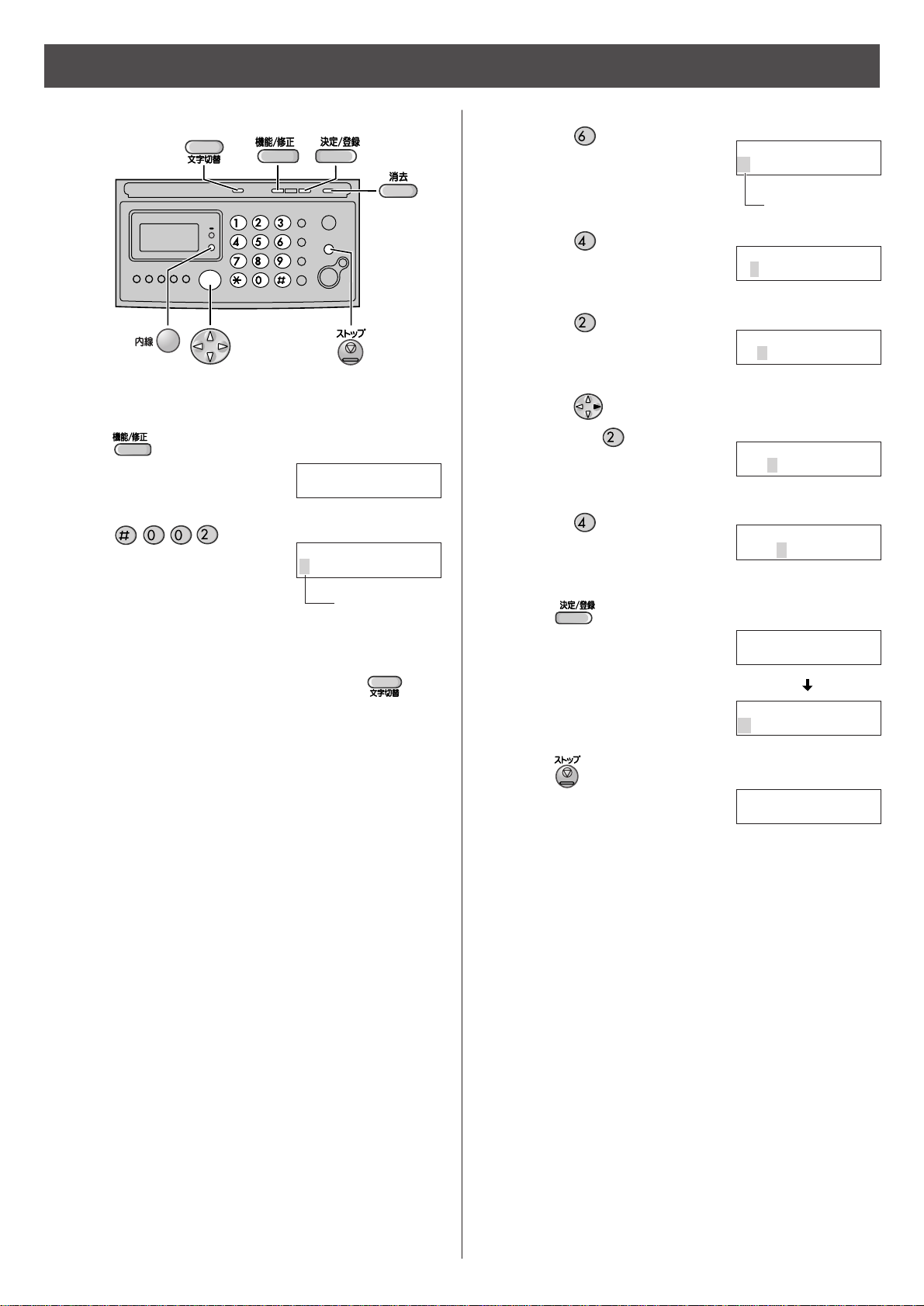

1Open the document cover and
press (Function/Edit).
2Press .
3Enter your logo, up to 30 characters, using the dial
keypad.
●To enter English characters easily, press
(Character input mode) repeatedly and select
“英” (English and sign input mode).
●For details, see the table on page 9 for instructions. 5Press (Stop).
Setting your logo
ｷﾉｳｱﾄｳﾛｸｱﾓｰﾄﾞ
ｶｲｾｼｼｼｼ[ｾﾝﾀｸ]ｵｽ
ｱﾅﾀﾉﾅﾏｴ?
ｱﾅﾀﾉﾅﾏｴ?
ｱﾅﾀﾉﾅﾏｴ?
M
ｱﾅﾀﾉﾅﾏｴ?
Mi
ｱﾅﾀﾉﾅﾏｴ?
Mic
ｱﾅﾀﾉﾅﾏｴ?
Mica
2. Press six times.
3. Press six times.
5. Press five times.
Example: Micah
1. Press once.
M
i
c
h
a
4Press (Set/Register).
ｱﾅﾀﾉﾅﾏｴ?
Micah
ﾄｳﾛｸｱｼﾏｼﾀ
Cursor
Cursor
M
10 月 01 日 0015:45
ﾖｳｹﾝ 0
ﾛｸｵﾝ
0000 ｹﾝ
Example :

9

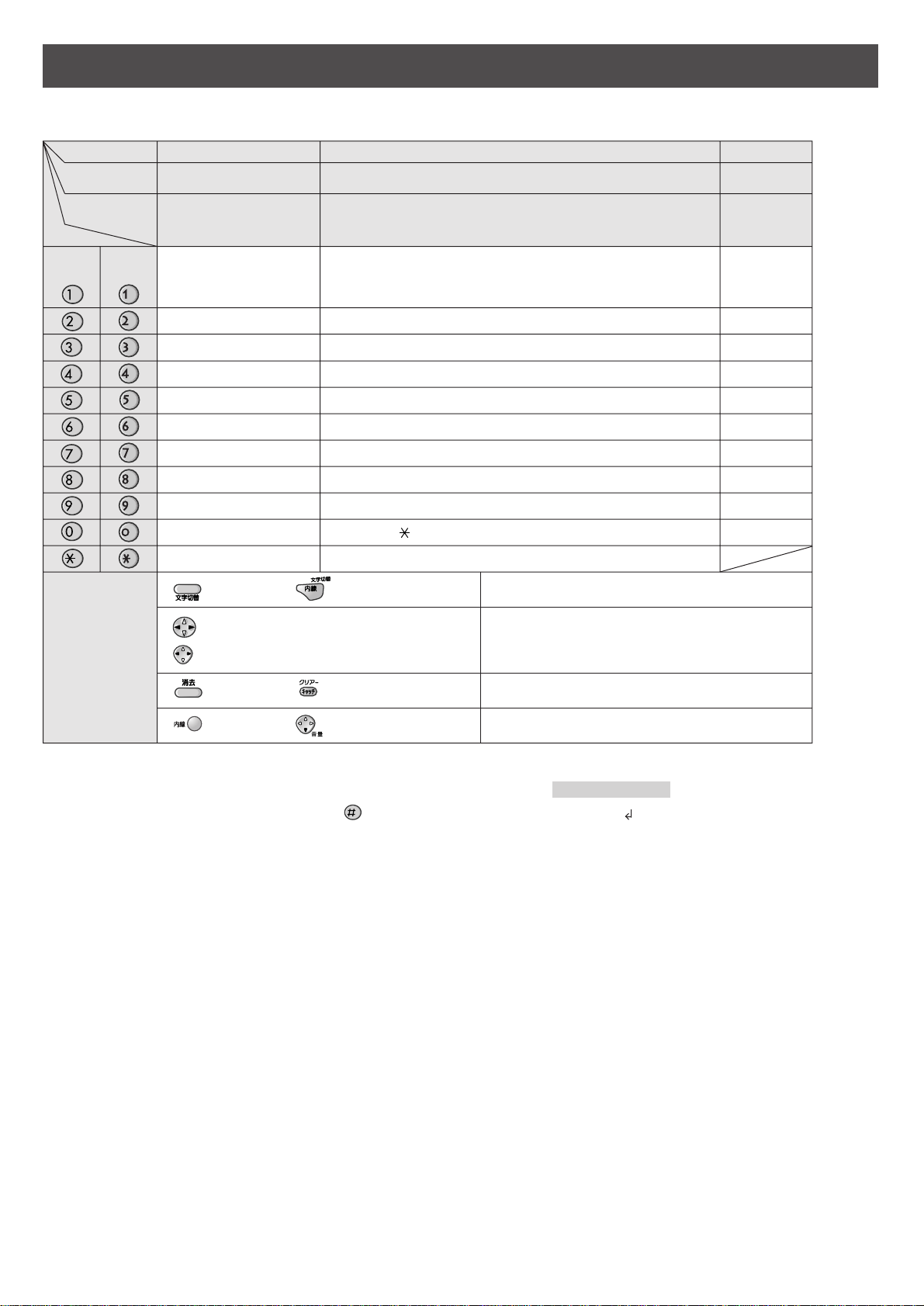

Character input and command key table
Used to change the character input mode.
Used to move the cursor to the left and right.
Used to delete a character.
Used to insert a space.
(Main unit), (Portable handset)
(Main unit), (Portable handset)
(Main unit),(Portable handset)
●When entering e-mail address, the small letters are displayed before the capital letters.
●When entering e-mail address, you can not enter the following symbols: 、。− .「」
●When entering e-mail message, pressing enables you to begin the new line. ( “ ” is displayed.)
●The characters on the display are somewhat different from those shown in the character input and command
key table.
、、。、。
英
［AB］
English
カナ
［カナ］
Katakana
数
［12］
Numbers
!？/ー#‚;:｜
・’”
（）
[]
｛｝〈〉「」
ワヲンー！？ ( )
アイウエオァィゥェォ @・ｰ&＄¥%＋=
〜^
DEFdef
GHI gh i
JKL j k l
MNOmn o
PQRSpqrs
TUVtuv
WXYZwxyz
カキクケコ
サシスセソ
タチツテトッ
ナニヌネノ
ハヒフヘホ
マミムメモ
ヤユヨャュョ
ラリルレロ
1
2
3
4
5
6
7
8
9
0
ABCabc
、。
Display of the
portable handset
Display of the
main unit
Character
Portable
(
handset
)
Main
(
unit
)
Dial key
(Main unit),
(Portable handset)
Pressing the dial keys will select a character as shown below.
Command keys

2Press the desired one-touch dial button ( to ).
Example: one-touch dial 1 ﾜﾝﾀｯﾁ
1
ﾄｳﾛｸ ｻﾚﾃ ｲﾏｾﾝ
10

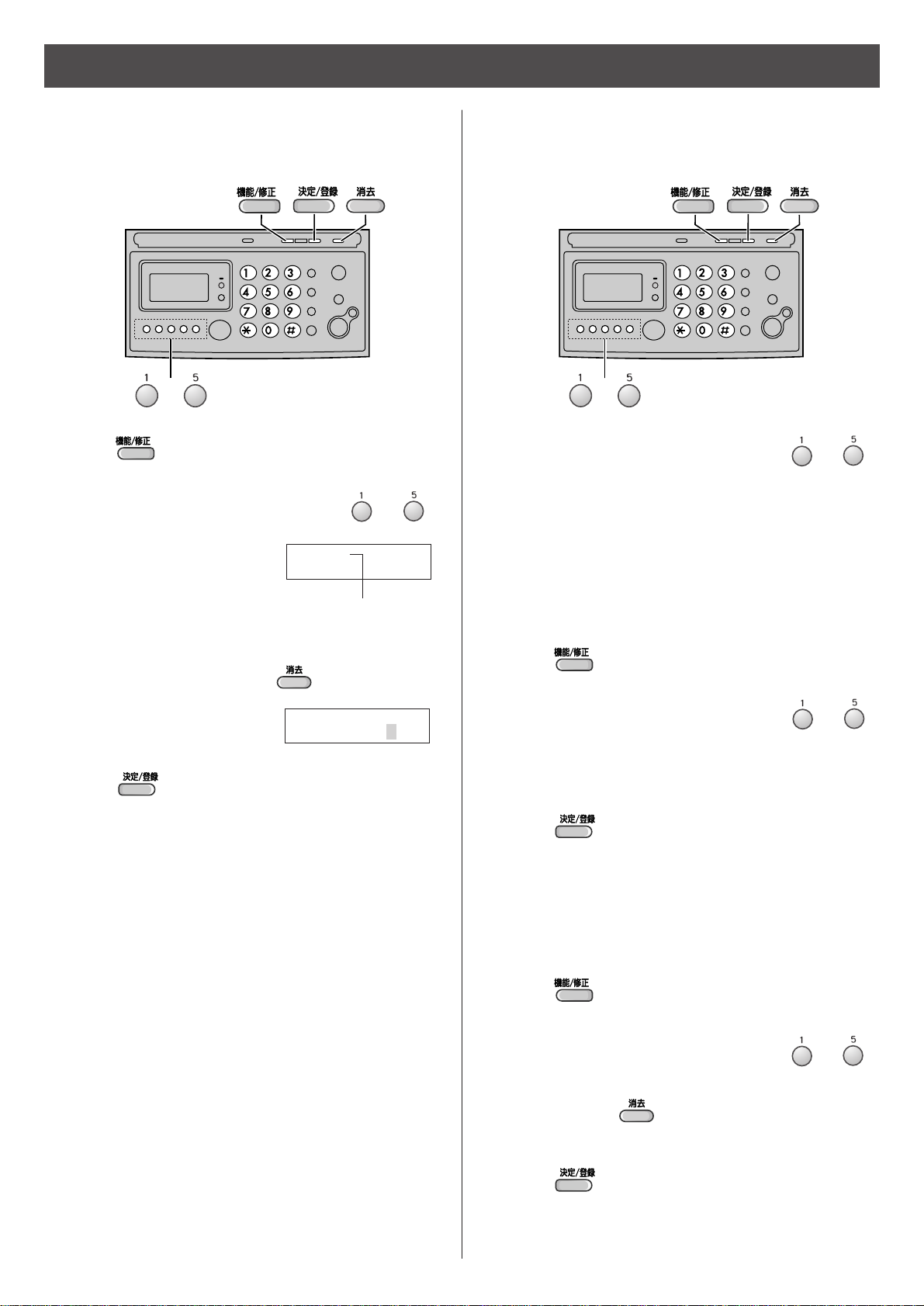

Automatic dialing on the main unit
Storing telephone numbers in the
one-touch dial
Making a voice call using the
one-touch dial
2When the other party answers, lift the handset.
3Enter the telephone number, up to 30 digits.
●To correct a mistake, press (Clear).
Editing a stored number in the
one-touch dial
1Press the desired one-touch dial button ( to ).
●The unit will start dialing.
〜
2Press the desired one-touch dial button ( to ).
1Press (Function/Edit).
4Press (Set/Register).
3Edit the telephone number.
Erasing a stored number in the
one-touch dial
2Press the desired one-touch dial button ( to ).
1Press (Function/Edit).
3Press and hold (Erase) until the telephone
number has been erased.
4Press (Set/Register).
〜
4Press (Set/Register).
Button number
ﾜﾝﾀｯﾁ
1 ﾄｳﾛｸ
09876543 ･･･
1Press (Function/Edit).
