Panasonic KX-PW601DL User manual

Facsimile
Quick Reference Guide
Model No.
Table of Contents
Finding the controls ……………………………………………………………2
Installations and connections …………………………………………………4
Setting the date and time ………………………………………………………7
Setting your facsimile telephone number ……………………………………7
Setting your logo…………………………………………………………………8
Character input and command key table ……………………………………9
Automatic dialing on the main unit……………………………………………10
Automatic dialing on the portable handset …………………………………12
Intercom between the main unit and portable handset ……………………14
Sending faxes …………………………………………………………………15
Receiving faxes ………………………………………………………………16
Operating the built-in answering device ……………………………………18
Individual e-mail services ……………………………………………………19
Specifications…………………………………………………………Back cover
Thank you for purchasing a Panasonic facsimile.
●This guide explains some basic features and operations, but not all of them.
For further details, see the Japanese operating instructions.
●This product is designed for use in Japan.
Panasonic cannot provide service for this product if used outside Japan.
●Any details given in this guide are subject to change without notice.
KX-PW601DL
KX-PW601DL
KX-PW601DW

2
Finding the controls
Main unit (control panel)

145 23
6
7
8
9
10111213141516
17
E-Mail indicator
E-Mail button
Pause button
Speed Dialer button
Hold button
Intercom button
Auto Answer button & indicator
—light on: answering device activated.
—light off: used as a regular telephone.
Replay button plays back recorded
messages.
Record button records telephone calls.
Stop button
Copy button starts copying.
Mute button
Start/Fax button starts faxing.
Speakerphone button & indicator
Tone button switches to tone dialing.
Microphone
Function button initiates programming.
Volume/Redial/Phonebook/
Addressbook key
To adjust the volume.
To change Hiragana into Kanji.
To redial the phone numbers in
the redial list. The last 10 phone
numbers dialed are stored in
memory.
To use the phonebook and the
addressbook.
Multi-operation buttons refer to the
function displayed on the display panel.
Liquid crystal display
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

3
Finding the controls
Portable handset

● 
For call waiting service
users.
● 
To use the one-touch dial.
● 
To use the speakerphone.
LCD (with back light)
Earpiece
Microphone
Do not cover the
microphone while
talking.

● 
Displays battery strength, telephone
numbers etc.
1Portable handset number

● 
To adjust the volume.
● 
To change Hiragana into
Kanji.
● 
To redial the phone
numbers in the redial
list. The last 10 phone
numbers dialed are
stored in memory.
● 
To use the phonebook.

How to use key
機能
子機 1 圏外
留守
1
3
2
4
5

Function menu that is
controlled by or .
5
4Battery strength
2Indicates which directions the
key can be tilted.
up and down
left
3Out of range
(Walk closer to the main unit.)
Note:
● 
If you use the portable handset near a microwave oven which is being used, noise may be heard from
the earpiece or the speaker. Move away from the microwave oven and closer to the main unit.


How to use buttons
and buttons refer to the function
displayed on the bottom of the display.
They function differently depending on
the mode.
Sharp button
Dial buttons

Tone button
● 
To switch to Tone dialing mode.

● 
To make/answer calls.
● 
To page the main unit or
another portable handset.
● 
To clear letters/numbers.
● 
To end a call.
● 
To end or exit from editing or
other operations.
● 
To put a call on hold.
● 
To start a search in the
Number Display log.
(For caller ID display service
users.)
● 
To adjust the receiver tone
quality.

4

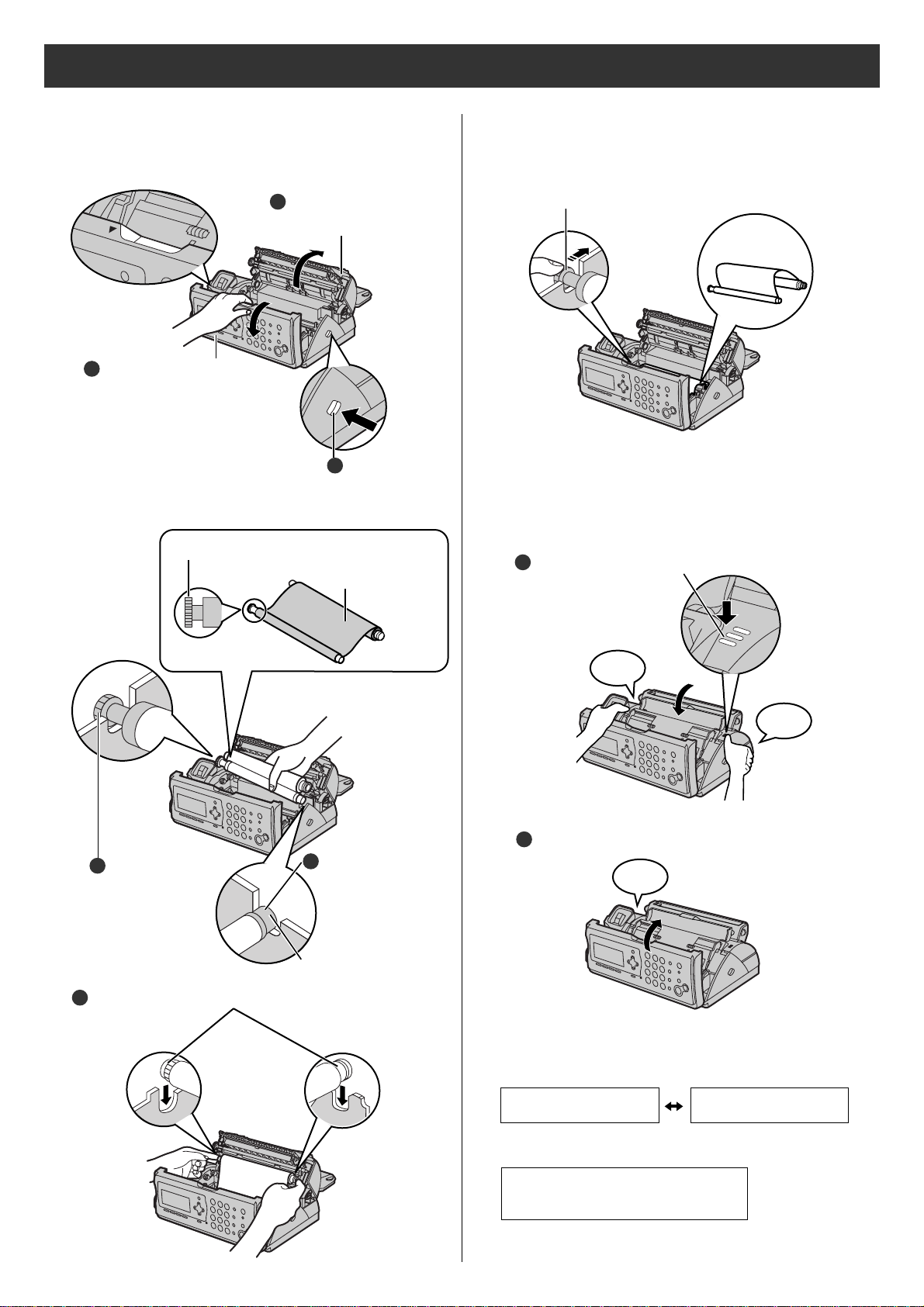

Installations and connections
Installing the ink film
2Insert the ink film.
1Open the control panel and the back cover.
Do not
be slacken.
押す
Click
Click
開く
Open the control
panel until it locks.
1
3If the ink film is slack, tighten it by winding the “T”
shaped gear.
4Close the back cover and the control panel until they
lock.
●When the unit runs out of ink film, the following
message will be displayed.
Install a new ink film.
・As of June 2003. ・Tax not included.
ﾌｨﾙﾑ か ﾞ なくなりました U23
品番
： KX ｰ FAN142
ﾌｨﾙﾑ か ﾞ なくなりました U23
交換
してくた ﾞ さい
Replacement ink film:
KX-FAN142 (35 m) ¥1250
Open the back cover
until it locks.
3
Press here.
2
Find the “T”shaped gear (blue).
Ink film
Blue core
Insert the “T”
shaped gear
(blue) into the
left slot of the
main unit.
2
Insert the white core into the slots.
3
Insert the blue
core into the
right slot of the
main unit.
1
Click
To close the back cover, press here.
1
Close the control panel until it locks.
2

5

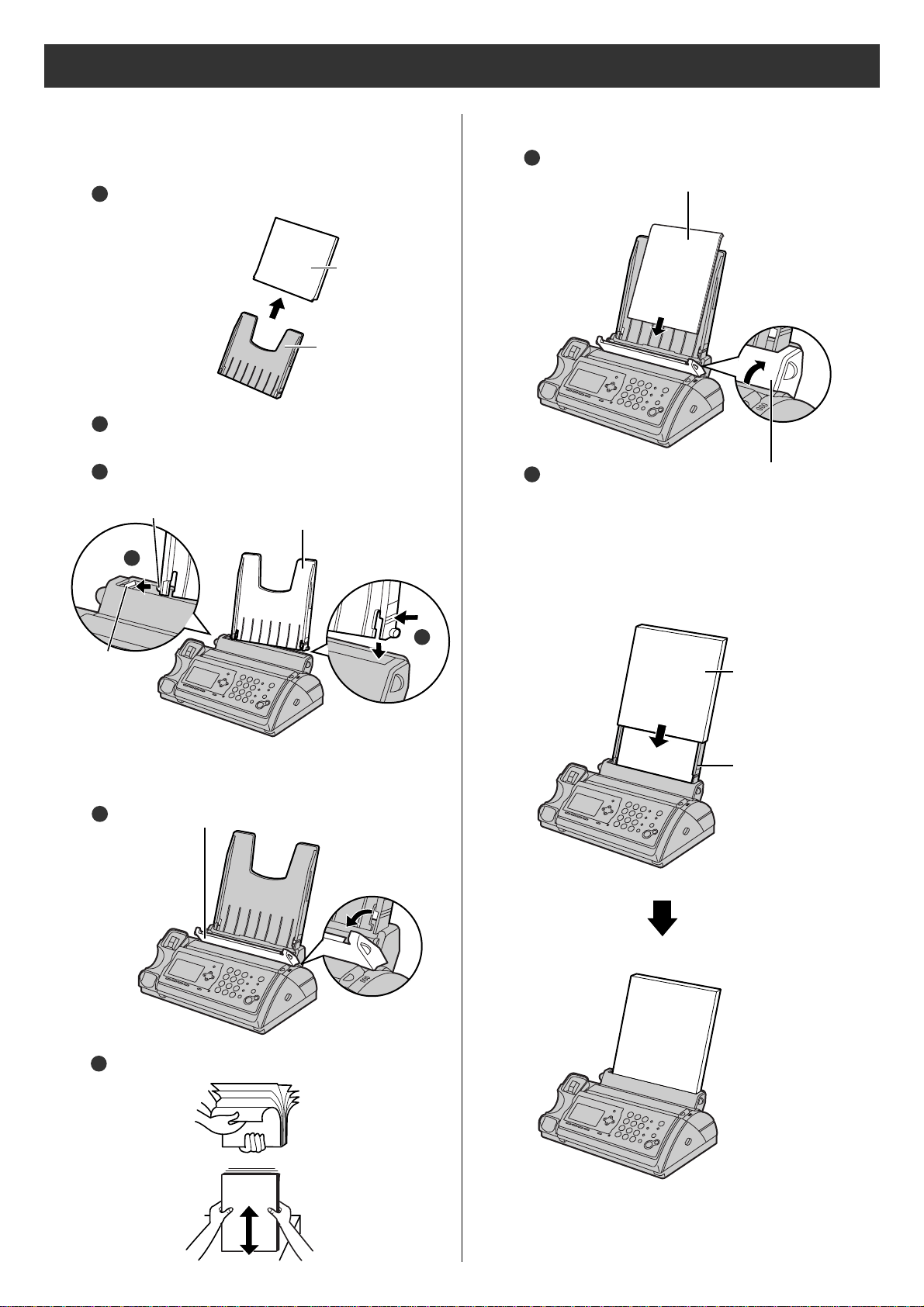

Installations and connections
Installing recording paper (A4 size)
3Install the recording paper cover on the recording
paper tray by sliding it down from the top.
Recording
paper tray
Tab
Slot
Recording
paper cover
Recording
paper tray

Printing
side is on
the back
Recording
paper cover
Recording
paper tray
Fan the stack of recording paper (A4 size).
2
Insert the recording paper into the recording
paper tray. (Up to 30 sheets)
3
Close the paper entrance cover by leaning it
back.
4
2Insert the recording paper into the recording paper tray.
Open the paper entrance cover until it locks.
1
1Install the recording paper tray.
Separate the recording paper cover from the
recording paper tray.
1
Insert the left tab on the recording paper tray into
the left slot of the main unit.
Insert the right tab into the right slot of the main unit.
3
2
2
3

6
Connecting the main unit
Installations and connections
3Charge the battery in the charger for 10 hours.
Plug Charger
AC adaptor
Power outlet
(AC 100 V)
Connector
Battery
Battery cover
Click
Black
Red
Setting up the portable handset
1
2
●After your Panasonic battery is fully charged,
it will last up to about 7 hours of conversation.
Power cord
Telephone
line cord
Wall jack
Power outlet
(AC 100V)
3Connect the power
cord.
2Connect the telephone line
cord (Supplied accessory).
1 Connect the cord and place the handset on the
main unit.
Click
停電用
電話機回線
（電話回線へ）
Click
Click
After the Power On...
This unit will automatically select the dialing
mode (Tone/Pulse).
充電中 充電完了
●While charging. ●Charging completed.

7
Setting the date and time
1Press (Function).
2Press .
3Enter the correct year/month/day.
Example: October 1, 2003
Press .
3Enter your facsimile telephone number, up to 20
digits.
Example: 098 765 43 · ·
4Enter the correct hour/minute in a 24-hour clock entry.
Example: 15:45 (3:45 PM)
Press . 4Press (Set/Register).
決定/登録
5Press (Set/Register).
決定/登録
6Press (Stop).
5Press (Stop).
Setting your facsimile
telephone number
機能登録ﾓｰﾄﾞ
■2
003 年
06 月 01 日
20 ： 10
Cursor
Example :
2003 年 10 月 01 日
■2 0 ： 10
■2 003 年 10 月 01 日
15 ： 45
■2 003 年 10 月 01 日
15 ： 45
登録 しました
10 月 01 日 ｱ 15 ： 45
用件録音 ｱ 13 ： 00 件
Example :
1Press (Function). 機能登録ﾓｰﾄﾞ
2Press .
あなたの
電話番号 ?
■■ ．．．．．．．．．．．．．．．．
Cursor
あなたの 電話番号 ?
09876543
■■ ．．．．．．
The (Space) button replaces
the digit with a space.
あなたの 電話番号 ?
■0 9876543．．．．．．
登録 しました
10 月 01 日 ｱ 15 ： 45
用件録音 ｱ 13 ： 00 件
Example :

4. Press to move the cursor to the next space
and press four times.
8
2Press .
3Enter your logo, up to 30 characters, using the dial
keypad.
●To enter English characters easily, press
(Character input mode) repeatedly and select
“英” (English and sign input mode).
●For details, see the table on page 9 for instructions.
文字切替
5Press (Stop).
Setting your logo
2. Press six times.
3. Press six times.
5. Press five times.
Example: Micah
1. Press once.
4Press (Set/Register).
決定/登録
1Press (Function). 機能登録ﾓｰﾄﾞ
10
月 01 日 ｱ 15 ： 45
用件録音 ｱ 13 ： 00 件
Example :
M
Cursor
Mi
Mi c
Mica
Mica h
Micah
>
登録 しました
M
名前(印刷用) ?
＞＿
Cursor

9
Character input and command key table
、、。、。
“かな”
Hiragana
“英”
English
“カナ”
Katakana
“数”
Numbers
!？/ー#‚;: ｜・’”
（）
[]
｛｝〈〉「」
ワヲンー！？ ( )
あいうえおぁぃぅぇぉ
かきくけこ
さしすせそ
たちつてとっ
なにぬねの
はひふへほ
まみむめも
やゆよゃゅょ
らりるれろ
わをんー！？ ( )
アイウエオァィゥェォ @・ｰ&＄¥%＋=
〜^
DEFdef
GHI gh i
JKL j k l
MNOmn o
PQRSpqrs
TUVtuv
WXYZwxyz
カキクケコ
サシスセソ
タチツテトッ
ナニヌネノ
ハヒフヘホ
マミムメモ
ヤユヨャュョ
ラリルレロ
1
2
3
4
5
6
7
8
9
0
ABCabc
、。
Character
Dial key
Used to change the character input mode.
Used to move the cursor to the left and right.
Used to delete a character.
Used to insert a space.
Command keys
(Main unit), (Portable handset)
(Main unit), (Portable handset)
文字切替
(Main unit), (Portable handset)
クリアー
(Main unit), (Portable handset)
●When entering e-mail address, the small letters are displayed before the capital letters.
●When entering e-mail address, you can not enter the following symbols: 、。ー.「」
●When entering e-mail address, you can enter only English and Numbers.
●When entering e-mail message, pressing enables you to begin the new line. ( “ ” is displayed.)
●The display items of the main unit are somewhat different from those of the portable handset.
Portable
(
handset
)
Main
(
unit
)
Pressing the dial keys will select a character as shown below.

10

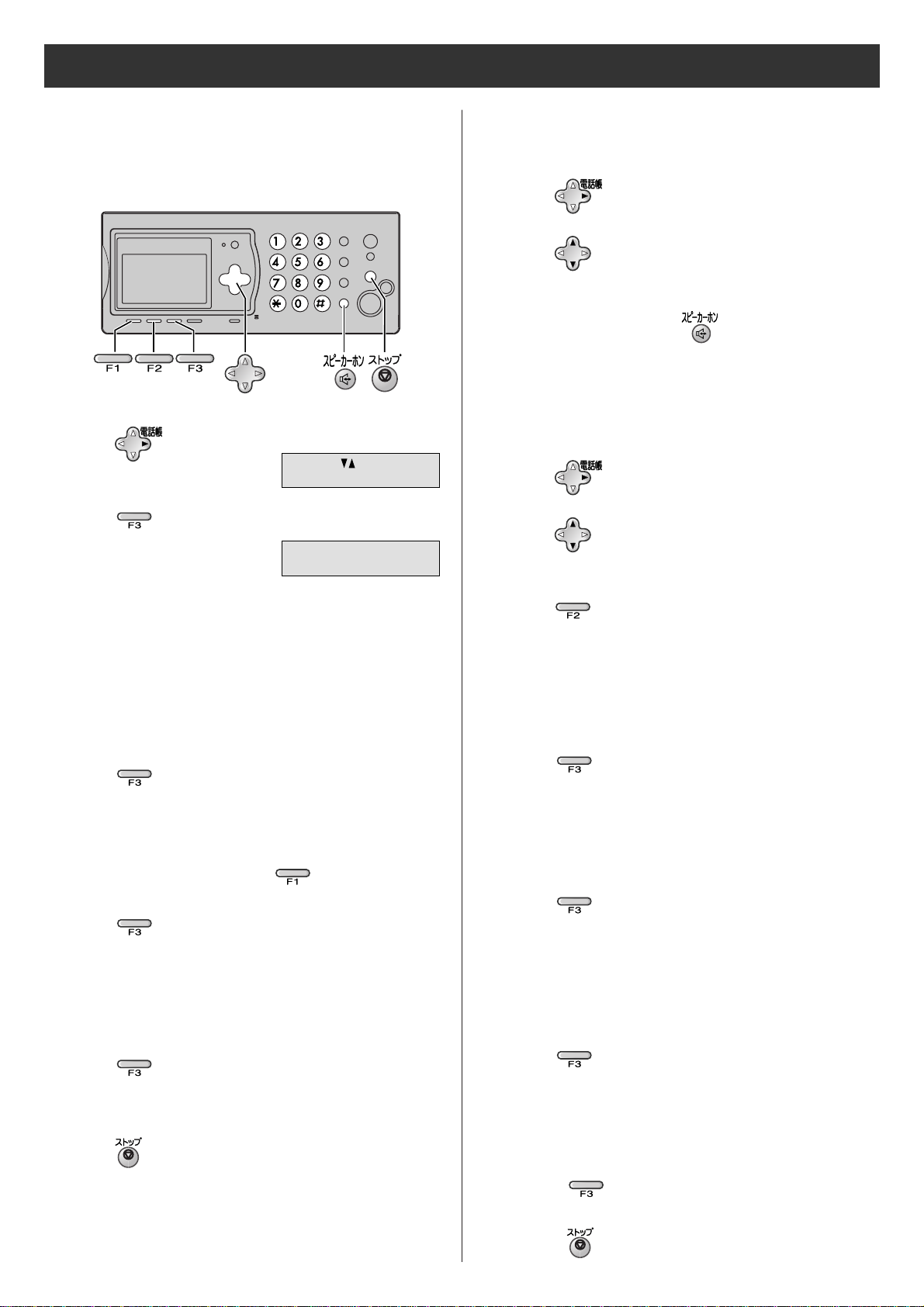

Automatic dialing on the main unit
Storing names and telephone
numbers in the phonebook
Making a voice call using the
phonebook
1Press (Phonebook).
1Press (Phonebook).
2Press (Set/Register).
●“XXX” shows the remaining
station numbers you can
store.
●You can program up to 150
stations, including 4 pre-
programmed stations.
決定/登録
3Enter the name, up to 20 characters (see the table on
page 9 for instructions).
4Press (Set/Register) twice.
決定/登録
5Enter the telephone number, up to 24 digits.
●To correct a mistake, press (Clear).
クリアー
8Press (Set/Register).
●To program other items, repeat steps 3 to 8.
決定/登録
9Press (Stop) to exit the program.
2Press (Search button) repeatedly until the
desired name is displayed.
3Lift the handset or press (Speakerphone).
Editing a stored name or number
in the phonebook
3Press (Edit).
修正
4Edit the name (see the table on page 9 for
instructions).
●If you do not need to edit the name, skip to step 5.
5Press (Set/Register).
決定/登録
8Edit the telephone number.
●If you do not need to edit the telephone number,
skip to step 9.
9Press (Set/Register).
決定/登録
1Press (Phonebook).
2Press (Search button) repeatedly until the
desired name is displayed.
6Press (Set/Register).
決定/登録
7If necessary, enter the group number (1-9).
6Edit the kana.
●If you do not need to edit the kana, skip to step 7.
7Press (Set/Register).
決定/登録
10If necessary, enter the correct group number.
11Press (Set/Register).
決定/登録
電話帳空 き ｱ ××× 件
検索 は [ｱｱ] を 押 す
12Press (Stop) to exit the program.
