Panasonic SA-BTT775GA User manual

© Panasonic Corporation 2011. All rights reserved.
Unauthorized copying and distribution is a violation
of law.
PSG1104020CE
Blu-ray DiscTM Home Theater Sound System
Model No. SA-BTT775GA
SA-BTT775PU
Vol.1
Product Color: (K)...Black Type

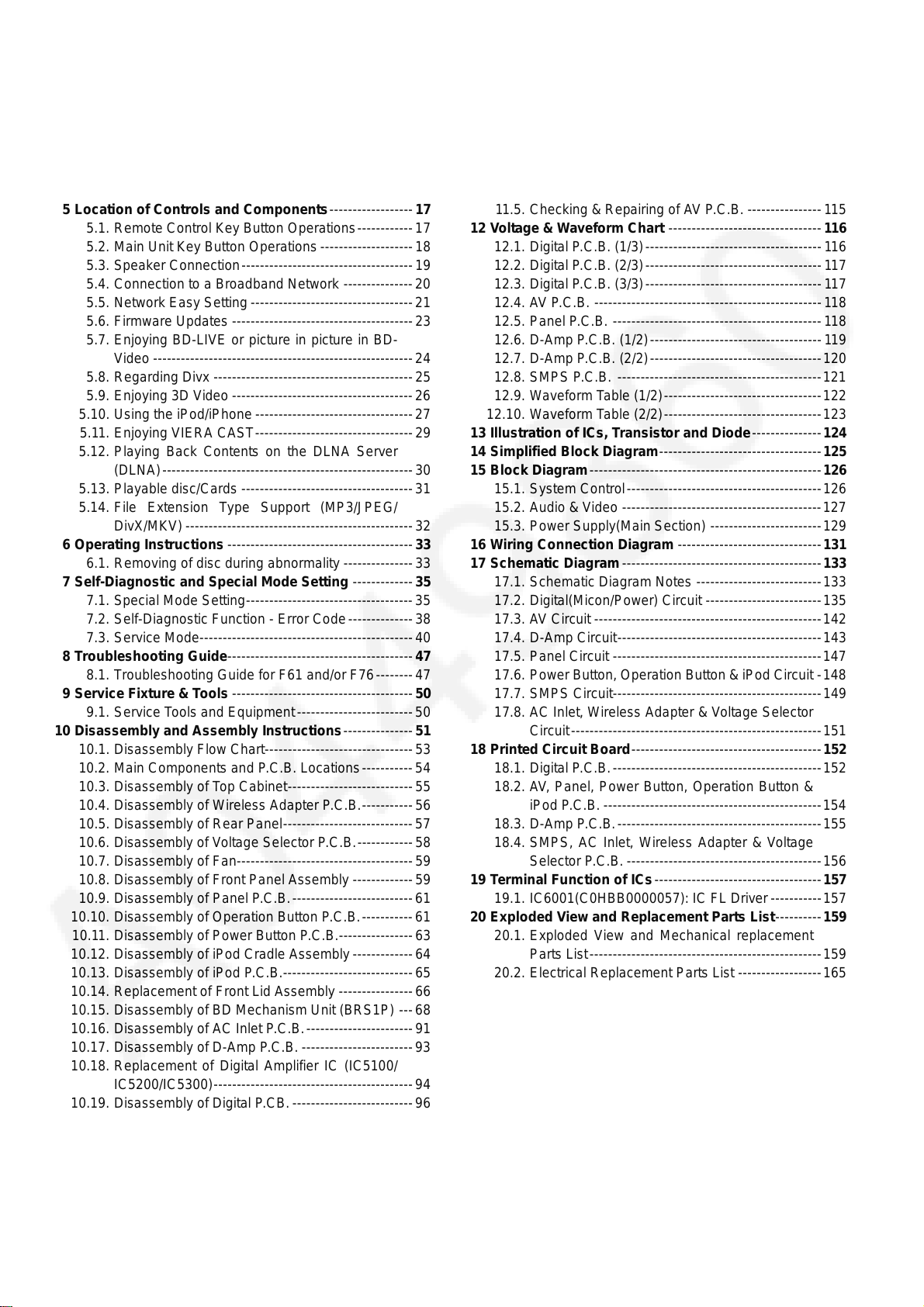

TABLE OF CONTENTS PAGE PAGE
1 Safety Precautions----------------------------------------------- 3
1.1. GENERAL GUIDELINES-------------------------------- 3
1.2. Before Use -------------------------------------------------- 3
1.3. Before Repair and Adjustment------------------------- 3
1.4. Protection Circuitry---------------------------------------- 4
1.5. Safety Parts Information--------------------------------- 5
2 Warning-------------------------------------------------------------- 6
2.1. Prevention of Electrostatic Discharge (ESD)
to Electrostatic Sensitive (ES) Devices---------------6
2.2. Precaution of Laser Diode-------------------------------7
2.3. Service caution based on Legal restrictions --------8
2.4. Handling Precaution for Traverse Unit----------------8
3 Service Navigation ---------------------------------------------10
3.1. Service Information--------------------------------------10
Notes: Please refer to the original service manual for:
• Speaker system SB-BTT775EBK, Order No: PSG1103006CE

2
3.2. Combination of Multiple Pressing on the
Remote Control-------------------------------------------10
3.3. Entering Special Modes with Combination of
Multiple Pressing on the Remote Control----------10
3.4. Caution for Replacing Parts---------------------------13
4 Specifications----------------------------------------------------15
4.1. Others (Licenses) ----------------------------------------16
5 Location of Controls and Components------------------17
5.1. Remote Control Key Button Operations------------17
5.2. Main Unit Key Button Operations --------------------18
5.3. Speaker Connection-------------------------------------19
5.4. Connection to a Broadband Network ---------------20
5.5. Network Easy Setting -----------------------------------21
5.6. Firmware Updates ---------------------------------------23
5.7. Enjoying BD-LIVE or picture in picture in BD-
Video --------------------------------------------------------24
5.8. Regarding Divx -------------------------------------------25
5.9. Enjoying 3D Video ---------------------------------------26
5.10. Using the iPod/iPhone ----------------------------------27
5.11. Enjoying VIERA CAST----------------------------------29
5.12. Playing Back Contents on the DLNA Server
(DLNA)------------------------------------------------------30
5.13. Playable disc/Cards -------------------------------------31
5.14. File Extension Type Support (MP3/JPEG/
DivX/MKV) -------------------------------------------------32
6 Operating Instructions ----------------------------------------33
6.1. Removing of disc during abnormality ---------------33
7 Self-Diagnostic and Special Mode Setting -------------35
7.1. Special Mode Setting------------------------------------35
7.2. Self-Diagnostic Function - Error Code--------------38
7.3. Service Mode----------------------------------------------40
8 Troubleshooting Guide----------------------------------------47
8.1. Troubleshooting Guide for F61 and/or F76--------47
9 Service Fixture & Tools ---------------------------------------50
9.1. Service Tools and Equipment-------------------------50
10 Disassembly and Assembly Instructions---------------51
10.1. Disassembly Flow Chart--------------------------------53
10.2. Main Components and P.C.B. Locations-----------54
10.3. Disassembly of Top Cabinet---------------------------55
10.4. Disassembly of Wireless Adapter P.C.B.-----------56
10.5. Disassembly of Rear Panel----------------------------57
10.6. Disassembly of Voltage Selector P.C.B.------------58
10.7. Disassembly of Fan--------------------------------------59
10.8. Disassembly of Front Panel Assembly -------------59
10.9. Disassembly of Panel P.C.B.--------------------------61
10.10. Disassembly of Operation Button P.C.B.-----------61
10.11. Disassembly of Power Button P.C.B.----------------63
10.12. Disassembly of iPod Cradle Assembly -------------64
10.13. Disassembly of iPod P.C.B.----------------------------65
10.14. Replacement of Front Lid Assembly ----------------66
10.15. Disassembly of BD Mechanism Unit (BRS1P) ---68
10.16. Disassembly of AC Inlet P.C.B.-----------------------91
10.17. Disassembly of D-Amp P.C.B. ------------------------93
10.18. Replacement of Digital Amplifier IC (IC5100/
IC5200/IC5300)-------------------------------------------94
10.19. Disassembly of Digital P.CB.--------------------------96
10.20. Disassembly of AV P.C.B.---------------------------- 100
10.21. Disassembly of SMPS P.C.B.----------------------- 101
10.22. Replacement of Switching Regulator IC
(IC5701) -------------------------------------------------- 103
10.23. Replacement of Rectifier Diode (D5702)--------- 105
10.24. Replacement of Thermal Diode (D5802)---------107
10.25. Replacement of Regulator Diode (D5803)-------108
11 Service Position------------------------------------------------110
11.1. Checking & Repairing of Digital P.C.B.------------110
11.2. Checking & Repairing D-Amp P.C.B.-------------- 111
11.3. Checking & Repairing SMPS P.C.B.---------------113
11.4. Checking & Repairing Panel P.C.B.----------------114
11.5. Checking & Repairing of AV P.C.B. ----------------115
12 Voltage & Waveform Chart ---------------------------------116
12.1. Digital P.C.B. (1/3)--------------------------------------116
12.2. Digital P.C.B. (2/3)--------------------------------------117
12.3. Digital P.C.B. (3/3)--------------------------------------117
12.4. AV P.C.B. -------------------------------------------------118
12.5. Panel P.C.B. ---------------------------------------------118
12.6. D-Amp P.C.B. (1/2)-------------------------------------119
12.7. D-Amp P.C.B. (2/2)-------------------------------------120
12.8. SMPS P.C.B. --------------------------------------------121
12.9. Waveform Table (1/2)----------------------------------122
12.10. Waveform Table (2/2)----------------------------------123
13 Illustration of ICs, Transistor and Diode---------------124
14 Simplified Block Diagram-----------------------------------125
15 Block Diagram--------------------------------------------------126
15.1. System Control------------------------------------------126
15.2. Audio & Video -------------------------------------------127
15.3. Power Supply(Main Section) ------------------------129
16 Wiring Connection Diagram -------------------------------131
17 Schematic Diagram-------------------------------------------133
17.1. Schematic Diagram Notes ---------------------------133
17.2. Digital(Micon/Power) Circuit -------------------------135
17.3. AV Circuit -------------------------------------------------142
17.4. D-Amp Circuit--------------------------------------------143
17.5. Panel Circuit ---------------------------------------------147
17.6. Power Button, Operation Button & iPod Circuit -148
17.7. SMPS Circuit---------------------------------------------149
17.8. AC Inlet, Wireless Adapter & Voltage Selector
Circuit------------------------------------------------------151
18 Printed Circuit Board-----------------------------------------152
18.1. Digital P.C.B.---------------------------------------------152
18.2. AV, Panel, Power Button, Operation Button &
iPod P.C.B. -----------------------------------------------154
18.3. D-Amp P.C.B.--------------------------------------------155
18.4. SMPS, AC Inlet, Wireless Adapter & Voltage
Selector P.C.B. ------------------------------------------156
19 Terminal Function of ICs------------------------------------157
19.1. IC6001(C0HBB0000057): IC FL Driver-----------157
20 Exploded View and Replacement Parts List----------159
20.1. Exploded View and Mechanical replacement
Parts List--------------------------------------------------159
20.2. Electrical Replacement Parts List ------------------165

3
1 Safety Precautions
1.1. GENERAL GUIDELINES
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, carry out the following leakage current checks to prevent the customer from being exposed to shock hazards.
1.1.1. LEAKAGE CURRENT COLD CHECK
1. Unplug the AC cord and connect a jumper between the two prongs on the plug.
2. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on
the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the
chassis, the reading should be between 1MΩand 5.2MΩ.
When the exposed metal does not have a return path to the chassis, the reading must be
1.1.2. LEAKAGE CURRENT HOT CHECK
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a 1.5kΩ, 10 watts resistor, in parallel with a 0.15µF capacitors, between each exposed metallic part on the set and a
good earth ground such as a water pipe, as shown in Figure 1.
3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reverse the AC plug in the AC outlet and repeat each of the above measurements.
6. The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent)
may be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measurement is outside of the
limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is
returned to the customer.
Figure 1
1.2. Before Use
Be sure to disconnect the mains cord before adjusting the voltage selector.
Use a minus(-) screwdriver to set the voltage selector (on the rear panel) to the voltage setting for the area in which the unit will be
used. (If the power supply in your area is 110V ~ 127V or 220V ~ 240V, set to the “110V ~ 127V or 220V ~ 240V” position.)
Note that this unit will be seriously damaged if this setting is not made correctly. (There is no voltage selector for some countries,
the correct voltage is already set.)
1.3. Before Repair and Adjustment
Disconnect AC power to discharge unit AC Capacitors as such (C5700, C5701, C5702, C5703, C5705, C5706) through a 10 Ω, 10
W resistor to ground.
Caution:
DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices.
After repairs are completed, restore power gradually using a variac, to avoid overcurrent.
Current consumption at AC 100/127 V, 50/60 Hz in NO SIGNAL mode at volume minimum should be ~ 600 mA.
Current consumption at AC 240 V, 50 Hz in NO SIGNAL mode at volume minimum should be ~ 600 mA.

4
1.3.1. Caution for fuse replacement
1.4. Protection Circuitry
The protection circuitry may have operated if either of the following conditions are noticed:
• No sound is heard when the power is turned on.
• Sound stops during a performance.
The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are
“shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used.
If this occurs, follow the procedure outlines below:
1. Turn off the power.
2. Determine the cause of the problem and correct it.
3. Turn on the power once again after one minute.
Note:
When the protection circuitry functions, the unit will not operate unless the power is first turned off and then on again.

5
1.5. Safety Parts Information
Safety Parts List:
There are special components used in this equipment which are important for safety.
These parts are marked by ( ) in the Schematic Diagrams & Replacement Parts List. It is essential that these critical parts
should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the original design
without permission of manufacturer.
Safety Ref No. Part No. Part Name & Description Remarks
10 REXX1186 1P RED WIRE (AC INLET-SMPS)
11 REXX1187 1P BLACK WIRE (AC INLET-SMPS)
19 RGRX1006A-F1 REAR PANEL GA
19 RGRX1006A-G1 REAR PANEL PU
29 RKMX1010A-K TOP CABINET
29-1 RMNX1062 SMPS PCB TOP INSULATOR
54 RXQX1056 SMPS PC SHEET UNIT
55 RXQX1057 AC IN PC SHEET UNIT
67 VXY2122T BD MECHANISM
70 RGN3073-S NAME PLATE
72 REX1437 1P BLUE WIRE (VOLTAGE SELECTOR-SMPS)
73 REX1438 1P WHITE WIRE (VOLTAGE SELECTOR-SMPS)
101 VQL1V70-J LASER CAUTION LABEL
A2 K2CA2YY00039 AC CORD PU
A2 K2CP2CA00001 AC CORD GA
A2 K2CQ2CA00007 AC CORD
A3 VQT3M44 O/I (En) GA
A3 VQT3M46 O/I (Cn) GA
A3 VQT3M47 O/I (Sp) PU
PCB6 REP4691CA AC INLET P.C.B. (RTL)
PCB7 REP4691CA SMPS P.C.B (RTL)
PCB9 RFKB4689DT DIGITAL P.C.B ASS'Y (ESD), JIG & ADJ (PU)
PCB9 RFKB4689WT DIGITAL P.C.B ASS'Y (ESD), JIG & ADJ (GA)
PCB11 REP4691CA VOLTAGE SELECTOR P.C.B. (RTL)
DZ5701 ERZV10V511CS ZNR
S5701 K0ABCA000007 VOLTAGE ADJ
L5701 ELF19H820E LINE FILTER
L5702 ELF19H820E LINE FILTER
T5701 ETS61BA126AD MAIN TRANSFORMER
T5751 ETS19AB2A6AG SUB TRANSFORMER
T6100 G4D1A0000142 SWITCHING TRANSFORMER
PC5702 B3PBA0000503 PHOTO COUPLER
PC5720 B3PBA0000503 PHOTO COUPLER
PC5799 B3PBA0000503 PHOTO COUPLER
RY701 K6B1AYY00065 RELAY
F1 K5D632BNA005 FUSE
IP1 K5H302100004 PROTECTOR
TH5702 D4CAA5R10001 THERMISTOR
P5701 K2AA2B000011 AC INLET
C5700 F1BAF471A013 470pF
C5701 F0CAF104A105 0.1uF
C5702 F0CAF104A105 0.1uF
C5703 F0CAF104A105 0.1uF
C5705 F1BAF471A013 470pF
C5706 F1BAF471A013 470pF

6
2Warning
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive
(ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec-
trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage
caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alumi-
num foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static (ESD protected)” can
generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or compara-
ble conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution:
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) suf-
ficient to damage an ES device).

7
2.2. Precaution of Laser Diode
Caution:
This product utilizes a laser diode with the unit turned “on”, invisible laser radiation is emitted from the pickup lens.
Wavelength: 790 nm (CDs), 655 nm (DVDs), 405 nm (BDs)
Maximum output radiation power from pickup: 100 µW/VDE
Laser radiation from the pickup unit is safety level, but be sure the followings:
1. Do not disassemble the pickup unit, since radiation from exposed laser diode is dangerous.
2. Do not adjust the variable resistor on the pickup unit. It was already adjusted.
3. Do not look at the focus lens using optical instruments.
4. Recommend not to look at pickup lens for a long time.

8
2.3. Service caution based on Legal restrictions
The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this
equipment in considering the globally environmental conservation.
The normal solder is the alloy of tin (Sn) and lead (Pb). On the other hand, the lead free solder is the alloy mainly consists of tin
(Sn), silver (Ag) and Copper (Cu), and the melting point of the lead free solder is higher approx.30 degrees C (86°F) more than that
of the normal solder.
Definition of PCB Lead Free Solder being used
Service caution for repair work using Lead Free Solder (PbF)
• The lead free solder has to be used when repairing the equipment for which the lead free solder is used.
(Definition: The letter of “PbF” is printed on the PCB using the lead free solder.)
• To put lead free solder, it should be well molten and mixed with the original lead free solder.
• Remove the remaining lead free solder on the PCB cleanly for soldering of the new IC.
• Since the melting point of the lead free solder is higher than that of the normal lead solder, it takes the longer time to melt the
lead free solder.
• Use the soldering iron (more than 70W) equipped with the temperature control after setting the temperature at 350±30 degrees
C (662±86°F).
Recommended Lead Free Solder (Service Parts Route.)
• The following 3 types of lead free solder are available through the service parts route.
RFKZ03D01K-----------(0.3mm 100g Reel)
RFKZ06D01K-----------(0.6mm 100g Reel)
RFKZ10D01K-----------(1.0mm 100g Reel)
Note
* Ingredient: tin (Sn), 96.5%, silver (Ag) 3.0%, Copper (Cu) 0.5%, Cobalt (Co) / Germanium (Ge) 0.1 to 0.3%
2.4. Handling Precaution for Traverse Unit
The laser diode in the optical pickup unit may break down due to static electricity of clothes or human body. Special care must be
taken avoid caution to electrostatic breakdown when servicing and handling the laser diode in the traverse unit.
2.4.1. Cautions to Be Taken in Handling the Optical Pickup Unit
The laser diode in the optical pickup unit may be damaged due to electrostatic discharge generating from clothes or human body.
Special care must be taken avoid caution to electrostatic discharge damage when servicing the laser diode.
1. Do not give a considerable shock to the optical pickup unit as it has an extremely high-precise structure.
2. To prevent the laser diode from the electrostatic discharge damage, the flexible cable of the optical pickup unit removed
should be short-circuited with a short pin or a clip.
3. The flexible cable may be cut off if an excessive force is applied to it. Use caution when handling the flexible cable.
4. The antistatic FPC is connected to the new optical pickup unit. After replacing the optical pickup unit and connecting the flexi-
The letter of “PbF” is printed either foil side or components side on the PCB using the lead free solder.
(See right figure)

9
ble cable, cut off the antistatic FPC.
Figure 1
2.4.2. Grounding for electrostatic breakdown prevention
Some devices such as the DVD player use the optical pickup (laser diode) and the optical pickup will be damaged by static electric-
ity in the working environment. Proceed servicing works under the working environment where grounding works is completed.
2.4.2.1. Worktable grounding
1. Put a conductive material (sheet) or iron sheet on the area where the optical pickup is placed, and ground the sheet.
2.4.2.2. Human body grounding
1. Use the anti-static wrist strap to discharge the static electricity form your body.
Figure 2

10
3 Service Navigation
3.1. Service Information
This service manual contains technical information which will allow service personnel’s to understand and service this model.
Please place orders using the parts list and not the drawing reference numbers.
If the circuit is changed or modified, this information will be followed by supplement service manual to be filed with the original ser-
vice manual.
• BD Mechanism Unit & Digital Circuitries:
1) This model uses BD Mechanism Unit (BRS1P).
2) This service manual does not contain the following information, due to the impossibility of servicing at
component level.
OSchematic Diagram, Block Diagram of Digital Circuitries on Digital P.C.B..
OReplacement Parts List for individual parts of Digital Circuitries on Digital P.C.B. & loading P.C.B..
OExploded View and Replacement Parts of individual parts of BD Mechanism Unit.
3) The following category are recycle module part. Please send them to Central Repair Center.
- Digital P.C.B.: RFKB4689WT (For BTT775GA)
- Digital P.C.B.: RFKB4689DT (For BTT775PU)
- BD Mechanism Unit: VXY2122T
•Wireless System (Optional)
1. This model support to optional wireless surround speaker, SH-FX71GC-K
2. For information of wireless system, please refer to original service manual (Order No. PSG1002003CE)
3.2. Combination of Multiple Pressing on the Remote Control
Press multi-buttons (in combination) on the remote control simultaneously for operations, such as initialization on service mode, etc.
There are no multiple pressing function on the previous remote controls, thus, please be sure to use the supplied remote control.
3.3. Entering Special Modes with Combination of Multiple Pressing on the
Remote Control
Enter the following special mode by multiple pressing functions on the supplied remote control.
After entering each mode, switch to the desired menus for operation.

11
3.3.1. Disclosure mode (Combination of multiple pressing: [OK] [BLUE] [YELLOW])
Press and hold [OK] [BLUE] [YELLOW] on the remote control simultaneously for 5sec., then “00 RET” is displayed on FL display
window.
3.3.2. Nondisclosure mode 1 (Combination of multiple pressing: [6] [7] [Yellow])
Press and hold [6] [7] [Yellow] on the remote control simultaneously for 5sec., then “50 RET” is displayed on FL display window.
Remarks
Remarks

12
3.3.3. Nondisclosure mode 2 (Combination of multiple pressing: [5] [9] [Red])
Press and hold [5] [9] [Red] on the remote control simultaneously for about 5sec., then “70 RET” is displayed on FL display window.
Remarks

13
3.4. Caution for Replacing Parts
3.4.1. Firmware updates
3.4.2. Items that should be done after replacing parts
Note:
Download latest Firmware and burn it on CD-R or CD-RW, and update Firmware.
3.4.3. Standard Inspection Specifications after Making Repairs
After making repairs, we recommend performing the following inspection, to check normal operation.
Use the following checklist to establish the judgment criteria for the picture and sound.
No. Procedure Item to Check
1 Turn on the power, and confirm items pointed out. Items pointed out should reappear.
2 Insert RAM disc. The Panasonic RAM disc should be recognized.
4 Perform playback for one minute using the RAM disc. No abnormality should be seen in the picture, sound or operation.
*Panasonic DVD-RAM disc should be used when recording and play-
back.
5 Perform playback for one minute using the BD-Video disc. No abnormality should be seen in the picture, sound or operation.
6 If a problem is caused by a BD-Video disc, VCD, DVD-R, DVD-
Video, Audio-CD, or MP3, playback the test disc. No abnormality should be seen in the picture, sound or operation.
7 After checking and making repairs, upgrade the firmware to the
latest version. Make sure that [UPD OK] appears in the FL displays. *[UNSUPPORT] display means the unit is already updated to newest
same version. Then version up is not necessary.
8 Transfer [9][9] in the service mode setting, and initialize the ser-
vice settings (return various settings and error information to
their default values. The laser time is not included in this initial-
ization).
Make sure that [CLR] appears in the FL display.
After checking it, turn the power off.

14
Item Contents Check Item Contents Check
Picture Block noise Sound Distorted sound
Crosscut noise Noise (static, background noise, etc.)
Dot noise The sound level is too low.
Picture disruption The sound level is too high.
Not bright enough The sound level changes.
Too bright
Flickering color
Color fading

15
4 Specifications
Main unit SA-BTT775GA/PU
OGENERAL
Power supply: AC 110 V to 127 V,
AC 220 V to 240 V, 50/60 Hz
Power consumption: 85 W
Power consumption in standby mode: 0.1 W
iPod/iPhone Connector: DC OUT 5V 1.0A MAX
Dimensions (W×H×D): 430 mm×40 mm×279 mm
Mass (Weight): Approx. 3.0 kg
(Dimensions and Weight do not
include Speakers)
Operating temperature range: 0 °C to 40 °C
Operating humidity range: 35 % to 80 % RH
(no condensation)
OAMPLIFIER SECTION
RMS TTL Power Output: 1000 W
1 kHz, 10 % total harmonic distortion
Front: 185 W per ch (3 Ω)
Center: 180 W per ch (3 Ω)
Surround: 125 W per ch (3 Ω)
100 Hz, 10 % total harmonic distortion
Subwoofer: 200 W per ch (3 Ω)
OFM TUNER SECTION
Frequency range: 87.50 MHz to 108.00 MHz (50 kHz step)
Antenna terminals: 75 Ω(unbalanced)
OVIDEO SECTION
Signal system: PAL/NTSC (For GA)
NTSC (For PU)
Video output
Output level: 1.0 Vp-p (75 Ω)
Output connector: Pin jack (1 system)
HDMI AV output
Output connector: Type A (19 pin)
This unit supports “HDAVI Control 5” function.
LASER Specification
Class 1 LASER Product
Wave length: 790 nm (CDs)/655 nm (DVDs)/405 nm (BDs)
Laser power:
No hazardous radiation is emitted with the safety protection
OTERMINAL SECTION
USB:
(Front)
USB Standard: USB 2.0 1 System
USB Port: DC OUT 5 V 500 mA Max
(Rear)
USB port for Wi-Fi:
Ready: USB 2.0 1 System
DC OUT 5 V 500 mA Max
SD card slot: Connector: 1 system
Ethernet: 10BASE-T/100BASE-TX
1 system
Audio Input:
AUX: x1
Digital Audio Input:
Optical: x1
Sampling frequency: 32kHz, 44.1 kHz, 48 kHz
Audio Format PCM, Dolby Digital, DTS
WLAN
Antenna: Tx 1, Rx 2
Standard Complaince: IEEE802.11n / IEEE802.11a
IEEE802.11g / IEEE802.11b
Transmission System: MISO-OFDM system, OFDM
system, DSSS system
Transfer rate (Standard):
IEEE802.11n: Tx Max, 150 Mbps, Rx Max.
300 Mbps
IEEE802.11g / IEEE802.11a: Max. 54 Mbps
IEEE802.11b: Max. 11 Mbps
Access Mode: Infrastructure mode
Security: WPA2-PSK (TKIP/AES)
WPA-PSK (TKIP/AES)
WEP (64 Bit / 128 Bit)
(This unit supports WPA and
WPA2 encryption)
Note:
1. Specifications are subject to change without notice.
Solder:This model uses lead free solder (PbF).
Refer to their respective original service manuals for *1.

16
4.1. Others (Licenses)

17
5 Location of Controls and Components
5.1. Remote Control Key Button Operations

18
5.2. Main Unit Key Button Operations
1Standby/on switch ( /I)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
2 Open or close the disc tray
3 Adjust the volume of the main unit
4 Disc tray
5Stop
6Startplay
7SDcardslot
8USBport
9 Remote control signal sensor
Distance: within approx. 7 m.
Angle: Approx. 20 up and down, 30 left and right
10 Display
11 Connect iPod/iPhone
1 AC IN terminal
2 Speaker terminals
3 Cooling fan
4
5 LAN port
6 HDMI AV OUT (ARC) terminal
7 FM radio antenna terminal
8 DIGITAL AUDIO IN terminal
9 AUX terminal
10 VIDEO OUT terminal
11 Digital transmitter dock for optional wireless system
12 AC Voltage selector
SD CARD
iPod
VOL
OPEN/CLOSE
1 2 3
4576119108
Pull open.
Main unit (Rear)
SUBWOOFER
3
6 5 2 1 4 3
33
RLR L
375
CENTER SURROUND FRONT
LAN
AUX
FM ANT
1 2 3 5 6 9 10 117 8
VOLT ADJ
110 127V 220 240V
VOLT ADJ
110 127V 220 240V
12
WIRELESS LAN
4
4USB port for wireless adaptor

19
5.3. Speaker Connection

20
5.4. Connection to a Broadband Network
The following services can be used when this unit is connected
to broadband.
–
Firmware can be updated
–
You can enjoy
–
You can access other devices (Home Network)
LAN cable connection
LAN Cable (not supplied)
Broadband router, etc.
Internet
Use category 5 or above straight LAN cables (STP) when
connecting to peripheral devices.
Inserting any cable other than a LAN cable in the LAN
terminal can damage the unit.
LAN
For details about connection method, refer to the instructions
supplied with the connected equipment.
(For South East Asia)
(For South East Asia)
–
You can enjoy VIERA CAST
Wireless LAN connection
(For Malaysia, Thailand, Singapore and Hong Kong)
– Connect the Wireless LAN Adaptor DY-WL10 (optional).
Wireless LAN Adaptor
Wireless router, etc.
Internet
Only the Wireless LAN Adaptor DY-WL10 (optional) can be
used.
Read the operating instructions for the Wireless LAN
Adaptor DY-WL10 (optional) thoroughly when using it.
For up to date compatibility information on your Wireless
router refer to
http://panasonic.jp/support/global/cs/
(This site is in English only.)
The unit is not compatible with public wireless LAN services
provided in airports, stations, cafes etc.
To simultaneously connect the Wireless LAN Adaptor
DY-WL10 (optional) and a LAN cable, use the extension
cable supplied with the DY-WL10.
WIRELESS LAN
