1 Background
This technical document illustrates the checking procedures when upon detecting the error code of “F61”. After the unit is switched
on, front display shows “F61”, and then unit shuts down. One possible problem is the DHIC located on the main unit (Power P.C.B)
is not operating in good condition or damage. This is caused by speaker terminal shorted during operation (at certain output level).
High current flows through the DHIC resulting in the activation of protection circuit. Due to the margin for sensitivity & current
consumption not enough, it leads to the damage of the DHIC.
DHIC refers to digital power hybrid I.C.
1.1. How to confirm DHIC damage
Below are 2 easy steps to check and confirm if the DHIC is damage.
1.Use a hand-held DMM to measure the Center channel or the Subwoofer channel speaker terminals just before the unit shuts
down. If there is DC voltage appears at one of the channels’ output, the DHIC is defective.
2.Check the pin 16 of digital HIC for unstable voltage 0 to 12V during power on. It should be normally stable at 12V after power
on.
Note :
If DHIC is damage, replace it with new one. Refer to section 5 Assembling and Disassembling of DHIC for the location of
replacement parts.
1.2. Other improvement points
1.Improve the protection circuit sensitivity.
2.Improve DHIC power consumption during load shorted.
3.Reduce the speaker wire strip.
3
SA-HT740P / SA-HT740PC / SA-HT740PX / SA-HT743P / SA-HT743PC / SA-HT940P / SA-HT940PC

2 Service Parts Replacement
·Models applicable : SA-HT740P/PC-S, SA-HT740PX-S, SA-HT743P/PC-S and SA-HT940P/PC-S
·Remedy:
Replace the IC, and then apply a fresh coat of heat sink compound before mounting the heat sink on the IC. DHIC (IC5001)
part numbers are as follows:
Model DHIC Part Number (IC5001)
SA-HT740P/PC-S RSN704D65-P
SA-HT740PX-S
SA-HT743P/PC-S
SA-HT940P/PC-S RSN704D66-P
·To prevent the IC from future damage, please use the following power service kit assembly to improve the protection circuits:
− Part no. RFKVAHT740PS
− (For replacement of parts) This service kit assembly consists of :
1.ERJM1WSF20MU x 2 pieces (R5041 & R5042)
2.ERJ3RBD272V x 1 piece (R5072)
3.F2A1J221A053 x 1 piece (C5718)
− For removal of parts:
1.F2A1J221A053 x 2 pieces (C5027 & C5028)
The following Section 3 “Location of Replacement & Removal Parts” indicates the location of the replcaement and removal points.
Note :
If the Main P.C.B is loaded with the applicable changes. It is not necessary to replace them.
4
SA-HT740P / SA-HT740PC / SA-HT740PX / SA-HT743P / SA-HT743PC / SA-HT940P / SA-HT940PC

3 Location of Replacement & Removal Parts
This section includes the location of the parts for changes of improvement.
3.1. Location and Replacement of Resistors (R5041, R5042 & R5072)
3.2. Location and Replacement of Capacitor (C5718)
5
SA-HT740P / SA-HT740PC / SA-HT740PX / SA-HT743P / SA-HT743PC / SA-HT940P / SA-HT940PC

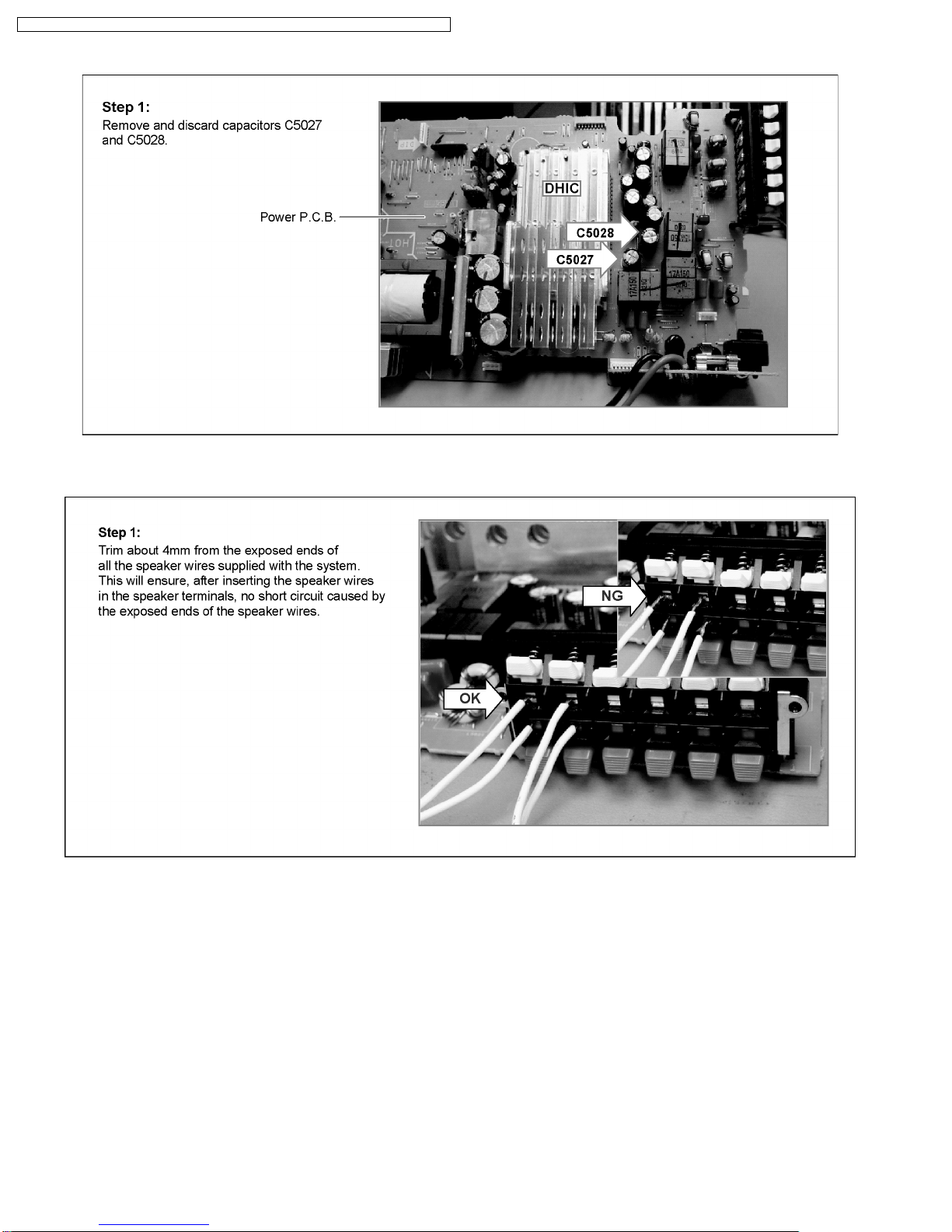

3.3. Location and Removal of Capacitors (C5027 & C5028)
3.4. Reduce Length of Speaker Wire Strip
6
SA-HT740P / SA-HT740PC / SA-HT740PX / SA-HT743P / SA-HT743PC / SA-HT940P / SA-HT940PC

4 Assembling and Disassembling of DHIC
“ATTENTION SERVICER”
Some chassis components may be have sharp edges. Be careful when disassembling and servicing.
1.This section describes procedures for checking the operation of the major printed circuit boards and replacing the main
components.
2.For reassembly after operation checks or replacement, reverse the respective procedures.
Special reassembly procedures are described only when required.
3.Select items from the following index when checks or replacement are required.
4.1. Content of this section
1.Below is the list of disassembly of DHIC sections
·Removal of Top Cabinet
·Removal of Tray Lid Assembly
·Removal of Front Panel
·Removal of Tray Assembly
·Removal of Rear Panel
·Removal of Side Fan
·Disassembly of Main P.C.B.
2.Assembly of DHIC sections
7
SA-HT740P / SA-HT740PC / SA-HT740PX / SA-HT743P / SA-HT743PC / SA-HT940P / SA-HT940PC

4.2. Disassembly of DHIC

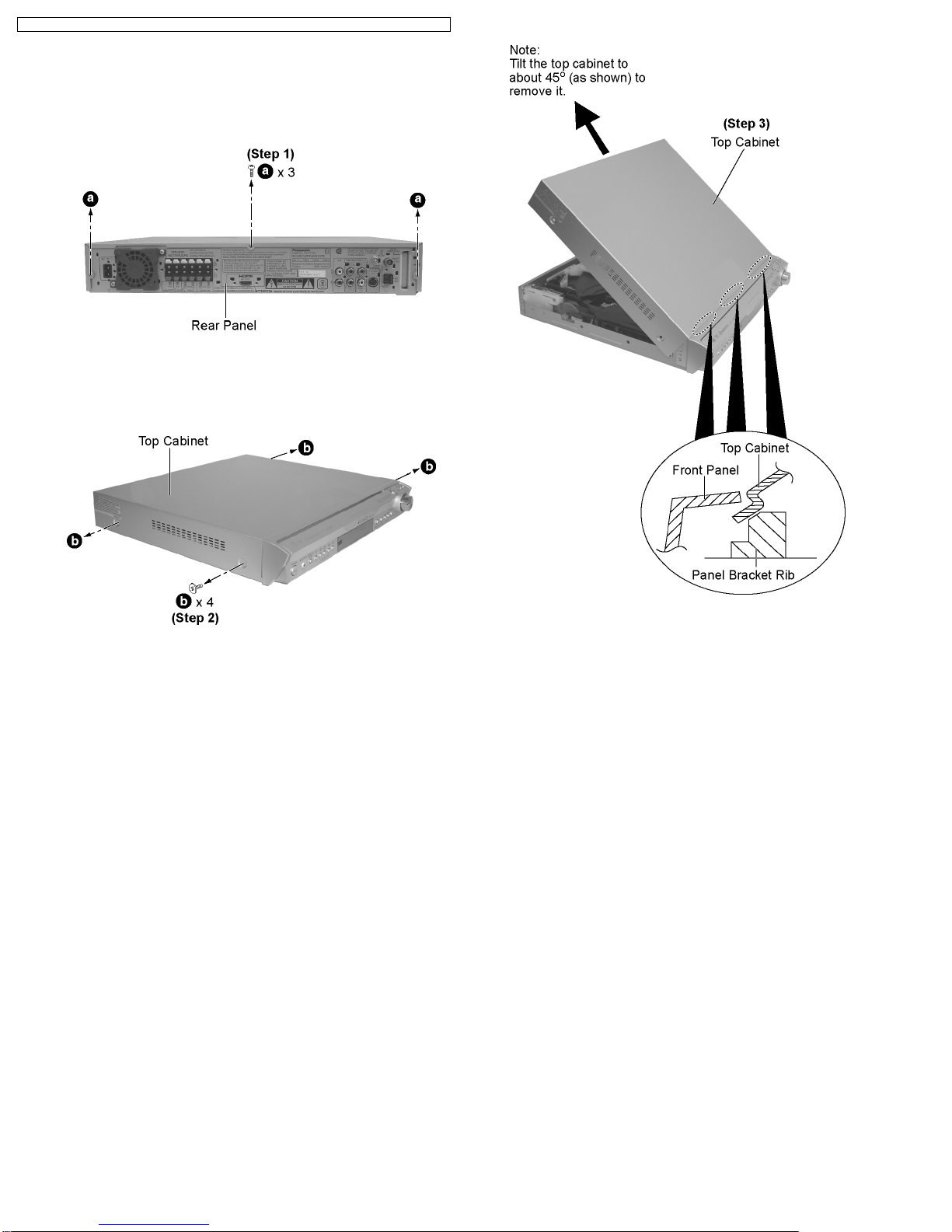

4.2.1. Removal of Top Cabinet
Step 1 : Remove 3 screws on Rear Panel.
Step 2 : Remove 4 screws on L/R side of Top Cabinet.
Step 3 : Remove Top Cabinet as arrow shown.
4.2.2. Removal of Tray Lid Assembly
·Follow the (Step 1) - (Step 3) of item 4.2.1.
8
SA-HT740P / SA-HT740PC / SA-HT740PX / SA-HT743P / SA-HT743PC / SA-HT940P / SA-HT940PC

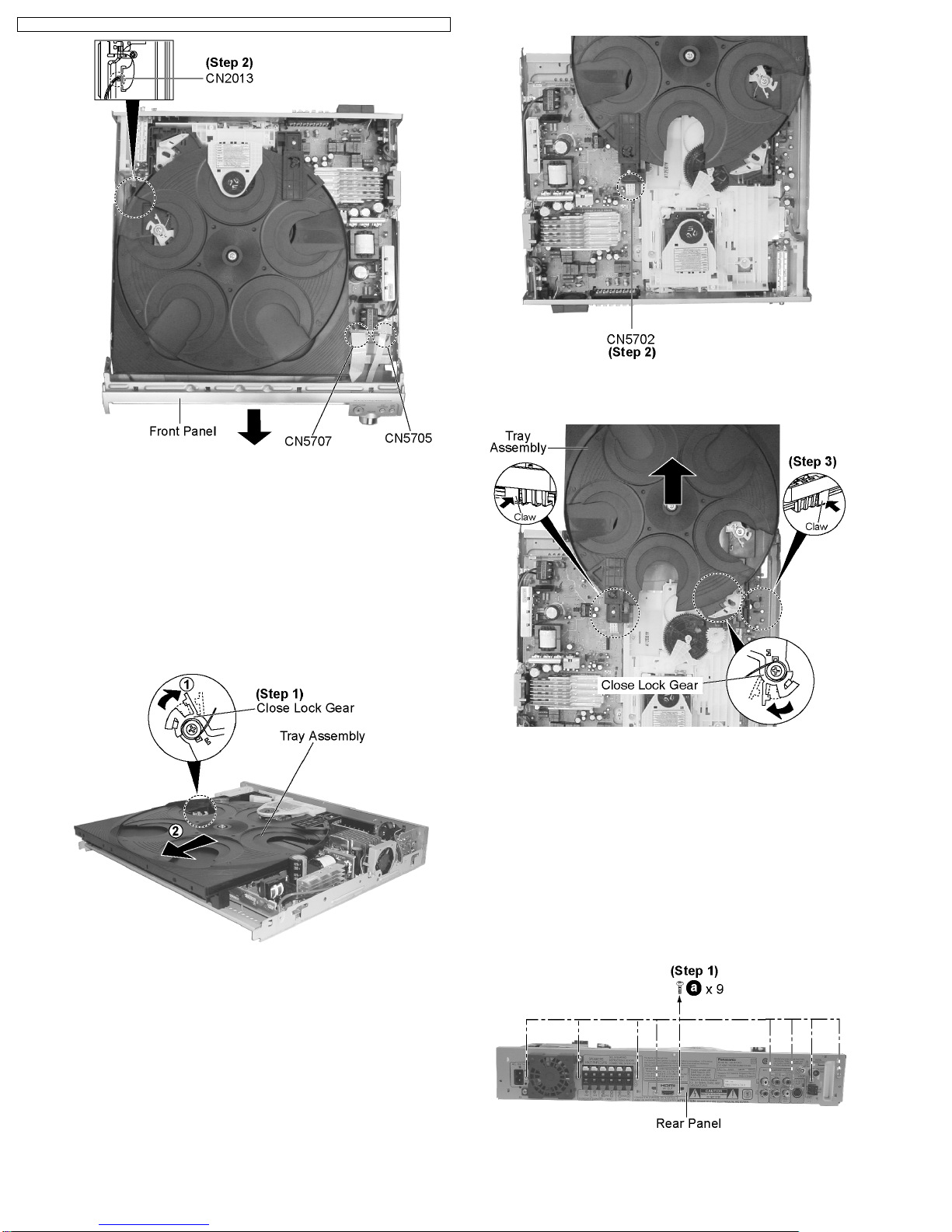

Step 1 : Push and hold the Close Lock Gear and then push the
Tray Assembly as arrow shown .
Step 2 : Release the 4 claws as arrows shown to detact the
Tray Lid Assembly.
Step 3 : Push and hold the Open Lock Gear and then push the
Tray Assembly as arrows shown.
4.2.3. Removal of Front Panel
·Follow the (Step 1) - (Step 3) of item 4.2.1.
·Follow the (Step 1) - (Step 3) of item 4.2.2.
Step 1 : Release 5 hooks.
9
SA-HT740P / SA-HT740PC / SA-HT740PX / SA-HT743P / SA-HT743PC / SA-HT940P / SA-HT940PC

Step 2 : Disconnect the connector (CN2013) and detach the
FFC (CN5707 and CN5705) then remove the Front Panel as
arrow shown.
4.2.4. Removal of Tray Assembly
·Follow the (Step 1) - (Step 3) of item 4.2.1.
·Follow the (Step 1) - (Step 3) of item 4.2.2.
·Follow the (Step 1) - (Step 2) of item 4.2.3.
Step 1 : Push and hold the Close Lock Gear and then push the
Tray Assembly as arrows shown.
Step 2 : Detach the FFC (CN5702).
Step 3 : Push and hold the claws at the both sides of the Tray
Assembly and Close Lock Gear at the same time to remove the
Tray Assembly as arrows shown.
4.2.5. Removal of Rear Panel
·Follow the (Step 1) - (Step 3) of item 4.2.1.
·Follow the (Step 1) - (Step 3) of item 4.2.2.
·Follow the (Step 1) - (Step 2) of item 4.2.3.
·Follow the (Step 1) - (Step 3) of item 4.2.4.
Step 1 : Remove 9 screws on Rear Panel.
10
SA-HT740P / SA-HT740PC / SA-HT740PX / SA-HT743P / SA-HT743PC / SA-HT940P / SA-HT940PC

Step 2 : Detach the fan connector (CN5704).
Step 3 : Release all the catches at both sides of the Rear Panel
and remove it as arrow shown.
4.2.6. Removal of Side Fan
·Follow the (Step 1) - (Step 3) of item 4.2.1.
·Follow the (Step 1) - (Step 3) of item 4.2.2.
·Follow the (Step 1) - (Step 2) of item 4.2.3.
·Follow the (Step 1) - (Step 3) of item 4.2.4.
·Follow the (Step 1) - (Step 3) of item 4.2.5.
Step 1 : Remove 2 screws and detach the Side Fan.
Step 2 : Disconnect the connector (CN5714).
4.2.7. Disassembly of Main P.C.B.
·Follow the (Step 1) - (Step 3) of item 4.2.1.
·Follow the (Step 1) - (Step 3) of item 4.2.2.
·Follow the (Step 1) - (Step 2) of item 4.2.3.
·Follow the (Step 1) - (Step 3) of item 4.2.4.
·Follow the (Step 1) - (Step 3) of item 4.2.5.
·Follow the (Step 1) - (Step 2) of item 4.2.6.
Step 1 : Cut the 2 lead clampers to release the wires.
Step 2 : Remove 4 screws.
Step 3 : Push the Main P.C.B. as arrow shown to avoid the
hooks.
Step 4 : Flip the Main P.C.B. as arrow shown.
11
SA-HT740P / SA-HT740PC / SA-HT740PX / SA-HT743P / SA-HT743PC / SA-HT940P / SA-HT940PC

4.3. Assembly of DHIC
4.3.1. Assembly of Main P.C.B.
Step 1 : Lay down the Main P.C.B. as arrow shown.
Step 2 : Push the Main P.C.B. as arrow shown to seat properly
at both guides.
Step 3 : Ensure the wires dressed underneath the hooks.
Step 4 : Fix 4 screws.
Step 5 : Insert the lead clamper (2 pieces) through the hole as
arrows shown to hold the wires.
Step 6 : Place the Side Fan properly on the hooks.
Step 7 : Fix 2 screws.
Step 8 : Reconnect the connector (CN5714).
12
SA-HT740P / SA-HT740PC / SA-HT740PX / SA-HT743P / SA-HT743PC / SA-HT940P / SA-HT940PC

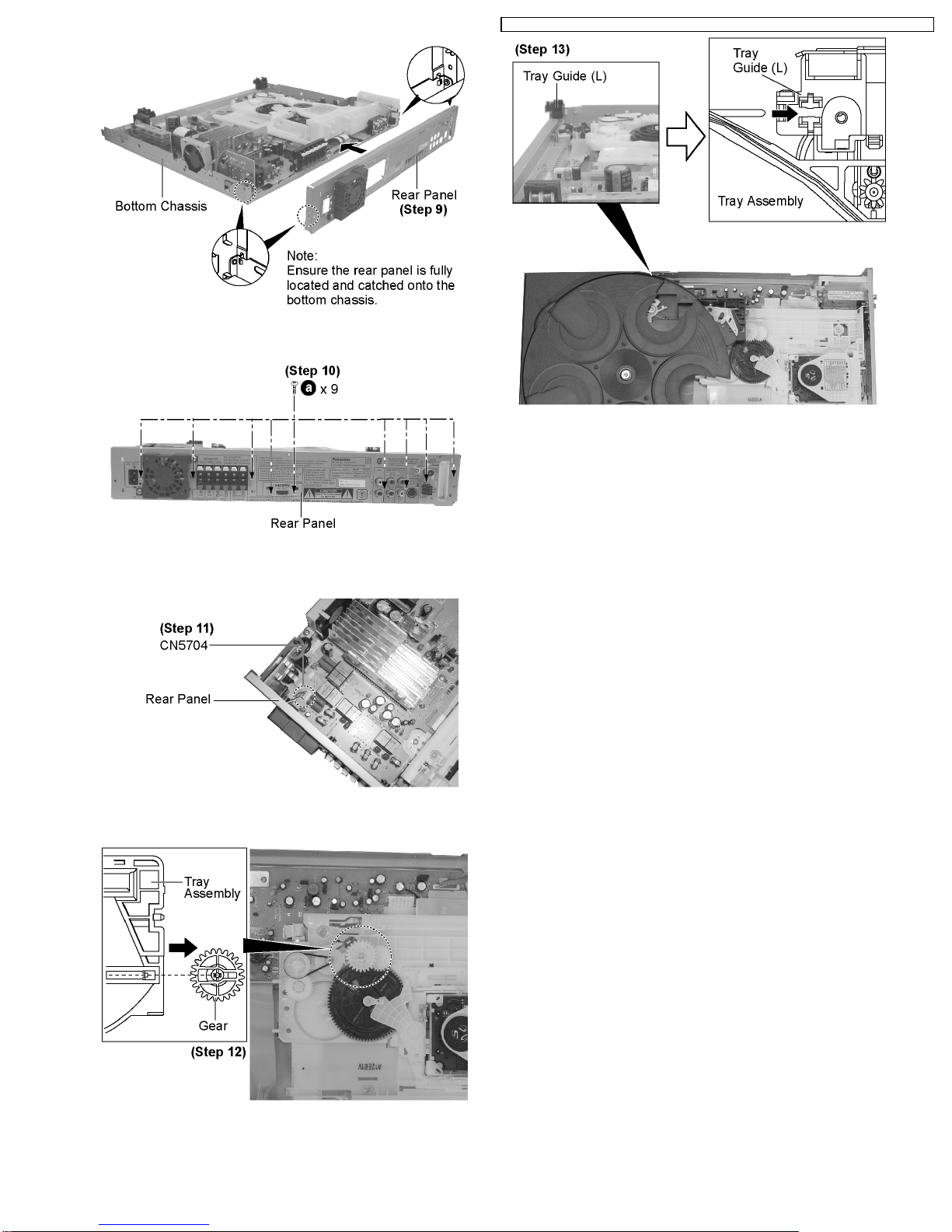

Step 9 : Fix the Rear Panel as arrow shown.
Step 10 : Fix 9 screws.
Step 11 : Reconnect the connector (CN5704).
Step 12 : Positioned the gear as shown before fixing the Tray
Assembly.
Step 13 : Positioned the Tray Assembly at the tray guide (L).
13
SA-HT740P / SA-HT740PC / SA-HT740PX / SA-HT743P / SA-HT743PC / SA-HT940P / SA-HT940PC

Step 14 : Push and hold the Open Lock Gear and then push
the Tray Assembly as arrows shown.
Step 15 : Ensure the Front Panel is properly located and fully
catched.
Step 16 : Reconnect the connectors (CN2013) and FFC
(CN5705 and CN5707).
14
SA-HT740P / SA-HT740PC / SA-HT740PX / SA-HT743P / SA-HT743PC / SA-HT940P / SA-HT940PC

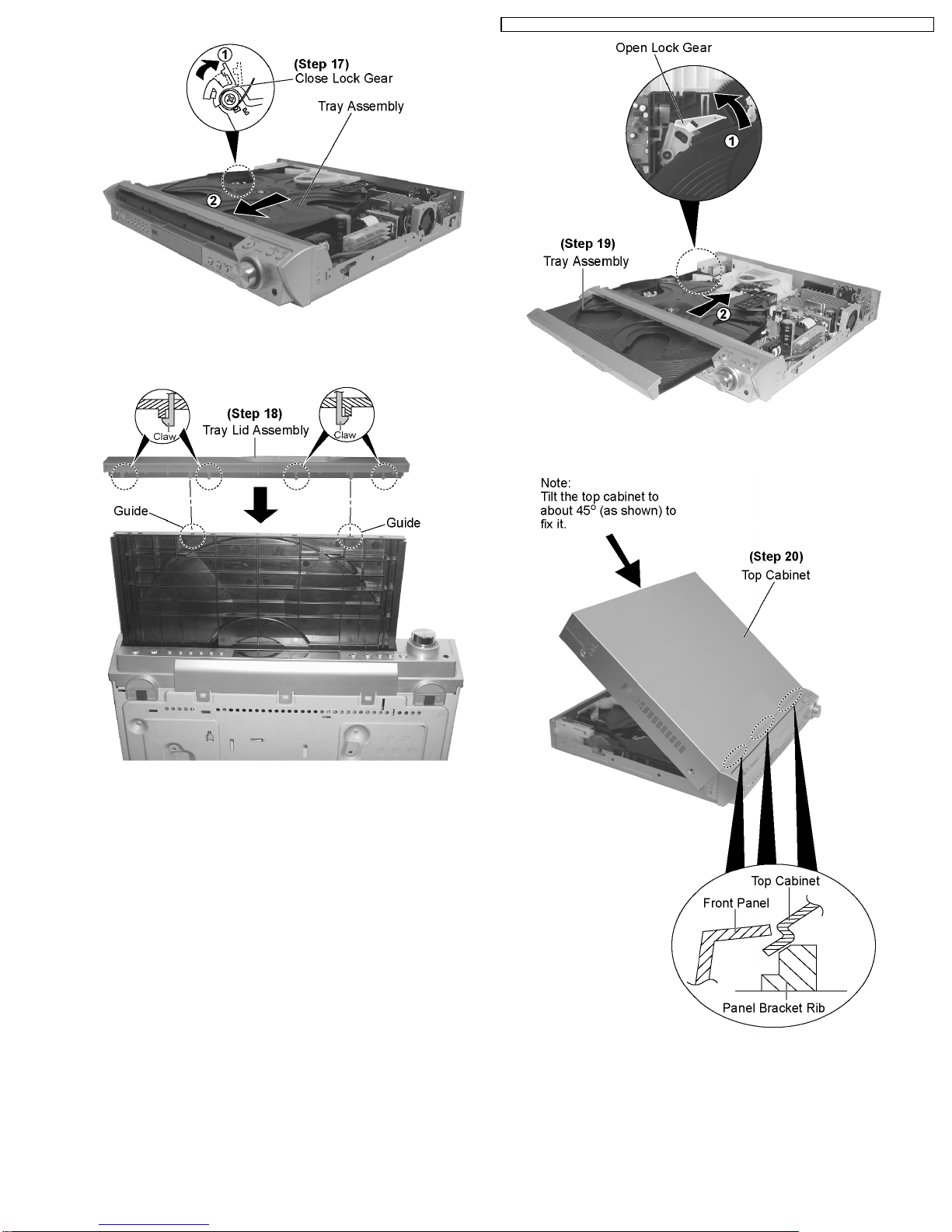

Step 17 : Push and hold the Close Lock Gear and then push
the Tray Assembly as arrows shown.
Step 18 : Ensure the Tray Lid Assembly is properly located and
fully catched.
Step 19 : Push and hold the Open Loack Gear and then push
the Tray Assembly as arrows shown.
Step 20 : Fix the Top Cabinet as shown.
15
SA-HT740P / SA-HT740PC / SA-HT740PX / SA-HT743P / SA-HT743PC / SA-HT940P / SA-HT940PC

Step 21 : Fix 4 screws on L/R side of Top Cabinet.
Step 22 : Fix 3 screws on Rear Panel.
16
