Panasonic CF-20 series User manual

Useful Information
Handling and Maintenance.......................... 21
Installing Software ....................................... 26
Getting Started
Introduction..................................................... 2
Description of Parts ........................................ 4
First-time Operation..................................... 14
Turning On / Turning Off.............................. 20
Troubleshooting
Troubleshooting (Basic)............................... 31
Appendix
LIMITED USE LICENSE AGREEMENT...... 36
Specications .............................................. 40
LIMITED WARRANTY................................. 45
Standard Limited Warranty.......................... 52
Useful Information
Troubleshooting
Appendix Getting Started
Contents
OPERATING INSTRUCTIONS
Basic Guide
Personal Computer
Model No. CF-20series
Please read these instructions carefully before using this product, and save this manual for future use.

2
Getting Started
Thank you for purchasing this Panasonic product. For optimum performance and safety, please
read these instructions carefully.
In these instructions, the names are referred as follows.
indicates Windows 10 Operating System.
indicates Windows 7 Operating System.
nTerms and illustrations in these instructions
CAUTION : Conditions that may result in minor or moderate injury.
NOTE : Useful and helpful information.
Enter
: Press [Enter] key.
Fn
+
F5
: Press and hold [Fn] key, and then press [F5] key.
- [All Apps] : Click (Start) and then click [All Apps].
(Start) - [All Programs] : Click (Start), and then click [All Programs]. You may need to
double-click in some cases.
è: Page in these Operating Instructions or in the Reference Manual.
: Reference to the on-screen manuals.
l Someillustrationsaresimpliedtohelpyourunderstandingandmaylookdifferentfromthe
actual unit. Some types of software are automatically updated, and differences may occur
from descriptions in this manual.
lIf you do not log on as an administrator, you cannot use some functions or cannot display
some screens.
lRefer for the latest information about optional products to the catalogs, etc.
lIn these instructions, the names and terms are referred as follows.
“Windows 10 Pro 64-bit” as “Windows” or “Windows 10”
“Windows 7 Professional 32-bit Service Pack 1” and “Windows 7 Professional 64-bit Service
Pack 1” as “Windows” or “Windows 7”
DVD MULTI drive as “CD/DVD drive”
Circular media including DVD-ROM and CD-ROM as “discs”
“Multilanguage User Interface” as “MUI”
The Digitizer + Touch Screen (Capacitive) as the “digitizer”, and the Touch Screen as the
“touchscreen”.
The digitizer pen and the stylus as the “pen (included)”.
“Operating Instructions Reference Manual” and “Operating Instructions Connect to a net-
work” as the “Reference Manual” and “Connect to a network”.
l
Screen messages are explained in [English (United States)].
(Depending on the language preference, some screen messages in these instructions are dif-
ferent from the actual screen messages. For example, [Flight mode] may be displayed instead
of [Airplane mode] in some language preference.)
nDisclaimer
Computerspecicationsandmanualsaresubjecttochangewithoutnotice.PanasonicCorpora-
tion assumes no liability for damage incurred directly or indirectly from errors, omissions or dis-
crepancies between the computer and the manuals.
Introduction

3
Getting Started
nTrademarks
Microsoft®, Windows®, the Windows logo, and IntelliMouse are registered trademarks of Microsoft
Corporation of the United States and/or other countries.
Intel, Core and PROSet are either registered trademarks or trademarks of Intel Corporation.
SDXC and microSDXC Logos are trademarks of SD-3C, LLC.
Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of
Adobe Systems Incorporated in the United States and/or other countries.
Bluetooth®is a registered trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to
Panasonic Corporation.
HDMI,theHDMILogoandHigh-DenitionMultimediaInterfacearetrademarksorregistered
trademarks of HDMI Licensing LLC in the United States and other countries.
Names of products, brands, etc., appearing in this manual are trademarks or registered trade-
marks of their respective own companies.
nOn-screen Manual
For further information about the computer, you can refer to the on-screen manual.
lOperating Instructions - Reference Manual
This Manual contains the practical information to help you fully enjoy the computer’s perfor-
mance. Update it to the latest version for reference.
lImportant Battery Tips
The Important Battery Tips will provide you with the battery information so that you can use
the battery in the optimum condition to obtain longer operation time.
lUpdate the on-screen manuals
This describes the procedures to update the on-screen manual.
lOperating Instructions - Connect to a network
This describes the connection procedures using the network devices mounted on this unit.
To access the on-screen manuals, follow the steps below.
Double-click [Manual Selector] on the desktop, and select the manual and click [Open].
1. Double-click the [Panasonic PC Settings Utility] on the desktop screen, and then click [Support]
- [Manual] - [Launch Manual Selector].
2. Select the manual and click [Open].
NOTE
[Contents] tab or [Search] tab of the on-screen manuals is displayed on the left side of the
window. Select tab and display the desired item.

4
Getting Started

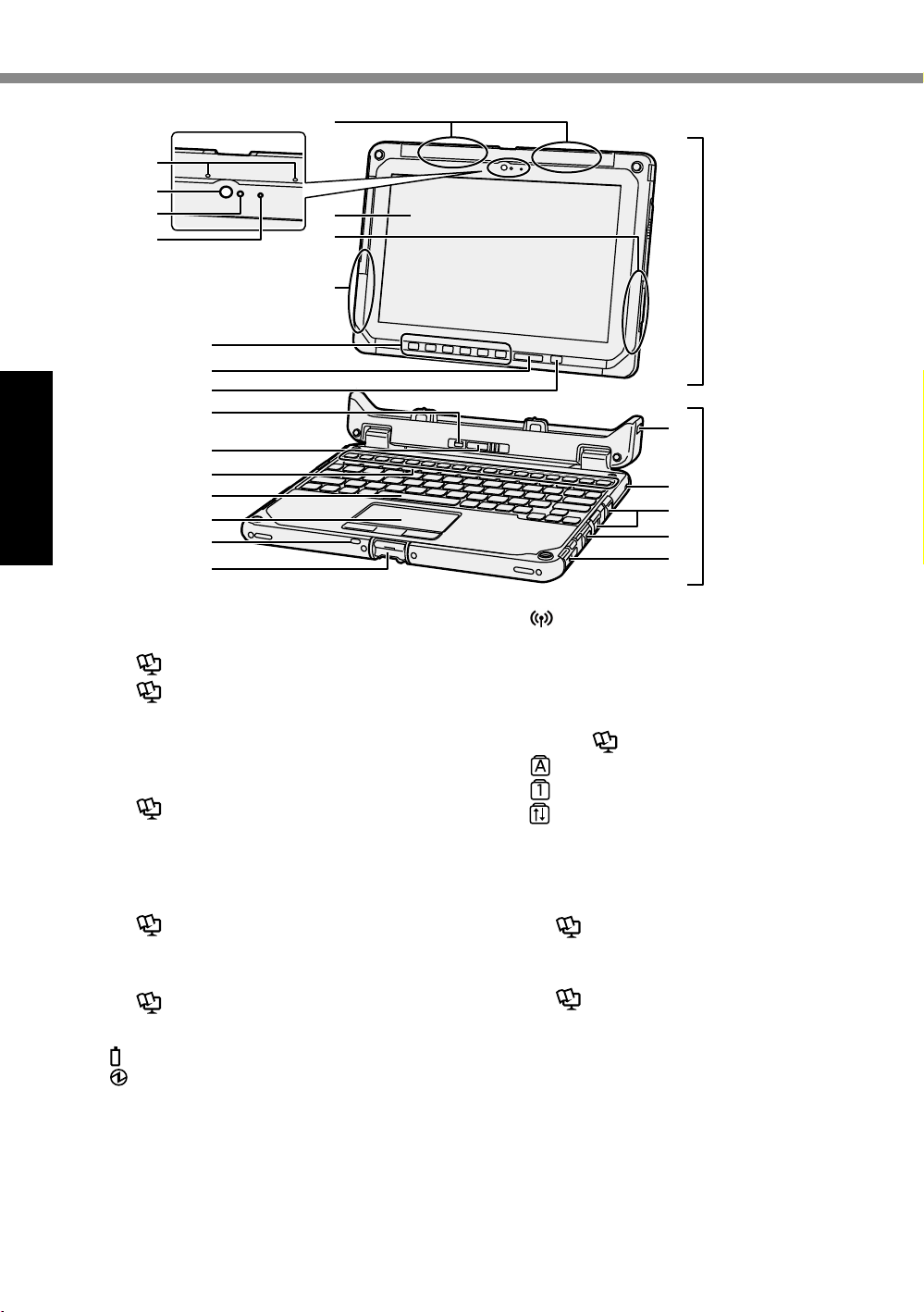

Description of Parts
A: Wireless WAN Antenna / GPS Antenna
<Only for model with wireless WAN/GPS>
èReference Manual “Wireless WAN”
èReference Manual “GPS”
B: Microphone
C: Camera Lens
D: Ambient Sensor
E: Camera Indicator
èReference Manual “Camera”
F: LCD
G: Wireless LAN Antenna / Bluetooth
Antenna
H: Wireless LAN Antenna
èReference Manual “Bluetooth”
Connect to a network “Wireless LAN”
I: Tablet Buttons
èReference Manual “Tablet Buttons”
J: LED Indicator
: Battery Status
: Power Status
Off: Power off/Hibernation
Green: Power on
Blinking Green: Sleep
Blinking green rapidly:
Cannot power on or resume due to
low temperature.
: Wireless ready
This indicator lights when Wireless
LAN, Bluetooth, and/or Wireless WAN
are connected and ready. It does not
necessarily indicate the On/Off condi-
tion of the wireless connection.
èConnect to a network
: Caps Lock indicator
: NumLk (numeric lock) indicator
: ScrLk (scroll lock) indicator
K: Power Switch
L: Detach Lock
M: Release Lever
N: Function (Fn) Keys
èReference Manual “Function Keys”
O: Keyboard
P: Touchpad
èReference Manual “Touchpad”
Q: Display Latch
R: Security Lock (Clamshell)
When the main unit is connected, both the
main unit and keyboard base can be se-
cured at the same time.
S: Security Lock (Keyboard base)
A Kensington cable can be connected. For
further information, read the manual that
comes with the cable.
A
C
B
F
I
S
R
U
V
T
O
P
J
M
N
J
K
Q
L
G
H
D
EMain Unit
Keyboard Base
Camera

5
Getting Started
T: USB 3.0 Port
èReference Manual “USB Devices”
U: LAN Port
èConnect to a network “LAN”
V: Serial Port
èReference Manual “Serial Port”

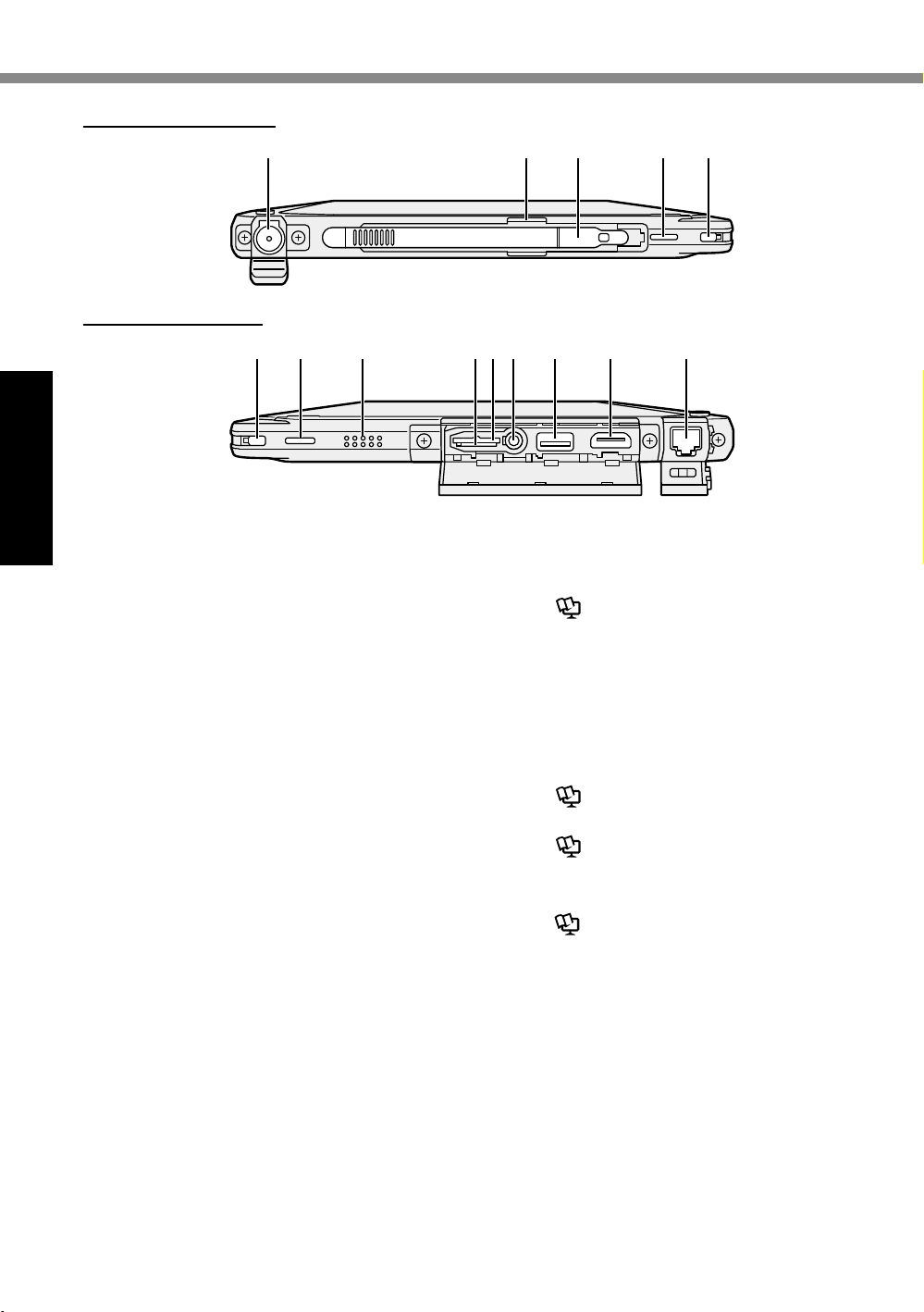

6
Getting Started
Description of Parts
A: DC-IN Jack
Only the main unit can be charged.
B: Pen Holder
C: Pen
D: Tether Hole
E: Security Lock (Main Unit)
A Kensington cable can be connected. For
further information, read the manual that
comes with the cable.
F: Speaker
The speaker contains a magnet and
magnetic products. Avoid leaving metallic
object or magnetic media in contact with
these areas.
G: SD Memory Card Indicator
(Blinking: During access or a password is
requested)
H: microSD Memory Card Slot
Keep microSD Memory Cards away from
infants and small children.
èReference Manual “SD Memory
Card”
I: Headset Jack
A headset or headphone can be connect-
ed.
J: USB 3.0 Port (CHG)
Do not insert any foreign object in the USB
port.
èReference Manual “USB Devices”
K: HDMI Port
èReference Manual “External Dis-
play”
L: LAN Port
è
Connect to a network “LAN”
A B C D E
DE F HG I J K L
Main Unit (Right Side)
Main Unit (Left Side)

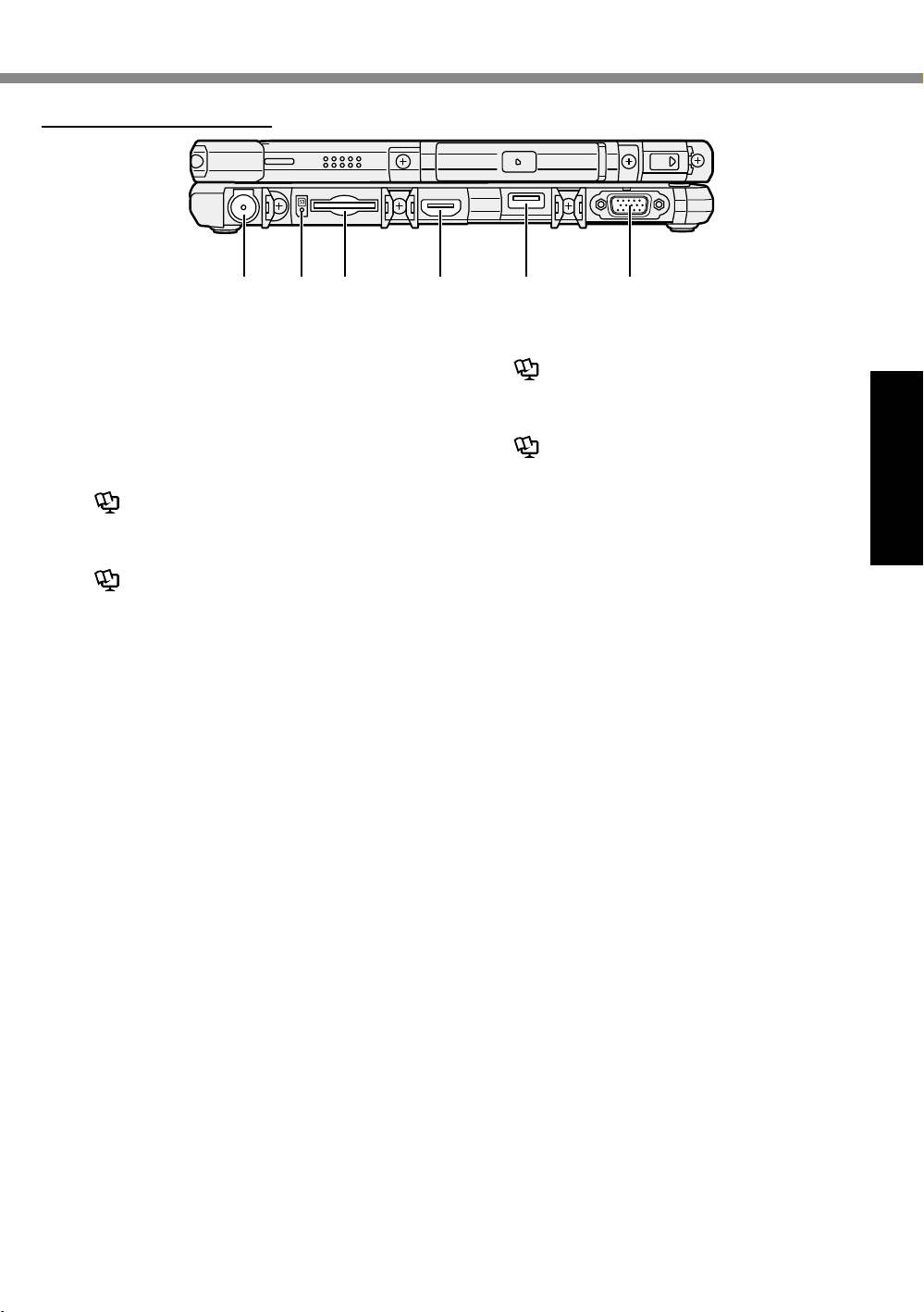

7
Getting Started
A: DC-IN Jack
B: SD Memory Card Indicator
(Blinking: During access or a password is
requested)
C: SD Memory Card Slot
Keep SD Memory Cards away from infants
and small children.
èReference Manual “SD Memory
Card”
D: HDMI Port
èReference Manual “External Dis-
play”
E: USB 2.0 Port
èConnect to a network “USB Devic-
es”
F: VGA Port
èReference Manual “External Dis-
play”
A CB D E F
Keyboard Base (Left Side)

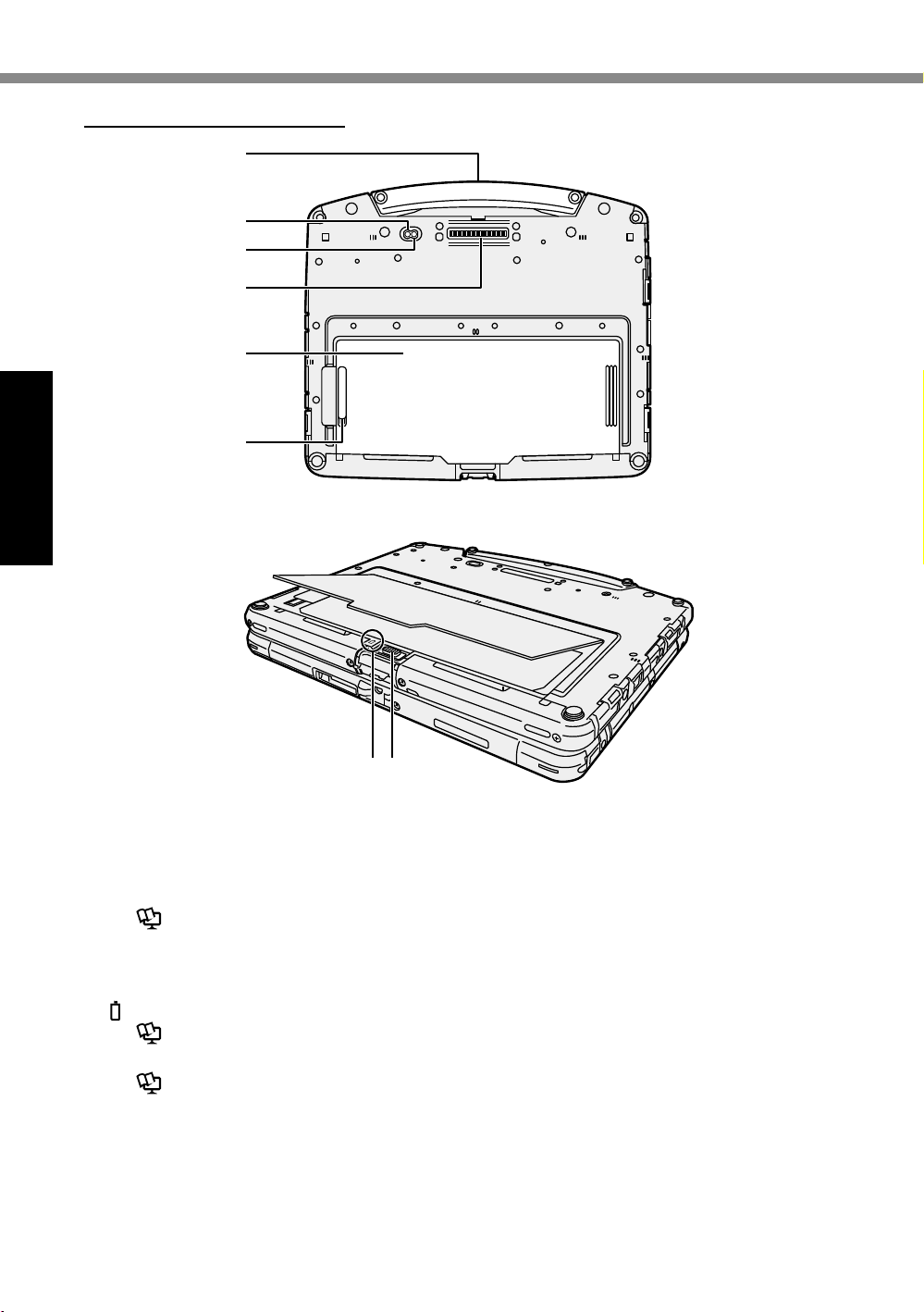

8
Getting Started
Description of Parts
A: Carrying Handle
B: External Antenna Connector (CH2)
C: External Antenna Connector (CH1)
D: Expansion Bus Connector
èReference Manual “Port replicator”
E: Battery Cover
F: Battery Cover Latch
G: LED Indicator
: Battery Status
èReference Manual “Battery Power”
H: Battery Pack Latch
èReference Manual “Battery Power”
A
B
D
C
F
G
E
H
Keyboard Base (Bottom Side)

9
Getting Started
Rear Camera
<Only for model with Rear Camera>
A: Camera Indicator
B: Camera Light
C: Camera Lens
èReference Manual “Camera”
D: Back Cover
The shape of this may vary depending on
the model.
E: Release Latch
F: microSIM Card Slot
<Only for model with wireless WAN>
èConnect to a network “Wireless
WAN”
G: Battery Pack Latch
èReference Manual “Battery Power”
H: LED Indicator
<Only for model with built-in bridge bat-
tery>
: Battery Status
èReference Manual “Battery Power”
A CB
D
E
F
G
H
Main Unit (Bottom Side)

10
Getting Started
Description of Parts
A: Tether Hole
B: LED Indicator
: Battery Status
: Power Status
Off: Power off/Hibernation
Green: Power on
Blinking Green: Sleep
Blinking green rapidly:
Cannot power on or resume due to
low temperature.
C: Barcode Reader
<Only for model with Barcode Reader>
èReference Manual “Barcode Read-
er”
A B B C A
Main Unit (Top Side)

11
Getting Started

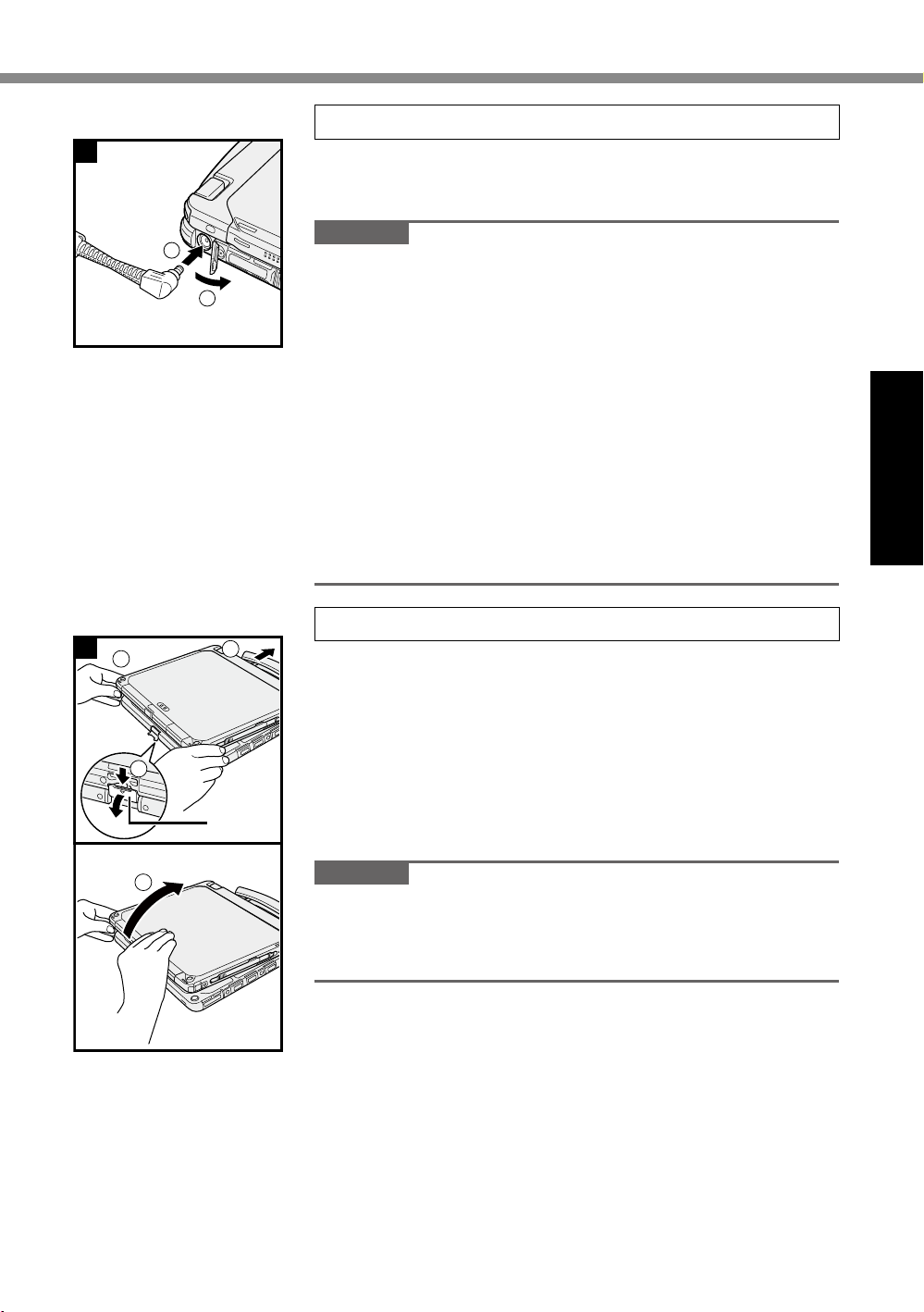

Detaching the main unit from the keyboard base
After Detach the main unit from the keyboard base, you can use the main unit as a tablet or reat-
tach it in the reverse direction.
CAUTION
l
Beforedetachingthemainunit,conrmthefollowingthings.
- Save the necessary data.
- Closelesyouhaveopenedfromremovabledisksandnetworkdrives.
- Remove peripheral devices connecting to the main unit.
l
Do not detach the main unit in the conditions below.
• When the SD Memory Card indicator is on.
• Whenplaying/recordingaudiolesordisplayingmotionvideosuchasMPEGles.
• When playing a DVD-Video.
• When writing to a disc.
• When using communication software or network functions.
A To detach the main unit while it is turned on, perform the following.
CAUTION
l Before detaching the main unit, check the remaining battery power by pressing the
Fn
and
F9
keyboard keys at the same time.
When the battery status of the “Battery 1” becomes 5% or less, can not detach the main
unit from the keyboard base.
Windows 10
Click in the taskbar of the desktop screen, and then click - [Eject Keyboard Base
Device].
Click inthenoticationarea,andthenclick - [Eject Keyboard Base Device].
“Undock Complete” appears at the bottom right of the screen.
NOTE
l AconrmationmessagemayappearifanSDmemorycardisinsertedinthekeyboard
base.If“UndockComplete”appears,click[OK]intheconrmationmessage,andproceed
to step B.
The same operation can be performed by pressing the
Fn
and
1
keyboard keys at the
same time.
NOTE
l To cancel detachment, press the
Fn
and
1
keyboard keys at the same time after the
above operation
B Release the detach lock (A).

12
Getting Started
Description of Parts
C Slide the release lever (B) in the direction of the arrow.
RELEASE
3
2
A B
D Detach the main unit from the keyboard base.
CAUTION
l
When detaching the main unit from the key-
board base, hold the position at the locations
dashed line circled in the illustration.
The main unit can be attached facing the reverse direction.
CAUTION
l
Depending on the shape of the main unit’s rear, you may not be able to operate the unit with
the main unit attached in the direction illustrated. Be sure to verify this before actual use.
NOTE
l
Do not attach/detach the main unit in the rain.

13
Getting Started

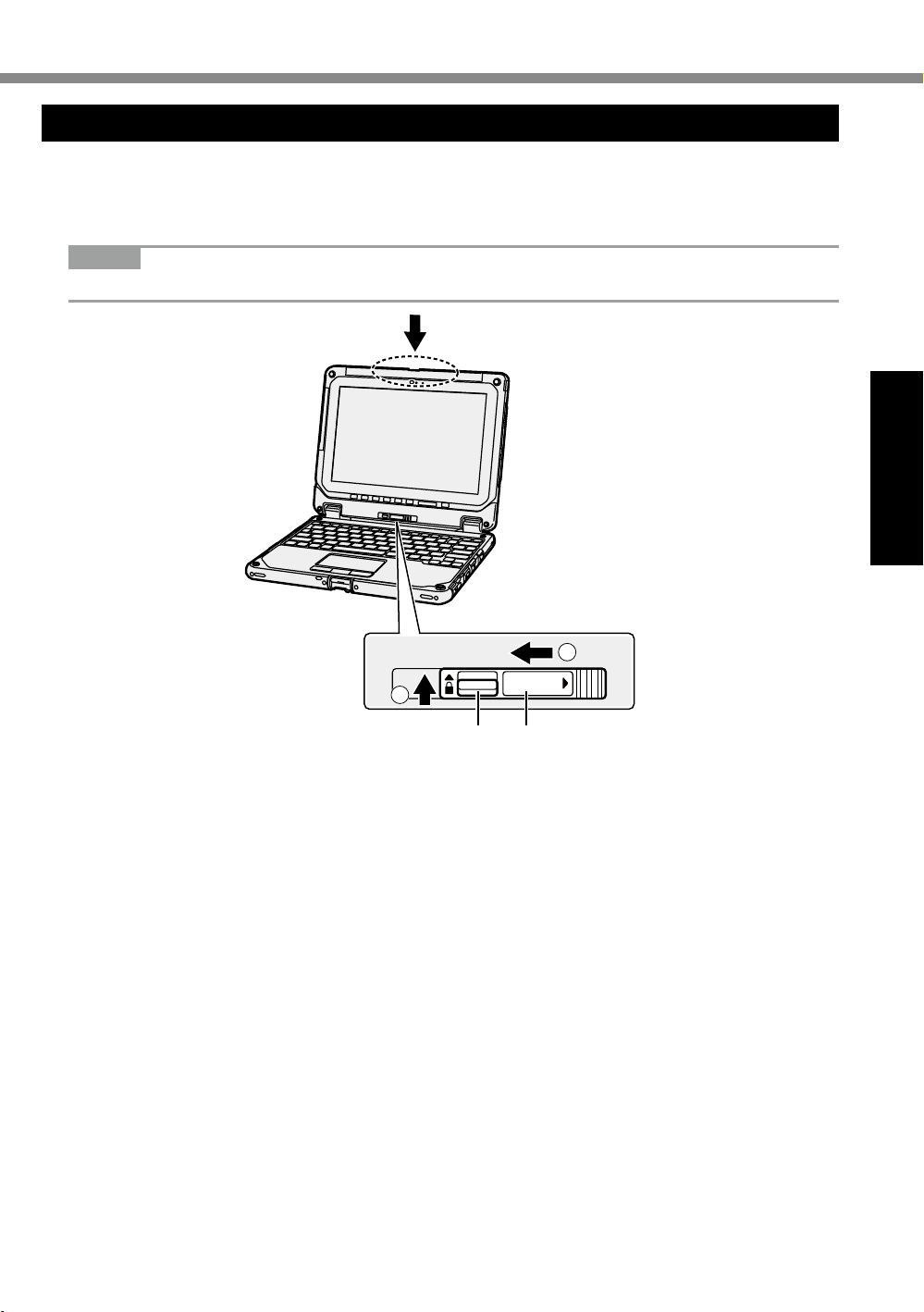

Attaching the main unit to the keyboard base
A Push the main unit at the locations dashed line circled in the illustration in a downward direc-
tion.
Release lever (B) will return to the direction of the arrow.
B Raise detach the lock (A) above.
NOTE
l Conrmthattheredsignsnearthedetachlockandthereleaselevercannotbeseen.
RELEASE
A B
1
2

14
Getting Started
First-time Operation
nPreparation
ACheck and identify the supplied accessories.
Ifyoudonotndthedescribedaccessories,contactyoursupportofce.
• AC Adaptor.....1
Model No: CF-AA6413C
• AC Cord .......1 • Battery Pack ..1*1
Model No: CF-VZSU0QW
• Soft Cloth ......1 • Tether .........1
<Only for model with digitizer> <Only for model with touchscreen>
• Digitizer pen....1 • Stylus .........1
• OPERATING INSTRUCTIONS - Read Me First ........................ 1
*1 Stored in the main unit at the time of packing.
1 Attaching the pen (included) to the computer
Use the tether to attach the pen (included) to the computer so
you will not lose it. There are holes (A) to attach it.
1 2 3 4
CAUTION
lDo not pull the tether with excessive force. The stylus may
hit the computer, person’s body or other objects when re-
leased.
A
1

15
Getting Started
2 Connect your computer to a power outlet
A Open the cover.
B Connect your computer to a power outlet.
The battery charging starts automatically.
CAUTION
l DonotdisconnecttheACadaptoruntiltherst-timeopera-
tion procedure is completed.
l Whenusingthecomputerforthersttime,donotconnect
any peripheral device except the battery pack and AC adap-
tor.
lHandling the AC adaptor
Problems such as sudden voltage drops may arise during
periods of thunder and lightning. Since this could adversely
affect your computer, an uninterruptible power source (UPS)
is highly recommended unless running from the battery pack
alone.
lWhen the DC plug is not connected to the computer, dis-
connect the AC cord from your electrical outlet. Power is
consumed simply by having the AC adaptor plugged into an
electrical outlet.
3 Open the display
A Pull out the handle.
lIf you do not pull out the handle before opening the
display, the computer may fall over due to the weight
of the display.
B Push down on the latch (B), and pull it out to release it.
C Hold the corners with both hands, and lift the display
slightly.
D Hold the side of the computer with either of your hands
and then lift up the display to open.
CAUTION
lDo not open the display wider than necessary (180° or
more), and do not apply excessive pressure to the LCD. Do
not open or close the computer holding the edge of the LCD
segment.
1
2
2
3
2
3
4
1
B

16
Getting Started
First-time Operation

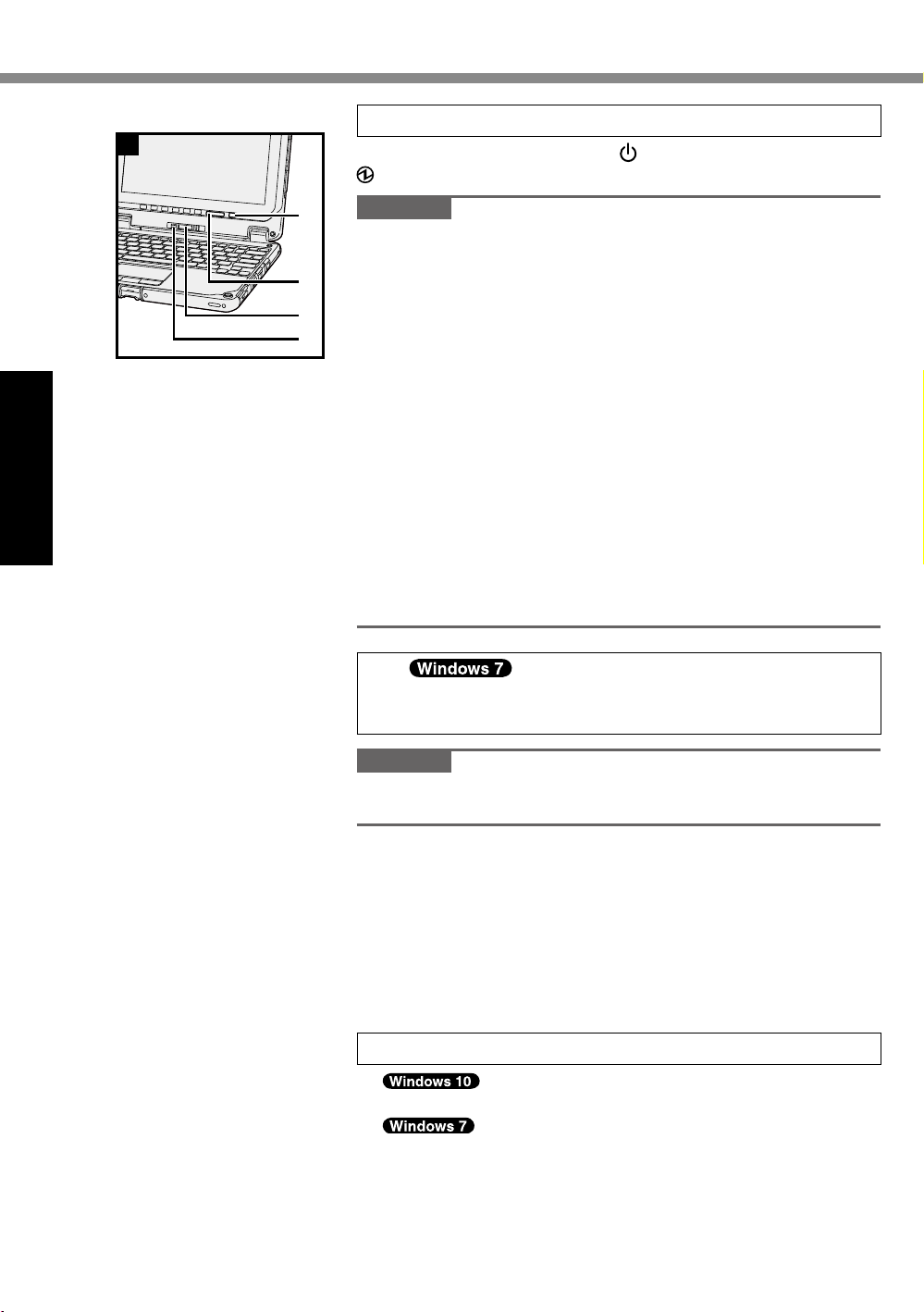

4 Turn on the computer
Press and hold the power switch (C) until the power indicator
(D) lights.
CAUTION
l
Do not press the power switch repeatedly.
l
The computer will be forcibly turned off if you press and hold
the power switch for four seconds or longer.
l
Do not perform the following operation until the First-time
Operation is completed.
• Touching the release lever (E) and detach lock (F)
• Detaching the main unit from keyboard base
• Disconnecting the AC adaptor
• Pressing the power switch
• Closing the display
• Any changes from the default setting of the Setup Utility
l
Once you turn off the computer, wait for ten seconds or more
before you turn on the computer again.
lWhen the CPU temperature is high, the computer may not
start up to prevent overheating of the CPU. Wait until the
computer cools down, and then turn the power on again. If
the computer does not power on even after cooling down,
contact Panasonic Technical Support (èpages 45 - 51).
5
<For MUI OS model>
Select language and OS (32-bit or 64-bit)
CAUTION
l
Carefully choose your language because you cannot change it
later. If you set a wrong language, you need to reinstall Windows.
ASelect language and OS (32-bit or 64-bit) on “Select OS”
screen and click [OK].
The language setting will start by clicking [OK] on the
conrmationscreen.
The language and OS setting will be completed in about
15 minutes.
BWhen termination screen is displayed, click [OK] to turn
off the computer.
6 Setup Windows
Select language and click [Next].
Turn on the computer.
Follow the on-screen instructions.
lThe computer restarts several times.
lAfter the computer is turned on, the screen remains black
or unchanged for a while, but this is not a malfunction. Wait
for a moment until the Windows setup screen appears.
C
D
E
F
4

17
Getting Started
lDuring setup of Windows, use the touchpad and clicking to
move the pointer and to click an item.
lSetup of Windows will take approximately
5 minutes / 20 minutes.
Gotothenextstep,conrmingeachmessageonthedis-
play.
lYou can set the Wireless Network after the setup of Win-
dows is complete.
If “Let’s get connected” is displayed, select
“Skip this step”.
“Join a wireless network” screen may not ap-
pear.
lFollow the steps below.
A When “Enable sensors” is displayed, click [Enable this
sensor].
B When the [User Account Control] screen is displayed,
click [Yes].
C Atthe[DisplayRotationTool]conrmationscreen,click
[Yes].
The computer restarts automatically, and the setting is
enabled.
CAUTION
lYou can change the user name, password, image and secu-
rity setting after setup of Windows.
lRemember your password. If you forget the password, you
cannot use Windows. Creating a password reset disk before-
hand is recommended.
lUse standard characters as a computer name: numbers 0
through 9, uppercase and lowercase letters from A to Z, and
the hyphen (-) character. If the error message “The computer
name is not valid” appears, check if characters other than
the above are not entered. If the error message still remains
on the display, set the key entry mode to English (“EN”) and
enter characters.
lDo not use the following words and characters for user
name: CON, PRN, AUX, CLOCK$, NUL, COM1 to COM9,
LPT1 to LPT9, LPT, &, space, @.
l
In particular, if you create a user name (account name) that
includes the “@” mark, a password will be requested at the
log-on screen, even if no password has been set. If you try
to log on without entering a password, “The user name or
password is incorrect.” may be displayed and you will not be
able to log on to Windows (èpage 33).

18
Getting Started
First-time Operation
NOTE
l Panasonic PC Settings Utility
You can check the status of the computer, and change the settings. Double-click [Panasonic
PC Settings Utility] on the desktop to start the utility. (èReference Manual “Panasonic PC
Settings Utility”)
l PC Information Viewer
Thiscomputerperiodicallyrecordsthemanagementinformationoftheashmemory,etc.Themax-
imum data volume for each record is 1024 bytes.
Thisinformationisonlyusedforestimatingthecauseinthecasewhentheashmemorygoes
down by any possibility. They are never sent to outside via network nor used for any other purpose
except for the purpose described the above.
To disable the function, add the check mark for [Disable the automatic save function for manage-
ment information history] in [Hard Disk Status] of PC Information Viewer, and click [OK].
Then follow the on-screen instructions.
(èReference Manual “Troubleshooting (Advanced)” - “Checking the Computer’s Usage Status”)
l
<For MUI OS model>
• In the default settings, a shortcut icon for Korean language is on the Desktop screen. You
may delete the icon if not necessary.
• If the recovery partition is deleted, you cannot create Recovery Disc(s).
7 Restart the computer
AClick (Start).
BClick (Power) - [Restart].
lA portion of the Panasonic PC Settings Utility functions will
be enabled after the computer restarts.
8 Update the on-screen manual
AConnect to the internet. Sign in /
Log on to Windows as an administrator.
For further information, refer to OPERATING IN-
STRUCTIONS - Connect to a network.
BUpdate the on-screen manual.
Double-click the [Panasonic PC Settings
Utility] on the desktop screen, and then click [Support] -
[Manual] - [Launch Manual Selector].
Double-click [Manual Selector] on the desk-
top.
Follow the on-screen instructions.
9 Create a recovery disc
A recovery disc allows you to install OS and restore its factory
default condition, in case, the recovery partition of the SSD is
damaged.
We recommend creating a recovery disc before you begin using
the computer.
Refer to èOPERATING INSTRUCTIONS -
Reference
Manual
“Create a Recovery Disc” about creating the disc.

19
Getting Started
nBefore using wireless function
AClick (Notication)atthetasktray,andthenclick (All settings) - [Network & Internet]
- [Airplane mode].
Set [Airplane mode] to [Off], and then;
Set [Wi-Fi] to [On] (for wireless LAN).
Set [Cellular] to [On] (for wireless WAN).
Set [GPS] to [On] (for wireless WAN).
Set [Bluetooth] to [On] (for Bluetooth).
Set [GPS\GNSS] to [On] (for GPS).
nAbout the partition structure
You can shrink a part of an existing partition to create unallocated disk space, from which you can
create a new partition.
In the default setting, you can use a single partition.
CAUTION
lDo not add or delete partitions in Windows 10, as the Windows area and recovery partition
must be adjacent to each other in Windows 10.
To change the partition structure
AClick (Start) and right-click [Computer], then click [Manage].
lA standard user needs to enter an administrator password.
BClick [Disk Management].
CRight-click the partition for Windows (“c” drive in the default setting), and click [Shrink Vol-
ume].
l Thepartitionsizedependsonthecomputerspecications.
DInput the size in [Enter the amount of space to shrink in MB] and click [Shrink].
lYou cannot input a larger number than the displayed size.
lTo select [Reinstall Windows to the OS related partitions] in installing OS (èpage 28),
60 GB or more is necessary for [Total size after shrink in MB].
ERight-click [Unallocated] (the shrunk space in the step D) and click [New Simple Volume].
FFollow the on-screen instructions to make the settings, and click [Finish].
Wait until formatting is completed.
NOTE
lYou can create an additional partition using remaining unallocated space or newly creating
unallocated space.
lTo delete a partition, right-click the partition and click [Delete Volume] in the step C.

20
Getting Started
Turning On / Turning Off
Turning On
Press and hold the power switch (èpage 4) until the power indicator (èpage 4) lights.
NOTE
lDo not press the power switch repeatedly.
lThe computer will forcibly be turned off if you press and hold the power switch for four sec-
onds or longer.
lOnce you turn off the computer, wait for ten seconds or more before you turn on the computer
again.
Turning Off
AClick (Start) at the lower left.
BClick (Power) - [Shutdown].
AClick (Start) - [Shutdown].
NOTE
l
To turn off the computer completely, proceed as follows.
AClick (Start) at the lower left, and the click (Settings) - [Update & security] - [recovery].
BClick [Restart now] under “Advanced startup”.
CClick [Turn off your PC].
Precautions against Starting Up/Shutting Down
lDo not do the following
• Connecting or disconnecting the AC adaptor
• Pressing the power switch
• Touching the keyboard, touchpad, touchscreen or external mouse
NOTE
lTo conserve power, the following power saving methods are set at the time of purchase.
• The screen automatically turns off after :
10 minutes (when AC adaptor is connected) of inactivity
5 minutes (when operating on battery power) of inactivity
• The computer automatically enters sleep*1 after :
20 minutes (when AC adaptor is connected) of inactivity
15 minutes (when operating on battery power) of inactivity
*1 Refer to Reference Manual “Sleep or Hibernation Functions” about resuming from sleep.
