Panasonic Viera TX-L32E30B User manual

Service Manual
LCD Television
TX-L32E30B
TX-L32E30Y
TX-L37E30B
TX-L37E30Y
LA18 Chassis
Specifications
(Information in brackets [ ] refers to model 32”)
Power Source: 220-240V AC, 50 / 60Hz
Rated Power Consumption: 85W [72W]
Stand-by Power Consumption: 0.3W (Without monitor out recording)
14W (With monitor out recording)
Aerial Impedance: 75unbalanced, Coaxial Type
Receiving System: E30B ( UK )
PAL-I
PAL-525/60 (AV only)
DVB-T/T2 Digital terrestrial services via UHF aerial input (MPEG2 and MPEG4-AVC(H.264))
M.NTSC (AV only)
NTSC (AV only)
E30B ( Ireland )
PAL-I
PAL-525/60 (AV only)
M.NTSC (AV only)
NTSC (AV only)
DVB-T Digital terrestrial services (MPEG2 and MPEG4-AVC(H.264))
E30Y
PAL-I/H, B/G, D/K
SECAM B/G, D/K, L/L’
PAL-525/60 (AV only)
M.NTSC (AV only)
NTSC (AV only)
DVB-T/T2 (Digital Terrestrial Services (MPEG2 and MPEG4-AVC(H.264))
DVB-C (Digital cable services (MPEG2 and MPEG4-AVC(H.264))
© Panasonic Corporation 2011.
Unauthorized copying and
distribution is a violation of law.
ORDER No. PCZ1102006CE

Receiving Chanels: E30B ( UK ) E30B ( Ireland )
UHF E21-E68 VHF A-J UHF E21-E69
CATV S1-S20 CATV S21-S41(Hyperband)
E30Y
VHF E2-E12 VHF H1-H2 ( ITALY )
VHF A-H ( ITALY ) UHF E21-E69
CATV (S01-S05) CATV S1-S10(M1-M10)
CATV S11-S20 (U1-U10) CATV S21-S41 (HYPERBAND)
VHF R1-R2 VHF R3-R5
VHF R6-R12
Aerial - Rear: E30B ( UK ) E30B ( Ireland ) / E30Y
UHF VHF/UHF
Operating Conditions: Temperature: 0°C 35°C
Humidity: 20% 80% RH (non condensing)
Intermediate Frequency:
Video/Audio E30B E30B ( Ireland ) E30Y
Video 38.9MHz 38.9MHz, 33.9MHz
Audio 32.90MHz 33.4MHz (B/G), 33.16MHz (A2)
32.35MHz(NICAM) 33.05MHz (NICAM B/G, D/K, L)
32.4MHz (D/K), 32.66MHz (CZ STEREO)
40.4MHz (L’), 39.75MHz (L’NICAM)
32.9MHz (I), 32.35MHz (I NICAM)
Colour 34.47MHz 34.47MHz (PAL)
34.5MHz, 34.65MHz (SECAM)
38.3MHz, 38.15MHz (SECAM L’)
Terminals:
AV1 IN Video (21 pin) 1V p-p 75
Audio (21 pin) 500mV rms 10k
RGB (21 pin) 0.7V p-p 75
AV1 OUT Video (21 pin) 1V p-p 75
Audio (21 pin) 500mV rms 1k
AV2 IN Video (RCAx1) 1V p-p 75
AUDIO IN Audio (RCAx2) 500mV rms 10k(used for HDMI4, AV2-AUDIO)
COMPONENT Video (RCAx3) Y:1V p-p 75(including synchronization)
Pb, Pr: ±0.35V p-p 75
AUDIO IN Audio (RCAx2) 500mV rms 10k(used for HDMI1/2/3, COMPONENT-AUDIO)
HDMI, HDMI2, HDMI3, HDMI4 Type A Connectors
HDMI 1/3/4 :HDMI (Version 1.4 with Content Type) Deep Colour
HDMI 2 :HDMI (Version 1.4 with Content Type, Audio Return Channel) Deep Colour
This TV supports “HDAVI Control 5” function.
AUDIO OUT Audio (RCAx2) 500mV rms 1k(high impedance)
DIGITAL AUDIO OUT PCM / Dolby digital / DTS, Fiber optic
USB 1/2/3 USB 2.0 DC 5V Max 500mA
PC HIGH-DENSITY D_SUB 15PIN R,G,B: 700mV p-p 75
HD,VD/TTL Level 2-5V p-p (high impedance)
ETHERNET RJ45, IEEE802.3 10BASE-T / 100BASE-TX
E30B E30Y
CARD SLOT SD CARD slot x1 SD CARD slot x1
Common interface slot x1 Common interface slot (Complies with CI+) x1
LCD screen: VVX37F115G00 [VVX32F115G00]
1920 x 1080, 16:9
Visible Diagonal 940mm [800mm]
Audio Output: 20W (2 x 10W), 10% THD
Headphones: 3.5mm, 8Impedance
Accessories supplied : Remote Control 2 x R6 (UM3) Batteries
2

Dimensions:
Height: Width: Depth:
Including TV stand 582mm 890mm 260mm
[514mm 769mm 230mm]
TV set only 548mm 890mm 75mm
[480mm 769mm 75mm]
Mass:
Including TV stand 15.0kg [12.5kg]
TV set only 12.5kg [10.0kg]
Specifications are subject to change without notice.
Mass and dimensions shown are approximate.
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the
product or products deal within this service information by anyone else could result in serious injury or death.
Warning
3

CONTENTS
SAFETY PRECAUTIONS ........................................... 5
GENERAL GUIDE LINES...................................... 5
TOUCH – CURRENT CHECK............................... 5
PREVENTION OF ELECTROSTATIC DISCHARGE
(ESD) TO ELECTROSTATICALLY SENSITIVE (ES)
DEVICES .................................................................... 6
ABOUT LEAD FREE SOLDER (PBF)......................... 7
SUGGESTED PB FREE SOLDER........................ 7
APPLICABLE SIGNALS.............................................. 8
SERVICE HINTS ........................................................ 9
CHASSIS BOARD LAYOUT ..................................... 10
LOCATION OF LEAD WIRING ................................. 10
TECHNICAL DESCRIPTION ................................….11
SPECIFICATION OF KEY FOR CI PLUS,
DTCP-IP ONE-TO-ONE AND WIDEVINE ........... 11
GENERAL INFORMATION ................................. 11
REPLACEMENT OF ICS..................................... 11
MODEL AND KEYS ............................................ 11
SETTING INSPECTION............................................ 12
SELF CHECK ........................................................... 13

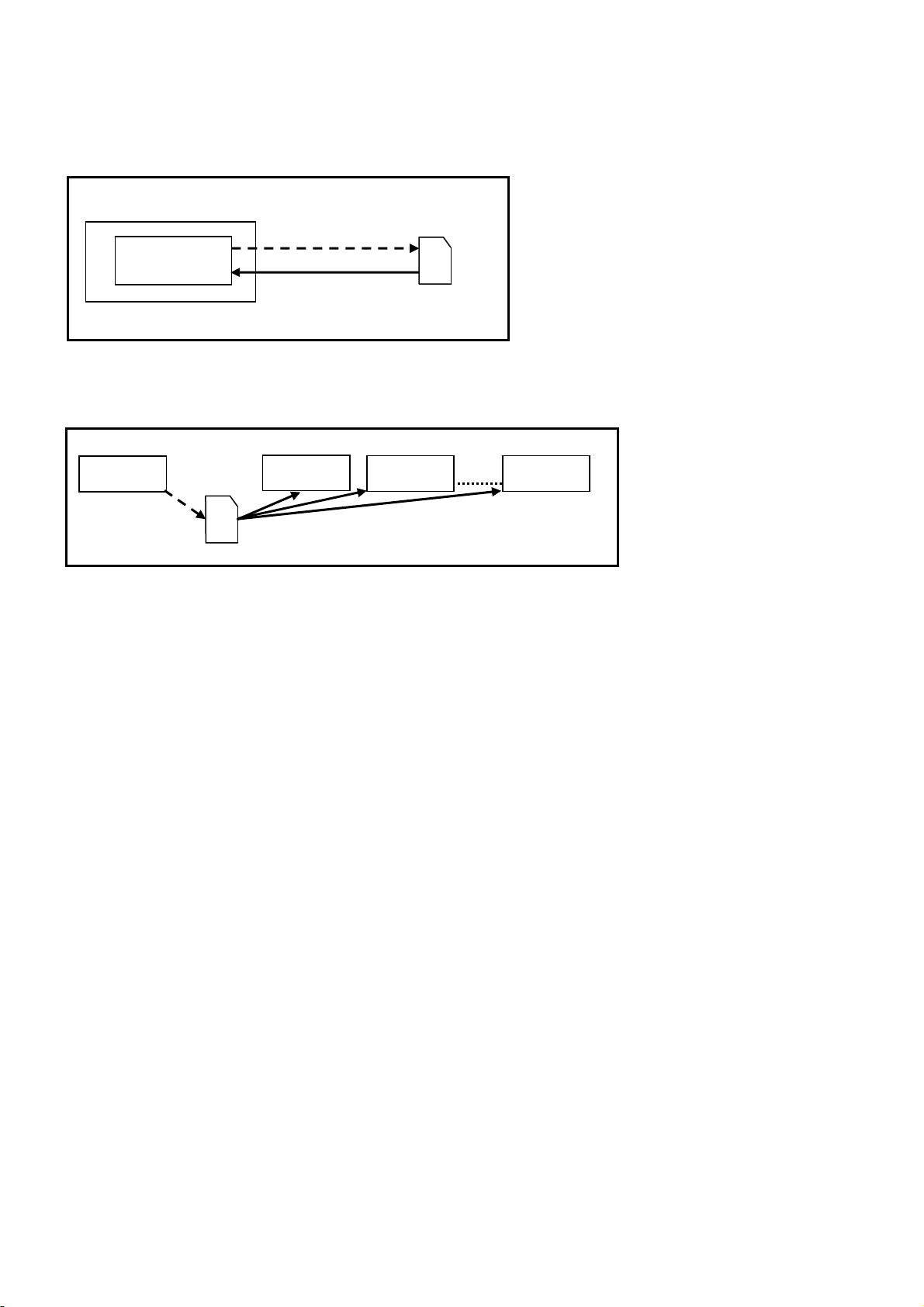

DATA COPY BY SD CARD....................................... 20
DATA COPY FROM TV SET TO SD CARD ............. 21
DATA COPY FROM SD CARD TO TV SET ............. 22
OPTION BYTES DESCRIPTION .............................. 23
ADJUSTMENT METHOD.......................................... 24
WIRING DIAGRAM ................................................... 25
BLOCK DIAGRAM .................................................... 26
PARTS LOCATION................................................... 28
REPLACEMENT PARTS LIST.................................. 30
SCHEMATIC DIAGRAMS ......................................... 42
A-BOARD (1 OF 19) SCHEMATIC DIAGRAM .... 43
P-BOARD (1 OF 2) SCHEMATIC DIAGRAM ...... 62
LD-BOARD SCHEMATIC DIAGRAM .................. 64
KA-BOARD SCHEMATIC DIAGRAM .................. 65
CONDUCTOR VIEWS .............................................. 66

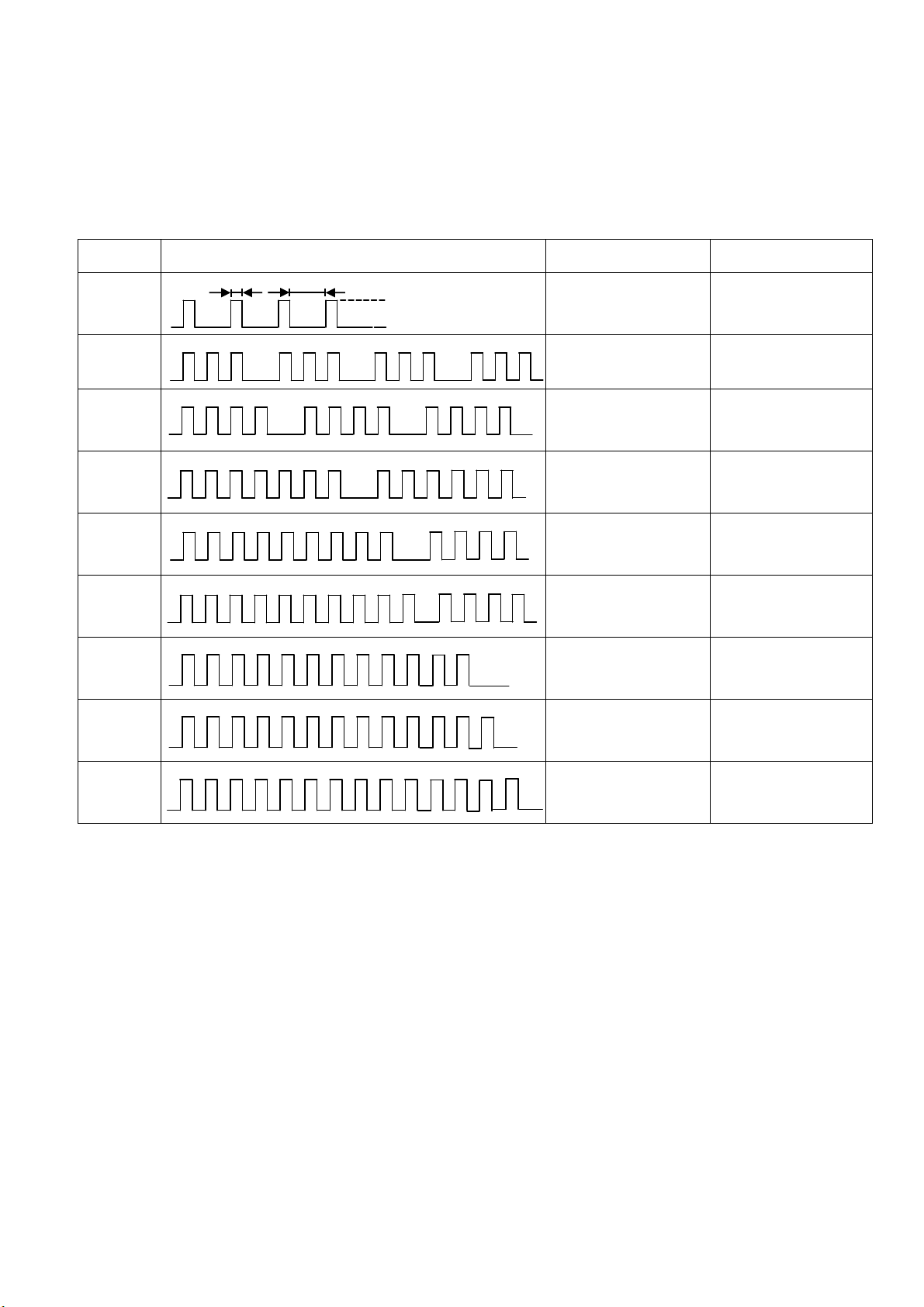

POWER LED BLINKING TIMING CHART ................ 15

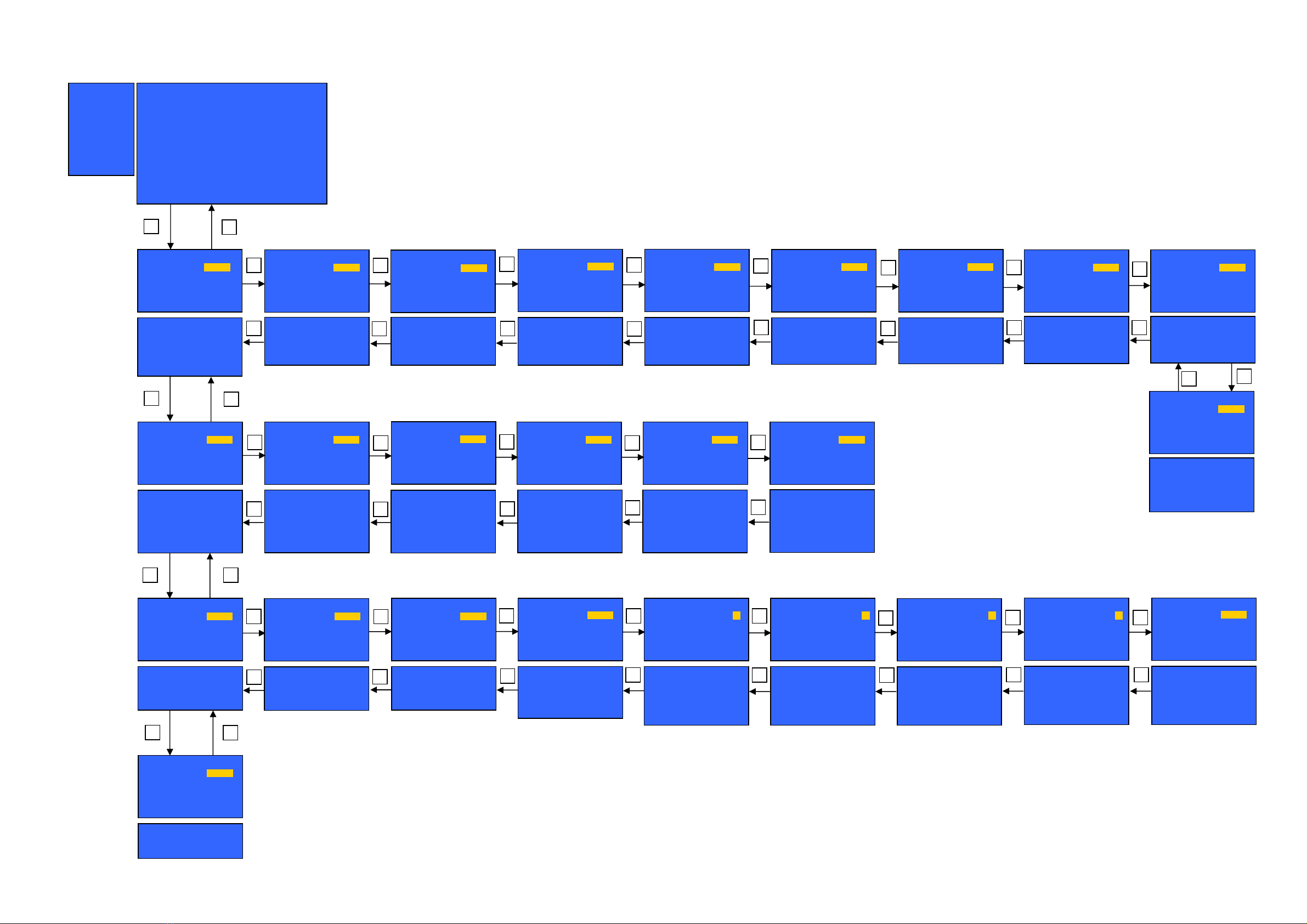

SERVICE MODE FUNCTION ................................... 16
SERVICE ................................................................ 17
SERVICE TOOL MODE............................................ 18
HOTEL MODE .......................................................... 19
4

Safety Precautions
General Guide Lines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated
or damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following touch current checks to prevent the customer from being exposed to shock hazards.

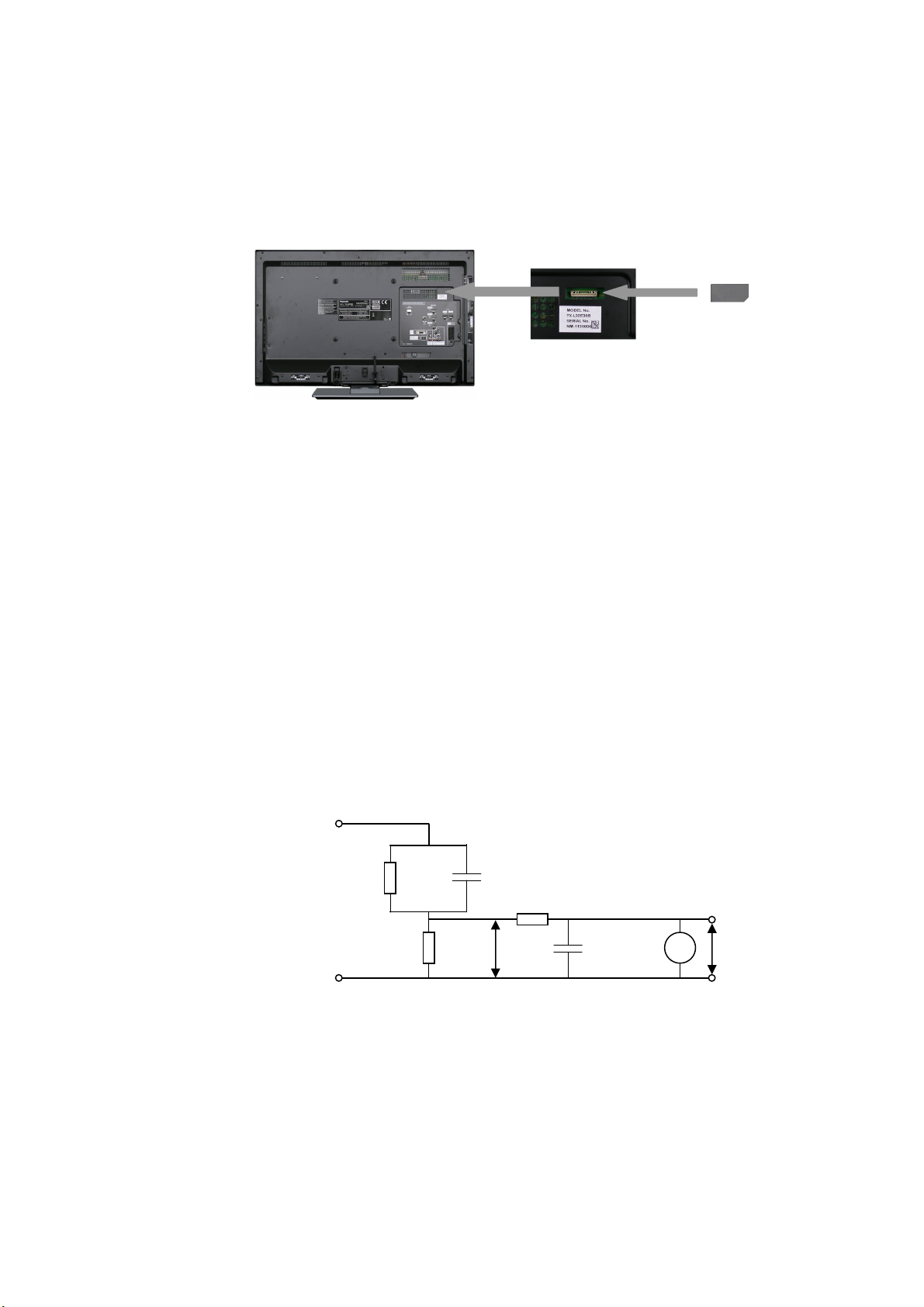

4. Always ensure cover label TBM4GU113 is correctly replaced before returning to customer (see Fig.1).
Touch-Current Check
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth
ground such as a water pipe, as shown in Fig. 2.
3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reserve the AC plug in the AC outlet and repeat each of the above measure.
6. The potential at any point (TOUCH CURRENT) expressed as voltage U1 and U2, does not exceed the following values:
For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);
For d. c.: U1 = 1.0 V,
Note:
The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and
2.0 mA d. c.
The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100
kHz.
7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should
be repaired and rechecked before it is returned to the customer.
Fig. 2
TO
APPLIANCES
EXPOSED
METAL PARTS
Resistance values in ohms ()
V
R0=500

RS=1500

CS=0.22

F
10k

0.022

F
COLD
WATER PIPE
(EARTH GROUND)
V: Voltmetr or oscilloscope
(r.m.s. or peak reading)
Measuring network for TOUCH CURRENTS
Input resistance: 1M

Input capacitance:200pF
Frequency range: 15Hz to 1MHz and d.c.respectively
NOTE – Appropriate measures should be taken to obtain the correct value in case of non-sinusoidal waveforms
U2(V)
Fig. 1
U1(V)
5

Prevention of Electrostatic Discharge (ESD) to Electrostatically
Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect
transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of
component damage caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on
your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD
wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge build up or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD
protected)" can generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity
(ESD) sufficient to damage an ES device).
There are special components used in this equipment which are important for safety.
These parts are marked by in schematic diagrams, exploded views and replacement parts list. It is essential that
these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do
not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
6

About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work,
we’d suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol
stamped on the back of PCB.
Caution
Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C)
higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before
applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
After applying PbF solder to double layered boards, please check the component side for excess solder which may
flow onto the opposite side. (see Fig.3)
Suggested Pb free solder
There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.
However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. (see Fig.4)
Fig.3
Fig.4
7

Applicable Signals
Applicable input signal for PC is basically compatible to VESA standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 400 @70 Hz 31.47 70.07
640 480 @60 Hz 31.47 59.94
640 480 @75 Hz 37.50 75.00
800 600 @60 Hz 37.88 60.32
800 600 @75 Hz 46.88 75.00
800 600 @85 Hz 53.67 85.06
852 480 @60Hz 31.44 59.89
1,024 768 @60Hz 48.36 60.00
1,024 768 @70Hz 56.48 70.07
1,024 768 @75Hz 60.02 75.03
1,024 768 @85Hz 68.68 85.00
1,280 768 @60Hz 47.70 60.00
1,280 1,024 @60Hz 63.98 60.02
1,366 768 @60Hz 48.39 60.04
Macintosh 13“ (640 480) 35.00 66.67
Macintosh 16“ (832 624) 49.73 74.55
Macintosh 21“ (1,152 870) 68.68 75.06
Applicable input signal for PC is basically compatible to HDMI standard timing.
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 480 @60 Hz 31.47 60.00
750 (720) / 60p 45.00 60.00
1,125 (1,080) / 60p 67.50 60.00
Note:
Signals other than above may not be displayed properly.
The above signals are reformatted for optimal viewing on your display.
PC signal is magnified or compressed for display, so that it may not be possible to show fine detail
with sufficient clarity.
Signal name COMPONENT HDMI
525 (480) / 60i,60p * *
625 (576) / 50i, 50p * *
750 (720) / 60p, 50p * *
1,125 (1,080) / 60i, 50i * *
1,125 (1,080) / 60p *
1,125 (1,080) / 50p *
1,125 (1,080) / 24p *
PC (from D-sub 15P)
PC (from HDMI terminal)
Component (Y, Pb, Pr), HDMI
8

Service Hints
How to remove the backcover
Lay the main unit face down. (see Fig.5)
Remove the 4 fixing screws and the pedestal assembly. (see Fig.6)
Remove the 36 [34] fixing screws, 4 caps and the backcover. (see Fig.7)
Fig.7
SCREWS
(1) XTB4+15JFJK 19pcs[18]
(2) THEJ0389 15pcs[14]
(3) XTV3+10GFJK /2pcs/
(4) TKKL5521 /4pcs/
SCREWS
XYN4+F30FJK
/
4
p
cs
/
(1) (1) (1) (1)
(1)
(1)
(1)
(1)
(1)
(1) (1) (1)
(1)
(1)
(1)
(2)
(2)
(2)
(2) (2)
(2)
(2)
(2)
(2)
(2)
(3)
(3)
(2)
(1)
(1)
(1)
(2)
(4) (4)
(4)
(4)
Fig.6
Fig.5
9

Chassis Board Layout
Location of Lead Wiring
To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.
Board Name Function
A-Board AV Terminal, HDMI,HDMI-SWITCH,USB,Digital Audio Out,TV tuner, SD Card
CI slot,PC,Ethernet, DVB-T/T2/C Dem, Peaks_LDA3, AV switch,
Speaker Out,EEPROM, FlashMemory, DDR SDRAM
KA-Board Remote Receiver, Power and Timer LED,C.A.T.S.
P-BOARD Main Input, Power Supply,Key Control, Power switch
LD-BOARD LED DRIVER
P-BOARD
KA-BOARD
A-BOARD
A02
SP_L
A10A12
KA10
A15
SP_R
LD2
37‘‘ A10-KA10 WIRE
37‘‘ P4-LD4 WIRE
32‘‘ A12-SP WIRE
LD-BOARD
LD4
P1
P2
P4
37‘‘ P2-A02 WIRE 37‘‘ A15-CN5 WIRE
32‘‘ P4-LD4 WIRE 32‘‘ P2-A02 WIRE 32‘‘ A15-CN5 WIRE
32‘‘ A10-KA10 WIRE
37‘‘ A12-SP WIRE
10

Technical Description
Specification of KEY for CI Plus, DTCP-IP, One-to-one and Widevine
General information:
1. EEPROM (IC8902) for spare parts has the seed of KEY for each.
2. The final KEY data will be generated by LDA3 IC (IC8000) when SELF CHECK was done and are stored in both LDA3 IC
(IC8000) and EEPROM (IC8902).
Three KEY are not generated for all models.
The necessary KEY are only generated and stored depend on the feature of models.
Replacement of ICs:
When LDA3 IC (IC8000) is replaced, EEPROM (IC8902) should be also replaced with new one the same time.
When EEPROM (IC8902) is replaced, LDA3 IC (IC8000) is not necessary to be replaced the same time.
After the replacement of IC, SELF CHECK should be done to generate the final KEY data.
How to SELF CHECK: While pressing [VOLUME ( - )] button on the main unit, press STATUS button on the remote
control for more than 3 seconds.
TV will be forced to the factory shipment setting after this SELF CHECK.
Model and Keys:
Keys
Model No. CI PLUS DTCP-IP Widevine One-to-one
(for USB Rec.)
TX-L32E30B NONE YES YES YES
TX-L32E30Y YES YES YES YES
TX-L37E30B NONE YES YES YES
TX-L37E30Y YES YES YES YES
11

Setting Inspection
Voltage Confirmation
A board
Description Test point Voltage
SUB1.2V TP8100 1.24V - 1.31V
SUB 1.5 V TP8101 1.47V - 1.55V
SUB3.3V TP5400 3.17V – 3.43V
SUB5V TP5420 4.94V – 5.31V
USB5V TP5440 4.94V - 5.31V
PNL12V TP4056 11.5V – 12.5V
P board
Description Test point Voltage* Voltage**
24V (PANEL) TP7514 < 1V 24V ± 1.2V
16V TP7503 < 1V 16.1V ± 0.7V
TUNER5V8 TP7502 5,7V ± 0,3V 5.7V ± 0.3V
PFC TP7203 < 340V 400V ± 15V
* Connect AC 230V to P1 connector
** Connect DC 2.5V to TV_SUB_ON P2 connector – pin 8 /TP7505/ from voltage divider.
12

Self Check
Self-check is used to automatically check the bus lines and hexadecimal code of the TV set. To enter Self-Check mode, keep
pressing the down (-/v) button on the TV set and press the STATUS button on the remote control. To exit Self Check,
switch off the TV set at the power button.
TX-L32E30B 32FHD Panasonic 2011LCD
Self Check Com
p
lete
TUN O.K.
STBY O.K.
MEM1 O.K.
MEM2 O.K..
AVSW O.K.
LAN O.K.
ZWEI O.K.
FE O.K.
ID O.K.
ID2 O.K.
HDMI-SW O.K.
PEAKS-SOFT 1.010
PEAKS-EEP 01.00.0026
LSI-PACKAGE 0.914
LSI-RELEASE 1.02
STBY-SOFT 1.00.00
STBY-EEP 1.00.0500
STBY-ROMCORR 0.00.00
ZWEI-SOFT 13000100
SUM 916e
MODEL ID 08
03157100
00000004
TX-L37E30B 37FHD Panasonic 2011LCD
Self Check Com
p
lete
TUN O.K.
STBY O.K.
MEM1 O.K.
MEM2 O.K..
AVSW O.K.
LAN O.K.
ZWEI O.K.
FE O.K.
ID O.K.
ID2 O.K.
HDMI-SW O.K.
PEAKS-SOFT 1.010
PEAKS-EEP 01.01.0027
LSI-PACKAGE 0.914
LSI-RELEASE 1.02
STBY-SOFT 1.00.00
STBY-EEP 1.00.0500
STBY-ROMCORR 0.00.00
ZWEI-SOFT 14000100
SUM 9134
MODEL ID 08
03157100
00000010
TX-L32E30Y 32FHD Panasonic 2011LCD
Self Check Com
p
lete
TUN O.K.
STBY O.K.
MEM1 O.K.
MEM2 O.K..
AVSW O.K.
LAN O.K.
ZWEI O.K.
FE O.K.
ID O.K.
ID2 O.K.
HDMI-SW O.K.
PEAKS-SOFT 1.117
PEAKS-EEP 01.00.0004
LSI-PACKAGE 0.914
LSI-RELEASE 1.02
STBY-SOFT 1.00.00
STBY-EEP 1.00.0500
STBY-ROMCORR 0.00.00
ZWEI-SOFT 13000100
SUM 9159
MODEL ID 08
03187100
00000004
13

* Only for Y model
Display Ref. No. Description P.C.B.
TUN TU4801 TUNER A-Board
STBY IC8000 Peaks-LDA3 A-Board
MEM1 IC8901 STM EEPROM A-Board
MEM2 IC8902 EEPROM PEAKS LDA3 A-Board
AVSW IC3001 AUDIO VIDEO SW A-Board
LAN IC8601 ETHERNET IF A-Board
ZWEI TC-unit TC-unit on panel TC-unit
FE IC6700 DVB-T2 DEMODULATOR A-Board
ID IC8902 (CI+)* , DTCP-IP, One-to-one A-Board
ID2 IC8902 WIDEVINE A-Board
HDMI SW IC4700 HDMI SWITCH A-Board
If the CCU
p
orts have been checked and found to be incorrect or not located then " - - " will a
pp
ear in
p
lace of "O.K.".
TX-L37E30Y 37FHD Panasonic 2011LCD
Self Check Com
p
lete
TUN O.K.
STBY O.K.
MEM1 O.K.
MEM2 O.K..
AVSW O.K.
LAN O.K.
ZWEI O.K.
FE O.K.
ID O.K.
ID2 O.K.
HDMI-SW O.K.
PEAKS-SOFT 1.117
PEAKS-EEP 01.01.0005
LSI-PACKAGE 0.914
LSI-RELEASE 1.02
STBY-SOFT 1.00.00
STBY-EEP 1.00.0500
STBY-ROMCORR 0.00.00
ZWEI-SOFT 14000100
SUM 911f
MODEL ID 08
03187100
00000010
14

4 sec
Once
Power LED blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by number of blinking of the Power LED on the front panel of the unit.
Blinking
times Blinking timing Contents Check point
1 BL_SOS
A BOARD
P BOARD
LD-BOARD
3 SOS A BOARD
4 SUB12V_SENSE_SOS A BOARD
7 SUB3.3V_SENSE_SOS
A BOARD
9 SOUND_SOS
A BOARD
P BOARD
10 ZWEI_SOS A-BOARD
TC-unit on panel
12 BE(LDA3)SOS A BOARD
13 EMERGENCY A BOARD
14 IROM_SOS A-BOARD
No Light
Light
15

Service Mode Function
MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can
be adjusted by remote control in Service Menu
How to enter SERVICE
While pressing (-/v) button on the TV unit, press on the remote control for 3 times within 2 seconds.
Note:
To exit from Service mode, press the exit button on remote control.
0
16

SERVICE
S e r
v
i c e 1
216
SERVICE
ADJUST
WB-ADJ
OPTION
SRV-TOOL
ADJUST DYNAMIC
CONTRAST
YMAX
1,2:MAIN SELECT
3,4:SUB SELECT
9:PICTURE MENU SELECT
YELLOW:AUTO ADJUST
VOL :ADJUST
OK :WRITE
000
ADJUST DYNAMIC
COLOR
1,2:MAIN SELECT
3,4:SUB SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
OK :WRITE
41
1,2:MAIN SELECT
3,4:SUB SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
OK :WRITE
ADJUST DYNAMIC
SUB-BRT
1,2:MAIN SELECT
3,4:SUB SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
OK :WRITE
800
A
DJUST DYNAMIC
BACKLGT
1,2:MAIN SELECT
3,4:SUB SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
OK :WRITE
26C
A
DJUST DYNAMIC
H-POS
1,2:MAIN SELECT
3,4:SUB SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
OK :WRITE
0
A
DJUST DYNAMIC
H-AMP
1,2:MAIN SELECT
3,4:SUB SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
O
K
:WRITE
0
ADJUST DYNAMIC
V-POS
1,2:MAIN SELECT
3,4:SUB SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
OK :WRITE
0
A
DJUST DYNAMIC
V-AMP
1,2:MAIN SELECT
3,4:SUB SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
OK :WRITE
0
WB-ADJ DYNAMIC
R-GAIN
BEFORE EF
METHOD 02
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7:COLOR TEMP SELECT
9:PICTURE MENU SELECT
0:WB METHOD SELECT
VOL :ADJUST
OK :WRITE/WB DIFF ADJ
EF
WB-ADJ DYNAMIC
G-GAIN
BEFORE F2
METHOD 02
COLOR TEMP NORMAL
F2
WB-ADJ DYNAMIC
B-GAIN
BEFORE E2
METHOD 02
COLOR TEMP NORMAL
E2
WB-ADJ DYNAMIC
R-CENT
BEFORE 78
METHOD 02
COLOR TEMP NORMAL
78
WB-
A
DJ DYNAMIC
G-CENT
BEFORE 80
METHOD 02
COLOR TEMP NORMAL
WB-
A
DJ DYNAMIC
B-CENT
BEFORE 8A
METHOD 02
COLOR TEMP NORMAL
OPTION DYNAMIC
Boot
1,2:MAIN SELECT
3,4:SUB SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
ROM
OPTION DYNAMIC
STBY-SET
1,2:MAIN SELECT
3,4:SUB SELECT
9:PICTURE MENU SELECT
OK :POWER OFF
00
OPTION DYNAMIC
Emergency
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
ON
OPTION DYNAMIC
Y/C Delay
1,2:MAIN SELECT
3,4:SUB SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
OK :WRITE
OPTION DYNAMIC
OPT 1
1,2:MAIN SELECT
3,4:SUB SELECT
5,6:BIT SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
OK :WRITE
00001100
OPTION DYNAMIC
OPT 2
1,2:MAIN SELECT
3,4:SUB SELECT
5,6:BIT SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
OK :WRITE
11101110
OPTION DYNAMIC
OPT 3
1,2:MAIN SELECT
3,4:SUB SELECT
5,6:BIT SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
OK :WRITE
00000001
SRV-TOOL DYNAMIC
1,2:MAIN SELECT
9:PICTURE MENU SELECT
OK:ENTER
00
1
2
3
4
1
1
1
2
2
2
3 3 3
3
3
3 3
3
3
3
3
3
3
3
3
3 3 3
4
4
4
4
4
4
4 4
4
4
4 4
4
4
4
4 4
4
80
Key Command
Press the 3/4 button to change the adjustment values or function.
Press the 1/2 button to step up/down through the functions and adjustments
Press the numerical button VOLUME (+/-) to change of each option item.
Press the OK button after each adjustment has been made to store the required values.
A
DJUST DYNAMIC
TINT 00
PeaksSOFT 1.012 OPTION1 0c
Peaks EEP 01.01.0018 OPTION 2 ee
LSI PACKAGE 0.025 OPTION 3 01
LSI DATA 1.00.00 OPTION 4 00
STBYSOFT 1.00.00 MODELID 07
STBY EEP 1.01.3500 032D6100
STBY ROMCOR 0.00.00 00000004
ZWEI SOFT 13.01.0000
Ajax_CE 0.23.7 R/E Cnt 000/000
INVCnt 0000
CMS data L0.100
A
DJUST DYNAMIC
VCOM
BEFORE 1BA
1,2:MAIN SELECT
3,4:SUB SELECT
5 :FLICKER PATTERN
9 :PICTURE MENU SELECT
OK :WRITE
V
OL :ADJUST
0
3
4
1,2:MAIN SELECT
3,4:SUB SELECT
7:COLOR TEMP SELECT
9:PICTURE MENU SELECT
0:WB METHOD SELECT
VOL :ADJUST
OK :WRITE/WB DIFF ADJ
1,2:MAIN SELECT
3,4:SUB SELECT
7:COLOR TEMP SELECT
9:PICTURE MENU SELECT
0:WB METHOD SELECT
VOL :ADJUST
OK :WRITE/WB DIFF ADJ
1,2:MAIN SELECT
3,4:SUB SELECT
7:COLOR TEMP SELECT
9:PICTURE MENU SELECT
0:WB METHOD SELECT
VOL :ADJUST
OK :WRITE/WB DIFF ADJ
1,2:MAIN SELECT
3,4:SUB SELECT
7:COLOR TEMP SELECT
9:PICTURE MENU SELECT
0:WB METHOD SELECT
VOL :ADJUST
OK :WRITE/WB DIFF ADJ
1,2:MAIN SELECT
3,4:SUB SELECT
7:COLOR TEMP SELECT
9:PICTURE MENU SELECT
0:WB METHOD SELECT
VOL :ADJUST
OK :WRITE/WB DIFF ADJ
OPTION DYNAMIC
OPT 4
1,2:MAIN SELECT
3,4:SUB SELECT
5,6:BIT SELECT
9:PICTURE MENU SELECT
VOL :ADJUST
OK :WRITE
3
4
OPTION DYNAMIC
EDID-CLK
HDMI 1
1,2:MAIN SELECT
3,4:SUB SELECT
7 :HDMI SELECT
9 :PICTURE MENU SELECT
OK:WRITE
3
4
00000000 MID
8A
17

Service Tool Mode
How to access
1. Select [SRV-TOOL] in Service Mode.
2. Press [OK] button on the remote control.
SRV-TOOL
TD2Microcode:005a0910
Flash ROOM: AD – F1
PTCT:00.00.00.00.00 Time 00051:30 On/Off 0000042
Display of SOS History
SOS History (Number of LED blinking) indication.
From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment.
This indication will be cleared by [Self/check indication and forced to factory shipment setting].
Power ON Time, On/Off
Note: To display TIME/COUNT menu, highlight position, then press MUTE for 3sec.
Time: Cumulative power on time, indicated hour: minute by decimal.
On/Off: Number of On/Off switching by decimal.
Note: This indication will not be cleared by either of the self-checks or any other command.
Exit
Disconnect the AC cord from wall outlet or switch off the power with [Power] button on the main unit.
Display of TD2Microcode version
Display of Flash ROM maker code
Display of SOS History POWER ON TIME/COUNT
Press [MUTE] button (3sec)
18

Hotel Mode
1. Purpose
Restrict a function for hotels.
2. Access command to the Hotel mode setup menu.
In order to display the Hotel mode setup menu,
please enter the following command (within 2 second).
[TV] : Vol.[Down] + [REMOTE] : AV (3 times)
Then, the Hotel mode setup menu is displayed.
3. To exit the Hotel mode setup menu.
Disconnect AC power cord from wall outlet.
4. Explain the Hotel mode setup menu.
ITEM Function
Hotel Mode Select hotel mode ON/OFF
Initial INPUT Select input signal modes.
Set the input, when each time power is switched on.
Selection:
Off/Analog /DVB-C/DVB-T/AV1/AV2/
Component/HDMI1/HDMI2/HDMI3/HDMI4/PC
*Off: give priority to the last memory. However, Euro
Model is compulsorily set to TV.
*AVnS/AVnC: only Euro model selectable
* PC:selectable with VGA option
Initial POS Select programme number.
Selection:
Off/0 to 99
*Off: give priority to the last memory
Initial VOL Level Adjust the volume when each time power is
switched on.
Selection/Range:
Off/0 to 100
*Off: give priority to the last memory
Maximum VOL
Level
Adjust maximum volume.
Range:
0 to 100
Button Lock Select local key conditions.
Selection:
Off/SETUP/MENU/ALL
*Off: altogether valid
*Setup: only F-key is invalid
(Tuning guide (menu) can not be selected.)
*MENU: only F-key is invalid
(only Volume/Mute can be selected.)
*All: altogether invalid.
Remote Lock Select remote control key conditions.
Selected”
Off/SETUP/MENU
*Off: altogether valid
*Setup: only Setup menu is invalid
MENU: Picture/Sound/Setup menu are invalid
Private
Information
Select private information for VIERA Cast is Keep or
Reset if Hotel mode is set to [On] when TV power
on.
Selection :
Keep/Reset
•Keep: private information for VIERA Cast is keep
•Reset: private information for VIERA Cast is reset
Hotel mode
Hotel mode Off
Initial INPUT Off
Initial POS Off
Initial VOL Level Off
Maximum Vol Level Off
Button Lock Off
Remote Lock Off
Select
EXIT
RETURN
Chan
g
e
Private Information Keep
19

Data Copy by SD Card
Purpose
a) Board replacement (Copy the data when exchanging A-board):
When axchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board.
b) Hotel (Copy the data when installing a number of units in hotel or any facility):
When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and the copy
to other TVs.
Preparation
Make pwd.file as startup file for (a) or (b) in an empty SD card.
1. Insert an empty SD card to your PC.
2. Right-click a blank area in a SD card window, point to New, and then click text document. A new file is created by
default (New Text Document.txt).
3. Right-click the new text document that you just created and select rename, and then change the name and extension
of the file to the following file name (a) or (b) and press ENTER.
File name:
(a) For Board replacement: boardreplace.pwd
(b) For Hotel: hotel.pwd
Note:
Please make only one file to prevent the operation error.
No any other file should be in SD card.
TV
A-board SD
(Before exchanging)
Copy to SD card
(After exchanging)
Copy back from SD card
Following data can be copied.
User setting data
(inc. Hotel mode setting data)
Channel scan data
Adjustment and factory preset data
Master TV Other TV Other TV Other TV
Following data can be copied.
User setting data
(inc. Hotel mode setting data)
Channel scan data
Copy to SD card Copy from SD card
SD
20
