Panasonic PT53WX54J - 53" PROJECTION TV HD User manual

MTNC040311A1
B19 Canada:B02
HDTVMONITOR
PT-53WX54J / PT-53WX54UJ / PT-47WX54J / PT-47WX54UJ /
PT-47WX34J / PT-47WX34UJ
P8W
Please fileand use thismanual togetherwiththemainservice
manual forModel PT-53WX53G, OrderNo. MTNC030518C1. This
simplifiedservice manual includes adifference parts list. ModelsPT-
53WX54J / UJareidentical tomodelsPT-53WX53G / UG,PT-47WX54J
/ UJareidentical tomodelsPT-47WX53G / UG, PT-47WX34J / UJare
identical tomodelsPT-47WX33G / UG exceptforthedifferences
includedon thissimplifiedservice manual.
1

2004 Matsushita ElectricCorporation ofAmerica. All rights
reserved. Unauthorizedcopying and distribution isaviolation of
law.
1. Safetyprecautions
General guidelines
Anisolation transformershouldalways beusedduring theservicing ofareceiverwhose chassis
isnotisolatedfrom ACpowerline. Use atransformerofadequatepowerrating as thisprotects
thetechnicianfrom accidentsresulting inpersonal injuryfrom electrical shocks. Itwill also
protectthereceiverfrom being damagedbyaccidental shorting thatmay occur during servicing.
Whenservicing, observe theoriginal leaddress, especiallyinthehigh voltagecircuit. Replace all
damagedparts(alsopartsthatshowsignsofoverheating.)
Always replace protective devices, suchas fishpaper, isolation resistorsand capacitors, and
shieldsafterservicing thereceiver. Use onlymanufacturer’srecommendedrating for fuses,
circuitsbreakers, etc.
High potentialsarepresentwhenthisreceiverisoperating. Operation ofthereceiverwithoutthe
rearcoverintroduces dangerfor electrical shock. Servicing shouldnotbeperformedbyanyone
who isnotthoroughlyfamiliarwiththenecessaryprecautionswhenservicing high voltage
equipment.
2

Extremecareshouldbepracticedwhenhandling thepicturetube. Rough handling may cause it
toimplodeduetoatmosphericpressure. (14.7lbspersq. in.). Donotnick or scratchtheglass or
subjectittoanyunduepressure. Whenhandling, usesafetygoggles and heavy gloves for
protection. Dischargethepicturetubebyshorting theanodetochassisground (nottothe
cabinetor toothermounting hardware). Whendischarging connectcoldground (i.e. dagground
lead)totheanodewithawellinsulatedwireor use agrounding probe.Avoidprolongedexposure
atclose rangetounshieldedareas ofthepicturetubetopreventexposuretoxray radiation.
Thetestpicturetubeusedfor servicing thechassisatthebenchshouldincorporatesafetyglass
and magneticshielding. Thesafetyglass provideshielding for thetubeviewing area againstx
ray radiation as well as implosion. Themagneticshieldlimitsthexray radiation around thebell of
thepicturetubeinaddition totherestricting magneticeffects. Whenusing apicturetubetestjig
for service, ensurethatthejigiscapableofhandling 50kV withoutcausing xray radiation.
Beforereturning aservicedreceivertotheowner, theservice technicianmustthoroughlytest
theunittoensurethatiscompletelysafetooperate. Donotuse alineisolation transformerwhen
testing.
Leakagecurrentcoldcheck
Unplug theA.C. cord and connectajumperbetweenthetwoplug prongs.Measuretheresistance
betweenthejumperedACplug and expose metallicpartssuchas screwheads, antenna
terminals, control shafts, etc. Iftheexposedmetallicparthas areturnpathtothechassis, the
reading shouldbebetween240k and 5.2M . Iftheexposedmetallicpartdoes nothave a
return pathtothechassis, thereading shouldbeinfinite.
Leakagecurrenthotcheck
Plug theACcord directlyintotheACoutlet. Donotuse anisolation transformerduring thecheck.
Connecta1.5k 10 watt resistor inparallel witha0.15 Fcapacitor betweenanexposed
metallicpartand ground. Use earthground, for exampleawaterpipe.
Using aDVMwitha1000 ohms/voltsensitivityor higher, measuretheACpotential across the
resistor.
Repeattheprocedureand measurethevoltagepresentwithall otherexposedmetallicparts.
Verifythatanypotential does notexceed0.75 voltRMS. Aleakagecurrenttester(sucha
Simpson model 229, Sencoremodel PR57 or equivalent) may beusedintheabove procedure, in
whichcase anycurrentmeasuremustnotexceed0.5milliampere.Ifanymeasurementisoutof
thespecifiedlimits, thereisapossibilityofashock hazard and thereceivermustberepairedand
recheckedbeforeitisreturnedtothecustomer.
Hotcheck circuit
3

Insulation test
Connectaninsulation testerbetweenanexposedmetallicpartand A.C. line. Apply1080VAC/
60Hzfor 1second. Confirm thatthecurrentmeasurementis0.5mA~2.0mA. Repeattestwith
othermetallicexposedparts.
X ray radiation
WARNING
Thepotential source ofxray radiation inthePTV setisinthehigh voltagesection and the
picturetube.
NOTE
Itisimportanttouse anaccurate, calibratedhigh voltagemeter.
Applyall black videosignals(1080i)and confirm high voltagemeasures 31.5±1.0kV. Ifthehigh
voltageisnotwithintherange, changeC514 to1800pF, 2000pF, 2400pF or 2700pF until the
desiredvalueisobtained.ApplyNTSCwhitepattern and confirm thehigh voltagemeasures 30.1±
1.5kV. ApplyHD 1080i whitepattern and confirm thehigh voltagemeasures 30.1±1.5kV.
2. About lead free solder(PbF)
NOTE
Leadislistedas (Pb)intheperiodictableofelements. / Intheinformation below, Pbwill referto
leadsolder, and PbF will refertoLeadFree Solder. / Theleadfree solderusedinour
manufacturing process and discussedbelowis(Sn+Ag+Cu). / ThatisTin(Sn), Silver(Ag)and
Copper(Cu)although othertypes areavailable.
Thismodel uses PbFree solderinit’smanufactureduetoenvironmental conservation issues. For
/ service and repairwork, we’dsuggesttheuse ofPbfree solderas well, although Pbsoldermay
be/ used. / PCBsmanufacturedusing leadfree solderwill have the“PbF”or aleafsymbol
stampedon the/ back ofPCB.
CAUTION
-Pbfree solderhas ahighermelting pointthanstandardsolder.
Typicallythemelting pointis50 ~70 °F(30 ~40 °C)higher. Please
use ahigh temperaturesoldering iron and set itto700 ±20 °F(370
±10 °C).
4

-Pbfree solderwill tend tosplashwhenheatedtoo high (about1100
°For600 °C). / Ifyou must use Pbsolder, please completely
removeall ofthePbfree solderon thepinsorsolderarea before
applying Pbsolder. Ifthisisnotpractical, besuretoheat thePb
free solderuntil itmelts, beforeapplying Pbsolder.

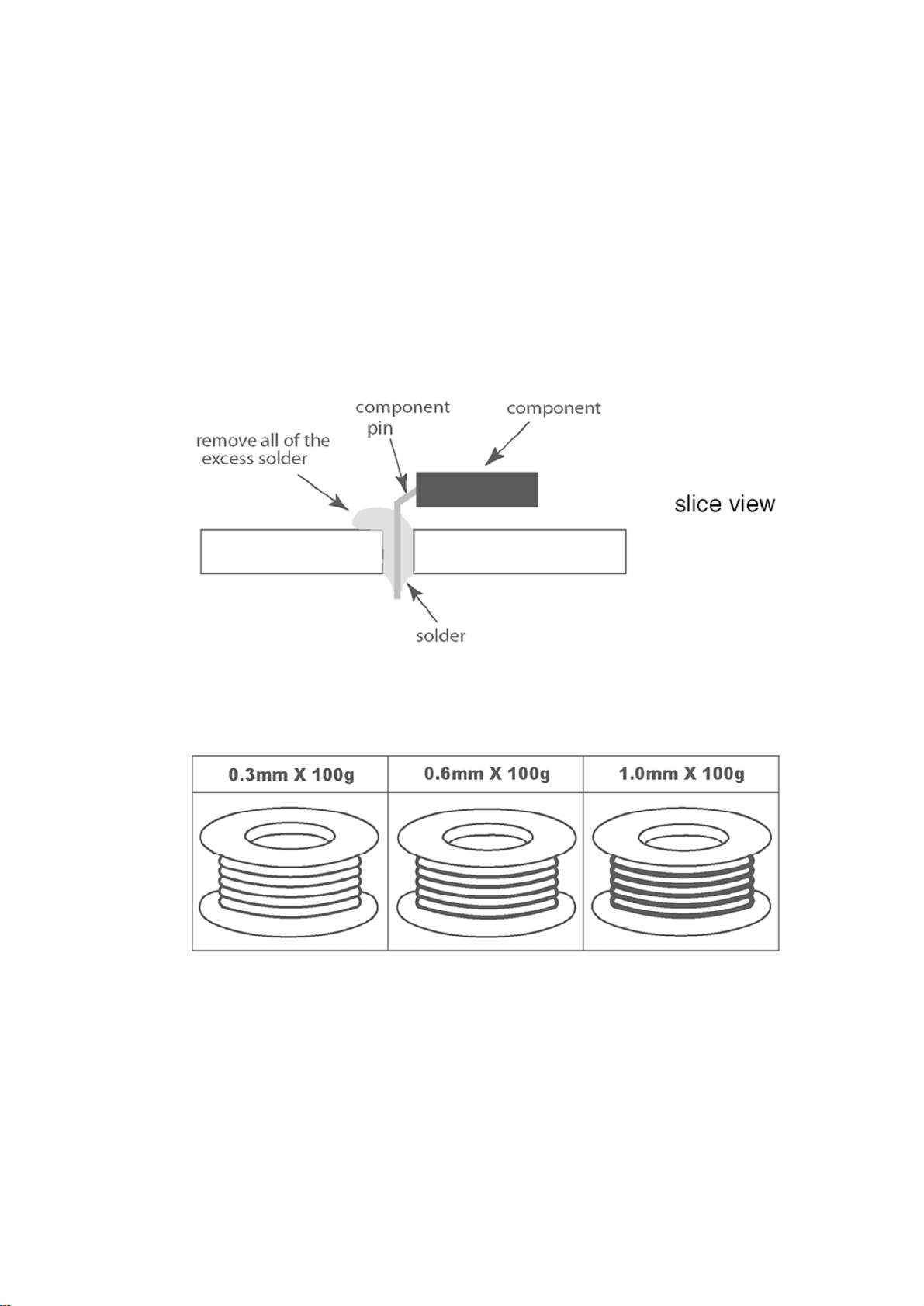

-Afterapplying PbF soldertodoublelayeredboards, please check
thecomponentsideforexcess solderwhichmayflow ontothe
opposite side.
SuggestedPbfree solder
Thereareseveral kindsofPbfree solderavailablefor purchase. Thisproductuses Sn+Ag+Cu
(tin, silver, copper)solder. However, Sn+Cu(tin, copper), Sn+Zn+Bi (tin, zinc, bismuth)soldercan
alsobeused.
3. Important safetytests
Measuring H.V.
TheanodecapsarecementedtotheCRTs. Togainaccess for high voltagemeasurement,
remove theredCRT’sanodeleadfrom theflyback transformerdistributor. Grasptheanodelead
protective capatitsbottom and squeezeitagainstthelocking capbodyinside, rotate1/4turn
counterclockwise and pull theanodeleadsleeve outoftheFBTdistributor. Connectahigh
voltagepositive leadfrom your H.V. metertotheFBTdistributor, and thecommon negative lead
5

tocoldground
FBTleadsremoval
Note:
ReinserttheanodeleadintotheFBTdistributor until itistightlyand fullyseated. Turn the
locking capclockwise tolock inplace.
(EHT)Protector operation check
Withthecabinetback removed, applyanominal 120V A.C. tothePTV.
Overvoltagetest
Preparation:
1. TurnPTV“OFF”
2. Connect aNTSCsignal generatortotheantennaterminal.
3. Connect DVMpositiveleadtoD31 pin2and negativeleadtoD31
pin1on D-Board H.V. measurement
4. Connect aH.V. meter(statictype, class 0.1) withhigh voltage
leadstohigh voltagedistributoron FBT.

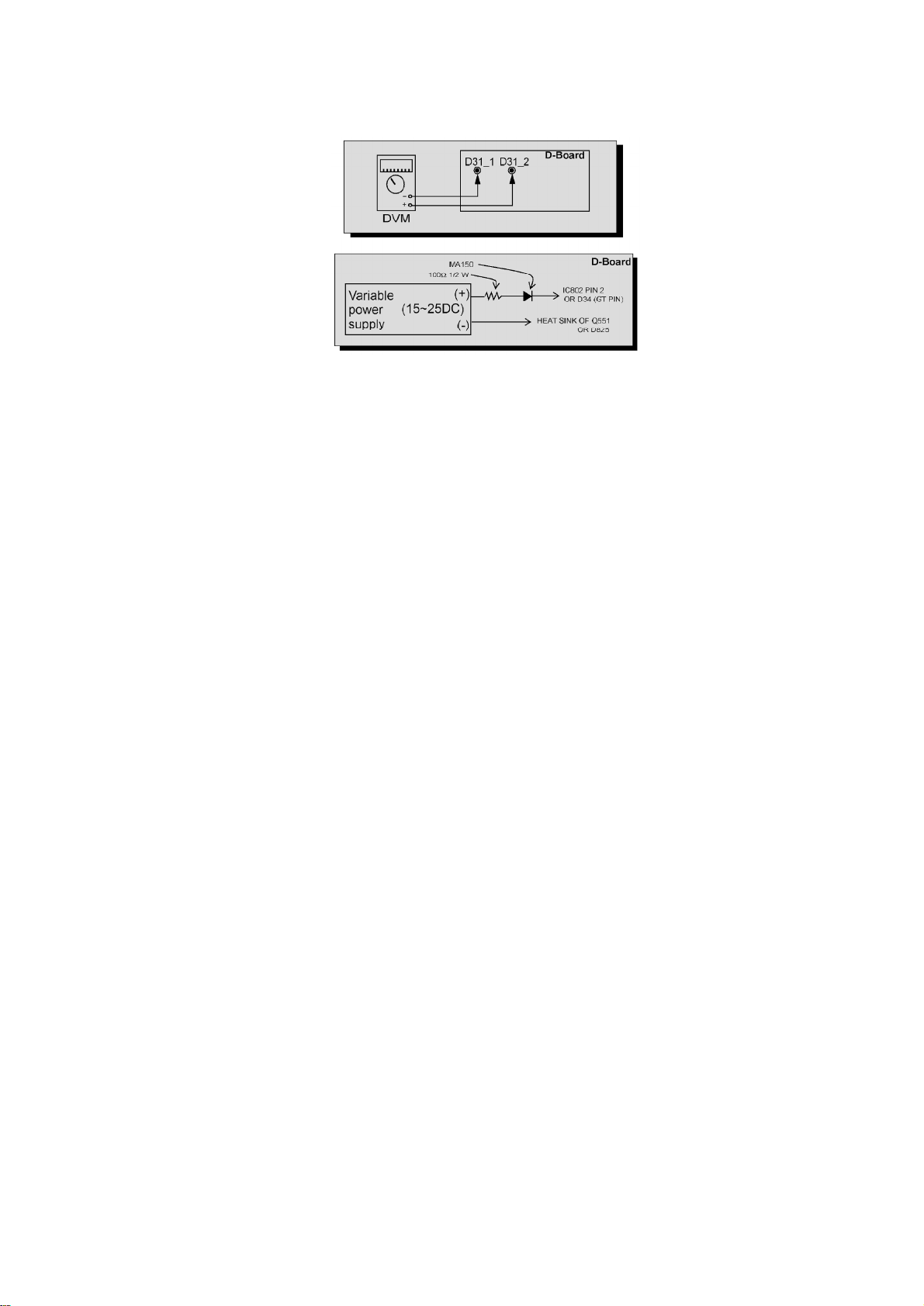

DVMand powersupplyconnection
6

5. Connect the15 ~25 VDC variablepowersupplypositiveleadto
D34 orIC802 pin2(DBoard)and negativeleadtoheat sinkof
Q551 orD825
Procedures:
1. ApplyaNTSCwhite pattern.
2. TurnPTVON.
3. Adjust thepictureorbrightness controlssothat theDVMreads
12.4±0.4volts.
4. Increase thevariablepowersupplyuntil set turnsoff. Theset
shouldturnoff at 12.4±0.4volts (DVM)and high voltageless than
36.4kV.
5. IftheDVMreading isotherthan12.4±0.4volts, readjust pictureor
brightness control and repeat steps3.
6. Turnoff thevariablesupplyand confirm that theset will turnon
withtheremote control.
4. Service notes
NOTE
These componentsareaffixedwithglue. Becareful nottobreak or damageanyfoil underthe
componentor atthepinsoftheICswhenremoving. Usuallyapplying heattothecomponentfor a
shorttimewhiletwisting withtweezerswill break thecomponentloose.
Leadless chipcomponent(surface mount)
7

Chipcomponentsmustbereplacedwithidentical chipsduetocritical foil track spacing. There
areno holes intheboard tomountstandard transistorsor diodes. Somechipscapacitor or
resistor board solderpadsmay have holes through theboard,howevertheholediameterlimits
standard resistor replacementto1/8watt. Standard capacitor may alsobelimitedfor thesame
reason. Itisrecommendedthatidentical componentsbeused.
Chipresistor have athree digitnumerical resistance code, 1stand 2nd significantdigitsand a
multiplier. Example:162 =1600 or 1.6k resistor, 0=0 (jumper).
Chipcapacitorsgenerallydo nothave thevalueindicatedon thecapacitor. Thecolor ofthe
componentindicates thegeneral rangeofthecapacitance.
Chiptransistorsareidentifiedbyatwolettercode. Thefirstletterindicates thetypeand the
second letter, thegradeoftransistor.
Chipdiodes have atwoletteridentification codeas perthecodechartand areadual diodepack
witheithercommon anodeor common cathode. Check thepartslistfor correctdiodenumber.
Componentremoval
1. Use solderwick toremovesolderfromcomponentend capsor
terminal.
2. Withoutpulling up, carefullytwist thecomponentwithtweezersto
break theadhesive.
3. Donotreuse removedleadless orchipcomponents since theyare
subject tostress fractureduring removal.
Chipcomponentinstallation
1. Putasmall amountofsolderon theboardsoldering pads.
2. Holdthechipcomponentagainst thesoldering padswithtweezers
orwithaminiaturealligatorclipand applyheat tothepadarea
witha30 watt iron until solderflows. Donotapplyheat formore
than3seconds.
8

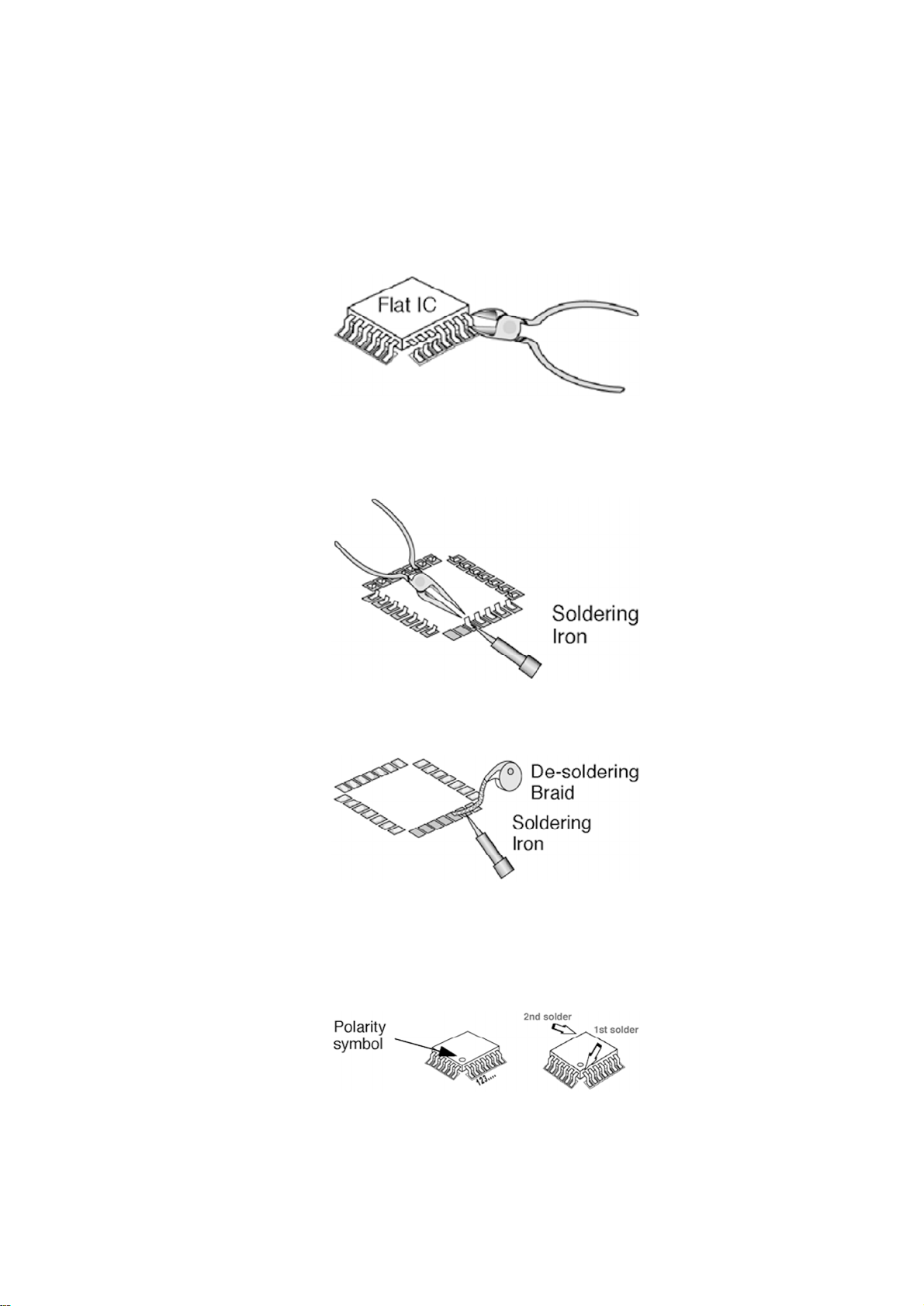

Howtoreplace flatic(requiredtools)
1. Removethesolderfromall ofthepinsofaFlat ICbyusing a
desolderbraid
2. Puttheiron wireunderthepinsoftheFlat ICand pull itinthe
direction indicatedwhileheating thepinsusing asoldering iron. A
small awl canbeusedinsteadoftheiron wire.
3. Removethesolderfromall thepadsoftheFlat ICbyusing ade
solderbraid
4. Position thenew Flat ICinplace (applythepinsoftheFlat ICto
thesoldering padswherethepinsneedtobesoldered). Properly
determinethepositionsofthesoldering padsand pinsby
correctlyaligning thepolaritysymbol

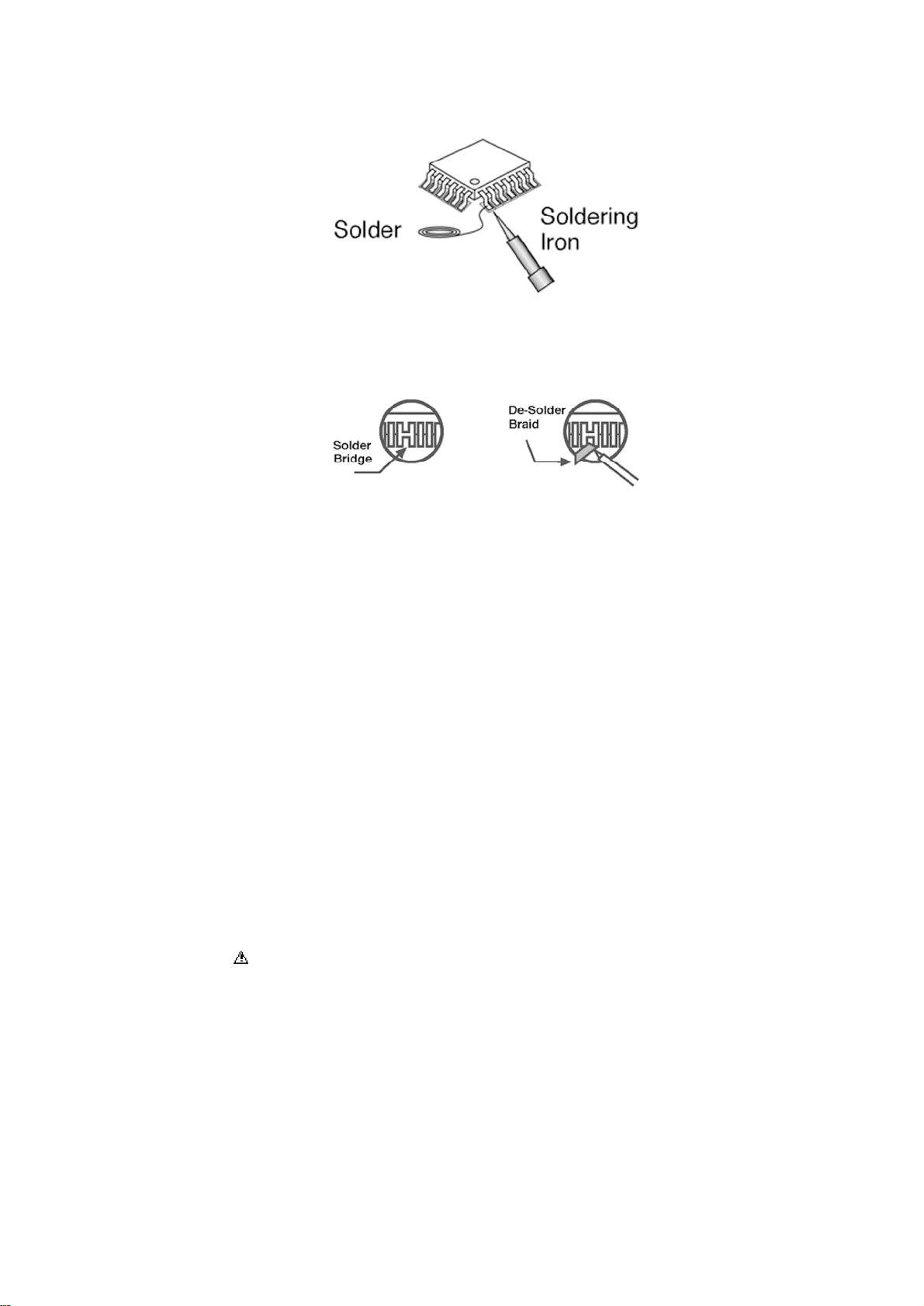

5. Solderall pinstothesoldering padsusing afinetippedsoldering
iron
9

6. Check withamagnifierforsolderbridgebetweenthepinsorfor
dryjointbetweenpinsand soldering pads. To removeasolder
bridge, use adesolderbraidas showninthefigurebelow
IMPORTANT
To protect against possibledamagetothesolidstate devices dueto
arcing orstaticdischarge, make certainthat all ground wires are
securelyconnected
CAUTION
Thepowersupplycircuitisaboveearthground and thechassis
cannotbepolarized. Use anisolation transformerwhenservicing
thereceivertoavoiddamagetothetest equipmentortothe
chassis. Connect thetest equipmenttotheproperground(HOTor
COLD)whenservicing, orincorrect voltages will bemeasured.
WARNING
Thisreceiverhas beendesignedtomeet orexceedapplicablesafety
and xrayradiation protection as specifiedbygovernmentagencies
and independenttesting laboratories.
To maintainoriginal product safetydesign standardsrelativetox
rayradiation and shock and firehazard, parts indicatedwiththe
symbol on theschematicmust bereplacedwithidentical parts.
Orderparts fromthemanufacturer’sparts centerusing theparts
numbersshowninthisservice manual, orprovidethechassis
numberand thepartreference number.
Foroptimumperformance and reliability, all otherparts shouldbe
replacedwithcomponents ofidentical specification.
10

5. Receiverfeaturetable
FEATURE/MODEL PT-53WX54J / PT-53WX54UJPT-47WX54J / PT-
47WX54UJ
CHASSIS AP825
MICRO 256K
MENU LANGUAGE ENG/SPAN/FR
CLOSE CAPTION X
V-CHIP (USA/CANADA X
CHANNELINFOBANNER X
VIDEOINPUTSKIP SKIP
CHANNELCOUNT 181
PIP (1T), 2TPIP (2T), 2TSPLIT 2TSPLIT
2RF X

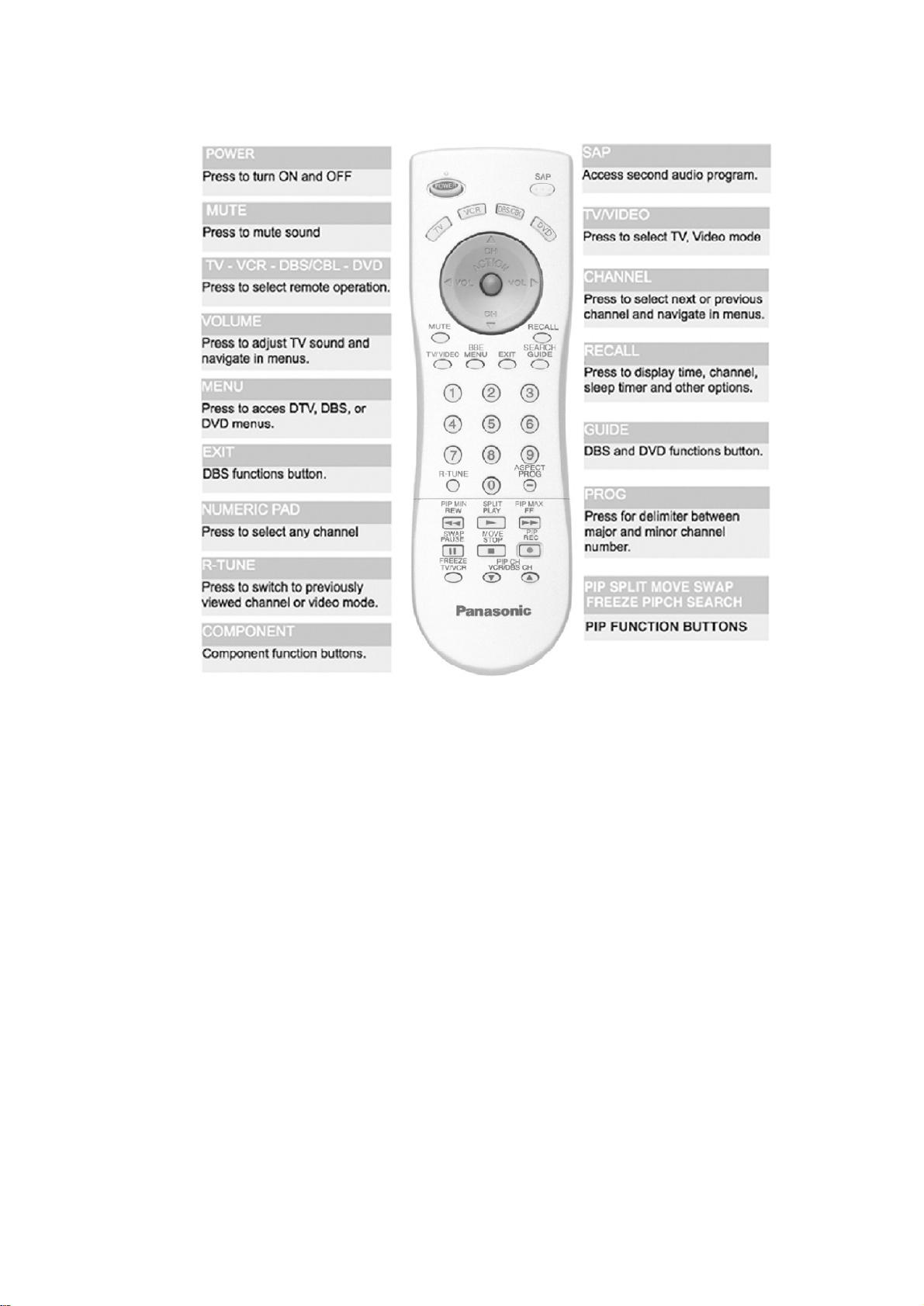

REMOTE CONTROL(W/LIGHT) EUR7613Z9A
CRTSUPPLIER MDDA(CENTAUR)
SCREEN W/PROTECTIVE SCREEN
CHASSIS P8W
COMBFILTER MOTIONADP, 3DY/C
HEC/VEC(X=BOTH) X
NEWYNR X
VM X (DIGITAL)
V/ANORM(X=BOTH) X
COLORTEMP X
AIP X
PRESET/INPUTLABELING X
VIDEOPICTURE MEMORY X
DIGITALSCANRATE 1080i, 480p
NTSCLINE DOUBLER 480pPROGRESSIVE (NEW)
MTS/SAP/DBX X
BUILT-INAUDIOPOWER 15Wx2 (10%)
No. OFSPEAKERS 4
BASS/BALANCE/TREBLE CONTROL X
AISOUND X
SURROUND X
SPATIALIZER/BBE BBE
A/V IN(REAR/FRONT) 4(3/1)
A/V PROGRAMOUT X
AUDIOOUT(FAO:F, VAO:V) F, V
COMPONENTINPUT(Y, Pb, Pr) 2
S-VHS INPUT(REAR/FRONT) 2/1
HDMI/HDCP INPUT DVI/HDCP
11

FEATURE/MODEL PT-47WX34J / PT-47WX34UJ
CHASSIS AP825
MICRO 256K
MENU LANGUAGE ENG/SPAN/FR
CLOSE CAPTION X
V-CHIP (USA/CANADA X
CHANNELINFOBANNER X
VIDEOINPUTSKIP SKIP
CHANNELCOUNT 181
PIP (1T), 2TPIP (2T), 2TSPLIT 2TSPLIT
2RF X
REMOTE CONTROL(W/LIGHT) EUR7613Z8B
CRTSUPPLIER MDDA(CENTAUR)
SCREEN WITHPROTECTIVE SCREEN
CHASSIS P8W
COMBFILTER MOTIONADP, 3DY/C
HEC/VEC(X=BOTH) X
NEWYNR X
VM X (DIGITAL)
V/ANORM(X=BOTH) X
COLORTEMP X
AIP X
PRESET/INPUTLABELING X
VIDEOPICTURE MEMORY X
DIGITALSCANRATE 1080i, 480p
NTSCLINE DOUBLER 480pPROGRESSIVE (NEW)
MTS/SAP/DBX X
BUILT-INAUDIOPOWER 15Wx2 (10%)
No. OFSPEAKERS 4
BASS/BALANCE/TREBLE CONTROL X
AISOUND X
SURROUND X
SPATIALIZER/BBE BBE
A/V IN(REAR/FRONT) 4(3/1)
A/V PROGRAMOUT X
AUDIOOUT(FAO:F, VAO:V) F, V
COMPONENTINPUT(Y, Pb, Pr) 2
S-VHS INPUT(REAR/FRONT) 2/1
HDMI/HDCP INPUT DVI/HDCP
Note:
Specificationsaresubjecttochangewithoutnotice or obligation.
6. Boarddescription table
12

BOARD PARTNUMBER DESCRIPTION
A-BOARD TNP2AH045 MAINCHASSIS
D-BOARD TNP2AH046 POWERSUPPLY
*DC-BOARD TNPAA120 CONVERGENCE CIRCUIT
*DV-BOARD TNP2AA114 DVIBOARD
*DG-BOARD TNP2AA126 PIP PROCESSING, SPLIT, SEARCH,
FORMATS
LB-BOARD TNP2AA147 BLUE PRT
LR-BOARD TNP2AA145 REDPRT
LG-BOARD TNP2AA146 GREENPRT
K-BOARD TNP2AA089AA FRONTKEYBOARD
G-BOARD TNP2AA090AA FRONTA/V BOARD
R-BOARD TNPA0615AB IRBOARD
NOTE
Whenordering areplacementboard assembly, append an“S”totheboard number
EXAMPLE
ToordertheABoard, thereplacementboard isTNP2AH045S
*NOTE
TheDC-Board, DG-Board and DV-Board arenon-serviceableboards, exceptfor DV-Board audio
connector and DVIconnector. Ifanyofthese boardsor DV-Board componentsaredefective,
replace itwithanewon one.
7. Location of controls(EUR7613Z8Bremote)
13

Note:
For additional information for thisremoteplease refertotheowner’smanual section remote
operation, listedon thepartslistsection.
8. Partslist
8.1. Description ofabbreviationsguide
14

8.2. Parts list
Ref. No. PartNo. PartName& Description Remarks
CAPACITORS
C002 ECJ2VC1H220J CAPC 22PF-J-50V
C003 ECJ2VC1H220J CAPC 22PF-J-50V
C004 F2A1H4R7A162 CAPE4.7UF-50V
C005 F2A1H2R2A162 CAPE2.2UF-50V
C006 ECA0JM332E CAPE3300UF-6.3V
C008 F2A1H4R7A162 CAPE4.7UF-50V
C009 ECJ2VC1H220J CAPC 22PF-J-50V
C010 ECJ2VC1H220J CAPC 22PF-J-50V
C011 ECJ2VF1H104Z CAPC .1UF-Z-50V
C012 ECJ2VF1H104Z CAPC .1UF-Z-50V
C013 ECA0JM332E CAPE3300UF-6.3V
C014 F2A1H2R2A162 CAPE2.2UF-50V
C017 ECJ2VF1H104Z CAPC .1UF-Z-50V
C018 ECJ2VF1H104Z CAPC .1UF-Z-50V
C021 F2A1HR22A162 CAPE.22UF-50V
C022 F2A1HR22A162 CAPE.22UF-50V
C033 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C051 EEUFC1E470B CAPE47UF-25V
C052 TACCX103T50V CAPC .010UF-50V
C301 F2A2E100A025 CAPE10UF-250V
C302 ECCR1H221JC5 CAPC 220PF-J-50V
C304 ECKW2H103PU8 CAPC .01UF-P-500V
C305 F2A1H470A162 CAPE47UF-50V
15

Ref. No. PartNo. PartName& Description Remarks
C306 F2A2E100A025 CAPE10UF-250V
C307 ECKR1H103ZF5 CAPC .01UF-Z-50V
C312 ECKC3D102KBN CAPC 1000PF-K-2KV
C313 ECKR2H102KB5 CAPC 1000PF-K-500V
C331 F2A1H470A162 CAPE47UF-50V
C332 ECKR1H103ZF5 CAPC .01UF-Z-50V
C333 F2A1H470A162 CAPE47UF-50V
C334 F2A2E470A026 CAPE47UF-250V
C335 ECCR1H221JC5 CAPC 220PF-J-50V
C336 F2A1H470A162 CAPE47UF-50V
C337 F2A2E470A026 CAPE47UF-250V
C339 ECKW2H103PU8 CAPC .01UF-P-500V
C340 ECKR1H103ZF5 CAPC .01UF-Z-50V
C341 F2A2E100A025 CAPE10UF-250V
C345 ECKC3D102KBN CAPC 1000PF-K-2KV
C346 ECKR2H102KB5 CAPC 1000PF-K-500V
C361 F2A1C101A159 CAPE100UF-16V
C362 ECCR1H221JC5 CAPC 220PF-J-50V
C364 ECKW2H103PU8 CAPC .01UF-P-500V
C365 F2A2E100A025 CAPE10UF-250V
C366 F2A1H470A162 CAPE47UF-50V
C367 ECKR1H103ZF5 CAPC .01UF-Z-50V
C372 ECKC3D102KBN CAPC 1000PF-K-2KV
C373 ECKR2H102KB5 CAPC 1000PF-K-500V
C374 F2A1C101A159 CAPE100UF-16V
C405 ECA1EHG102E CAPE1000UF-25V
C406 ECA1EHG102E CAPE1000UF-25V
C407 ECJ2VF1H103Z CAPC .01UF-Z-50V
C408 ECJ2VF1H103Z CAPC .01UF-Z-50V
C411 TCJ2VB1H822K CAPC 8200PF-K-50V
C412 ECQB1224KF3 CAPP.22UF-K-100V
C413 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C414 TCJ2VB1H272K CAPC 2700PF-K-50V
C417 ECJ2VF1H104Z CAPC .1UF-Z-50V
C418 TCJ2VF1H223Z CAPC .022UF-Z-50V
C421 ECA1CEN100B CAPE10UF-16V
C458 ECJ2VF1H103Z CAPC .01UF-Z-50V
C461 ECA1HHG221B CAPE220UF-50V
C501 ECA1EM101B CAPE100UF-25V
C502 ECQV1H105JL3 CAPP1.0UF-J-50V
C503 ECKR2H102KB5 CAPC 1000PF-K-500V
C509 ECWF2474JSR CAPP.47UF-J-200V
C510 TCJ2VC1H221J CAPC 220PF-J-50V
C511 ECWH20222JVY CAPP2200PF-J-2KV
C512 ECWH20102JVY CAPP1000PF-J-2KV
C513 ECQF4103JZH CAPP.01UF-J-400V
C514 ECWH20222JVY CAPP2200PF-J-2KV
C518 ECKW3D221JBP CAPC 220PF-J-2KVDC
C519 ECKW3D221JBP CAPC 220PF-J-2KVDC
C520 ECQB1H103JF3 CAPP.01UF-J-50V
C522 ECWH20182JVY CAPP1800PF-J-2KV
16

Ref. No. PartNo. PartName& Description Remarks
C523 ECWH20182JVY CAPP1800PF-J-2KV
C524 ECQB1224JF3 CAPP.22UF-J-100V
C525 ECEA1HN220UB CAPE22UF-50V
C526 F2A2E101A026 CAPE100UF-250V
C527 ECKR2H102KB5 CAPC 1000PF-K-500V
C528 F2A1H470A162 CAPE47UF-50V
C531 ECA160V33UE CAPE33UF-160V
C533 ECKR2H101KB5 CAPC 100UF-K-500V
C535 ECA1EM471E CAPE470UF-25V
C601 EEUFC1C331B CAPE330UF-16V
C602 ECJ2VF1H103Z CAPC .01UF-Z-50V
C701 F2A1C101A159 CAPE100UF-16V
C702 ECKW3D271KBP CAPC 270PF-K-2KV
C703 ECQM2104KZW CAPP.1UF-K-200V
C704 ECKR2H391KB5 CAPC 390PF-K-500V
C707 ECJ2VF1H103Z CAPC .01UF-Z-50V
C708 ECQE1685KFB CAPP6.8UF-K-100V
C801 ECQU2A104MNB CAPP.10UF-M-250VAC
C802 ECQU2A823MNB CAPP.082UF-M-250V
C803 ECKCNA222ME7 CAPC 2200PF-M-125V
C804 ECKCNA222ME7 CAPC 2200PF-M-125V
C805 ECKW2H472PU7 CAPC 4700PF-P-500V
C806 ECKW2H472PU7 CAPC 4700PF-P-500V
C807 ECKW2H472PU7 CAPC 4700PF-P-500V
C808 ECA1EM101B CAPE100UF-25V
C809 TCJ2VB1E223K CAPC .022UF-K-25V
C810 EETED2D102C CAPE1000PF-200V
C812 ECA1EHG471B CAPE470UF-25V
C814 ECKW3D102KBP CAPC 1000PF-K-2KV
C815 ECQB1H152JF3 CAPP1500PF-J-50V
C816 ECKW3D821KBP CAPC 820PF-K-2KV
C817 ECKW3D102KBP CAPC 1000PF-K-2KV
C819 ECQB1H102JF3 CAPP1000PF-J-50V
C820 ECQV1H334JL3 CAPP.33UF-J-50V
C821 ECQB1H272KF3 CAPP2700PF-K-50V
C822 F2A1H220A162 CAPE22UF-50V
C823 TCJ2VC1H151J CAPC 150PF-J-50V
C824 EEUFC1V151B CAPE150UF-35V
C825 ECKCNA102MBB CAPC .001UF-M-125V
C826 ECJ2VF1H104Z CAPC .1UF-Z-50V
C830 EETHC2C471B CAPE470PF-160V
C831 ECKW3D821KBP CAPC 820PF-K-2KV
C832 ECJ2VF1H103Z CAPC .01UF-Z-50V
C834 EEUFC1V222E CAPE2200UF-35V
C836 ECKR3A331KBP CAPC 330PF-K-1KVDC
C837 F2A1E472A135 CAPE4700UF-25V
C839 ECKR3A331KBP CAPC 330PF-K-1KVDC
C841 F2A1E472A135 CAPE4700UF-25V
C842 ECKR3A331KBP CAPC 330PF-K-1KVDC
C843 F2A1V222A128 CAPE2200UF-35V
17

Ref. No. PartNo. PartName& Description Remarks
C844 ECKR3A331KBP CAPC 330PF-K-1KVDC
C845 F2A1V222A128 CAPE2200UF-35V
C846 ECKR3A331KBP CAPC 330PF-K-1KVDC
C848 F2A1C101A159 CAPE100UF-16V
C849 ECKR1H223ZF5 CAPC .022UF-Z-50V
C851 ECQV1H104JL3 CAPP.10UF-J-50V
C852 ECA1EM101B CAPE100UF-25V
C854 F2A1C101A159 CAPE100UF-16V
C855 ECJ2VF1H104Z CAPC .1UF-Z-50V
C876 ECJ3VF1H224Z CAPC .22UF-Z-50V
C877 ECA0JM221B CAPE220UF-6.3V
C878 EEUFC1V561E CAPE560UF-35V
C879 EEUFC1C471LB CAPE470UF-16V
C880 TCJ2VB1H152K CAPC 1500PF-K-50V
C881 TCJ2VB1H152K CAPC 1500PF-K-50V
C882 ECA0JM221B CAPE220UF-6.3V
C883 TCJ2VB1H152K CAPC 1500PF-K-50V
C885 TCJ2VB1H152K CAPC 1500PF-K-50V
C886 TCJ2VB1H152K CAPC 1500PF-K-50V
C887 EEUFC1V561E CAPE560UF-35V
C888 EEUFC1V561E CAPE560UF-35V
C889 ECJ2YF1E474Z CAPC .47UF-Z-25V
C890 ECJ2VF1H103Z CAPC .01UF-Z-50V
C891 EEUFC1C471LB CAPE470UF-16V
C892 F2A1C221A159 CAPE220UF-16V
C893 EEUFC1C471LB CAPE470UF-16V
C895 ECJ3VF1H224Z CAPC .22UF-Z-50V
C896 ECJ3VF1H224Z CAPC .22UF-Z-50V
C897 TCJ2VB1H152K CAPC 1500PF-K-50V
C902 ECQM2103KZB CAPP.01UF-K-200V
C903 ECKR1H103ZF5 CAPC .01UF-Z-50V
C904 ECKR1H103ZF5 CAPC .01UF-Z-50V
C906 ECQM2103KZB CAPP.01UF-K-200V
C907 F2A2C100A023 CAPE10UF-160V
C908 F2A1C101A159 CAPE100UF-16V
C909 F2A1C101A159 CAPE100UF-16V
C910 F2A2C100A023 CAPE10UF-160V
C912 F2A1H220A162 CAPE22UF-50V
C931 F2A1H101A162 CAPE100UF-50V
C932 TCJ2VB1H103K CAPC .01UF-K-50V
C933 F2A1C101A159 CAPE100UF-16V
C934 ECA1CM100B CAPE10UF-16V
C935 TCJ2VB1H102K CAPC 1000PF-K-50V
C936 TCJ2VB1H103K CAPC .01UF-K-50V
C939 ECKR1H103ZF5 CAPC .01UF-Z-50V
C940 ECQM2103KZB CAPP.01UF-K-200V
C941 ECKR1H103ZF5 CAPC .01UF-Z-50V
C942 ECQM2103KZB CAPP.01UF-K-200V
C943 F2A2C100A023 CAPE10UF-160V
C944 F2A1C101A159 CAPE100UF-16V
C945 F2A1C101A159 CAPE100UF-16V
C947 F2A2C100A023 CAPE10UF-160V
C962 ECKR1H103ZF5 CAPC .01UF-Z-50V
C963 ECQM2103KZB CAPP.01UF-K-200V
18

Ref. No. PartNo. PartName& Description Remarks
C965 ECKR1H103ZF5 CAPC .01UF-Z-50V
C966 ECQM2103KZB CAPP.01UF-K-200V
C967 F2A2C100A023 CAPE10UF-160V
C968 F2A1C101A159 CAPE100UF-16V
C969 F2A1C101A159 CAPE100UF-16V
C970 F2A2C100A023 CAPE10UF-160V
C972 F2A1H220A162 CAPE22UF-50V
C1101 ECJ2VF1H103Z CAPC .01UF-Z-50V
C1102 ECJ2VF1H104Z CAPC .1UF-Z-50V
C1103 ECJ2VB1C104K CAPC .1UF-K-16V
C1105 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C1112 ECJ2VF1H103Z CAPC .01UF-Z-50V
C1113 ECEA1CKA101B CAPE100UF-16V
C1502 ECQE6104KFB CAPP100UF-K-100V
C1503 ECQE6104KFB CAPP100UF-K-100V
C1504 ECJ2VF1H104Z CAPC .1UF-Z-50V
C1505 F2A1C101A159 CAPE100UF-16V
C1506 ECJ2VF1H103Z CAPC .01UF-Z-50V
C1508 F2A1C101A159 CAPE100UF-16V
C1509 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C1510 ECJ2VF1H103Z CAPC .01UF-Z-50V
C1511 TCJ2VC1H471J CAPC 470PF-J-50V
C1513 ECEA1EN101UB CAPE100UF-25V
C1514 F2A1C101A159 CAPE100UF-16V
C2202 F2A1H2R2A162 CAPE2.2UF-50V
C2203 F2A1H4R7A162 CAPE4.7UF-50V
C2204 AP106K016CAE CAPT1OUF-16V
C2205 F2A1H1R0A162 CAPE1.0UF-50V
C2206 ECQB1H223JF3 CAPP.022UF-J-50V
C2207 AP335K016CAE CAPT3.3UF-16V
C2208 ECJ2VB1C104K CAPC .1UF-K-16V
C2209 ECJ2VB1C104K CAPC .1UF-K-16V
C2210 ECJ2VB1C104K CAPC .1UF-K-16V
C2211 F2A1H100A162 CAPE10UF-50V
C2212 ECQB1H473JF3 CAPP.047UF-J-50V
C2213 ECJ2VF1H104Z CAPC .1UF-Z-50V
C2214 ECJ2VF1H104Z CAPC .1UF-Z-50V
C2215 F2A1C101A159 CAPE100UF-16V
C2218 F2A1HR47A162 CAPE.47UF-50V
C2303 ECA1EM101B CAPE100UF-25V
C2304 ECJ2VF1H103Z CAPC .01UF-Z-50V
C2330 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2331 F2A1H100A162 CAPE10UF-50V
C2332 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2333 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2334 ECJ2VF1H103Z CAPC .01UF-Z-50V
C2335 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2337 ECA50YT2R2KB CAPE2.2UF-50V
C2338 ECA50YT2R2KB CAPE2.2UF-50V
C2342 TCJ2VB1H333K CAPC .033UF-K-50V
C2343 ECEA1CN100UB CAPE10UF-16V
C2344 ECQB1H224JF3 CAPP.22UF-J-50V
C2345 EEUFC1E222E CAPE2200UF-25V
C2346 TCJ2VB1H561K CAPC 560PF-K-50V
19

Ref. No. PartNo. PartName& Description Remarks
C2347 ECJ3VB1H104K CAPC .1UF-K-50V
C2348 F2A1H100A162 CAPE10UF-50V
C2349 ECEA1CN100UB CAPE10UF-16V
C2351 F1J1C225A083 CAPC 2.2UF-Z-16V
C2352 EEUFC1E222E CAPE2200UF-25V
C2354 TCJ2VB1H471K CAPC 470PF-K-50V
C2355 TCJ2VC1H270J CAPC 27PF-J-50V
C2356 TCJ2VB1H471K CAPC 470PF-K-50V
C2357 TCJ2VB1H331K CAPC 330PF-K-50V
C2358 ECJ3VB1H104K CAPC .1UF-K-50V
C2359 TCJ2VB1H331K CAPC 330PF-K-50V
C2360 ECJ3VB1H104K CAPC .1UF-K-50V
C2361 TCJ2VB1H471K CAPC 470PF-K-50V
C2362 TCJ2VB1H471K CAPC 470PF-K-50V
C2363 TCJ2VB1H682K CAPC 6800PF-K-50V
C2364 ECJ3VB1H104K CAPC .1UF-K-50V
C2365 ECJ3VB1H104K CAPC .1UF-K-50V
C2367 ECQB1H224JF3 CAPP.22UF-J-50V
C2368 TCJ2VB1H333K CAPC .033UF-K-50V
C2369 TCJ2VB1H561K CAPC 560PF-K-50V
C2370 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2371 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2373 TCJ2VB1H682K CAPC 6800PF-K-50V
C2374 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2375 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2451 ECEA1HN4R7UB CAPE4.7UF-50V
C2452 ECEA1HN4R7UB CAPE4.7UF-50V
C2453 TCJ2VB1H332K CAPC .0033UF-K-50V
C2454 TCJ2VB1H332K CAPC .0033UF-K-50V
C2455 TCJ2VB1H333K CAPC .033UF-K-50V
C2456 TCJ2VB1H333K CAPC .033UF-K-50V
C2457 TCJ2VB1H222K CAPC 2200PF-K-50V
C2458 TCJ2VB1H222K CAPC 2200PF-K-50V
C2459 ECJ2VB1C104K CAPC .1UF-K-16V
C2460 ECJ2VB1C104K CAPC .1UF-K-16V
C2461 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C2462 ECJ2VB1C104K CAPC .1UF-K-16V
C2463 ECJ2VB1C104K CAPC .1UF-K-16V
C2464 F2A1H4R7A162 CAPE4.7UF-50V
C2465 F2A1H4R7A162 CAPE4.7UF-50V
C2466 F2A1H4R7A162 CAPE4.7UF-50V
C2467 F2A1H4R7A162 CAPE4.7UF-50V
C2468 F2A1H4R7A162 CAPE4.7UF-50V
C2474 F2A1C101A159 CAPE100UF-16V
C2475 TCJ2VB1H103K CAPC .01UF-K-50V
C2507 F2A1C101A159 CAPE100UF-16V
C2513 ECJ2VB1C104K CAPC .1UF-K-16V
C2518 ECJ2VF1C105Z CAPC 1.0UF-Z-16V
C3001 F2A1C101A159 CAPE100UF-16V
C3002 ECA1CM470B CAPE47UF-16V
C3009 ECEA1CKA101B CAPE100UF-16V
C3011 ECEA1CN100UB CAPE10UF-16V
C3012 ECEA1CN100UB CAPE10UF-16V
C3013 ECEA1CN100UB CAPE10UF-16V
20
