1080P FULL HD LCD Display
42 47
*Public Information Display
TH-47LF25U
TH-42LF25U
Standard Models for Crisp, Clear Information
Transmission in Public Spaces
1080P FULL HD LCD Display

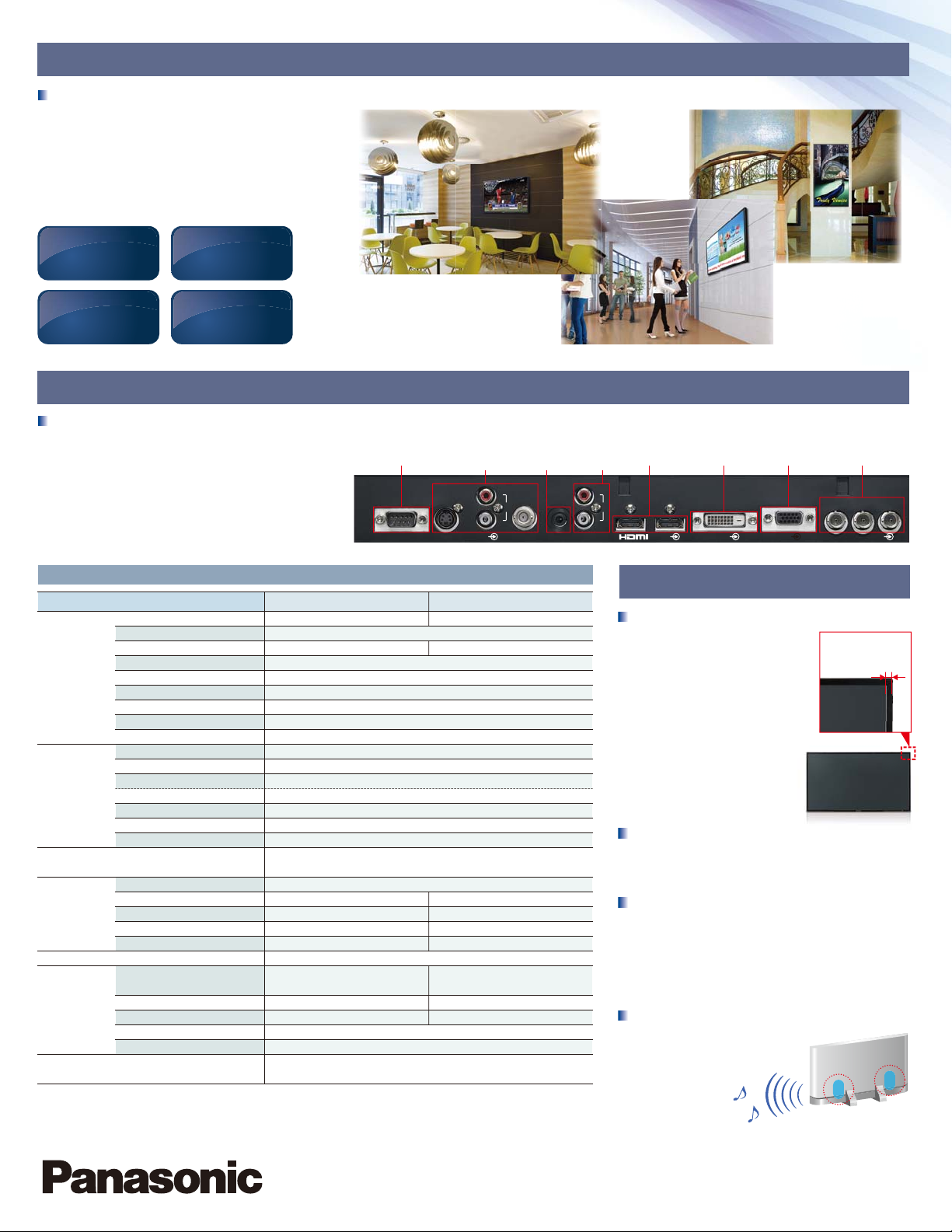

Main Features
1
2
Full-HD PID*Panel — Optimal for Signage Applications
Wide Range of Input Terminals
3Stylish and Energy-Saving Design
47-inch class
42-inch class

HDMI IN
AUDIO IN
(DVI-D, PC)
AUDIO IN
(COMPONENT)
VIDEO/S-VIDEO IN,
AUDIO IN
SERIAL PORT DVI-D IN PC-IN COMPONENT/RGB IN
SERIAL
S-VIDEO
AUDIO
AUDIO
VIDEO
L
R
AVI IN DVI-D IN PC-IN COMPONENT/RGB INAV IN
AUDIO
AUDIO
1
2
2
L
R
AUDIO
AUDIO R/Pr/Cr G/Y B/Pb/Cb
Versatile Functions for Public Information Displays
Bright, Full HD (1920 x 1080) Professional LCD Display
The LF25 Series has various input terminals
including component or RGB input, composite
video input, S-video input, PC input and RS-232C
control port input. It’s also equipped with HDMI 1/2
inputs with deep colour, and DVI-D input with
HDCP for high definition signals.
In addition to the high resolution of Full-HD and the
wide viewing angle of the IPS panel, the LF25
Series features 500-cd/m2brightness and 9-ms
response. This makes it possible to display crisp,
clear images even in bright places, for signage with
excellent information transmission performance.
Low Standby Power Consumption
The standby power consumption of the
TH-42LF25U is 0.1 W.
Slim and Light Design
The LF25 Series has a slim
and lightweight design even
with the built-in speakers.
Eco Mode
The light sensor detects the ambient light level and
control the brightness of the backlight accordingly.
This maintains optimum display brightness. It also
helps to save energy by reducing the backlight
power consumption.
The bezel on the TH-42LF25U is
only 18.3 mm wide (18.6 mm on the
TH-47LF25U). It is a most suitable
model for multi screen display. The
video image and graphics can be
displayed in greatly by using two or
more displays. The effect of the
digital signage of a high noteworthy
level is achieved by decorating the
wall with the video image.
Simulated pictures on screen.
Design and specifications are subject to change without notice.
As of August 26, 2011.
CR11LF25U_03
umpt
io
n
th
y
e
Extensive Input Terminals
Narrow bezel and multi display
Stylish and Energy Saving Design
Standard features include highly versatile terminals
Brightness
(500 cd/m2)
Anti image
sticking panel
Wide viewing angle
with an IPS panel
Portrait
use possible
Specifications
Screen Size (Diagonal)
Aspect Ratio
Effective Display Area (W x H)
Number of Pixels (H x V)
Brightness (Typ)
Contrast Ratio
Response Time
Viewing Angle (Horizontal/Vertical)
Orientation
VIDEO IN/AUDIO IN
HDMI IN
COMPONENT/RGB IN
AUDIO IN
DVI-D IN
PC IN
AUDIO IN (for DVI-D/PC)
Serial
Power Requirements
Power Consumption
On Mode Average Power Consumption*
Power Off Condition
Stand-by Condition
Built-in Speakers
Dimensions (W x H x D)
Bezel Width
Weight
Cabinet Material/Color
Mounting Method
Operating Environment
*Based on IEC62087 Ed.2 measurement method.
DISPLAY PANEL
CONNECTION
TERMINAL
CONTROL
TERMINAL
ELECTRICAL
AUDIO
MECHANICAL
ENVIRONMENTAL
TH-47LF25U
46.9-inch (1,192 mm)
16:9
1,920 x 1,080 pixels
500 cd/m2
1,200 : 1
9 ms (G to G)
178° / 178°
Landscape / Portrait
BNC x 1, S-terminal x 1 / RCA (L/R) x 1 set (for VIDEO/S-VIDEO)
HDMI TYPE A Connector x 2 (Deep Color Compatible)
BNC x 3
RCA (L/R) x 1 set
DVI-D 24 pin (HDCP Compatible) x 1
MINI D-SUB 15 pin x 1, Plug & Play (VESA DDC 2B)
M3 Jack x 1
D-SUB 9 pin x 1
(EXTERNAL CONTROL TERMINAL), RS-232C Compatible
110-127 V AC, 50 Hz / 60 Hz
8 Ω, 10 W [5 W + 5 W] (10 % THD)
Plastic / Black
VESA 15.8" x 15.8" (400 x 400 mm)
Temperature: 32 °F to 104 °F (0 °C to 40 °C)
Humidity 20% to 80% (Non Condensation)
TH-42LF25U
42.0-inch (1,067 mm)
40.9" x 23.0" (1,039 x 584 mm) 36.6” x 20.6" (930 x 523 mm)
300 W
190 W
0.1 W
Save ON 0.1 W, Save OFF 0.2 W
42.5" x 24.6" x 4.0"
(1,079 x 624 x 101 mm)
0.73" (18.6 mm)
Approx. 50.7 lbs, (23 Kg)
250 W
170 W
0.1 W
Save ON 0.1 W, Save OFF 0.2 W
38.2” x 22.1” x 4.0”
(968 x 561 x 101 mm)
0.72" (18.3 mm)
Approx. 39.7 lbs, (18 Kg)
0.72-inch
(18.3 mm)
