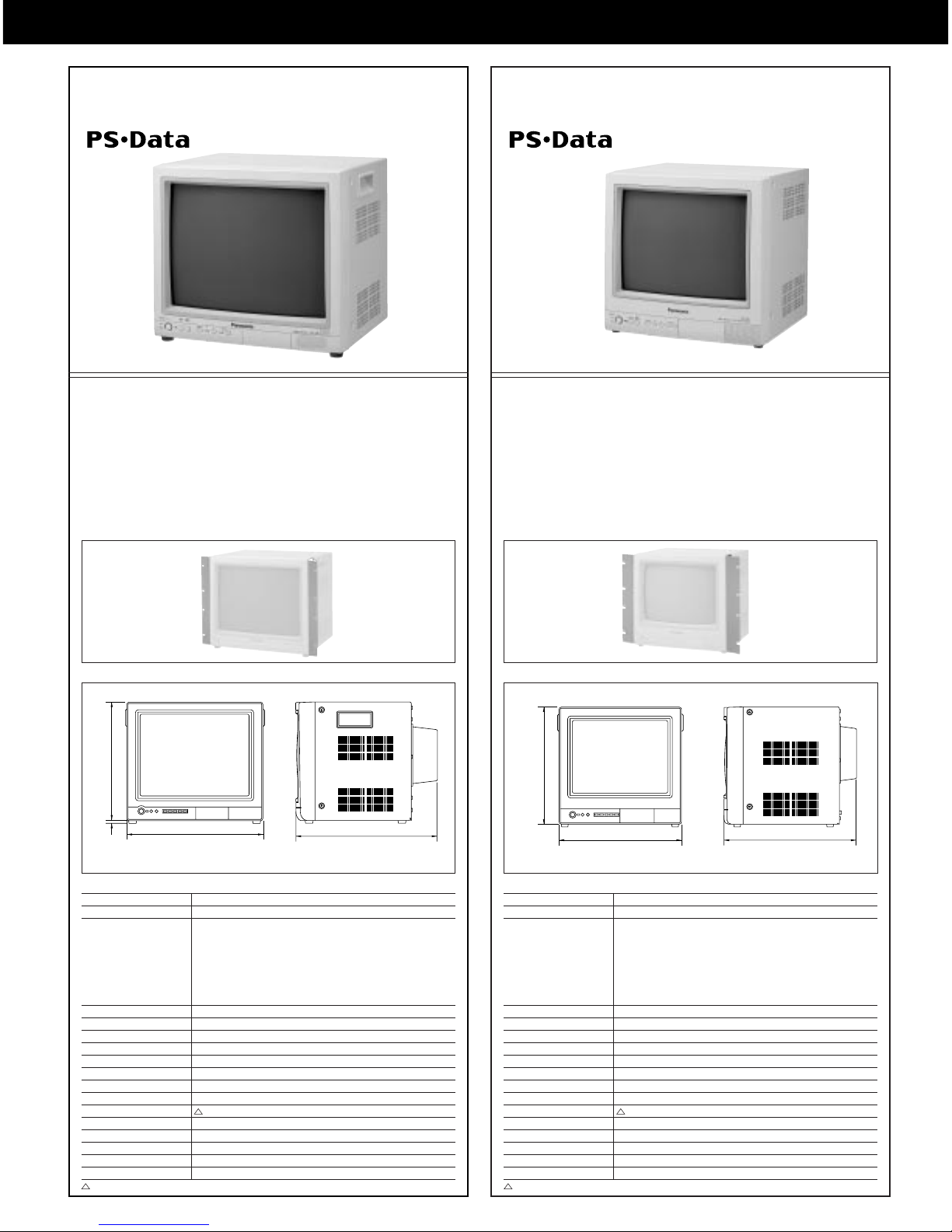

COLOR MONITORS
Unit : mm (inches)
426(16-3/4")
406(16")
354(13-15/16")
10.5(7/16")
DIMENSIONS
¥
41cm (16") diagonal actual visual size.
¥ 800 TV lines h.resolution (S-Video).
¥ 3 channel video inputs
(composite A/B or S-Video).
¥ Built-in Panasonic Security Data Link connector.
¥ Max. 0.7W speaker output.
¥ Optional adaptor WQ-LM170 for EIA 19-type rack.
Power Source 120 V AC, 60 Hz
Power Consumption 73 W (Approx.)
Input/Output Video (Input: 2 / Output: 2) -- BNC;
1.0 V [p-p] composite / 75 ½ or Hi-z looping through
S-Video (Input: 1)
Y; 1.0 V [p-p] / 75 ½
C; 0.286 V [p-p] / 75 ½
Audio--RCA;
2 Inputs / 2 Outputs
TV System NTSC
Horizontal Resolution 800 lines at center (S-Video)
PS-Data Link Connector Yes
Sweep Linearity Less than 5%
Sweep Geometry Less than 2%
Overscaning 8%
Actual Visual Size (Approx.)
41 cm (16") diagonal
CRT Size (Approx.) 45 cm (17-1/2") diagonal
19-type Rack-Mount Yes
Ambient Operating Temperature
Ð10ûC - +50ûC (+14ûF - +122ûF)
Ambient Operating Humidity
Less than 90%
Speaker Output 0.7 W
Dimensions (W x H x D) 406 x 354 x 426 mm (16" x 13-15/16" x 16-3/4")
Weight 18.5 kg (40.8 lbs.)
SPECIFICATIONS
41cm (16") Color AV Monitor
WV-CM1780
: with optional rack angle bracket.
WQ-LM170
(Optional)
Unit : mm (inches)
399(15-11/16")370(14-9/16")
352(13-7/8")
DIMENSIONS
¥
36cm (14") diagonal actual visual size.
¥ 750 TV lines h.resolution (S-Video).
¥ 3 channel video inputs
(composite A/B or S-Video).
¥ Built-in Panasonic Security Data Link connector.
¥ Max. 0.7W speaker output.
¥ Optional adaptor WQ-LM140 for EIA 19-type rack.
Power Source 120 V AC, 60 Hz
Power Consumption 70 W (Approx.)
Input/Output Video (Input: 2 / Output: 2) -- BNC;
1.0 V [p-p] composite / 75 ½ or Hi-z looping through
S-Video (Input: 1)
Y; 1.0 V [p-p] / 75 ½
C; 0.286 V [p-p] / 75 ½
Audio--RCA;
2 Inputs / 2 Outputs
TV System NTSC
Horizontal Resolution 750 lines at center (S-Video)
PS-Data Link Connector Yes
Sweep Linearity Less than 5%
Sweep Geometry Less than 2%
Overscaning 8%
Actual Visual Size (Approx.)
36 cm (14") diagonal
CRT Size (Approx.) 40 cm (15-1/2") diagonal
19-type Rack-Mount Yes
Ambient Operating Temperature
Ð10ûC - +50ûC (+14ûF - +122ûF)
Ambient Operating Humidity
Less than 90%
Speaker Output 0.7 W
Dimensions (W x H x D) 370 x 352 x 399 mm (14-9/16" x 13-7/8" x 15-11/16")
Weight 15 kg (33.1 lbs.)
SPECIFICATIONS
36cm (14") Color AV Monitor
WV-CM1480
: with optional rack angle bracket.
WQ-LM140
(Optional)
