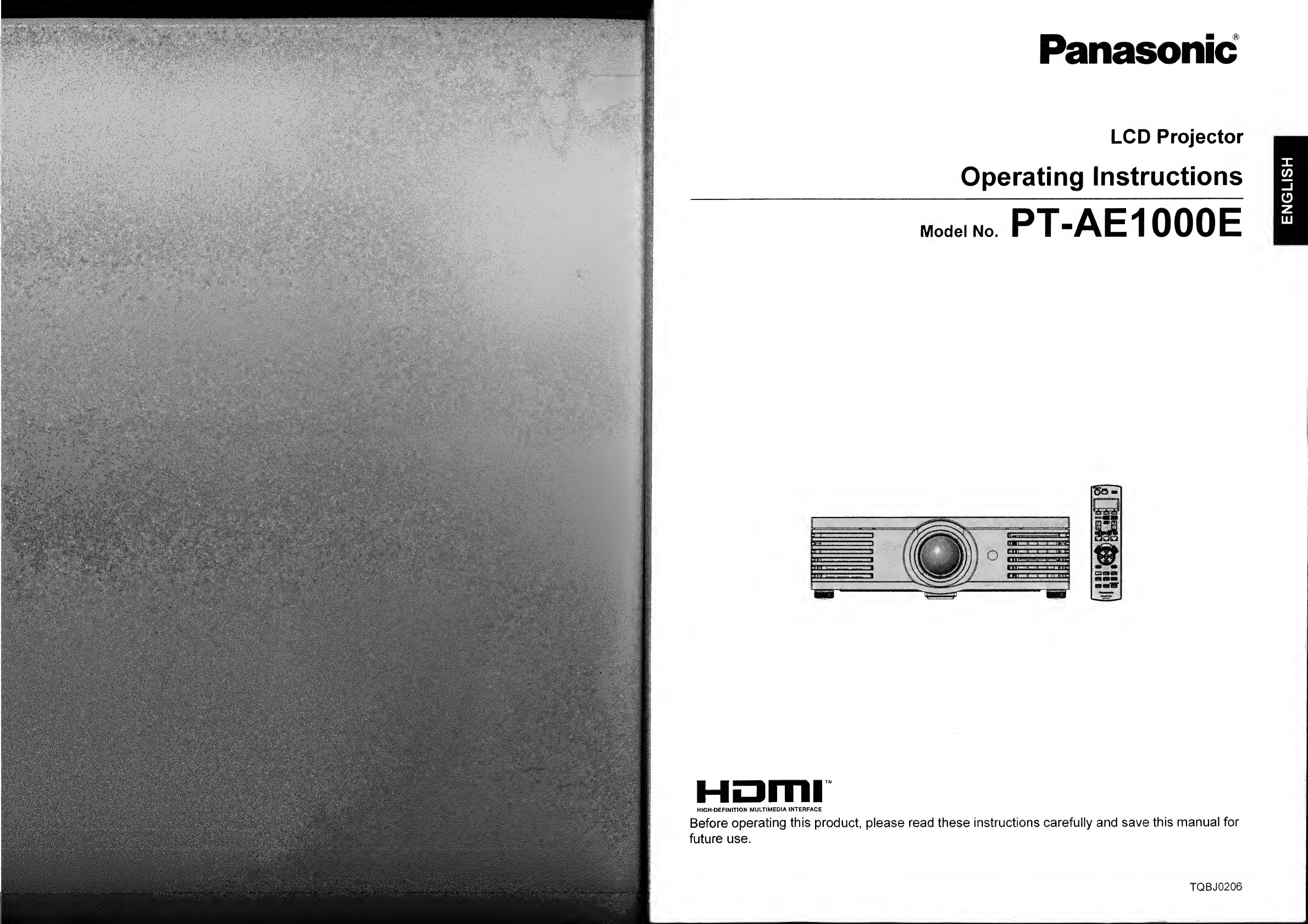

Panasonic PT-AE1000 User manual

Panasonic
LCD Projector
Operating Instructions
Model No.
PT-AE1000E
Homi
HIGH-DEFINITION MULTIMEDIA INTERFACE
Before operating this product, please read these instructions carefully and save this manual for
future use.
TQBJ0206
ENGLISH

Important Safety Notice
Dear Panasonic Customer:
This instruction booklet provides all the necessary operating information that you might require.
We hope it will help you to get the most out of your new product, and that you will be P'ea&
with your Panasonic LCD projector.The serial number of your product may be found on its
bottom. You should note it in the space provided below and retain this booklet in case service
required.
Model number:
PT-AE1000E
Serial number:
WARNING: THIS APPARATUS MUST BE EARTHED.
WARNING- To preventdamage which may result in fire or shock hazard, do not
expose this appliance to rain or moisture. __
Machine Noise Informational 3. GSGV, January 18,1991: The sound pressure level
at the operator position is equal or less than 70 dB (A) accordmg to ISO 7779._
1 Remove the plug from the mains socket when this unit is not in use for a prolonged
2. Topreventetectrio shock, do not remove cover. No user serviceable parts inside. Refer
servicing to qualified service personnel.
3. Do not remove the earthing pin on the mains plug. This apparatus is equipped with a
three prong earthing-type mains plug. This plug will only fit an earthing-type mains
socket Thisl a safety feature. If you are unable to insert the plug into the mams socket,
contact an electrician. Do not defeat the purpose of the earthing plug._
CAUTION: To assure continued compliance, follow the attached installation instructions,
which includes using the provided power cord and shielded interface cables
when connecting to computer or peripheral device. If you use serial port to
connect PC for external control of projector, you must use optional Rb-232b
serial interface cable with ferrite core. Any unauthorized changes or
modifications to this equipment will void the user’s authority to operate.
Indication based on the German law "Gerate- und Produktsicherheitsgesetz
Directive 2001/95/EC (Article 5);
Panasonic Marketing Europe GmbH
Hagenauer Str. 43 65203 Wiesbaden F.R.GERMANY
IMPORTANT: THE MOULDED PLUG (U.K. only)
FOR YOUR SAFETY. PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This appliance is supplied with a moulded three pin mains plug for your safety and convenience.
A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the
replacement fuse has a rating of13 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark <§> or the BSI mark ^ on the body of the fuse.
If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is
replaced. If you lose the fuse cover, the plug must not be used until a replacement cover is
obtained. A replacement fuse cover can be purchased from an Authorised Service Centre,
If the fitted moulded plug is unsuitable for the mains socket in your home, then the fuse
should be removed and the plug cut off and disposed of safely. There is a danger of
severe electrical shock if the cut off plug is inserted into any 13 amp socket.
If a new plug is to be fitted, please observe the wiring code as shown below.
If in any doubt, please consult a qualified electrician.
WARNING: THIS APPLIANCE MUST BE EARTHED .
IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:
Green - and - Yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wire in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows.
The wire which is coloured GREEN - AND - YELLOW must be connected to the
terminal in the plug which is marked with the letter E or by the Earth symbol i or
coloured GREEN or GREEN - AND - YELLOW.
The wire which is coloured BLUE must be connected to the terminal in the plug which
is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in the plug
which is marked with the letter L or coloured RED.
How to replace the fuse : Open the fuse compartment with a screwdriver and
replace the fuse.
2 - ENGLISH
ENGLISH - 3

1. Set up your projector
See “Setting up” on page 14.
2. Connect with other devices
See “Connections” on page 18.
mss
Precautions with regard to safety..
WARNINGS. 8
..9
.. 9
.9
.9
.10
CAUTIONS.
Before use.—
Accessories.
Cautions when transporting
Cautions when installing.
Cautions on use.
About Your Projector.... 1 1

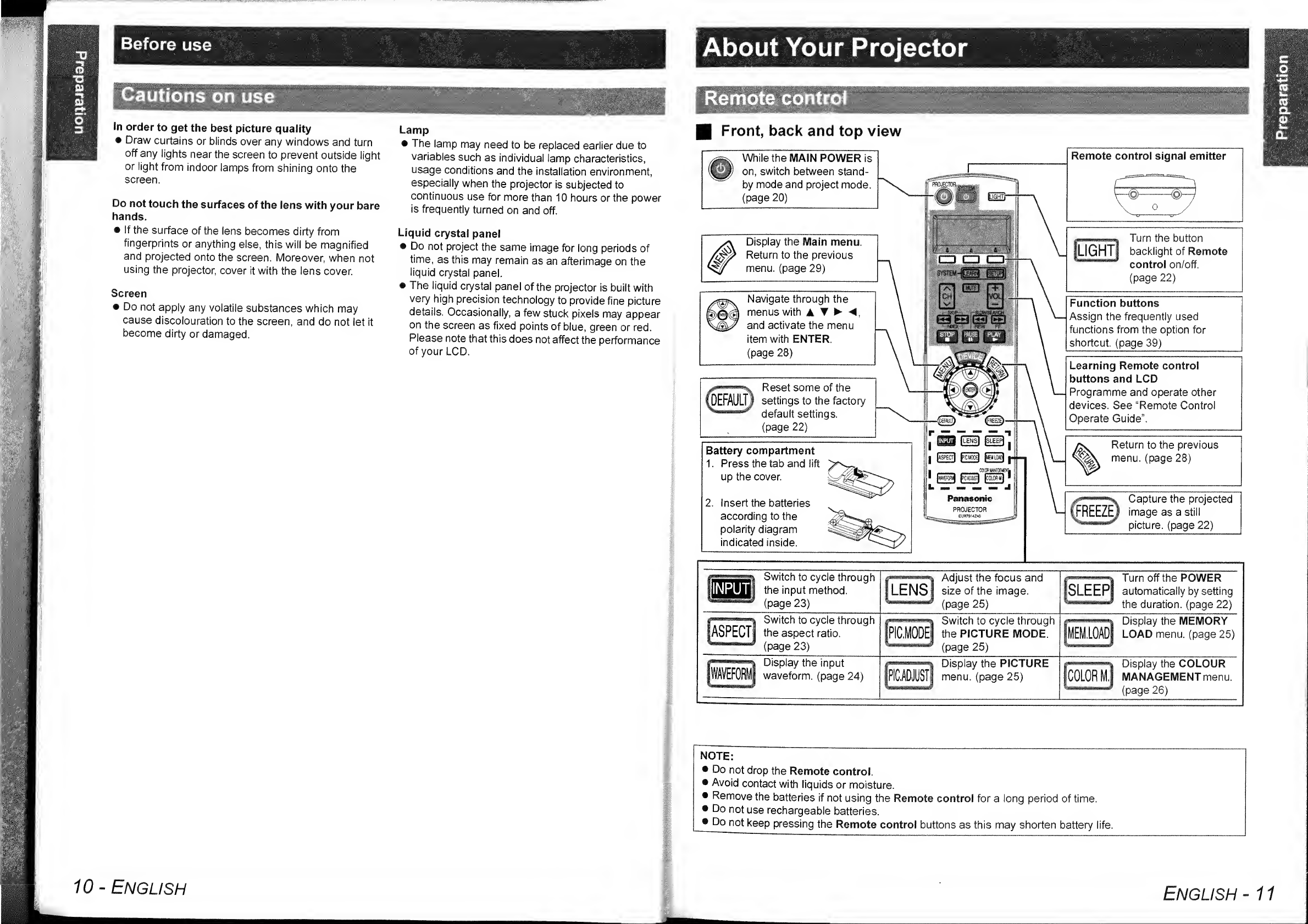

Remote control.
Projector.
3. Prepare the Remote control
See “Remote control” on page 11.
>>’. .av v.vw... :
Setting up.....
Screen size and throw distance.
Projection method.
Front leg adjuster and throwing angle.
Lens shift and positioning.
Connections.
11
12
14
. 14
. 15
. 15
. 16
.18
4. Start projecting
See “Switching the projector on/ott on
Connecting with COMPONENT/VIDEO/S-VIDE018
Connecting with HDMI/PC/SCART.
page 19.
... . ..
Basic Operation

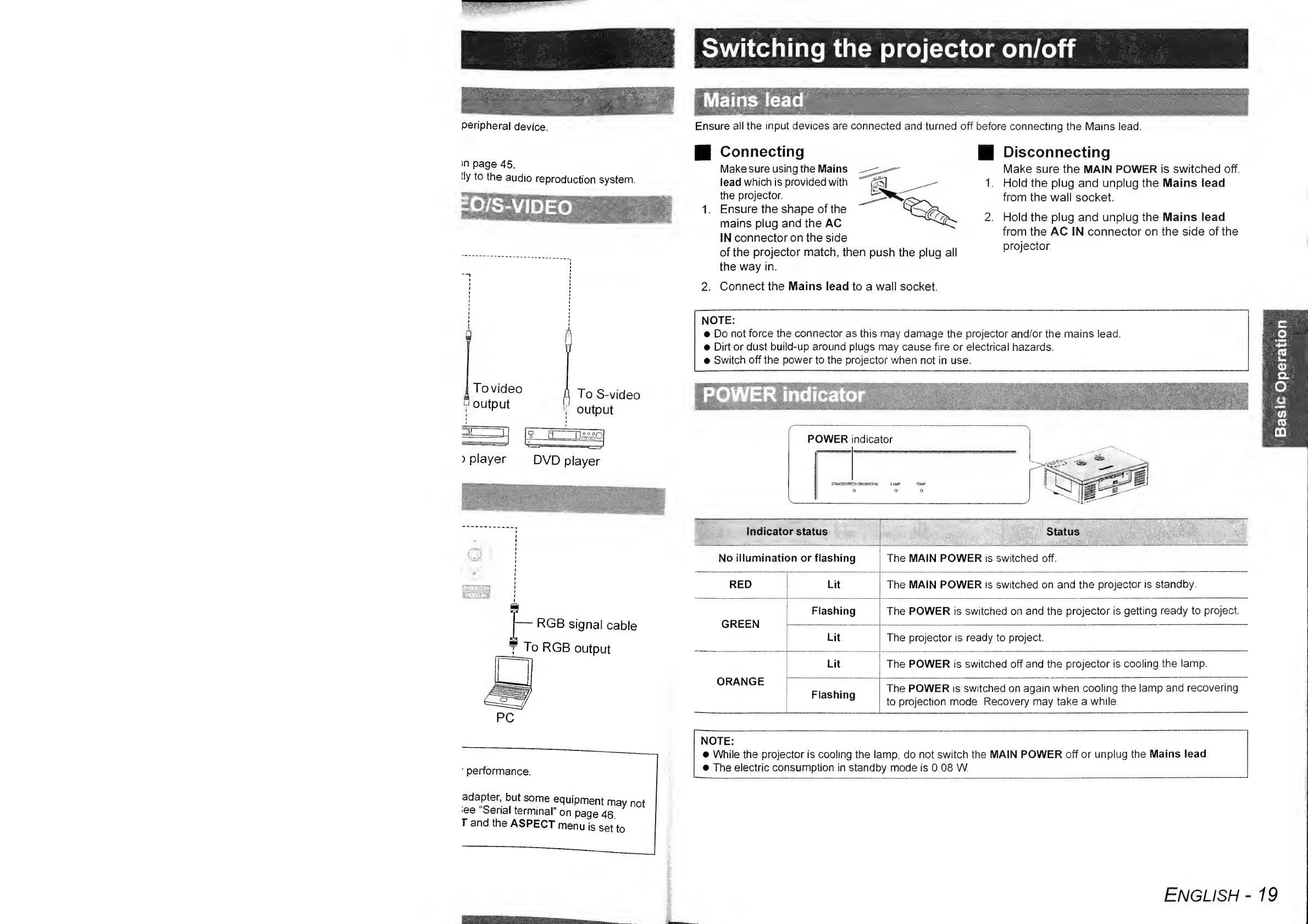

Switching the projector on/off......19
5. Adjust the image
See “Menu Navigation” on page 28.
19
19
20
Mains lead.
POWER indicator.
Switching on the projector.
Switching off the projector.
Projecting an image. 2 1
Selecting the input signal.
Positioning the image.
21
Remote control operation.
Operating range...
Turning on the button backlight..
Resetting to the factory default settings.
Capturing an image.
Switching the input signal.
Switching the aspect ratio..

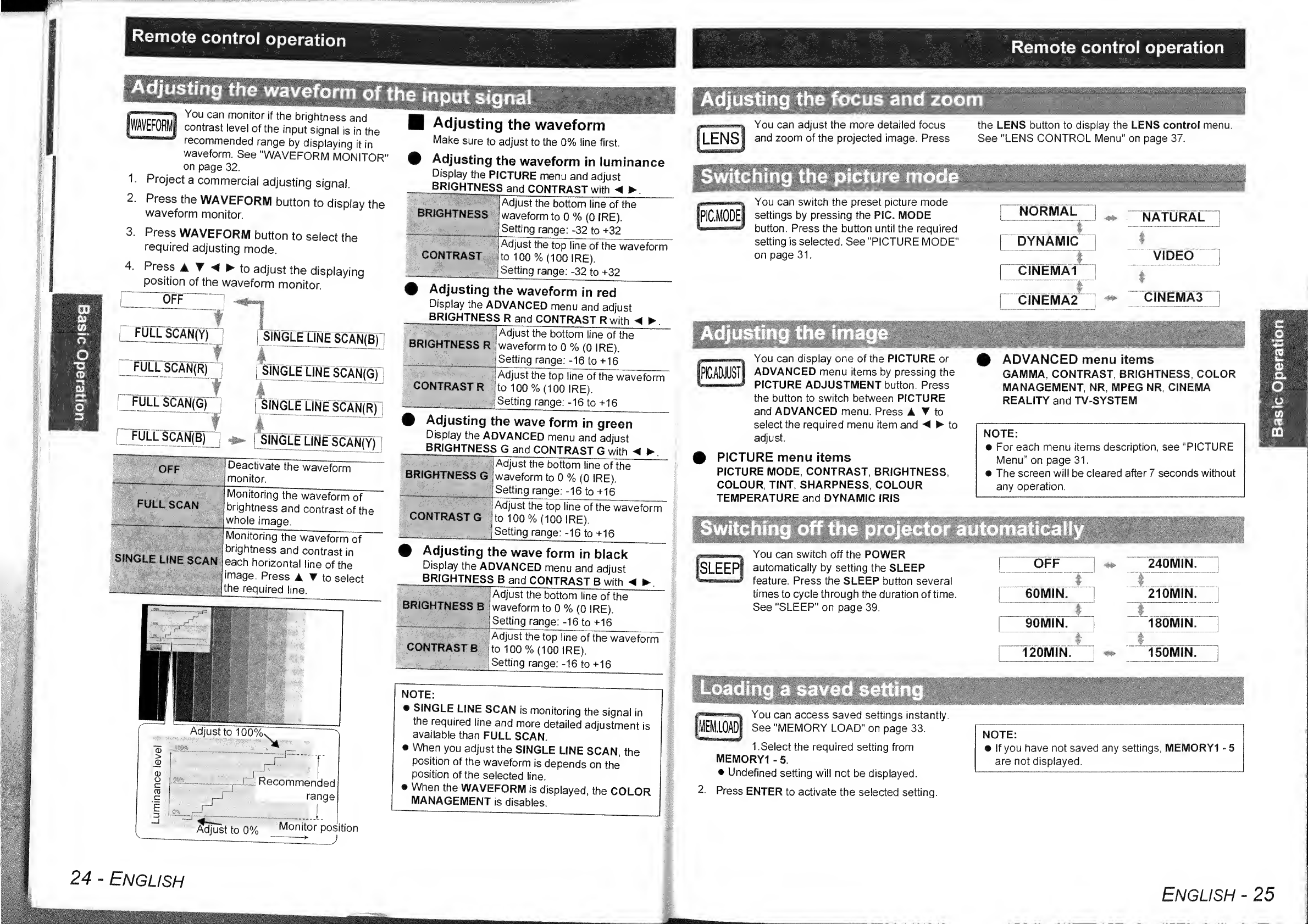

Adjusting the waveform of the input signal
Adjusting the focus and zoom.
Switching the picture mode.
Adjusting the image..
Switching off the projector automatically...
Loading a saved setting. ■ .
Setting your own colour profile.
22
22
22
22
.22
.23
. 23
. 24
. 25
. 25
. 25
. 25
.. 25
.. 26
4 - English
Settings
Maintenance
Menu Navigation.....28
Navigating through the MENU.28
Main menu and Sub-menu.29
PICTURE Menu. 3 1
PICTURE MODE. 3 1
CONTRAST.31
BRIGHTNESS.31
COLOUR.31
TINT.31
SHARPNESS.32
COLOUR TEMPERATURE.32
DYNAMIC IRIS.32
WAVEFORM MONITOR.32
ADVANCED MENU.32
MEMORY SAVE.33
MEMORY LOAD.33
SIGNAL MODE.33
POSITION Menu.34
H - POSITION.34
V - POSITION.34
DOT CLOCK.34
CLOCK PHASE.34
ASPECT.35
WSS.36
OVER SCAN.36
KEYSTONE.36
AUTO SETUP.36
LENS CONTROL Menu.37
ZOOM/FOCUS.37
TEMP and LAMP Indicators... 4 0
Controlling alerts.40
Care and Replacement.....41
Before cleaning.41
Cleaning your projector.41
Before replacing the Lamp unit.42
When to replace the Lamp unit.42
Replacing the lamp unit. 4 3
Troubleshooting
44
Technical Information 45
List of compatible signals.45
Serial terminal.46
Menu structure. 4 9
Specifications...50
Dimensions...52
Trademark acknowledgements..53
Index. 5 4
OPTION Menu . 3 8
INPUT GUIDE.38
OSD DESIGN.38
OSD POSITION.38
BACK COLOUR.38
STARTUP LOGO.38
AUTO SEARCH.38
HDMI SIGNAL LEVEL......38
INSTALLATION.39
SLEEP.39
ALTITUDE.39
LAMP POWER.39
LAMP RUNTIME.39
FUNCTION BUTTON.39
5 English
Appendix
Maintenance
Settings
Basic
Operation
;
Getting
Started
‘
Preparation

Preparation

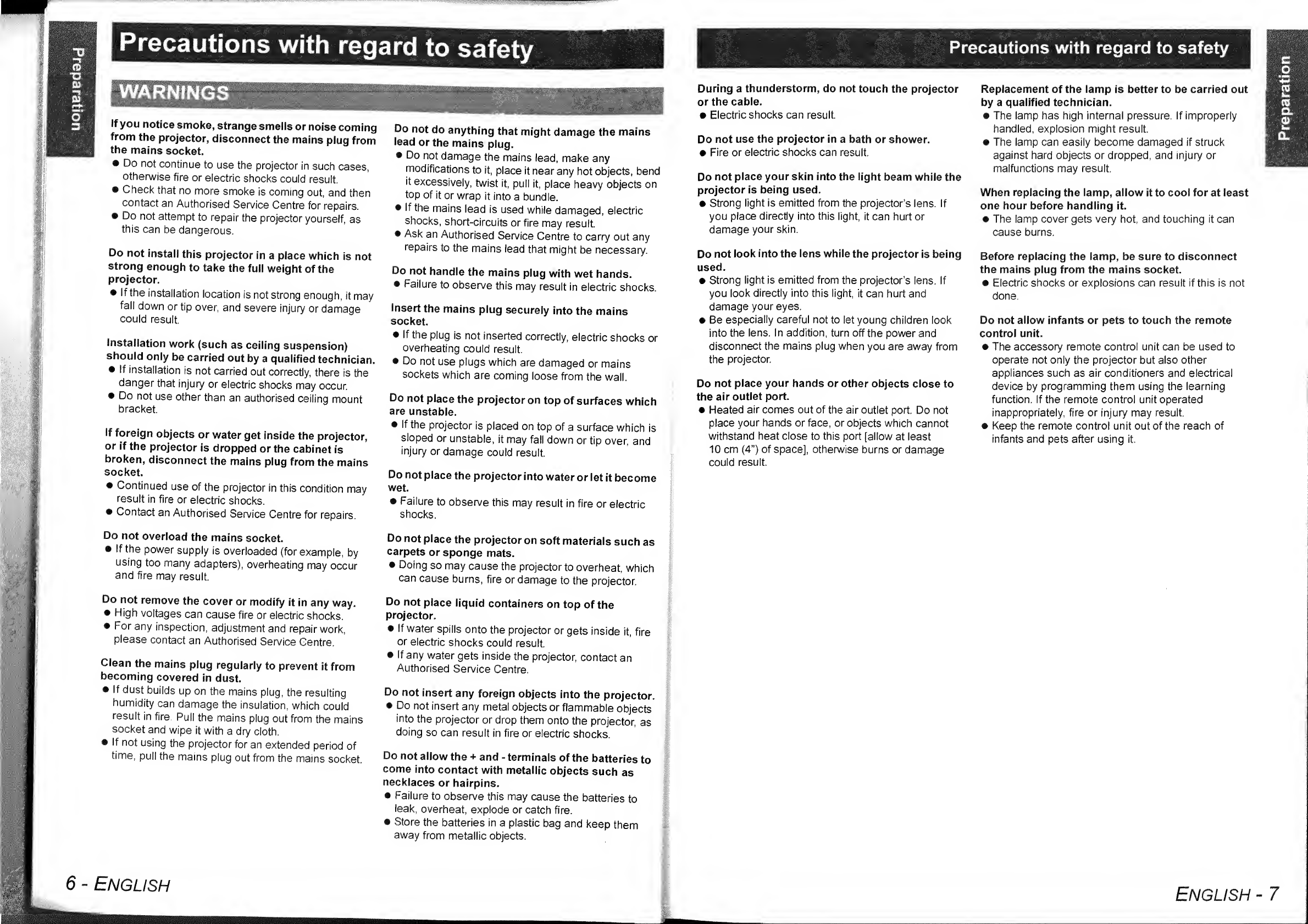

Precautions with regard to safety
WARNINGS
IIS®
■ tai
If you notice smoke, strange smells or noise coming
from the projector, disconnect the mains plug from
the mains socket.
• Do not continue to use the projector in such cases,
otherwise fire or electric shocks could result,
• Check that no more smoke is coming out, and then
contact an Authorised Service Centre for repairs.
• Do not attempt to repair the projector yourself, as
this can be dangerous.
Do not install this projector in a place which is not
strong enough to take the full weight of the
projector.
• ^ the installation location is not strong enough, it may
fall down or tip over, and severe injury or damage
could result.
Installation work (such as ceiling suspension)
should only be carried out by a qualified technician.
• If installation is not carried out correctly, there is the
danger that injury or electric shocks may occur,
• Do not use other than an authorised ceiling mount
bracket.
If foreign objects or water get inside the projector,
or if the projector is dropped or the cabinet is
broken, disconnect the mains plug from the mains
socket.
• Continued use of the projector in this condition may
result in fire or electric shocks.
• Contact an Authorised Service Centre for repairs.
Do not overload the mains socket.
• If the power supply is overloaded (for example, by
using too many adapters), overheating may occur
and fire may result.
Do not remove the cover or modify it in any way.
• High voltages can cause fire or electric shocks.
• For any inspection, adjustment and repair work,
please contact an Authorised Service Centre.
Clean the mains plug regularly to prevent it from
becoming covered in dust.
• If dust builds up on the mains plug, the resulting
humidity can damage the insulation, which could
result in fire. Pull the mains plug out from the mains
socket and wipe it with a dry cloth.
• If n ot using the projector for an extended period of
time, pull the mains plug out from the mains socket.
Do not do anything that might damage the mains
lead or the mains plug.
• Do not damage the mains lead, make any
modifications to it, place it near any hot objects, bend
it excessively, twist it, pull it, place heavy objects on
top of it or wrap it into a bundle.
• If the mains lead is used while damaged, electric
shocks, short-circuits or fire may result.
• Ask an Authorised Service Centre to carry out any
repairs to the mains lead that might be necessary.
Do not handle the mains plug with wet hands.
• Failure to observe this may result in electric shocks.
Insert the mains plug securely into the mains
socket.
• If the plug is not inserted correctly, electric shocks or
overheating could result.
• Do not use plugs which are damaged or mains
sockets which are coming loose from the wall.
Do not place the projector on top of surfaces which
are unstable.
• If the projector is placed on top of a surface which is
sloped or unstable, it may fall down or tip over, and
injury or damage could result.
Do not place the projector into water or let it become
wet.
• Failure to observe this may result in fire or electric
shocks.
Do not place the projector on soft materials such as
carpets or sponge mats.
• Doing so may cause the projector to overheat, which
can cause burns, fire or damage to the projector.
Do not place liquid containers on top of the
projector.
• If water spills onto the projector or gets inside it, fire
or electric shocks could result.
• If any water gets inside the projector, contact an
Authorised Service Centre.
Do not insert any foreign objects into the projector.
• Do not insert any metal objects or flammable objects
into the projector or drop them onto the projector, as
doing so can result in fire or electric shocks.
Do not allow the + and - terminals of the batteries to
come into contact with metallic objects such as
necklaces or hairpins.
• Failure to observe this may cause the batteries to
leak, overheat, explode or catch fire.
• Store the batteries in a plastic bag and keep them
away from metallic objects.
NGUSH
Precautions with regard to safety
During a thunderstorm, do not touch the projector
or the cable.
• Electric shocks can result.
Do not use the projector in a bath or shower.
• Fire or electric shocks can result.
Do not place your skin into the light beam while the
projector is being used.
• Strong light is emitted from the projector’s lens. If
you place directly into this light, it can hurt or
damage your skin.
Do not look into the lens while the projector is being
used.
• Strong light is emitted from the projector’s lens. If
you look directly into this light, it can hurt and
damage your eyes.
• Be especially careful not to let young children look
into the lens. In addition, turn off the power and
disconnect the mains plug when you are away from
the projector.
Do not place your hands or other objects close to
the air outlet port.
• Heated air comes out of the air outlet port. Do not
place your hands or face, or objects which cannot
withstand heat close to this port [allow at least
10 cm (4") of space], otherwise burns or damage
could result.
Replacement of the lamp is better to be carried out
by a qualified technician.
• The lamp has high internal pressure. If improperly
handled, explosion might result.
• The lamp can easily become damaged if struck
against hard objects or dropped, and injury or
malfunctions may result.
When replacing the lamp, allow it to cool for at least
one hour before handling it.
• The lamp cover gets very hot, and touching it can
cause burns.
Before replacing the lamp, be sure to disconnect
the mains plug from the mains socket.
• Electric shocks or explosions can result if this is not
done.
Do not allow infants or pets to touch the remote
control unit.
• The accessory remote control unit can be used to
operate not only the projector but also other
appliances such as air conditioners and electrical
device by programming them using the learning
function. If the remote control unit operated
inappropriately, fire or injury may result.
• Keep the remote control unit out of the reach of
infants and pets after using it.
ENGLISH - 7
Preparation

HHP
■
|
wmi
h
_
Sllliilllv
Mi
■ II
■
g|?§/,
iiSi
Do not cover the air inlet port or the air outlet port. Do not mix old and new batteries.
• Doing so may cause the projector to overheat, which 9 If the batteries are inserted incorrectly, they may
can cause fire or damage to the projector. explode or leak, and fire, injury or contamination of
• Do not P |ace the projector in narrow, badly ventilated the battery compartment and surrounding area may
places such as closets or bookshelves. result.
• Do not place the projector on cloth or papers, as
these materials could be drawn into the air inlet port. Do not put your weight on this projector.
• You could fall or the projector could break, and injury
Do not set up the projector in humid or dusty places may result.
or in places where the projector may come into • Be especially careful not to let young children stand
contact with oily smoke or steam. or sit on the projector.
• Using the projector under such conditions may result
in fire, electric shocks or plastic deterioration. The If not using the projector for an extended period of
plastic deterioration may cause the falling down of time, disconnect the mains plug from the mains
the projector which is mounted in the ceiling. socket.
• If dust builds up on the mains plug, the resulting
When disconnecting the mains lead, hold the plug, humidity may damage the insulation, which could
not the lead. result in fire.
• If the mains lead itself is pulled, the lead will become
damaged, and fire, short-circuits or serious electric Disconnect the mains plug from the mains socket
shocks may result. as a safety precaution before carrying out any
cleaning.
Always disconnect all cables before moving the • Electric shocks can result if this is not done
projector.
• Moving the projector with cables still attached can If the lamp has broken, ventilate the room
damage the cables, which could cause fire or electric immediately. Do not touch or bring your face close
shocks to occur. to the broken pieces.
• Failure to observe this may cause the user to absorb
Do not place any heavy objects on top of the the gas which was released when the lamp broke
projector. and which contains nearly the same amount of
• Failure to observe this may cause the projector to mercury as fluorescent lamps, and the broken pieces
become unbalanced and fall, which could result in may cause injury.
damage or injury. • if you believe that you have absorbed the gas or that
_ ^ _ . the gas has got into your eyes or mouth, seek
Do not short-circuit, heat or disassemble the medical advice immediately
batteries or place them into water or fire. • Ask your dea | e r about the replacement of the lamp
• Failure to observe this may cause the batteries to unit and check the inside of the projector,
overheat, leak, explode or catch fire, and burns or
other injury may result. Ask an Authorised Service Centre to clean inside
.... . the projector at least once a year.
When inserting the batteries, make sure the . If dust is left to build up inside the projector without
po anhes (+ and -) are correct. being c | ea ned out, it can result in fire or problems
• If the batteries are inserted incorrectly, they may with operation
explode or leak, and fire, injury or contamination of • | t is a good idea to clean the inside of the projector
the battery compartment and surrounding area may be f 0 re the season for humid weather arrives. Ask
resu 1 your nearest Authorised Service Centre to clean the
Use only the specified batteries projector when required. Please discuss with the
• If incorrect batter.es are used, the, may explode or Authorised Sendee Centre regard,ng cleaning costs
leak, and fire, injury or contamination of the battery
compartment and surrounding area may result.
We are constantly making efforts to preserve and maintain a clean environment. Please take non repairable
units back to your dealer or a recycling company.
8 - English
Make sure the following accessories are provided with your projector. _
Remote control (EUR7914Z40 x 1) AA batteries for Remote control (x 2)
m f' i t '1
B1E3C3
223 jlENSj
jASPEcj FtuCtfl
Mains lead for continental Europe (K2CM3FZ00003 x 1)
Mains lead for UK (K2CT3FZ00003 x 1)
Cautions when transporting
Do not subject the projector to excessive vibration
or shocks.
• The projector lens need to be handled with care.
• Cover the lens with the lens cover when transporting
the projector.
When transporting the projector, hold the body at
the bottom securely.
® Do not hold the adjuster legs or the top cover to
move the projector, as this may damage the
projector.
Cautions when installing
Avoid setting up in places which are subject to
vibration or shocks.
• The internal parts can be damaged, which may
cause malfunctions or accidents.
Avoid setting up in places which are subject to
sudden temperature changes, such as near an air
conditioner or lighting equipment.
• The life of the lamp may be shortened or the
projector may be turned off. See “TEMP indicator” on
page 40.
Do not set up the projector near high-voltage power
lines or near motors.
• The projector may be subject to electromagnetic
interference.
If installing the projector to the ceiling, ask a
qualified technician to carry out all installation
work,
• You will need to purchase the separate installation kit
(Model No. ET-PKX100, ET-PKE1000S).
Furthermore, all installation work is better to be
carried out by a qualified technician.
If using this projector at high elevations
(above 1 400 m), set the ALTITUDE to HIGH. See
“ALTITUDE” on page 39.
• Failure to observe this may result in malfunctions or
the life of the lamp or the other components may be
shortened.
English - 9
Pre

Preparation
In order to get the best picture quality
• Draw curtains or blinds over any windows and turn
off any lights near the screen to prevent outside light
or light from indoor lamps from shining onto the
screen.
Do not touch the surfaces of the lens with your bare
hands.
• If the surface of the lens becomes dirty from
fingerprints or anything else, this will be magnified
and projected onto the screen. Moreover, when not
using the projector, cover it with the lens cover.
Screen
• Do not apply any volatile substances which may
cause discolouration to the screen, and do not let it
become dirty or damaged.
Lamp
• The lamp may need to be replaced earlier due to
variables such as individual lamp characteristics,
usage conditions and the installation environment,
especially when the projector is subjected to
continuous use for more than 10 hours or the power
is frequently turned on and off.
Liquid crystal panel
• Do not project the same image for long periods of
time, as this may remain as an afterimage on the
liquid crystal panel.
• The liquid crystal panel of the projector is built with
very high precision technology to provide fine picture
details. Occasionally, a few stuck pixels may appear
on the screen as fixed points of blue, green or red.
Please note that this does not affect the performance
of your LCD.
5
■ i.
10 - English
Front, back and top view
i, Whiielhe MAIN POWER is
IP on, switch between stand¬
by mode and project mode.
(page 20)
Remote control signal emitter
Display the Main menu.
Return to the previous
menu, (page 29)
Navigate through the
menus with ▲ V ► ◄ ,
and activate the menu
item with ENTER.
(page 28)
Reset some of the
[DEFAULT) settings to the factory
default settings.
(page 22)
Battery compartment
1. Press the tab and lift
up the cover.
2. Insert the batteries
according to the
polarity diagram
indicated inside.
. ESI iLENsj ISLEEPj .
t** Fca l raftwl Km “I
Panasonic
E ——Turn the button
IGHTi backlight of Remote
control on/off.
(page 22)
Function fcTuttons
Assign the frequently used
functions from the option for
shortcut, (page 39)
Learning Remote control
buttons and LCD
Programme and operate other
devices. See “Remote Control
Operate Guide”.
Return to the previous
menu, (page 28)
@ Capture the projected
image as a still
picture, (page 22)
ASPECT
Switch to cycle through
the input method.
(page 23) _
Switch to cycle through
the aspect ratio.
(page 23) _
Display the input
waveform, (page 24)
LENS
PIC,MODE
PIC,adjust!
Adjust the focus and
size of the image,
(page 25)
Switch to cycle through
the PICTURE MODE
(page 25)
Display the PICTURE
menu, (page 25)
p= a,i, j Turn off the POWER
SLEER automatically by setting
*" n . ,rr '". the duration, (page 22)
Display the MEWRY
MEM,LOAD LOAD menu, (page 25)
^“Display the COLOUR.
COLOR Ml MANAGEMENT menu,
(page 26)
NOTE:
• Do not drop the Remote control.
• Avoid contact with liquids or moisture.
• Remove the batteries if not using the Remote control for a long period of time.
• Do not use rechargeable batteries.
• Do not keep pressing the Remote control buttons as this may shorten battery life.
English -

About Your Projector
Projector
Lens shift dial/Vertical
(page 16)
Lens shift dial/Horizontal
(page 16) _
Protects the Projection
lens from dust or dirt.
Remote control
signal receptor
(page 22)
Navigate through the menus with
A ▼ ► ◄ , and activate the menu
item with ENTER, (page 28)
Preparation

You can adjust the projection size with 2.0 power zoom lens Calculate a r ,
K uum lens, calculate and define the throw distance as follows.
Diagonal length
(SD)
1.01 m (40")
Projection size (16 : 9)
Screen height (SH) j Screen width (SW)
__ Throw distance (L)
Minimum distance Maximum distance
(LW)
”T 2 m (3'11")
To^ mzit) ry^isTn-r
— ) _ ( L 62 m ( 2 ) lT~m (3 tT 15m M'ir\- T
1.52 m (60") 0 75 m i2'5"l ('; ■ ) "—tttttt ---— — _i
— 777 ---———sTJ_ 1 ' 3 3 m ( 44 ) 18m (5’10") 3 1
^TssTn (5T) j~^T(^)- T-
_<?°_>_ZH^LJ 3 ^ I ^77^75^ JTTTTrn- 71
-4^LJ^l____J;12m (3’8") Y99m (6TT) -FT
—TTl 1 —T>CO___Y247ri- W - 22Am (7T) -stTHTT-£
-Him (4 ' 1 0 '^_Zf^m (Tr) TTTTT-71
_187_m (6'1") -~a32^(To^)-TTTT^-£
r^3^rTT4^) rTo ^rTio^- ui
measurements above are approximate and may differ slightly from the actTTTTTTTT
■ Calculation methods for screen dimensions
You can calculate more detailed screen dimensions from the screen diagonal
SW=SDx 0.872 SH = SDx 0.490
0.87 m (2’10")
TOO m (3'3")
1.12 m T3'8")
1.24m (4j~
1.49 m (4'10")
1.87 m (6'1 ”)
Tm (8'2")
3.0 m (9'10")
_ 3,6 m (11 ’9")
~42 m (13TT
TTTTTT
~54 m (iTT
Tom (19'8")
TTtTTTT
T0m~(29'6")""
Tb m (394") ™
LW= 1.189 xSD-0.04
LT = 2.378 xSD- 0.05
Unit: m
ie results above are approximate and may differ slightly from the actual measurements.
us f f the P rojector at a raised or a horizontally tilted position as it may
-ause malfunction of the projector, y
Vlake sure the projector lens surface is parallel with the screen You can tilt
he projector body approximately ± 30° vertically. Overtilting may result in
shortening the component’s life. ^ resun in
ooml^lr:* 1 : °l the P J°' iection ima 9 e ' ins t a » a screen where sun light or
Sto SthelSts 6 y 0,1,0,heSCreen ' Cl0Se Wlnd0WShadesor
Setting up
1
Projection method
projecting from front
projecting from rear
INSTALLATION: FRONT/DESK
| Mounting in the ceiling and
projecting from front
INSTALLATION: REAR/DESK
■ Mounting in the ceiling and
projecting from rear
INSTALLATION: FRONT/CEILING
INSTALLATION: REAR/CEILING
NOTE:
• A translucent screen is required for REAR projection.
• When mounting the projector in the ceiling, the optional ceiling mount bracket (ET-PKX100, ET-PKE1000S)
is required.
Front leg adjuster and throwing angle
You can adjust the throwing angle by screwing the front legs up/down.
This adjust the angle of the projector. See “Positioning the image” on page 21
NOTE:
• Heated air comes out of the Air exhaust port. Do not touch the Air exhaust port directly
• If keystone distortion occurs, see “KEYSTONE" on page 36,
You can use the projector with any of the following 4 projection methods. To set the desired method in the projector,
see “INSTALLATION” on page 39.

Setting up
Setting up
positioning
H Projector location range
You can determine where to locate the projector by considering the Lens shift dial * Horizontal possibilities
See “Positioning the image” on page 21 for available placement.
0 After fixing the screen position
If the projector is not positioned right in front of the centre of the sen
by moving the Lens shift dial • Horizontal within the shift range c
■ Adjusting the Lens shift dial • Horizontal
# Horizontal shift
You can place the projector where the projector lens is up to 4i
then adjust the image position with the Lens shift dial * Horiz.
Placement
Vertical centre
of screen
Centre of lens
The adjustable projection range
Turning the dial
counterclockwise:
Moving to screen’s left
Shift range
Projection size
Standard position
■ centre from the screen and then
Up to about 100%
of the projection
Up to about 100%
of the projection
NOTE:
• When the projecting position is fully moved to the vertical limit of the shift range, you cannot move
horizontally, likewise when the projecting position is fully moved to the horizontal limit of the shift range, you
cannot move vertically.
• When the projector is tilting and you adjust KEYSTONE, the centre of the screen and the lens need to be
realigned.
• Do not force the Lens shift dial
Turning the dial clockwise
Moving to screen’s top
Horizontal to turn as this may damage the projector.
16 - English
English - 1 7
/
/_
_I

peripheral device.
>n page 45.
tly to the audio reproduction system.
EO/S-VIDEO
To video
output
To S-video
output
) player DVD player
Switching the projector on/off
Mains lead
Ensure all the input devices are connected and turned off before connecting the Mains lead.
H Connecting
Make sure using the Mains
lead which is provided with -
the projector.
1. Ensure the shape of the
mains plug and the AC
IN connector on the side
of the projector match, then push the plug all
the way in.
2. Connect the Mains lead to a wall socket.
| Disconnecting
Make sure the MAIN POWER is switched off.
1. Hold the plug and unplug the Mains lead
from the wall socket.
2. Hold the plug and unplug the Mains lead
from the AC IN connector on the side of the
projector.
NOTE:
• Do not force the connector as this may damage the projector and/or the mains lead.
• Dirt or dust build-up around plugs may cause fire or electrical hazards.
• Switch off the power to the projector when not in use.
POWER indicator
POWER indicator
Indicator status
No illumination or flashing
■
The MAIN POWER is switched off
The MAIN POWER is switched on and the projector is standby.
The POWER is switched on and the projector is getting ready to project.
The projector is ready to project.
The POWER is switched off and the projector is cooling the lamp.
The POWER is switched on again when cooling the lamp and recovering
to projection mode. Recovery may take a while.
NOTE:
• While the projector is cooling the lamp, do not switch the MAIN POWER off or unplug the Mains lead.
• The electric consumption in standby mode is 0.08 W.
RED
Lit
nPFFM
Flashing
Lit
Lit
ORANGE
Flashing
English -19
Basic
Operation

Switching the projector on/off
Switching on the projector
witching off the projector
Power indicator
Switch the MAIN POWER on.
• The power indicator lights up in RED.
Remove the Lens cover from the lens
Press the POWER button,
• The power indicator lights up in GREEN after
flashing fora while.
The STARTUP LOGO is displayed on the
screen. See "STARTUP LOGO" on paqe 38.
NOTE; --—-~
* ^ ome ® mal1 rattlin 9 or tinkling sound may be heard when starting up, but this is normal and does not affect
the performance of the projector.
w Do not attach anything on the Lens cover which
may cause burns, fire or damage to the projector.
Power indicator
manpower
off m
Press the POWER button.
• The confirmation screen is displayed.
• To return to the projection, press ENTER to
select CANCEL or press MENU/RETURN.
2. Press ◄ to select OK and press POWER nr
ENTER.
• The power indicator lights up in ORANGE while
cooling the lamp, then illuminates RED when it
is ready to switch off the MAIN POWER
3. Switch off the MAIN POWER on the bark nf
the projector.
NOTE;
• Press the POWER twice or for a long duration to switch the power.
Projecting an image
Positioning the image
Switch on the connected devices.
• Press the play button of the required device
Press the INPUT button to select the required
input method if needed. See "Switching the input
signal" on page 23.
• The image will be projected on the screen.
NOTE:
• AUTO SEARCH is ON as default and the signal from the connected devices is detected automatically. See
"AUTO SEARCH" on page 38.
1. Press ASPECT to select the required aspect
mode. See "Switching the aspect ratio" on
page 23.
2. Adjust the projected image with the Lens
shift dials. See "Lens shift and positioning"
on page 16.
4. A djust the focus and the projected image
size.
• Press +/- of the FOCUS and ZOOM buttons to
adjust.
• Press the LENS button to adjust the focus and
zoom by Remote control, see “LENS
CONTROL Menu” on page 37
OPOWSR
.saw
3. A djust the angle of the projector.
• Screw down the Front leg adjuster and adjust
the angle vertically.
NOTE;
• Do not touch the Air exhaust port as this may
cause burns or injury.
• If keystone distortion occurs, see “KEYSTONE'
on page 36.

Basic
Operation
Remote control operation
You can operate the projector with the Remote control
within the remote range 7 m.
% Facing to the projector
Ensure the Remote control emitter is facing to
the Remote control signal receptor on front of
the projector and press the required buttons to
operate.
# Facing to the screen
Ensure the Remote control emitter is facing to
the screen and press the required buttons to
operate the projector. The signal will be reflected
off the screen. The operating range may differ due
to the screen material.
NOTE:
• The Remote control may malfunction under
strong light such as a fluorescent. Do not let
strong light shine onto the signal receptor.
• If there are any obstacles in between the remote
control unit and the receptor, the Remote control
may not operate correctly.
LIGHT
In a dark room, you can turn on the button
acklight to operate the Remote control.
Press the button on the upper right corner of
the unit to turn on the backlight and enter
the light-on mode
After 30 seconds without any operation, the backlight
will go out. Press any but the LIGHT button to turn on
again. To escape from the light-on mode, press the
LIGHT button.
Resetting to the factory default settings
You can reset most of the customised
settings to the factory defaults by pressing
EFAULT button of the Remote control.
Display the required sub menu or the menu
^terns and press the button again. See
Main menu and Sub-menu" on oaae
NOTE:
• Some menu items are not available to reset by
pressing the DEFAULT button. Adjust each menu
items manually.
NOTE:
• Escaping from the freeze mode is available by
pressing any button except the LIGHT button.
Remote control operation
Switching the input signal
You can switch the input method manually
by pressing the INPUT button. Press the
button several times or press ◄ ► to cycle
through the input methods as follows. The
actual projected image will be changed in a
while.
Graphical guidance will be displayed on the upper right
of the display and you can confirm the selected input
method which is hilighted in yellow. See "INPUT
GUIDE" on page 38.
Connected to COMPONENT
IN terminal equipment’s
signal
Connected to SCART IN
terminal equipment's signal
Connected to S-VIDEO IN
terminal equipment’s signal
Connected to VIDEO IN
terminal equipment’s signal
Connected to HDMI terminals
equipment’s signal
Connected to PC IN terminal
equipment’s signal
NOTE:
• If you select an unplugged input method, the
guidance will blink on and off several times.
• See "List of compatible signals" on page 45.
• See "Connections" on page 18.
Switching the aspect ratio
The aS p ec t ratio is selected automatically,
ASPECT or you can switch it manually by pressing
the ASPECT button. Press the button
several times to cycle through the different
aspect type as follows. See "ASPECT" on
page 35.
VIDEO/
S-VIDEO/
COMPONEN
T(YPbPr)
PC (RGB)
ZOOM2
ZOOM1
14:9 W JUST
NOTE:
• If you project an image with an unmatched aspect
ratio, the image may distort or some portions may
be cropped. Select an aspect ratio which
preserves the intention of the image creator.
• The order of ASPECT types is defined not only by
the input method but also by the input signals.
See "List of compatible signals" on page 45.
• If you project a copyrighted image enlarged or
distorted by using ASPECT function in
commercial use in a public place, such as a
restaurant or hotel, you might infringe on the
copyright of the creator which is protected by
copyright law.
Basic
Operation

Remote control operation
Adjusting the waveform of the input signal
*****
can monitor if the brightness and
JffflvtrUHMJ contrast level of the input signal is in the
^ recommended range by displaying it in
waveform. See "WAVEFORM MONITOR'
on page 32.
1. Project a commercial adjusting signal.
2. Press the WAVEFORM button to display the
waveform monitor.
3. Press WAVEFORM button to select the
required adjusting mode.
4. Press A T ◄ ► to adjust the displaying
position of the waveform monitor.
BRIGHTNESS waveform to 0 % (0 IRE).
_ S ettin g range: -32 to +32
I Adjust the top line of the waveform
CONTRAST to 100 % (100 IRE).
__ | Setting range: -32 t o +32
$ Adjusting the waveform in red
Display the ADVANCED menu and adjust
BRIGHTNESS R and CONTRAST R with ◄ ►
Adjust the bottom line of the
waveform to 0 % (0 IRE).
Se t ting range: -16 to +16
Adjust the top line of the waveform
to 100 % (100 IRE).
Setting range: -16 to +16
Adjusting the wave form in green
Display the ADVANCED menu and adjust
SINGLE LINE SCAN(B)
FULL SCAN(R)
SINGLE LINE SCAN(G)
CONTRAST R
FULL SCAN(G)
| SINGLE LINE SCAN(R)
FULL SCANIBi I SINGLE LINE SCAN(Y)
BRIGHTNESS G and CONTRAST G with
Adjust the bottom line of the
waveform to 0 % (0 IRE).
Setting range: -16 to +16
Adjust the top line of the waveform
to 100 % (100 IRE).
Deactivate the waveform
monitor.
Monitoring the~waveform of~
brightness and contrast of the
[whole image.
Monitoring the waveform of
brightness and contrast in
each horizontal line of the
image. Press A ▼ to select
BRIGHTNESS G
CONTRAST G
Setting range: -16 to +16
0 Adjusting the wave form in black
Display the ADVANCED menu and adjust
BRIGHTNESS B and CONTR AST B with ◄ ►
Adjust thebottom line oflhe
waveform to 0 % (0 IRE).
Setting range: -16 to +16
Adjust the top line of the waveform
to 100 % (100 IRE).
the required line.
CONTRAST B
Setting range: -16 to +16
NOTE:
® SINGLE LINE SCAN
is monitoring the signal in
the required line and more detailed adjustment is
available than FULL SCAN.
• When you adjust the SINGLE LINE SCAN, the
position of the waveform is depends on the
position of the selected line.
• When the WAVEFORM is displayed, the COLOR
MANAGEMENT is disables.
Monitor position
24 - English
Remote control operation
Adjusting the focus and zoom
... You can adjust the more detailed focus
LENS 1 and zoom of the projected image. Press
Switching the picture mode
du .>.^ You can switch the preset picture mode
jPIC.MODE: settings by pressing the PIC. MODE
button. Press the button until the required
setting is selected. See "PICTURE MODE"
on page 31.
the LENS button to display the LENS control menu.
See "LENS CONTROL Menu" on page 37.
NORMAL
DYNAMIC
CINEMA1
NATURAL
VIDEO
CINEMA2
CINEMA3
Adjusting the image
You can display one of the PICTURE or
IPIC A DJUST! ADVANCED menu items by pressing the
J PICTURE ADJUSTMENT button. Press
the button to switch between PICTURE
and ADVANCED menu. Press A ▼ to
select the required menu item and < ► to
adjust.
) PICTURE menu items
PICTURE MODE, CONTRAST. BRIGHTNESS,
COLOUR, TINT, SHARPNESS, COLOUR
TEMPERATURE and DYNAMIC IRIS
P ADVANCED menu items
GAMMA, CONTRAST, BRIGHTNESS, COLOR
MANAGEMENT, NR, MPEG NR, CINEMA
REALITY and TV-SYSTEM
NOTE:
• For each menu items description, see “PICTURE
Menu" on page 31.
• The screen will be cleared after 7 seconds without
any operation.
Switching off the projector automatically
You can switch off the POWER
SLEEP automatically by setting the SLEEP
* feature. Press the SLEEP button several
times to cycle through the duration of time.
See "SLEEP" on page 39.
OFF
240MIN.
1 f
60MIN. 210MIN.
3
w
90MIN.
180M1N.
#
|
120MIN. **
150MIN.
Loading a saved setting
S Y ou can access saved settings instantly.
See "MEMORY LOAD" on page 33.
1 . S elect the required setting from
MEMORY1 - 5.
• Undefined setting will not be displayed.
2. Press ENTER to activate the selected setting.
NOTE:
• If you have not saved any settings, MEMORY1 - 5
are not displayed.
English - 25
Basic
Operation

Basic
Operation
You can adjust a selected colour
individually and save and retrieve under
the PICTURE MODE setting. Press the
COLOR MANAGEMENT button to open
the menu
Select a menu item and the ◄ ► to adjust
each item level.
• The result box is displayed on the right of the
cursor and shows the adjusted colour.
PROFILE
LOG
PROFILE SAVE
M l I Ml I—
^4-.RETUBN
seuct-BU^
DEFAULT_
Create a new profile
Adjusting the selected colour
Select a colour and adjust COLOUR, TINT and
BRIGHTNESS
Select the CURSOR menu and press
enter
• The projected image is captured, and the target
cursor is displayed.
• When the LOG is fully stored, the target cursor
will not be displayed. See "Managing stored
logs" on page 27.
Target cursor
/V”]n'T%i, t' ,
Y MSS§y\\
Adjusted colour
COLOUR
BRIGHTNESS
-V
\ ’—-JKk
Adjust the vividness of the colour
Setting range: -30 to +30
Adjust the colour tone.
Setting range: -30 to +30
Adjust the brightness of the colour.
Setting range: -20 to +20
wmm
2. Move the cursor with A T ◄ ► to the
required place to select a colour and press
ENTER.
• The colour at the centre of the target cursor is
sampled and the sample box is displayed on
the left of the cursor. The menu items are
displayed on the upper part of the screen.
Mg
.n -fault
Sampled colour
Press ENTER to store the adjusted result.
• “PROCESSING" is displayed for a few seconds
and the result is stored in LOG.
• You can store up to 8 logs under LOG for each
PICTURE MODE setting.
Press MENU or RETURN to return to the
previous menu.
• Repeat the steps above to store more
adjustment.
26 - English
Remote control operation
Ii11iT» (*] i-I* I L*l* i
You can edit or delete the stored logs of the
selected PICTURE MODE.
1. Select LOG and press ENTER.
• The LOG menu is displayed.
PICTURE MODE : CINEMA 1
ng
ofile
iE setting, y<
the PROFIL
ct the reau
s ENTI
I§ 1 t j Oil
and select the PROFILE menu.
• The profile settings of the selected PICTURE
MODE will be displayed.
3. Select the required profile and press ENTER.
NORMAL
Sampled colour—Adjusted colour USER1
Select the required log from 1 - 8 or ALL
DELETE, and press ENTER.
• Select CHANGE to edit the log.
The cursor menu is displayed and you can
readjust the colour.
• Select DELETE to delete the log.
The confirmation screen will be displayed.
Select OK to delete.
• When you select ALL DELETE, the "DELETE
ALL LOG." screen is displayed. Select OK to
delete all logs. The PROFILE setting will be set
to NORMAL.
Saving a log setting as a profile
Return to the COLOUR MANAGEMENT menu
and save the stored log as a profile. Make sure that
the PICTURE MODE is not switched.
Select the PROFILE SAVE menu and press
ENTER
• The PROFILE SAVE menu is displayed. You
can save the profile as USER1, USER2 and
USER3.
USER2
USER3
Return to the default setting of the
PICTURE MODE
Defined profile settings.
NOTE:
• LOG and PROFILE SAVE are not displayed
before you apply COLOUR MANAGEMENT.
• If you load a profile with a different attribute mode
of the profile, the CURSOR and PROFILE SAVE
menus will not be displayed.
• The approximate colours will be adjusted at the
same time. If you adjust the exact same colour
differently, both colours will affect each other and
you might get unexpected results.
• White, Black and Grey are not adjustable.
• If you escape the COLOUR MANAGEMENT
menu or attempt to perform another menu action
before you save the adjusted profile, the
confirmation screen will be displayed.
• If you switch the input signal before you save the
profile, the setting will be cancelled without notice.
2. Press ENTER to save the profile
• The confirmation screen is displayed, Press
ENTER again to save.
English - 27

Settings
Menu Navigation
H-POSITION
a picture
V-POSITION
O POSITION
O LENS CONTROL
l OLENS CON TBpr
[?Tanguag' e
% ENGLISH
KEYSTONE
* OPTION
^RETURN
Center
return
■ enter
DEFAULT
Navigating through the MENU
P OPTION
-— _ . . ||
Operating guidance --J
Contains the required buttons to adjust the settings.
I Operating procedure
item arid V t0 S ^ r01110 the reduired *Vlain menu
item and press ENTER to select.
tHl e <f e i^ Cted ltem is hi 9hlighted in orange and
“ JL SUb ‘ menU ls dis P |a yed on the right See
m menu and Sub-menu” on page 29.
item aril 7 t0 S ^. r01110 the rec > uired Sub-menu
'tern and press ◄ ► or ENTER to adjust
* men,! e : eCted J tem ‘ S Called up and the other
menu items disappear from the screen.
* displayed. 3 '° Wer ' eVel ’ t he next level wil1 be
r—. . .
LENS ~CO NTROL ~
(#Tanguage
(T oprioN~~
4, Press MENU or RETURN to return to the previous
menu.
• To continue projection, press the button
repeatedly until the menu disappears.
% About the bar scale items
The triangle mark under the bar indicates factory
default setting and the square indicates the current
setting.
Current
setting
Default
Returning to the previous menu
Press the MENU or RETURN button to return to
\ the previous menu. Press repeatedly to escape
^ the menu mode and return to the projection.
-^return
SELECT
28 - English
COLOUR
SHARPNESS
COLOUR TEMPERATURE
EMORY LOAD
SIGNAL MODE* 1
*1. PC/COMPONENT/HDMI signals only
■ © POSITION
See “POSITION Menu” on page 34.
Sub-menu items
Default setting Sub-menu items Default setting
V - POSITION
0
WSS* 1
ON
H - POSITION
0
OVER SCAN +7
DOT CLOCK* 2
0
KEYSTONE
0
CLOCK PHASE* 3
0
AUTO SETUP* 4
ASPECT
16:9* 5
*1. VIDEO/S-VIDEO/COMPONENT signals only
*2. PC signal only
*3. COMPONENT/PC signals only
*4. PC signal only
*5. AUTO for NTSC signals
■ 0 LENS CONTROL
See “LENS CONTROL Menu” on page 37.
Sub-menu items
"ZOOM/FOCUS
English - 29
Settings

■ & OPTION
See “OPTION Menu” on page 38
Sub-menu items
INPUT GUIDE
OSD DESIGN ~
OSD POSITION
BACK COLOUR
STARTUP LOGO
AUTO SEARCH
HDMI SIGNAL LEVEL
Default setting
Sub-menu items
V. '
Default setting
DETAILED
INSTALLATION
FRONT/DESK
TYPE1
SLEEP
OFF
CENTRE
ALTITUDE
LOW
BLUE
LAMP POWER
NORMAL
ON
LAMP RUNTIME
ON
FUNCTION BUTTON
NORMAL
30 - English
PICTURE Menu
PICTURE MODE
CONTRAST
Depending on the projection environment, you can use
these preset parameter settings to optimise image
projection. Press ◄ ► to cycle through the options.
BRIGHTNESS
You can adjust the brightness of the projected image.
NORMAL
Setting for a general image, such as
sports or games
DYNAMIC
Bright and sharp setting
CINEMA1 Flollywood style colours
CINEMA2
Deeper and more rich colour setting
CINEMAS
Vivid and crisp colour setting
. ■ men
VIDEO
Setting for active images, such as
music or concert
NATURAL
Reproduces the original colour of the
■ Reproducing colour of an sRGB
For reproducing the original colour of S-VIDEO
images precisely, set as follows.
1. Press PICTURE ADJUSTMENT and select
NATURAL
2. Press DEFAULT to reset the other Sub-menu
menu items
3. Press RETURN once to return to the Main menu
and select OPTION
4. Switch the LAMP POWER to NORMAL
Darker
Brighter
• Setting range: -32 to +32
COLOUR
You can adjust the colour saturation of the projected
image.
Lighter
Darker
• Setting range: -32 to +32
• When PC is connected, this function is available with
1 125 (1 080)/60i, 1 125 (1 080)/50i,
1 125 (1 08Q)/60p and 1 125 (1 080)/50p signals
only.
TINT
You can adjust the skin tone in the projected image.
More
reddish
® Setting range: -32 to +32
• When PC is connected, this function is available with
1 125(1 080)/60i, 1 125 (1 080)/50i,
1 125 (1 080)/60p and 1 125 (1 080)/50p signals
only.
English - 31
Settings

PICTURE Menu
WAVEFORM MONITOR
.
BRIGHTNESS B
NOTE:
• A PPlying noise reduction may affect image quality.
• Setting range: -16 to +16
■ COLOUR MANAGEMENT
You can manage your own defined colour settings.
See “Setting your own colour profile” on page 26.
■ NR (Noise Reduction)
You can switch the automatic noise reduction
system on/off. Press < ► to select the required
setting.
* ON: Automatic noise reduction
• OFF: No noise reduction
Press A V to move to the required waveform
style.
Press ENTER to select.
• The WAVEFORM MONITOR will be
displayed.
Adjust the WAVEFORM MONITOR.
• See “Adjusting the waveform of the input
signal" on page 24.
1 .
2 .
3.
SHARPNESS
ADVANCED MENU
You can adjust the sharpness of the projected image.
*” ess More
sharp PWf sharp
COLOUR TEMPERATURE
You can adjust the white balance of the projected
image.
Less
reddish
Less £
bluish P
Setting range: -6 to +6
DYNAMIC IRIS
You can switch automatic adjustment of the lamp and
the lens iris on/off.
* ON. Automatic adjustment
• OFF. No adjustment
You can monitor the luminance level of the input signal
is in the recommended range by displaying it in
waveform. If the waveform is not in the range, adjust it
for the best quality. See “Adjusting the waveform of the
input signal” on page 24.
From the ADVANCED MENU, you can perform more
detailed image adjustment manually.
■ GAMMA
You can adjust linear intensity at 3 levels. Press
► to increase/decrease 1 point.
_
GAMMA HIGH
GAMMA MID 0
GAMMA LOW q
' Setting range:-8 to+8
| CONTRAST
You can adjust the amount of contrast in RGB
colours individually. Press ◄ ► to
increase/decrease 1 point.
Default setting
RGB
CONTRAST R 0
CONTRAST G 0
CONTRAST B ] 0
Setting range: -32 to +32
| BRIGHTNESS
You can adjust the brightness in RGB colours
individually, Press ◄ ► to increase/decrease
1 point.
RGB
Default setting
BRIGHTNESS R
0
BRIGHTNESS G
32 - English
mpeg NR
You can switch the automatic noise reduction
system for MPEG format images on/off. The
system minimises block noise and mosquito noise
to eliminate jagged edges, providing an overall
smoother image. Press ◄ ► to select the required
setting.
• ON: Active
• OFF: Deactive
NOTE:
• MPEG NR is for MPEG images only.
• MPEG NR is not available with PC and HDMI
(VGA60) signals.
■ CINEMA REALITY
You can switch the automatic image synchronizer
on/off for 24 frames a second images, such as
movies. Press ◄ ► to select the required setting.
* ON: Active
• OFF: Deactive
NOTE:
• CINEMA REALITY is available with interlace
signals only.
• If the CINEMA REALITY is different from the
required setting of the image, select OFF,
■ TV-SYSTEM
When the video signal is changed, the setting switches
automatically.
You can switch the setting manually to match the video
data. Press < ► to cycle through the options.
AUTO 1 «*• r i
SECAM
PAL-N
PAL-M
1
i
NTSC
♦
NTSC 4.43 ]
1
PAL
MEMORY SAVE
You can save the adjusted PICTURE settings with up to
3 in each of 2 signal groups.
1. Adjust the different items of the PICTURE menu.
2. Select MEMORY SAVE and press ENTER
3. Select MEMORY1 - 5 to save and press ENTER
• The confirmation screen is displayed,
• ic: In use
TV: Not in use
• Select ALL DELETE to clear all the saved
settings.
4. Select OK and press ENTER.
• To cancel, select CANCEL and press ENTER,
or press the RETURN button.
VIDEO, S-VIDEO, COMPONENT,
HDMI (not including VGA60),
1 125 (1 080)/50i, 1 125 (1 080)/60i,
1 125 (1 080)/50p and
1 125 (1 080)/60p signals in PC
connection
VGA60 in HDMI connection, PC not
including 1 125(1 080)/50i,
1 125 (1 080)/60i, 1 125 (1 080)/50p
and 1 125(1 080)/60p
MEMORY1 -5
MEMORY1 - 5
m 1 [ ! .’ “ A ■ -»v ■
I
-OAD
You can access saved settings instantly. See “Loading
a saved setting" on page 25.
1. Select the required setting from MEMORY1 - 5.
» Undefined setting will not be displayed.
2. Press ENTER to activate the selected setting.
NOTE:
• If you have not saved any settings, MEMORY1,
MEMORY2 and MEMORY3 are not displayed.
SIGNAL MODE
The current selected signal is displayed when
PC/COMPONENT/HDMI equipment is connected.
NOTE:
• See “List of compatible signals" on page 45.
English - 33
Settings

mum.
• See “Navigating through
the MENU” on page 28.
Move
left
V - POSITION
Move
right
You can move the projected image vertically for fine
adjustment.
Move
down
Move
up
DOT CLOCK
If you have interference patterns on the projected
image, which is sometimes referred to as moire or
noise, you can minimise it by pressing ◄ ► to adjust the
clock frequency.
H - POSITION
You can move the projected image horizontally for fine
adjustment.
NOTE:
• If the projecting signal’s dot clock frequency is
higher than 150 MHz, the adjustment may not
make a difference.
CLOCK PHASE
If you require further adjustment for the same reason as
the DOT CLOCK adjustment, you can fine adjust the
timing of the clock Press ◄ ► to adjust.
NOTE: ~ ~
• If the projecting signal's dot clock frequency is
higher than 150 MHz, the adjustment may not
make a difference.
* CLOCK PHASE is available with PC signals and
1 125(1 080)/50i. 1 125(1 080)/60i,
1 125 (1 080)/50p, 1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p and
750 (720)/60p signals of COMPONENT
connection.
ASPECT
You can switch the aspect ratio manually when needed.
| Aspect ratio options and projection example
If you apply the aspect ratio options to the projected image, the result will be as follows. The result may differ
due to the input signals. See “Switching the aspect ratio” on page 23.
# VIDEO/S-VIDEO/COMPONENT
Not available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p and 750 (720)/60p signals.
Squeeze [ 16:9 T 14:9 I 2.35:
signal | Letter box Letter Box i Cinescope
OppO I 00^.00
0^0 I 00^00
0
Projects at 4 3.
16:9 Adjusts horizontally to 16:9.
~ Adjusts horizontally to fit 16:9.
JUST Closer to edge, more enlarged.
Not available with PC signals.
~~ Adjusts to 16:9 size with
ZOOM/ preserving original ratio. Escape
ZOOM1 the menu mode and press A ▼ to
|o 3
O CXIWCO
O GO^OO
O : p p:0 C
O.QAim c
( )
oo^oo r
ooTToo o
o bo^bol :> ■ ' • ■■■ '.g I
w UU A UU I qq^oo I o
Z00M2
adjust vertically.
Adjusts to cinescope size not
including letter box. Escape the
menu mode and press A V to
adjust vertically
r> nr ~ ; rrc I ■ . <- 'rn‘ I c;
. /K -Y V-' JUy-nxji. J,:
\ r--\. ./A/ inwnr o
oco^coo
oocY-^qoY
v oo,.. ■
r '
14:9 Adjusts to 14:9.
y /—o
0 v J 0
OOy-OJL)
PXT-'OO
I 1
iC7.--“OQ| I I
O O'
34 - English
COMPONENT signals
Available with 1 125 (1 080)/50i, 1 125 (1 080)/6Gi, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/24p,
750 (720)/50p and 750 (720)/60p signals
4:3 1 16:9 [Cinescope 4:3
16:9
Original Size
|' Y / |
O
O
0,_0
(JO
o
o
Adjusts horizontally to 16:9.
0
0
o
0
0
>o. - pc
jC-'— oc
Adjusts to 16:9 vertically. Escape and press A ▼ to
scroll the image to adjust the edge vertically.
to*
( J i J ^ M( .1
^ ( )
on (10
Adjusts to 16:9 size with preserving original ratio.
Escape the menu mode and press A V to adjust
vertically.
m '..j
( )
n n
C )
English - 35
ettings

Settings
POSITION Menu
|Q39aSHii
Eol
signals.
ZOOM1 =4 ZOOM2
• AUTO -4 4:3 -4 16:9-+ JUST -4
ZOOM
NTSC signal
• 4:3 -4 16:9
• 4:3-4 16:9
VGA or SVGA signals
• Not switchable
WIDE480/600/720/768-2 signals
• 4:3 «4 16:9
• 16:9-4 H - FIT «4 V - FIT -4
ZOOM
1 125 (1 080)/50i,
1 125 (1 080)/60i,
1 125 (1 080)/50p,
1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p
and 750 (720)/60p signals
• 4:3 -4 16:9 -4 JUST -4 ZOOM
525p (480p) and 625p (576p)
signals
® 4:3 -4 16:9 -4 14:9 -4 JUST -4
ZOOM1 -4 ZOOM2
625i (576i), 625p (576p)
• auto -4 4:3 -4 16:9 -4 JUST -4
ZOOM
525i (480i), 525p (480p)
• 16:9-4 H - FIT-4 V-FIT
1 125 (1 080)/50i,
1 125 (1 080)/60i,
1 125 (1 080)/50p,
1 125 (1 080)/60p,
1 125 (1 080)/24p, 750 (720)/50p,
750 (720)/60p signals
i Signalling) detects if a
25i (576i) signal is input and that
fication signal, and switch the aspect
tting automatically. You can switch
ually.
OVER SCAN
i nne 4 edges of an image is partly dropped, you can use
this function to adjust and project it properly.
Shrink
Enlarge
• Setting range: 0 to +10
• OVER SCAN is not available with PC signals.
KEYSTONE
If the projector is aligned non-perpendicularly to the
screen, or if the projection screen has an angled
surface, you can vertically correct keystone.
Operation
• Setting range: -32 to 32
NOTE:
• You can correct the distortion ± 30 degrees from
the vertical plane. For a better quality image,
installing the projector with a minimum of
distortion is recommended.
• Some distortion may be retained for Lens shift
adjustment.
• The distortion of the Main menu screen is not
correctable.
• The result of the keystone correction will affect on
the aspect ratio and the size of the image.
AUTO SETUP
You can adjust V - POSITION H - POSITION DOT
CLOCK and CLOCK PHASE automatically when
connecting via PC. Press ENTER to adjust these at the
same time.
LENS CONTROL Menu
ZOOM/FOCUS
You can use the 2 different test patterns to adjust the focus and zoom of the image. See “Lens shift and positioning
on page 16.
1. Press ENTER to display test pattern 1.
• Press A f to adjust the focus and < ► to adjust the zoom.
2. Press ENTER to display test pattern 2.
• Press A ▼ to adjust the focus and ◄ ► to adjust the zoom.
3. Press ENTER to display the projected image.
• You can confirm the adjustment is fit to the projected image.
4. Press MENU or RETURN to return to the previous menu, or press repeatedly to escape the menu mode.
NOTE:
• When the projector and/or the screen is tilted, adjust the focus at the centre of the image. The upper and
lower edge might be out of focus.
• When the image is distorted in keystone, adjust the KEYSTONE in POSITION menu.
Settings

Settings
OPTION Menu
tttr
m
<x>
• See 'Navigating through
the MENU" on page 28.
INPUT GUIDE
SIMPLE
DETAILED
OSD DESIGN
^ou can change the background colour of the menu.
Press -4 ► to cy cle through the options.
- - 0 p "°" s 1 Func,l °"
TYPE1 Semi transparent black
_TYPE2 iolkTbiue
_TYPE3 Semi transparent dark blue
WSK:
JJJIP
W/Kk
Wmm;
OSD POSITION
You can change the position where to display the menu.
;s INPUT or the INPUT SELECT button
iput method, the guidance is indicated in
corner of the screen. The following
s are available. Press ◄ ► to cycle
ions.
Turn off the guidance.
Display the inpuFmethoaTby text.
The INPUT GUIDE will go out after
5 seconds without any operation.
Display theuTpuFmettFod by
graphic.
The INPUT GUIDE will go out after
10 seconds without any operation.
UPPER
LEFT
UPPER
CENTRE
UPPER
RIGHT
CENTRE
LOWER
LEFT
LOWER
CENTRE
LOWER
RIGHT
BACK COLOUR
You can choose a BLUE or BLACK screen for when the
projector is idle. Press M ► to select an option.
STARTUP LOGO
You can switch the logo on/off that is displayed when
starting up. Press ◄ ► to select an option.
• ON: Active
* OFF: Deactive
AUTO SEARCH
When the projector is turned on, the input terminals are
detected and an input signal is selected automatically
You can switch the system on/off. Press ◄ ► to select
an option.
* ON: Active
* OFF: Deactive
NOTE:
• When no signal is detected, the last used input
method will be selected.
HDMI SIGNAL LEVEL
When an HDMI is selected, you can switch the HDMI
signal level NORMAL or EXPAND to display the image.
Press ◄ ► to select an option.
NOTE: ~~~ ~
• HD M I SIGNAL LEVEL is not available with some
equ
INSTALLATION
When installing the projector, select the projection
method according to the projector position. Press ◄ ►
to cycle through the options. See “Projection method”
on page 15.
iTI DESK
REAR/DESK
REAFUCEILING
SLEEP
Setting on a desk/floor and
projecting from front
Mounting in the ceiling and
projecting from front
Setting on a desk/floor and
projecting from rear
Mounting in the ceiling and
projecting from rear
You can select the required duration of time and set the
off timer to turn off the POWER of the projector
automatically. 3 minutes before turn-off, the countdown
of minutes will be displayed in the lower right corner.
Press ◄ ► to cycle through the options. See “Switching
off the projector automatically” on page 25.
ALTITUDE
If you use the projector at high elevations, set the fan
speed to HIGH. Press ◄ ► to select HIGH or LOW
NOTE:
• At 1 400 m (4593 ft) above sea level, the setting
must be HIGH.
LAMP POWER
You can adjust the power of the lamp to save on
electricity, prolong the lamp life and reduce the noise.
Options
NORMAL
ECO-MODE
When higher luminance is
required such as movies
When lower luminance is
sufficient such as in a small room
NOTE:
• When no input signal is detected, the function is
disabled.
OPTIOmVjerui
lampruStH
You can check how long the lamp has been used.
NOTE:
• LAMP RUNTIME is a relevant matter for lamp
replacement timing. See “Care and Replacement’
on page 41.
FUNCTION BUTTON
You can assign the frequently use functions to each
function buttons and access to the functions instantly
| FUNCTION SUTTON |
FUNCTION BUTTON2
11_ FUNCTION BUTTON3
1. Press A T to select the required button to assign
2. Press ENTER,
3. Press ◄ ► to select the required function to
assign.
4. Press RETURN or MENU to return to the previous
menu, or press repeatedly to return to the
projection.
DISABLED SHUTTER
HDMI2 IN
HDMI1 IN
PC IN
SCART IN
AUTO SETUP
VIDEO IN
S-VIDEO IN
COMPONENT IN
B SHUTTER function
You can turn off the lamp and stop the projection
temporary for electrical power save. Press any
button except the LIGHT, PROJECTOR or
Learning Remote control buttons to return to the
projection.
NOTE:
• See “Selecting the input signal” on page 21,
“AUTO SETUP” on page 36.
» The function buttons are also used as Learning
Remote control buttons. Press the DEVICE button
to switch the control mode. See “Remote Control
Plnorato rtiiiHo" nrrmiHor) with th<=> nrniortnr
Settings
