Product Name : Ultra Short-Throw DLP™Projector
SPEC FILE
Product Number : PT-CW240
As of June 2013. Specifications and appearance are subject to change without notice.
SFD12M019-2
1/13

SPEC FILE
PT-CW240
Ultra Short-Throw DLP™Projector
Specifications
Main unit
Power supply
Power consumption
DLP™ chip Panel size
Display method
Pixels
Lens
Lamp
Screen size
Colors
Brightness*2
Center-to-corner uniformity*2
Contrast*2
Resolution
Scanning frequency HDMI
RGB
YPBPR(YCBCR)
Video/S-Video
Keystone correction range
Installation
Built-in speaker Size
Output power
Terminals HDMI IN
COMPUTER (RGB) 1/2 IN
R, G, B
Y, P B(CB), PR(CR)
MONITOR (RGB) OUT
R, G, B
VIDEO IN
S-VIDEO IN
100–240 V AC, 50/60 Hz
310 W
(0.5 W when STANDBY MODE set to ECO,*16.0 W when STANDBY MODE
set to NETWORK.)
16.5 mm (0.65 inches) diagonal (16:10 aspect ratio)
DLP™ chip × 1, DLP™ system
1,024,000 (1,280 × 800) pixels
Fixed (0.35:1 throw ratio), manual focus, F 2.6, f 5.27 mm
240 W UHM lamp × 1
1.78– 2.54 m (70– 100 inches) diagonally, 16:10 aspect ratio
Full color (16,777,216 colors)
2,600 lumens (LAMP POWER: NORMAL)
80%
8,000:1 (full on/off, During RGB signal input, LAMP POWER: NORMAL)
1,280 × 800 pixels (Input signals that exceed this resolution will be
converted to 1,280 × 800 pixels.)
fH: 15 kHz– 100 kHz, fV: 24 Hz–120 Hz,
dot clock: 25 MHz–162 MHz
fH: 15 kHz– 100 kHz, fV: 24 Hz–120 Hz, dot clock: 162 MHz or lower
525i (480i): fH15.75 kHz; fV60 Hz,
625i (576i): fH15.63 kHz; fV50 Hz,
525p (480p): fH31.50 kHz; fV60 Hz,
625p (576p): fH31.25 kHz; fV50 Hz,
750 (720)/60p: fH45.00 kHz; fV60 Hz,
750 (720)/50p: fH37.50 kHz; fV50 Hz,
1125 (1080)/60i: fH33.75 kHz; fV60 Hz,
1125 (1080)/50i: fH28.13 kHz; fV50 Hz
1125 (1080)/24p: fH27.00 kHz; fV24 Hz
1125 (1080)/60p: fH67.50 kHz; fV60 Hz
1125 (1080)/50p: fH56.25 kHz; fV50 Hz
fH: 15.75/15.63 kHz, fV: 50/60 Hz
[NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM]
Vertical: ±15°
Ceiling/floor, front/rear (Menu setting)
7 x 3 cm (2-3/4 x 1-3/16 inches) (oval-shaped) × 1
10 W (monaural)
HDMI 19-pin × 1, HDCP compatible, Deep color compatible
525p (480p), 625p (576p), 525p (480p), 625p (576p), 750 (720)/60p,
750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/24p,
1125 (1080)/60p, 1125 (1080)/50p
VGA (640 × 480) – WSXGA+(1,680 × 1,050), Audio signal: linear
PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
D-sub HD 15-pin (female) × 2
G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms;
B, R: 0.7 Vp-p, 75 ohms;
HD/VD, SYNC: high impedance, TTL, positive/negative automatic
Y: 1.0 Vp-p (including sync signal);
PB(CB), PR(CR): 0.7 Vp-p, 75 ohms
Y, P B(CB), PR(CR) Y: 1.0 Vp-p (including sync signal);
PB(CB), PR(CR): 0.7 Vp-p, 75 ohms
D-sub
(Outputs signals selected from RGB input 1/2.)
HD 15-pin (female) × 1
G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms;
B, R: 0.7 Vp-p, 75 ohms;
HD/VD, SYNC: high impedance, TTL, positive
Pin jack × 1, 1.0 Vp-p, 75 ohms
Mini DIN 4-pin × 1, Y: 1.0 Vp-p; C: 0.286 Vp-p, 75 ohms
As of June 2013
SFD12M019-2
2/13

SPEC FILE
PT-CW240
Ultra Short-Throw DLP™Projector
3/13
COMPUTER 1 AUDIO IN
COMPUTER 2 AUDIO IN
VIDEO/S-VIDEO AUDIO IN
AUDIO OUT
SERIAL IN
LAN
MiniUSB
Power cord length
Cabinet materials
Dimensions (W ×H×D)
Weight
Operation noise
Operating temperature
Operating humidity
Remote control unit
Power supply
Operation range*4
Dimensions (W × H × D)
Weight
Supplied accessories
Optional accessories
Ceiling mount bracket
Bracket assembly
Wall mount bracket
Replacement lamp unit
M3 (L, R) × 1, 0.5 Vrms
M3 (L, R) × 1, 0.5 Vrms
Pin jack × 2 (L/R × 1), 0.5 Vrms
M3 (L, R) × 1 (monitor out: 0– 2.0 Vrms, variable)
D-sub 9-pin (female) × 1, for external control (RS-232C compliant)
RJ-45 × 1, for network connection, 100Base-TX/10Base-T, compliant
with PJLink™
MiniUSB x 1 (For service technician)
3.0 m (9 ft 10 in)
Molded plastic (PC)
357 mm × 250 mm*3× 367 mm
(14-1/16 × 9-27/32*3× 14-7/16 inches)
Approximately 7.5 kg (16.53 lbs)
37 dB (LAMP POWER: NORMAL), 30 dB (LAMP POWER: ECO)
5–40 °C (41–104 °F) up to 750 m (2,500 ft) above sea level,
5–30 °C (41–86 °F) between 1,500 m and 3,000 m (5,000 ft and
10,000 ft) above sea level.
5–35 °C (41–95 °F) between 750 m and 1,500 m (2,500 ft and
5,000 ft) above sea level.
20%–80% (no condensation)
3 V DC (Lithium coin cell battery × 1)
Approximately 8 m (26.3 ft) when operated from directly in front of the
signal receptor
41 × 87 × 7 mm (1-5/8 × 3-7/16 × 9/32 inches)
Approx. 23 g (0.8 oz) (including Lithium coin cell battery)
Power cord (× 1) (× 2 for PT-CW240EA)
Power code cover (× 1)
Power code holder (× 1)
Wireless remote control unit (× 1)
Lithium coin cell battery for remote control (× 1)
Computer cable (1.8 m) (× 1)
ET-PKV100H (for high ceilings)
ET-PKV100S (for low ceilings)
ET-PKC200B
ET-PKC200W
ET-LAC200
Weights and dimensions shown are approximate. Specifications subject to change without notice.
*1
*2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*3 With legs at shortest position.
*4 Operation range differs depending on environments.
As of June 2013
SFD12M019-2
When the standby mode is set to eco, network functions such as LAN Standby On and MONITOR OUT/AUDIO OUT terminals do not work.

45
(1-25/32)
357
(14-1/16)
335
(13-3/16)
367
(14-7/16)
231
(9-3/32)
250
(27/32)
19
(3/4)
17
(21/32)
187
(7-3/8)
134
(5-9/32)
Dimensions
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
SPEC FILE
PT-CW240
Ultra Short-Throw DLP™Projector
4/13
Terminals
1 MiniUSB
2 HDMI input
3 Monitor output
4 LAN connector
5 Computer 1 input
6 Audio input for computer 1
7 S-Video input
8 Audio input for S-Video
9 Serial input
10 Computer 2 input
11 Audio input for computer 2
12 Video input
13 Audio input for video
14 Audio output
As of June 2013
SFD12M019-2
13567842
91011121314

SPEC FILE
PT-CW240
Ultra Short-Throw DLP™Projector
5/13

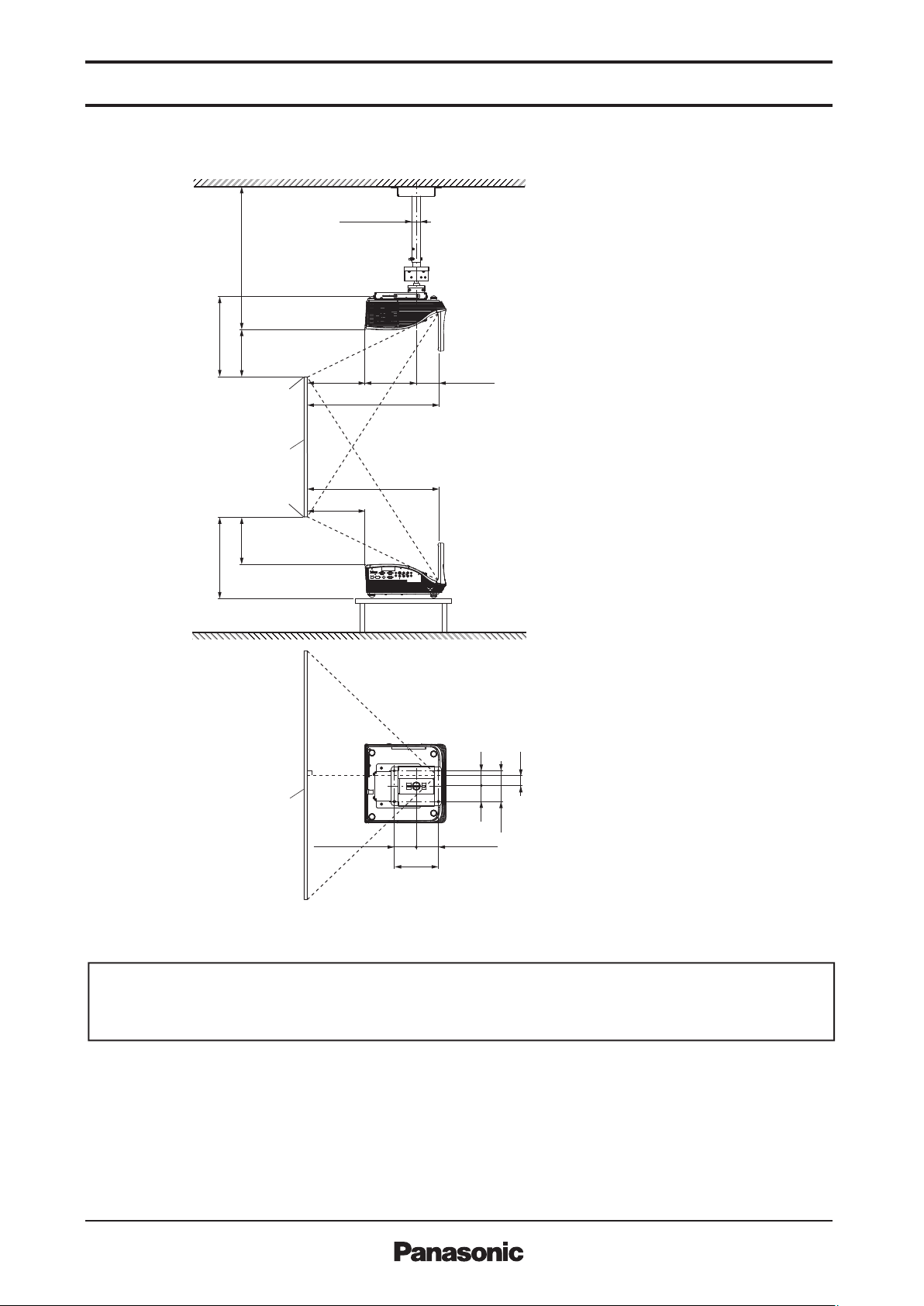

Standard setting-up position
unit : mm (inch)
NOTE:
Illustrations show the projector
installed using optional ceiling mount
bracket ET-PKV100H and bracket
assembly ET-PKC200B.
This illustration is not drawn to scale.
As of June 2013
SFD12M019-2
Caution:
• All construction work should be done by a qualified technician.
• When mounting to the ceiling, use the special mounting bracket.
Furthermore, in order to prevent it from falling down from the ceiling, use the supplied wire on the mounting bracket.
1106.5–1676.5
(43-9/16 – 66)
Adjustable in
30-mm
(1-3/16-inch) step.
Projected image
Projected image
Lower edge of projected image
Upper edge of projected image
∅38 (1-1/2)
100
(3-15/16)
100
(3-15/16)
200
(7-7/8)
70
(2-3/4)
140
(5-1/2)
70 (2-3/4)
56
(2-7/32)
(4-1/32)
(9-1/8) 102.5
232
A
B
E
F
A
B
E
F

SPEC FILE
PT-CW240
Ultra Short-Throw DLP™Projector
6/13
Calculation of the projection distance
For a screen size different from the above, use the equation below to calculate the projection distance.
Aspect ratio 16:10
A (m) = (diagonal screen size in inches) × 0.00810 – 0.0508
Aspect ratio 16:9
A (m) = (diagonal screen size in inches) × 0.00832 – 0.0507
NOTE:
Distances calculated with the above equations will include a slight error.
70
80
90
100
Screen size
(inch, diagonal) A: Distance from the edge
of the projection window
to the screen
B: Distance from the
projector front
to the screen
E: Height from the edge of
the screen to the
top of the projector
F: Height from the edge of
the screen to the
bottom of the projector
0.6
0.9
1.1
1.4
1.7
2.0
2.2
2.5
1.0
1.1
1.2
1.3
0.5
0.6
0.7
0.8
Unit: feet
70
80
90
Screen size
(inch, diagonal) A: Distance from the edge
of the projection window
to the screen
B: Distance from the
projector front
to the screen
E: Height from the edge of
the screen to the
top of the projector
F: Height from the edge of
the screen to the
bottom of the projector
0.7
0.9
1.2
1.7
2.0
2.3
1.2
1.3
1.5
0.7
0.8
1.0
Unit: feet
70
80
90
Screen size
(inch, diagonal) A: Distance from the edge
of the projection window
to the screen
B: Distance from the
projector front
to the screen
E: Height from the edge of
the screen to the
top of the projector
F: Height from the edge of
the screen to the
bottom of the projector
0.20
0.28
0.36
0.53
0.61
0.70
0.36
0.40
0.44
0.21
0.25
0.29
Projection distance for 16:9 aspect ratio screen
Unit: meters
As of June 2013
SFD12M019-2
70
80
90
100
Screen size
(inch, diagonal) A: Distance from the edge
of the projection window
to the screen
B: Distance from the
projector front
to the screen
E: Height from the edge of
the screen to the
top of the projector
F: Height from the edge of
the screen to the
bottom of the projector
0.18
0.26
0.34
0.42
0.52
0.60
0.68
0.76
0.30
0.34
0.37
0.41
0.15
0.19
0.22
0.25
Projection distance for 16:10 aspect ratio screen
Unit: meters

SPEC FILE
PT-CW240
Ultra Short-Throw DLP™Projector
7/13

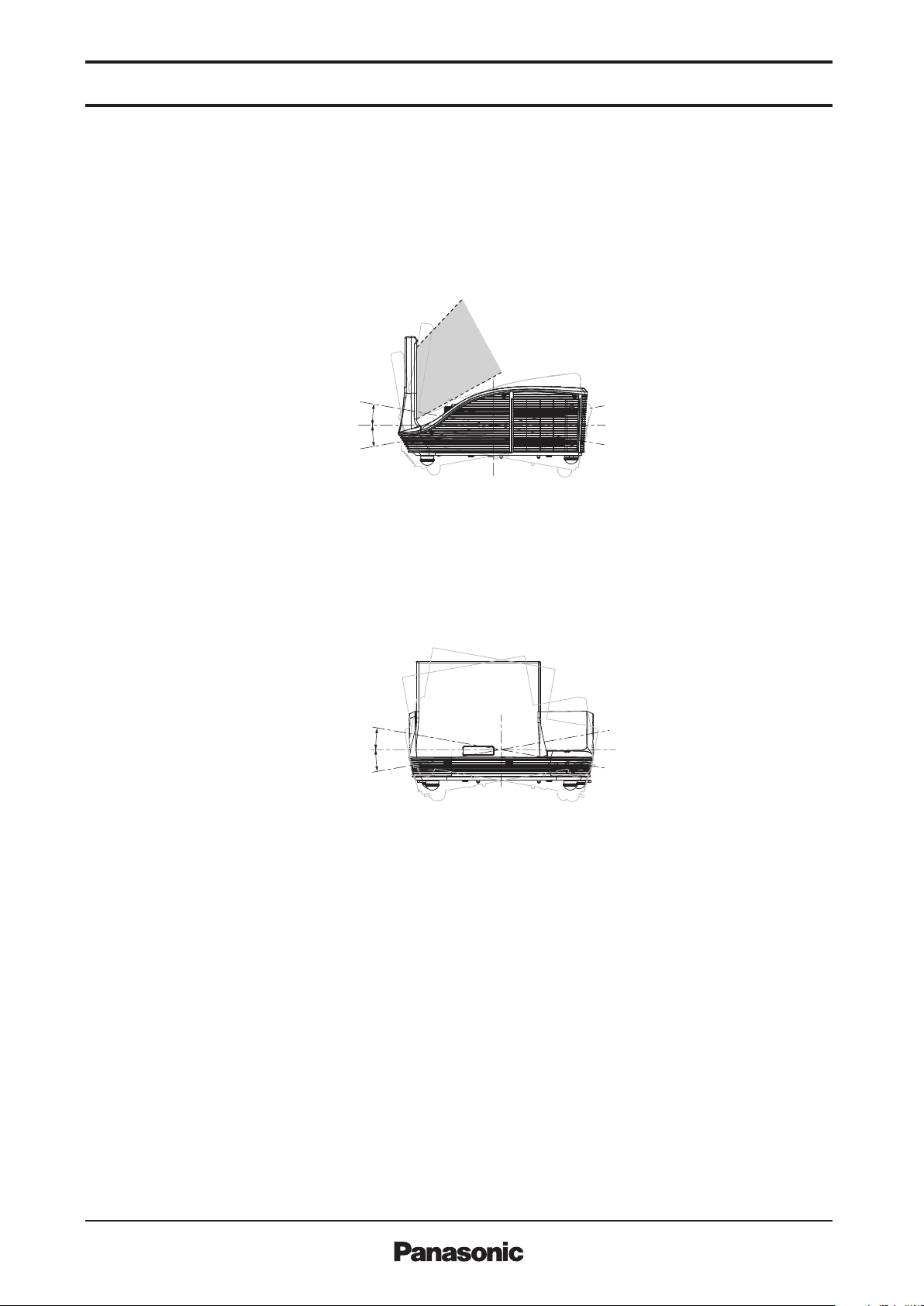

Installable angle
Install the projector at an angle within the range shown below.
• Vertical direction
The projector may be installed at a vertical angle .
• Horizontal direction
The projector may be installed at a horizontal angle of ±10°.
As of June 2013
SFD12M019-2
of ±10°
+10°
-10°
+10°
-10°

SPEC FILE
PT-CW240
Ultra Short-Throw DLP™Projector
8/13
List of compatible signals
The signals that can be input to this projector are shown in the table below. Horizontal scanning fre-
quencies of 15 kHz to 100 kHz, vertical scanning frequencies of 24 Hz to 120 Hz, and a dot clock of
162 MHz maximum can be input.
NOTE: The native resolution of this projector is 1,280 × 800 pixels. If the display resolution of the input signal is different from the
native resolution, image compression or expansion will be used to convert the input signal to a level within the native resolution.
Display mode Display
resolution
(dots)1
Scanning frequency
H
(kHz)
V
(Hz)
Dot clock
frequency
(MHz)
Format
720 × 480i
720 × 576i
720 × 480i
720 × 576i
720 × 483
720 × 576
1280 × 720
1920 × 1080i
1920 × 1080
640 × 480
720 × 400
800 × 600
15.7
15.6
15.7
15.7
15.6
15.6
31.5
31.3
45.0
37.5
33.8
28.1
27.0
67.5
56.3
31.5
35.0
37.5
37.9
43.3
61.9
31.5
35.1
37.9
46.9
48.1
53.7
77.4
49.1
59.9
50.0
59.9
59.9
50.0
50.0
59.9
50.0
60.0
50.0
60.0
50.0
24.0
60.0
50.0
59.9
66.7
75.0
72.8
85.0
120.0
70.1
56.3
60.3
75.0
72.2
85.1
119.9
74.6
–
–
27.0
13.5
13.5
27.0
27.0
27.0
74.3
74.3
74.3
74.3
74.3
148.5
148.5
25.2
30.2
31.5
31.5
36.0
52.5
28.3
36.0
40.0
49.5
50.0
56.3
83.0
57.3
NTSC/NTSC4.43/PAL-M/PAL60
PAL/PAL-N/SECAM
525i (480i)
625i (576i)
525p (480p)
625p (576p)
750(720)/60p
750(720)/50p
1125(1080)/60i
1125(1080)/50i
1125(1080)/24p
1125(1080)/60p
1600 × 1200
1400 × 1050
1280 × 960
1280 × 1024
1680 × 1050
65.3
75.0
65.3
60.0
60.0
60.0
121.8
162.0
146.3
SXGA+
UXGA
WSXGA+
1125(1080)/50p
VGA
SVGA
MAC16
VIDEO/S-VIDEO
HDMI
HDMI
YCBCR
YCBCR
HDMI/YPBPR
60.0
75.2
60.0
75.0
108.0
130.0
SXGA
HDMI/RGB
832 × 624
48.4
56.5
60.0
68.7
99.0
60.0
70.1
75.0
85.0
119.8
65.0
75.0
78.8
94.5
137.8
XGA
1280 × 720
1024 × 768
44.8
49.7
47.7
55.9
1280 × 800
1366 × 768
1440 × 900
60.0
59.8
59.8
59.9
74.5
83.5
84.8
106.5
WXGA
64.0
77.0
80.0
60.0
72.0
75.0
108.0
133.0
135.0
68.7 75.1 100.0
MAC21 1152 × 870
*1 The “i” appearing after the resolution indicates an interlaced signal.
As of June 2013
SFD12M019-2

SPEC FILE
PT-CW240
Ultra Short-Throw DLP™Projector
9/13
3D-compliant signal list
The 3D signals that can be input to this projector are as follows.
Display mode Display
resolution
(dots)1
Scanning frequency
H
(kHz)
V
(Hz)
Dot clock
frequency
(MHz)
HDMI
Frame
packing
Side by
side
Top and
bottom
Frame
sequential
Frame
sequential
Frame
sequential
Filled
sequential
RGB1/RGB Video/S-Video
1280 × 720
1920 × 1080i
1920 × 1080
640 × 480
800 × 600
45.0
37.5
33.8
28.1
27.0
61.9
77.4
60.0
50.0
60.0
50.0
24.0
119.5
119.9
74.3
74.3
74.3
74.3
74.3
52.5
83.0
750(720)/60p
750(720)/50p
1125(1080)/60i
1125(1080)/50i
1125(1080)/24p
Video/S-Video
VGA
SVGA
99.0 119.8 137.8
XGA 1024 × 768
As of June 2013
SFD12M019-2
–– – –
○
○
○
×
×
×
×
×
×
×
×
×
○
○
×
×
×
×
○
○
○
×
×
×
×
×
×
×
×
×
×
×
○
○
○
–
×
×
×
×
×
○
○
○
×
×
×
×
×
×
×
×
×
○
×
×
×
×
×
×
×
×
○
Serial connector
The serial connector complies with RS-232C. To control the projector from a personal computer, com-
mands must be input through communication software, based on the format and satisfying the commu-
nication conditions shown below.
Communication conditions (factory setting)
Pin assignments and signal names
6
15
9
D-sub 9-pin (female) Serial input
Description
NC
Send data
Receive data
NC
Ground
Signal name
–
TXD
RXD
–
GND
No.
1
2
3
4
5
Description
NC
Connected internally
Connected internally
NC
Signal name
–
CTS
RTS
–
No.
6
7
8
9
Signal level
Synchronization method
Baud rate
Parity
Character length
Stop bit
X parameter
S parameter
RS-232C-compliant
Start-stop synchronization
19,200 bps
None
8 bits
1 bit
None
None

SPEC FILE
PT-CW240
Ultra Short-Throw DLP™Projector
10/13As of June 2013
SFD12M019-2
Control commands
Command : Parameter Function Callback
PON
POF
IIS:HD1
IIS:RG1
IIS:RG2
IIS:VID
IIS:SVD
OSH:0
OSH:1
POWER (STANDBY)
INPUT SELECT
AV MUTE
PON
POF
IIS:HD1
IIS:RG1
IIS:RG2
IIS:VID
IIS:SVD
OSH:0
OSH:1
Standby power on
Standby power off
HDMI
RGB 1
RGB 2
Video
S-Video
AV mute off
AV mute on
Cable specifications
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
PC (DTE)Projector
NC
NC
NC
NC
NC
NC
NC
NC
* Do not send PON, POF or OSH commands continuously in a short period of time. Doing so may burst the lamp or shorten the lamp replacement
cycle.
* When a command that cannot be executed during standby mode is sent, the projector will send an ER401 command in reply.
Basic format
Transmission from the computer begins with STX, then the ID, command, parameter, and ETX are sent
in this order. Add parameters according to the details of control.
CAUTION
• It may not be possible to send or receive commands for about 10 to 60 seconds when the lamp is first turned on. If this
occurs, wait for 60 seconds, then try sending or receiving again.
• When sending multiple commands, be sure to wait for at least 0.5 second after receiving a response from the projector before
sending the next command.
• Additional time is sometimes required for response due to processing inside the projector. Set the time-out period for com-
mand response to 10 seconds or more.
Start
(1 byte)
End
(1 byte)
Colon
(1 byte)
Colon
(1 byte)
Parameters
(undefined length)
Command
(3 bytes)
(Control and/or query commands)
STX ETXC1 P1 P2 ... PnC2 C3 ::
* STX and ETX are character chords. STX is 02 and ETX is 03 when expressed in hexadecimal.

SPEC FILE
PT-CW240
Ultra Short-Throw DLP™Projector
11/13As of June 2013
SFD12M019-2
Status request commands
Command:Parameter Function DescriptionCallback
QPW
QSH
QIN
QVX:RTMI0
Q$L
Main power status
AV mute function status
Input signal status
Projector run time
Lamp run time
Standby
On
Standby
Off
On
HDMI
RGB 1
RGB 2
Video
S-Video
00000h–99999h
0000h–9999h
000
001
0
1
HD1
RG1
RG2
VID
SVD
Q$S 0
1
2
3
p1p2p3p4p5
p1p2p3p4
QTM:0 Temperature status p1p2p3p4/p5p6p7p8 (*1)
*1p1p2p3p4: Celsius (°C), p5p6p7p8: Fahrenheit (°F)
Command example
To s et the AV mute function off, send the command as shown below.
OSH : 0 ETX
Command
STX
Start Parameter End
NOTE: When sending commands without parameters, a colon (:) is not necessary.
NOTE: If a wrong command is received, the projector will send an ER401 or ER402 command to the computer.
Lamp on status
p0 = Internal temperature
Lamp on control in progress
Lamp on
Lamp off control in progress

SPEC FILE
PT-CW240
Ultra Short-Throw DLP™Projector
12/13
Notes on projector placement and operation
The projector uses a high-wattage lamp that becomes very hot during operation. Please observe the
following precautions.
1. Never place objects on top of the projector while it is operating.
2. Make sure there is the unobstructed space as shown below or more around the projector’s exhaust
openings. In addition to this space, also ensure that there is a sufficient work space for removing
and installing the lamp, air filter and other parts.
3. Make sure that nothing blocks the projector’s air intake and exhaust openings. Also, install the pro-
jector so that cool or hot air from other air conditioning equipment does not flow directly toward the
projector’s air intake or exhaust openings.
4. Do not install the projector in an enclosed space. If it is necessary to install it in an enclosed
space, add a separate ventilation system. If ventilation is insufficient, hot air will accumulate at the
intake opening. This may cause the projector’s protective circuit to interrupt projector operation.
Direction of air intake and exhaust
As of June 2013
SFD12M019-2
Intake
Exhaust
500 mm (19-11/16˝)
or more
100 mm (3-15/16˝)
or more
1000 mm (39-3/8˝)
or more

SPEC FILE
PT-CW240
Ultra Short-Throw DLP™Projector
13/13
Operating the projector continuously
1. If the projector is to be operated continuously 22 hours or more, lamp replacement cycle duration
becomes shorter.
2. The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short
periods (one hour or less).
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
Product availability differs depending on region and country. This product may be subject to export control regulations.
DLP and the DLP logo are trademarks of Texas Instruments.
PJLink is a registered trademark, or a trademark application has been filed, in Japan, the United States, and other countries and regions.
All other trademarks are the property of their respective trademark owners.
As of June 2013
SFD12M019-2
