ENGLISH
R
Before operating this product, please read the instructions carefully and save this
manual for future use.
LCD Projector
Operating Instructions
Model No. PT-LB20NTE
PT-LB20E
PT-LB20SE
PT-LB20VE
TQBJ 0168
Commercial Use
ENTER
FREEZE
SHUTTER
INDEX
WINDOW
PROJECTOR
VOLUME D.ZOOM
STD
AUTO
SETUP
VIDEO
INPUT
POWER
RGB
MENU

2-ENGLISH
IMPORTANT SAFETY NOTICE
WARNING: To prevent damage which may result in fire or shock
hazard, do not expose this appliance to rain or moisture.
Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The
sound pressure level at the operator position is equal or less than 70 dB
(A) according to ISO 7779.
WARNING:
1) Remove the plug from the wall outlet when this unit is not in use for a
prolonged period of time.
2) To prevent electric shock, do not remove cover. No user serviceable
parts inside. Refer servicing to qualified service personnel.
3) Do not remove the earthing pin on the power plug. This apparatus is
equipped with a three prong earthing-type power plug. This plug will
only fit an earthing-type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact an electrician. Do not
defeat the purpose of the earthing plug.
Dear Panasonic Customer:
This instruction booklet provides all the necessary operating information that
you might require. We hope it will help you to get the most out of your new
product, and that you will be pleased with your Panasonic LCD projector.
The serial number of your product may be found on its bottom. You should
note it in the space provided below and retain this booklet in case service is
required.
Model number: PT-LB20NTE / PT-LB20E / PT-LB20SE / PT-LB20VE
Serial number:
WARNING: THIS APPARATUS MUST BE EARTHED.

ENGLISH-3
Preparation
WARNING:
BFor permanently connected equipment, a readily accessible disconnect
device shall be incorporated in the building installation wiring;
BFor pluggable equipment, the socket-outlet shall be installed near the
equipment and shall be easily accessible.
CAUTION:
To assure continued compliance, follow the attached installation
instructions, which includes using the provided power cord and shielded
interface cables when connecting to computer or peripheral device.
If you use serial port to connect PC for external control of projector, you
must use optional RS-232C serial interface cable with ferrite core. Any
unauthorized changes or modifications to this equipment will void the
user’s authority to operate.

4-ENGLISH

ENGLISH-5
Preparation
Contents
Preparation
IMPORTANT SAFETY NOTICE ...2
Precautions with regard to
safety .........................................6
Accessories ...............................10
Before use ..................................11

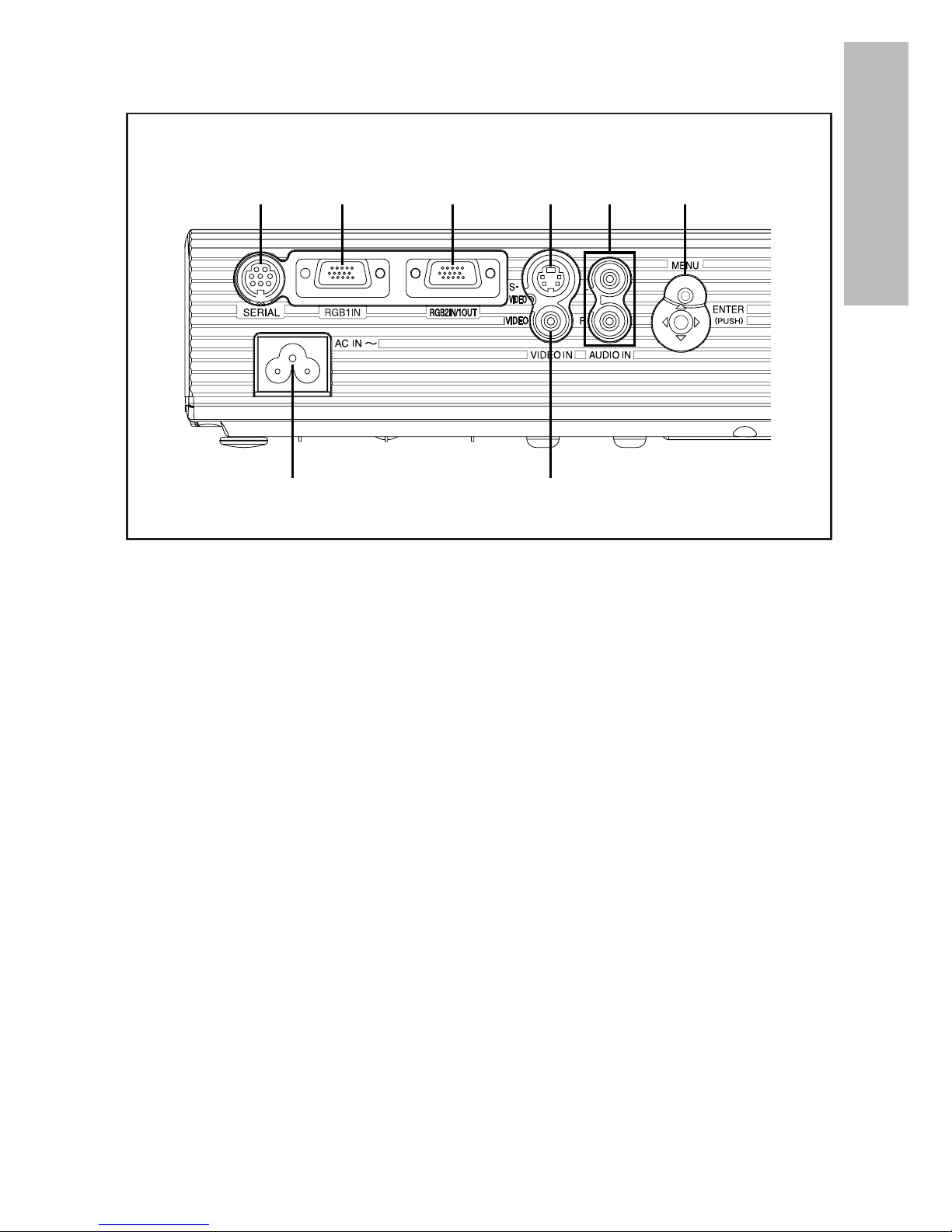

Location and function of each
part...........................................13
Getting started
Setting-up...................................18

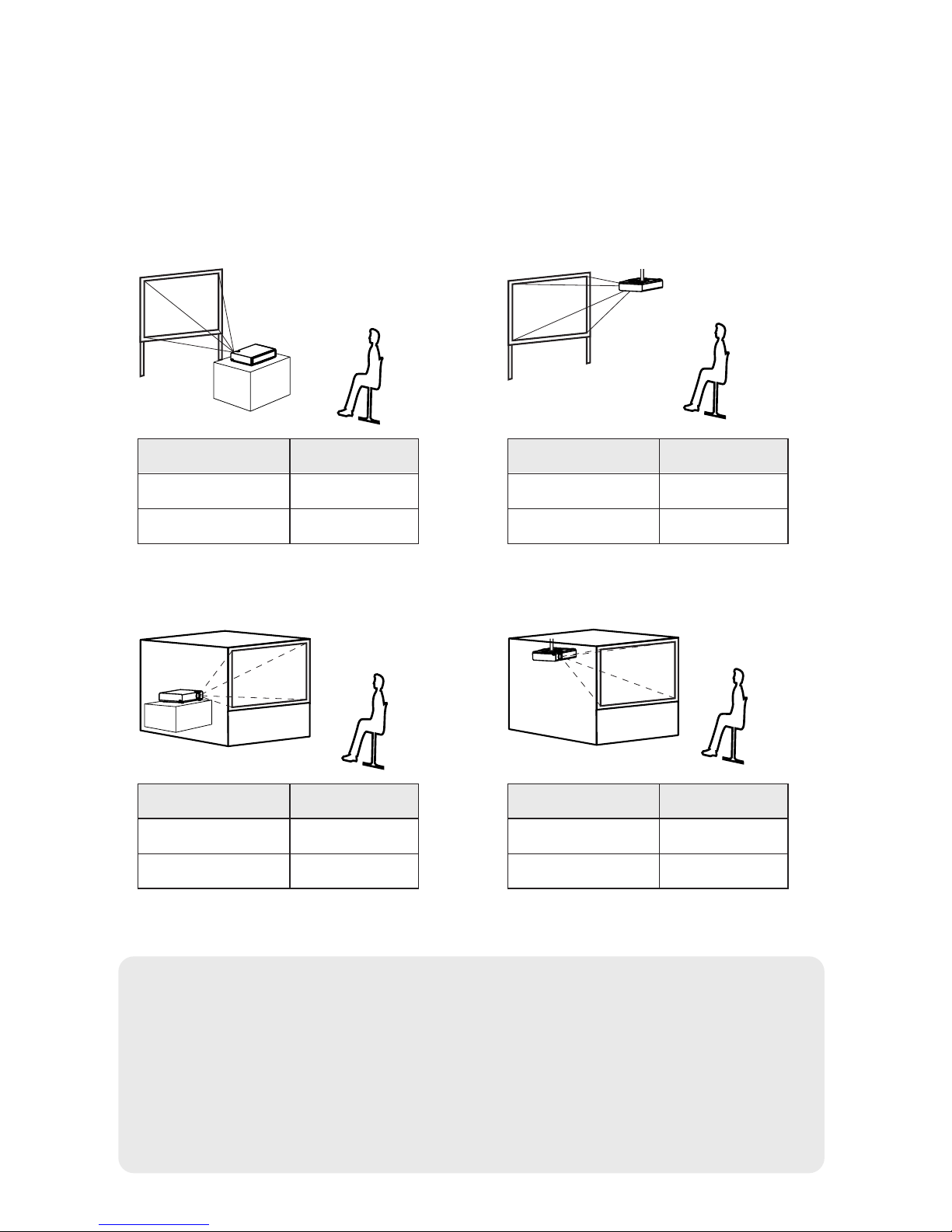

Projection methods, Projector
position, Projection distances
Connections...............................21
Connecting to computer,
Connecting to video equipment
Preparation for the remote
control unit..............................23
Basic operation
Turning on the power................24
Turning off the power................26
Useful functions
Correcting keystone distortion
and automatic positioning.....28
Turning off the picture and sound
momentarily ............................29
Pausing a picture.......................29
Enlarging the picture.................30
Adjusting the volume ................30
Displaying two screens.............31
Adjustments and settings
On-screen menus ......................32
Menu screens, Menu operation
guide, Returning a setting to the
factory default
Correcting keystone
distortion .................................36
Adjusting the picture.................37
PICTURE MODE, CONTRAST,
BRIGHT, COLOR, TINT,
SHARPNESS, COLOR TEMP.,
White balance R/G/B,
DAYLIGHTVIEW, AI,
TV-SYSTEM, STILL MODE,
SIGNAL MODE, Projecting sRGB-
compatible pictures
Adjusting the position...............41
POSITION, DOT CLOCK, CLOCK
PHASE, ASPECT, RESIZING,
FRAME LOCK
Changing the display
language..................................44
Option settings ..........................45
OSD, AUTO SEARCH, AUTO
SIGNAL, AUTO KEYSTN, RGB2
SELECT, RGB/YPBPR, VGA60/480p,
SXGA MODE, Noise Reduction (NR),
BLACKBOARD, BACK COLOR,
FRONT/REAR, DESK/CEILING, FAN
CONTROL, LAMP POWER, LAMP
RUNTIME, FUNC 1, CONTROL KEY,
AUTO POW.OFF, POWER
MEMORY
Setting up the security
function ...................................49
INPUT PASSWD, AMEND
PASSWD, TEXT DISPLAY, TEXT
CHANGE
Network setup............................51
Care and maintenance
When the TEMP indicator and the
LAMP indicator are
illuminated...............................52
Cleaning and replacing
the air filter ..............................54
Replacing the lamp unit ............55
Before calling for service..........58
Cleaning and maintenance .......59
Others
Specifications ............................60
Appendix ....................................62
List of compatible signals, Projection
dimensions calculation methods,
Using the SERIAL connector
Dimensions ................................66
Trademark
acknowledgements ................66

6-ENGLISH
Precautions with regard to safety
WARNING
If you notice smoke, strange smells or noise coming from the
projector, disconnect the mains plug from the mains socket.
BDo not continue to use the projector in such cases, otherwise fire or
electric shocks could result.
BCheck that no more smoke is coming out, and then contact an Authorised
Service Centre for repairs.
BDo not attempt to repair the projector yourself, as this can be dangerous.
Do not install this projector in a place which is not strong enough to
take the full weight of the projector.
BIf the installation location is not strong enough, it may fall down or tip over,
and severe injury or damage could result.
Installation work (such as ceiling suspension) should only be carried
out by a qualified technician.
BIf installation is not carried out correctly, there is the danger that injury or
electric shocks may occur.
If foreign objects or water get inside the projector, or if the projector is
dropped or the cabinet is broken, disconnect the mains plug from the
mains socket.
BContinued use of the projector in this condition may result in fire or electric
shocks.
BContact an Authorised Service Centre for repairs.
Do not overload the mains socket.
BIf the power supply is overloaded (for example, by using too many
adapters), overheating may occur and fire may result.
Do not remove the cover or modify it in any way.
BHigh voltages can cause fire or electric shocks.
BFor any inspection, adjustment and repair work, please contact an
Authorised Service Centre.
Clean the mains plug regularly to prevent it from becoming covered in
dust.
BIf dust builds up on the mains plug, the resulting humidity can damage the
insulation, which could result in fire. Pull the mains plug out from the
mains socket and wipe it with a dry cloth.
BIf not using the projector for an extended period of time, pull the mains
plug out from the mains socket.

ENGLISH-7
Preparation
Do not do anything that might damage the mains lead or the mains
plug.
BDo not damage the mains lead, make any modifications to it, place it near
any hot objects, bend it excessively, twist it, pull it, place heavy objects on
top of it or wrap it into a bundle.
BIf the mains lead is used while damaged, electric shocks, short-circuits or
fire may result.
BAsk an Authorised Service Centre to carry out any repairs to the mains
lead that might be necessary.
Do not handle the mains plug with wet hands.
BFailure to observe this may result in electric shocks.
Insert the mains plug securely into the mains socket.
BIf the plug is not inserted correctly, electric shocks or overheating could
result.
BDo not use plugs which are damaged or mains sockets which are coming
loose from the wall.
Do not place the projector on top of surfaces which are unstable.
BIf the projector is placed on top of a surface which is sloped or unstable, it
may fall down or tip over, and injury or damage could result.
Do not place the projector into water or let it become wet.
BFailure to observe this may result in fire or electric shocks.
Do not place the projector on soft materials such as carpets or sponge
mats.
BDoing so may cause the projector to overheat, which can cause burns, fire
or damage to the projector.
Do not place liquid containers on top of the projector.
BIf water spills onto the projector or gets inside it, fire or electric shocks
could result.
BIf any water gets inside the projector, contact an Authorised Service
Centre.
Do not insert any foreign objects into the projector.
BDo not insert any metal objects or flammable objects into the projector or
drop them onto the projector, as doing so can result in fire or electric
shocks.
Keep the batteries out of the reach of infants.
BIf the batteries are swallowed, death by suffocation may result. If you
believe that the batteries may have been swallowed, seek medical advice
immediately.
Do not allow the + and - terminals of the batteries to come into contact
with metallic objects such as necklaces or hairpins.
BFailure to observe this may cause the batteries to leak, overheat, explode
or catch fire.
BStore the batteries in a plastic bag and keep them away from metallic
objects.

8-ENGLISH
During a thunderstorm, do not touch the projector or the cable.
BElectric shocks can result.
Do not use the projector in a bath or shower.
BFire or electric shocks can result.
Do not look into the lens while the projector is being used.
BStrong light is emitted from the projector’s lens. If you look directly into this
light, it can hurt and damage your eyes.
BBe especially careful not to let young children look into the lens. In
addition, disconnect the mains plug when you are away from the projector.
Do not place your hands or other objects close to the air outlet port.
BHeated air comes out of the air outlet port. Do not place your hands or
face, or objects which cannot withstand heat close to this port, otherwise
burns or damage could result.
Replacement of the lamp should only be carried out by a qualified
technician.
BThe lamp has high internal pressure. If improperly handled, explosion
might result.
BThe lamp can easily become damaged if struck against hard objects or
dropped, and injury or malfunctions may result.
When replacing the lamp, allow it to cool for at least one hour before
handling it.
BThe lamp cover gets very hot, and touching it can cause burns.
Before replacing the lamp, be sure to disconnect the mains plug from
the mains socket.
BElectric shocks or explosions can result if this is not done.
Caution
Do not cover the air inlet port or the air outlet port.
BDoing so may cause the projector to overheat, which can cause fire or
damage to the projector.
BDo not place the projector in narrow, badly ventilated places such as
closets or bookshelves.
BDo not place the projector on cloth or papers, as these materials could be
drawn into the air inlet port.
Do not set up the projector in humid or dusty places or in places where
the projector may come into contact with smoke or steam.
BUsing the projector under such conditions may result in fire or electric
shocks.
When disconnecting the mains lead, hold the plug, not the lead.
BIf the mains lead itself is pulled, the lead will become damaged, and fire,
short-circuits or serious electric shocks may result.

ENGLISH-9
Preparation
Always disconnect all cables before moving the projector.
BMoving the projector with cables still attached can damage the cables,
which could cause fire or electric shocks to occur.
Do not place any heavy objects on top of the projector.
BFailure to observe this may cause the projector to become unbalanced
and fall, which could result in damage or injury.
Do not short-circuit, heat or disassemble the batteries or place them
into water or fire.
BFailure to observe this may cause the batteries to overheat, leak, explode
or catch fire, and burns or other injury may result.
When inserting the batteries, make sure the polarities (+ and -) are
correct.
B If the batteries are inserted incorrectly, they may explode or leak, and fire, injury
or contamination of the battery compartment and surrounding area may result.
Use only the specified batteries.
B If incorrect batteries are used, they may explode or leak, and fire, injury or
contamination of the battery compartment and surrounding area may result.
Insulate the battery using tape or similar before disposal.
BIf the battery comes into contact with metallic objects or other batteries, it
may catch fire or explode.
Do not put your weight on this projector.
BYou could fall or the projector could break, and injury may result.
BBe especially careful not to let young children stand or sit on the projector.
If not using the projector for an extended period of time, disconnect the
mains plug from the mains socket.
BIf dust builds up on the mains plug, the resulting humidity may damage
the insulation, which could result in fire.
BThis projector continues to draw approximately 4 W of power even when
the power is turned off.
Disconnect the mains plug from the mains socket as a safety
precaution before carrying out any cleaning.
BElectric shocks can result if this is not done.
Ask an Authorised Service Centre to clean inside the projector at least
once a year.
BIf dust is left to build up inside the projector without being cleaned out, it
can result in fire or problems with operation.
BIt is a good idea to clean the inside of the projector before the season for
humid weather arrives. Ask your nearest Authorised Service Centre to
clean the projector when required. Please discuss with the Authorised
Service Centre regarding cleaning costs.
We are constantly making efforts to preserve and maintain a clean
environment. Please take non repairable units back to your dealer or a
recycling company.

10-ENGLISH
Card remote control unit
(N2QADC000008 x1)
Mains lead
(K2CM3DR00002 x 1)
Carrying bag
(TPEP013-1 x 1)
Lithium battery for
remote control unit
(CR2025 x1)
RGB signal cable
[1.8 m (5´10˝),
K1HA15DA0002 x1]
Accessories
Check that all of the accessories shown below have been included with your
projector.
ENTER
FREEZE
SHUTTER
INDEX
WINDOW
PROJECTOR
VOLUME D.ZOOM
STD
AUTO
SETUP
VIDEO
INPUT
POWER
RGB
MENU
CD-ROM*
(TQBH9007 x1)
*PT-LB20NTE only

ENGLISH-11
Preparation
Before use
Caution when moving the projector
Be sure to attach the lens cover before moving the projector.
The projection lens is extremely susceptible to vibration and shocks. When
moving the projector, use the accessory carrying bag. When placing the
projector inside the carrying bag, position it so that the lens is facing upward.
Do not put anything else in the bag other than the projector and the cables.
Cautions regarding setting-up
Avoid setting up in places which are subject to vibration or shocks.
The internal parts can be damaged, which may cause malfunctions or
accidents.
Avoid setting up in places which are subject to sudden temperature
changes, such as near an air conditioner.
The life of the lamp may be shortened.
Do not set up the projector near high-voltage power lines or near
motors.
The projector may be subject to electromagnetic interference.
If installing the projector to the ceiling, ask a qualified technician to
carry out all installation work.
You will need to purchase the separate installation kit (Model No.ET-PKB30).
Furthermore, all installation work should only be carried out by a qualified
technician.
If using this projector at high elevations (above 1 400 m), set the “FAN
CONTROL” to “HIGH”. (Refer to page 47.)
Failure to observe this may result in malfunctions.

12-ENGLISH
Notes on use
In order to get the best picture quality
Draw curtains or blinds over any windows and turn off any lights near the
screen to prevent outside light or light from indoor lamps from shining onto
the screen.
Do not touch the surfaces of the lens with your bare hands.
If the surface of the lens becomes dirty from fingerprints or anything else, this
will be magnified and projected onto the screen. Moreover, when not using
the projector, retract the lens and then cover it with the lens cover.
Screen
Do not apply any volatile substances which may cause discolouration to the
screen, and do not let it become dirty or damaged.
Lamp
The lamp may need to be replaced earlier due to variables such as individual
lamp characteristics, usage conditions and the installation environment,
especially when the projector is subjected to continuous use for more than
10 hours or the power is frequently turned on and off.
Liquid crystal panel
The liquid crystal panel of the projector is built with very high precision
technology to provide fine picture details. Occasionally, a few non-active
pixels may appear on the screen as fixed points of blue, green or red.
Please note that this does not affect the performance of your LCD.

ENGLISH-13
Preparation
Location and function of each part
#Projector control panel (page 16)
$Zoom ring (page 25)
%Focus ring (page 25)
&Security lock
This can be used to connect a commercially-available theft-prevention
cable (manufactured by Kensington). This security lock is compatible with
the Microsaver Security System from Kensington.
'Leg adjuster buttons (L/R) (page 25)
These buttons are used to unlock the front adjustable legs. Press to adjust
the angle of tilt of the projector.
(Lens cover
)Projection lens
*Remote control signal receptor (page 23)
Projector <Top, right and front>
#$%
&
'
(
'
*
)

14-ENGLISH
#Connector panel (page 15)
$Air outlet port
Do not cover this port.
%Speaker
&Front adjustable legs (L/R) (page 25)
'Air inlet port, Air filter (page 54)
Do not cover this port.
(Lamp unit cover (page 55)
WARNING
Do not place your hands or other objects close to the air outlet port.
BHeated air comes out of the air outlet port. Do not place your hands or
face, or objects which cannot withstand heat close to this port, otherwise
burns or damage could result.
Projector <Back and bottom>
NOTE:
BDuring projection of an image, the cooling fan will operate, emitting a
small noise as it operates. This noise may change depending on the
ambient temperature. Turning the lamp on or off will cause this noise to
increase a little.
BBy using the “OPTION” menu to set “LAMP POWER” to “LOW”, the
operating sound of the fan can be reduced. (Refer to page 47.)
#
(
$%$
'
&

ENGLISH-15
Preparation
Connector panel
#Power input socket (AC IN) (page 24)
The accessory mains lead is connected here.
Do not use any mains lead other than the accessory mains lead.
$SERIAL connector (pages 21, 22 and 64)
This connector is used to connect a personal computer to the projector in
order to control the projector externally. (RS-232C compatible)
%RGB1 IN connector (pages 21 and 22)
This connector is used to input RGB signals and YPBPRsignals.
&RGB2 IN/1 OUT connector (pages 21, 22 and 46)
This connector is used to input or output RGB signals and YPBPRsignals.
Adjust “RGB2 SELECT” in the “OPTION” menu to select whether you want
input or output with this connector.
'S-VIDEO IN connector (pages 22 and 42)
This connector is used to input signals from S-VIDEO-compatible
equipment such as a video deck. The connector is S1 signal compatible,
and it automatically switches between 16:9 and 4:3 aspect ratios in
accordance with the type of signal being input.
(VIDEO IN connector (page 22)
This connector is used to input video signals from video equipment such
as a video deck.
)AUDIO IN L-R connectors (pages 21 and 22)
*Menu operation (page 16)
$%&' *)
(#

16-ENGLISH
Menu
operation
<on connector
panel:page 15>
Remote control unit
FREEZE SHUTTER
INDEX
WINDOW
PROJECTOR
STD
AUTO
SETUP
INPUT
POWER
MENU
ENTER
VIDEO RGB
VOLUME D.ZOOM
'
(
+
-
.
/
0
12
,
)
*
Projector control panel
#RGB INPUT indicator
This indicator illuminates when a signal is being input to the connector
(RGB1 IN or RGB2 IN) selected using the input select buttons. It also
illuminates while the direct power off function is operating.
$LAMP indicator (page 53)
This indicator illuminates when it is time to replace the lamp unit. It flashes
if a circuit abnormality is detected.
#$%
'(
&
)
*
+,

ENGLISH-17
Preparation
%TEMP indicator (page 52)
This indicator illuminates if an abnormally high temperature is detected inside
the projector or around it. If the temperature rises above a certain level, the
power supply will be turned off automatically and the indicator will flash.
&Illumination sensor (page 39)
This sensor detects the luminance when the “DAYLIGHTVIEW” function is
operating. Do not cover the projector and do not place any object on the
projector when using it.
'POWER button (pages 24, 26 and 27)
This button is used to turn the power on and off. This button on the
projector illuminates red when the projector is in standby mode, and it
illuminates green when a picture starts to be projected.
(INPUT buttons (page 25)
These buttons are used to switch the input signals from the connected
equipment.
)AUTO SETUP button (pages 25 and 28)
If this button is pressed while a picture is being projected, the projection
settings will be adjusted automatically in accordance with the signal being
input. In addition, the angle of tilt of the projector will be automatically
detected and adjusted in order to correct any keystone distortion.
*MENU button (pages 32 and 34)
This button is used to display the “MAIN MENU”. When a menu screen is
being displayed, this button can be used to return to a previous screen or
to clear the screen.
+Arrow (FFGGIIand HH) buttons (page 34)
These buttons are used to select and adjust items in the on-screen menus.
,ENTER button (page 34)
This button is used to accept and to activate items selected in the on-screen
menus.
-FREEZE button (page 29)
This button is used to momentarily freeze projection so that a still picture is
displayed.
.SHUTTER button (page 29)
This button is used to momentarily turn off the picture and sound.
/VOLUME +/- buttons (page 30)
These buttons are used to adjust the volume of the sound output from the
projector’s built-in speaker. Refer to page 33 for details on how to adjust
the volume without using the remote control unit.
0STD (standard) button (page 35)
This button is used to reset the projector adjustment values to the factory
default settings.
1INDEX WINDOW button (page 31)
This button can be used to split the image projection area into a still picture
and a moving picture. When NETWORK is selected, the screen display will
be switched between four window style, index style, and 16 Index style.
(PT-LB20NTE only. Refer to the accessory CD-ROM for details.)
2D.ZOOM +/- buttons (page 30)
These buttons are used to enlarge the projected image.

18-ENGLISH
Setting-up
Projection methods
In way of installing projector, any one of the following four projection methods
are used. Select whichever projection method matches the setting-up
method. (The projection method can be set from the “OPTION” menu. Refer
to pages 46 and 47 for details.)
BFront-desk projection BFront-ceiling projection
BRear-desk projection
(Using a translucent screen)
BRear-ceiling projection
(Using a translucent screen)
Menu items Setting
FRONT
DESK
FRONT/REAR
DESK/CEILING
Menu items Setting
FRONT
CEILING
FRONT/REAR
DESK/CEILING
Menu items Setting
REAR
DESK
FRONT/REAR
DESK/CEILING
Menu items Setting
REAR
CEILING
FRONT/REAR
DESK/CEILING
NOTE:
BYou will need to purchase the separate ceiling bracket (ET-PKB30)
when using the ceiling installation method.
BDo not set up the projector vertically or tilted horizontally, otherwise it
may cause damage to the projector.
BIt is recommended that you set up the projector in a place that is tilted
at less than ±30° vertically. Setting up the projector in places that are
tilted at more than ±30° vertically may shorten component life.

ENGLISH-19
Getting started
H1
L
SH
L
SW
81.2 mm (3-3/16˝)
Projector position
L: Projection distance
SH: Image height
SW:Image width
H1: Distance from centre
of lens to bottom edge
of projected image
Top edge of screen
Screen
Bottom edge of screen
Screen
Projection distances
Wide (LW) Telephoto (LT)
Projection distance (L) Height position
(H1)
4:3 Screen size
(diagonal)
—0.84 m(33˝)
1.02 m(40˝)
1.27 m(50˝)
1.52 m(60˝)
1.78 m(70˝)
2.03 m(80˝)
2.29 m(90˝)
2.54 m(100˝)
3.05 m(120˝)
3.81 m(150˝)
5.08 m(200˝)
6.35 m(250˝)
7.62 m(300˝)
1.2 m(3´11˝)
1.5 m(4´11˝)
1.8 m(5´10˝)
2.1 m(6´10˝)
2.4 m(7´10˝)
2.7 m(8´10˝)
3.0 m(9´10˝)
3.6 m(11´9˝)
4.5 m(14´9˝)
6.0 m(19´8˝)
7.5 m(24´7˝)
9.0 m(29´6˝)
1.1 m(3´7˝)
1.4 m(4´7˝)
1.7 m(5´6˝)
2.1 m(6´10˝)
2.4 m(7´10˝)
2.8 m(9´2˝)
3.2 m(10´5˝)
3.5 m(11´5˝)
4.2 m(13´9˝)
5.3 m(17´4˝)
7.1 m(23´3˝)
8.9 m(29´2˝)
10.7 m(35´1˝)
0.08 m(3-1/8˝)
0.09 m(3-17/32˝)
0.11 m(4-5/16˝)
0.14 m(5-1/2˝)
0.16 m(6-9/32˝)
0.18 m(7-1/16˝)
0.20 m(7-27/32˝)
0.22 m(8-21/32˝)
0.26 m(10-7/32˝)
0.33 m(12-31/32˝)
0.44 m(17-5/16˝)
0.55 m(21-5/8˝)
0.66 m(25-31/32˝)
PT-LB20NTE/PT-LB20E

20-ENGLISH
NOTE:
BThe dimensions in the table above are approximate.
BIf you use the projection distance for the 16:9 screen,
the 4:3 projection image overflows the screen at the top
and bottom.
BFor details about projected image distances, refer to
page 63.
Wide (LW) Telephoto (LT)
Projection distance (L) Height position
(H1)
4:3 Screen size
(diagonal)
—0.84 m(33˝)
1.02 m(40˝)
1.27 m(50˝)
1.52 m(60˝)
1.78 m(70˝)
2.03 m(80˝)
2.29 m(90˝)
2.54 m(100˝)
3.05 m(120˝)
3.81 m(150˝)
5.08 m(200˝)
6.35 m(250˝)
7.62 m(300˝)
1.2 m(3´11˝)
1.5 m(4´11˝)
1.8 m(5´10˝)
2.1 m(6´10˝)
2.4 m(7´10˝)
2.8 m(9´2˝)
3.0 m(9´10˝)
3.7 m(12´1˝)
4.6 m(15´1˝)
6.1 m(20´)
7.6 m(24´11˝)
9.2 m(30´2˝)
1.1 m(3´7˝)
1.4 m(4´7˝)
1.8 m(5´10˝)
2.1 m(6´10˝)
2.5 m(8´2˝)
2.9 m(9´6˝)
3.2 m(10´5˝)
3.6 m(11´9˝)
4.3 m(14´1˝)
5.4 m(17´8˝)
7.3 m(23´11˝)
9.1 m(29´10˝)
11.0 m(36´1˝)
0.08 m(3-1/8˝)
0.09 m(3-17/32˝)
0.11 m(4-5/16˝)
0.14 m(5-1/2˝)
0.16 m(6-9/32˝)
0.18 m(7-1/16˝)
0.20 m(7-27/32˝)
0.22 m(8-21/32˝)
0.26 m(10-7/32˝)
0.33 m(12-31/32˝)
0.44 m(17-5/16˝)
0.55 m(21-5/8˝)
0.66 m(25-31/32˝)
PT-LB20SE
Wide (LW) Telephoto (LT)
Projection distance (L) Height position
(H1)
4:3 Screen size
(diagonal)
—0.84 m(33˝)
1.02 m(40˝)
1.27 m(50˝)
1.52 m(60˝)
1.78 m(70˝)
2.03 m(80˝)
2.29 m(90˝)
2.54 m(100˝)
3.05 m(120˝)
3.81 m(150˝)
5.08 m(200˝)
6.35 m(250˝)
7.62 m(300˝)
PT-LB20VE
1.4 m(4´7˝)
1.7 m(5´6˝)
2.1 m(6´10˝)
2.4 m(7´10˝)
2.8 m(9´2˝)
3.1 m(10´2˝)
3.5 m(11´5˝)
4.2 m(13´9˝)
5.2 m(17´)
7.0 m(22´11˝)
8.7 m(28´6˝)
10.5 m(34´5˝)
1.4 m(4´7˝)
1.7 m(5´6˝)
2.1 m(6´10˝)
2.5 m(8´2˝)
2.9 m(9´6˝)
3.4 m(11´1˝)
3.8 m(12´5˝)
4.2 m(13´9˝)
5.0 m(16´4˝)
6.3 m(20´8˝)
8.4 m(27´6˝)
10.6 m(34´9˝)
12.7 m(41´8˝)
0.04 m(1-9/16˝)
0.05 m(1-15/16˝)
0.06 m(2-11/32˝)
0.07 m(2-3/4˝)
0.08 m(3-1/8˝)
0.09 m(3-17/32˝)
0.11 m(4-5/16˝)
0.12 m(4-23/32˝)
0.14 m(5-1/2˝)
0.18 m(7-1/16˝)
0.23 m(9-1/32˝)
0.29 m(11-13/32˝)
0.35 m(13-3/4˝)
