Panasonic PT-LB50NTE Instruction and safety manual

Wireless Function Edition
(PT-LB50NTE/PT-LB55NTE/PT-LB60NTE)
(PT-LB50NTU/PT-LB60NTU)
TQBH0168-1 (E/U)
M0306-1036
※ The projectors illustrated as examples are PT-LB50NTE.

2
Contents (Wireless Function Edition)
Notes on Using Wireless
Connection ……………………… 4
What you can do with Wireless
Manager mobile edition 3.0 …… 6
Check your computer ………… 8
Software Installation …………… 9
System requirements …………………… 9
Contents on Provided CD-ROM ……… 10
Wireless Manager ME 3.0 …………… 10
DirectX 9.0c …………………………… 11
Installation free Wireless Manager
ME 3.0 set up …………………… 12
Connect …………………………… 13
Select Access Port window …………… 13
Easy Wireless Set Up ………………… 14
Connection error messages ………… 16
Connect without easy wireless set up … 17
When logging on without administrator
authority ……………………………… 17
Connecting through the access point … 19
Other operations for connection …… 20
Operations when password entry is
required for connection ……………… 20
Adding and deleting connections …… 20
Searching by projector’s ID ………… 21
Canceling the connection …………… 22
Various projection methods … 23
Description of the launcher …………… 23
Live mode ………………………………… 25
Multi live mode ………………………… 26
Switching from one style to another … 26
4-screen multi style …………………… 27
4-screen index style …………………… 28
16-screen index style ………………… 30
Multiple Source Live Mode …………… 31
Multiple Source Multi Live Mode …… 33
Useful Functions ……………… 35
Selective area transmission ………… 35
Secondary display transmission …… 36
Secondary viewer ……………………… 37
One shot function ……………………… 37
Motion streaming mode ……………… 38
Shutter function ………………………… 40
Pointer function ………………………… 40
Functions used with each projection
method …………………………………… 40

3
Please note the following.
• Panasonic cannot be held liable for any direct or indirect damages resulting from
the use or malfunction of this projector.
• Panasonic cannot be held liable for damages arising from data corruption or loss
as a result of using this projector.
Contents (Wireless Function Edition) (cont.)
Setting options ………………… 42
Setting option window ………………… 42
Transmission …………………………… 42
Key setting ……………………………… 43
Other …………………………………… 44
Version information …………………… 44
Network setting of the projector … 45
Displaying the Wireless Menu ……… 45
Changing the network number ……… 46
Changing the projector name ………… 46
Password setting ……………………… 47
Verifying settings ……………………… 48
Returning to the Initial Settings ……… 48
[User] settings ………………………… 49
IP address settings …………………… 49
Wireless settings ……………………… 50
Default settings of [USER1]-[USER3] … 52
Using WebBrowser …………… 53
Before using the WEB control ……… 53
Accessing from the Web browser …… 56
Projector control window ……………… 57
Monitor information window ………… 58
Password changing window ………… 58
Network setting window ……………… 59
Software Uninstall ……………… 60 Wireless Manager ME 3.0 ……………… 60
Glossary ………………………… 61 Frequently Asked Questions … 63

4
Wireless connection function of the projector uses radio waves in the 2.4 GHz band.
A radio station license is not required, but be sure to read and fully understand the
following items before use.
Do not use near other wireless equipment.
The following equipment may use radio waves in the same band as the projector.
When the projector is used near these devices, radio wave interference may make
communication impossible, or the communication speed may become slower.
• Microwave ovens, etc.
• Industrial, chemical and medical equipment, etc.
• In-plant radio stations for identifying moving objects such as those used in factory
manufacturing lines, etc.
• Designated low-power radio stations
If at all possible, avoid the use of cellular phones, TV sets or
radios near the projector.
Cellular phones, TV sets, radios and similar devices use different radio bands from
the projector, so there is no effect on wireless communication or the transmission and
reception of these devices. However, radio waves from the projector may produce audio
or video noise.
Wireless communication radio waves cannot penetrate steel
reinforcements, metal, concrete, etc.
Communication is possible through walls and floors made from materials such as
wood and glass (except glass containing wire mesh), but not through walls and
floors made from steel reinforcements, metal, concrete, etc.
Notes on Using Wireless Connection

5
Notes on Using Wireless Connection (cont.)
Channels that can be used
The channels (frequency range) that can be used differ according to the country or
region. Refer to the table below.
Using the projector outside the country
It is forbidden to take the projector outside the country or region where you
purchased it, so use it only in the said country or region. Also, note that depending
on countries or regions there are restrictions on the channels and frequencies at
which you can use the wireless LAN.
Country or region Standard Channels used Frequency band
(Center frequency)
Japan ARIB STD-T66
1 - 13 2,412 MHz -
2,472 MHz
China SRRC
England, Germany,
France, Spain
Italy, Belgium,
Austria, Sweden,
Norway, Denmark,
Switzerland, Holland,
Finland, Portugal,
Greece, Thailand,
South Korea
ETSI 300.328
Singapore IDA
Australia,
New Zealand C-Tick
Malaysia SIRIM
United States FCC part 15 1 - 11 2,412 MHz -
2,464 MHz
Taiwan DGT

6
What you can do with Wireless Manager mobile edition 3.0
Wireless Transmission
If you install Wireless Manager mobile edition 3.0 (hereafter called “Wireless Manager
ME3.0”), you can connect the projector to a computer via the wireless LAN, and send
moving and still images.
• Easy Wireless Set Up (See page 14)
• When connecting without the administrator authority (See page 17)
• Sending data by wireless transmission while the projector is connected to the
wireless LAN. [When connecting through the wireless access point (hereafter called
“access point”※)] (See page 19)
※ “Glossary” (See page 61)
Project with various methods
<Live mode> (See page 25)
<Multi live mode>
<4-screen multi style> (See page 27)
Used for normal presentations.
Used for presentations involving multiple computers.
<4-screen index style> (See page 28)
This style is convenient in cases where you wish to
focus attention on one of four presentations displayed
simultaneously.
This style is convenient in cases where you wish to
display a large number of presentations as a list.
<16-screen index style> (See page 30)

7
What you can do with Wireless Manager mobile edition 3.0 (cont.)
Project with multiple projectors
<Multiple source live mode> (See page 31)
This arrangement can be used when a number of projectors are installed in a large conference
room, or when holding simultaneous presentations in several conference rooms, for example.
Useful functions
<Selective area transmission> (See page 35)
<Secondary display transmission> (See page 36)
You can set the computer screen and the projector screen to the multi-monitor mode,
and use the computer screen as the primary monitor and the projector screen as
the secondary monitor. This is convenient for when holding a presentation using the
projector screen while displaying reference material on the computer screen.
<Multiple source multi live mode> (See page 33)
This arrangement can be used when you wish to
simultaneously display multiple presentations using
multiple projectors.
Moving the cursor outside the computer screen with the mouse
By using the selective area window,
you can specify the necessary
information alone from the
computer screen, and display it on
the projection screen.

8
Check your computer
• First, check your computer to see whether or not it has a built-in wireless LAN※
function. ※LAN : “Glossary” (See page 61)
• Before connecting the projector to the computer, be sure to check the following
settings.
• Operation is not guaranteed for all wireless cards and built-in wireless LAN adapters.
Check 1 Wireless LAN settings
<Computer with a built-in wireless LAN function>
• Is your wireless LAN switched on?
• If your computer has a built-in wireless LAN function, use the built-in wireless LAN.
Do not insert a different wireless LAN card.
<Computer without a built-in wireless LAN function>
• Is your wireless LAN card properly recognized?
• Is the wireless LAN card switched on?
• Install the wireless card driver beforehand. For details on how to install the driver,
refer to the instructions accompanying the wireless card.
• Refer to the following URL for the types of wireless LAN cards that system operation
capabilities are confirmed.
http://panasonic.co.jp/pavc/global/projector/
Check 2 Logon user’s settings
• Have you logged in as the Administrator?
Check 3 Computer’s settings
•
When security (firewall) software and utilities for network cards are installed, these
may prevent connection of the projector.
<Windows XP>
• Is Network Bridge enabled?
• Has your firewall been disabled?
Necessary environment for computers to be connected
• This manual describes how the computer is operated using Windows XP as the
operating system.

9
Software Installation
The computer must meet the following requirements in order to use the supplied
software.
OS: Microsoft Windows 2000 Professional/XP Home Edition/XP
Professional
CPU: Pentium III or faster or compatible processor (800 MHz or faster
is recommended when using live mode and 1 GHz or faster is
recommended when playing movies.)
RAM: 256 MB or more
Empty hard disk capacity:
60 MB or more
Hardware conditions:
CD or DVD drive (for software installation and viewing the user’s
manual)
An 802.11 b/g built-in wireless LAN system or an 802.11 b/g wireless
LAN card must be installed and running properly.
However, some 802.11 b/g wireless LAN may not allow connection to
802.11 g projectors.
Web browser: Internet Explorer 6.0 or newer
Netscape Communicator 7.0 or newer
DirectX: Environment required for running DirectX 8.1b or newer
System requirements
Operation is not guaranteed for all computers
that meet the above conditions.
Note that operation is not guaranteed when used with system environments other than
the above or on homemade computers.

10
Software Installation (cont.)
This software is used to send screen images from a computer to the projector via a
wireless LAN.
Click [Wireless Manager ME 3.0].
Follow the instructions on the screen and install the software.
1

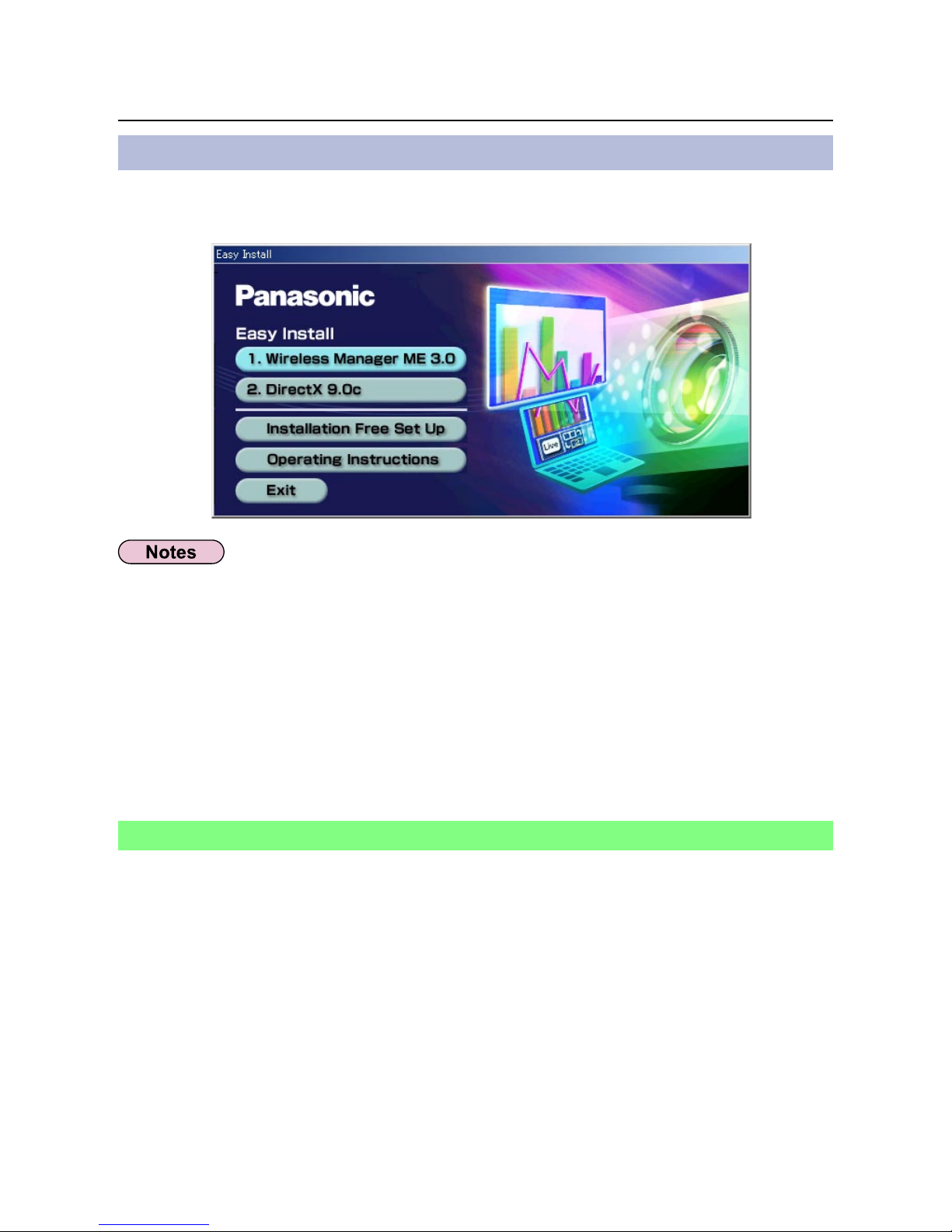

When inserting the provided CD-ROM into the computer, the installer starts up
automatically and the following screen appears.
Contents on Provided CD-ROM
Wireless Manager ME 3.0
• Shut down all software currently active on Windows. Otherwise, installation may not
be possible.
• Administrator authority is required for installation.
• If the installer does not start up automatically, double-click [EasyInstall] → [Easy_
Inst.exe] in the CD-ROM.
• If Wireless Manager ME 1.0 or 2.0 has been installed, uninstall it by following the
instructions on the screen.

11
Software Installation (cont.)
This CD-ROM includes DirectX 9.0c. To transfer moving picture using the projector,
your computer must have DirectX 8.1b or newer.
Click [DirectX 9.0c] on page 10.
The License Agreement for DirectX appears.
1
Place a check in the [I accept the
agreement] checkbox and click
[Next].
The DirectX Runtime component install window
appears.
2
Click [Next].
• The DirectX component install progress bar
appears.
• Do not perform any other operations until
installation is complete.
3
Click [Finish] when the window to
the right appears.
4
DirectX 9.0c
• Once installed, the DirectX 9.0c Runtime cannot be uninstalled.
• DirectX 9.0c is already installed in Windows XP SP 2, so there is no need to install
it again. (How to check the version of installed DirectX : Click [start]→[Run], input
[dxdiag], and click [OK]. [DirectX Diagnostic Tool] dialogue box appears, then you can
confirm the [DirectX version] in [System Information] of [System] tab.)
• In rare cases, installing DirectX 9.0c may prevent your computer from starting up
properly. Before installing, be sure to verify with the customer support office of the
manufacturer that the video card of your computer is compatible with DirectX 9.0c.
• No guarantees are made for the operation of Wireless Manager ME 3.0 with a version
newer than DirectX 9.0c.

12
Installation free Wireless Manager ME 3.0 set up
You can use Wireless Manager ME 3.0 without installing it in the computer.
If you copy Wireless Manager ME 3.0 to a removable medium, such as an SD card,
you can use Wireless Manager ME 3.0 without installing it in any computer that permits
you to access this removal medium.
Insert provided CD-ROM into the CD-ROM drive.
Setup screen appears.
1
Click [Installation Free Set Up].
[Direct CD-ROM Startup] and [Other Media Source Startup, Make Copy Here]
appear on the window.
2
Select the destination to save, and click [OK].
CD-ROM data is copied to the destination.
After the copy ends, click [End] of the setup screen.
4
Double-click the Wireless Manager ME 3.0 icon (WM.
exe) in the destination to save chosen in step 4.
Wireless Manager ME 3.0 starts up.
Operation is the same as when operating after installing CD-ROM.
If selecting removable medium as the destination to save, ensure that the
removable medium is recognized by the computer to which you wish to
connect the projector.
Some removable mediums start the program automatically.
5
• When using without installing, following functions are not available.
• Selective area transmission (See page 35)
• Secondary display transmission (See page 36)
• Motion streaming mode (See page 38)
• Producing audio along with video at live mode
• Operation is slower compared to when the computer is used with Wireless
Manager ME 3.0 installed.
3A When using Wireless Manager ME 3.0 without
copying the program: Click [Direct CD-ROM
Startup].
Wireless Manager ME 3.0 starts up, and the “Select Access Port” window
appears.
Operation is the same as when operating after installing CD-ROM.
B When copying Wireless Manager ME 3.0 : Click
[Other Media Source Startup, Make Copy Here].
A window opens to select the destination to save.
<If you chose B in step 3, follow steps 4-5.>

13
Connect
Select Access Port window
Click [ ] on the desktop,
or select [Start] → [All Programs] → [Panasonic Wireless
Display] → [Wireless Manager mobile edition 3.0].

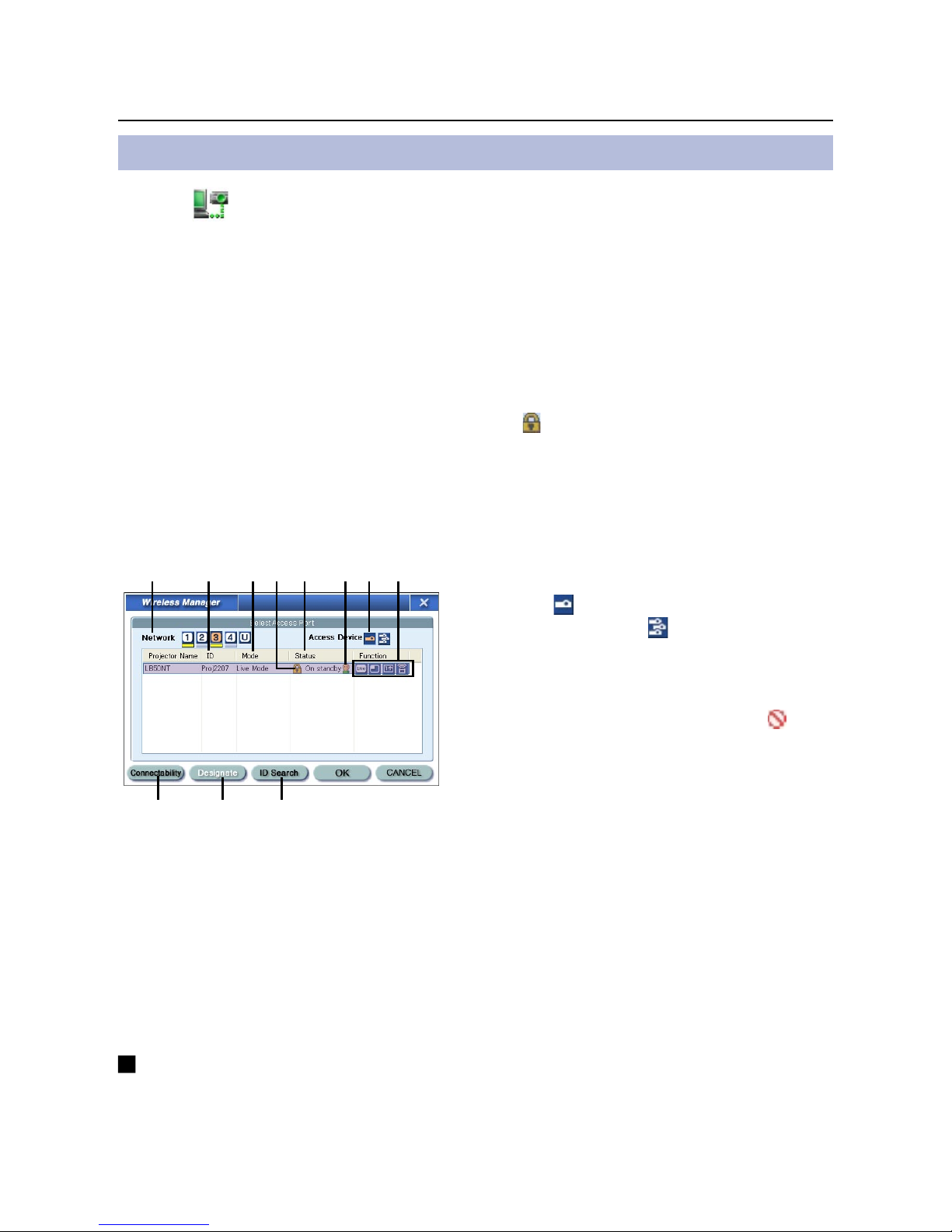

Wireless Manager ME 3.0 starts up, and the “Select Access Port” window appears.
① Network
When you specify the network number
(See page 46) set on the projector from
one of [1], [2], [3], [4], and [U (USER)]※1,
projectors that are presently switched
on in the selected network number are
displayed in [Projector Name]. The initial
value for both the computer and the
projector is [1]※2.
※1-2 (See page 15)
⑩ Designate (See page 20)
Designate projectors to be connected when
① is set to [U].
⑪ ID Search (See page 21)
When you click [ID Search], a search for
the projector of the specified ID is carried
out from among the projectors that are
presently switched on, from all channels
other than [U].
② ID (See page 21)
Display projector’s ID
③ Mode (See page 25)
Display projector’s mode or style
④ [ ] appears when password entry
is needed for connection. (See page
20)
⑤ The status of this projector
⑥ The number of people connected to
this projector.
⑦ Access Devices
When only one projector is connected,
select [ ]. When multiple projectors are
connected, select [ ].
⑧ Available mode and functions
Among [Live mode], [Multi live mode],
[One shot], and [Motion streaming],
unavailable one is displayed with [ ].
⑨ Connectability
When you click [Connectability], the
projector name and ID are displayed at
top left of the projector screen. If the
projector name and ID are displayed
correctly, the message “Projector is
available.” will appear on the computer
screen.
⑨ ⑩ ⑪
① ② ③ ⑤ ⑥ ⑦ ⑧④
How to connect
• Easy Wireless Set Up (See page 14)
• When connecting without the administrator authority (See page 17)
• Sending data by wireless transmission while the projector is connected to the
wireless LAN(When connecting through the access point) (See page 19)

14
Select the desired projectors, and click [OK].
The launcher shown below appears and the connection with the projector is
established. (“Description of the launcher” →See page 23)
The launcher always appears on the computer screen, and can be used to
perform various operations.
The launcher appears only on the computer screen and is not projected by the
projector.
6
If the computer has built-in wireless LAN or has a wireless LAN card installed, the
necessary settings will be made automatically when Wireless Manager ME 3.0 is
started.
Easy Wireless Set Up
Turn on the projector.
1
Press the [WIRELESS] button on the remote control.
Input signal is switched to Wireless on the projector.
([INPUT SELECT] button on the remote control or [INPUT] button on the
projector are also available to switch input signals.)
2
Turn on the computer.
3
Click [ ] on the desktop,
or select [Start] → [All Programs] → [Panasonic Wireless
Display] → [Wireless Manager mobile edition 3.0].
Wireless Manager ME 3.0 starts up, and the “Select Access Port” window
appears.
4
Select the network number of the desired projector
from [Network].
Projectors powered on in the chosen network group are listed.
5
Connect (cont.)

15
Connect (cont.)
• Wireless connection cannot be made between the projector and the computer. (See
page 63)
• Automatic connection setting (See page 44)
※1
• When a user logs on a computer without the administrator authority, selectable
network number is only [U].
• Depending on the computer and wireless LAN card used, easy wireless set up
may not be possible. If this is the case, the [Network] setting of “Select Access
Port” window will be switched to [U] automatically. For details of the connection
procedure, first close Wireless Manager ME 3.0, and then refer to pages 17-19.
※2
• The initial network number for both the projector and Wireless Manager ME 3.0 is
[1]. These numbers must match for the connection.
To check the network number, refer to the wireless menu of the projector.
• When importance is placed on security, select the network number [2]-[4], because
WEP (wireless communication encryption) is set on these network numbers.
• Important video/audio data is protected because AES※ encryption processing takes
place in advance for all network numbers, even if [ENCRYPTION] is set to [NONE].
※ “Glossary” (See page 62)
• Other network adapters may not be usable under easy wireless set up
connections.
• Connections to other networks connected through the wireless LAN card are
broken during easy wireless set up connections.

16
Connect (cont.)
Connection error messages
One of the following windows may appear when a wireless connection cannot be
made.
When a setting error for the wireless LAN card has been detected (See page 63)
• Is the wireless LAN card effective?
• Is your wireless LAN card properly recognized?
• Some wireless cards may allow easy wireless set up
connections to function if drivers are updated.
When the Network Bridge setting has been detected (See page 64)
If you do not expect ever to use Network Bridge and see
no need for it, delete it from your system.
When Windows Firewall has been detected (See page 65)
• Has your firewall in Windows XP been disabled?
• Is Wireless Manager ME 3.0 registered in
[Exceptions] ([Control Panel] → [Security Center] →
[Windows firewall]) with the Windows XP SP 2?
When another firewall has been detected (See page 66)
Are any firewall-containing applications installed?
When the user does not have the administrator authority (Next page)
If you have logged onto a computer as a [GUEST]
or a restricted user who does not have administrator
authority, you can not perform easy wireless set up
(Network No. [1] – [4]). If you must perform easy
wireless set up without administrator authority,
designate [U] as the network number.
When a change in the settings made by the utility has been detected
The wireless LAN utility used by the computer may have
changed the wireless settings. Close the utility, and then
make the connection again using easy wireless set up
connection.

17
Connect (cont.)
Before starting Wireless Manager ME3.0, it is necessary to carry out “Computer
settings” (② on this page) under the administrator authority in advance.
Next, logon as a restricted user or [GUEST], and start Wireless Manager ME 3.0.
Confirm to your system administrator before changing any settings.
Following settings are examples of when using a default setting projector.
① Projector settings ※“Glossary” (See pages 61-62)
1Turn on the projector and press the [WIRELESS]
button on the remote control.
2Select [USER 1]- [USER 3] from [NETWORK] at the
wireless menu and press the [ENTER] button.
② Computer settings
4
Turn on the computer and log on with the administrator
authority.
Click [Start] → [Control Panel] → [Network and Internet Connections] →
[Network Connections], right click [Wireless Network Connections], and click
[Properties], then [Wireless Network Connection Properties] window appears.
3Set the details of network and select [OK].
As for network setting items, see pages 49-52.
Confirm to your system administrator before changing any settings.
<Example>
5Select [Internet Protocol (TCP/IP※)] on [General] tab,
and click [Properties].
[Internet Protocol (TCP/IP) Properties] window appears.
DHCP※OFF
IP ADDRESS※192.168.10.100
SUBNETMASK
※255.255.255.0
SSID※Panasonic Projector
MODE AD HOC※
AUTHENTICATION
OPEN
※
( Some computers may require connection by [SHARED
※
] authentication.)
ENCRYPTION NONE…When not performing encryption
WEP…When performing encryption
ENCRYPTION KEY
SETTING
When [ENCRYPTION] setting is [WEP※]:
DEFAULT KEY : Set 1 – 4 numerals for the default key.
KEY 1 – 4 : Set these to match the WEP key registered
in [DEFAULT KEY].
Connect without easy wireless set up
When logging on without administrator authority

18
Connect (cont.)

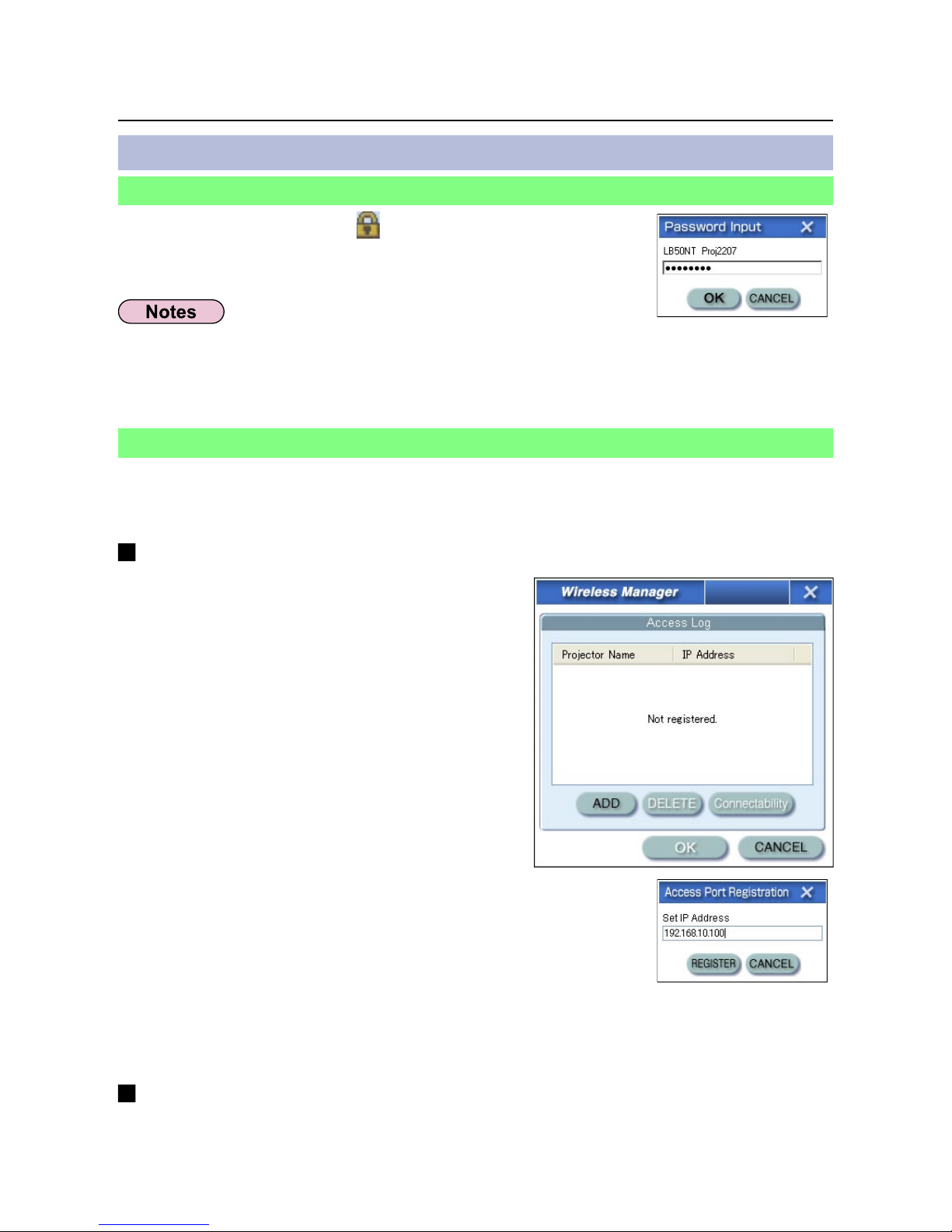

If the projector is not displayed, click [Designate] followed by [ADD], then enter
the IP address set in the projector using the “Access Port Registration” window,
and click [REGISTER]. (See page 20)
8Make the SSID, network authentication, data
encryption and communication mode settings the
same as those of step 3, and click [OK].
12
Start Wireless Manager ME 3.0, and select [U] from
[Network] of “Select Access Port” window.
13
Select the desired projector, and click [OK].
The launcher appears and the connection with the projector is established.
(“Description of the launcher” →See page 23)
9Click [OK] in [Wireless Network Connection Properties]
window.
The connection with the projector is established.
10
Click [Start]→[Log Off] and log off from the computer.
11
Log on with the user who operates Wireless Manager
ME 3.0.
7Click [Add] of [Preferred networks] on [Wireless
Networks] tab in [Wireless Network Connection
Properties] window.
[Wireless network properties] window appears.
③ Computer operation
6
Select [Use the following IP address] on [General] tab,
enter the IP address and Subnetmask, and click [OK].
Make the IP addresses of the upper three of the four break points the same
value as that of the projector, and change the value of the last break point
alone.
Make the Subnetmask as the same value as that of the projector.

19
Connect (cont.)
You can make the setting for infrastructure mode※ (connection through the access
point); however, confirm to your system administrator on network settings before
changing any settings.
※“Glossary” (See page 62)
① Projector settings
1Turn on the projector and press the [WIRELESS]
button on the remote control.
2Select [USER 1]- [USER 3] from [NETWORK] at the
wireless menu and press the [ENTER] button.
3
Set the details of network and select [OK].
As for network setting items, see pages 49-52.
Confirm to your system administrator on network settings before changing any
settings.
② Computer settings
4Turn on the computer.
5Make the network setting according to your system
administrator.
6
Connect to your access point.
If the projector is not displayed, click [Designate] followed by [ADD], then enter
the IP address set in the projector using the “Access Port Registration” window,
and click [REGISTER]. (See page 20)
7Start Wireless Manager ME 3.0, and select [U] from
[Network] of “Select Access Port” window.
8Select the desired projector, and click [OK].
The launcher appears and the connection with the projector is established.
(“Description of the launcher” →See page 23)
Connecting through the access point

20
Connect (cont.)
※“Glossary” (See page 61)
The newly registered connection is added to the
connection list in the window shown in step 1.
Click [ADD] and enter the IP address※
(including its periods) of the
connection to be added, and then
click [REGISTER].
2
Click [Designate] at the
“Select Access Port”
window.
The window shown to the right appears.
1
When [Network] is set to [U] and the desired projector is not displayed at the “Select
Access port” window, connections can be added and deleted by the following
operations.
Adding a connection
When a projector with the [ ] mark is selected, the window
shown to the right appears. Enter the password and click [OK].
(See page 47)
Deleting a connection
Select the connection to be deleted at the window shown in step 1 and click
[DELETE].
Other operations for connection
• Click [CANCEL] at the password entry window to return to launcher (See page 23).
• When an incorrect password is entered, an error message appears. Click [OK] to
return to the password entry window and enter the correct password again.
Operations when password entry is required for connection
Adding and deleting connections
