Panasonic NR-E411GH-N3 User manual

雪櫃（只供家用）
使用說明書
Model No./ 型號 NR-E411GH-N3
English
中文
Operating Instructions
Refrigerator (Household use)
感謝您購買Panasonic的產品。
在使用本產品前，請仔細閱讀本說明書。
請妥善保存本手冊以備將來參考。
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before using this product.
Please keep this manual for future reference.

Disposal of the packaging
Please recycle reusable materials (such as cardboards, plastic bags, tapes, and foam plastics) as
much as possible and ensure the proper disposal of other packaging materials.
The packaging bags shall be placed in a location out of the reach of children to prevent children
from being injured or suffocated.
To save energy
Do not stuff up foods into the compartments.
Otherwise, it may obstruct the entry of cold air. Keep enough space between foods.
Open the door only when needed.
Reduce the number of times of opening/closing doors, prevent the escape of cold air, and reduce power
consumption.
Do not let foods block the cold air outlet.
If the cold air cannot fill all corners of the compartments, the refrigeration interior cannot reach cold storage
effect and more electricity will be consumed.
The cold air is discharged from the exhaust pipe at the back.
Store foods and beverages after they are cooled.
Otherwise, they will not only increase the temperature inside the refrigerator, but also affect the preservation
of other foods.
This appliance is intended to be used in household and similar applications such as
-staff kitchen areas in shops, offices and other working environments;
-farm houses and by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
Introduction
Contents
Introduction Safety instructions...................................................................................................... 3
Installation Installation ...................................................................................................................6
Selection of the correct locations........................................................................6
Operation To use all Features......................................................................................................8
Control panel.................................................................................................8
ECONAVI operation modes
nanoeTM X operation modes
Refrigerator compartment
Prime Fresh compartment
Fresh Freezing compartment
Ice Making compartment
Freezer compartment
Vegetable compartment
Appendix Cleaning, removing and re-installing ......................................................................19
Cleaning
Troubleshooting
In these cases?
If the following sounds or indications are generated
Specifications
Separately sold parts
........................................................................11
.......................................................................11
...........................................................................12
..........................................................................14
.....................................................................15
.............................................................................16
..................................................................................18
..............................................................................18
......................................................................................................19
........................................................................................................22
........................................................................................................25
............................................26
............................................................................................................27
................................................................................................27
2

English
Introduction
Safety instructions
What the symbols mean.
Indicates risk of death or serious injury.
WARNING
For power plugs and cords…
Do not
Do not take apart
Make sure
you do this
Indicates the appliance must be
earthed to prevent electric shock.
Warning:
Risk of fire / flammable materials
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the power cord or plug of the appliance is damaged, it must be replaced by the manufacturer or
its service agent or similarly qualified person in order to avoid a hazard.
WARNING: Fill with potable water only.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
Do not use extension cords.
Do not insert or disconnect the power plug into/from the wall socket with wet hands.
Do not damage the power plug or cord. Do not cut or process the plug or cord; do not expose
them to high temperatures; do not excessively bend, twist or pull them; do not place heavy
objects onto them; and do not arrange them in bunches.
Contact your dealer for repairing the plug or cord.
Do not push the rear of the refrigerator against the power plug.
Do not use while the cord or power plug is damaged, or while the plug is not fully inserted into the
outlet.
Periodically remove dirt such as dust from the power plug,.
Plug into a wall outletof the rated voltage on its own with the rated current and insert plug fully.
When disconnecting the power plug, hold the plug itself not the cord.
Disconnect the plug when cleaning the refrigerator.
If you do not intend to use the refrigerator for an extended period of time, discnnect it.
(Otherwise, it may cause a fire or electrical shock.)
3
WARNING: Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturee.
WARNING: Do not damage the refrigerant circuit.
(Otherwise, the flammable refrigerant may catch fire and lead to explosion.)
WARNING: Do not use electrical appliances inside the food storage compartments of the
appliances,unless they are of the type recommended by the manufacturer.
(If the refrigerant leaks, it may catch fire due to sparks on the contacts.)
Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.

4
Stop using the refrigerator immediately and pull out the plug,
if there is an abnormality or failure.
(Otherwise, it may cause smoke, a fire or electrical shock.)
Abnormality and failure examples
Power cord or plug is abnormally hot
Power cord is deeply cut or deformed
There is a burning smell
You can fell tingly electricity
Contact the dealer immediately for inspection and repair.
On top of the refrigerator…
Do not put anything.
Otherwise, it may fall due to vibration and cause injury.
Do not put anything on the top cover.
(Otherwise, parts may be deformed and may cause electrical shock.)
When Using…
Do not hang or ride on the door.
Do not apply water on the body or interior .
(Otherwise, electrical insulation deteriorates and may cause an electric shock or fire.)
Do not touch the mechanisms above the ice-making-tray.
Do not remove the ice-making-tray when the ice making function is operating.
Do not store flammable items in the refrigerator.
Do not store chemicals or scientific specimens.
Do not spray combustible chemicals near the refrigerator.
Do not add a high impact on glass doors.
(Otherwise, glass may be broken and cause injury.)
If you find a crack, do not touch the glass and consult your dealer immediately.
When installing…
Do not install the product in lacations exposed to water.
Do not fill the gaps around the refrigerator.
(If the refrigerant leaks, it may catch fire.)
When disposing and recycling the product…
When a concern exists for possible entry of a child during cecycling, remove the door packing.
Flammable gas is used for refingerant.
And cyclo-Pentane is used for insulation of the refrigerator.
When you throw away this product, please dispose it by proper method.
The warning labels mentioned above should be kept throughout the life of the refrigerator.
This manual should be handed over to any person who would use or handle the refrigerator
whenever the refrigerator would be transferred to another location or delivered to a recycling plant.
Provide safety measures against overturning caused by sush as earthquakes.
Ensure that the refrigerator is plugged into an earthed mains socket.
Do not plug into an unearthed mains socket. (3-pin plug)
Children should be supervised to ensure that the refrigerator should be used properly.
Introduction
Safety instructions

5
Introduction
In case of emergency…
When storing food…
Indicates risk of injury or damage to property.
CAUTION
Absolutely do not open the top cover and the back cover.
Absolutely do not disassemble, repair or modify the refrigerator.
(Otherwise, it may cause injury, burn or electric shock.)
If you detect a gas (such as city gas) leak, please do not touch the refrigerator and open the
windows to ventilate the kitchen.
A flammable refrigerant is used. If you have damaged the cooling circuit (pipe), open the windows
to ventilate the kitchen and contact your dealer.
Maintenance work must only be carried out at workshop by well-trained maintenance worker.
(Otherwise, it may cause an electrical shock, ignition or explosion.)
Do not add a high impact on glass trays.
(Otherwise, the glass trays may be broken and you may be injured.)
Do not allow foods to protrude from theglass shelf.
Do not store food containers on the door shelves if they do not reach the bottom of the shelves.
(Otherwise, food may fall and cause an injury.)
Do not freeze bottles.
(If the liquid in a glass bottle is frozen, the bottle may be broken and you may be injured.)
Do not touch frozen foods or containers (especially metal ), aluminum plates with wet hands.
(Otherwise, you may get frostbite.)
Do not eat food that has an unusual odor or is discolored.(Rotten food may cause illness.)
When opening/closing the doors…
Do not open/close it if others come into contact with the refrigerator.
Do not put your fingers in the gaps on the side of the refrigerator compartment
door when opening/closing the door.
Do not open/close the ice compartment and the fresh freezing compartment
with holding the top side of the drawer.
Do not place your feet under the bottom drawer.
(Otherwise, your toes may get caught.)
Do not open or close the door with excessive force.
(Otherwise, food may fall and cause an injury.)
When cleaning…
Do not touch a metal rails directly.
Do not put hands or feet beneath the bottom of the refrigerator.
(The edge of the metal panel may cause an injury.)
When moving or transporting the refrigerator…
Fix the refrigerator with adjustable legs on the flat and stout floor.
(Otherwise, the refrigerator moves or fovertums and may cause an injury.)
Apply protective covering, etc. to floors with a fragile surface.
When transporting the refrigerator, hold the carrying handles and move with
at least 2 people.
(Otherwise, your hands may slip and cause an injury.)
Please be careful when you fit or remove a glass shelf.
(Dropping glass shelves may cause shelf damage or an injury due to broken shelves.)
English

6
Installation
Installation
Choose the right location
1. Placement environment for the refrigerator.
Keep away from heat sources and avoid direct
sunlight to minimize the impact on the refrigeration
capacity and prevent electricity waste.
Choose a well-ventilated location with low humidity
to avoid rust or condensation.
Solid and flat floor
When placing the refrigerator on a floor covered with
carpet, tatami mat or vinyl, place a solid base plate
under the refrigerator to prevent deformation or
discoloration of the carpet.
Place the refrigerator away from other equipment to
prevent noise interference and incorrect images from
being displayed on the TV and other equipment.
Place it in a place where it is easy to clean the power
socket.
Clean the dust regularly.
(So as not to cause fire.)

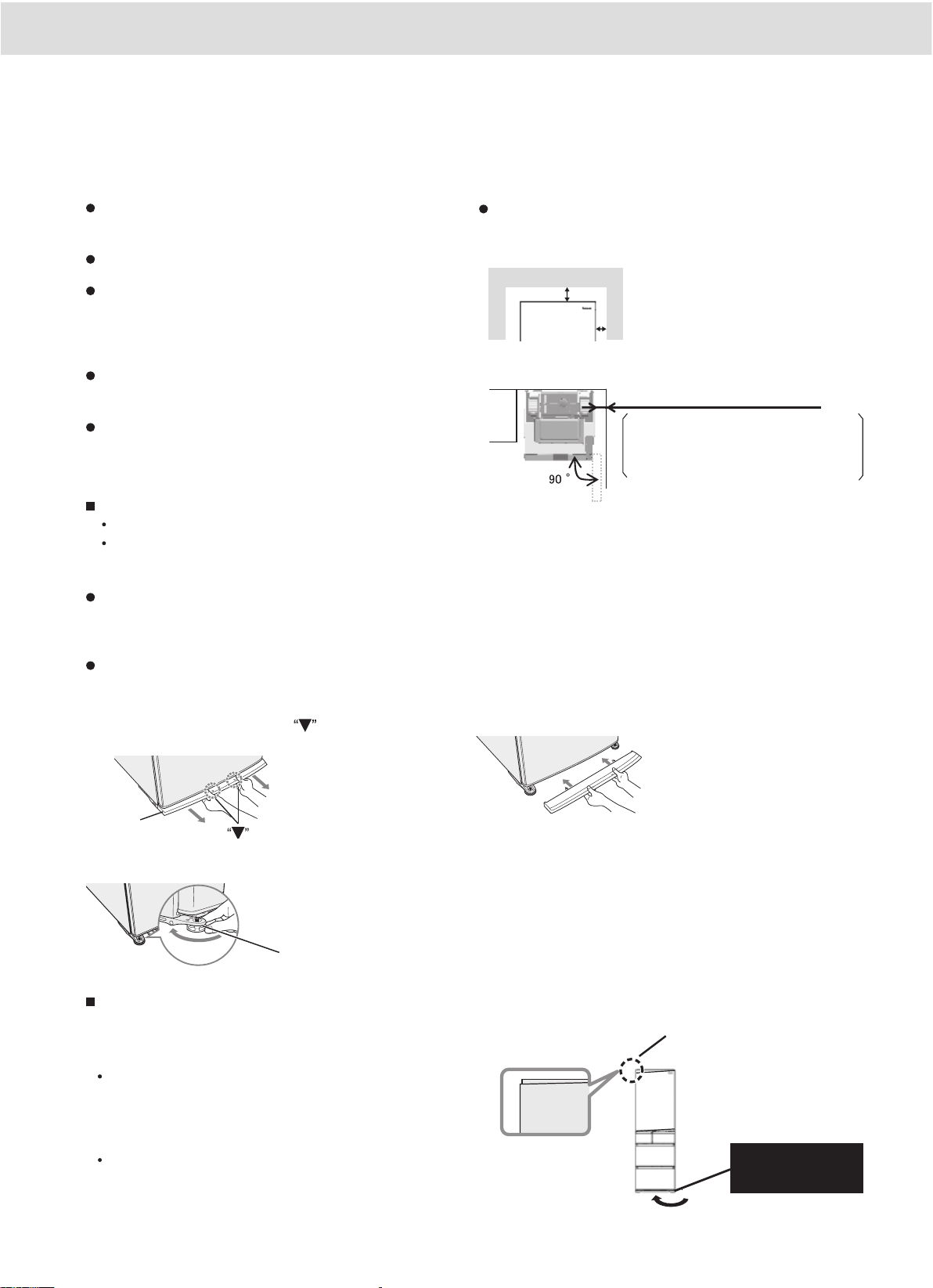

2. Installation of the refrigerator
If the refrigerator is not installed on a stable ground, knocking sounds are heard when opening/closing the
refrigerator door.
(This may affect the performance of the refrigerator.)
Install the refrigerator on a solid and flat floor.
The refrigerator door may be lowered due to the inclination of the installation site or the floor.
The refrigerator doors tilt downward.
Rotate the adjustable leg on the lower side to
adjust the refrigerator till level and stable, as
shown in the photo on the right.
The refrigerator door may tilt due to foods stuffed
inside or its adaptation to the ground within four
to five days after the installation of the refrigerator.
In this case, readjust the adjustable leg till the
refrigerator becomes stable.
If the refrigerator door remains tilted, then adjust
the base plate underneath the refrigerator.
①Remove the leg cover
Insert both hands under the on both sides of
the leg cover and pull it out.
③Put back the leg cover.
②Rotate the adjustable legs (on the right and left)
to keep the refrigerator stable.
leg cover
Adjustable legs
When the door is lowered
Before using the refrigerator for the first time （P.19～P.21）
Please wipe the refrigerator interior with a damp soft cloth.
Raise the water supply tank, water purification filter, and ice-making tray.
Location with good heat dissipation
When vibration noise, discoloration of the wall, or the
condensation on the back causes disturbance, place
the refrigerator 20mm or more away from the wall.
20mm or more above the refrigerator
15mm or more from left and right*
15mm or more from the wall
*If the refrigerator is installed against the wall.
(Top view.)
If the space left is less than 15mm,
the refrigerator door cannot be
opened more than 90°, and
glass trays, etc. may not be
taken out.
Lower the
adjustable legs on
the right side

7

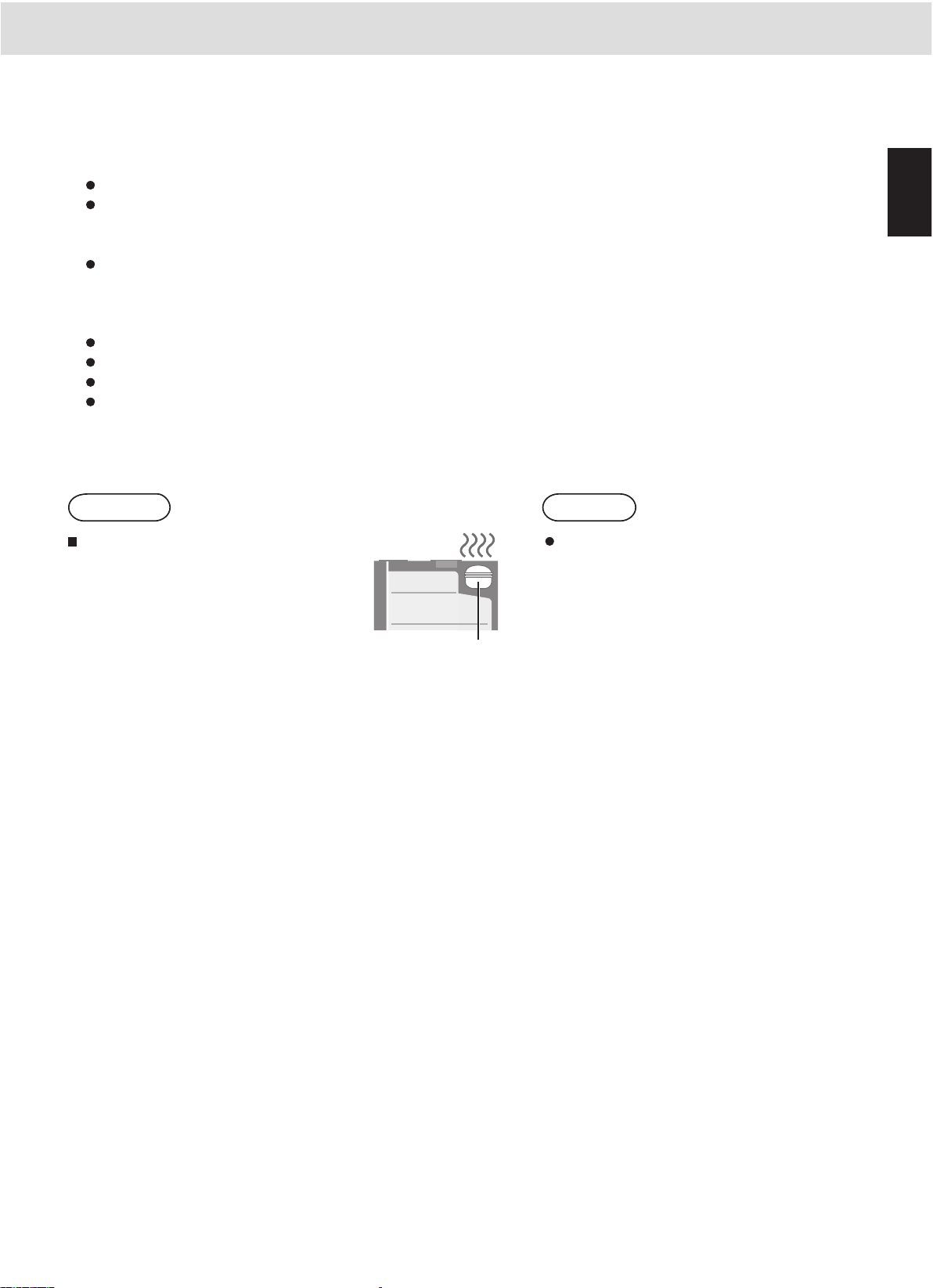

3. Plug the power plug into the wall outlet.
Insert the power plug into its matching wall outlet with rated voltage and current.
4. Cooling the refrigerator interior
Requests
Do not place items on the top
of the refrigerator.
Notices
It takes about 4 hours to cool the refrigerator interior.
In summer, it takes 24 hours or longer to cool the refrigerator interior evenly.
The ice can be made only after the refrigerator interior is completely cooled.
Do not open/close the refrigerator doors until the refrigerator interior is completely cooled.
(The warm air flow is to enter the refrigerator interior and hinder the cooling function.)
The operation of the compressor
on the top of the refrigerator also
generates heat.
If the heat builds up without release, it
may reduce the cooling capacity of the
refrigerator.
After installation of the refrigerator, the noise
gets louder. This is because the refrigerator
interior has not cooled down yet, and the
compressor or fan rotates at a high speed,
which is a normal phenomenon.
(After the refrigerator interior cools down, the
noise is also reduced.)
The power plug can be plugged into the socket immediately after installation of the refrigerator.
When the power is turned on, the periphery and surface (sides) of the refrigerator may be very hot.
(When the ambient temperature is 30°C, the temperature of the refrigerator is about 50°C to 60°C), which is
normal. (P. 23)
After unplugging the power plug, wait at least 10 minutes before plugging the power plug again. (P.25)
compressor
Installation
English

8

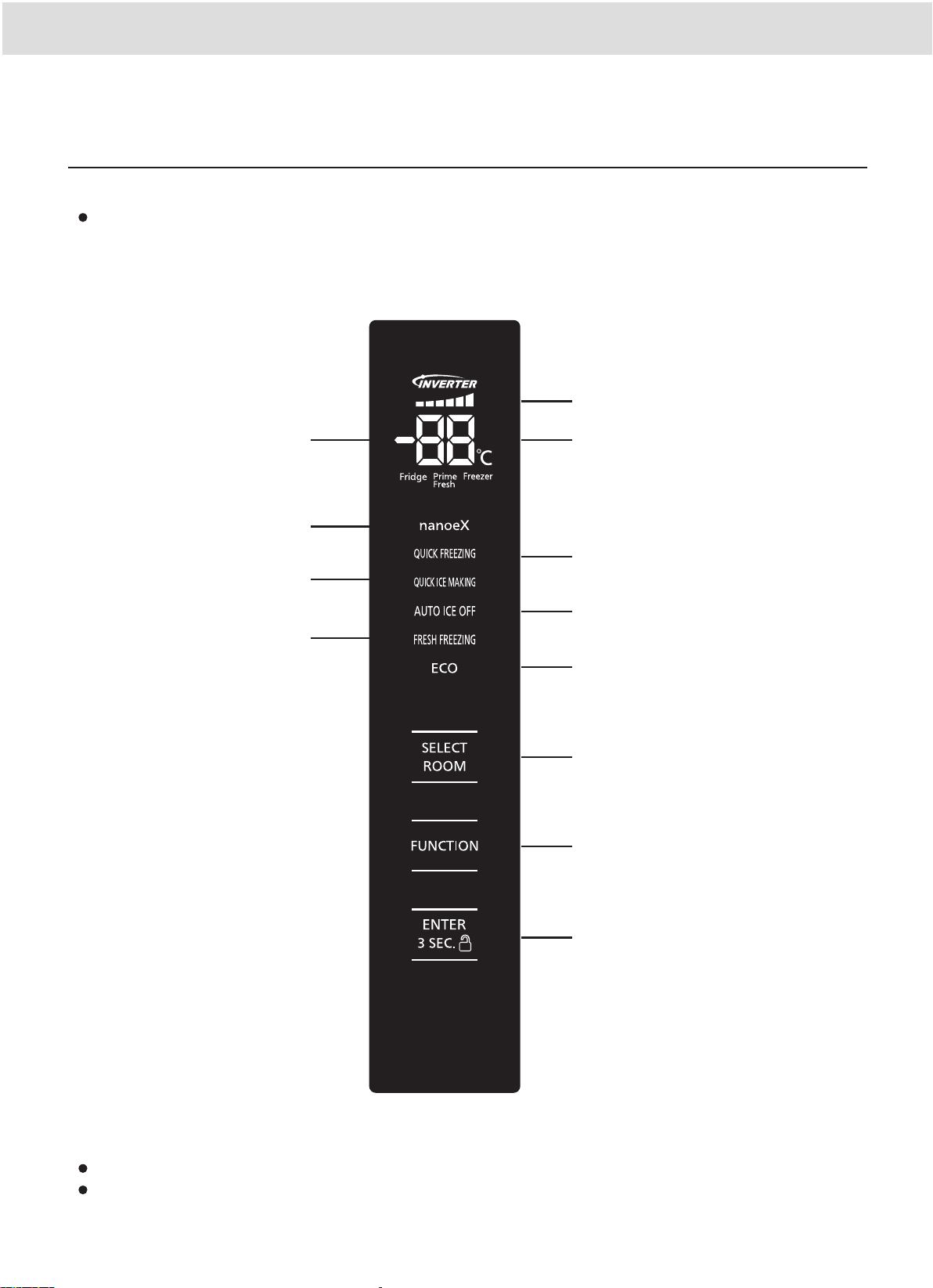

Operation
To use all features
Usually the LED lights are off to save power.
When the power is turned on, all the LED function lights light up and flash for 6 seconds, and the temperature
display area flashes in loop to indicate that the fridge compartment is 8℃, the prime fresh compartment is 8℃,
and the freezer compartment is -12℃.
For the sake of illustration, all contents are the status displayed.
The setting can be changed only when the refrigerator doors are closed.
Notification LED
Cooling power standard LED
Used to display the cooling power
standard of the refrigerator
(Compressor operating status)
Display the temperature settings of the
Refrigerator Compartment, Prime Fresh
Compartment, and Freezer Compartment.
Quick freezing
always on during quick freezing
Auto ice off
always on during auto ice off
ECONAVI
always on during ECONAVI
Compartment selection keys
Used to select Refrigerator
Compartment, Prime Fresh Compartment,
and Freezer Compartment when
setting the temperature
Function selection keys
Used to select the required functions
Setting key/Unlock key
Set the temperature value, and set or
cancel the function
Press and hold the key for 3 seconds to
unlock
nanoeTM X
always on during nanoeTM X
quick ice making
always on during quick ice making
Fresh freezing
always on during fresh-freezing
Control panel

9
Operation
Adjust the temperature
When the refrigerator leaves the factory, the default temperature settings for the fridge compartment , the
prime fresh compartment , and the freezer compartment are 4℃, 0℃, and -20℃respectively.
The set temperature range of the fridge compartment is 7℃～2℃, the set temperature range of the prime
fresh compartment is 4℃～-3℃, and The set temperature range of the freezer compartment is -17℃～-23℃.
To change the refrigerating state, simply adjust the temperature.
Choose [Fridge], [Prime Fresh], or [Freezer]
① Press and hold the key for more
than 3 seconds to unlock the control panel.
② Press to make the desired
compartment to flash.
③ Press to set the setting values
to be changed.
If there is no key operations in the unlocked state, the control panel will be locked automatically after 10 seconds.
When the LEDs on the control panel go out, please restart the setting mode.
Due to different test methods and tools, the actual test temperature is slightly different from the displayed
temperature.
Change the option to the desired setting.

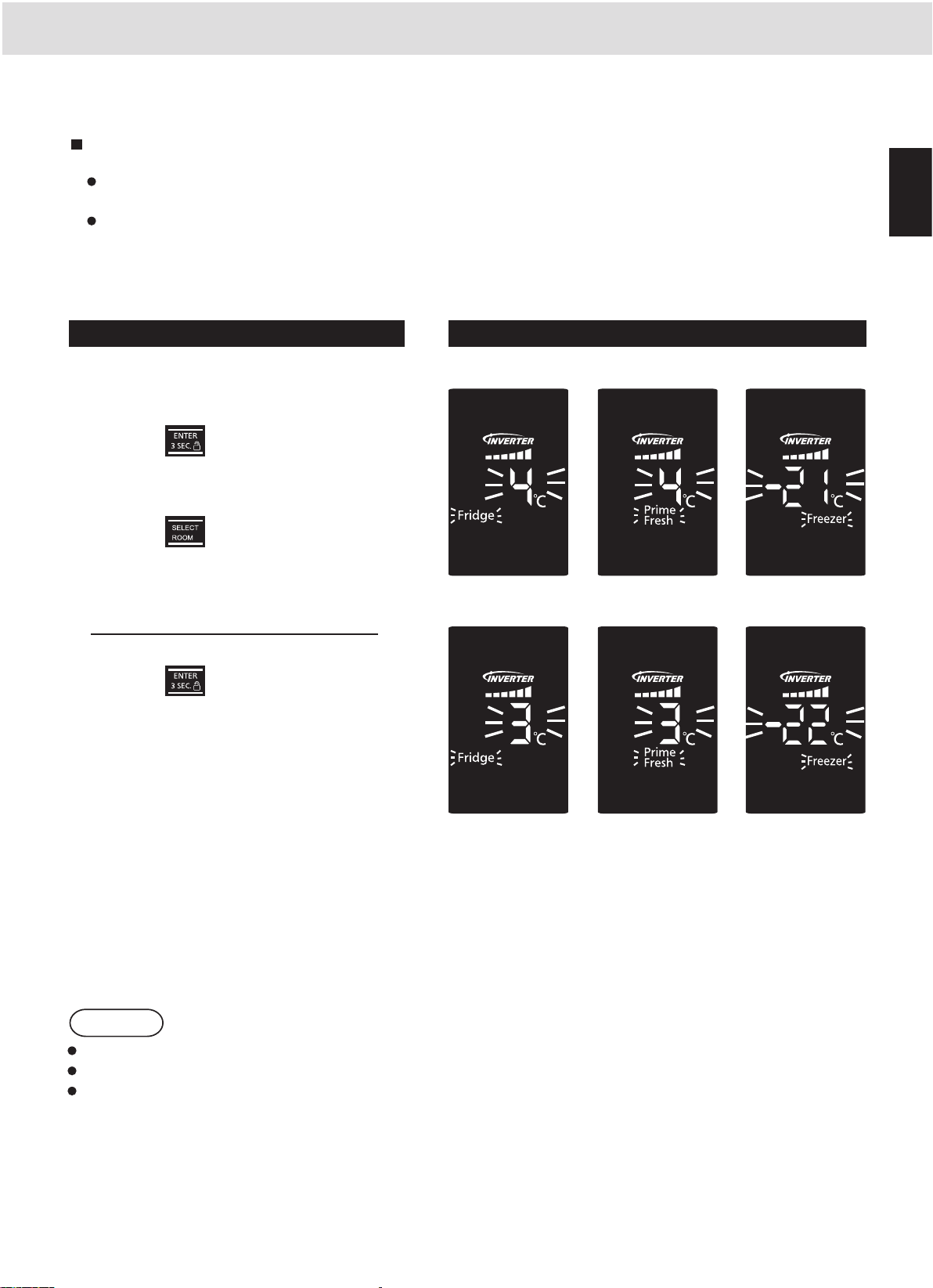

Steps Displays
[Fridge] [Prime Fresh] [Freezer]
Notices
The temperatures of Vegetable compartment, Ice compartment and Fresh Freezing compartment cannot be set
separately.
* When the temperature of Refrigerator compartment is set, the temperature of Vegetable compartment will
change accordingly.
* When the temperature of Freezer Compartment is set, the temperatures of Ice compartment and Fresh Freezing
Compartment will change accordingly.
English

10
Operation
Steps Displays
① Press and hold the key for more
than 3 seconds to unlock the control panel.
② Press to select the function to be set.
③ Press to set the function to be set.
When the LEDs on the control panel go out, please restart the setting mode.
Notices
Setting functions
To use all features

11
①②③
④
Operation

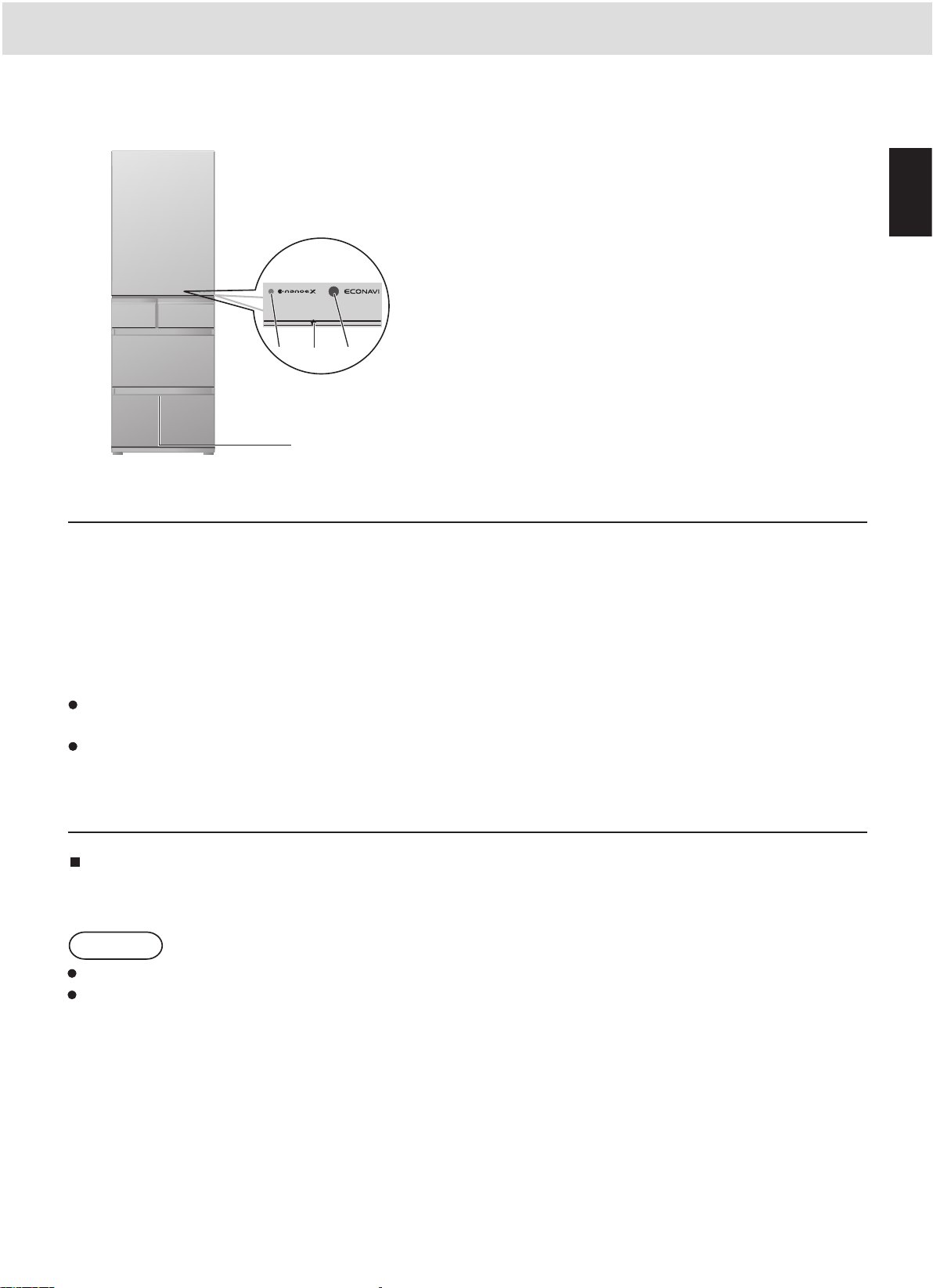

Descriptions of parts related to nanoeTM X and ECONAVI functions
① nanoeTM X LED
② Light intensity sensor
It can perceive the brightness of the light around the refrigerator
③ ECONAVI LED
Light up:
When the ECONAVI function is on, the ECONAVI LED lights on
for about 5 minutes before it goes dimmer.
④ nanoeTM X air outlet
(Top of the Fruit & Vegetable Compartment)
ECONAVI operating mode
nanoeTM X operating mode
When the ECONAVI function is on:
Through the opening/closing frequency of the refrigerator doors, the pace of life and the time period when the
frequency of use is low can be derived. Meanwhile, when the ambient light around the refrigerator becomes dark,
the ECONAVI function starts to operate.
When the ECONAVI function is operating, the ECONAVI LED lights on.
When the ECONAVI function is operating, the refrigerator can automatically reach the best refrigerating operation
state through sensing the number of times the refrigerator doors opened and closed, and the brightness of the
ambient light surrounding the refrigerator.
The the ECONAVI function is not operating when any refrigerator door is opened or closed and the temperature
in the Refrigerating Compartment rises.
When the ECONAVI function is operating, the set temperature and displayed temperature of the refrigerator may
be different.
A nanoeTM X is a nano-sized ion particle coated with water particles.
nanoeTM X are nano-size electrostatic atomized water particles with 10 times the OH radicals of nanoeTM .
The operation mode of nanoeTM X is switched automatically regardless of temperature setting.
The nanoeTM X emission outlet is on the ceiling side of the vegetable compartment.
nanoeTM X is generated by gathering moisture in the air and the effect may change.
Notices
English

12
Operation
To use all features
Refrigerator compartment
Prime Fresh compartment
Room lamp
(LED)
Tray
Slide tray
Partition shelf
Water
supply tank
Mini door shelf
Egg tray
Door shelf
Prime Fresh
Room lamp
(LED)
Bottle shelf
The temperature can be set 4 ℃～-3℃
to suit the type of foods.

13
Slide tray(the third shelf from the top)
Glass tray(the second shelf from the top only)
Operation

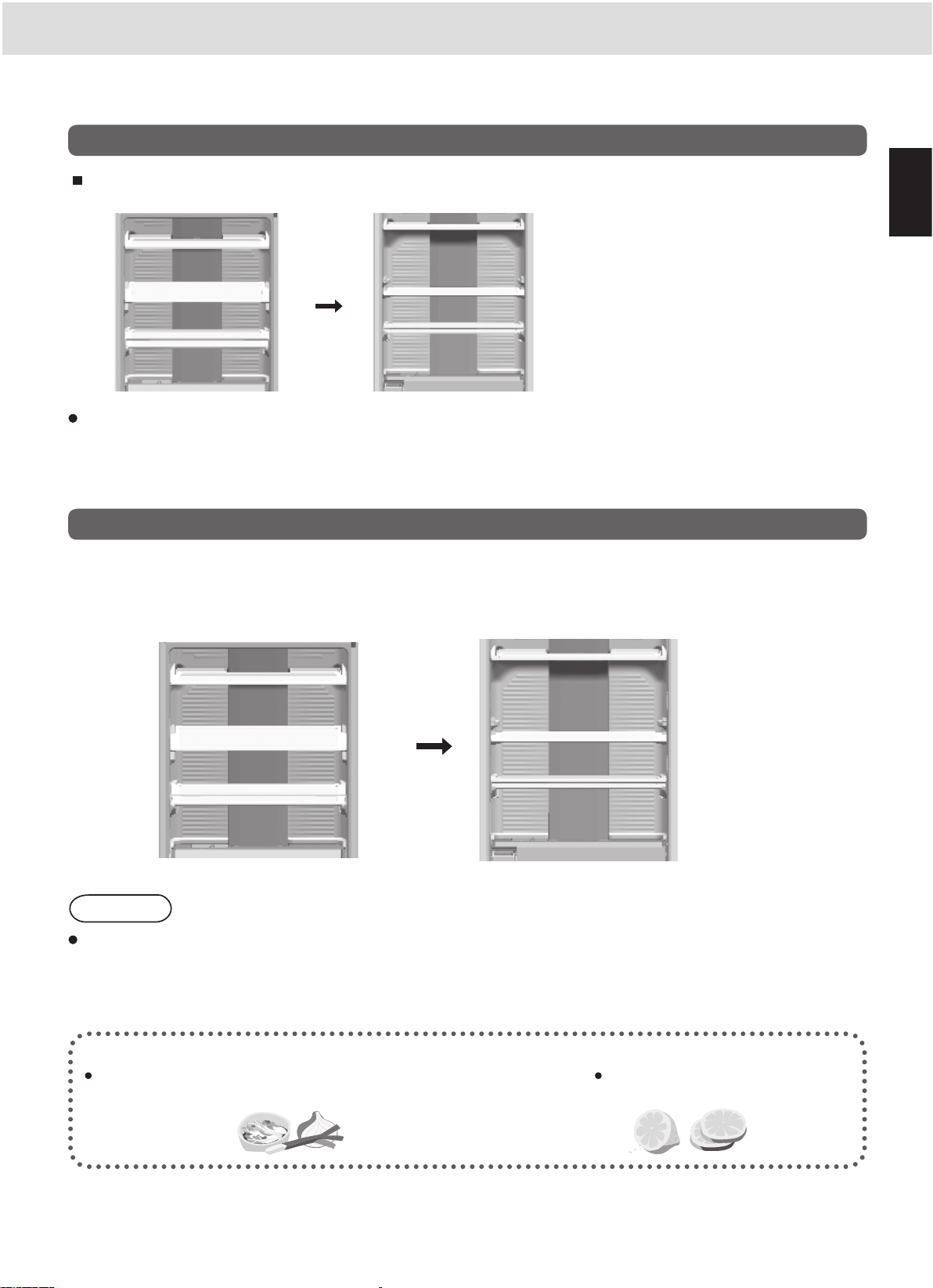

Slide the front part of the shelf backwards to put taller items in the front.
Shelf Raise the inner side of the Shelf (the second shelf from the top) slightly and then pull the shelf
forwards. Place the removed shelf at the desired position to change the height between the Storage
Shelves.
Large jars can be easily placed.
Any high-moisture foods placed in front of the air outlet may be excessively cooled or frozen.
(Especially when the sparkling water freezes, there exist risks of explosion.)
Requests
Put the following foods in airtight containers or wrap them in plastic wrap.
Green Chinese onions or other vegetables with strong smells.
(→The peculiar smells tend to permeate to other foods.)
Freshly-cut citrus fruits.
(→The plastics turn white.)
English

14
Operation
To use all features
Prime Fresh compartment
The set temperature range of the prime fresh compartment is 4 ℃～-3℃. Please set up the temperature of the
Prime Fresh compartment according to different intended use purposes for the foods.
When the set temperature range of the prime fresh compartment is 4 ℃～2℃, it can be used as a Refrigerator
compartment.
When the set temperature range of the prime fresh compartment is 1 ℃～-3℃, it can be used as a mild cooling
compartment. Please do not store those foods that area prone to spoilage in low temperature, such as bananas,
melons, etc.
When the set temperature range of the prime fresh compartment is 1 ℃～0℃, it is suitable for the storage of
dairy products and processed foods.
When the set temperature range of the prime fresh compartment is -1 ℃～-3℃, it is suitable for the storage of
those foods that can be preserved for short-term only, such as fresh fish, meat and fresh foods.
When the Prime Fresh compartment is set with a different temperature range, the color of the Prime Fresh
compartment LED varies accordingly.
When the set temperature range of the prime fresh compartment is 4 ℃～1℃, the Prime Fresh compartment
LED lights on in white.
When the set temperature range of the prime fresh compartment is 0 ℃～-2℃, the Prime Fresh compartment
LED lights on in light blue.
When the set temperature range of the prime fresh compartment is -3℃, the Prime Fresh compartment LED
lights on in blue.
Setting functions

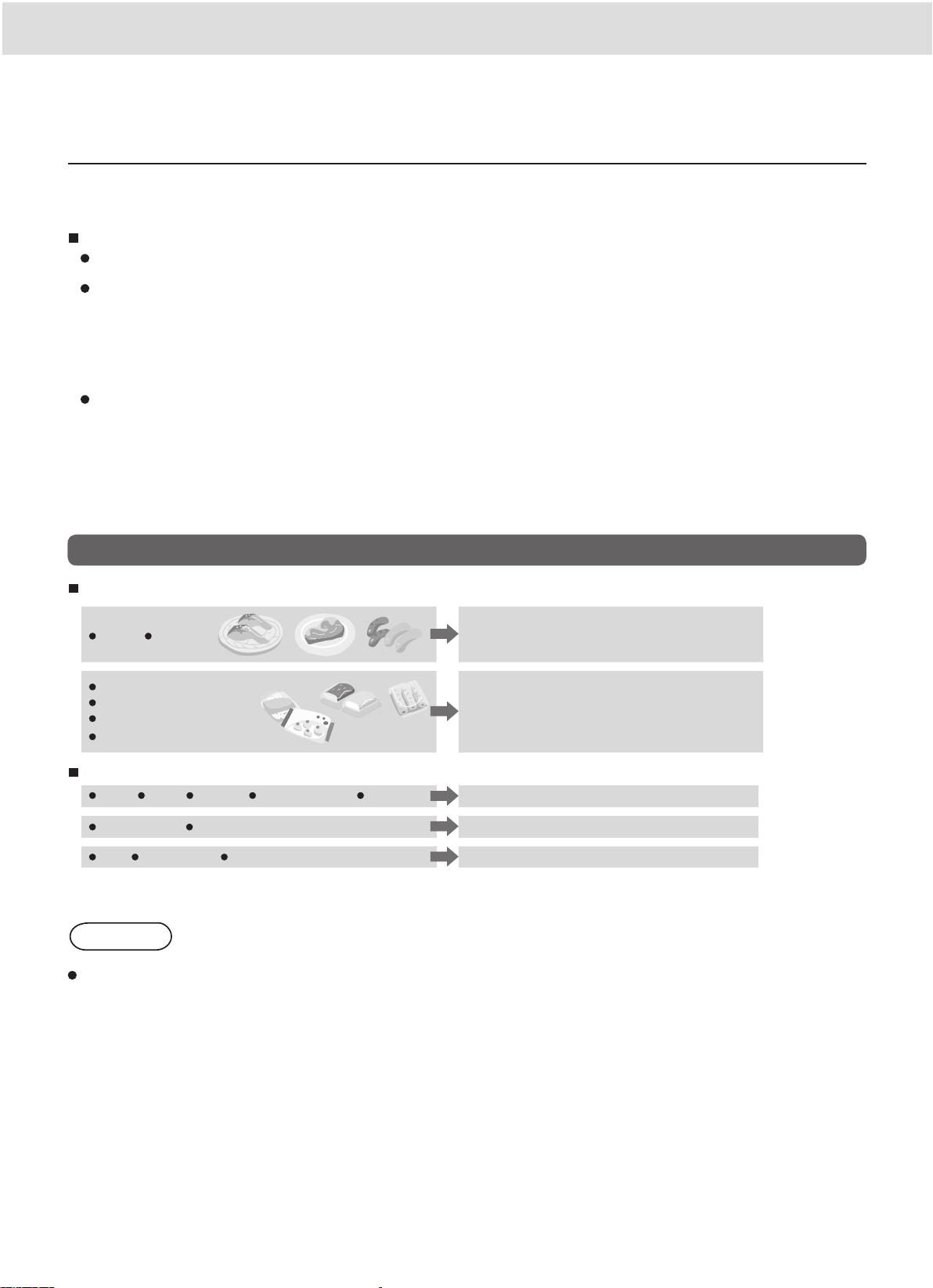

Which kinds of settings are suitable for these foods?
What kinds of foods are not suitable to be put in the Prime Fresh Compartment?
Storage tips
Meat Fish
Egg Milk Water Orange juice Tofu Refrigerating compartment
Vegetable compartment
freezer compartment
The set temperature range of the prime
fresh compartment is -1 ℃～-3℃
The set temperature range of the prime
fresh compartment is 1 ℃～0℃
Refrigerated food
Cheese
Whipping cream
Cooked noodles
Vegetables Fruits
Ice Ice cream Frozen foods
Requests
When changing the temperature settings, please ensure to replace with the foods that suit the temperature settings.

15
Fresh Freezing compartment
Perform the fresh freezing operation in 3 steps:
Using "Fresh Freezing "
Operation

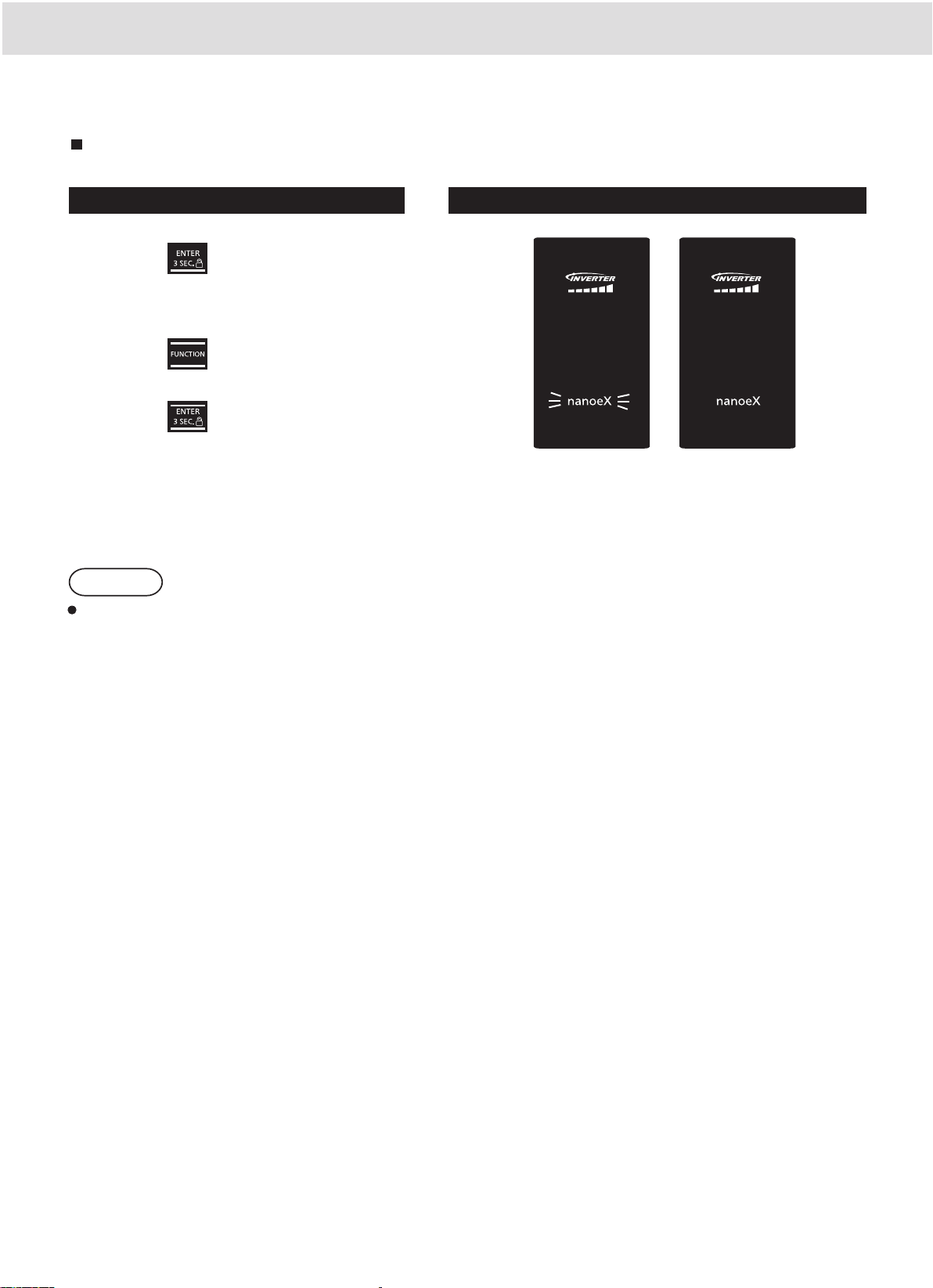

①Press and hold the key for more than 3 seconds to unlock the control panel.
②Press to ensure only flashes.
③Press and the setting is completed after the beep. ( turns on).
Immediately freeze raw materials or heat foods (such as hot rice) to maintain freshness.
Wrap the foods with plastic wraps or place them in a freezer storage bag, and place them on an aluminum plate.
The fresh freezing stops automatically after about 150 minutes.
To stop the fresh freezing during the fresh freezing, please follow the steps described above to perform the same
operation.
To ensure the foods that are put under the fresh freezing can be saved for a long time, please relocate them to
the freezer compartment.
When the Fresh Freezing compartment is not working, please use the freezer compartment.
Store ice cream with high lacto fat in the freezer compartment.
Do not place bottles or cans in Fresh Freezing Compartment (as they may burst or explode.)
Do not store foods higher than the Fresh Freezing Compartment (as this may cause the door to fail to close
properly, which can lead to frost.)
During the fresh freezing, energy is consumed more than usual.
The fresh freezing function cannot be used simultaneously with the quick ice making function. If the quick ice
making function is set during the fresh freezing operation, the fresh freezing function will stop.
①Wrap up the foods tightly.
②Make the foods closely touch the
aluminum plate.
③Hot foods also need to be
wrapped up.
aluminum plate
English

16
Operation
To use all features
Ice Making compartment
Sound-proof mat
(Do not move it.)
Ice Shovel
(Provided in front of the box.)
view from the top
Drinking water juice,etc. sports drinks carbonated drinks hot water
Water supply tank
approx. 1.0 liters
Back
Front
Water purification filter
Automatic ice maker
Use the automatic ice maker comfortably
Automatic ice making, please use drinking water.
Clean the Water Reservoir and Ice Making Box with water frequently. (P. 21 )
When using the following kinds
of water, flush the Water
Reservoir frequently! (P. 21 )
The following liquids shall not be stored in the Water Reservoir.
(These liquids may damage the Ice Making
Compartment or cause ice cubes to stick to each other.)
Water hardness
shall be 100mg/L
or lower.
Requests Notices
Do not open or close the Ice compartment harshly.
(The ice may fall into the Quick Freezing Compartment or other places.)
Do not pour water directly into the Ice-making tray to make ice.
(This may damage the ice maker or ice cubes may stick together.)
Do not pour water directly into the Ice Storage Box to make ice.
(Otherwise, the Ice Storage Box may be damaged.)
Water hardness shall be 100mg/L or lower.
The minerals may appear as white floating particles, which are not
harmful to the human body.
Do not put foods or other food products in the Ice compartment.
(Otherwise, the quantity of ice made cannot be detected correctly,
and the automatic ice making may stop, or the sluice gate may
not be opened.)
When the Ice compartment is used for the first time, the Ice-making
tray etc. may contain peculiar smells and dusts.
Please discard the first batch of ice cubes made.
When the Ice Storage Box is full of ice
cubes, the automatic ice making
operation is to stop automatically.
(This operation cannot work properly
in the following conditions.)
The Ice shovel left in the Ice
storage box hits the Ice
Sensing Lever.
The ice cubes are piled too
high such that they touch
the Ice Sensing Lever.
Ice detection Lever
(When pressed, stops the auto ice making function.)
The following situations will take longer.
Use the refrigerator for the first time.
(It may take 24 hours or longer because the automatic ice
making function can be activated only when the temperature
of the refrigerator interior is low enough.)
Frequently open the refrigerator doors.
The refrigerator doors are ajar.
Store a large amount of foods inside the refrigerator at the
same time.
The room temperature is too low in winter or too high in
summer.
A power failure has occurred.
The washable Ice-making tray has been cleaned. (P. 21 )
Ice-making tray
Ice storage box

①Press and hold the key for more than 3
seconds to unlock the control panel.
②Press to ensure only flashes.
③Press and the setting is completed after the
beep. ( turns on).
①Press and hold the key for more than 3
seconds to unlock the control panel.
②Press to ensure only flashes.
③Press and the setting is completed after
the beep. ( turns on).
To stop quick ice making during ice making, please
operate the control panel as described on the left.
After about 6 hours, return back to normal ice making m
ode.
In the process of quick ice making, energy is comsumed
more than usual.
17
Operation
To make ice
To make ice quickly
To stop auto ice making
Ice can be made in
approx. 2 hours！
Ice making can be completed in 80 minutes at the fastest.
② Fill with water. ①Take out the water supply tank. ③ Install the water supply tank.
water supply tank.
If the water level of the water supply
tank is below the line indicated "MIN",
add water into the Water Reservoir.
(Change the water inside the water
supply tank at least once a week.)
Add water to the line
indicated "MAX"
Lid Hold the water supply tank horizontally.
Confirm the direction of the water supply
tank and install it firmly.
(If the water supply tank is tilted, water
may spill out)
Push the water
supply tank all
the way in!
Do not add water
over the line and
close the lid tightly.
When ［QUICK ICE MAKING］is set, the ice making gets quicker.
Stop auto ice making if you do not want to make ice and before cleaning the Ice-making tray.
*Ambient temperature of 20℃; the temperature settigs of the fridge compartment , the prime fresh compartment ,
and the freezer compartment are 4℃, 0℃, -20℃respectively, with the door closed.
When you stop the auto ice making for a long time,
please empty and clean the water supply tank.(P.21)
After canceling AUTO ICE OFF, the ice made is
released.
Notices
English

18
Operation
To use all features
Freezer compartment
Vegetable compartment
Freezer case(Upper) Freezer case(Lower)
It can store small pieces of thicker foods.
The height of the foods stored here shall
be within the height range of the case.
The cut vegetables need to be stored for a long time or a small amount of vegetables need to be packed before
storing here.
The temperature of Vegetable compartment is about 3°C-8°C, which cannot be set separately.
The taller foods can be placed vertically here.
When storing, foods shall not be in contact with the
Freezer case(Upper).
(Otherwise, the door may not be closed completely
and frost is to appear.)
Vegetable case(Upper) Vegetable case(Lower)
Put tomatoes and green peppers in the
upper drawer of the case
Put green leafy vegetables, larger vegetables, bottles
and jars, or rice in the case.
Tightly seal the rice bag before storing it here.
(Rice container is not included.)
Requests
If the humidity in the Vegetable compartment is too high, condensation may occur. Simply wipe off the water drops.
The height of the vegetables placed here shall be within the height range of Vegetable case(Lower).
(Otherwise, the door may not be closed completely, condensation may occur, or the fruits and vegetables may get stuck or
damaged.)
Moisture control filter
Moisture control plate

19

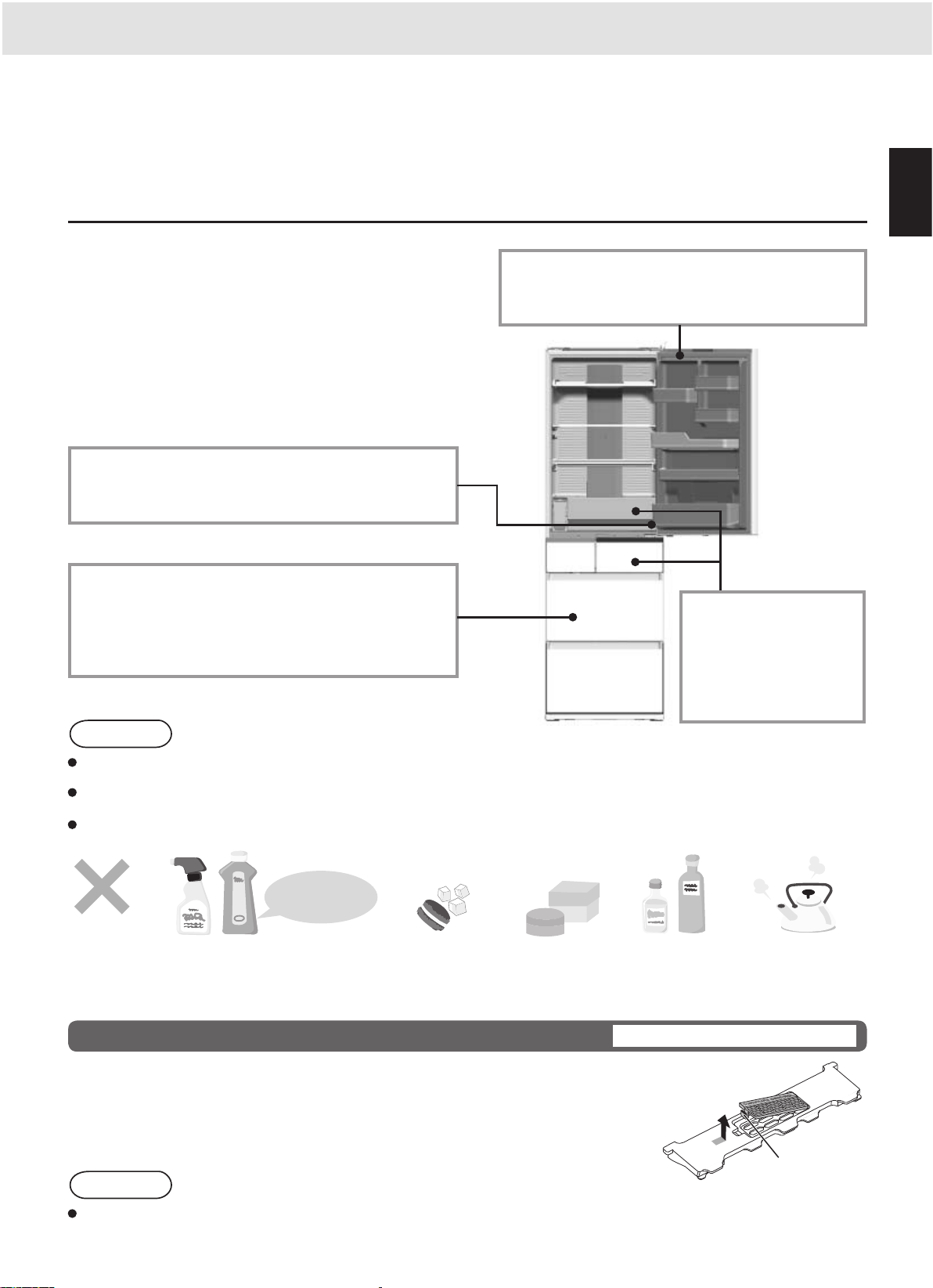

Appendix
Cleaning, removing and re-installing
Before cleaning or maintenance, be sure to unplug the power plug from the socket.
Do not plug or unplug the power plug with wet hands. Otherwise, it may cause electric shock or injury.
A cloth dipped with warm water can easily remove stains.
A cloth soaked in diluted neutral kitchen detergent can
remove stubborn stains.
Then use a cloth dipped with warm water to clean the
residual detergent.
To clean the door seals of the refrigerator, first wipe
with a damp cloth, and then wipe with a dry cloth.
(Dirty door seals can easily damage the refrigerator
and may cause cold air to leak.)
Remove the dusts accumulated on the wall socket or on
the top of the refrigerator and in the gaps around the
refrigerator.
Please remove the Foot Cover when cleaning.
(P.6)
Lubricating grease has been applied to the rotating
fulcrum of the door of the Refrigerating Compartment.
Don't wipe it off!
Please consult the dealer before wiping it off.
When fingerprints and sweat stains are difficult to
remove, first wipe with a cloth lightly soaked in a neutral
kitchen detergent, and then wipe with a damp cloth
before finally wiping it clean with a dry cloth.
The refrigerator doors are made of glass. Do not hit the
surface front or ends. (It may cause cracks.)
Scrub immediately!
When any liquids dripped
on the edges of the
refrigerator door or around
the door of the Variotherm
Compartmen, please wipe
them off immediately with
a dry cloth.
kitchen detergents (except for neutral
detergents), glass detergents
(including chlorine bleach)
(They will dissolve the plastics.)
The Moisture Control Filter is fixed to the Moisture Control Plate through the hook.
Please take the Moisture Control Filter out and rinse it with clean water. (Moisture Control
Plate is not removable.)
After rinsing the Moisture Control Filter, drain the water thoroughly. Wipe off the water
droplets and reinstall back the Moisture Control Filter.
For stubborn stains, please gently scrub the Moisture Control Filter with a diluted kitchen
cleaner (neutral) and a soft toothbrush, and then rinse the cleaner off with clean water.
Cleaning devices,
polished sponges
Alkaline or
faintly alkaline
Cleansers,
soap powders
Gasoline, diluents,
alcohols, acids and
petroleum
Hot water
Hook
When the dirt has become a problem
Attrntion
Do not use bleach or scrub too harshly. (This may impair the performance of the filter.)
Attrntion
Wipe the areas dry thoroughly after using a damp cloth (If water enters the gaps, it may cause malfunction of the
electrical parts.)
Do not use a dishwasher/dryer to clean plastic parts, such as the Water Reservoir and washable Ice Making Box
(It may cause deformation of the plastic parts.)
Do not use the following items for cleaning.
Cleaning
Please clean the dirty refrigerator in time.
Clean the hidden areas at least once a year.
Moisture Control Filter
English

20
Appendix
Cleaning, removing and re-installing
Once every three months
Once every three months
Once every three months
Trays / Slide tray (made of glass)
Case(Prime Fresh compartment)
Door shelf/Bottle shelf
Taking out Reinstallation
Taking out
<Reinstallation>
Lower the front half and slide back along
the rail.
Trays(the first and second trays in the upper
part of the Refrigerator compartment)
Lift the inner side of the tray slightly and then pull
it forward.
Slide tray
Push the front half of the Slide tray under the rear half of
the tray, and then slightly lift the overlapping tray and
pull forward, and take out the two trays at the same time.
<Reinstallation>
Place the two trays at the back, then pull the front
half and slide them inward.
Reinstallation
Tap the bottom of the Door shelf upwards, or alternately slide the
left and right sides of the Bottle shelf upwards, and slowly lift the
shelf up. (The Door Shelf and Bottle Shelf are tightly installed.)
Pull out the case quickly, raise
the front end, and then hold the
upper edge of the case and pull
it out obliquely.
Raise the baffle, raise the
back of the case, and install
it along the slide rail inside.
According to the mark [>PS<] on the right,
horizontally install each shelf and push it
down to the proper position.
Attrntion
When removing the case, please take out the Bottle Shelf first. (Otherwise, the Bottle Shelf may be damaged.)
If the door of the Refrigerator Compartment cannot be fully opened, please pull the Case(Prime Fresh compartment)
to the front first, then hold the case cover of the Prime Fresh compartment with both hands, gently pull it to the left until
the claws are released, and take it out forwards. Taking out the other side of the case cover in the same way, then
slightly lift the front of the case of the Prime Fresh compartment and pull it forwards.
The contact parts between the case and the edge of its right and left ends have been applied with lubricating oil. Do
not brush it off.
If the lubricant has been brushed off, please consult the dealer.
Attrntion
The Partition shelf are unmovable. When cleaning, wipe with a soft cloth without removing it.
Trays, Slide tray , and Partition shelf are made of glass and are quite heavy.
Please handle them with care to prevent them from falling and causing any damage or injury.
When the refrigrator doors cannot be fully opened and it is difficult to remove the Slide tray , slide the front half inward.
