Panasonic WV-CF102 User manual

Compact Day/Night Fixed Dome Camera with ABS (Adaptive Black Stretch)
Key Features
Smoke Dome Cover
WV-CF5S
• High resolution: 540 TV lines
• High sensitivity with Simple Day/Night function: 1.2 lux (Color),
0.9 lux (B/W) at F2.0
• Signal-to-Noise Ratio: 50 dB (equivalent to AGC Off)
• ABS (Adaptive Black Stretch) enhances visibility of dark area
without degrading image quality in bright area.
• Various adjustment features including BLC (Back-Light
Compensation) and ATW (Auto Tracing White Balance)
• 2.5 mm Fixed Focal lens
• Internal/Multiplexed Vertical Drive (VD2) synchronization
• 3-way hinge (horizontal, vertical and swivel rotation) for easy installation
• Various mounting options: Surface mount, Mounting to a junction
box (locally obtained)
• Compact design fits for various applications such as ATMs,
shopping malls, hotels and hospitals.
Day/Night Mini Fixed Dome Camera
WV-CF102
WV-CF102 (12 V DC)
Optional Accessory
Standard Accessories
Operating Instructions .................... 1 pc. Top cover fixing screw ................... 1 pc.

http://panasonic.net/security/
Printed in Japan (2A-042A)
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.

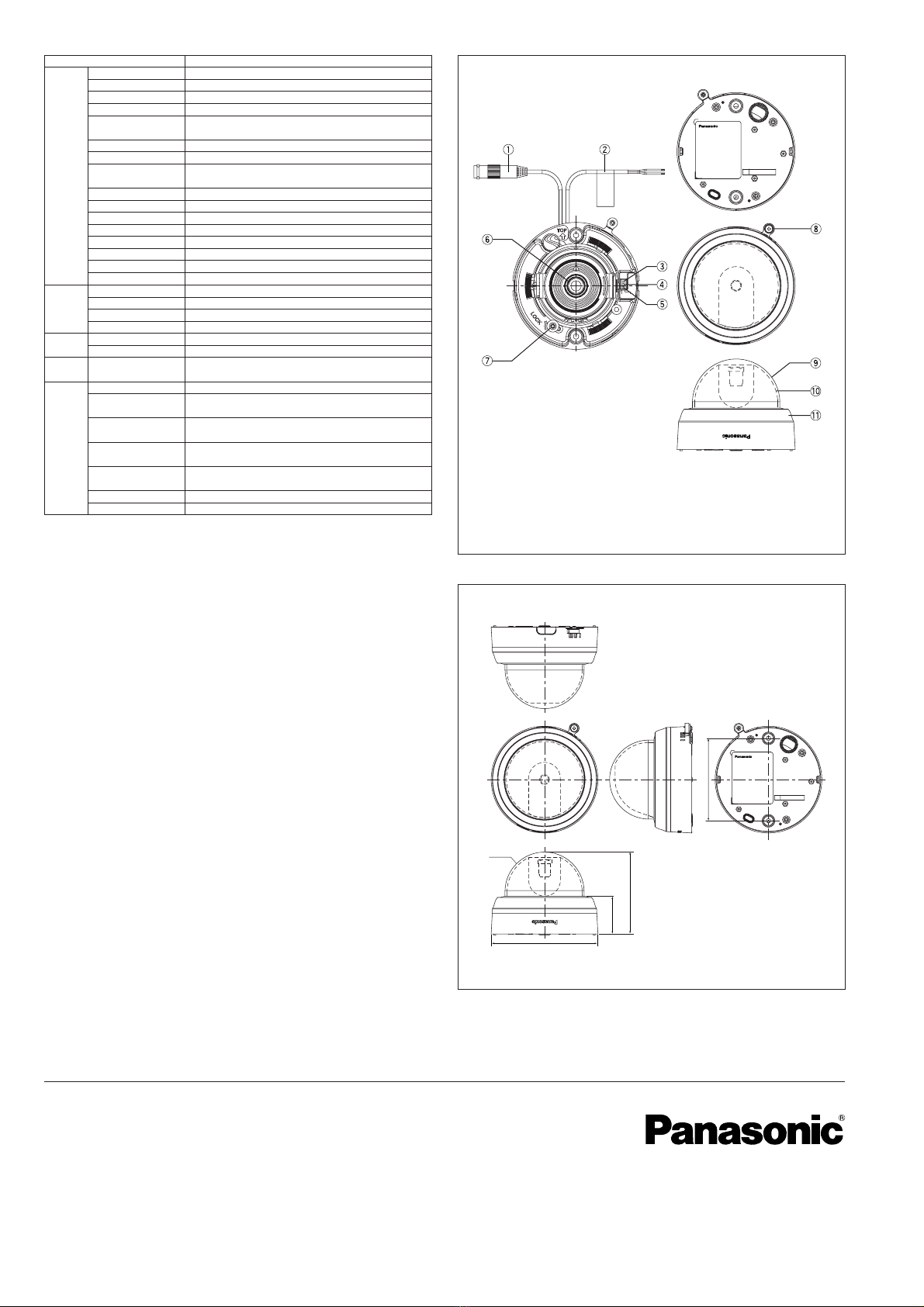

Specifications
TV System PAL
Camera Image Sensor 1/4 inch interline transfer CCD
Effective Pixels 752 (H) x 582 (V)
Scanning Mode 2:1 interlace scan
Scanning Area 3.7 (H) x 2.7 (V) mm
Scanning Frequency Horizontal: 15.625 kHz
Vertical: 50 Hz
Scanning Line 625 lines
Horizontal Resolution 540 TV lines
Minimum Illumination Color: 1.2 lux at F2.0
B/W: 0.9 lux at F2.0
Signal-to-Noise Ratio 50 dB (equivalent to AGC Off)
White Balance ATW
Light Control ELC only (for lens adjustment)
AGC Always ON
Adaptive Black Stretch ON / OFF with BLC ON / OFF
Black and White Mode ON (Auto) / OFF (No IR filter moving)
Back Focus Adjustment Manual
Synchronization Internal (INT), Multiplexed Vertical Drive (VD2)
Lens Focal Length 2.5 mm
Angular Field of View H: 90°V: 65°
Maximum Aperture Ratio F2.0
Focusing Range 1.2 m ~ ∞(3.9 ft. ~ ∞)
Pan and Panning Range +180°~ –140°
Tilt Tilting Range ±75
° , Image tilt adjustment range: ±145 °
Input/ Video Output 1.0 V [p-p] / PAL composite 75 Ω/
Output BNC Connector Multiplexed VD2 capable
General Setup Method Dip Switch
Safety/EMC Standard
CE (EN55022 ClassB, EN55024),
GOST (GOST R 51558)
Power Source and 12 V DC, 180 mA
Power Consumption
Ambient Operating –10 °C ~ +50 °C (14 °F ~ 122 °F)
Temperature
Ambient Operating 90 % or less (without condensation)
Humidity
Dimensions ø108 x 83 mm (H) (ø4-1/4" x 3-1/4" (H))
Weight (approx.) 300 g (0.66 lbs.)
Part Names and Functions
Appearance
DISTRIBUTED BY:
Unit: mm (inches)
Important
–Safety Precaution: carefully read the operating instructions and installation manual before using this product.
1 Video Output Connector
2 Power Cable
3 Simple Day/Night Mode Selector
4 Black Stretch Mode Selector
5 Back Light Compensation Selector
6 Lens
7 Panning Table Lock Screw
8 Top Cover Fixing Screw
9 Clear Dome
!0 Inner Dome
!1 Top Cover
SR40
83.5(3-5/16")
SER
NO.
38(1-1/2")
83(3-1/4")
WV-CF102
ø108(ø4-1/4")
D/N
B.S.
BLC
OFF ON
SER
NO.
WV-CF102
