1 Before Repairs
1. Turn off the power supply. Using a 10 Ω, 10 W resistor, connect both ends of power supply capacitors (C730,
C750) in order to discharge the voltage.
2. Before turning the power supply on, after completion of repair, slowly apply the primary voltage by using a
power supply voltage controller to make sure that the consumed current at 50 Hz in NO SIGNAL mode should
be shown below with respectto supply voltage 230/240 V.
Power supply voltage
AC 230 V
AC 240 V
Consumed current 50 Hz
80 - 270 mA
75 - 265 mA
Page 1 of 1
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

2 Protection Circuitry
The protection circuitry may have operated if either of the following conditions is noticed:
No sound is heard when the power is switched ON.
Sound stops during a performance.
The functions of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection
wires are shorted, or if speaker systems with an impedance less than the indicated rated impedance of this unit are used.
If this occurs, follow the procedures outlined below.
1. Switch OFF the power.
2. Determine the cause of the problem and correct it.
3. Switch ON the power once again.
Note:
When the protection circuitry functions, the unit will not operate unless the power is first switched OFF and then ON again.
Page 1 of 1
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

3 Accessories
AC mains lead for SA-DT300E, SA-DT300EG
(RJA0019-2X)................................1 pc.
AC mains lead for SA-DT300EB
(RJA0053-3X)................................1 pc.
AM loop antenna
(REK0063).....................................1 pc.
FM indoor antenna
(RSA0007).....................................1 pc.
Video cable
(RJL1P019B15)............................1 pc.
Speaker cables
(REX1129).....................................2 pcs.
Remote control transmitter
(N2QAJB000049)...........................1 pc.
Remote control batteries
(R6/LR6, “AA”, UM-3).....................2 pcs.
Note: These are available on sales route.
Antenna plug adaptor for SA-DT300EB only
(SJP9009)......................................1 pc.
RCAJ adaptor
(VFA0151-2)...................................1 pc.
Cleaning cloth for main unit
Page 1 of 2
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

(RFE0088-1)..................................1 pc.
Sheet of speaker-cord stickers
(RQCA0950)...................................1 pc.
Sheet of speaker feet*1
(small, 25 feet).................................1 pc.
Sheet of speaker feet*1
(large, 10 feet)...................................1 pc.
Spikes*1............................................4 pcs.
Sheet of speaker pads*1
(8 pads).........................................1 pc.
Note:
The accessories (indicated *1) are packed with SB-DT300.
Page 2 of 2
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

4 Caution for AC Mains Lead
Page 1 of 1
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

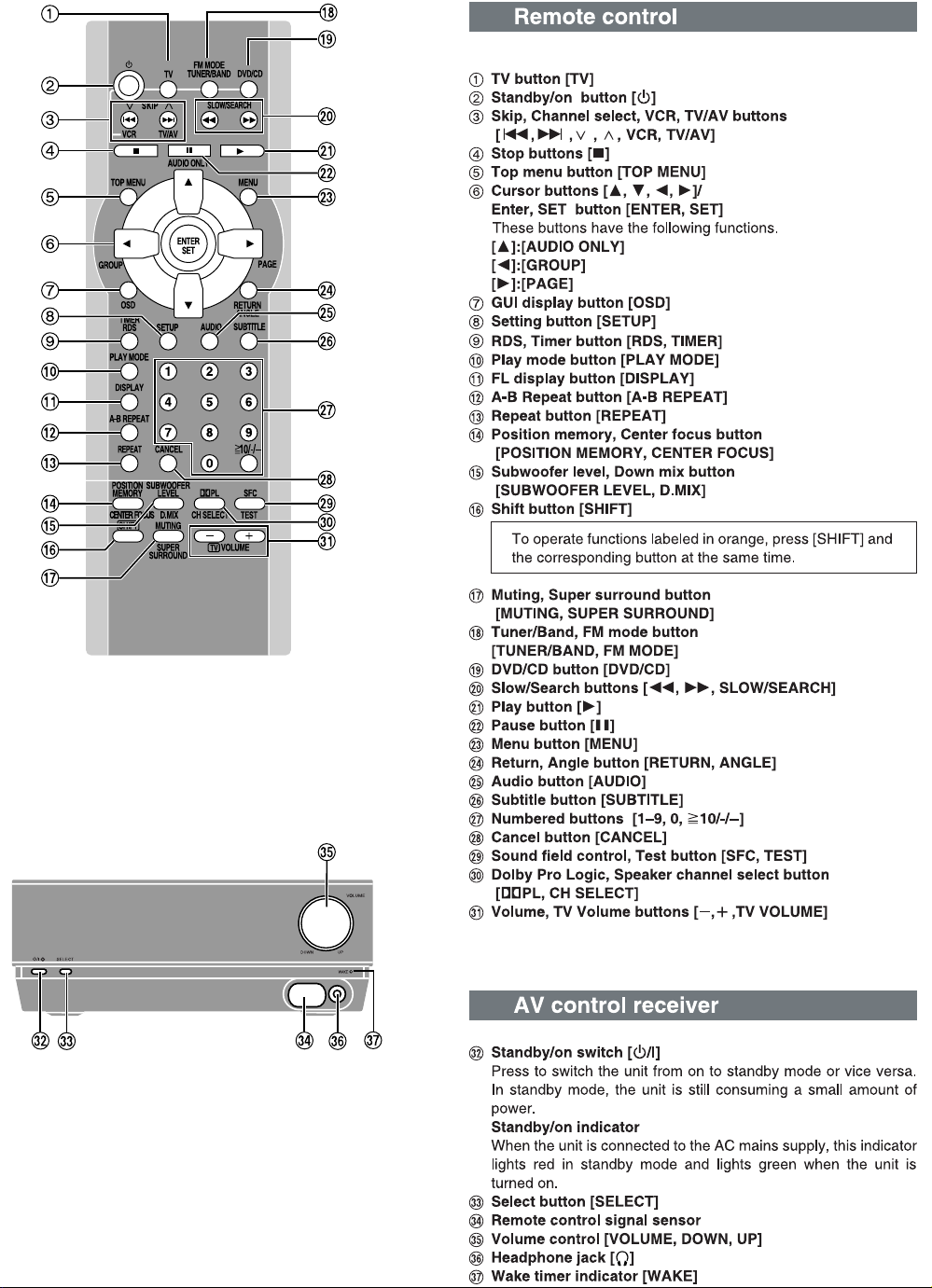

6 Self-Diagnostic Function
This unit is equipped with a self-diagnostic function which, in the event of a malfunction, automatically displays a code
indicating the nature of the malfunction.
Use this self-diagnostic function when servicing the unit.
6.1 To display the malfunction code
U70 DVD:
Automatically displays on the AV control receiver when a malfunction occurs. Refer to Fig. 6-1.
F61:
Automatically displays on the AV control receiver when a malfunction occurs. Refer to Fig. 6-1.
Fig. 6-1.
6.2 To return to the normal display
1. For U70 DVD
Press some operation buttons on the AV control receiver.
To re-display the code, switch the power off (Standby/on button), and then switch power back on
again.
2. For F61
If F61 is displayed, the power will automatically be switched off and the standby indicator will light
up.
F61 will be displayed for 3 seconds, and then the clock will be displayed.
To re-display the code, switch the power on. F61 will be re-displayed, and then after 3 seconds the
clock will be displayed and the power will automatically switch off.
6.3 Display contents
6.3.1 U70 DVD
Problem or condition
A bus-line communications error has occurred as a result of the flat cable being inserted incorrectly, thus
preventing the system from operating.
If U70 is displayed on the AV control receiver, DVD/CD player cannot be operated by remote
control.
Correction Procedure
Page 1 of 2
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

1. To check for correct insertion of flat cable.
Insert connector until you hear a click.
Make sure the white side of the cable is on your right side. Refer to Fig. 6-2.
Fig. 6-2.
2. Breakage of flat cable. (Check and replace.)
3. If the problem is not corrected by items 1 and 2 above, this indicates a faulty IC.
SA-DT300:
IC941 (C2CBHG000095)
SL-DT300:
IC402 (C2BBFD000350)
Check these ICs and replace.
6.3.2 F61
Problem or condition
When the Standby/on switch is switched on, it automatically switches back off, making it impossible to switch
power on.
Correction procedure
Faulty AV control receiver (SA-DT300) power supply line or when a DC voltage is applied to speaker terminals.
(Check and replace.)
Page 2 of 2
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

7 Operation Checks and Component
Replacement
Procedures
This section describes procedures for checking the operation of the major printed circuit boards and
replacing the main components.
For reassembly after operation checks or replacement, reverse the respective procedures. Special
reassembly procedures are described only when required.
7.1 Checking for the digital amp P.C.B.
Check the digital amp P.C.B. (A side) as shown below.
Check the digital amp P.C.B. (B side) as shown below.
Page 1 of 4
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

7.2 Checking for the FL P.C.B.
Follow the (Step 1) ,(Step 2) of item 7.1.
Check the FL P.C.B. as shown below.
7.3 Checking for the main P.C.B.
Follow the (Step 1) -(Step 7) of item 7.1.
Page 2 of 4
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

Check the main P.C.B. as shown below.
7.4 Replacement for the FL P.C.B., headphone
P.C.B. and operation P.C.B.
Follow the (Step 1) ,(Step 2) of item 7.1.
Follow the (Step 1) ,(Step 2) of item 7.2.
Page 3 of 4
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

Page 4 of 4
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

8 How to replace IC (TAS5100) with
reading terminal block
IC (TAS5100) used in the digital amp P.C.B. has a radiating plate on its backside (the side in contact with the
P.C.B.), the radiating terminal block having been soldered to the pattern part of the P.C.B..
For the replacement of the IC,the following instructions should be observed.
IC001 - IC006 shown in the drawing below are ICs each equipped with a radiating terminal block.
[Disassembly]

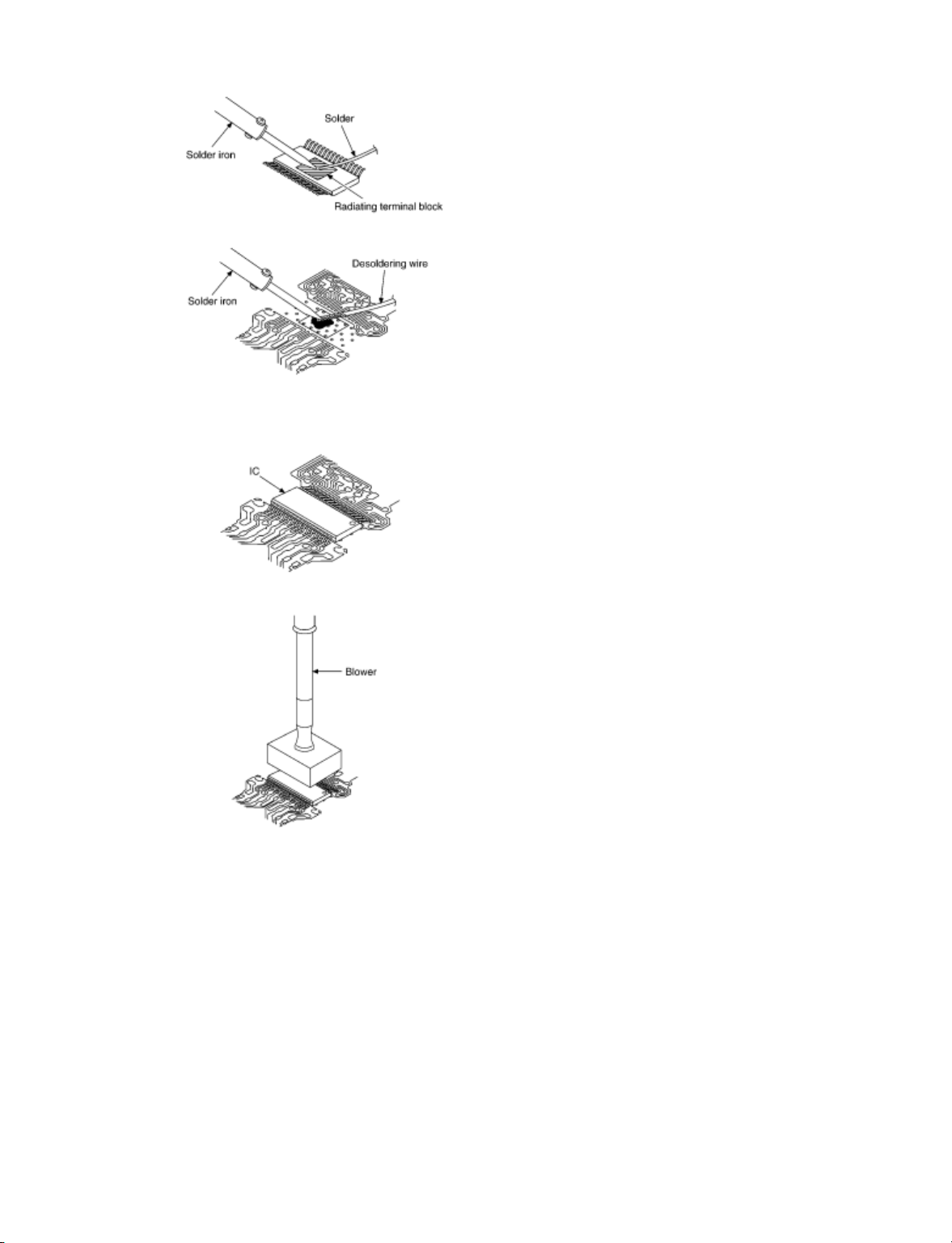

1. Use a blower and heat the IC (about 20 seconds).
2. In about the 20 seconds, the legs of the IC begin fusing. Then remove the IC by use of a pair of tweezers.
[Reassembly]
Page 1 of 2
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

1. Put solder-paste thinly and evenly over the radiating plate on the bottom of a new IC for replacement.
2. Clean out the former solder that has been sticking to the pattern part on the base plate.
3. Place the IC on the pattern part of the base plate.
(Make the IC legs and pattern part meet completely.)
4. Solder the IC legs first.
5. Use the blower and heat the IC (about 20 seconds).
Page 2 of 2
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

9 To Supply Power Source
This unit is designed to operate on power supplied from system connected.
When a component requires service, use the system connections to supply power source.
For system connections, refer to Fig.9-1.
Fig. 9-1.
Page 1 of 1
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

10 Schematic Diagram Notes
This schematic diagram may be modified at any time with the development of new technology.
Notes:
S901:
Power standby/on switch ( )
S902:
Select switch (SELECT)
VR901:
Volume control VR (VOLUME)
Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-
impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values,
depending on theinternal impedance of the DC circuit tester.
No mark
: Power ON (FM or AM)
Important safety notice:
Components identified by mark have special characteristics important for safety.
Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound (capacitors),
low-noise (resistors), etc. are used.
When replacing any of components, be sure to use only manufacturer's specified parts shown in the parts list.
The supply part number is described alone in the replacement parts list.
Voltage and signal line
: Positive voltage line
: Negative voltage line
: Audio signal line
: AM signal line
: AM OSC signal line
: FM signal line
: FM OSC signal line
Caution!
IC and LSI are sensitive to static electricity.
Secondary trouble can be prevented by taking care during repair.
Cover the parts boxes made of plastics with aluminum foil.
Ground the soldering iron.
Put a conductive mat on the work table.
Do not touch the legs of IC or LSI with the fingers directly.
Page 1 of 1
1/4/2018
file://\\royalfs\Service\Technical\Ms.dehghani\viewing\SGML_VIEW_DATA\ALL\SA-DT...

123456789101112
13
A
B
C
D
E
F
G
H

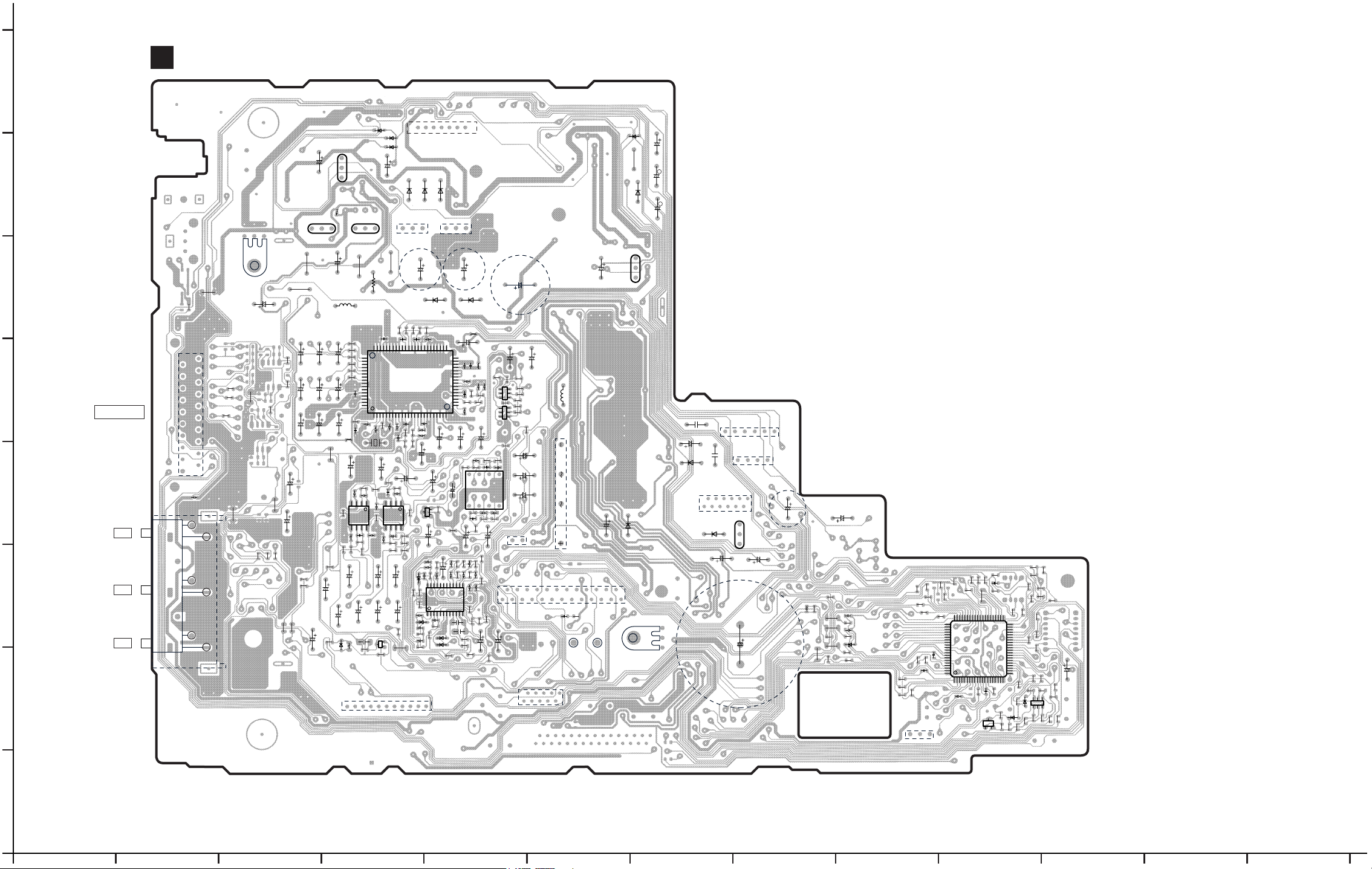

SA-DT300(E,EB,EG) FL, MAIN(SIDE:A) P.C.B.
