RM-G45PA
Colour
(K)...........Black Type
Area
(A)...........U.S.A.
Audio System
AVCASBU0111002C1

1 Location of Controls 3
2 Disassembly Instructions 4
2.1. Removal of the main P.C.B. and sub (1) P.C.B. 4
2.2. Removal of the operation P.C.B. 4
2.3. Removal of the rubber contact, illuminator and buttons 6
2.4. Removal of the lamp 6
3 Schematic Diagram Notes 7
4 Schematic Diagram 8
5 Printed Circuit Board Diagram 17
6 Type Illustration of ICs and Diodes 23
7 Wiring Connection Diagram 24
8 Block Diagram 25
9 Modification of RM-G45PA for European/Australian/Japanese
Version 30
9.1. Modification Detail 30
9.2. Modification Printed Circuit Board 31
10 Terminal Function of IC 32
10.1. IC503(000874710): System Control 32
11 Replacement Parts List 33
12 Cabinet Parts Location 37
CONTENTS
Page Page
2
RM-G45PA

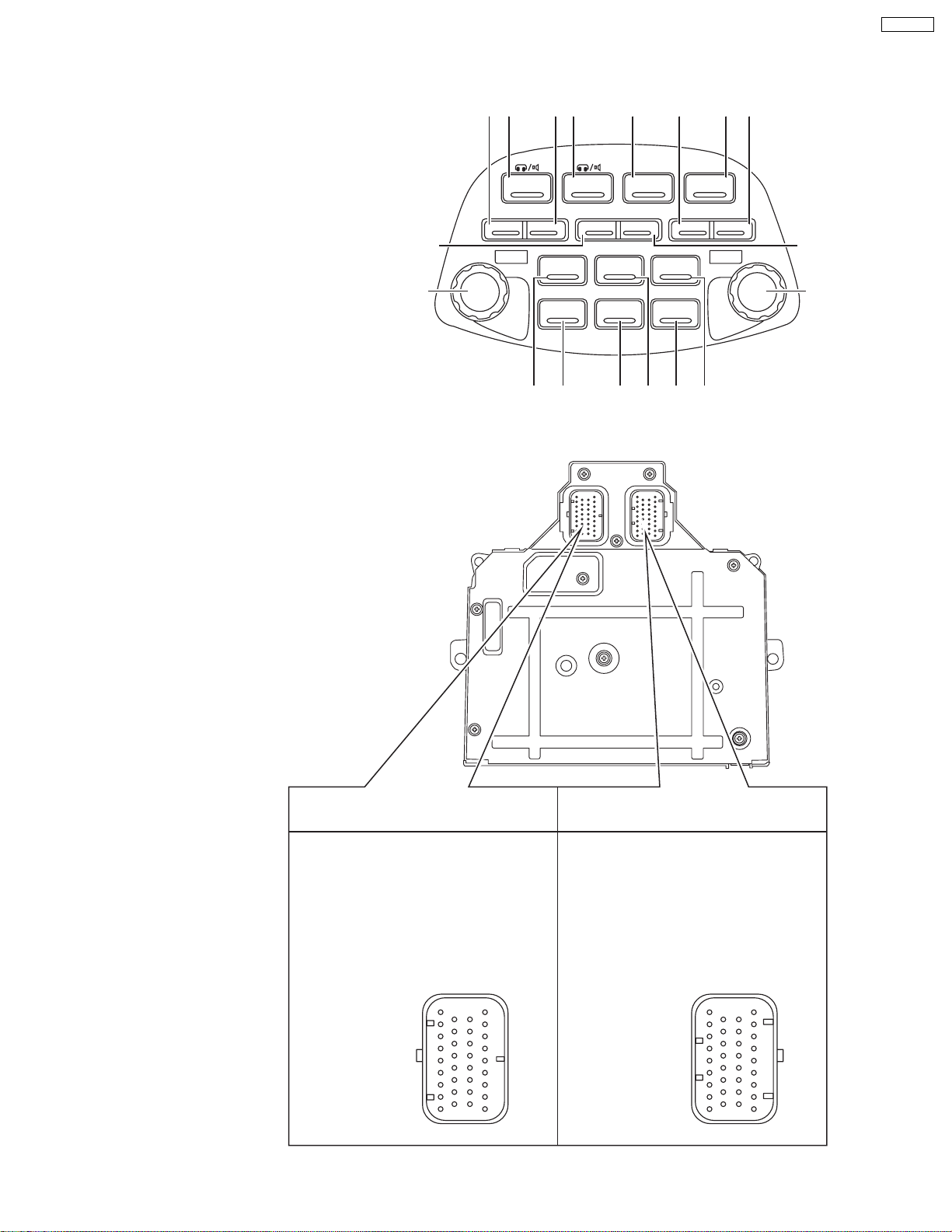

1 Location of Controls
<Front side>
1Preset channel (1) button
2Audio button
3Preset channel (2) button
4CB button
5I-COM button
6Preset channel (5) button
7A.SEL RPT/RDM button
8Preset channel (6) button
9Preset channel (3) button
:Volume knob
;FM1 button
<CD button
=AM button
>FM2 button
?AUX button
@WB button
AMODE knob
BPreset channel (4) button
<Rear side>
1. FL (+)
I/O connector I/O connector
2. FL (-)
3. FR (+)
4. FR (-)
5. RR (+)
6. RR (-)
7. DISP GND
8. DISP SO
9. DISP SCK
10. RL (+)
11. RL (-)
12. HS OUT L(P)
13. HS OUT L(D)
14. SW GND
15. SW K13
16. SW K11
17. DISP CE
18. HS OUT R(P)
19. HS OUT R(D)
20. HS OUT E(P)
21. HS OUT E(D)
22. SW KS1
23. SW KS2
24. SW KS3
25. DISP REQ
26. GND (MAIN)
27. HS MIC DR
28. HS MIC PA
29. HS MIC E(D)
30. HS MIC E(P)
31. SW K14
32. SW K12
33. VBAT (ACC)
34. BU
1. AUX L
2. BUS L (-)
3. BUS L (+)
4. BUS R (-)
5. BUS R (+)
6. BUS (-)
7. BUS (+)
8. BUS SYS ACC
9. BUS +B
10. AUX R
11. BUS AUDIO GND
12. BUS GND
13. BUS GND
14. BUS ILLUMI
15. NC
16. NC
17. MUTE IN
18. AUX GND
19. PULSE
20. CB AUDIO MUTE
21. CB PERM
22. CB DET
23. CB SHIELD
24. CB MIC OUT
25. CB MIC GND
26. STARTER (MUTE)
27. CB STARTER (MUTE)
28. CB AUDIO GND
29. CB AUDIO IN
30. CB RST
31. CB PTT
32. CB SO
33. CB SI
34. CB SCK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
AUDIO CB I-COM A.SEL
RPT/RDM
12345 6
FM1 FM2 WB
AUX
CD AM
MODEVOLUME
1234 5678
9
:
;=>?@
A
B
<
3
RM-G45PA

[Repair Advisory]
Prior to any repair, use the air gun to prevent the panel
buttons from being damaged by dust and sand particles.

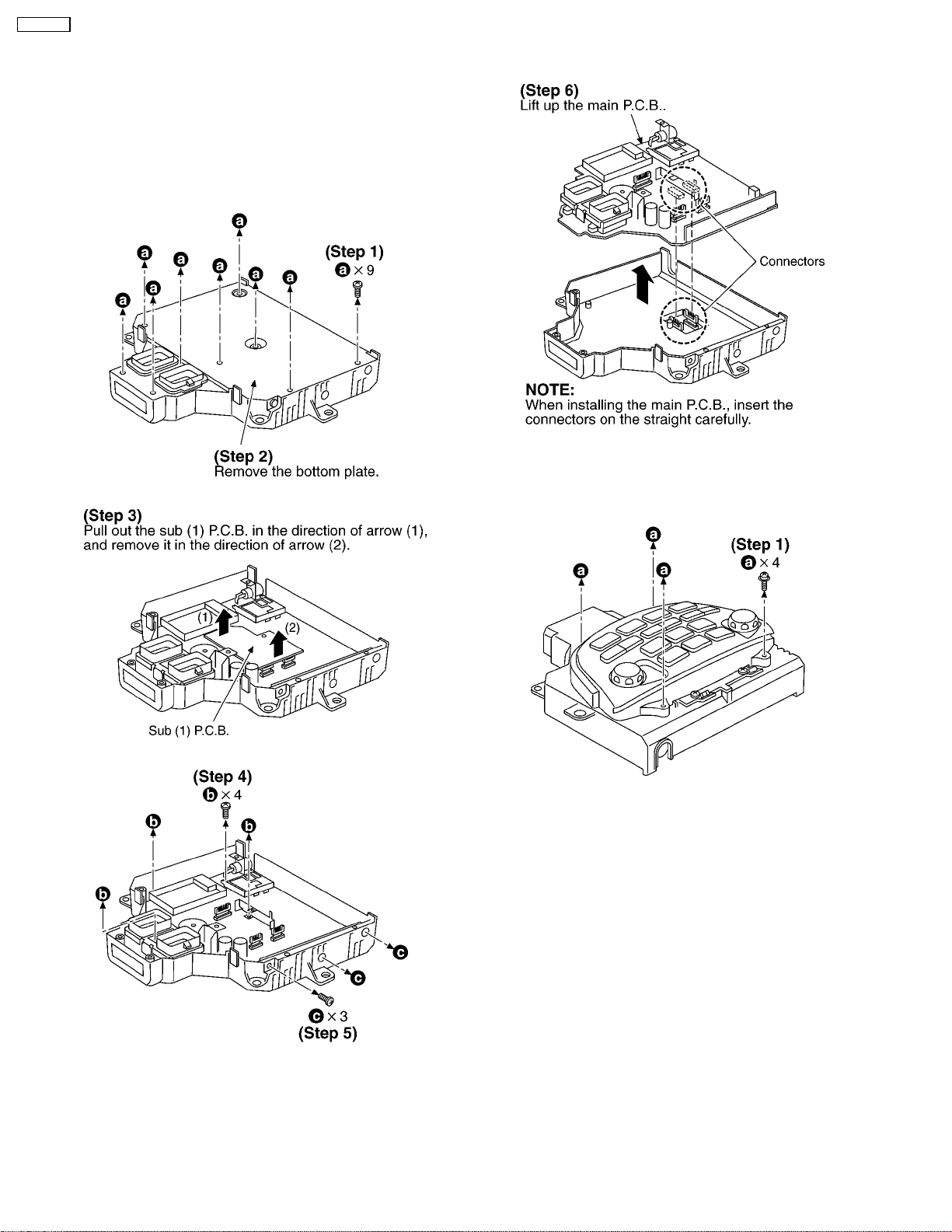

2.1. Removal of the main P.C.B.
and sub (1) P.C.B.
2.2. Removal of the operation
P.C.B.
2 Disassembly Instructions
4
RM-G45PA

5
RM-G45PA

2.3. Removal of the rubber
contact, illuminator and
buttons
• Follow the (Step 1) -(Step 5) of item 2.2.
2.4. Removal of the lamp
• Follow the (Step 1) ,(Step 2) of item 2.2.
6
RM-G45PA

• This schematic diagram may be modified at any time
with the development of new technology.
Notes:
S602: Mode switch (MODE)
S603: Volume mode switch (V MODE)
S651: Audio switch (AUDIO)
S652: CB select switch (CB)
S653: Preset channel 1 switch (CH1)
S654: Preset channel 2 switch (CH2)
S655: Preset channel 4 switch (CH4)
S656: Preset channel 5 switch (CH5)
S658: I-com switch (I-COM)
S659: Auto select/repeat switch (A.SEL/RPT)
S660: Preset channel 3 switch (CH3)
S661: Preset channel 6 switch (CH6)
S662: FM1 select switch (FM1)
S663: FM2 select switch (FM2)
S664: Weather band select switch (WB)
S665: Aux switch (AUX)
S666: AM select switch (AM)
S667: CD select switch (CD)
• Indicated voltage values are the standard values for the unit
measured by the DC electronic circuit tester (high-
impedance) with the chassis taken as standard. Therefore,
there may exist some errors in the voltage values,
depending on the internal impedance of the DC circuit
tester.
No mark : FM
() :AM
<> :WB
• Important safety notice:
Components identified by mark have special
characteristics important for safety.
Furthermore, special parts which have purposes of fire-
retardant (resistors), high-quality sound (capacitors), low-
noise (resistors), etc. are used.
When replacing any of components, be sure to use only
manufacturer’s specified parts shown in the parts list.
• The supply part number is described alone in the
replacement parts list.
• Voltage and signal line
: Positive voltage line
: FM signal line
: FM/AM OSC signal line
: AM signal line
: WB signal line
: WB OSC signal line
: FM/AM/WB Vcap cont. signal line
: Main signal line
Caution!
IC and LSI are sensitive to static electricity.
Secondary trouble can be prevented by taking care during
repair.
Cover the parts boxes made of plastics with aluminum foil.
Ground the soldering iron.
Put a conductive mat on the work table.
Do not touch the legs of IC or LSI with the fingers directly.
3 Schematic Diagram Notes
7
RM-G45PA

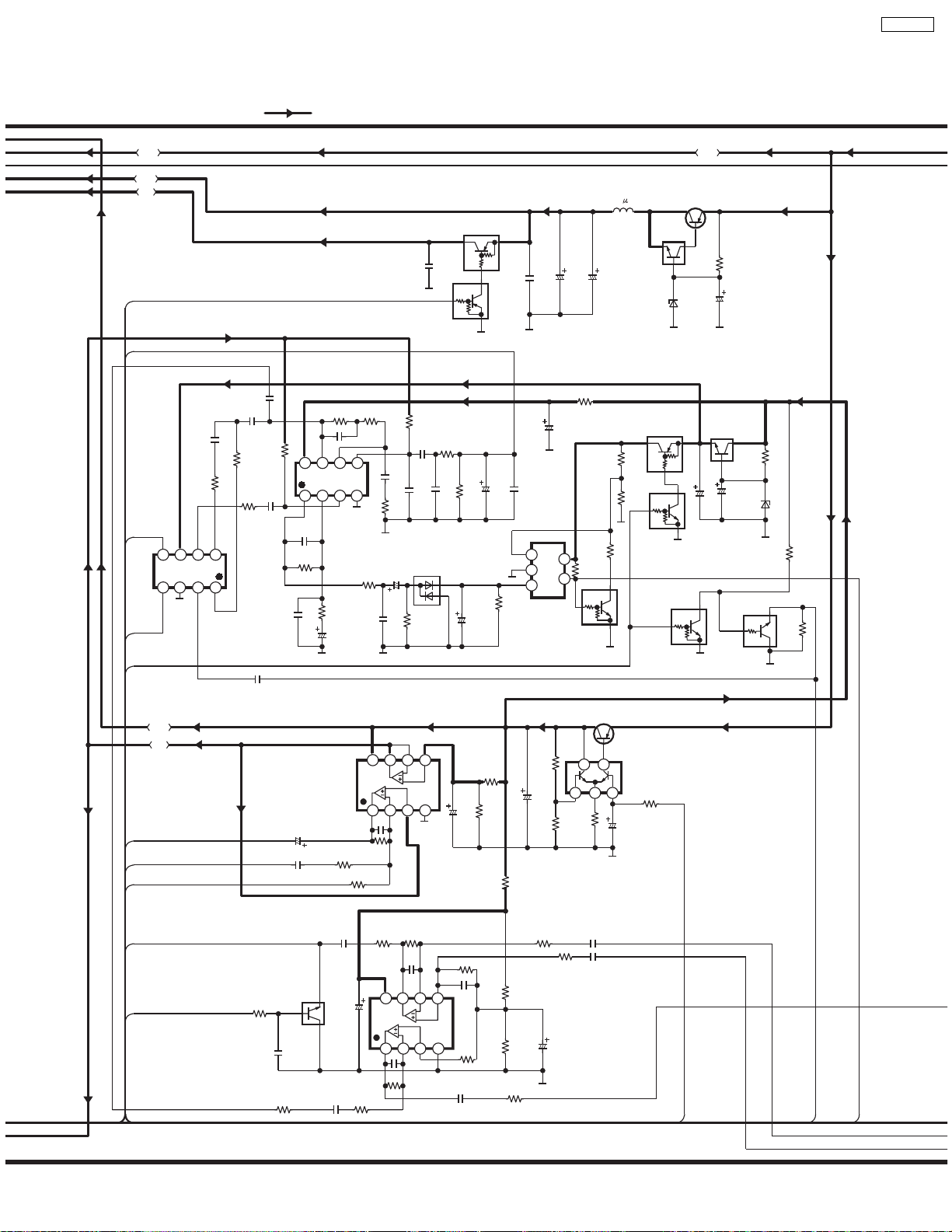

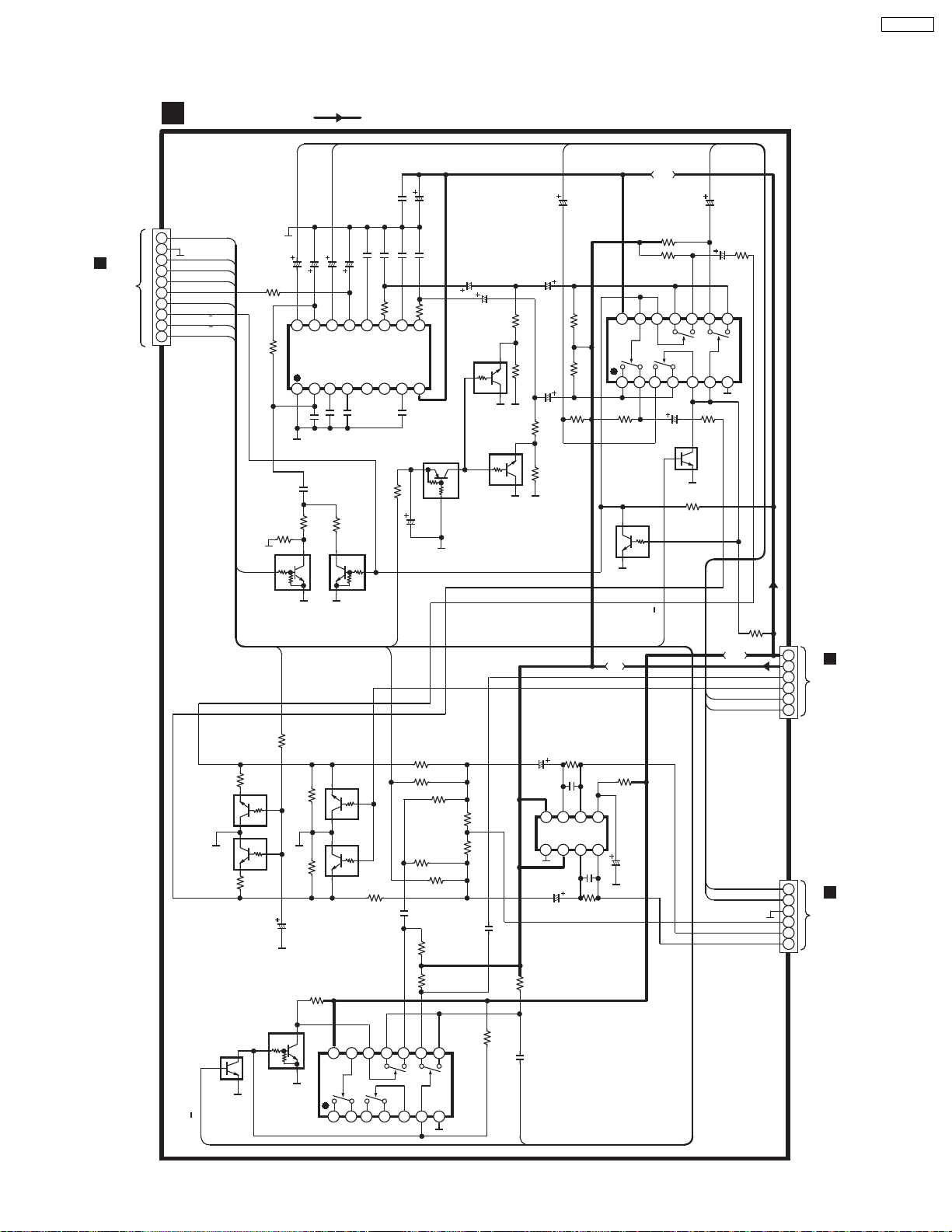

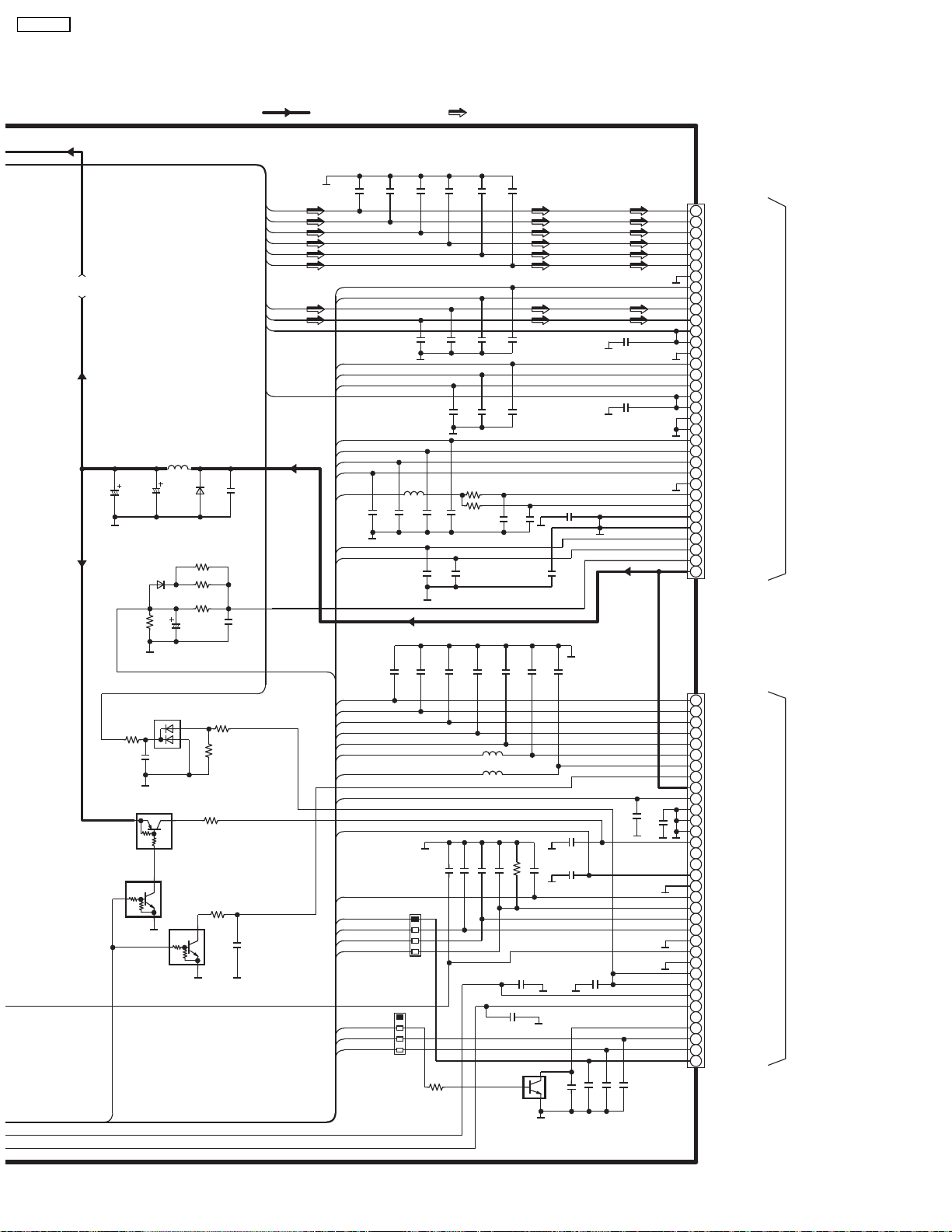

4 Schematic Diagram
MAIN CIRCUIT
A
Z1
(FM/AM TUNER PACK)
1 2 3 84 5 6 7 9 10 11 12 13 14 15 16
ANT CN1
R14 10K
AM ANT
FM ANT
GND
VT
VDO
FM VCC
OSC
GND
SEEK/IFC
SD/ST
AM OSC2
SM
L OUT
R OUT
DET OUT
AM IF
R8
3.3K
C10
0.01
DSP1
R1 100
C1 0.022 C2 0.1
R2 10
C3
10V100
C4 0.1
D2
DI0MA111L
D1
DI1SV271L R9 3.3K
D3
DI1SV271L
C6
0.047
C7 0.018
C8 0.018
TP1
ANT
GND
VDD
VT
OSC
GND
SD
AF OUT
1
2
8
7
6
5
4
3
Z2
(WB TUNER PACK)
10
IC1
0005749000-T
20 19 18 17 16 15 14 13 12 11
1 2 3 4 5 6 7 8 9
R5
3.3K
R12
2.2K
C11
25V1 R13 1.2K
C12
0.001
Q1
2SK1829
C14
16V47
C9
10V100
R32
100K
R3 47
C13 0.047
R11
100
R21
100 D5
DI0MA111L
R6
10K
Q3
TRC1037QL
R24
220K
R22 1K
C23 16V10
C22 0.01
R23 100
C26 330P
R31 0
C24
27P
C25
27P
X1
(7.2MHz)
R26 1K
R27 1K
R28 470 R29 470
D6 DI0MA111L
C17
10V100
C18
16V10
R7
47K
R33 100K
C19
16V10
XO
GND
PD
VDD
FM/AM
10K OSC
WB/AM
9K OSC
SD/ST
FM/AM IFC
XI
CE
DI
CLK
DO
SEEK
BAND FM
AM/FM
TU ON
C15
0.047
R30
2.2K R25 2.2
1
2
L1
470uH
NC
NC
CE DI CLK DO
SM
NC
S
G
D
Q1
Q2
TRC114YUL-A
SWITCHING
SWITCHING
PLL FREQUENCY
SYNTHESIZER
L.P.F.
Q4
TRB123YKL
POWER SUPPLY
Q7
TRB123YKL
POWER SUPPLY
Q5
TRB123YKL
POWER SUPPLY
Q6
TRB123YKL
POWER SUPPLY
SCHEMATIC DIAGRAM-1 Note: The number which noted at the connectors on the schematic diagram as
"SCHEMATIC DIAGRAM-1" or "SCHEMATIC DIAGRAM-2"
indicates the schematic diagram serial number located on the left corner in the schematic diagram.
1
2
3
ET1(x3)
RM-G45(PA) MAIN SCHEMATIC DIAGRAM
:FM/AM/WB V cap CONT.SIGNAL LINE
:FM/AM OSC SIGNAL LINE:POSITIVE VOLTAGE LINE :FM SIGNAL LINE :WB SIGNAL LINE :WB OSC SIGNAL LINE
0V 0V 0V 0V5.2V
(0V) 3V
(3.6V)
2.4V 8V 2V
(0V)
0V
5.8V
1.6V 5.6V (2.2V)
0V
3.6V
0V 3.6V 0V 4.2V 0V
9.2V9.2V
8V
(0V)
0V
0V
(0V)
9.2V 2V
2.8V
(9V)
9V
1.8V
(1.8V)
9.2V
0V
5V
5.4V
2.2V
0V
0V
3V
(3.6V) 2.4V
3.6V
0V
0V
0V
0V
0V
3.6V
0V
1.4V
5V 0V 0V
5.4V
2V(0V) 0V
2V
0V 0V 5V 5V 0V
0V
0V(9V)
0V(9V) 9V
9.2V
9.2V
:AM SIGNAL LINE
9.2V
(0V)
0V
9.2V
(9.2V)
1.8V
9.2V
9.2V
5V
0V
9.2V
1.4V
3V
(3.6V)
2.4V
RM-G45PA
8

C111
1R104 82K
R106 1K
R105
15K
C108
50V1 C110 50V1 C123 10V100
R121 10K
C117
50V1
C118
330P R112 82K
R113
4.7K
C119 16V10
C126
16V10
C120
0.22 R115 4.7K
C121 0.047 C107 0.047
C103
330P
C105 16V10
C101
0.033 R101 4.7K
R102
82K
C112 50V1
R114 4.7K C106 0.22
C165 0.01 C166 0.0056 C102 0.0015
C128
0.0015
C164 0.0056
C163 0.01
C129 0.0015
C127 0.0015
C104
16V10
17
16151413121110987654321
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33343536373839404142434445464748
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
64
R123
10K
C116
50V1 R122 10K
C115
50V1
R124
10K
R109 15KR110
82K
C114
1
R107
1K
R116
6.8K
C155
50V0.47
RN114
6.8K
C156
50V0.47
R119
6.8K
C158
50V0.47
RN117
6.8K
C157
50V0.47
C125
0.033
IC101
000774960
ELECTRONIC VOLUME
CD/MDL+
CD/MDL-
FML
AML
AUXL
WBL
6L
VDD
VREF
6R
AUXR
WBR
AMR
FMR
CD/MDR-
CD/MDR+
LF IN
LF
LR
LAVss
LZCLP
DVss
CL
DI
CE
MUTE
RAVss
RZCLP
TIME
RR
FR
RF IN
C64
0.033
IC2
000684180-T
AM NOISE CANCELER
C67
0.033
C66
0.033
C65
0.068
R63
12K
C62
50V0.22
C63
50V3.3
R62
100K
CONSTANT
VOLTAGE
CIRCUIT
SW2
SW1
HPF1LPF
IF
AMP
PULSE
DETECTION
DETECTION
IF AGC
LPF AF
AMP AF AGC
HPF
CONSTANT
CURRENT
CIRCUIT
CONSTANT
CURRENT
CIRCUIT
SW3 SW5
SW4
LEVEL
DETECT
CIRCUIT
PHASE
CIRCUIT HIGH PASS AMP
OR NOISE
AGC
BUFFER AMP
+
PULSE
DET.2
PULSE
DET.1
GATE
PULSE
1 2 3 45 6 7 8
16 15 14 12 11 10 913
C56
0.001
C57
0.22
R58
47K
C61
0.01
C58
0.0068
R60
120K
R59
15K
C59
0.033
C60
0.068
C53
10V100
R51
47
R56
2.7K
C55
0.022
TP2
R57
15K
C37
0.018
C38
0.018
Q18
TRC144EUL-A
SWITCHING
Q17
TRC144EUL-A
SWITCHING
CD/MDL+
CD/MDL-
FM 10K
AUX L
AUX R
CD/MDR-
CD/MDR+
CLK
DI
CE
VO L
SP L
SP R
VO R
3.4V
C51
0.001
RM-G45(PA) MAIN SCHEMATIC DIAGRAM
C124
10V100
C113
0.033
0V
0V0V
5V
4.8V
4.6V
4.8V
4.6V
4.8V
9.2V
4.8V
4.6V
4.8V
4.6V
5V
4.8V
5V
5V
4V
5V
5V
4.8V 4.8V 4.8V
0V
5V
4.8V
5V 5V 5V 5V 0V 0V
4.8V
4.4V
5V
5V
5V
5V
5V
0V
0V
0V
5V
4V
4.8V 4.8V 4.8V
5V 5V 5V 0V
4.8V
0V 5V 5V 0V 5V 5V
1.4V 0V
(1) 2.4V 8V 1V 0V 3.4V 3.4V
3.4V3.4V
3.4V
3.4V8V
2.8V
(4)
0V0V 0V 0V 0V 0V 0V 0V
0V0V 0V
0V
0V0V
0V
SCHEMATIC DIAGRAM-2 :AM SIGNAL LINE:POSITIVE VOLTAGE LINE :FM SIGNAL LINE :WBSIGNAL LINE :MAIN SIGNAL LINE
9.2V
9.2V
9.2V
5V
RM-G45PA
9

VO L
CN211
6
5
4
3
2
1
6
5
4
3
2
1
CN212
R171
3.9K
R172
22K
R174
22K
R173
3.9K
R175
3.9K
R176
22K
R178
22K
C171
50V0.33
C172
50V0.33
C173
50V0.33
C174
50V0.33 R177 3.9K
C175
16V22
Q107
TRC343TKL
R157
27K
R158
3.3K
R156
27K
R159
1K
R155
3.3K
R153
27K
R154
3.3K
R152
27K
R151
3.3K
C184
50V0.22
C182
50V0.22
C181
50V0.22
C183
50V0.22
15
14 13
12 11
9
87
65
43
21
16 17
19
21
23
25
18
20
22
24
10
C185
50V1
R187
10K
C186
10V100
R188 1K
R189 1K
C189
50V0.47
R191
10K R195
0
C187
16V22
R185
1K
R186
1K
CN101
1
3
5
6
7
8
9
10
2
4
MUTING
Q109
TRC343TKL
MUTING
Q108
TRC343TKL
MUTING
Q112
TRA114YUL-A
MUTING CONT.
Q110
TRC343TKL
MUTING
GND
STBY
Vcc
GND
SVR
RL IN
RR IN
STD/HI
GND
Vcc
MUTE
GND
TAB
RL-
RL+
FL-
FL+
FL IN
SGND
FR IN
FR+
FR-
RR+
RR-
CD
IC104
000874350
POWER AMP
D101
DIAN202KL
8
2
9
10
11
12
13
14
15
7
6
5
4
3
1
C207
10V100
C210
0.1
R218
10K
R214
1
R227
1K
R228
1K
R215
1
C211
0.1
C213
10V470
C212
10V100
C209
10V470
C208
16V470
C225
16V10
C214
16V470
C215
16V47
R216
330 C217
16V47 C220
50V1
C216
0.0039
C218
0.0039 C206
50V1
R217
330 C219 16V47
C222
50V1
C221
50V1
R221
10K
R222
10K
R223
2.7K
R224
2.7K
R219
33K
C223
16V22
D103
DIAN202KL
IC202
000774870
CB AUDIO
MIC OUT
MIC MUTE
ATT
AMB
AMB1
FM 10K
AU H/S
CB H/S
AMPON
SP
CB BEEP SP
MUTE
CB SP
VO R
SP R
SP L
BEEP
L OUT
GND
Vcc
R OUT
STBY
SMTH
RIP
RNF
RIN
SGND
LIN
LNF
AMP
MUTE
AMPON
HS
HS MUTE
POWER AMP
Q206
TRC343TKL
MUTING
Q111
TRC114YUL-A
MUTING
RL-
RL+
FL-
FL+
FR+
FR-
RR+
RR-
L OUT
R OUT
D
To AMB
CIRCUIT
(CN201) on
SCHEMATIC
DIAGRAM
- 8
B
To AMB
CIRCUIT
(CN202) on
SCHEMATIC
DIAGRAM
- 8
B
RM-G45(PA) MAIN SCHEMATIC DIAGRAM
MUTE
HS L
HS R
Q205
TRC343TKL
MUTING
Q205
SCHEMATIC DIAGRAM-3 :POSITIVE VOLTAGE LINE :MAIN SIGNAL LINE
To AMB
CIRCUIT
(CN131) on
SCHEMATIC
DIAGRAM
- 8
B
0V
0V
0V
0V
0V
0V 0V
5V
5V
5V
6V
6V
13V
13V
13V
12.8V
0V
6V
6V
6V
6V
5V
5V
6V
6V
6V
6V
6.8V
6.8V
3.4V
6.4V
12V
12V
13V
12.5V
0V
1V
1V
1V
1V
0V
0V
2.6V
5V
5V
5V
9.2V 9.2V
13V
5V
0V
0V
0V
2.6V
RM-G45PA
10

R505
2.2K
LN501
RN516
100K
RN504
2.2K
RN503
2.2K
D505 DI0MA111L D506 DI0MA111L D507 DI0MA111L D508 DI0MA111L D509 DI0MA111L
D510 DI0MA111L
CN502CN501 1 3 5 6 7 82 4
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
16
17
18
19
20
36353433323130292827262524232221 37 38 39 40
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
45
44
43
42
41
65666768697071727374757677787980 64 63 62 61
R533
680
R532
680
R531
680
R534 10K
R538 10K
Q513
TRC124EUL-A Q512
TRC124EUL-A Q511 TRC124EUL-A
Q514
TRA1037QL
R537
470
R536
27K
R535
10K
R523
1.5K
R519
10K
R520
47K
C519
0.1
Q507
TRC4483R8
R509
4.7K
R512
4.7K
C513 100P C514 0.0015
R510
2.2K
C522 0.1
R598
0
X502
5MHz
R599
0
R504
2.2K
R511
47K
R526
2.2K
R527 10K
D515
DI0MA111L
Q508
TRA1037QL
C525
0.01
R524
10K
R525
10K
8 6 4 3 2 17 5
LAMP DRIVE
Q506
TRC2412QL
LAMP DRIVE
AN15
ACC OUT
BUS ACC
AVss
BUS RST
CCB CE
AVREF1
CCB DI
CCB DO
CCB CL
BUS SI
BUS SO
BUS SCK
BUS C/D
BUS CS
DISP REQ
DISP SO
DISP SCK
DISP CE
KS1
KS2 KS3 KS4 KS5 KS6 KS7 K11 K12 K13 K14 MODE D MODE U Vss VMODE D VMODE U CB H/S AU H/S NC AMB1 AMB
MUTE
AMPON SP
AMPON HS
SW5V
ATT
AMP MUTE
I-COM
IEN DO
IEV CL
BEEP
HS MUTE
CB SI
CB SO
NC
CB PERM
CB DET
CB AU MUT
CB PTT
MUTE IN
RESET
AN14 AN13
MODE AD
FANC AD
S METER
AVREF0
AVDD0
XT1 XT2
IC
X1 X2
VDD1
VSS0
INTP5 INTP4
CB SCK
ACC IN
BUS IRQ
SPEED
SM
SPEED
CONT.
BUS IRQ
SPEED
RN508
2.2K
RN509
2.2K RN510
2.2K
RN517
47K
LN502
RN514
2.2K
RN511
2.2K
LN503
RN518
1K
RN507
2.2K
RN506
2.2K
RN505
2.2K
RN502
2.2K
INTERFACEINTERFACE
INTERFACE
INTERFACE
ACC OUT
BUS ACC
BUS RST
DO
DI
CLK
CE
FANC A/D
MODE A/D
SO
SCK
CE
REQ
BUS SO
BUS SCK
BUS C/D
BUS CS
BUS SI
RN515
2.2K
MODE D
MODE U
VMODE D
VMODE U
MODE D MODE U
VMODE D VMODE U
MODE A/D
FANC A/D
KS2
KS3
K12
K11
K13
K14
KS1
CB H/S
AU H/S
AMB1
AMPON SP
AMPON HS
SW5V
ATT
AMP MUTE
I-COM
IEV DO
IEV CL
HS MUTE
C511
0.1
C521
0.1
AMB
SCHEMATIC DIAGRAM-4 :POSITIVE VOLTAGE LINE
To OPERATION CIRCUIT
(CN601) on
SCHEMATIC DIAGRAM
- 9
C
To OPERATION CIRCUIT
(CN602) on
SCHEMATIC DIAGRAM
- 9
C
RM-G45(PA) MAIN SCHEMATIC DIAGRAM
TP3
R507
22K
R508
22K
K12 K11
KS6 KS5 KS4 K14 K13
LN504
IC503
000874710
SYSTEM CONTROL
LN505
0V
5V 5V 5.6V (2..2V) 5V
5.2V
0V
5V
0V
1.4V
2..2V
5.2V
0V 0V 0V 0V
5.2V
5V
5V
0V
0V
5.2V
5.2V
5.2V 0V
5.2V
5V
0V
0V
0V
0V
5.2V
5.2V
0V
0V
0V
0V
0V
5V
0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 0V 3V
4.8V
5.2V
0V
0V
5V
0V
0V
5.2V
5.2V
0V
5.2V
0V
5.2V
0V
0V
0V
0V
5.2V
5.2V
0V
0V
5V
0V
5V
5V
0V
0V
0V
4.4V
4.8V
0.6V
0V
1V
5V
5V
5.2V
5V
9.2V
13V
9.2V
13V
5.2V
1V
1V
13V
RM-G45PA
11

R522
470
R515
47K D504
ZMA8062ML
R516
22K
12
43
R514
33K
R517
8.2K
R518
47K C518
0.0022
R506
2.2K
R513
820
R549
10K
R550
10K
D516
DI0MA111L
D517
DI0MA111L
R541
10K
R542
4.7K
R543
10K
R544
4.7K
R545
10K
R546
4.7K
R547
10K
R548
4.7K
C510
0.1
L502
C508 15P
C509
15P
X501
6.29MHz
D502
ZMA8056ML
C504
0.001
C505
0.001
D503
ZMA8056ML
R521
68
R502
100
R503
100
15 14 13 12 11 10 9
87654321
16
ACC IN
BEEP
IC502
000774350-T
RESET
MUTE IN
Q505
TRC2412QL
SWITCHING
CB PTT
Q525
TRC114YUL-A
SWITCHING
Q526
TRC114YUL-A
SWITCHING
CB SCK
CB AUDIO MUTE
CB DET
CB SI
Q521
TRC114TUL-A
INTERFACE
Q522
TRC114TUL-A
INTERFACE
Q523
TRC114TUL-A
INTERFACE
Q524
TRC114TUL-A
INTERFACE
CB SO
CB PERM
MUTE
BUS SCK BUS SI
BUS SO
BUS IRQ
BUS C/D
XI
XO
VDD
TEST
BUS RST
BUS CS
BUS-
BUS+
BUS+
BUS-
BUS CS BUS RST BUS SCK BUS SI BUS SO BUS IRQ BUS C/D
IC501
000674280-T
BUS DRIVER
Q509
TRC1037QL
MUTING DRIVE
SCHEMATIC DIAGRAM-5 :POSITIVE VOLTAGE LINE
L503
RM-G45(PA) MAIN SCHEMATIC DIAGRAM
C517 0.1
5V
2.4V 2.4V
5V 5V 5V 5V 5V
5V 0V 0V 0V 0V 1V
2.6V
0V
0V
0V
0V
0V 0V 4V
5V 5V
2.4V
0V
0V 0V
4.4V4.4V
0V 1V 5V5V
5.2V
5V
9.2V
13V
5.2V
5V
9.2V
13V
5V
RM-G45PA
12

C419
0.1
C413
0.047
6 7 8
1234
5
C409
0.047
C421
0.047
C411
0.047
R406
4.7K
R409
4.7K
R410
100K
IC401
000474790-T IC403 000774810-T
C415
56P
C416
0.01
R412
390K
R413
2.2K
C414
10V10
R417
3.9K C420 10V10
C417
0.01
R414
47K
C418
16V2.2
R415
680K
5
4
3
2
1
R421
4.7K
R420
2.2K
Q406
TRC124EUL-A
765
4321
8
R416
15K
R411
1K
C412
0.15
R407
390K R408 3.9K
C410 680P
R403
100K
C404 0.01
C406 0.01
R405 150
R404
680
C405
1
C407
16V2.2
C408 0.01
R418
10K
R419
10K
C401 16V47
C402
16V10
C403
10V100
R401
1K
Q402
TRC2412QL
R402
47
R422
4.7K
R423
10K
R501
22K
C506
0.01
Q503
TRB123YKL
Q504
TRC114YUL-A
C507
0.1
C512
10V100
C502
5.5V0.1
C503
16V10
D501
ZMA8056ML
R314
4.7K
R307
3.3K R308 2.2K
C312
0.22
C307
0.1
C305
16V47
Q301
TRC343TKL
C306
0.001
R309
68K
7
4321
8
C308
0.1
R306
2.2K
R312
10K
R313
100
C302
0.001
R311
8.2K
C310
0.001
R304 22K
R301
22K
R315
47
C311
0.22
R310
47
C309
16V10
R302
22K
R303
22K
C303
0.1
C304
0.1
IC301
NJM4565MD
765
4321
8
R471
3.9K
C454 0.01
C471
10V100
R472
10K
R474
1K
R473
4.7K
R452
10K
C472
16V10
5 4
321
R451
8.2K
C451
16V47
R454 3.3K
R453
47K
C452
220P
C453
16V10
R455
560K
6 5
CB DET
AUDIO/MIC AMP
CB AUDIO
ACC OUT
Q471
TRB1565D1
REGULATOR
IC404
000474740-T
STABILIZER
CB SP
BEEP
CB BEEP SP
IEV CL
IEV DO
D402
DIA204KL
MIC MUTE
SWITCHING
I-COM
Q403
TRC114YUL-A
POWER SUPPLY
CONT.
Q472
TRUMW5NL
STABILIZER
Q407
TRC343TKL
SWITCHING
Q408
TRC114YUL-A
SWITCHING
REGULATOR
IC402
000774840-T
ELECTRONIC
VOLUME
HS MIC IN
MIC AMP
Q401
TRA114YUL-A
POWER SUPPLY
L501
4.7 H
Q502
TRA1703R8
POWER SUPPLY
Q501
TRC1037QL
POWER
SUPPLY CONT.
SW5V
MIC OUT
MIC MUTE
SCHEMATIC DIAGRAM-6 :POSITIVE VOLTAGE LINE
D401
ZMA8056ML
POWER SUPPLY
POWER SUPPLY
CONT.
RM-G45(PA) MAIN SCHEMATIC DIAGRAM
MUTING
0V
5V
2.6V
2.4V
2.6V
2.4V
0V
5V 5V
9V
5V 5V 4.4V
4.4V
4.4V
0V
0V
0V 0V
0V
0V
0V
0V
5V
4.6V 5.6V
9.2V
0V
0V
5V
5.6V
5.2V 13V
12.4V
5V
0V
5.2V
4.2V
5V
5V
5V
5V
5V
9.2V 5V
0V 5V
9.2V
5.2V
13V
0V
0V
0V
5V 5V 5V
5V 5V
5V
9.2V
5V
5.2V
5V
9.2V
13V
5.2V
13V
5V 9.2V 12.5V
RM-G45PA
13

L702
FL(+)
FL(
- )
FR(+)
FL(
- )
RR(+)
RR(
- )
DISP GND
DISP SO
DISP SCK
RL(+)
RL(
- )
HS OUT L(P)
HS PUT L(D)
SW GND
SW K13
SW K11
DISP CE
HS OUT R(P)
HS OUT R(D)
HS OUT E(P)
HS OUT E(D)
SW KS1
SW KS2
SW KS3
DISP REQ
GND(MA IN)
HS MIC DR
HS MIC PA
HS MIC E(D)
HS MIC E(P)
SW K14
SW K12
VBAT (ACC)
BU
C701 0.001
C702
0.001
C703 0.001
C704 0.001
C705
0.001
C706
0.001
CN701
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
C711 0.001
C715 0.001
C722 0.001
C707 100P C708 100P C709 0.001
C710 0.001
C713
22P
C712
22P
C714 0.022
C719
0.001
C718
22P
C717
22P
C716
22P
R701
100
R702
100
C720
0.001
C721
100P
C723
22P
C724
22P
C725
0.0039
AUX L
BUS L(
- )
BUS L(+)
BUS R(
- )
BUS R(+)
BUS(
- )
BUS(+)
BUS SYS ACC
BUS +B
AUX R
BUS AUDIO GND
BUS GND
BUS GND
BUS ILLUMI
NC
NC
MUTE IN
AUX GND
PULSE
CB AUDIO MUTE
CB PERM
CB DET
CB SHIELD
CB MIC OUT
CB MIC GND
STARTER(MUTE)
CB STARTER(MUTE)
CB AUDIO GND
CB AUDIO IN
CB RST
CB PTT
CB SO
CB SI
CB SCK
CN702 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
L704
L703
C762 0.001
C751
0.001
C752
0.001
C753 0.001 C754 0.001
C755
100P
C756 100P
C748 0.001
C761 0.001 C760 0.001 C759 0.001
R704 3.3K
C750 0.001
C749
0.001
C763
0.001
C764
0.001
C766
0.001
C765 0.001
R708
2.2K
C767 0.001
C770 100P C769 100P C768 0.001
L701
C726
16V2200
C727
16V2200
D701
DIDSB15T0
C728
0.1
R710 2.2K
R711 2.2K
R703 4.7K
C730
0.1
C729
16V22
R706
22K
D102
DIAN202KL R194
4.7K
R192
1K
R193
4.7K
C188
0.001
C757
0.001
R707
680
R705
120
C747
0.001
D710
MA111
D
Q702
TRA114YUL-A
POWER SUPPLY Q703
TRC114YUL-A
POWER SUPPLY
Q701
TRC114YUL-A
POWER SUPPLY
LN702
LN701
Q704
TRC2412QL
SWITCHING
FL+
FL-
FR+
FR-
RR+
RR-
RL+
RL-
L OUT
R OUT
SO
SCK
K13
K11
CE
KS1
KS2
KS3
REQ
HS MIC
IN
K14
K12
ACC IN
AUX L
CD/MDL+
CD/MDL-
CD/MDR-
CD/MDR+
BUS-
BUS+
AUX R
MUTE IN
CB SCK
CB DET
CB PERM
CB AUDIO MUTE
SPEED
CB PTT
CB SO
CB SI
SCHEMATIC DIAGRAM-7 :POSITIVE VOLTAGE LINE :MAIN SIGNAL LINE
I/O CONNECTOR
I/O CONNECTOR
RM-G45(PA) MAIN SCHEMATIC DIAGRAM
BUS ACC
C771
0.001
0V
0V
13V 13V
3.4V
0V
12.5V
13V
3.4V
0V
RM-G45PA
14

CN131
1
3
5
6
7
8
9
10
2
4
CB AUDIO
MIC
MIC MUTE
ATT
AMB
AMB1
FM 10K
AU H/S
CB H/S
VO L
CN201
6
5
4
3
2
1
6
5
4
3
2
1
CN202
CB SP
VO R
SP R
SP L
BEEP
AMB CIRCUIT
B
R139
1M
R136
220K
R133
10K
R143
4.7K
C147
0.0015
C148
0.0033
C144
0.0033
C149
0.0015
15 14 13 12 11 10 9
87654321
16
R134
1K
R135
1K
C134
16V4.7
C135 16V10
C132 330P
C131 100P C133 330P
C150 0.1
C151
10V100
C140
16V10
C141
16V10
R131
220
R138 22K
C143
16V10
C142
16V10
R166 100KR165 100K
R168
100K
R169
100K
R170
4.7K
C162
50V1
C122
16V10
R167 100K
R161 100K
R163
4.7K
13 12 11 10 9 8
7
654321
14
R201
220
R202
220 R220
4.7K
R225
1K
R226
1K
C224
16V47
678
1234
5
R456
10K
R459
47K R458
47K
C457
0.22
R457
2.2K
R460
47K
C456
0.22
R213
22K
C203
100P
C205
50V1
C204
16V47
R208 10K
C455
0.22
R206 4.7K
R207
33K
R212
4.7M R211
4.7M
R205 4.7K
R204 33K
R203
10K R209 22K
C201
50V1 C202
100P
R210
47
C136 16V47 C137 16V10 C138 16V4.7
C139 100P
R137
8.2K
C152
1
Q104
TRC144EUL-A Q115 TRC144EUL-A
R111
10K
SWITCHING SWITCHING
R141
22K
R132
220
ATT
Q102
TRC114TUL-A
ATT DRIVE
Q101
TRC114TUL-A
ATT DRIVE
C109
16V10
IC103
000474780-T
SIGNAL SELECTOR
R162
2.2K
Q105
TRC1037QL
SWITCHING
C161
50V1
IC102
000774860
AMB CONTROL
VO R
VO L
SP R
SP L
Q106
TRC114YUL-A
SWITCHING
Q202
TRC114TUL-A
MUTING
Q201
TRC114TUL-A
MUTING
Q204
TRC343TKL
MUTING
Q203
TRC343TKL
MUTING
MIC MUTE
MUTE
MIC OUT
13 12 11 10 9 8
7654321
14
CB H/S
IC201
000474790-T
HS MIX AMP
IC405
BU4066BCF
SIGNAL SELECTOR
CB AUDIO
Q405
TRC1037QL
SWITCHING
Q404
TRC114YUL-A
SWITCHING
HS L
HS R
SCHEMATIC DIAGRAM-8
:POSITIVE VOLTAGE LINE
To MAIN
CIRCUIT
(CN101) on
SCHEMATIC
DIAGRAM
- 3
A
To MAIN
CIRCUIT
(CN211) on
SCHEMATIC
DIAGRAM
- 3
A
To MAIN
CIRCUIT
(CN212) on
SCHEMATIC
DIAGRAM
- 3
A
AU H/S
2.8V
R164
2.2K
RM-G45(PA) AMB SCHEMATIC DIAGRAM
AMB1
Q103
TRA114YUL-A
ATT CONT.
0V
0V
0V
7.8V
5V 5V
5V
4.8V 9.2V
7.8V
5V 5V 5V 9V
5V 5V 5V
0V
0V
0V
0V
0V
0V
0V
0V
7.6V
9.2V
4.8V 4.4V 4.8V
4.8V
0V 0V
4.4V
4.8V
4.8V
4.8V
7.6V
7.6V
0V
0V
0V
0V
0V
0V0V
4.4V 4.6V 4.4V
0V
4.6V
4.6V 4.6V 4.6V
0V
4.6V
4.6V 4.6V 4.6V
9.2V
9.2V
9.2V
0V
0V
5V
RM-G45PA
15

C651 0.01
CN601
8
6
4
3
2
1
7
5
R651
10K
R652
10K
R604
3.9K
S662
FM1
S663
FM2
S664
W/B
S665
AUX
S666
AM
S667
CD/MD
Q651
TRC114YUL-A
Q652
TRC114YUL-A
1
4
3
2
5
4
3
2
1
5R603
5.6K R609
1K
S602
MODE
S603
V MODE
PL651PL652PL653
PL654
PL655
PL656
CN602
1
3
5
6
7
8
2
4
KS4
KS5
KS6
K11
K12
K14
K13
S651
AUDIO
S652
CB
S659
A.SEL/RPT
S660
CH3
S661
CH6
S654
CH2 S653
CH1
S655
CH4
S656
CH5
S658
I-COM
SWITCHING
R605
4.7K
SWITCHING
C652 0.01
C653 0.01
C654 0.01
Q653
TRC114YUL-A
SWITCHING
Q654
TRC114YUL-A
SWITCHING
C655 0.01
C656 0.01
Q655
TRC114YUL-A
SWITCHING
Q656
TRC114YUL-A
SWITCHING
R606
8.2K
R607
12K
R608
27K
VMODE U
VMODE O
MODE U
MODE O
MODE A/D
FANC A/D
LAMP
C657
0.01
To MAIN
CIRCUIT
(CN501) on
SCHEMATIC
DIAGRAM
- 4
A
To MAIN
CIRCUIT
(CN502) on
SCHEMATIC
DIAGRAM
- 4
A
OPERATION CIRCUIT
C
SCHEMATIC DIAGRAM-9 :POSITIVE VOLTAGE LINE
R653
10K
R654
10K
R655
10K
R656
10K
RM-G45(PA) OPERATION SCHEMATIC DIAGRAM
0V
5V
0V
5V
0V
0V
0V
0V
4.9V
4.8V
4.7V
4.6V
13V
RM-G45PA
16

5 Printed Circuit Board Diagram
ABCDEF
1
2
3
4
5
6
7
8

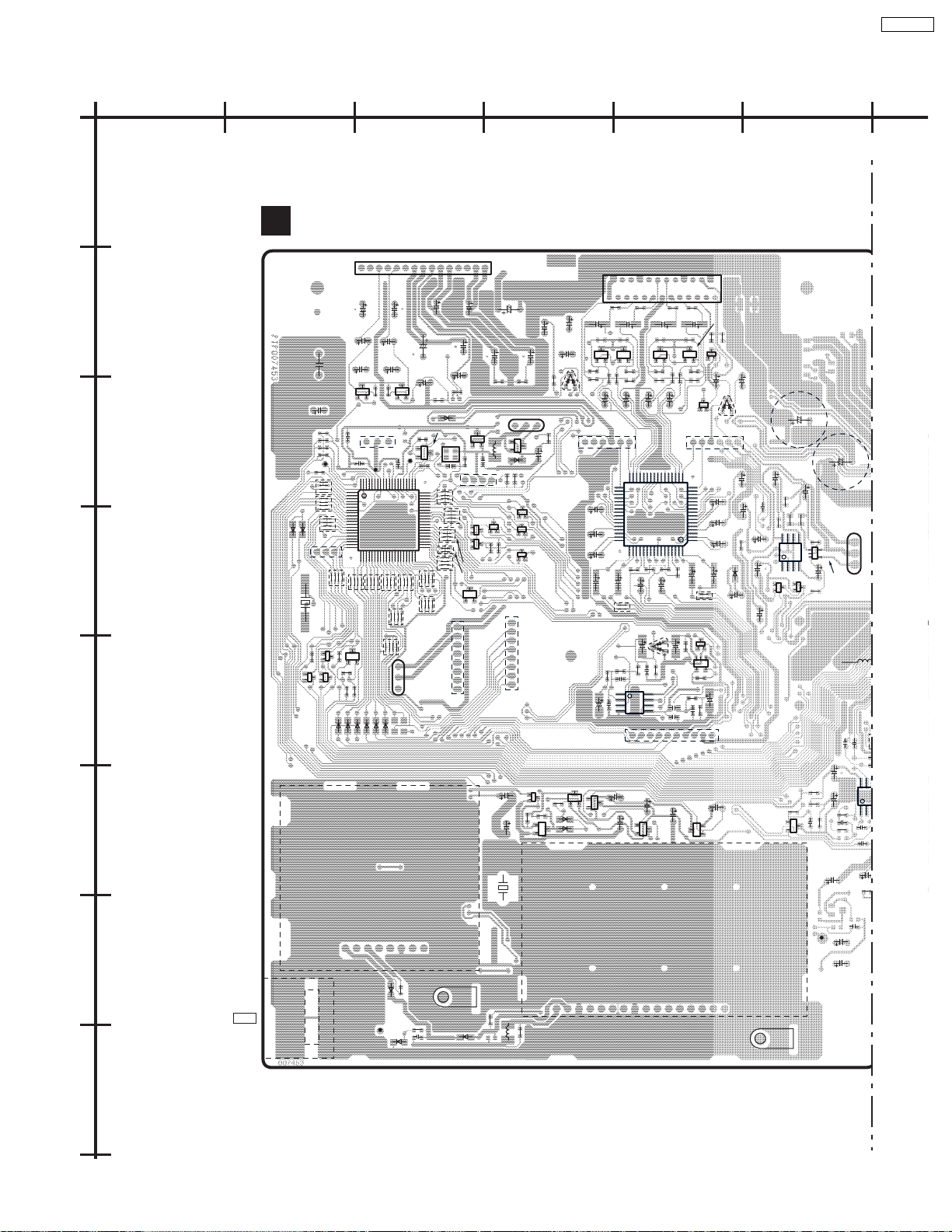

MAIN P.C.B.(SIDE:A)
A
123456789101112131415
IC202
1
2
3
4
5
6
7
810
11
1214
1315
1618
1719
20
21
2224
23259
IC104
C
E
B
Q206
C
EB
Q205
R223
R224
R516
R513
R506
R550 R549
R501 R187
R171
R109
R402
R451
R474
R472
R452
R173
R175 R177
R507 R525
R219R218 R228 R227
R185
R172
R151
R152 R154
R153
R105
R107
R106
R155
R156 R158
R157
R174 R176 R178
R195 R191
R188 R189 R186
R526
R508
R509
R512
R505
TP3 TP7
TP5
RN502
RN505
RN506
RN507
LN501 LN502 RN514
RN515
RN511
RN503
RN504
RN510 RN509
RN508
RN114 RN117
RN517
RN516
RN518
D503
D515
D501
D505
D506 D507 D508 D509 D510
D502
123
CN503
X501
R638
R535
R534
R536 R537
C
E
B
Q513
C
E
B
Q511 C
E
B
Q512
C
BE
Q514
C
EB
Q503
C
E
B
Q508
C
E
BQ501
IC503
1
5
10
15
20
21 25 30 35 40
41
45
50
55
60
61
65707580
C522
C521
C507
C511
C517
123X502
CN504
1234
L501
D103
C
EB
Q107 C
EB
Q109 C
EB
Q110
C
EB
Q108 C
EB Q111
C
EB
Q112 D101
CN212
123456 CN211
123456
C727
C726
1
5
10
15
16
17202530
32
33
35
40
45
47 48 50 55 60 64
IC101
C
E
B
Q525
C
E
B
Q526
C
E
B
Q522 C
E
B
Q524
C
E
BQ521
C
E
BQ523
C
BE
Q509
C454
R471 R473
1
85
4
IC404
Q472
B
B
EC
C
C
E
B
Q401
C
E
B
Q403
R413
R417
R414
R405
R415
C417
C406
C416
C415
C404
R412
R420
R404
D402 C
EB
Q406
18
54 IC401
12345678910 CN101
C405
LN5
0
LN701
LN702
C303
C771
C312
C304
R303
R308
R315
R124
R123
R307
R310
R311
R314
R302
1
85
4
IC301
R313
R312
EC
B
Q301
EC
B
Q7
EC
BQ6
EC
B
Q3 C307 C308
C311
C51
TP2
Z1(FM/AM TUNER PACK)
ET1
E
CBQ4
C
BE
Q5
R33
C
E
BQ2
R6
R32
X1
R9
R5
R14
R8
L1
C10
E
C
B
Q507
C512
C221
C206
C219
C217
C215
C213
C209
C503
C124
C451
C471
C123
C472
C305
C309
C116 C110
C401
C3
C19
C23
C14
C403
C185
C189
C171 C172 C173 C174
C187
C175
C212
C207
C220
C222
C223 C225
C186
C105 C119
C126
C117
C402
C453
C104
C112
C208
C214
C183 C181 C182 C184
ECB
Q502
D6
D5
C414
C420
C407
C418
C155
C156
C158
C157
D401
E
C
B
Q471
L701
C53
C63
C62
C108 C115
C17
C18
C9
D1
D2
D3
DSP1
Z2
(BW TUNER PACK)
C502
IC502
1
23
4
13
45
IC403
CN1
1
2
12345 867
12345 89106 7 13 14 1511 12 16
ET1
ANT
(CN501)
1
2
3
4
5
6
8
7
(CN502)
8
7
6
5
4
3
1
2
RM-G45(PA)
MAIN(SIDE:A) P.C.B.
RM-G45PA
17

GHIJKL
R451
R474
R472
R452
C727
C726
R471 R473
1
85
4
4
Q472
B
B
EC
C
C
E
B
Q401
C
E
B
4
03
CN702
LN503
LN701
LN702
LN504
LN505
D701
R710
R711
R706
R192
R194 R193
D102
C188
C303
C771
C312
C304
R303
R308
R315
R124
R123
R307
R310
R311
R314
R302
1
85
4
IC301
R313
R312
EC
B
0
1C307 C308
C311
C51
TP2
C471
C472
C305
C309
E
C
B
Q471
C729
D710
L701
C53
C63
C62
C108 C115
ET1
1234589
10
67
131415 1112
181920
1617
232425 2122
282930 26273334 3132
ET1
CN701
12345 89
10
67
13 14 1511 12
18 19 20
16 17
23 24 2521 22
28 29 3026 27 33 3431 32
RM-G45(PA)
MAIN(SIDE:A) P.C.B.
RM-G45PA
18

ABCDEF
1
2
3
4
5
6
7
8
MAIN P.C.B.(SIDE:B)
A
R214 R215
C211
C210
C
B
Q
5
R
R
R
CN502
8
7
6
5
4
3
1
2
R114
R116
R104
R121
R406
R403
R407
R410
R411
R416
R423
R409
R408
R108
R119
R110
R122 R112
R401
R113
R101
C106
C107
C166
C165
C113
C118
C125
C411
C419
C412C421 C413
C409
C163
C121 C120
C164
C129
C127
C102
C128
C101
R115
R159
R455 R454
R453
R418 R419
R421
R102
R103 C103
C
BE
Q402
14
58
IC402
R422
C
BE
Q407
C
EB
Q408
C722
C725
C408
L702
R702
R701
C719
C718
C720
C721
C724
C723
C716
C708 C714 C707 C713 C706 C705 C704 C711 C703 C710 C702 C709
C701
R703
C717 C712
C728 C
BE
Q704
R708
C750
C764
C748
C747
C759 C766 C765
C749 C755 C756 C757
C760 C761 C767
C768
C763
C762 C769
C770
R704
C751 C753
C754
C752
R705
R707
C
E
B
Q701 C
EB
Q702
C
EB Q703
L704 L703
R301
R309
R57
R59
R62 R63 R60
R56
R58
R306
R304
C302
C310
C306
C56 C57
C64 C65 C66
C8 C7
C6
C4 C2 C1
C67
C38
C37
C61
C58
C55
C59
C60
R51
R2
C114 C111
158
9
10
16 15
IC2
C
EB
Q18
C
EB
Q17
TP1
R3 R1
C26
R7
R26
R29
R22
R23 R27
R11
R25
R30
R28
R24
C22
C25
C452
C715
C410
1510
11 15 20
IC1
R31
R21
C24
C730
JC9
JC10
JC11
JC7
JC4
JC8
JC12 JC3
JC5
JC1
(IC104)
1
2
3
4
5
6
7
810
11
1214
1315
1618
1719
20
21
2224
2325 9
(CN702)
12345 89
10
67
13 14 1511 12
18 19 20
16 17
23 24 2521 22
28 29 3026 27 33 3431 32
(CN701)
1234589
10
67
131415 1112
181920
1617
232425 2122
282930 26273334 3132
123456 (CN211) 123456 (CN212)
12345678910
(CN101)
EC
B
(Q502)
RM-G45(PA)
MAIN(SIDE:B) P.C.B.
RM-G45PA
19

GHIJKL
R217
R216
R222
R524
R514
R522 R517
R504
R518
R511 R515
R527
R599
R221
R510
R214 R215
C218
C216
C211
C210
(IC202)
C513
C514
C510
C508
C519
C509 C504
C505
C525
C
BE
Q505
C
E
B
Q504
R547 R598
R548
R545
R546
R543
R544
R541
R542
C518
C506
TP8
TP4
TP6
L502
L503
1
9
58
1015
16
IC501
R531 R532 R533
R519
R520
R503 R521 R502
R523
C
B
E
Q506
CN501
1
2
3
4
5
6
8
7
CN502
8
7
6
5
4
3
1
2
R114
R116
R104
R121
R409 R101
C106
C107
C166
C165
C419 C409
C102
C128
C101
R102
C
103
14
58
IC402
C6
C4 C2 C1
R3 R1
C26
R7
R26
R29
R22
R23 R27
R11
R12
R13
R25
R30
R28
R24
C22
C25
C13
C12
C15
1510
11 15 20
IC1
R31
R21
C24
C11
C
EBQ1
D504
D516
D517
JC9
JC7
JC4
JC8
JC12 JC3
JC5
JC1
123458910 67131415 1112
04)
1
2
3
4
5
6
7
8
1
0
1
9
123456 (CN212)
8910
EC
B
(Q502)
E
C
B
(Q507)
RM-G45(PA)
MAIN(SIDE:B),AMB P.C.B.
AMB P.C.B.(SIDE:A)
B
CN131
1
2
3
4
5
6
7
8
9
10
R133
R136
R137
R456
C152
EC
B
Q405
C
E
B
Q404
C
EB
Q103
C
EB Q104
C
E
B
Q115
C
EB
Q101
C
EB
Q102
C
EB
Q201 C
EB Q202
R457
157
810
14 IC405
R139 R111
C457
12345678
910111213141516
IC102
R134 R135
R138
R141
157
81014
IC103
R167
1
2
3
4
5
6
CN201
1
2
3
4
5
6
CN202
R163
R460
R459
R458
R170
R209
R213
C
BE
Q203
C
BE
Q204
C
BE
Q105
R210
R211 R212
C202
C203
C138 C136 C141 C140 C135 C137
C142
C143
C161 C162
C122
C205 C201
C109
C204
C151
C224
C134
AMB P.C.B.(SIDE:B)
B
12345678
910111213141516
(IC102)
1
2
3
4
1
2
3
4
5
6
(CN201)
5
6
(CN202)
R143
C139
C147
C148 C144
C149 C150
C456
C455
C131
C133 C132
R131 R132
R164
R202
R207 R206 R208
R201 R225
R220
R203 R205 R204
R226
R162
R165
R166
R161
R169
R168
C
E
B
Q106
1
8
4
5
IC201
(CN131)
1
2
3
4
5
6
7
8
9
10
RM-G45PA
20
