Watching
Basic
Basic connection
Please ensure that the unit is disconnected from the mains socket before
attaching or disconnecting any cables.
■Aerial
Aerial terminal
RF cable
Aerial
●Keep RF (antenna) cable away from the mains lead to avoid and minimise
mains interference pickup.
●Do not place the RF cable under the TV.
●Anaerial,correctcable(75Ωcoaxial)andcorrectterminatingplugare
required to obtain optimum quality picture and sound.
●If a communal aerial system is used, you may require the correct
connection cable and plug between the wall aerial socket and the TV.
●Your local Television Service Centre or dealer may be able to assist you
in obtaining the correct aerial system for your particular area and the
accessories required.
●Any matters regarding aerial installation, upgrading of existing systems or
accessories required, and the costs incurred, are the responsibility of you,
the Customer.

- 10 -

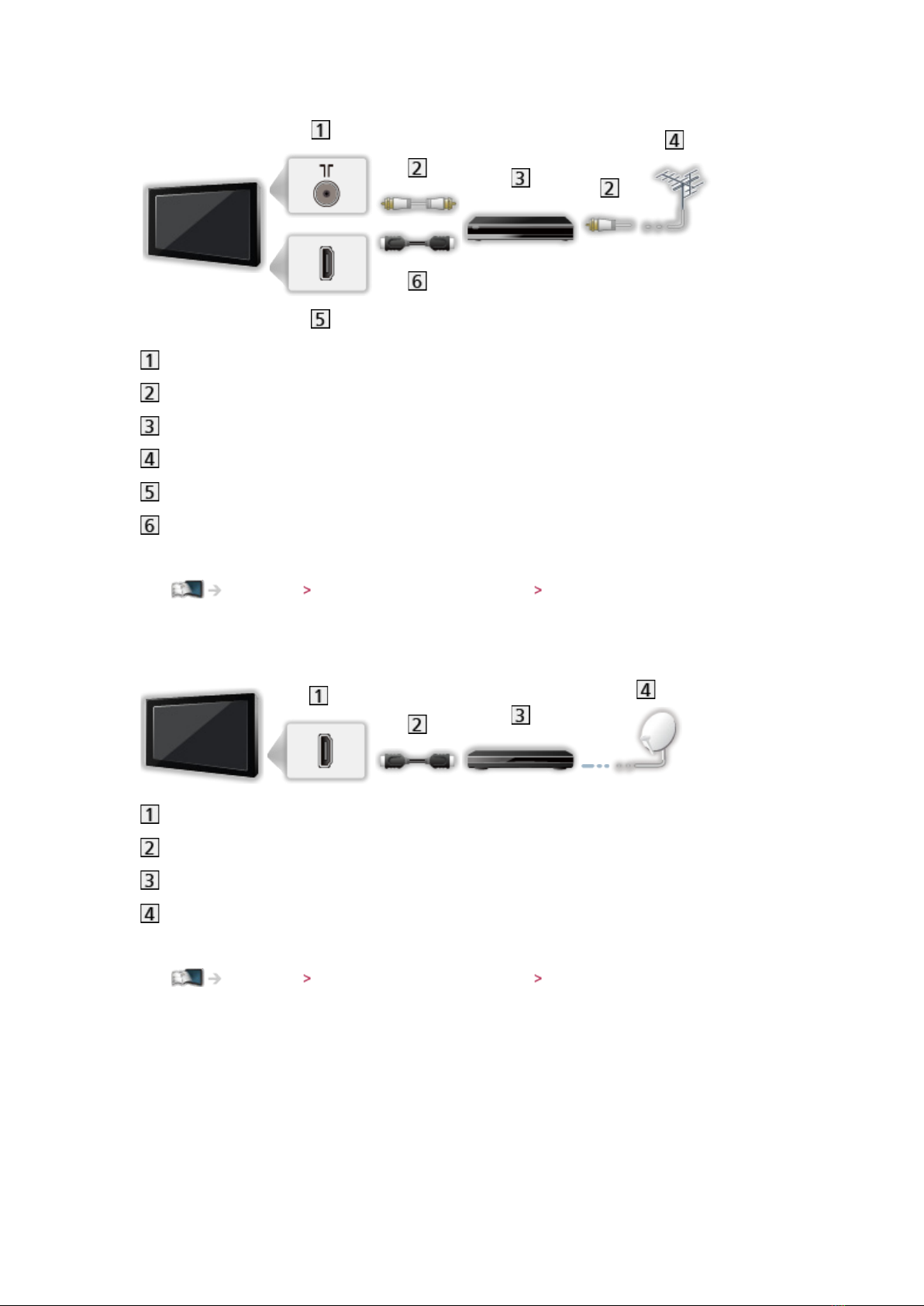

■DVD Recorder / VCR
Aerial terminal
RF cable
DVD Recorder / VCR
Aerial
HDMI terminal
HDMI cable
●For VIERA Link connections
Functions VIERA Link “HDAVI Control™” Summary of VIERA Link
■Set top box
HDMI terminal
HDMI cable
Set top box
Satellite dish
●For VIERA Link connections
Functions VIERA Link “HDAVI Control™” Summary of VIERA Link
= Note =
●External equipment and cables shown are not supplied with this TV.
●Please also read the manual of the equipment being connected.
●Keep the TV away from electronic equipment (video equipment, etc.) or
equipment with an infrared sensor, otherwise distortion of image / sound
may occur or operation of other equipment may be affected.
●When using an HDMI cable, it is recommended to use fully wired one.

- 11 -
●Check the terminal type and cable plugs are correct when connecting.
Selecting channel
1. Select Digital TV or Analogue TV with TV
●You can also select the mode pressing INPUT/OK/HOLD for MENU
button repeatedly on the control panel of the TV.
●The selected mode is displayed on the top left of the screen.
2. Select a channel with Channel Up / Down or numeric buttons
●Press the numeric buttons to select a channel position with 2 or more-
digit (e.g. 399, press ).
■To select a channel from the channel list
1. Display the channel list with OK
2. Select a channel from the list with / and press OK to watch
■To select a channel using information banner
1. Display information banner with INFO if it is not displayed
2. Select a channel with / and press OK to watch while the banner is
displayed
Watching Basic Information banner
■To select a channel using TV Guide
1. Display TV Guide with GUIDE
2. Select the current programme or channel with / / / and press
OK to watch
Watching TV Guide Using TV Guide

- 12 -
Information banner
Display information banner with INFO.
●Also appears when changing a channel.
(Example)
Channel position and name
Channel type (Radio, etc.) / encrypted channel ( ) / TV mode ( , )
Programme
Programme start / finish time (Digital TV)
Channel position, etc. (Analogue TV)
Category
Current time
Features available / message meanings
:
Sound mute is on
Rating:
Rating information
Functions Child Lock Parental Rating
Bad signal:
Poor quality TV signal
:
Subtitle service available
:
Multiple image or audio available
, , , :
Audio mode
Settings Sound Advanced settings

- 13 -
AD:
Audio Description service available
●This function can aid visually-impaired viewers by adding an
additional audio track to describe events on screen.
Settings Sound Audio Description
1– 90:
Off Timer remaining time
Watching Basic Off Timer
●To confirm another tuned channel
/
●To watch the channel listed in the banner
OK
●Information on the next programme (Digital TV)
●Extra information (Digital TV)
INFO
– Press again to hide the banner.
●To hide the banner
EXIT
●To update the TV software (if available)
(red)
●To select a favourite list (Digital TV)
(blue)
– If the favourite list is created in Favourites Edit.
Watching Tuning and editing channels Favourites Edit
●To adjust banner timeout, set Banner Display Timeout.
Settings Setup Display Settings
Option Menu
Confirm or change the current status.
1. Display Option Menu with OPTION
2. Select one of the following items with / and press OK to access
Audio Description / Audio Selection / Dual Audio / MPX / Volume
Correction
3. Set with / / / and press OK to store

- 14 -
Audio Description
Set to Auto if the programme has Audio Description service, then you will hear
an additional audio track to describe events on screen.
●To adjust the volume for Audio Description
Settings Sound Audio Description
●For Digital TV
Audio Selection
Selects between alternative languages for sound tracks (if available).
●For Digital TV
Dual Audio
Selects stereo / monaural (if available).
●For Digital TV
MPX
Selects multiplex sound mode (if available).
Settings Sound Advanced settings
●For Analogue TV
Volume Correction
Adjusts the volume of each individual channel or input mode.
Subtitle
Display / hide subtitles (if available) with STTL.
●For Digital TV

- 15 -
Off Timer
Turn the TV Standby mode automatically after a fixed period.
1. Display the menu with MENU
2. Select Timer Off Timer with / and press OK to access
3. Select the time in 15-minute increments with / and press OK to set
90 / 75 / 60 / 45 / 30 / 15 / Off (minutes)
●To cancel, set to Off or turn the TV off.
●The remaining time displays on the information banner.
Watching Basic Information banner
●When the remaining time is less than 3 minutes, the remaining time will
flash on the screen.
Still
Freeze / unfreeze picture with STILL.
Last view
Switch to a previously viewed channel or input mode easily with LAST VIEW.
●Press again to return to the current view.
= Note =
●Watching less than 10 seconds is not reflected in the previously viewed
channel or input mode.
Adjusting time
■Adjust the standard time
Select the region where you live to adjust the standard time. (Base on GMT)
1. Display the menu with MENU
2. Select Timer Clock Settings Region Select with / and press OK
to access
3. Select the region with / and press OK to set
NSW / ACT / Victoria / Queensland / South Australia / Western Australia /
Northern Territory / Tasmania
●The time contained in the broadcast signal is UTC (Universal Time
coordinated) formally known as GMT (Greenwich Mean Time).
NSW / ACT / Victoria / Queensland / Tasmania: +10:00
South Australia / Northern Territory: +9:30
Western Australia: +8:00

- 16 -
■Adjust for Summer Time
Select time offset from the standard time for Summer Time. (Base on GMT)
1. Display the menu with MENU
2. Select Timer Clock Settings Daylight Saving Time with / and
press OK to access
3. Select Auto / Off / + 1/2 hour / + 1 hour with / and press OK to set
●If there is a gap between displayed time and actual time, set this function.
●Normally select Auto to adjust as following for the region has been set in
Region Select.
NSW / ACT / Victoria / Tasmania: +11:00
South Australia: +10:30
Queensland: +10:00
Northern Territory: +9:30
Western Australia: +8:00
External equipment
External connection
These diagrams show our recommendations for connection of your TV to
various pieces of equipment. For other connections, consult the instructions
for each piece of equipment.
●For basic connection
Watching Basic Basic connection
●Check the terminal type and cable plugs are correct when connecting.
■HDMI equipment
HDMI terminal
Fully wired HDMI compliant cable
Recorder / Player / Set top box / Camcorder / Amplifier with speaker
system

- 17 -
= Note =
●For VIERA Link connections
Functions VIERA Link “HDAVI Control™” Summary of VIERA Link
●Use HDMI2 for connecting an amplifier. This connection is applicable
when using an amplifier that has ARC (Audio Return Channel) function.
■AV devices
AV IN (COMPONENT) terminal
Component cables
DVD player
AV IN (VIDEO) terminal
Composite cables
Camcorder / Game equipment
■USB devices
USB port
USB devices

- 18 -
= Note =
●It is recommended to connect the devices to the TV’s USB ports directly.
●You cannot use two or more of the same kind of USB devices
simultaneously except USB Flash Memory.
●Some USB devices or USB HUB may not be used with this TV.
●You cannot connect any devices by using USB card reader.
●Additional information for the devices may be on the following website.
(English only)
http://panasonic.net/viera/support
■To listen with speakers
DIGITAL AUDIO OUT
Optical digital audio cable
Amplifier with speaker system
●To enjoy the sound from the external equipment in multi-channel sound
(e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For the
connections, read the manuals of the equipment and amplifier.
Watching external input
Connect the external equipment (VCRs, DVD equipment, etc.) and you can
watch through the input.
1. Display the input selection menu with AV
2. Select the input mode connected to the equipment with / and press
OK to watch (The selected mode is displayed on the top left of the screen)
●You can also select the input pressing AV on the remote control or
INPUT/OK/HOLD for MENU button on the control panel of the TV. Press
repeatedly until the desired input is selected.
●To switch between COMPONENT and VIDEO in AV, select with / .
●You can label or skip each input mode. Skipped inputs will not be
displayed when AV is pressed. (Input Labels)
Settings Setup Display Settings
●To return to TV mode
TV

- 19 -
= Note =
●If the external equipment has an aspect adjustment function, set it to 16:9.
●For details, read the manual of the equipment or ask your local dealer.
HDMI features
HDMI (high-definition multimedia interface) is the world’s first complete digital
consumer AV interface complying with a non-compression standard.
HDMI allows you to enjoy high-definition digital images and high-quality
sound by connecting the TV and the equipment.
HDMI-compatible equipment with an HDMI or DVI output terminal, such as a
DVD player, a set top box or game equipment, can be connected to the HDMI
terminal using an HDMI compliant (fully wired) cable.
Watching External equipment External connection
: The HDMI logo is displayed on HDMI-compliant equipment.
■Applicable HDMI features
●Input audio signal:
2ch Linear PCM (sampling frequencies - 48 kHz, 44.1 kHz, 32 kHz)
●Input video signal:
Matches the output setting of the digital equipment.
Watching External equipment Valid input signals
●VIERA Link (HDAVI Control 5)
Functions VIERA Link “HDAVI Control™” Summary of VIERA Link
●Content Type
●Audio Return Channel
– Audio Return Channel (ARC) is a function to send digital sound signals
via an HDMI cable.
– For HDMI2 terminal
●x.v.Colour™
■DVI connection
If the external equipment has only a DVI output, connect to the HDMI terminal
via a DVI to HDMI adaptor cable. When using the DVI to HDMI adaptor
cable, connect the audio cable to the audio input terminal (use AV IN audio
terminals).
●Enquire HDMI adaptor cable at your local digital equipment retailer shop.

- 20 -
= Note =
●Audio settings can be made on HDMI1 / 2 Input in the Sound Menu.
Settings Sound Advanced settings
●If the connected equipment has an aspect adjustment function, set the
aspect ratio to “16:9”.
●These HDMI connectors are “type A”.
●These HDMI connectors are compatible with HDCP (High-Bandwidth
Digital Content Protection) copyright protection.
●Equipment having no digital output terminal may be connected to the input
terminal of component or video to receive analogue signals.
●This TV incorporates HDMI™ technology.
Valid input signals
■COMPONENT (Y, Pb/Cb, Pr/Cr), HDMI
Signal name COMPONENT HDMI
525 (480) / 60i, 60p ○ ○
625 (576) / 50i, 50p ○ ○
750 (720) / 60p, 50p ○ ○
1,125 (1,080) / 60i, 50i ○ ○
1,125 (1,080) / 60p, 50p, 24p ○
○:Applicableinputsignal
= Note =
●Signals other than above may not be displayed properly.
●The above signals are reformatted for optimal viewing on your display.
