Order No. PMMA161157SE
Vacuum Cleaner
Model No. MC-CG711A249-AE
MC-CG711R249-AE
Destination: Iran
Subject : Change Specifications for Iran
TABLE OF CONTENTS
PAGE PAGE
1 Specifications ----------------------------------------------------- 2
2 Schematic Diagram ---------------------------------------------- 2
3 Wiring Connection Diagram ---------------------------------- 3
4 Exploded View and Replacement Parts List ------------ 4
4.1. Exploded View --------------------------------------------- 4
4.2. Attachment Exploded View ----------------------------- 5
4.3. Packing Instruction ----------------------------------------6
4.4. Replacement Part List ------------------------------------7
4.4.1. Part List --------------------------------------------------7
Please file and use this supplement manual together with the service manual for Model No. MC-CG711,
Order No.PMMA110926CE.

2
1 Specifications
2 Schematic Diagram
Model MC-CG711
Power Source 220V~240V~50/60Hz
Input Power (Max) 1900W
Input Power (IEC) 1500-1800W
Power Control SLIDE
Dust Capacity 6.0L
Automatic Cord Rewind O
Vac Gauge O
Exhaust Filter ANTI-BACTERIA
Extension Wands METAL TELESCOPIC WAND
Blower Operation O
Floor Nozzle 2-STEP
Dust Bag CLOTH
Dimension (H ×W ×L) 265mm ×320mm ×500mm
Net Weight 6.5 kg
Cord Length 5.0 m
Cleaning Tools CREVICE TOOL / DUSTING BRUSH

3
3 Wiring Connection Diagram

4
4 Exploded View and Replacement Parts List
4.1. Exploded View
B6
B35
B1
B36
B37
4
4
4
B32
B34
B2
B4
B3
B29
B30
Plug E2Plug C3
B5
B10
B13
B14
B15
B16
B17
B20
B21
B22
B28
B28
B24
B25
B26
B27
B23
B18
B31
B11
B8
1
3
3
3
3
B39 B40
1
1
2
1
1
1
11
B33
B41
B42
B41
B38
B7

5
4.2. Attachment Exploded View
A2
A3
A5
A4
A1
A7
A6

6
4.3. Packing Instruction
P1
HOSE UNIT
INSTRUCTION BOOK
CURVED WAND
CREVICE NOZZLE
CONNECTION PIPE
BODY
DUSTING BRUSH A
FLOOR NOOZLE ASS'Y
EXTENSION WAND UNIT
P2
P2

7
4.4. Replacement Part List
Important safety notice:
Components identified by mark have special characteristics important for safety.
When replacing any of these components, use only manufacturer’s specified parts.
4.4.1. Part List
Safety Ref.
No.

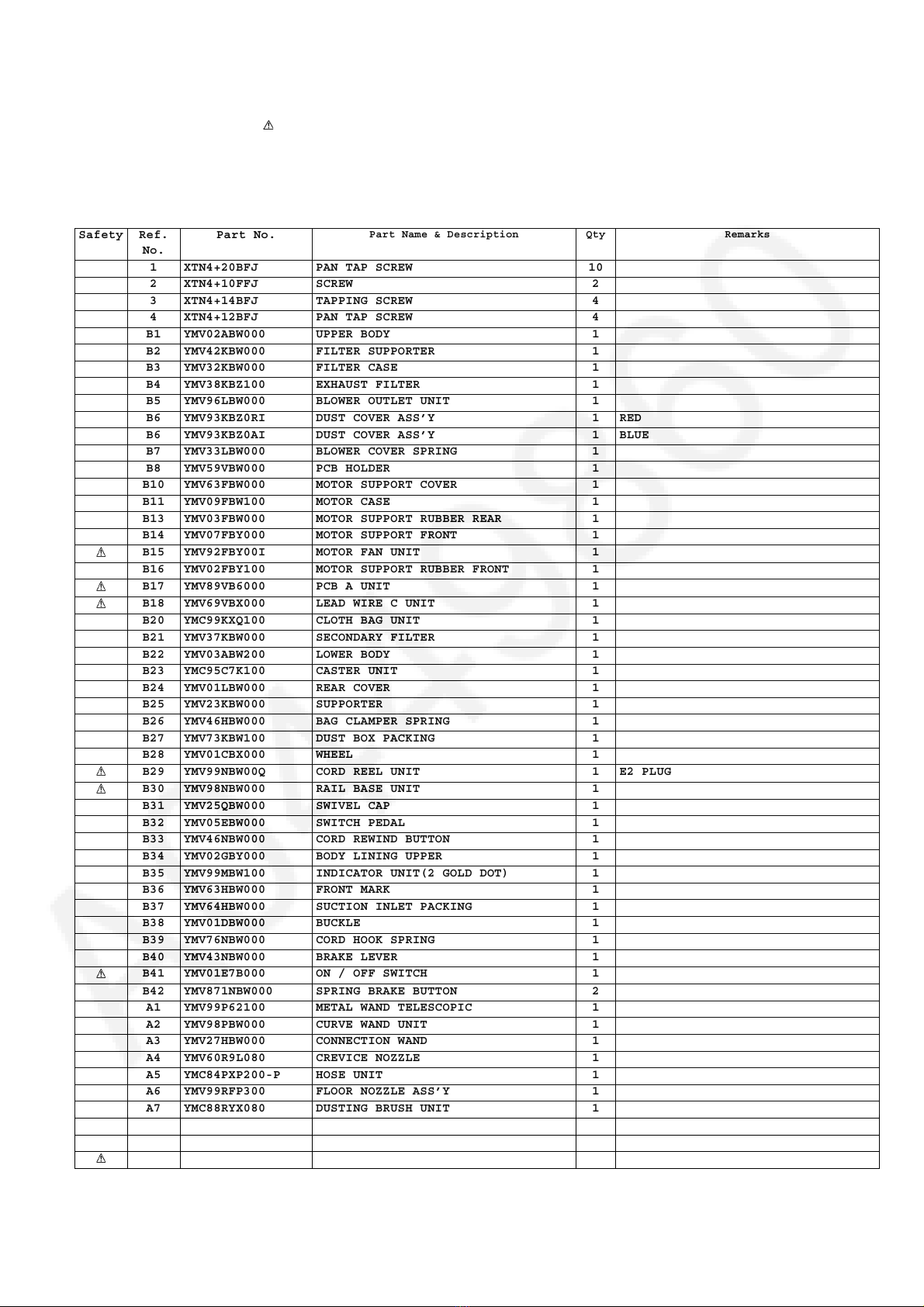

Part No. Part Name & Description Qty Remarks
1 XTN4+20BFJ PAN TAP SCREW 10
2 XTN4+10FFJ SCREW 2
3 XTN4+14BFJ TAPPING SCREW 4
4 XTN4+12BFJ PAN TAP SCREW 4
B1 YMV02ABW000 UPPER BODY 1
B2 YMV42KBW000 FILTER SUPPORTER 1
B3 YMV32KBW000 FILTER CASE 1
B4 YMV38KBZ100 EXHAUST FILTER 1
B5 YMV96LBW000 BLOWER OUTLET UNIT 1
B6 YMV93KBZ0RI DUST COVER ASS’Y 1 RED
B6 YMV93KBZ0AI DUST COVER ASS’Y 1 BLUE
B7 YMV33LBW000 BLOWER COVER SPRING 1
B8 YMV59VBW000 PCB HOLDER 1
B10 YMV63FBW000 MOTOR SUPPORT COVER 1
B11 YMV09FBW100 MOTOR CASE 1
B13 YMV03FBW000 MOTOR SUPPORT RUBBER REAR 1
B14 YMV07FBY000 MOTOR SUPPORT FRONT 1
B15 YMV92FBY00I MOTOR FAN UNIT 1
B16 YMV02FBY100 MOTOR SUPPORT RUBBER FRONT 1
B17 YMV89VB6000 PCB A UNIT 1
B18 YMV69VBX000 LEAD WIRE C UNIT 1
B20 YMC99KXQ100 CLOTH BAG UNIT 1
B21 YMV37KBW000 SECONDARY FILTER 1
B22 YMV03ABW200 LOWER BODY 1
B23 YMC95C7K100 CASTER UNIT 1
B24 YMV01LBW000 REAR COVER 1
B25 YMV23KBW000 SUPPORTER 1
B26 YMV46HBW000 BAG CLAMPER SPRING 1
B27 YMV73KBW100 DUST BOX PACKING 1
B28 YMV01CBX000 WHEEL 1
B29 YMV99NBW00Q CORD REEL UNIT 1 E2 PLUG
B30 YMV98NBW000 RAIL BASE UNIT 1
B31 YMV25QBW000 SWIVEL CAP 1
B32 YMV05EBW000 SWITCH PEDAL 1
B33 YMV46NBW000 CORD REWIND BUTTON 1
B34 YMV02GBY000 BODY LINING UPPER 1
B35 YMV99MBW100 INDICATOR UNIT(2 GOLD DOT) 1
B36 YMV63HBW000 FRONT MARK 1
B37 YMV64HBW000 SUCTION INLET PACKING 1
B38 YMV01DBW000 BUCKLE 1
B39 YMV76NBW000 CORD HOOK SPRING 1
B40 YMV43NBW000 BRAKE LEVER 1
B41 YMV01E7B000 ON / OFF SWITCH 1
B42 YMV871NBW000 SPRING BRAKE BUTTON 2
A1 YMV99P62100 METAL WAND TELESCOPIC 1
A2 YMV98PBW000 CURVE WAND UNIT 1
A3 YMV27HBW000 CONNECTION WAND 1
A4 YMV60R9L080 CREVICE NOZZLE 1
A5 YMC84PXP200-P HOSE UNIT 1
A6 YMV99RFP300 FLOOR NOZZLE ASS’Y 1
A7 YMC88RYX080 DUSTING BRUSH UNIT 1
P1 YMV61ZBZ000 INDIVIDUAL CARTON 1
P2 YMV98ZBX000 CUSHION UNIT 1
YMV01ZBW100 INSTRUCTION MANUAL 1
