Panasonic MC-CL935-00 User manual

© Panasonic Corporation 2014 Unauthorized copy-
ing and distribution is a violation of law.
Order No.: MAC1403003CE
Vacuum Cleaner
Model No. MC-CL935-00
Bagless Canister
Black w/ Vibrant Violet
North America
TABLE OF CONTENTS
PAGE PAGE
1 Specifications ----------------------------------------------------- 2
2 Disassembly and Assembly Instructions ---------------- 3
2.1. Cord Reel---------------------------------------------------- 3
2.2. Fan Motor---------------------------------------------------- 5
2.3. Triac PCB---------------------------------------------------- 5
2.4. Power Nozzle Cover -------------------------------------- 6
2.5. Power Nozzle Belt and Agitator------------------------ 6
2.6. Power Nozzle Light Bulb--------------------------------- 7
2.7. Power Nozzle Motor -------------------------------------- 7
2.8. Hose Handle ------------------------------------------------ 8
2.9. Hose Swivel------------------------------------------------10
3 Wiring Diagrams-------------------------------------------------11
3.1. Schematic-------------------------------------------------- 11
3.2. Wire Management - Canister ------------------------- 12
3.3. Wire Management - Power Nozzle ------------------ 13
4 Exploded View and Replacement Parts List----------- 14
4.1. Canister----------------------------------------------------- 14
4.2. Fan Motor -------------------------------------------------- 16

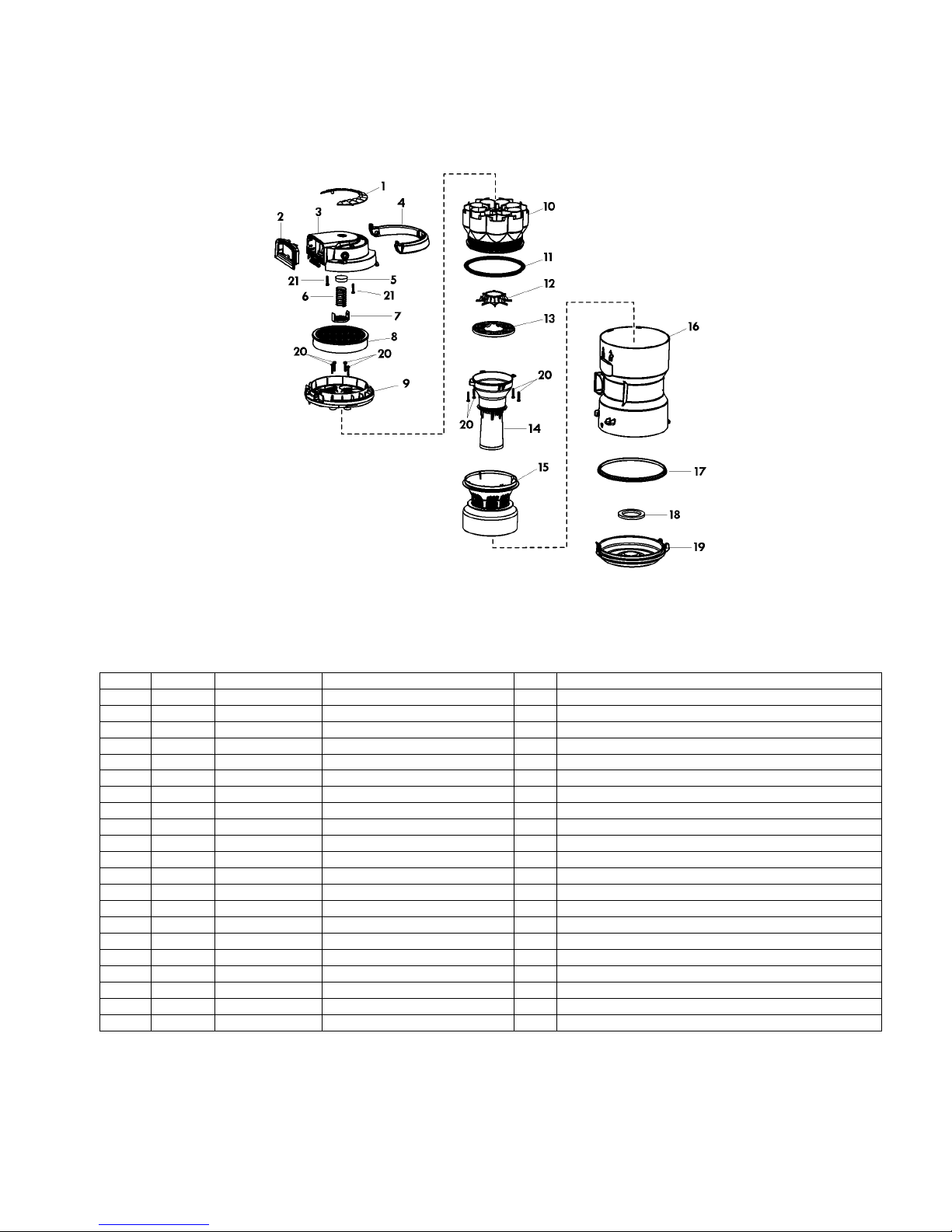

4.3. Dust Cup --------------------------------------------------- 17

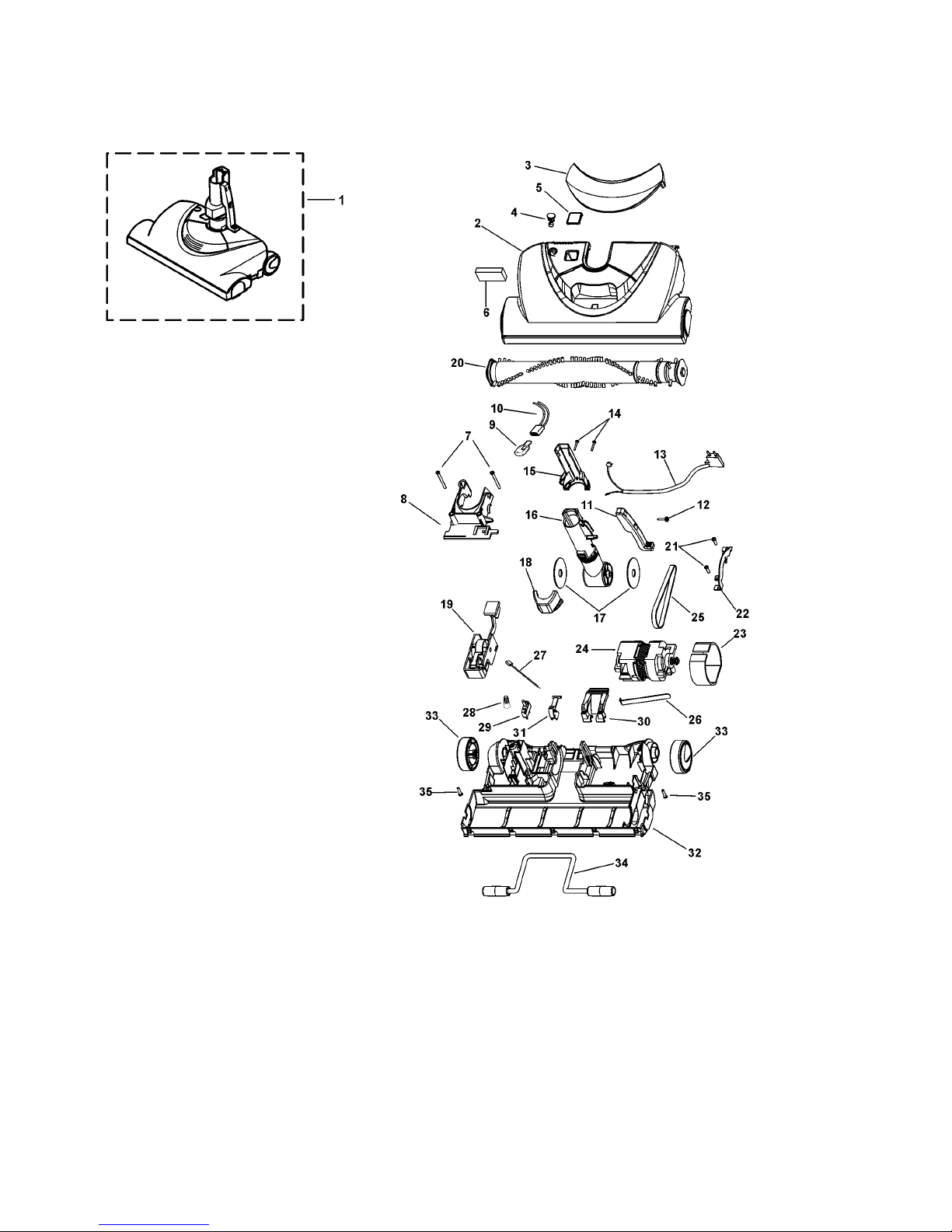

4.4. Power Nozzle --------------------------------------------- 18

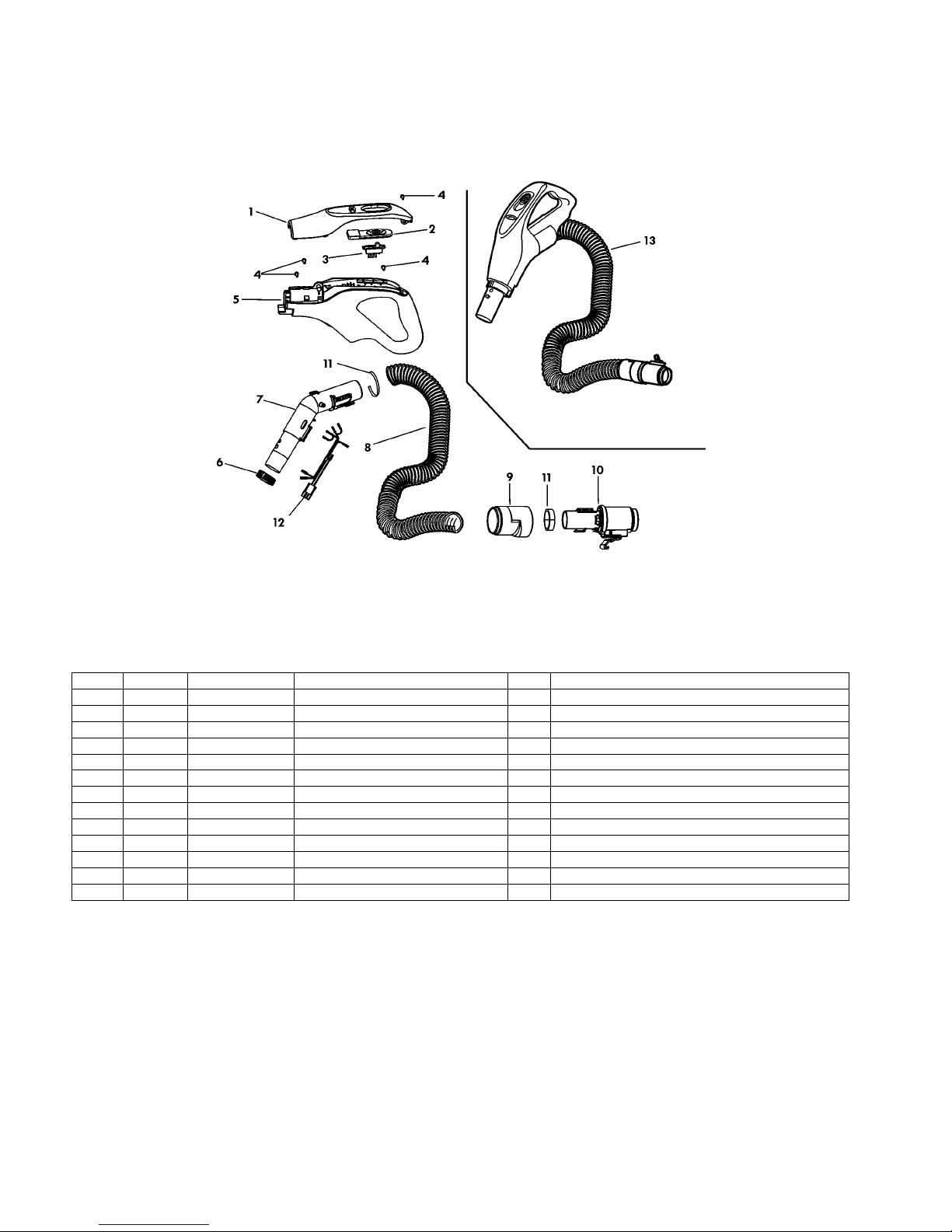

4.5. Hose--------------------------------------------------------- 20
4.6. Wand & Tools --------------------------------------------- 21
4.7. Packing ----------------------------------------------------- 22

2
1 Specifications
Model MC-CL935-00
Power Source AC 120V (60 Hz)
Input Power 12.0 Amps
Cord Length 7.3 m (24 ft.)
Motor Protection Yes
Washable Primary Filter Yes
Exhaust Filter HEPA Media
Dimensions (W x H x L) 36.5 x 38 x 108 cm
Weight 7.5 kg (16.5 lbs)

3
2 Disassembly and Assembly Instructions

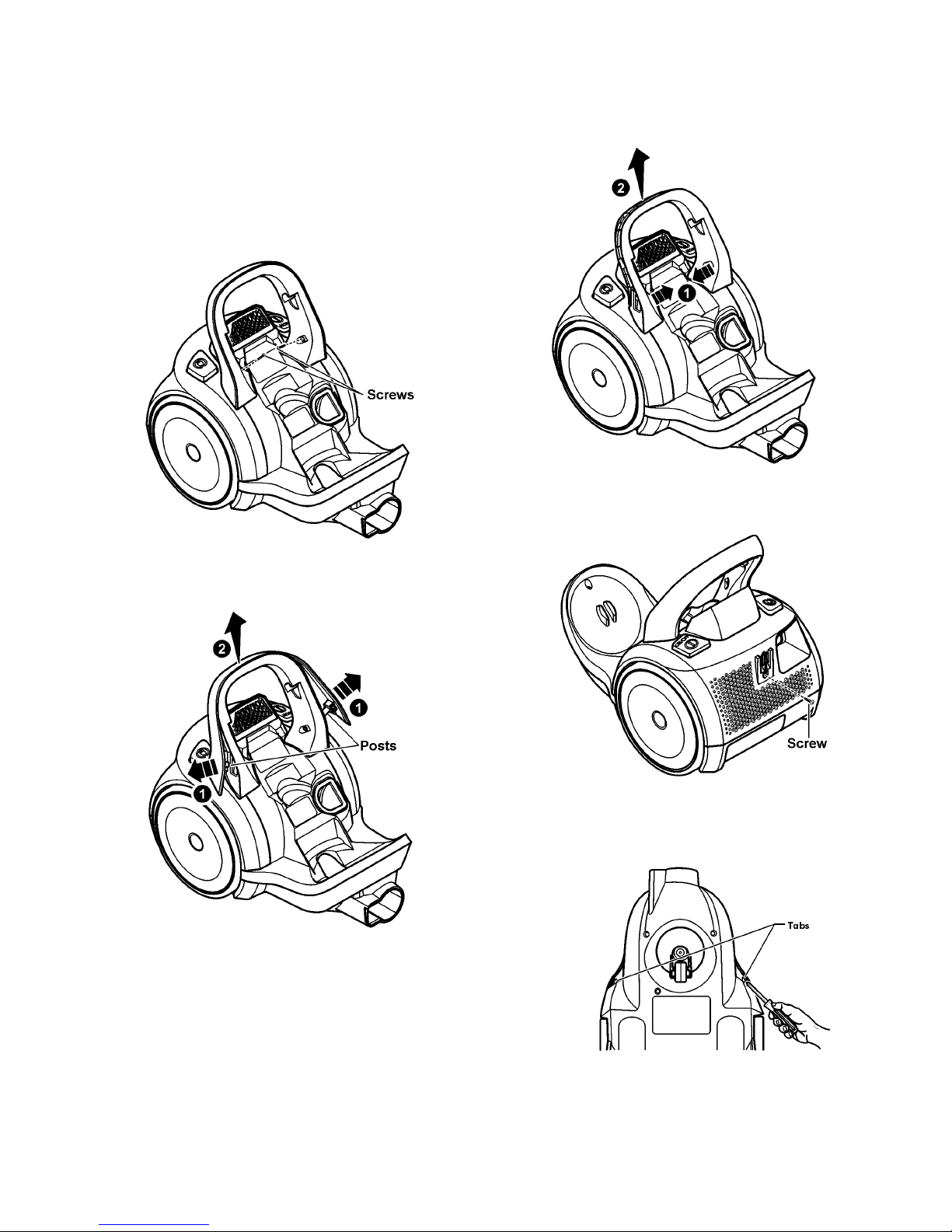

2.1. Cord Reel
2.1.1. Removal
1. Lift the dust cup handle and remove dust cup from
canister.
2. Remove two (2) screws from canister carry handle.
3. Pull outward slightly on each side of the handle cover and
lift off.
4. Press the sides of the handle inward and lift off.
5. Remove one (1) screw from the rear of the canister.
6. Using a screwdriver, press the tabs to release the cover.
7. Lift cover off.

4

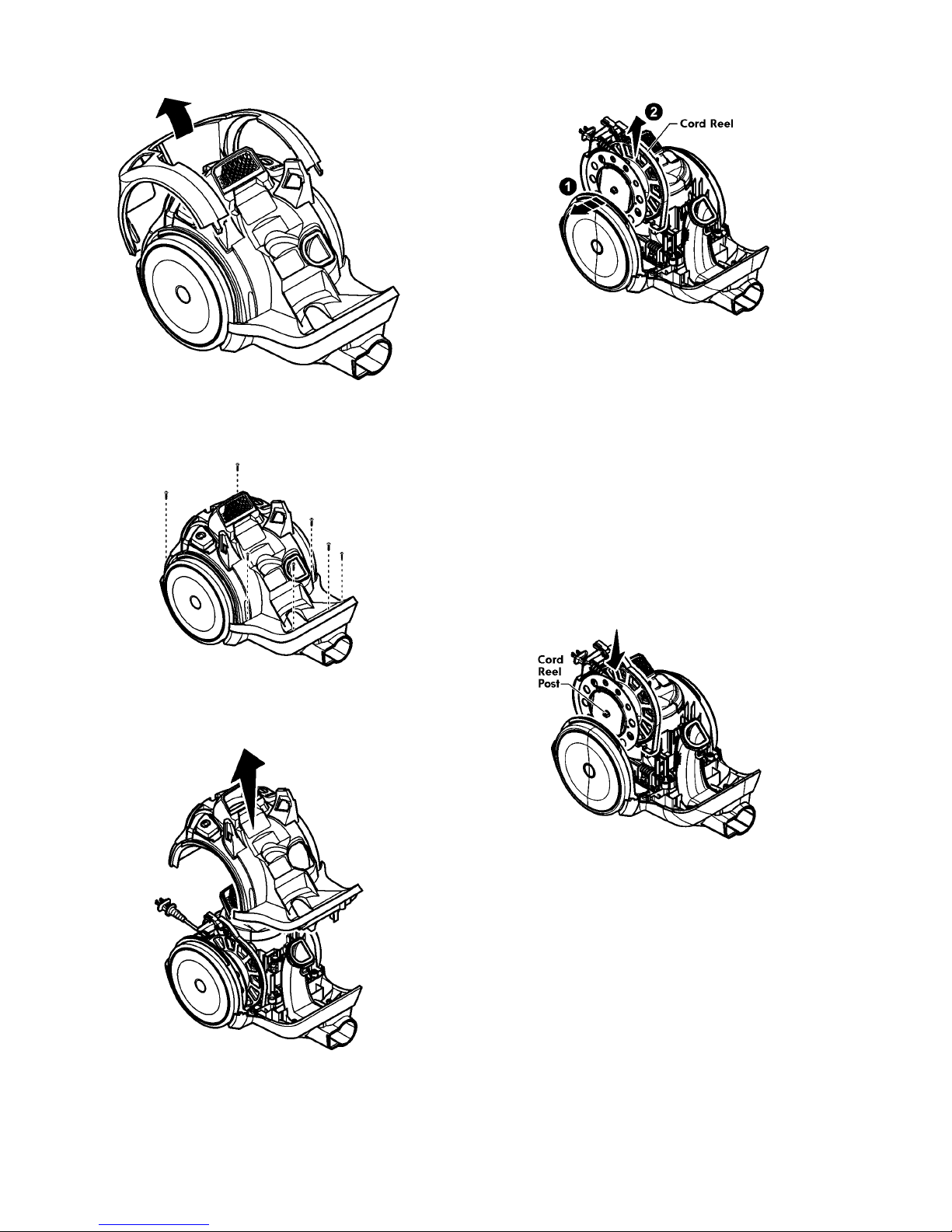

8. Remove seven (7) screws as shown.
9. Pull the power cord out of the canister 1-2 feet and lift off
the upper body.
10. Route the power cord plug through the opening in the
upper body.
11. IMPORTANT: Make note of wire routing for later
reference.
12. Pull outward slightly on lower body of canister.
13. Lift cord reel up and out of lower body.
14. Disconnect cord reel lead wire from overload protector
and cut white lead wire lead wire just below crimp
connector.
2.1.2. Reinstallation
1. Strip white lead wire from motor which was cut during
removal of cord reel approximately 1/4”
2. Connect white lead wires from motor, wire harness, and
cord reel with a wire nut.
3. Connect wire (with terminal) from cord reel to overload
protector.
4. Reinstall triac PCB into cord reel bracket.
5. Insert cord reel into lower body until cord reel post snaps
into place in lower body.
6. Route all wiring according to wire management drawing
and tuck wire nut into cavity in the motor inclosure.
7. Route the power cord plug through the opening in the
upper body.
8. Reinstall upper body and seven (7) screws.
9. Reinstall cover. Make sure it is snapped into place.
Secure with one (1) screw in rear of canister.
10. Reinstall handle, handle cover, and two (2) screws.
11. Reinstall dust cup.

5
2.2. Fan Motor
2.2.1. Removal
1. Remove dust cup, handle cover, handle, cover, upper
body. (see CORD REEL)
2. Remove connector pipe.
3. Loosen motor support cover tabs and lift off motor support
cover and lift out motor assembly.
4. Remove lead wires and motor supports from fan motor.
Save these for use with new canister motor.
5. Discard old canister motor.
2.2.2. Reinstallation
1. Place motor supports on new canister motor and connect
lead wires.
2. Place motor assembly into motor case and route all wires
according to wire management drawing.
3. Reinstall motor support cover.
4. Reinstall connector pipe.
5. Reinstall upper body, handle, handle cover, & dust cup.
(See CORD REEL)
2.3. Triac PCB
2.3.1. Removal
1. Remove dust cup, handle cover, handle, cover, upper
body (see CORD REEL), Remove motor assembly (see
CANISTER MOTOR).
2. Lift cord reel out of lower body and remove triac PCB
from cord reel bracket.
3. Disconnect yellow wire from PCB terminal, black wire
from motor terminal, and cut blue/red wire and black wire
just below crimp connector.
4. Discard PCB.
2.3.2. Reinstallation
1. Strip lead wires which were cut during removal
approximately 1/4”.
2. Connect blue/red wire from new PCB with wire nut.
3. Connect yellow wire to PCB terminal and black wire to
motor terminal.
4. Reinstall motor (See CANISTER MOTOR).
5. Reinstall upper body, handle, handle cover, & dust cup.
(See CORD REEL)

6

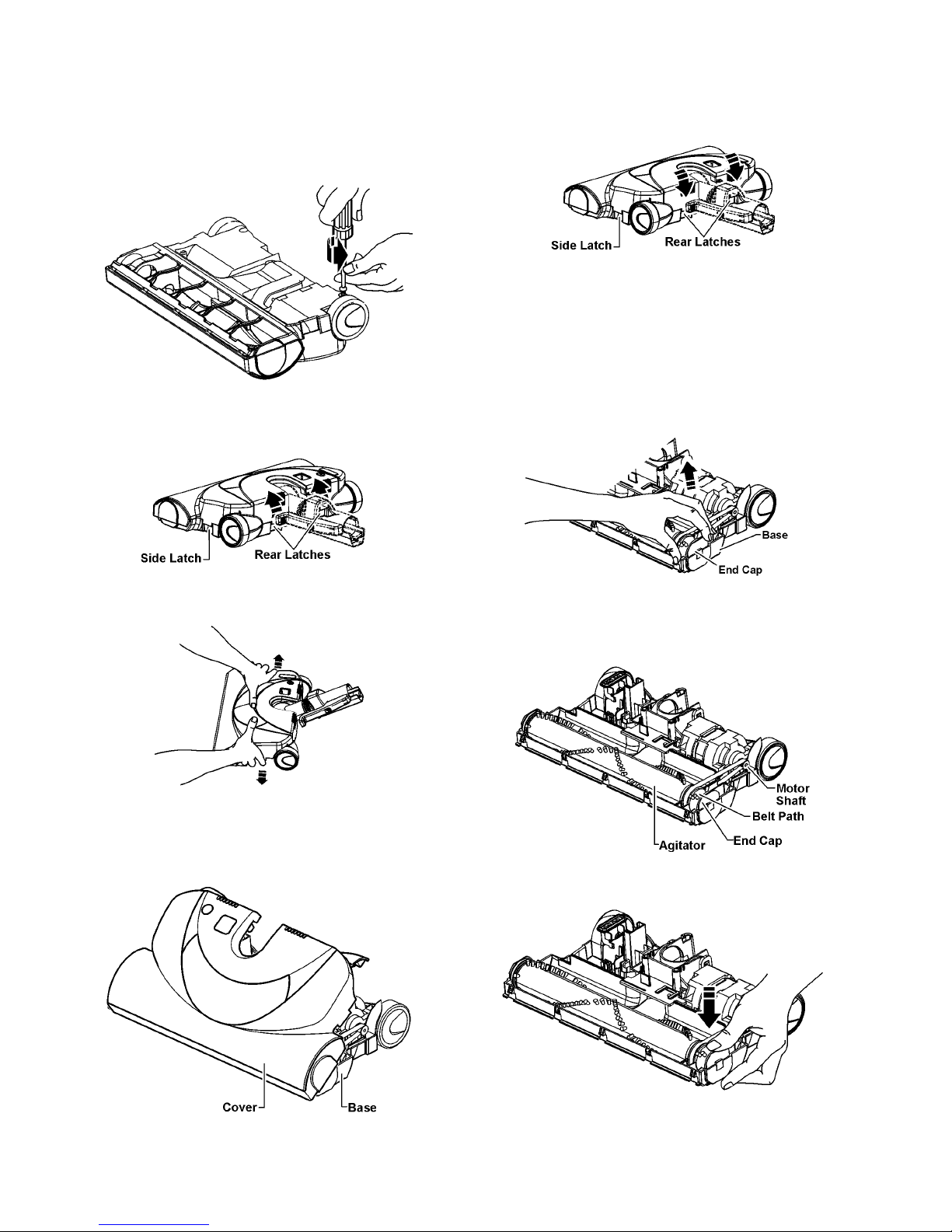

2.4. Power Nozzle Cover
2.4.1. Removal
1. Turn Power Nozzle upside down.
2. Unscrew the two (2) Power Nozzle cover screws.
3. Turn Power Nozzle right side up. Press handle release
pedal and lower the swivel. Lift rear latches up.
4. To remove cover, grasp the sides and pull out.
2.4.2. Reinstallation
1. Line up front of cover and base. Rest cover on front edge
of base as shown.
2. Rotate cover back. Press cover firmly until side and rear
tabs snap into place. Turn Power Nozzle upside down
and replace two (2) cover screws.
2.5. Power Nozzle Belt and Agitator
2.5.1. Removal
1. Remove Power Nozzle cover (see Nozzle Cover -
Removal).
2. Lift agitator assembly out and remove belt.
2.5.2. Reinstallation
1. Install belt over motor drive, then over belt path.
2. Place agitator assembly into power nozzle.
3. Reinstall Power Nozzle cover (see Nozzle Cover -
Replacement).
.

7
2.6. Power Nozzle Light Bulb
2.6.1. Bulb Removal
1. Remove Power Nozzle cover (see Nozzle Cover -
Removal).
2. Remove bulb by pulling straight out.
2.6.2. Bulb Reinstallation
1. To replace bulb cafeully push fully into slot. Use bulbs
only rated 13V AC (9W).
2. Reinstall Power Nozzle cover (see Nozzle Cover -
Replacement).
.
2.7. Power Nozzle Motor
2.7.1. Specifications
1. 120V., 60Hz.
2. Amps 2.0/2.7 (max.) at 18,000/14,550 R.P.M.
3. Watts 225/298 (max.) at 18,000/14,550 R.P.M.
4. Torque 55/100 Nm at 18,000/14,550 R.P.M.

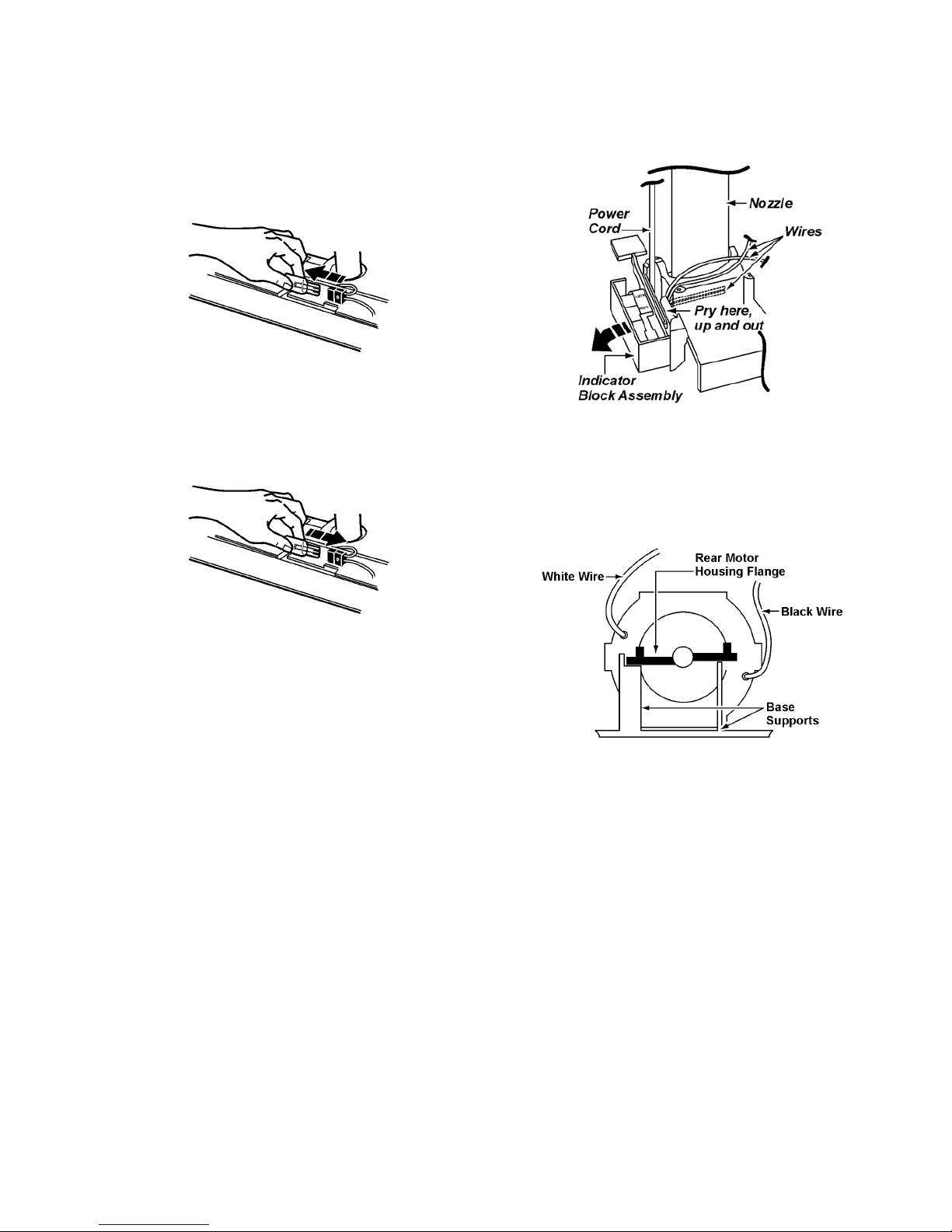

2.7.2. Removal
1. Remove nozzle cover and agitator assembly (See Nozzle
Cover and Belt & Agitator).
2. Remove two (2) motor bracket screws. Lift out bracket
and motor.
NOTE: Observe routing of motor wires and all other wiring
before removing motor.
3. Remove two (2) motor bracket screws. Lift out bracket
and motor.
4. Remove the overload protector wire terminals. Check
continuity by depressing the button completely. When the
button is released there should be continuity between the
two poles when checked. If all components and items in
the troubleshooting guide have been checked and the
overload protector continues to trip, it should be replaced.
5. Insert a flat screwdriver blade between the indicator block
assembly and the plastic retainer for the four (4) wires.
Pry up and out to free the indicator block assembly from
the retaining tabs.
2.7.3. Reinstallation
1. Install new motor.
CAUTION: Do not pinch wires.
2. Install motor bracket and secure with two (2) screws.
3. Reroute all wiring per original layout utilizing wire
retainers provided, and proper placement of wires to
prevent pinching of wires and interference when
reinstalling the indicator block assembly. Connect wires
and apply wire nuts, (reference WIRIING DIAGRAM and
WIRE MANAGEMENT).

8
4. Install indicator block assembly. Holding the assembly at
a slight angle, insert the edge of the part behind the
retaining tabs (use T-shaped tab on assembly to align in
slot of retaining tab). With fingers lifting base off the floor
(to free front axle) use both thumbs to push the indicator
block assembly down until it snaps in place.
5. Replace overload protector into pocket in ribs.
6. Replace remaining parts (see NOZZLE COVER and
BELT & AGITATOR).
2.8. Hose Handle
2.8.1. Removal
1. Remove three (3) screws from hose handle.
2. Remove the switch case.
3. Remove sliding knob.
4. Remove one (1) screw and separate handle halves.
5. Remove hose wires from retainers on curved pipe unit
and unplug wire connectors.
6. Pull hose from curved pipe unit.

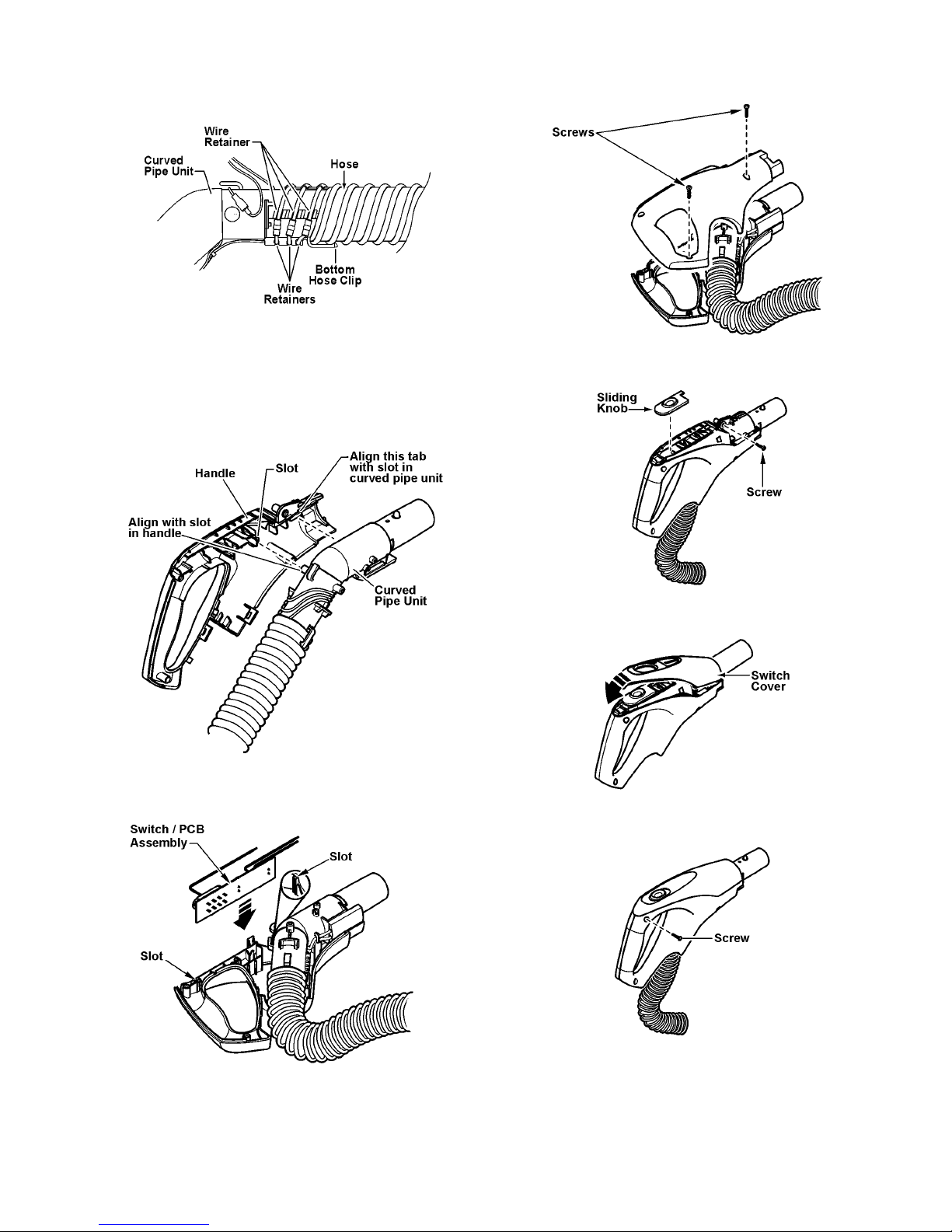

2.8.2. Reinstallation
1. If hose is being replaced, cut and strip wires on both ends
of new hose, using wire strippers.
NOTE: Refer to wiring diagram.

9
2. Push hose in place on curved pipe unit, and press each of
the hose wires into retainer slots.
3. Plug curved pipe unit and P.C.B. assembly wires to the
same color hose wires (blue wire to blue wire, white to
white, yellow to yellow). Press wires into retainer slots.
4. Install curved pipe unit into left handle half. Align tab on
handle with slot in curved pipe unit and align tab on
curved pipe unit with slot in handle.
5. Insert switch/PCB assembly into slots in handle.
6. Install right handle half and secure with two (2) screws.
7. Install one (1) screw in handle and sliding knob.
8. Install the switch cover.
9. Install one (1) screw.

10

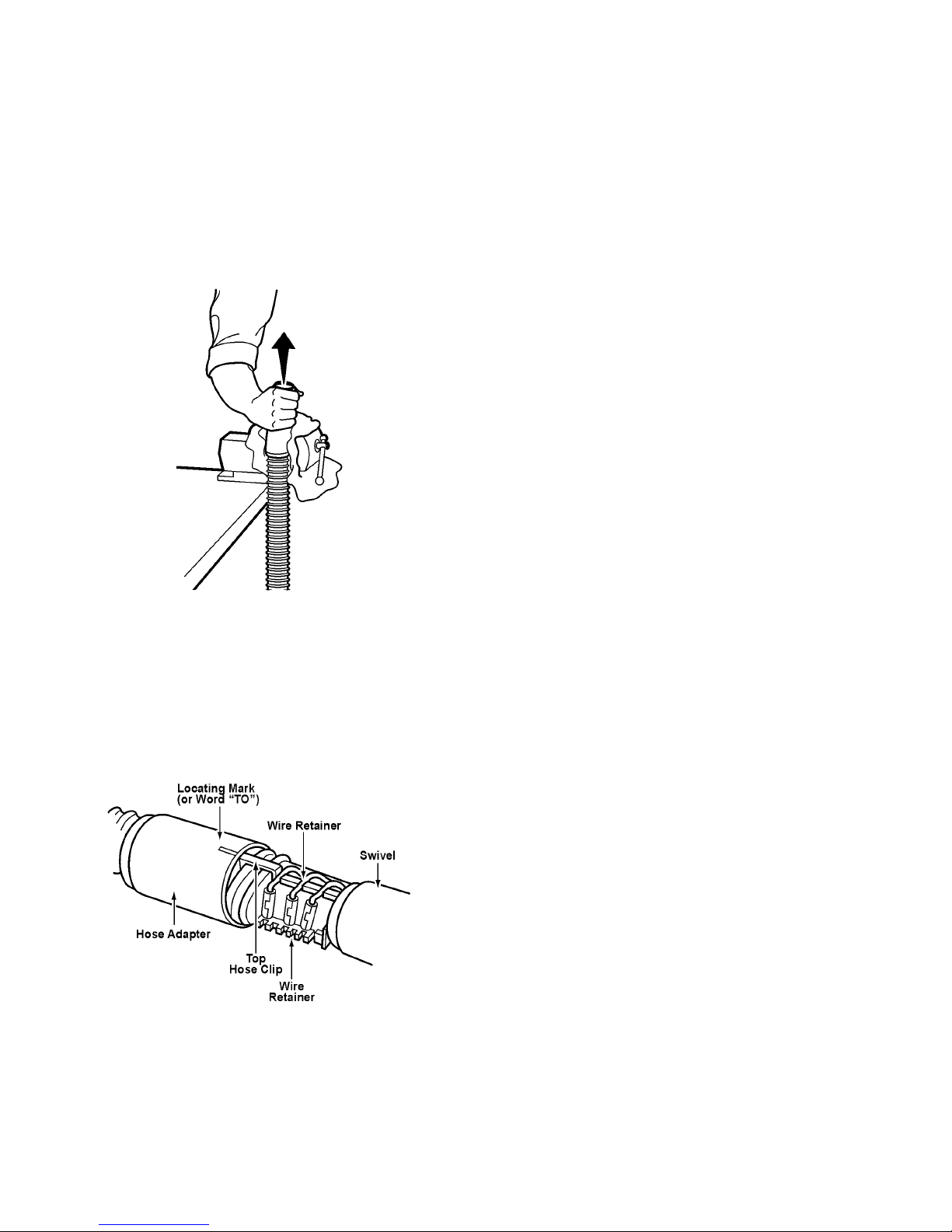

2.9. Hose Swivel
2.9.1. Removal
1. Wrap a cloth around hose adapter to protect from scuff-
ing/scratching.
2. Place the swivel in a vise.
3. Top of the hose adapter should extend 3/8-inch to 1/2-
inch above the top of the vise jaws.
4. Tighten the vise until there is approximately 1/8-inch gap
between the hose adapter and the hose swivel.
5. Place one hand on the end of the hose swivel and pull up.
6. Remove the hose wires from the retainers on swivel and
unplug swivel wire from hose.
7. Remove hose from swivel.
2.9.2. Reinstallation
1. Be sure hose adapter is in place on hose first.
2. Plug swivel wires to the same color hose wires (blue wire
to blue wire, white to white, yellow to yellow). Press
swivel wires into retainer slots. Refer to wiring diagram.
3. Push hose into place on swivel and press each of the
hose wires into retainer slots on swivel.
4. Line up locating the mark or the center of the word “TO”
on hose adapter with the top hose clip. Pull the hose
adapter toward the swivel until it snaps into place.

11
3 Wiring Diagrams

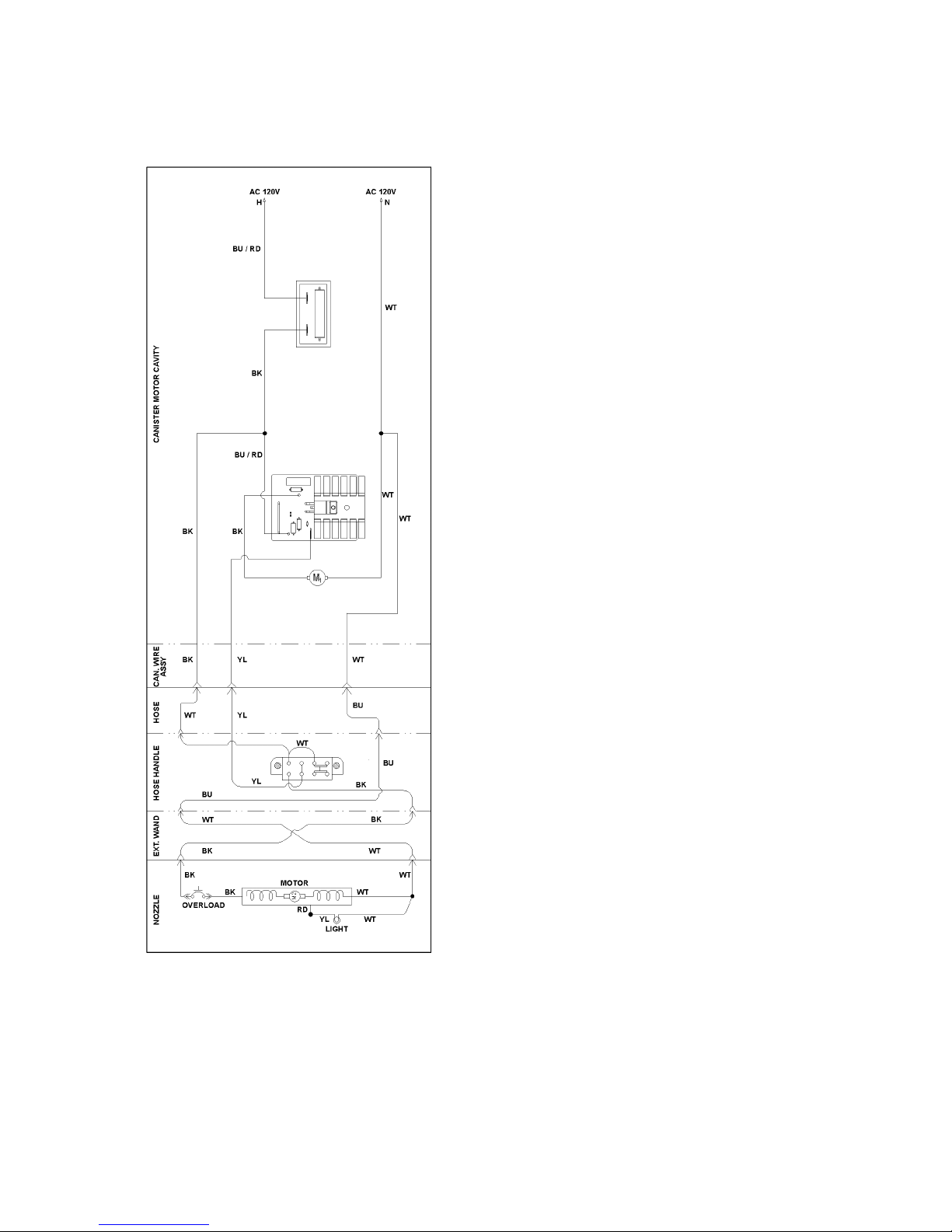

3.1. Schematic

12

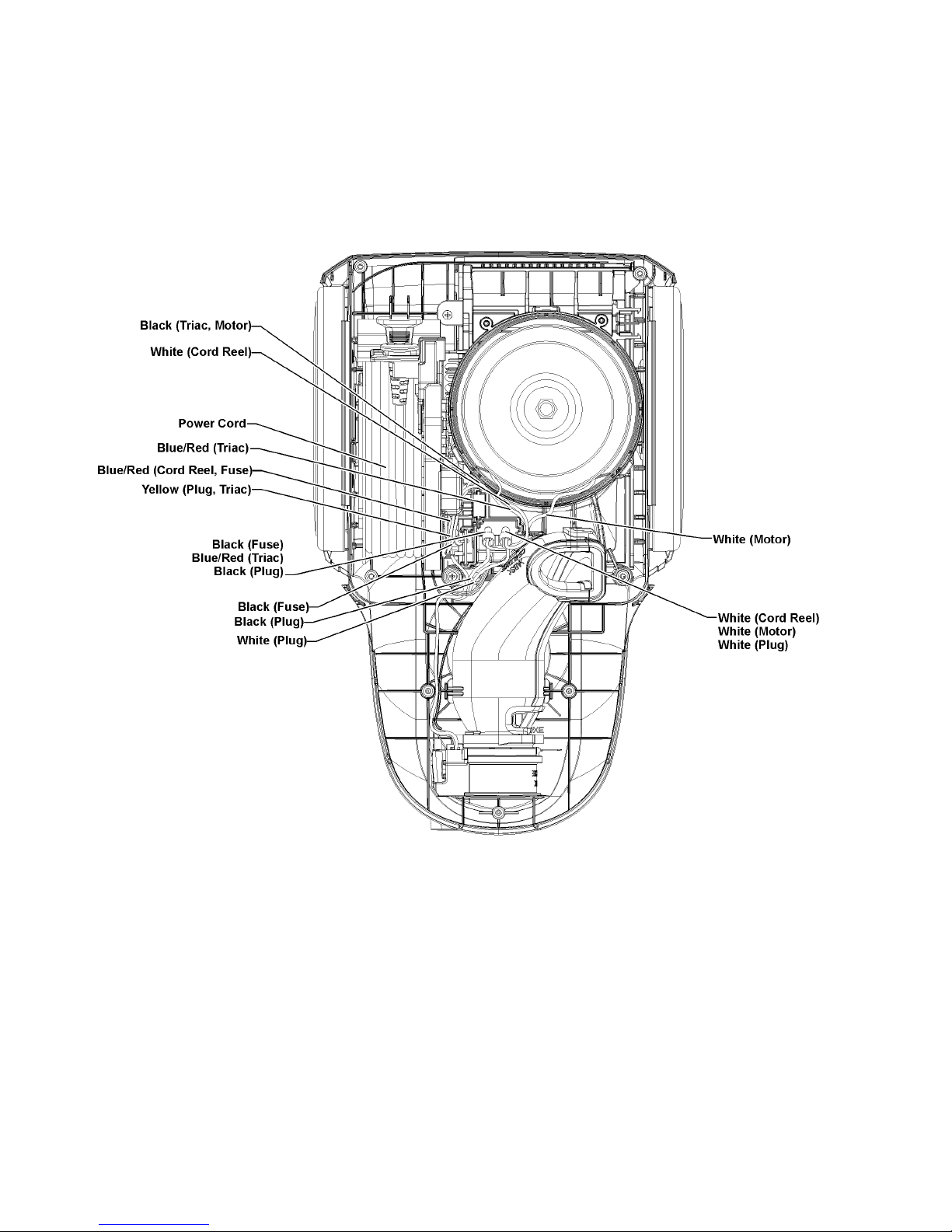

3.2. Wire Management - Canister
NOTE: For general servicing, it is necessary to eliminate pinching of any wire during reassembly. After servicing any electrical com-
ponent or electrical enclosure, the unit should be reassembled and checked for dielectric breakdown or current leakage.

13

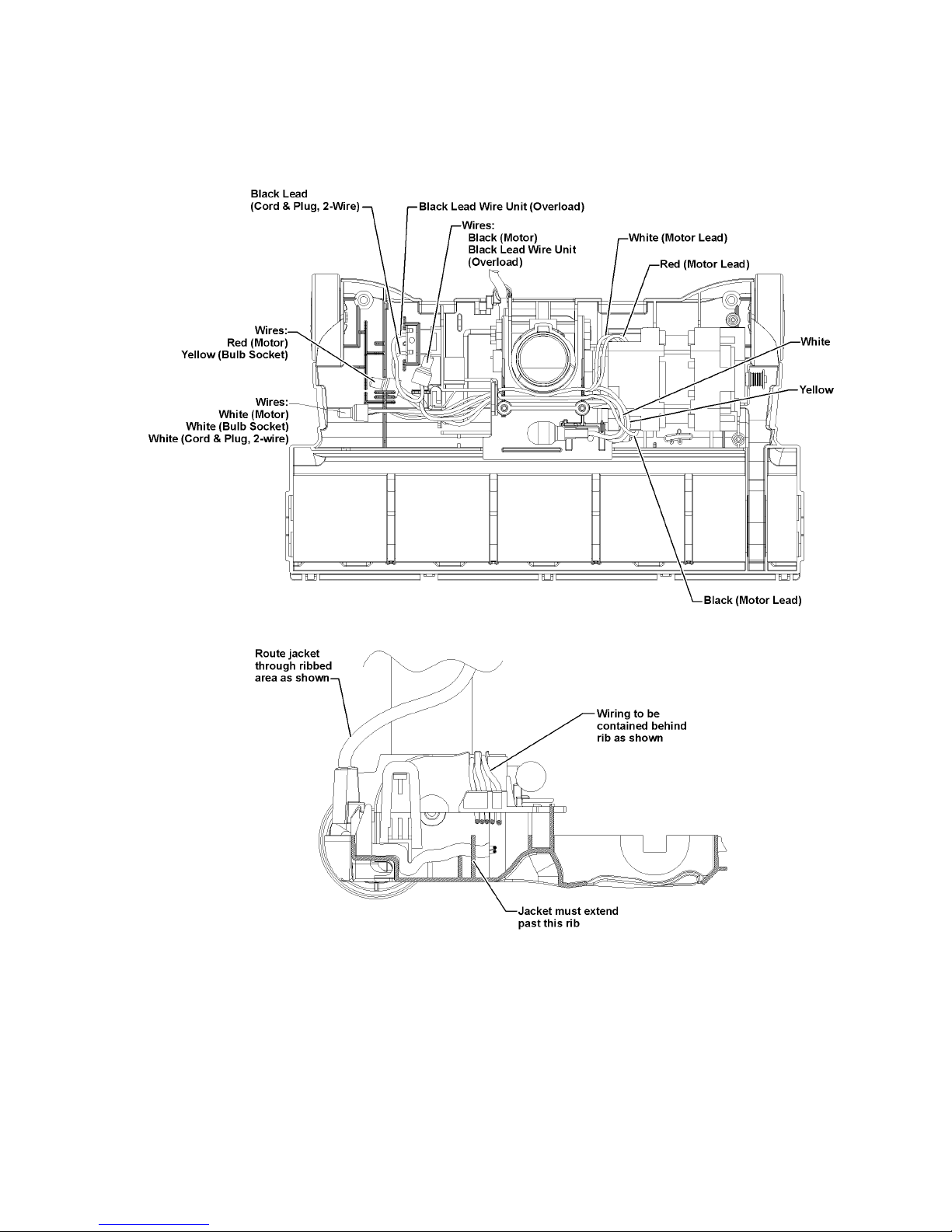

3.3. Wire Management - Power Nozzle
NOTE: For general servicing, it is necessary to eliminate pinching of any wire during reassembly. After servicing any electrical com-
ponent or electrical enclosure, the unit should be reassembled and checked for dielectric breakdown or current leakage.

14
4 Exploded View and Replacement Parts List
4.1. Canister
4.1.1. Exploded View

15
4.1.2. Parts List
Safety Ref. No. Part No. Part Name & Description Qty. Remarks
1 AC03ADXEZV07 Lower Body 1
2 AC93CAKTZV07 Caster Roller Unit 1
3 AC99NDXEZV07 Cord Reel Assembly 1
4 AC99CDXEZU03 Wheel Unit (Rear) 2
5 AC17HDXFZV07 Air Inlet Plate 1
6 AXTN4+20BFY Screw 7 10 PER PACKAGE
7 AC95CAKTZV06 Caster Wheel 1
8 AC76FDXFZ000 Overload Protector 1
9 AC4154460 Wire Connector 2
10 AXTN4+16BFY Screw 3 10 PER PACKAGE
11 AC64PDXEZV0S Connector Pipe Assembly 1
12 AC74EDXFZU00 Seal B 1
13 AC02ADXEZV07 Upper Body 1
14 AC23DDKMZ000 Spring (Quick Release) 2
15 AC85GDXEZ000 Black Lead Wire Unit 1
16 AC46NDXEZV07 Cord Rewind Button 1
17 AC38KDXFZU00 Exhaust Filter 1
18 AC48HDXEZUU3 Cover (Deco) 1
19 AC01BDXEZV07 Handle 1
20 AC06BDXEZU03 Handle Cover 1
21 AC32KDXEZV07 Filter Supporter 1
22 AC38KDWCZV07 Exhaust Filter 1
23 AC67KDXEZ000 Filter Securing Spring 1
24 AC94NDXEZ000 Brake Lever Unit 1
25 AXTN3+8BFY Screw 2 10 PER PACKAGE
26 AC19NDXEZ000 Contact Base Assembly 1
27 AC98NCVAZV06 Contact Disc Assembly 1
28 AC01NCUHZ000 Cord Reel Hub Assembly 1
29 AC04ADXEZV07 Cord Reel Bracket 1
30 AC47NDXEZ000 Brake Spring 1
31 AC90EDXEZV07 Cord Assy (3-Wire) 1

16

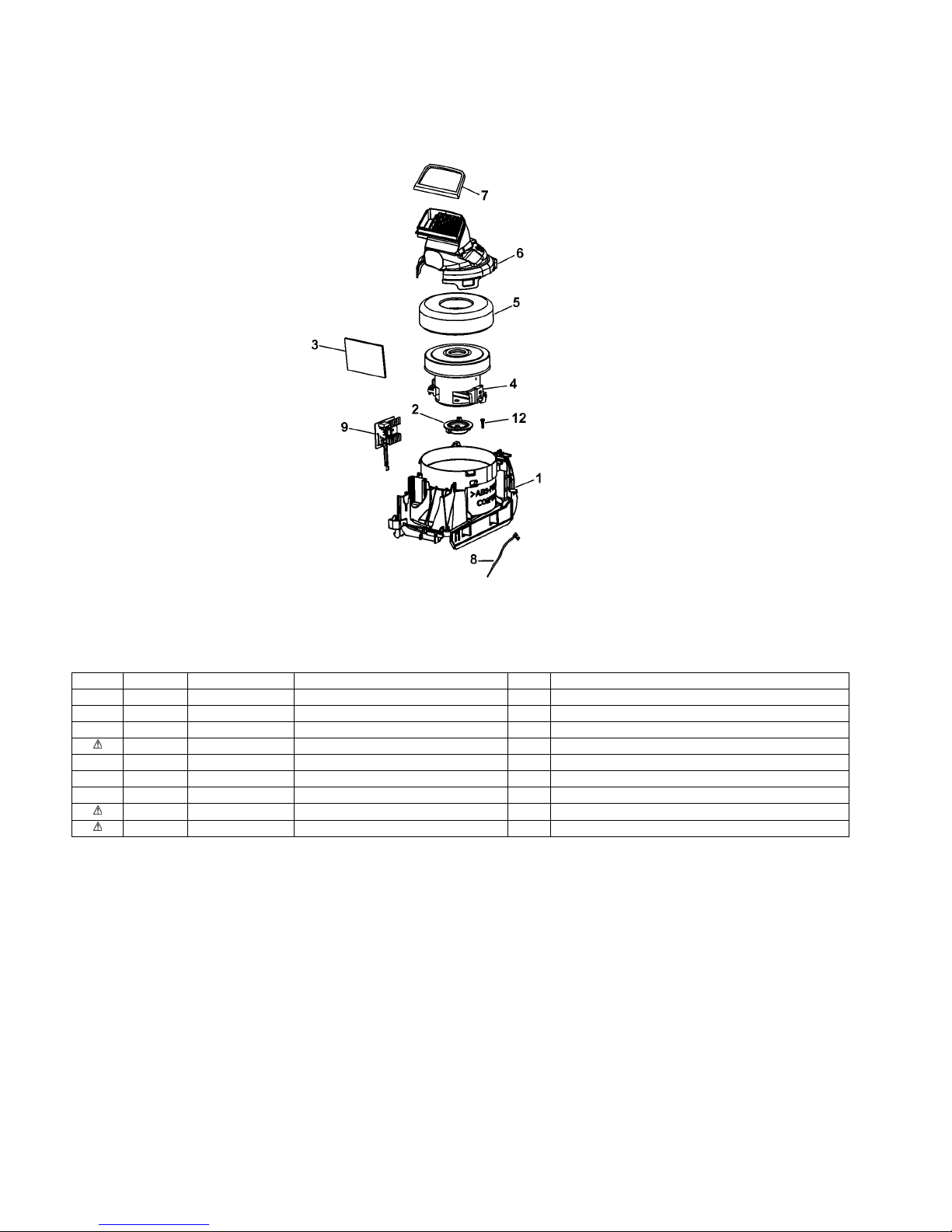

4.2. Fan Motor
4.2.1. Exploded View
4.2.2. Parts List
Safety Ref. No. Part No. Part Name & Description Qty. Remarks
1 AC09FDXEZ000 Motor Case 1
2 AC03FAFVZ000 Motor Support Rubber 1
3 AC44KDXEZ000 Filter 1
4 AC92FDJHZ000 Fan Motor Unit 1
5 AC02FDJHZ000 Motor Support Rubber 1
6 AC63FDXEZV07 Motor Support Cover 1
7 AC75ADXEZ000 Packing 1
8 AC85WDYUZ000 White Lead Wire Unit 1
9 AC85VDXEZ000 PCB B Unit (Fan Motor Triac) 1

17
4.3. Dust Cup
4.3.1. Exploded View
4.3.2. Parts List
Safety Ref. No. Part No. Part Name & Description Qty. Remarks
1 AC52FDXEZV07 Fan Blade 1
2 AC74EDXEZU00 Seal A 1
3 AC20HDXEZPUH Lid (Deco) 1
4 AC64BDXEZP0H Handle (Cup) 1
5 AC69KJMZV07 Protector 1
6 AC70KDVJZP00 Protector Spring 1
7 AC68KAJDZV07 Protector Cover 1
8 AC44KDMTZ000 Filter 1
9 AC75KDXEZP0H Dust Box Terminal 1
10 AC39LDXEZP0F Air Guide 1
11 AC03LDXEZU00 Gasket A 1
12 AC27RDXEZ000 Nozzle 1
13 AC97LDMTZ000 Partition Assembly 1
14 AC36KDXEZ000 Supporter Unit 1
15 AC43KDXEZP0G Pre-Filter 1
16 AC42KDXEZU00 Filter Case (Deco) 1
17 AC73KDXEZU03 Dust Box Packing 1
18 AC74KDMTZ000 Dust Packing 1
19 AC25KDXEZ000 Dust Box Plate 1
20 AXTN4+20BFY Screw 8 10 PER BAG
21 AXTN3+8BFY Screw 2 10 PER BAG

18
4.4. Power Nozzle
4.4.1. Exploded View

19
4.4.2. Parts List
Safety Ref. No. Part No. Part Name & Description Qty. Remarks
1 AC50XDXEZU03 Product Assembly (Power Nozzle) 1
2 AC98RDXEZU03 Floor Nozzle Upper Deco 1
3 AC21HDGEZ000 Window 1
4 AC13DDVUZRUK Button - Belt Reset 1
5 AC21HGJZ000 Lens Height Adjust 1
6 AC37KAKSZ000 Filter-Intake/Exhaust 1
7 AMC681-550 Screw 2
8 AC25QCREZV07 Swivel Cap 1
9 AC28GBKHZ000 Bulb Light 1
10 AC93HDGUZ000 Bulb Socket Assy Complete 1
11 AC70QBEXZV06 Quick Release Pedal 1
12 AC68AZAZ00 Lower Plate Screw 1
13 AC67VBAKZV06 Lead Wire “A” 1
14 AMC-XTN4+24BFY Screw 2 10 PER BAG
15 AC69QAENZV06 Rear Cover 1
16 AC92PBEXZV06 Nozzle Swivel 1
17 AMC742-019 Swivel Seal 1
18 AC68QGJZV06 Service Front Cover 1
19 AC83MAKSZV06 Indicator Block Assembly 1
20 AC84RBZMZ000 Agitator 1
21 AMC681-297 Screw 2
22 AMC705-093 Motor Bridge 1
23 AC747156 Motor Gasket 1
24 AC90FDMAZ000 Motor Assembly 1
25 AC28SCREZ000 Belt 1
26 AMC742-002 Motor Adjust Spring 1
27 AC85GDTKZ000 Black Lead Wire Unit 1
28 AC4154460 Wire Connector 1
29 AC76KDGSZ000 Overload Protector 1
30 AC47AGJ3M0H Handle Release 1
31 AMC742-013 Lifter 1
32 AC03RDKNZV07 Floor Nozzle Lower 1
33 AC99CDYUZV07 Rear Wheel 1
34 AMC744-029 Axle-Front 1
35 AXTN4+16BFY Screw 2 10 PER BAG
36 AC10ACPSZV07 Furniture Guard 1

20
4.5. Hose
4.5.1. Exploded View
4.5.2. Parts List
Safety Ref. No. Part No. Part Name & Description Qty. Remarks
1 AC68GBZTZU03 Switch Case 1
2 AC02UDXEZVU6 Actuator (3 Pos Slide) Deco 1
3 AC09ESTZ000 Switch 3-Position 1
4 AXTN4+12BFY Screw 3 10 PER BAG
5 AC93BBZTZV06 Handle Assembly 1
6 AC54PAPAZV06 Suction Control 1
7 AC98PSTZV06 Curve Pipe Unit 1
8 AC05PSUZV06 Hose (3-Wire) 1
9 AC22PAFZZV06 Hose Adapter 1
10 AC92PDXEZV06 Connection Pipe Assy 1
11 AC04RATMZ000 Hose Packing 2
12 AC37GBZTZV06 Wire Harness 1
13 AC94PDXEZV06 Hose Assembly 1
