Panasonic MC-UG471-00 User manual

© 2007 PANASONIC CONSUMER ELECTRONICS
COMPANY, DIVISION OF MATSUSHITA
ELECTRIC CORPORATION OF AMERICA. All rights
reserved. Unauthorized copying and distribution is a
violation of law.
MC-UG471-00
Vacuum Cleaner
Specifications are subject to change without notice for further improvement.
;Order Number MAC0705001CE

1 WIRING DIAGRAM AND DRAWING 3
1.1. Wiring Diagram 3
1.2. Pictoral Diagram 4
2 EXPLODED VIEW AND PARTS LIST 5
2.1. Body 5
2.2. Nozzle Housing 7
2.3. Packing Materials 8
3 REPLACEMENT INSTRUCTIONS 9

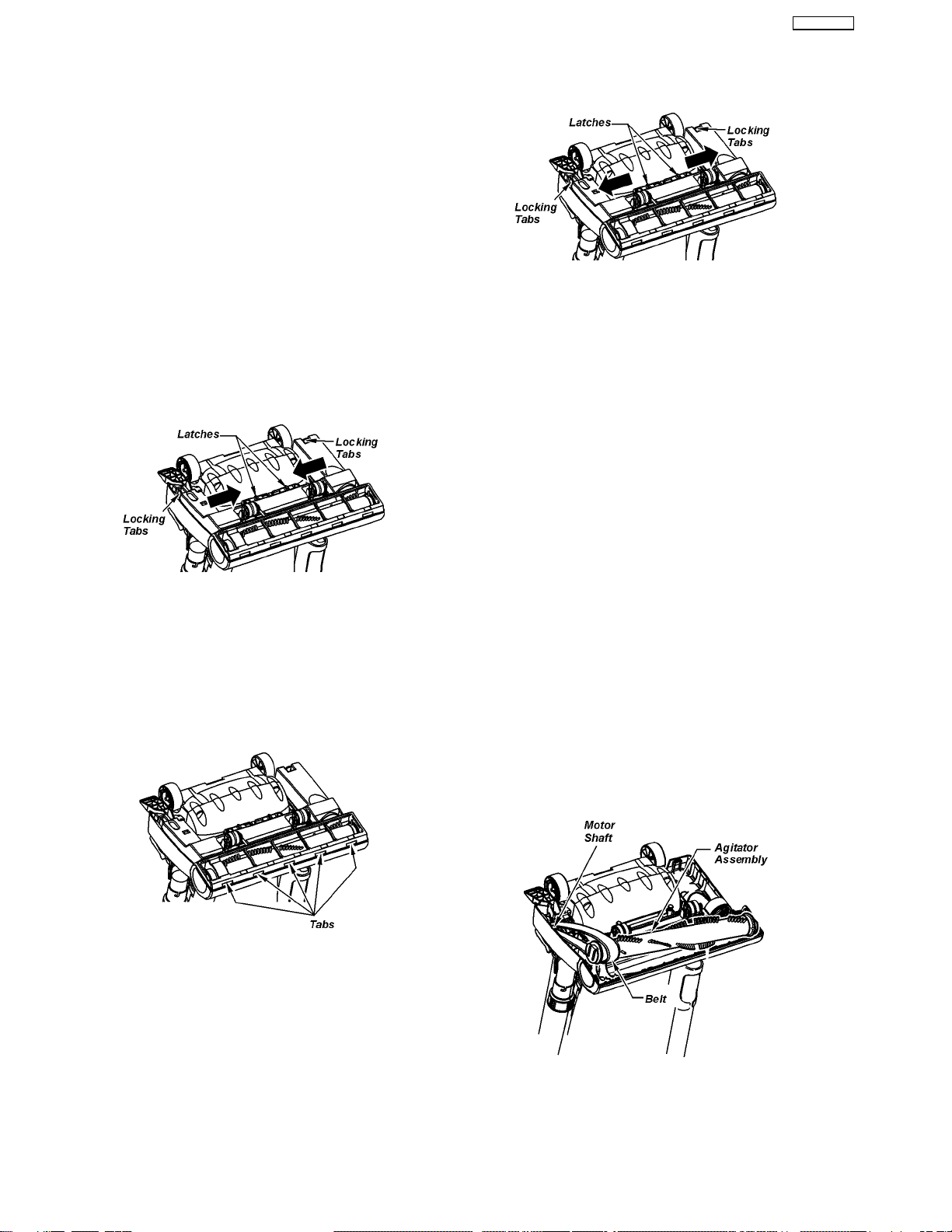

3.1. Lower Plate Replacement 9
3.2. Agitator Assembly Replacement 9
3.3. Belt Replacement 10
3.4. Bulb Replacement 10
3.5. Motor Replacement 10
3.6. On-Off Switch Replacement 12
3.7. Cord Reel Replacement 12
3.8. Motor Protector Replacement 12
CONTENTS
Page Page
2
MC-UG471-00

1 WIRING DIAGRAM AND DRAWING
1.1. Wiring Diagram
3
MC-UG471-00

1.2. Pictoral Diagram
NOTE:
For general servicing, it is necessary to eliminate pinching of any wire during reassembly. After servicing any electrical
component or electrical enclosure, the unit should be reassembled and checked for dielectric breakdown or current leakage.
4
MC-UG471-00

2 EXPLODED VIEW AND PARTS LIST
2.1. Body
2.1.1. Exploded View
5
MC-UG471-00
