SAFETY INSTRUCTIONS
02
•
physical, sensory or mental capabilities or lack of experience and knowledge unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the power cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets
should not be reused.
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
- Areas for communal use in blocks of flats or in launderettes.
• That the tumble dryer is not to be used if industrial chemicals have been used for
cleaning.
• That lint must not to be allowed to accumulate around the tumble dryer (not
applicable for appliances intended to be vented to the exterior of the building).
• That adequate ventilation has to be provided to avoid the back flow of gases into the
room from appliances burning other fuels, including open fires.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone , alcohol,
petrol, kerosene, spot removers, turpentine, waxes and wax removers should be
washed in hot water with an extra amount of detergent before being dried in the
tumble dryer.
• Items such as foam rubber(latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be
dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener
instructions.
• Remove all objects from pockets such as lighters and matches.
• That exhaust air must not be discharged into a flue which is used for exhausting fumes
from appliances burning gas or other fuels.
• That the appliance must not be installed behind a lockable door, a sliding door or a
door with a hinge on the opposite side to that of the tumble dryer, in such a way that a
full opening of tumble dryer door is restricted.
For your safety, the information in this manual must be followed to minimize the
risk of fire or explosion, electric shock, or to prevent property damage, personal
injury or loss of life.
This appliance is not intended for use by persons (including children) with reduced

SAFETY INSTRUCTIONS
03
DANGER
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
WARNING OF ELECTRICAL VOLTAGE
This symbol indicates that there is a danger to life and health of
persons due to voltage.
WARNING
This combination of symbol and signal word indicates a potentially
dangerous situation which may result in death or serious injuries unless it’s
avoided.
Never stop a tumble dryer before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat is dissipated.
The appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and
off by a utility.
CAUTION
This combination of symbol and signal word indicates a potentially dangerous
situation which may result in slight or minor injuries or damage to property
and the environment.
NOTE
This combination of symbol and signal word indicates a potentially dangerous
situation which may result in slight or minor injuries.
OBSERVE INSTRUCTIONS
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
Explanation of Symbols
The Electric Shock!
WARNING:
•
• Always unplug the machine and turn off the water supply after use. The max. inlet
water pressure is 1MPa, The min. inlet water pressure is 0.05MPa.
• To ensure your safety, power plug must be inserted into an earthed three-pole socket.
Check carefully and make sure that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be connected by a qualified
technician in accordance with the manufacturer's instructions and local safety
regulations.
• Plug must be accessible after installation.
• Pull out its plug and cut off water supply after the operation.
• Take care that power voltage and frequency shall be identical to those of washing
machine.
Before any maintenance of the device, unplug the appliance from the mains.

04
•
the machine during the operation very wet rooms as well as in the rooms with
explosive or caustic gas.
• Remove all packages and transport bolts before using the appliance. Otherwise,
serious damage may result.
• The washing machine with single inlet valve only can be connected to the cold water
supply. The product with double inlet valves should be correctly connected to the hot
water and cold water supply.
• Do not use any socket with rated current less than that of appliance.Never pull out
power plug with wet hand.
Glass door may be very hot during the operation. Keep kids and pets far away from
•
appliance.
• Animals and children may climb into the machine. Check the machine before every
operation.
• Kids should be supervised that they do not play with the appliance.
Children of less than 3 years should be supervised to ensure that they do not play with
Risk to Children!
•
with combustible or explosive substances ( such as wax, oil, paint, gasoline,
degreasers, dry-cleaning solvents, kerosene, etc.) This may result in fire or explosion.
• Before hand, thoroughly rinse items of washing by hand.
Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed
Risk of Explosion!
•
• It isn't intended to be built-in using.
• Washing machine shall not be installed in bath room or very wet rooms as well as in
the rooms with explosive or caustic gases.
• Remove all packages and transport bolts before using the appliance. Otherwise,
serious damage may result.
• The washing machine with single inlet valve only can be connected to the cold water
supply. The product with double inlet valves should be correctly connected to the hot
water and cold water supply.
• Plug must be accessible after installation.
This washing machine is for indoor use only.
Installing the Product!
•
machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1. Transport bolts shall be reinstalled to the machine by a specialized person.
2.The accumulated water shall be drained out of the machine.
3.Handle the machine carefully. Never hold each protruded part on the machine while
lifting. Machine door can not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.
5.A precaution indicates that the hands shall not be inserted into running water-
extracting tub.
6.A precaution indicates that the appliance shall not be installed at a humid place.
Your product is only for home use and is only designed for the textiles suitable for
Risk of Damaging Appliance!
CAUTION!

SAFETY INSTRUCTIONS
05
•
door, please check if the clothes are put in or distributed well.
• It is forbidden to wash carpets.
Please do not close the door with excessive forces. If it is found difficult to close the
•
the whole procedures without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
• Gasoline and alcohol etc. shall not be used as detergents.
• Please only select the detergents suitable for machine washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid items such as coin,brooch, nail,
screw or stone etc. may cause serious damages to this machine.
• Please check whether the water inside the drum has been drained before opening its
door. Please do not open the door if there is any water visible.
• Be careful of burning when the product drains hot washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two minutes to open the door.
Before washing the clothes at first time, the product shall be operated in one round of
Operating the Appliance!
Transport
• Before Transport:
-Bolts shall be reinstalled to the machine by a specialized person;
-Accumulated water shall be drained out of the machine.
• This appliance is heavy. Transport with care. Never hold any protruding part of the
machine when lifting. The machine door can not be used as a handle.

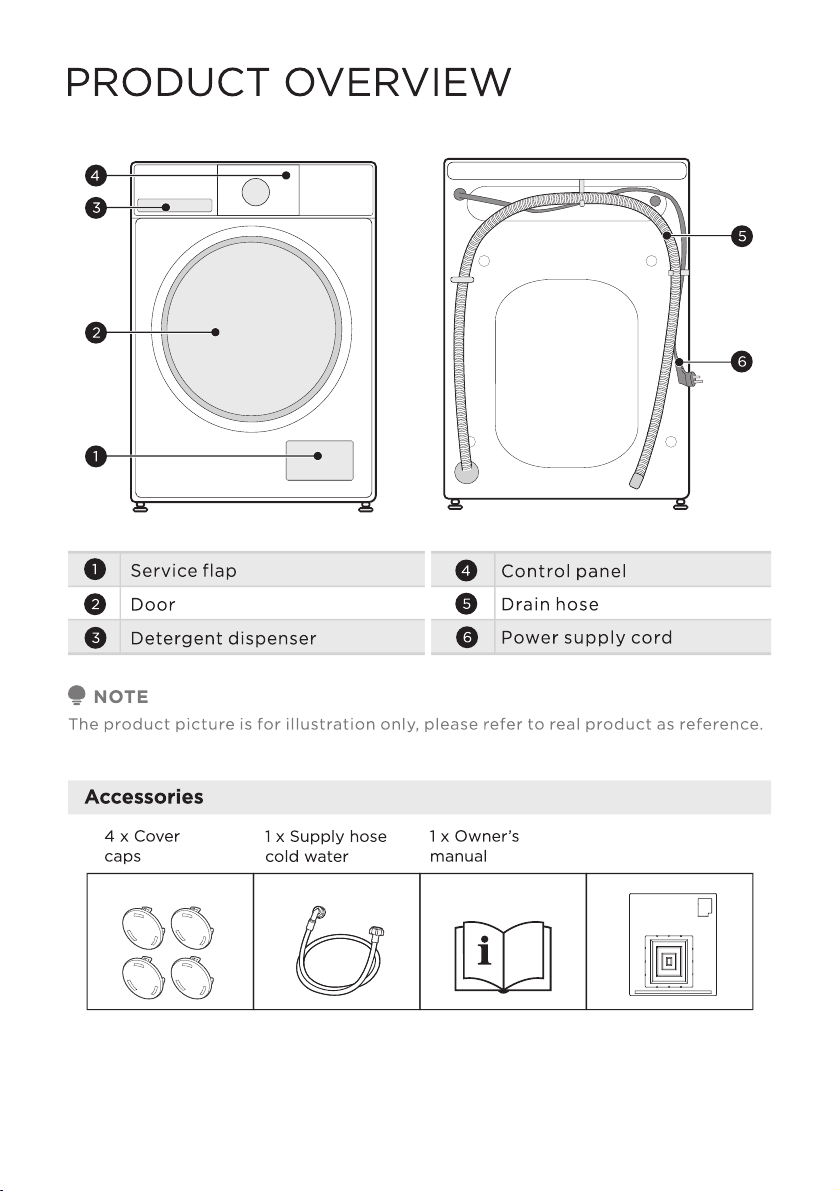

1 x Rat panel
06

07
QUICK START GUIDE
• Before washing, please make sure the machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any
residual water and to neutralize potential odors, it’s recommended to clean your
appliance before first use. For this reason, recommended to clean the inner drum by
running the "Drum Clean" or other program with the optional temperature of 90
degrees. Be careful not to put laundry and detergent in the machine.
Detergent need to be added in compartment I if the pre-wash function is selected.
4. Close door 5. Add detergent
Main
wash
Prewash
Softener
CAUTION
1. Before Washing
NOTE

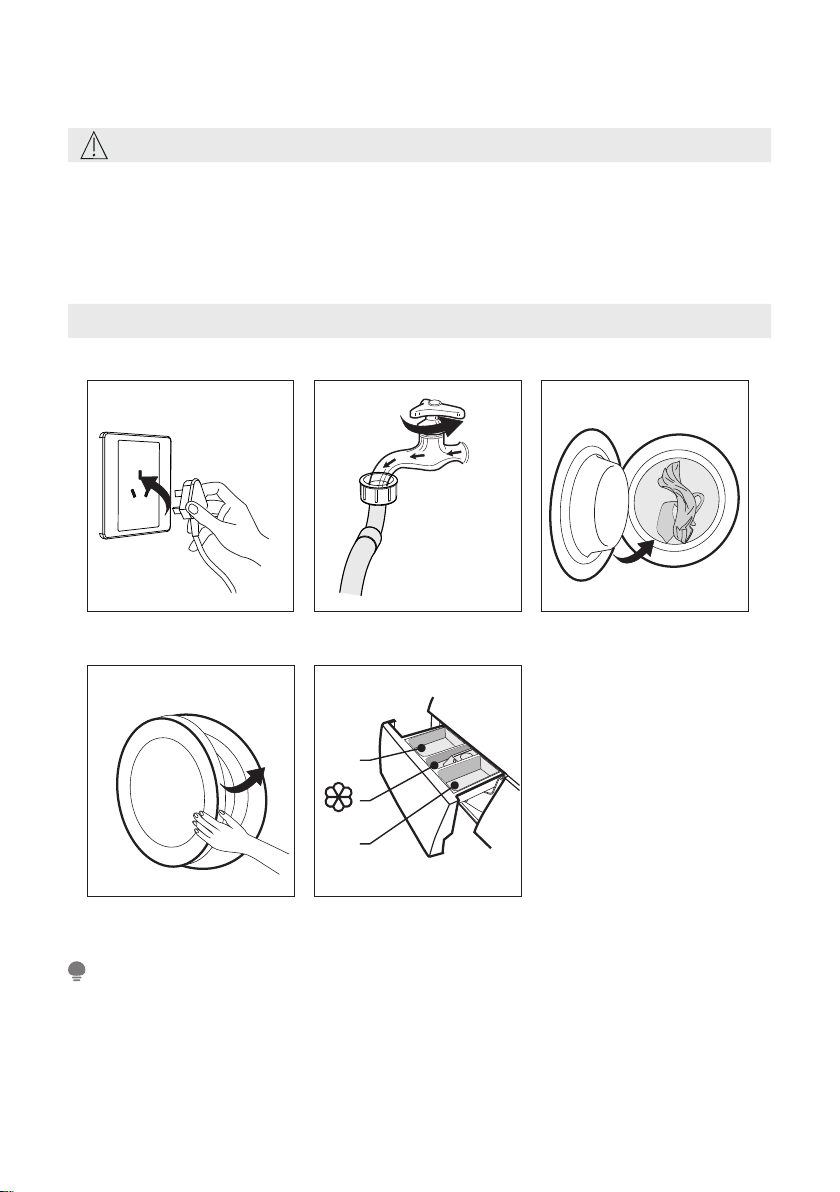

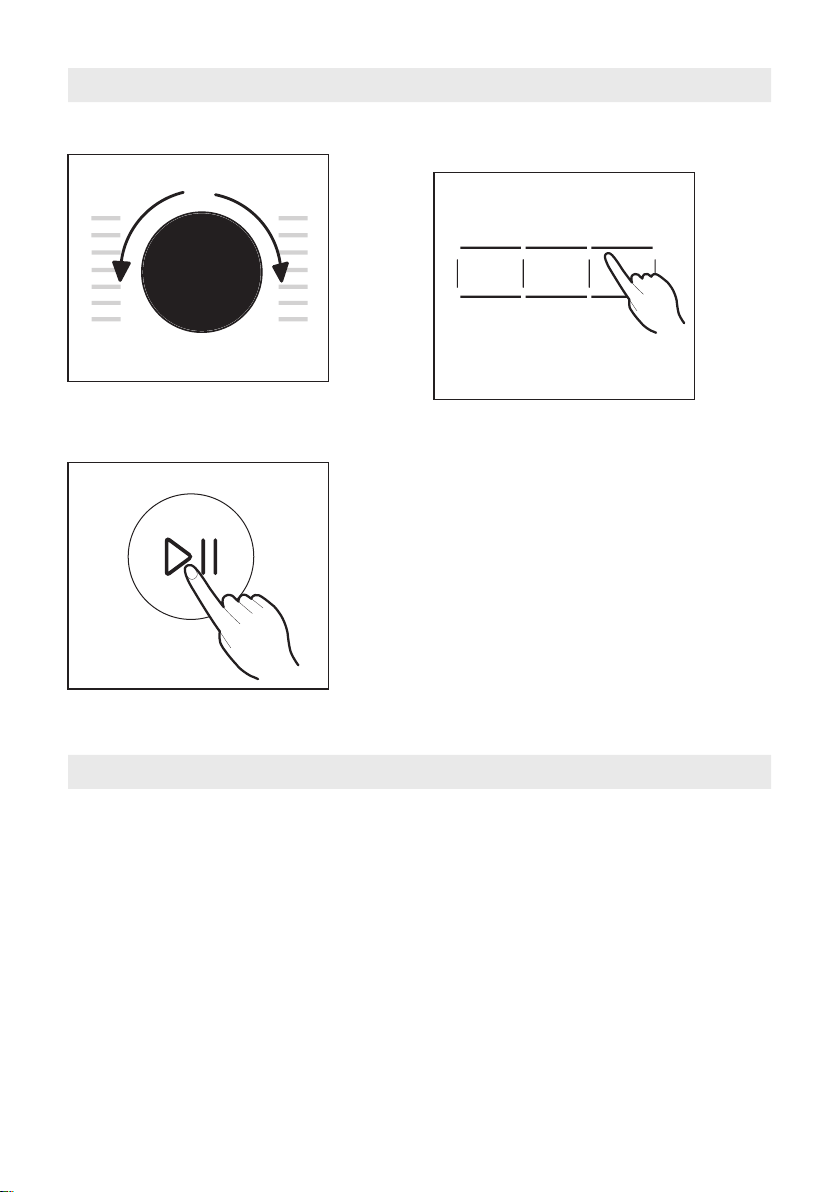

1. Plug in 2. Open tap 3. Load
Ⅱ
I

3. After Washing
Buzzer beep and “End” on display.
1. Select programme 2. Select function or remain
default settings
2. Washing
08
3. Press Start/Pause to start
the program

09

• Packaging material (e.g. Films, Styrofoam)
can be dangerous for children.
• There is a risk of suffocation ! Keep all
packaging well away from children.
1. Remove the cardboard box and styrofoam packing.
2. Lift the machine and remove the base packaging. Make sure the small triangle foam
(a) is removed with the bottom packaging together. If not, lay the unit down on the
side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

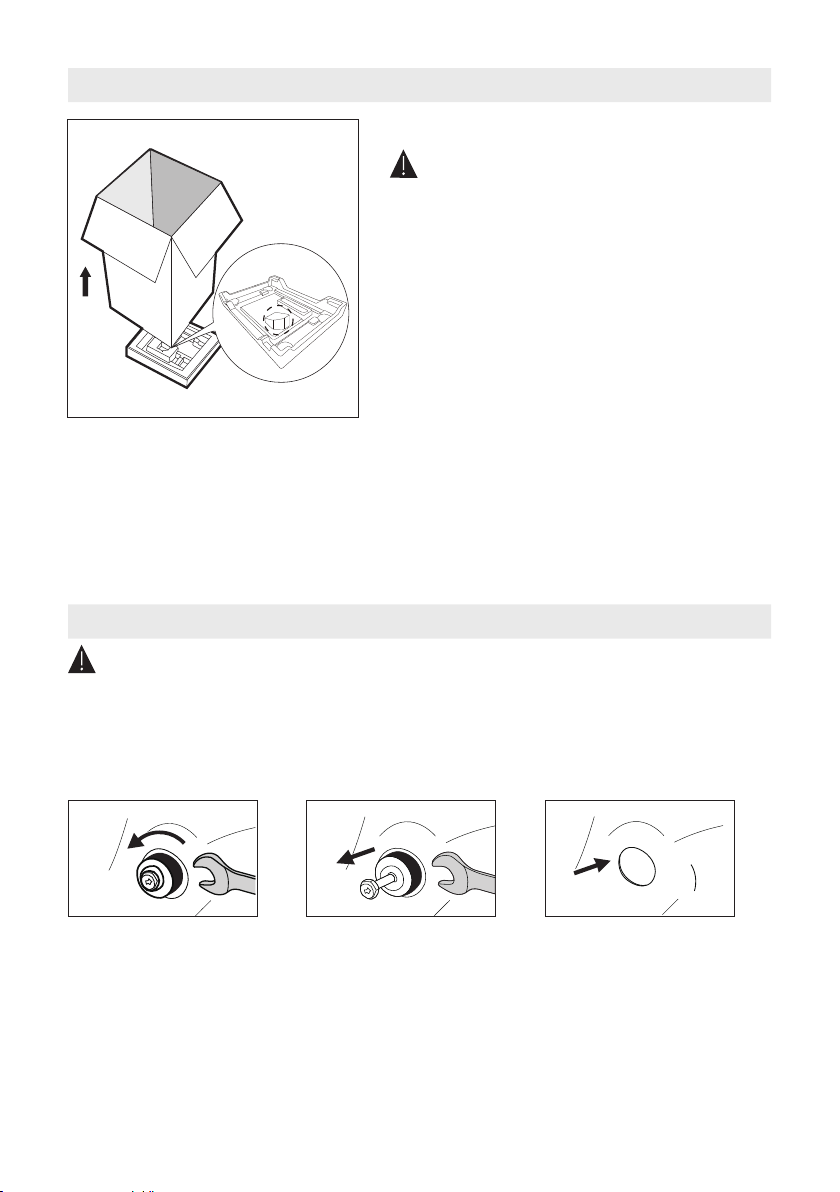

You must remove the transport bolts from the backside before using the product.
1. Loosen the 4
transport bolts with
a spanner.
3. Close the holes
using the cover caps.
2. Remove the bolts
including the rubber
parts and keep them
for future use.
a
Unpacking the Machine
Remove Transport Bolts
10
WARNING
WARNING

Levelling the Machine
The lock nuts on all four feet must be screwed tightly against the housing.
1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner.
Make sure the machine is level using a spirit level.

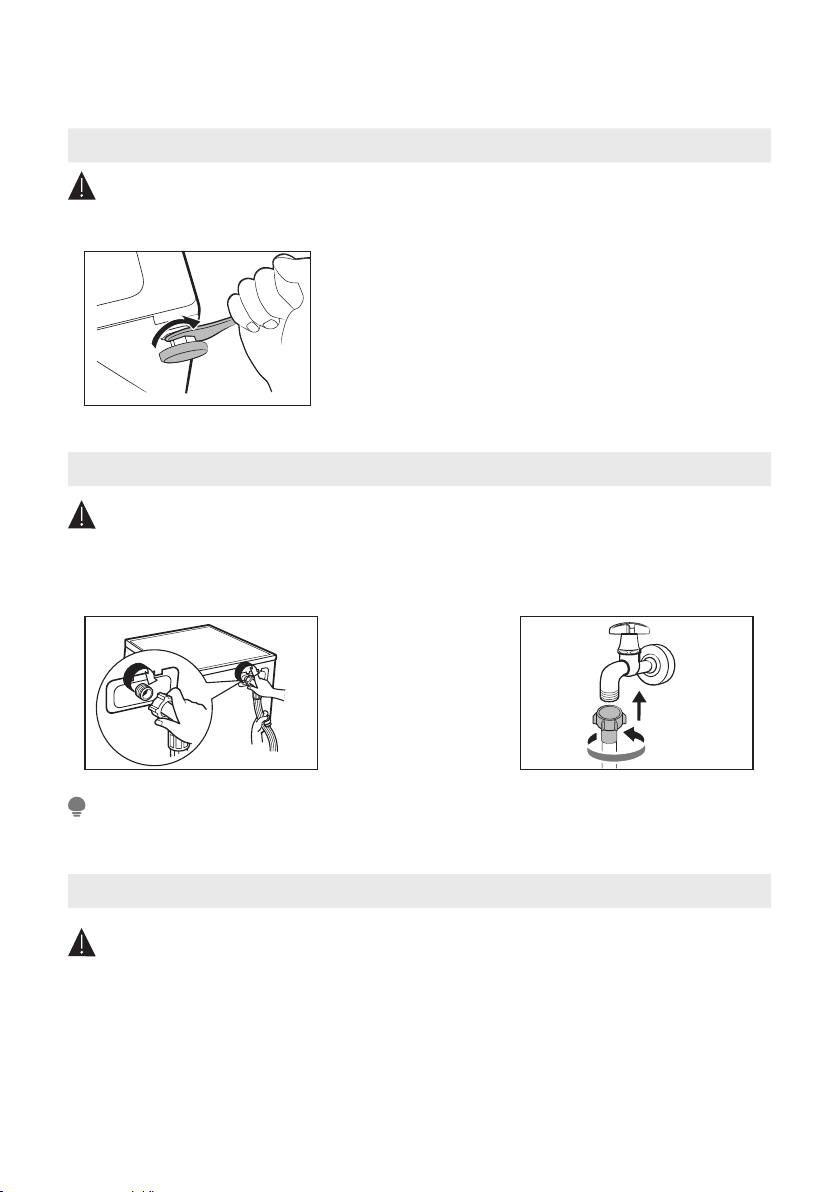

Connect the Water Supply Hose
To prevent leakage or water damage, follow the instructions in this chapter.
• Do not kink, crush or modify water inlet hose.
Connect the water
supply hose to the
water inlet valve and a
water tap with cold
water as indicated.
• Connect manually, do not use tools. Check if the connections are tight.
•
•
•
Do not kink or protract the drain hose.
Position drain hose properly ,otherwise damage might result in water leakage.
It is not allowed to remove the buckle of drain pipe.

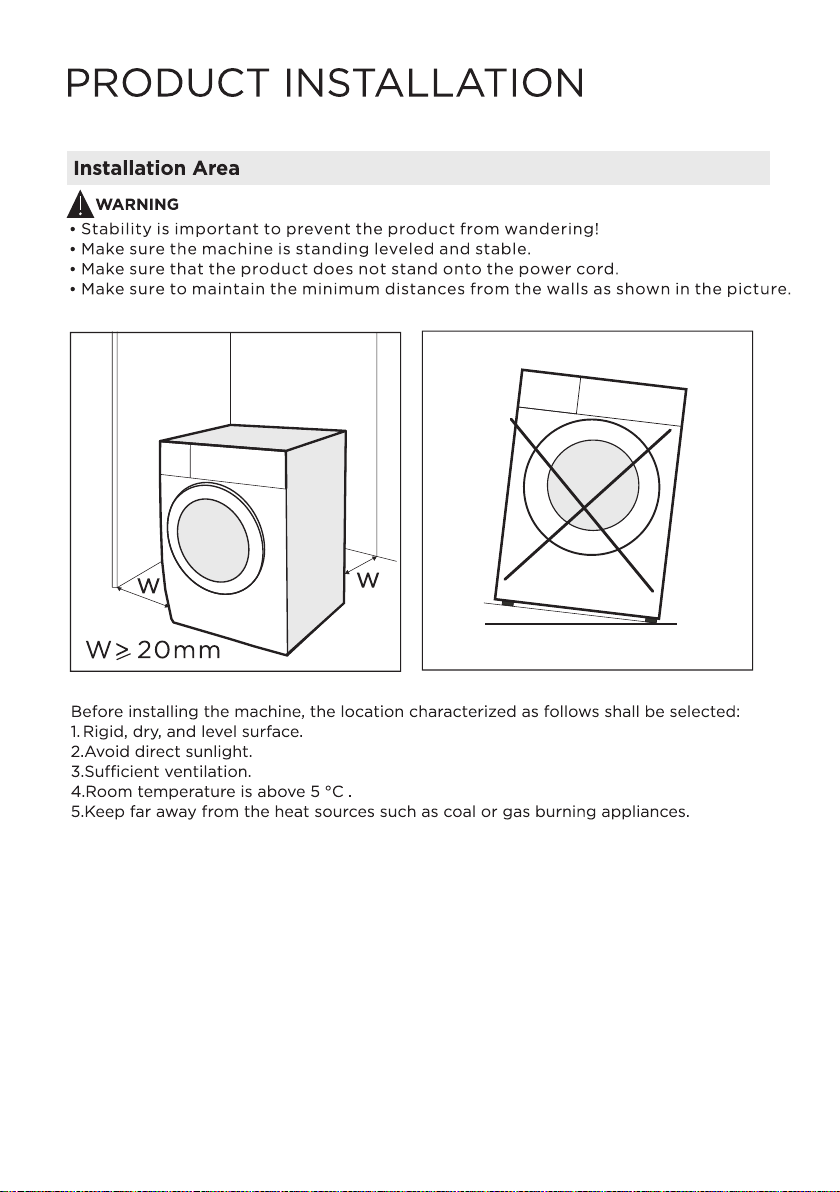

PRODUCT INSTALLATION
NOTE

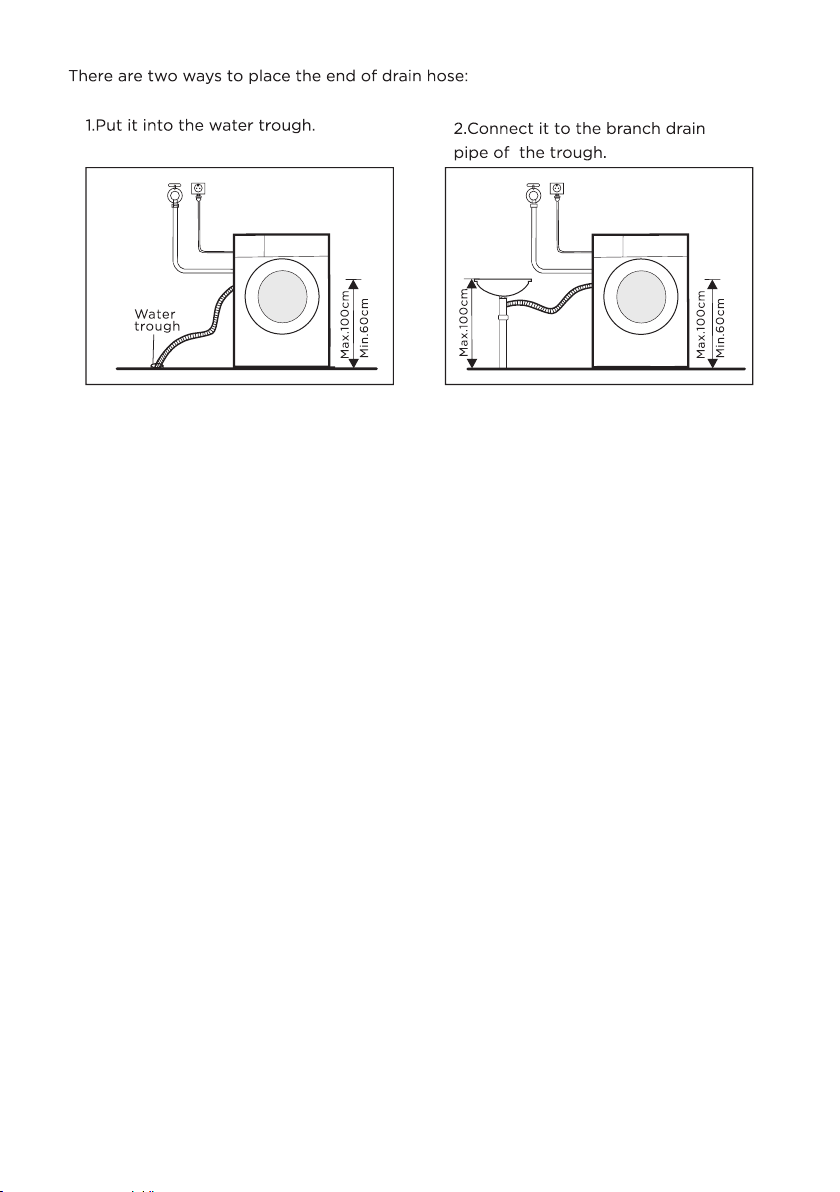

Drain Hose
11
WARNING
WARNING
WARNING

12

OPERATION INSTRUCTIONS
• The ambient temperature of the machine should be 5 -40°C. If used under 0°C,
the inlet valve and draining system may be damaged. If the machine is installed
under freezing conditions, it should be transferred to normal ambient temperature
to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before
wash. Use non-foaming or less-foaming detergent suitable for machine properly.
°C

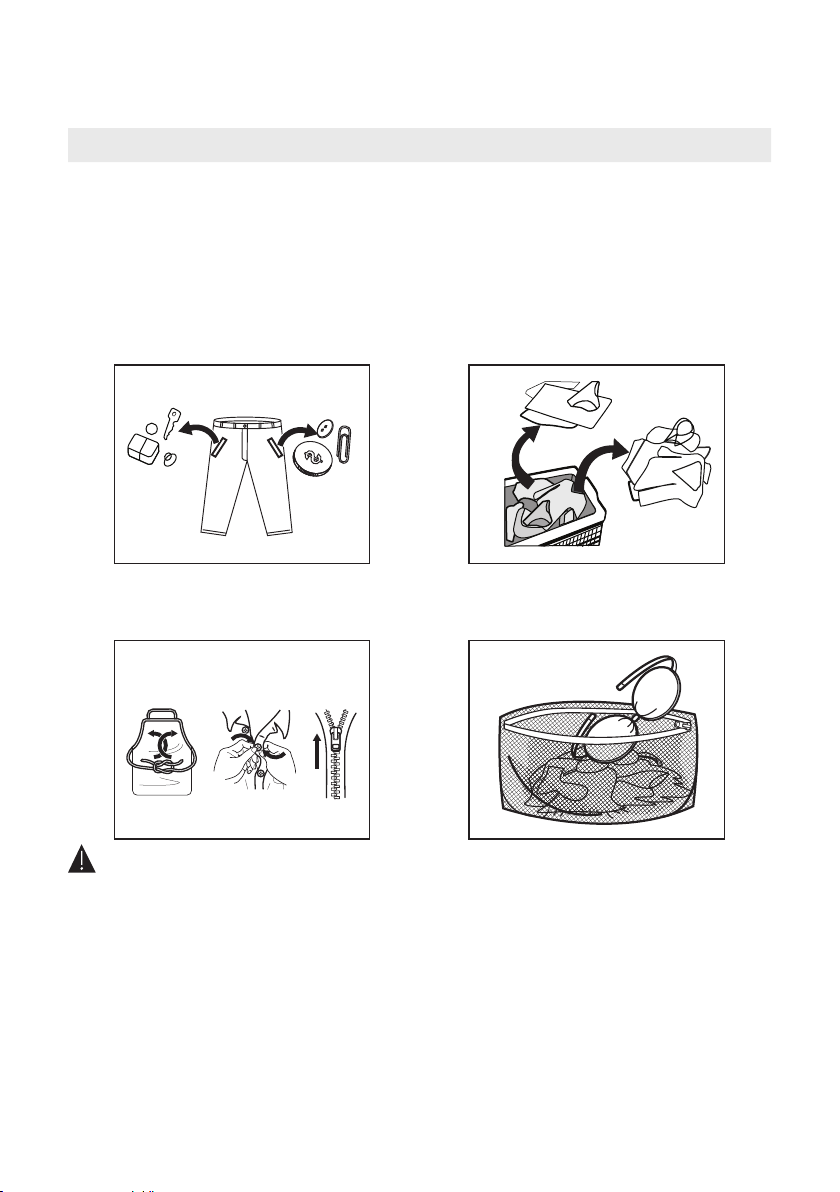

3. Tie together long textile
strips and belts, close
zips and button
1. Take all items out of the
pockets
4. Put small items into a
laundry bag
Before Each Washing
2. Sort laundry according to
color and textile type
• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or
dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol,
kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity. Therefore it is
suggested to add one or two more laundry items to the wash so that spin can be done
smoothly.
Do not wash, spin water-proof seats, mats ,or clothing. •
13
WARNING

• Detergent only need to be added in compartment I ”after selecting pre-wash
function.
“
Pre wash
Main wash
Softener
Release button to
pull out the dispenser
CAUTION
Means must ○ Means optional

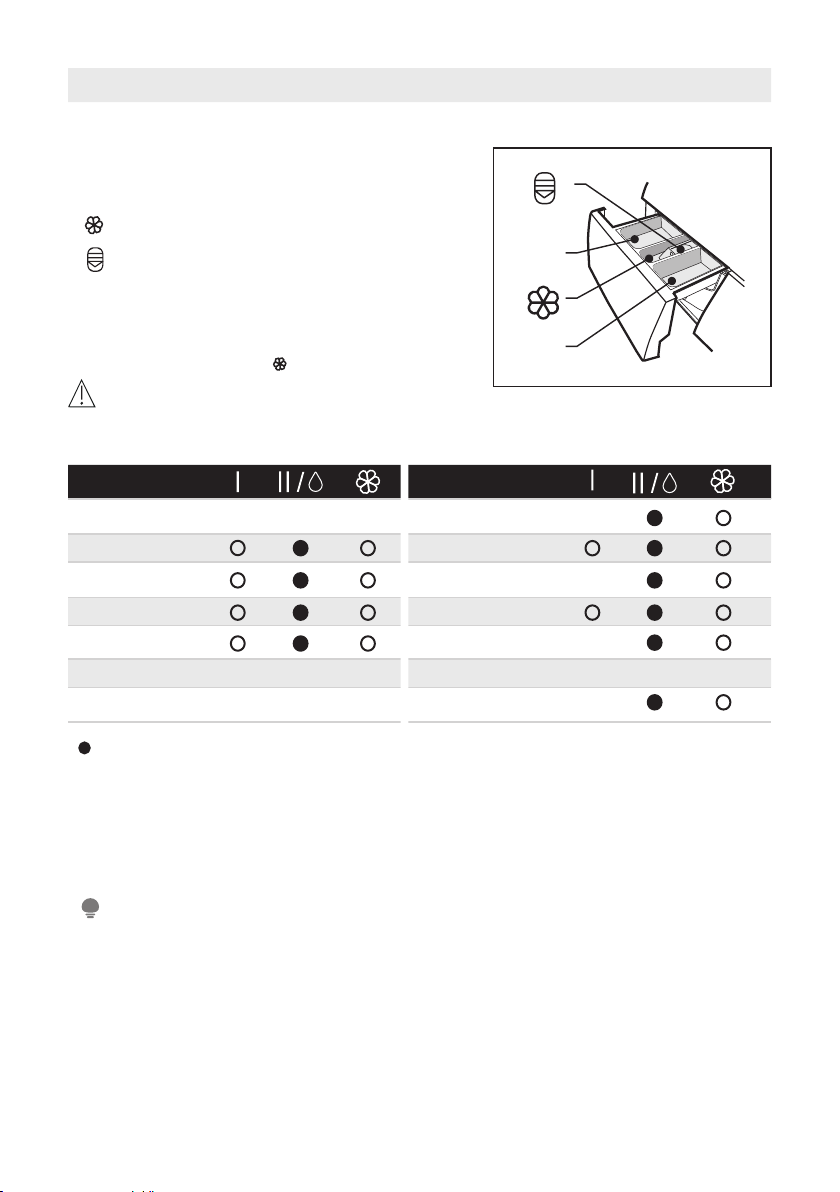

Detergent Dispenser
14
Programme
Quick 15'/1h WD
Steam Hygiene
Cotton ECO
Jeans
Wash and Dry
Auto Dry
ABAYA/Delicates
My Program
Cotton
Mix
Baby Care
Active Speed
Drum Clean
Spin Only
Programme
• As for the agglomerated or ropy detergent or additive, before they are poured into
the detergent box, it is suggested to use some water for dilution to prevent the inlet
of detergent box from being blocked and overflowing while filling water.
• Please choose suitable type of detergent for the various washing temperature to get
the best washing performance with less water and energy consumption.
1. Pull out the drawer.
2.Fill pre-detergent into Case I (when necessary).
3.Fill detergent into Case II.
4.Fill softener into Case (when necessary).
NOTE
Ⅱ
I
I
Ⅱ

My Program
ABAYA/Delicates
15

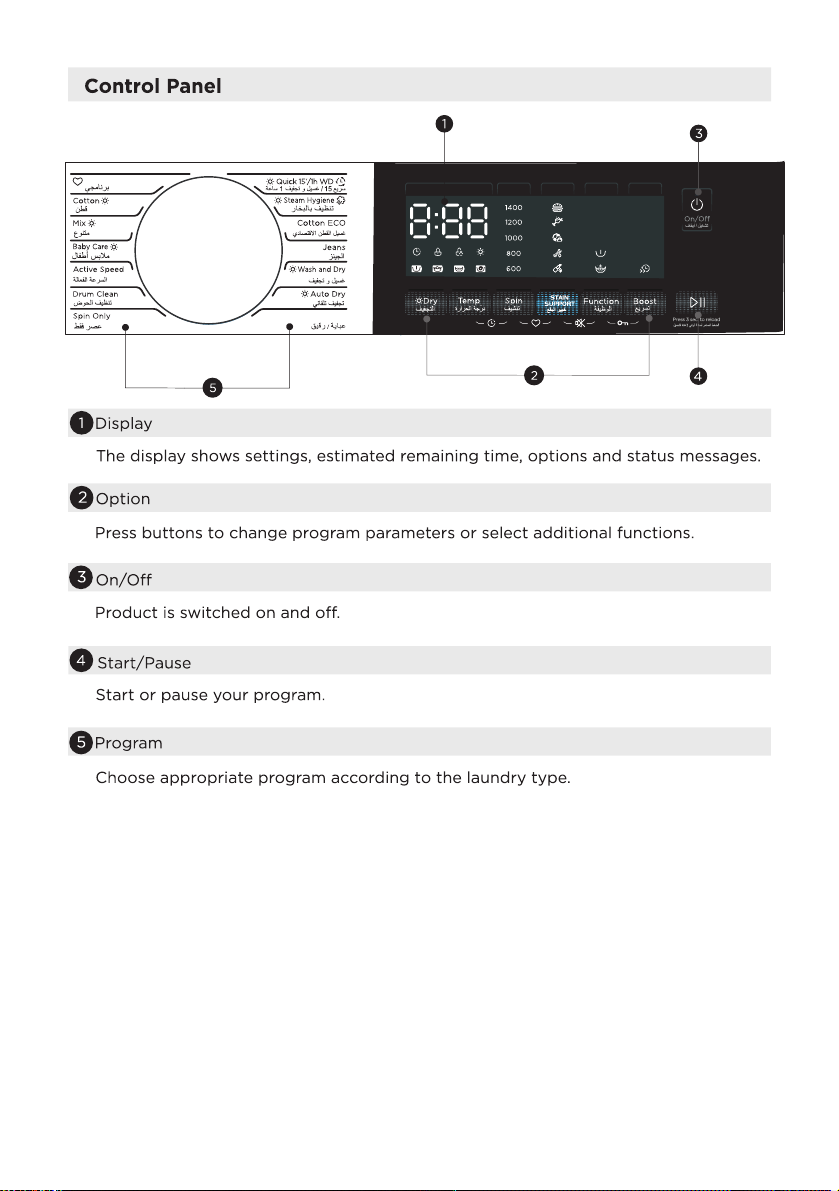

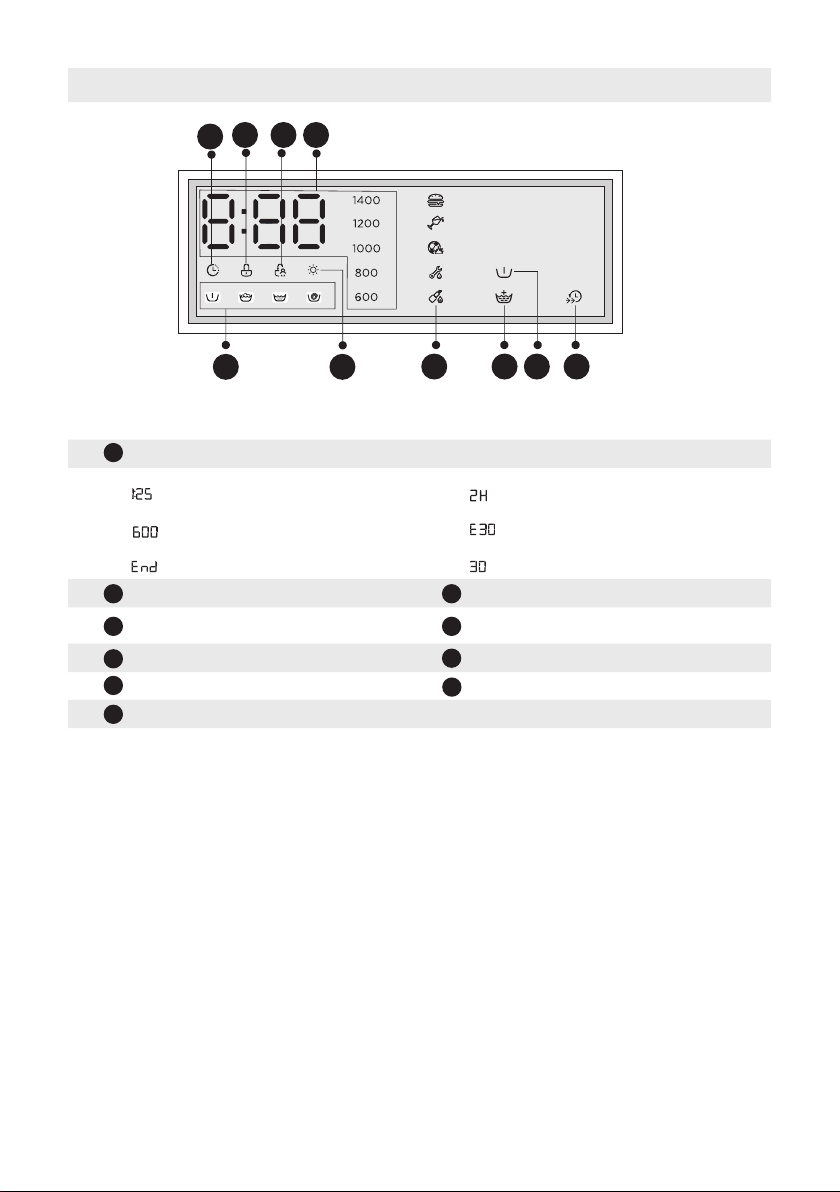

Display
16
A
I
C
HB
D
E
F
G
J
Pre Wash
B
Child Lock
D
Display
A
Wash Time Delay Time
Speed Error
End Temp.
Door Lock
C
Delay
E
Boost
FG
Extra Rinse
H
Pre Wash-Wash-Rinse-Spin
I
Dry
J
STAIN SUPPORT

17
Option
Pre Wash
The Prewash function can get an extra wash before main wash,it is suitable for
washing ;the extra dirt which rises to the surface You need to put detergent into
the Case (I) when you select it.
Extra Rinse
The laundry will undergo extra rinse once after you select it.
Boost
The function can decrease the washing time.
Dry
Press the Dry button continuously to choose the dry level: Extra Dry/Normal
Dry/ Gentle Dry.
Extra Dry:If you need to wear the clothes immediately, choose this function. *
(Display d-3).
Normal Dry:The normal dry procedure (Display d-2).
Gentle Dry:Only to dry slightly and then is just ok (Display d-1).
• Drying hints
- Clothes could be dried after spinning.
- To ensure quality dry the textiles, please classify them according to their kinds
and the drying temperature.
- Synthetic should be set the proper drying time .
- If you want to iron the clothes after drying, please put them for a while.
• Clothes not suitable for drying
- Particularly delicate items such as synthetic curtains, woolen and silk, clothes
with metal inserts, nylon stockings, bulky clothes, such as anoraks, bedcovers,
quilts, sleeping bags and duvets must not be dried.
- Clothes padded with foam-rubber or materials similar to foam-rubber must
not be machine dried.
- Fabrics containing residues of setting lotions or hair sprays, nail solvents or
similar solutions must not be machine dried in order to avoid the formation of
harmful vapours.
NOTE
* Depends on the type of fabric.

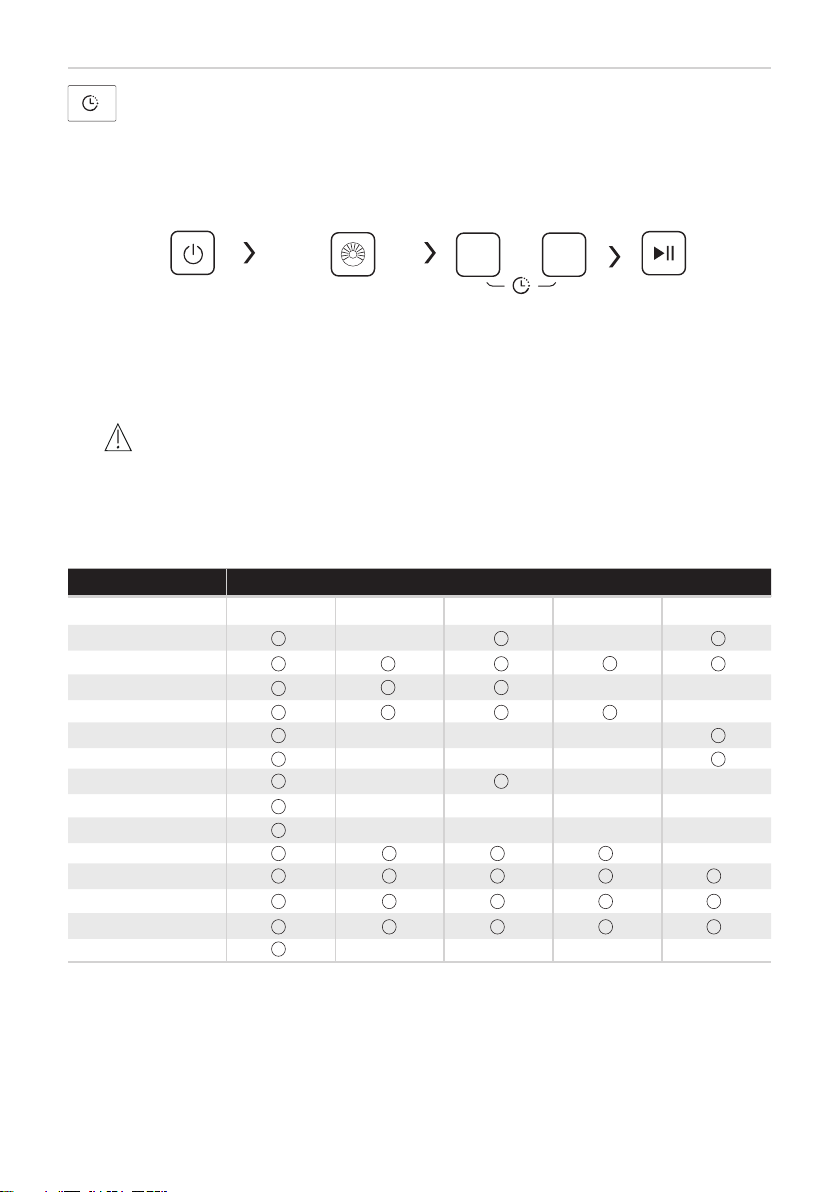

Delay
Set the Delay function:
1. Select a Program
2.Press the [Temp.] and [Spin] simultaneously to choose the time
(the delaying time is 0-24h.)
3.Press [Start/Pause] to commence the delay operation
Temp.
Cancel the Delay function:
Press the until the display be 0 h.
It should be pressed before starting the Program. If the Program already
started, should press the [On/Off ] button to reset the Program.
[Temp.] and [Spin] simultaneously
• If there is any break in the power supply while the machine is operating, a special
memory stores the selected Program and when the power is restarted, the
machine will start automatically from the previous program with the remaining
time.
Delay
Program Option
○ Means optional
Boost Extra Rinse
Pre wash Dry
CAUTION
Spin
Quick 15'/1h WD
Steam Hygiene
Cotton ECO
Jeans
Wash and Dry
Auto Dry
ABAYA/Delicates
My Program
Spin Only
Drum Clean
Active Speed
Baby Care
Mix
Cotton
18
On/Off Choose the Program Setting time Start

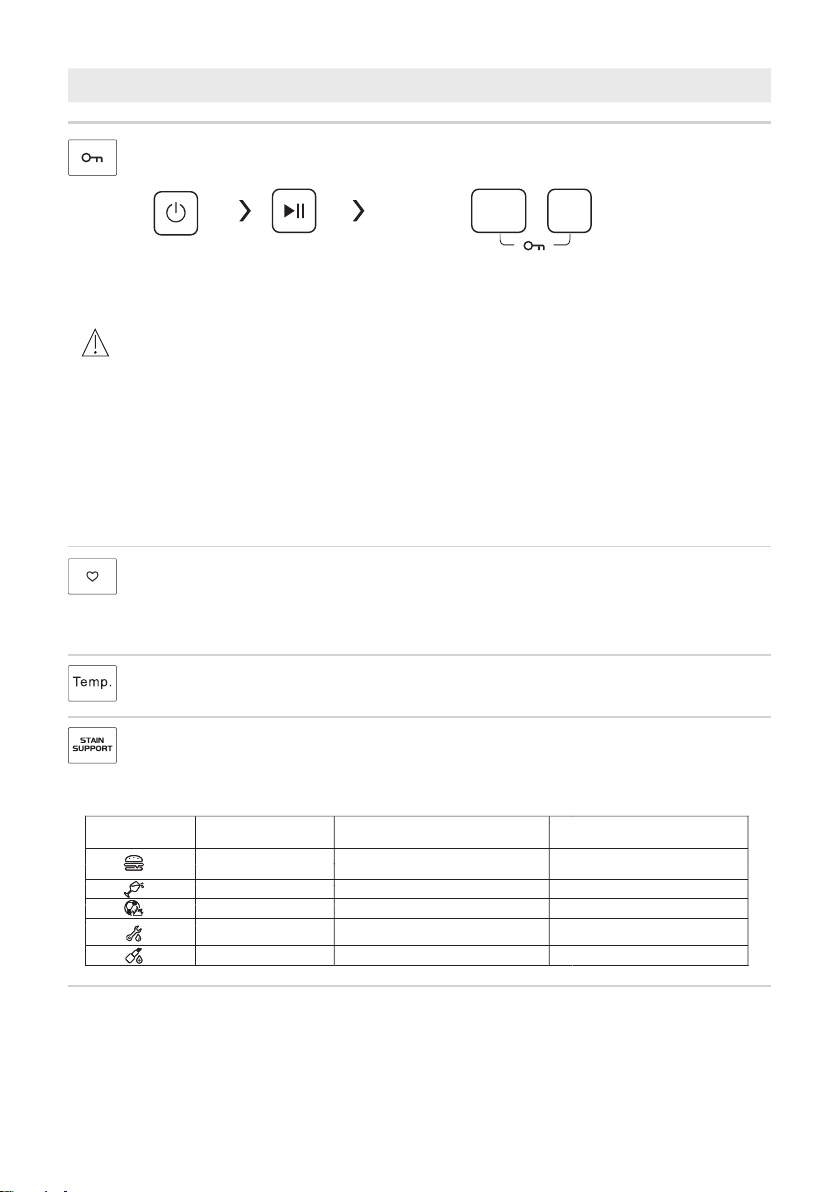

Child Lock
To avoid mis operation by children.
Start
On/Off
Temp.
℃,Press the button to regulate the temperature (Cold,20 30℃, 40℃,60℃,90℃).
My Program
Memorize the frequently used Programs
Press [Spin] & [STAIN SUPPORT] simultaneously for 3 sec. to memorize the
running Program. The default is Cotton.
Function Boost
Press [Function] & [Boost] simultaneously for
3 sec. until the buzzer beep. The child lock
indicator switches on.
CAUTION
Other Functions
STAIN SUPPORT
STAIN SUPPORT offers specific treatments for five scenarios (Food, Drinks,
Sports & Fitness, Outdoor & Workers, Health & Beauty) to professionaly solve
according laundry problems.
STAIN SUPPORT Scenarios Wash Cycles Typical stain
Food Cotton，Mix，Baby Care
Fresh Vegetables, Fresh
Juice, Food Sauce
Drinks Cotton，Mix，Baby Care Red wine, hot drink, soft drink
Sports & Fitness
Cotton，Mix Grass Stains, Dust, Sweat Stains
Outdoor & Workers Grease, Mud Stain, Carbon
Pigment
Health & Beauty Cosmetics, Blood, Drugs
Cotton，Mix
Cotton，Mix
19
，Jeans
，
Jeans
When the Child Lock is activated, the display will alternately show “CL” and the
remaining time.
Pressing any other button will cause the Child Lock indicator to flash.
When the program ends, “CL” and “End”will alternate on the display.
The Child Lock deactivates the function of all buttons except the On/Off button and
the Child lock button!
Only the simultaneous pressing of the two buttons can deactivate the Child Lock!
Please deactivate the Child Lock before selecting a new program!
