Safety Instructions
Safety Instructions ..................................................
Installation
Product Description ................................................
Installation ...........................................................
Operations

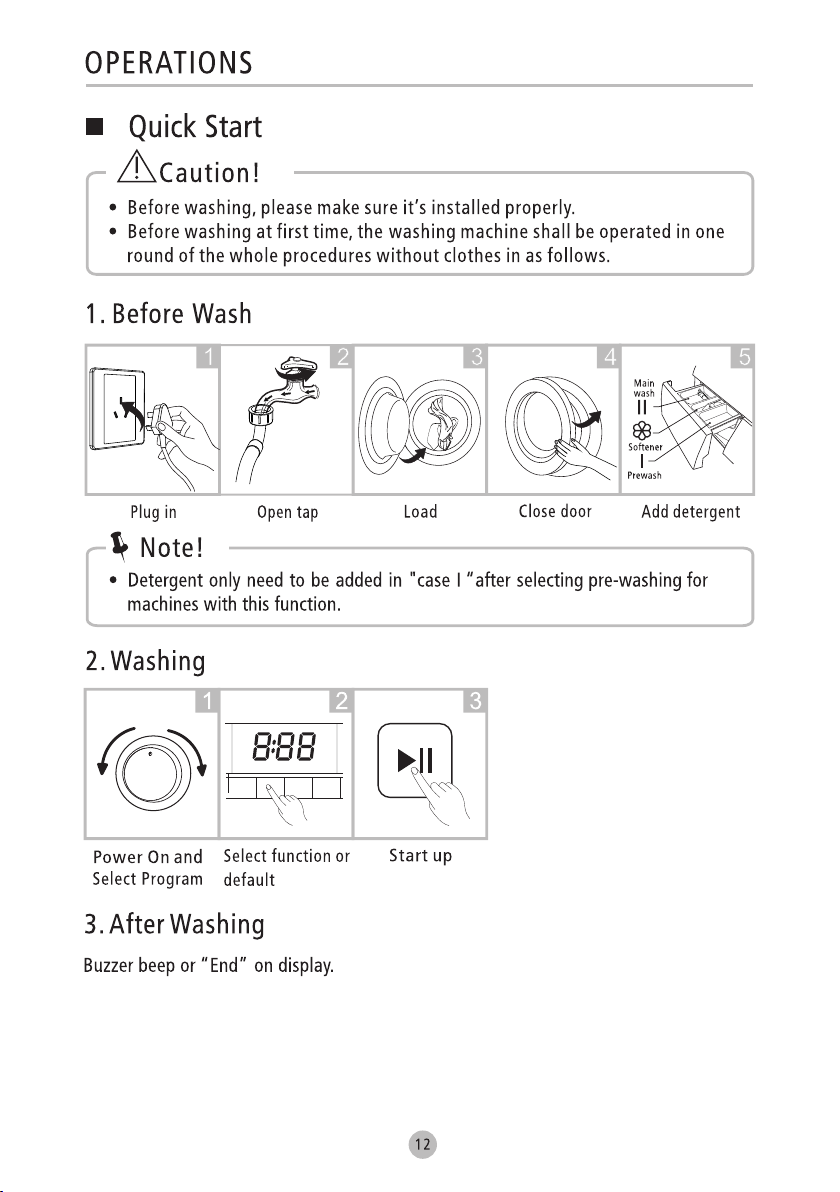

Quick Start .............................................................
Before Wash ..........................................................
Detergent Dispenser ...............................................
Control Panel .........................................................
Option....................................................................
Other Functions ......................................................
Programs ..............................................................
Wash Program Table ...............................................
Maintenance
Clean And Care .....................................................
Troubleshooting ....................................................
Technical Specifications .........................................
2
8
9
12
13
14
15
16
17
20
21
22
25
26
1
CONTENTS

2
SAFETY INSTRUCTIONS
Safety Instructions
• This appliance is not intended for use by
persons(including children) with reduced
physical,sensory or mental capabilities or lack of
experience and knowledge unless they have been
given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do
not play with the appliance.
• If the power cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
• Should use the new water inlet hose set which supplied
with product. Don’t reuse old hose set.
• The openings must not be obstructed by a carpet.
• This appliance is intended to be used in household
and similar applications such as:
− staff kitchen areas in shops, offices and other
working environments;
− farm houses;
− by clients in hotels, motels and other residential type
environments;
− bed and breakfast type environments;
− areas for communal use in blocks of flats or in
launderettes.

For your safety,the information on this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of symbols:
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• If the power cord is damaged, it must be replaced by the
The electric shock!
3
SAFETY INSTRUCTIONS
Safety Instructions
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Warning!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Caution!
Warning!

• The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
• Before any maintenance , must unplug the appliance
first.
• Always unplug the machine and turn off the water
supply after use.
• Plug must be accessible after installation.
• Pull out its plug and cut off water supply after the
operation.
• Take care that power voltage and frequency shall be
identical to those of washing machine.
• Glass door may be very hot during the operation. Keep
kids and pets far away from the machine during the
operation very wet rooms as well as in the rooms with
explosive or caustic gas.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• The washing machine with single inlet valve only can
be connected to the cold water supply. The product
with double inlet valves should be correctly connected
to the hot water and cold water supply.
• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make
sure that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must
be connected by a qualified technician in accordance
with the manufacturer's instructions and local safety
regulations.
4
SAFETY INSTRUCTIONS

Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Before hand thoroughly rinse items of washing by hand.
• This washing machine is for indoor use only.
Installing the product!
5
• Do not use any socket with rated current less than that
of appliance.Never pull out power plug with wet hand.
Risk to children!
This appliance is not intended for use by persons
(including children) with reduced
•
physical, sensory or
mental capabilities or lack of experience and knowledge
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
• Children of less than 3 years should be supervised to
ensure that they do not play with appliance.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Kids should be supervised that they do not play with the
appliance.
SAFETY INSTRUCTIONS
Caution!

• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with
double inlet valves should be correctly connected to the
hot water and cold water supply.
• Plug must be accessible after installation.
Risk of damaging appliance!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.
5.A precaution indicates that the hands shall not be
inserted into running water-extracting tub.
6
SAFETY INSTRUCTIONS

Operating the appliance!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin,brooch,nail,screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
7
6.A precaution indicates that the appliance shall not
be installed at a humid place.
• Please do not close the door with excessive forces. If it
is found difficult to close the door, please check if the
clothes are put in or distributed well.
• It is forbidden to wash carpets.
SAFETY INSTRUCTIONS

8
Accessories

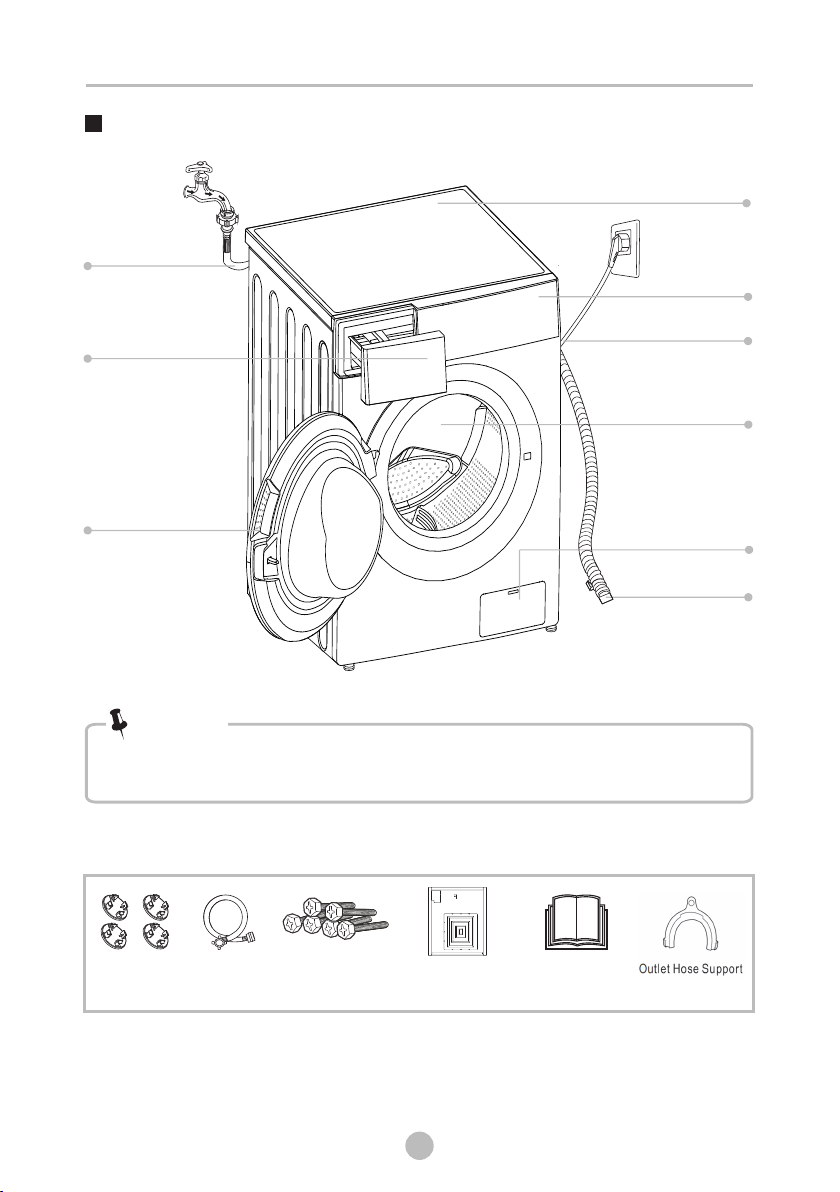

Product Description
Transport
hole plug Supply hose
cold water
Screws
• The product line chart is for reference only, please refer to real product as
standard.
Note!
Drum
power cord
Control panel
Detergent dispenser
Service filter
Door
Water supply hose
Top cover
Drain hose
Owner’s manual
Rat resistance panel
with sticky tape
INSTALLATION

9
Installation
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0℃
5.Keep far away from the heat resources such as coal or gas.
as
Unpacking the washing machine
1. Remove the carton box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power cord and drain hose.
4. Remove the inlet hose from the drum.
Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
Please take the following steps to remove the bolts:
1.Loosen 4 bolts with spanner and then remove them.
2.Stop the holes with transport hole plugs.
3.Keep the transport bolts properly for future use.
Remove transport bolts
•
•
Stability is important to prevent the product from
vibration!
Make sure that the product should not stand on
the power cord.
Warning!
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
•
•
You must remove the transport bolts from the backside before using the product.
If the bolts are not removed they may cause heavy vibration, noise and
malfunction.
Warning!
INSTALLATION
w
w
W> 20 mm
Installation area

10
1.Check if the legs are closely attached to the cabinet. If not, please turn them to
their original positions and tighten the nuts.
2.Loosen the lock nut turn the feet until it closely contacts with the floor.
3.Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.

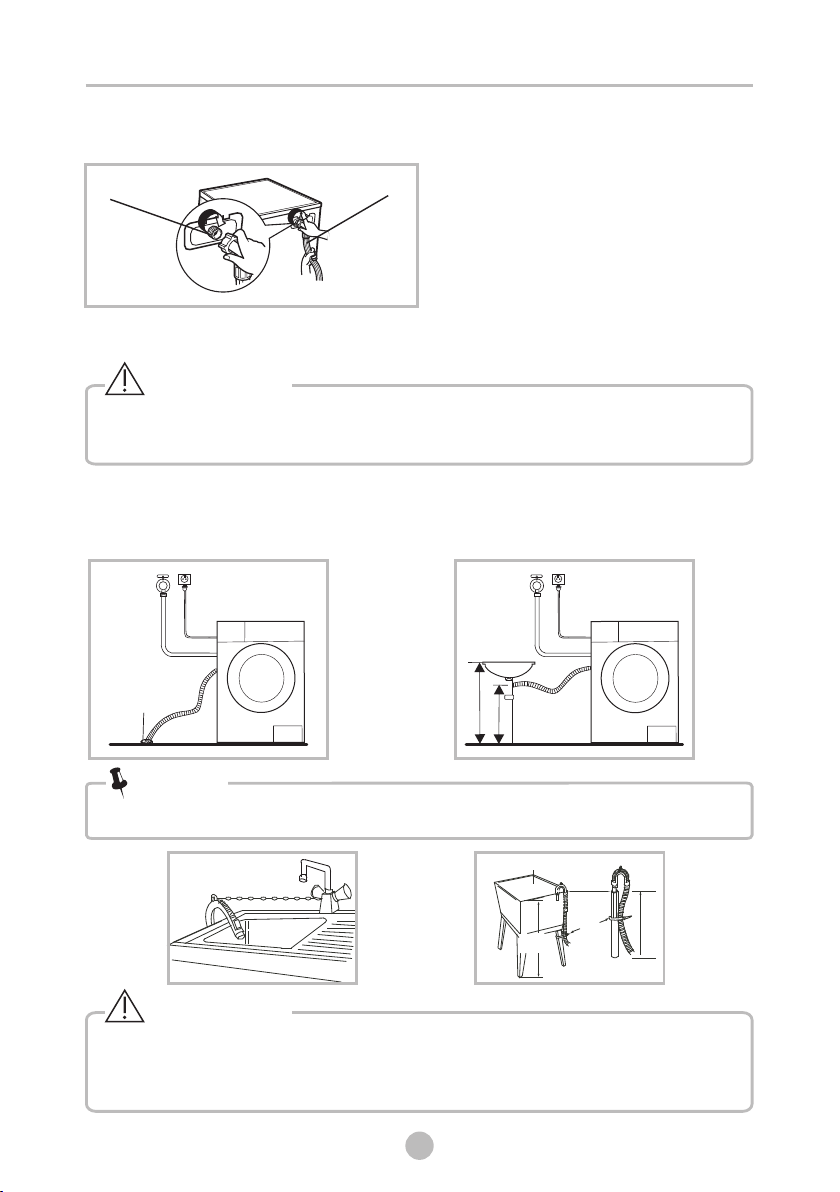

Connect water supply hose
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
1.Connection between ordinary tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
Do not twist, crush, modify or damage the water inlet hose.
.
•
234 1
Raise Lower
Lock nut
foot
Warning!
Warning!
INSTALLATION
Loosen clamp nut and
four bolts
Tighten clamp nut Press slide bushing,
insert inlet hose into
connecting base
slide bushing
2341
Connection finished
clamp nut
5 mm
Tap with threads and inlet hose Special tap for washing machine
2.Connection between screw tap and inlet hose.
slide bushing

10
11
Warning!
Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the water trough. 2.Connect it to the branch drain pipe of
the trough.
•
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
When installing drain hose, fix it properly with a rope.
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not twist,extend the drain hose.
Water
trough
Min.60 cm
100 cm
Max.
Trough
Hose Retainer
Bind
Max.100 cm
Min.60 cm
Min.60 cm
Max.100 cm
If the machine has • drain hose support, please install it like the following .
Warning!
Note!
INSTALLATION
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the backside of product
and fasten the pipe tightly clockwise.

10
13
Knot the long strips,zip or
button
• When washing a single clothes, it may easily cause great eccentricity and give
alarm due to great unbalance. Therefore it is suggested to add one or two
more clothes to be washed together so that draining can be done smoothly.
• Don’t washing the clothes touching with kerosene, gasoline, alcohol and
other flammable materials.
• The working condition of the washer should be(0-40)°C.If used under 0°C,the
inlet valve and draining system may be damaged. If the machine is placed under
condition of 0°C or less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose are not frozen
before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label
Before Wash
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
！
OPERATIONS

10
14
Detergent Dispenser
Pre wash detergent
Main wash detergent
Softener
II
I
Caution!
• Detergent only need to be added into "Case I “after select Pre Wash
function.
•
•
OPERATIONS
• As for the agglomerated or ropy detergent or additive, before they are
poured the detergent box, it is suggested to use some water for
dilution to prevent inlet of detergent box from being blocked and
overflowing while filling water.
•
into
the
Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.
Note!
Liquid detergent mode
Powder detergent mode
Dam-board Dam-board
Set dam board to use liquid detergent.
Set dam board aside to use powder detergent.
Programme
Cotton
Synthetic
Mix
Cold Wash
Sportswear
Baby Care
Jeans
Rinse & Spin
Means must ○ Means optional
Programme
Spin Only
Bulky
Wool
Gentle Hand Wash
Cotton Eco
Quick 15’
Rapid 45’

Control Panel
10
15
OPERATIONS
D
A
B
Off(Knob)
Product can be turned off and variety
of program can be selected through
this knob.
Start/Pause
Press the button to start or pause the
washing cycle.
Programs
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
Note!
The chart is for reference only, Please refer to real product as standard.•
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
C
E FG
Door Lock
A
C
Child Lock
E
G
Delay
D
F
B
Prewash Extra Rinse
Extra Wash
Display
Wash Time Delay Time
Speed Error
End Temp.

Delay
Set the Delay function:
1. Select a program
2.Press the Delay button to choose the time(the delaying time is 0-24 H.)
3.Press [Start/Pause] to commence the delay operation
Choose the Program Start
Setting time
Delay
Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be pressed before
starting the program.
If the program already started, turn the knob to off position to reset program.
Option
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected program and when the power is
restarted, the machine will start automatically from the previous program
with the remaining time.
OPERATIONS
Extra Rinse
The laundry will undergo extra rinse once after you select it.
Pre Wash
The Prewash function can get an extra wash before main wash,it is suitable for
washing the extra dirt which rises to the surface.You need to put detergent into
the Case (I) when select it.
16
HYGIENE PRO
When the Hygiene Pro light is on, this function is automatically
activated in the program. The Self-Clean function will be
automatically activated during every washing cycle.
Extra Wash
For very dirty clothes choose this feature, this will increase the washing time and
intensity to improve the washing effect.

Means must ○ Means optional

10
18
OPERATIONS

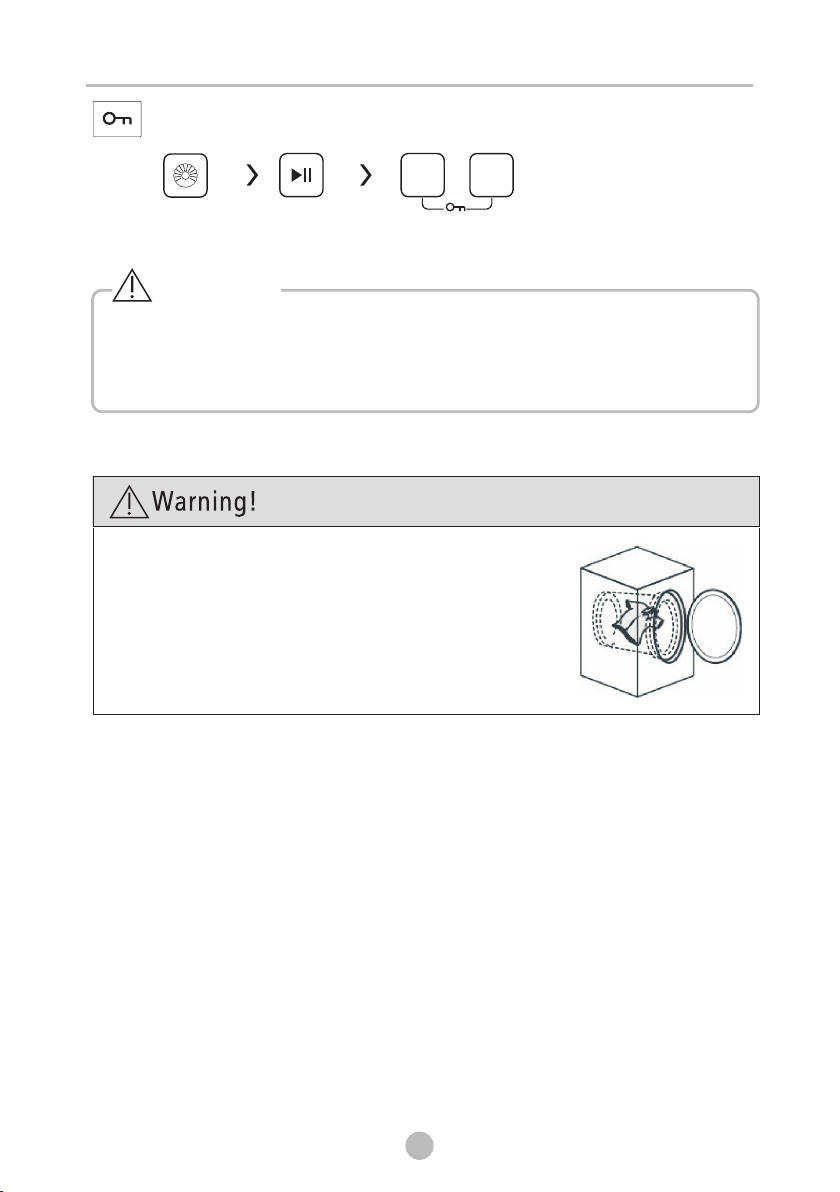

Child Lock
To avoid misoperation by children.
Start Press [Delay] and [Funct.]
3 sec. till buzzer beep.
Delay Funct.
• Press the two buttons 3 sec. again to deactivate “Child Lock”.
• The “Child Lock” will lock all buttons except “Off” on knob.
• The “Child Lock” will remain effective when supply is resumed after power cut.
Caution!
Choose the Program
Before closing the door, make sure that all laundries
have been put into the inner drum as shown in the figure
to prevent the laundries from being caught by the drum,
which may damage the laundries or the gasket.

10
19
OPERATIONS
Press the [Temp.]button for 3sec.
Mute the buzzer
Temp.
To activate the buzzer sound, press the Temp. button for 3 sec. again.
Start
• After the buzzer is mute, the sound of button and the operation completion
will not be heard.
Caution!
Power off memory
For the convenience of the users, this program remember the washing program
and function that is the choice of the users at the last time. The next time when
selecting the program memory,this machine will run the program of your choice
(same as last one) automatically.
• Don't use the Reload function when the water level is over the edge of the
inner tub or the temperature is higher.
Reload
This feature can be used during the wash process to add extra clothes. The reloading
will not work when the drum is in rotation and water level is high with high temperature.
The door cannot be opened as it is unsafe state.Press [Start/Pause] for 3 sec. to reload
the clothes in the mid of program. Please follow the steps as bellow:
1.Wait until the drum stops rotation.
2.The door lock is unlocked.
3.Close the door when the clothes are reloaded and press the [Start/Pause]
button.
Start
P 3sress[Start/Pause]ec.
Clothes
Reload the clothes
Caution!
To mute the buzzer sound press Temp. button for 3 sec.
Choose the Program
