Panasonic NA-F80H User manual

Fully Automatic Washing Machine
NA-F80B1, NA-F80T1, NA-F80H1
NA-F90T1, NA-F90H1
NA-F1011T
Silver (A), White (D), Grey (J)
Destination
Thailand, Indonesia, Vietnam, Malaysia,
Singapore (Local), India, Singapore (Export),
Fiji, Philippine, Tahiti, UAE (Local), Kuwait
© Panasonic Home Appliances (Thailand) Co., Ltd. 2008
All rights reserved. Unauthorized copying
and distribution is a violation of law
Service Manual
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be
replaced with manufacturer’s specified parts to prevent shock, fire or other hazards. Do not modify the original design without
permission of manufacturer.
IMPORTANT SAFETY NOTICE
Order No. PHAT080804C3
(Revision : Jul. 2010)
Product Colour

2
CONTENTS
Usage: For repairs and change of spare part only for washing machine type
Panasonic Model NA-F80B1/NA-F80T1/NA-F80H1/NA-F90T1/NA-F90H1/
NA-F1011T
Instruction
for Usage: The work repair and changing of space part should be operated by a skilled
technician from the distribution agents, or Panasonic’s standard service center.
Warning: Switch off electrical power before commencing work to avoid a potential short
circuit or injury.
1. SPECIFICATIONS.........................................................................................3
2. FEATURES AND TECHNICAL INFORMATION .......................................... 4-5
3. INSTALLATION ......................................................................................... 6-7
4. OPERATIONS PANEL............................................................................... 8-9
5. WIRING DIAGRAM .....................................................................................10
6. TABLE OF ERRORS ...................................................................................11
7. TROUBLESHOOTING .......................................................................... 12-14
8. DISASSEMBLY INSTRUCTION...................................................................15
9. LOCATION OF PARTS AND REPLACEMENT PARTS ........................... 16-29
Page

3
1. SPECIFICATIONS
MODEL NA-F80B1 NA-F80T1 NA-F80H1 NA-F90T1 NA-F90H1 NA-F1011T
Rate Voltage
And Frequency
220V/50Hz Thailand,
Vietnam,
Sin(Exp)
Thailand,
Vietnam
Thailand,
Vietnam,
UAE(Exp)
Thailand,
Vietnam,
Sin(Exp),
Fiji,UAE(Exp)
Thailand,
Vietnam,
Sin(Exp),
UAE(Exp)
Indonesia
230V/50Hz Singapore,
India
Singapore,
India
Singapore Singapore Singapore,
India
230V/60Hz Philippines
240V/50Hz Malaysia Malaysia Malaysia,
UAE(Loc),
Kuwait,Oman,
Qatar
Malaysia,
UAE(Loc),
Kuwait,Oman,
Qatar
Malaysia,
UAE(Loc),
Kuwait,
Qatar
Colour Gray (J) White (D) Silver (A) White (D) Silver (A) White (D)
Rate Power
Consumption
(Wash / Spin)
220V/50Hz 430W / 235W 450W / 240W
230V/50Hz 440W / 245W 460W / 250W
230V/60Hz 510W / 340W 510W / 340W
240V/50Hz 450W / 260W 470W / 265W
Standard Water Consumption 172 Liter 177 Liter
Standard Capacity 8 Kg 9 Kg
Weight (with accessories) 41 Kg 41 Kg
Pulsator (r.p.m.) 110 r / min
Spin Tub (r.p.m.) 740 r / min
Water Pressure 0.3 - 10 Kg.f / cm2(8 - 25 liter / min)
External Dimension Width : 643mm. × Depth : 637mm. × Height : 1042mm.
Net Weight 41 Kg
Motor Power Input : 320 Watts / Output : 180 Watts
Safety Switch Checking Unbalance / Tub Lid
Alarm Rings When Finishing Washing Or Unusual
Thermoprotector Motor
Water Inlet Hole ¢
Fabric Softener Dispensor ¢
Filter ¢
Automatic Power-Cut Switch ¢
Bleach Dispensor ¢¢
Standard Water Consumption
Model NA-F80B1 / NA-F80T1 / NA-F80H1
Standard Water Consumption
Model NA-F90T1 / NA-F90H1
Wash Level Water Only Clothes Weight Wash Level Water Only Clothes Weight
High
<High Lower>
Medium
<Medium Lower>
Low 1
<Lower 1 Lower>
Low 2
<Lower 2 Lower>
Low 3
<Lower 3 Lower>
77 Liters
72 Liters
65 Liters
61 Liters
55 Liters
51 Liters
45 Liters
41 Liters
35 Liters
18 Liters
8.0 Kgs
6.0 Kgs
5.0 Kgs
4.2 Kgs
3.5 Kgs
2.5 Kgs
1.5 Kgs
1.1 Kgs
0.8 Kgs
0.3 Kgs
69 Liters
65 Liters
60 Liters
56 Liters
52 Liters
48 Liters
43 Liters
38 Liters
33 Liters
18 Liters
High
<High Lower>
Medium
<Medium Lower>
Low 1
<Lower 1 Lower>
Low 2
<Lower 2 Lower>
Low 3
<Lower 3 Lower>
77 Liters
72 Liters
65 Liters
61 Liters
55 Liters
51 Liters
45 Liters
41 Liters
35 Liters
18 Liters
9.0 Kgs
6.0 Kgs
5.0 Kgs
4.2 Kgs
3.5 Kgs
2.5 Kgs
1.5 Kgs
1.1 Kgs
0.8 Kgs
0.3 Kgs
71 Liters
65 Liters
60 Liters
56 Liters
52 Liters
48 Liters
43 Liters
38 Liters
33 Liters
18 Liters

4
2. FEATURES AND TECHNICAL INFORMATION
Model NA-F80B1 / NA-F80T1 / NA-F80H1 / NA-F90T1 / NA-F90H1 / NA-F1011T
Program Time
Normal Approx. 47~56 min.
Mini Approx. 20 min.
Soak Approx. 107 min.
High Speedy Approx. 21~27 min.
Blanket Approx. 55 min
Delicate Approx. 29-32 min
Tub Hygiene Approx. 150 min
Soak 1 hour Approx. 107 min
Soak 8 hour Approx. 527 min
Product special features
•Dial indicating detergent level after sensing wash level
•Pre-set timer
•Fabric softener dispenser
•Detergent dispenser
•Automatic power-off when finish
•Dial indicating unusual sign (LED will blink)
•Alarm ON-OFF
•Overflow sensing device.
•Ag Shower (NA-F80H1 / NA-F90H1 only)
- This has the disinfection effect with Ag+.
- This can be used for the course marked with ★.
Weight Sensor
The weight is sensed by the moving force of
the Pulsator, which changes a capacitor pole
and releases a signal wave. The wave is changed
into a pulse number from which the clothes
weight is sensed. Prior to weight sensing for
Normal and Strong program, the machine runs
without water by spinning the Pulsator to left
and right for 4.2 seconds (ON 0.3 second-
OFF 0.4 second). The motor stops (OFF),
a water system counts the pulse number, then
calculates the accumulated pulse numbers for
drawing water into the tub over a defined level.
The dial will indicate High wash level.
High Medium Low
Low Pulse Number High

5
2. FEATURES AND TECHNICAL INFORMATION
Function Control with Fuzzy sensor
Clothes quantity checking, wash level indication and detergent consumption indication with Fuzzy Logic system
1. Check clothes quantity and specify the amount of detergent
2. Temperature checking
Check temperature in the atmosphere when the machine starts.
In case of low temperature, wash timer and spin timer are extended
automatically so that washed clothes are as clean as washing in
high temperature.
1. Wash timer and spin timer with checked clothes quantity
High
3.0 Kg and more
Medium
1.2 Kg~3.0 Kg
Low
0 Kg~1.2 Kg
Wash Timer 12 min. 12 min. 9 min.
Spin Timer 6 min. 6 min. 5 min.
2.
Additional wash timer and spin timer as temperature increases
External temp. 25°C15°C5°C30°C
Wash Timer +0 min. +2 min. +3 min. -1 min.
Spin Timer +0 min. +1 min. +2 min. +0 min.
Rotate clockwise
stop
<Motor status>
Rotate
anti-clockwize
Turn Switch “ON”
Press “Start”button
1. Check clothes quantity
2. Check ambient
temperature
A. Check clothes
quantity
B. Control wash time
C. Control spin time
Supply water to a proper
level
WASH
RINSE
SPIN
Switch will automatically
cut the power current
“OFF”
<Checking Method>
Check cross pressure at the
capacitor while the Pulsator operates
without water.
stop
Rotate clockwise
stop
Rotate
anti-clockwize
stop
Rotate clockwise
stop
Rotate
anti-clockwize
stop

6
Connect the water supply hose
to the water supply valve screw.
1. Push the water supply hose nut straights onto
the water supply valve screw.
2. Hold the elbow by lifting it up, screw the nut
onto the water supply valve screw, and firmly
tighten the nut.
3. After the nut is tightened, check whether or
not the elbow is unsteady or loose.
4. After tightening, open the faucet to confirm
that there is no water leakage.
[Cautions]
Firmly tighten the nut, otherwise water leakage
will result.
Water Pressure Rating :
2.9 x 104~ 9.8 x 105Pa
3. INSTALLATION
3.1 Checking of Placement
Hose extension
If extended external part is necessary when connecting the drain hose, the length of the drain hose should be less
than 3 m and the height should be below 10 cm.
Elbow
Water supply
valve screw
Nut
Water Supply
Hose
Drain hose
3 m max.
Do not put hose tip
under the water
Over 10 cm
Install the machine 10 cm or more away from the wall.
Good Example
Below 10 cm

7

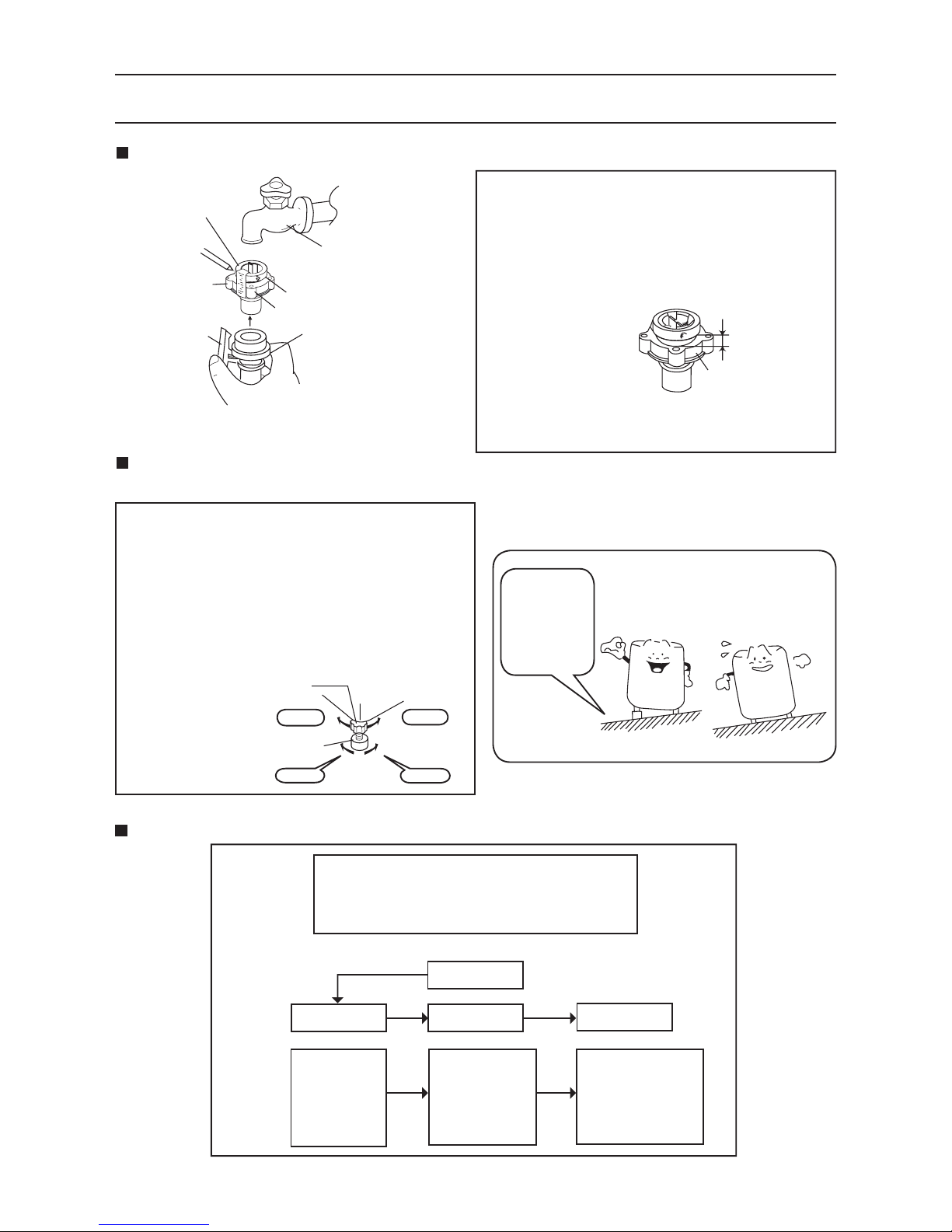

3. INSTALLATION
3.2 Connect the water supply hose
[Note]
- Firmly tighten part B of the water tap adaptor,
otherwise water leakage will result.
- When the hose must be reinstalled (after you
remove, for example), turn B to the left until
about 4 mm of the thread becomes visible,
then carry out the procedure described above.
- If a water tap adaptor is already connected,
replace with the attached new one.
3.3 Install Washing Machine to steady
1. Turn the adjustable leg knob towards (Loosen)
direction to loose it.
2. Turn the adjustable leg to adjust the levelness.
2.1 When increasing height, turn adjustable leg
towards (Loosen) direction.
2.2 When decreasing height, turn adjustable leg
towards (Tighten) direction.
3. Turn the adjustable leg knob towards (Tighten)
direction to tighten it.
If the floor is largely inclined
Use board or
a like for prop
up under leg
of washing
machine
3.4 CHILD LOCK Program
Press the [ POWER OFF/ON] button for at least
5 seconds. The buzzer sounds (two time for
setting) and the [CHILD LOCK] indication turns
on.
Open lid
Close lid
Buzzer on Buzzer off
Water drain Buzzer on and
abnormal alarm
Unplug the power
cord from the
outlet and re-plug
it again after
5 seconds
Adjust Height of leg
Less than
10 sec.
More than
10 sec.
Water faucet
Water supply
hose cover
A
B
Screw (4)
Water tap
adaptor
Lever
Approx. 4 mm
B
Adjustable leg knob
Adjustable leg
Loosen
To raise To lower
Tighten

8

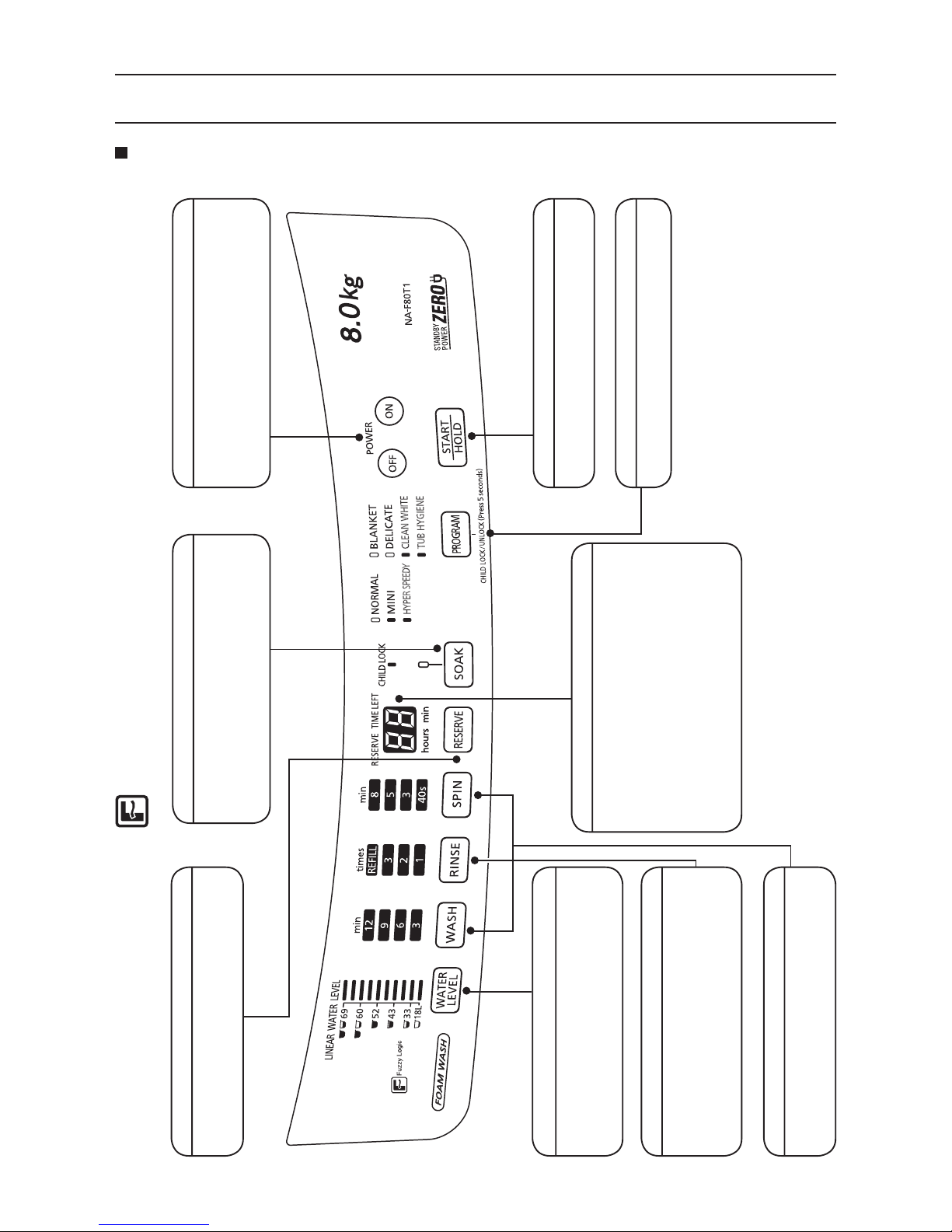

4. OPERATIONS PANEL
Operations Panel Fuzzy logic control is used to recommend the proper water level and amount of detergent for
the amount of laundry being done.
Caution: If you need to change the [PROGRAM] and [SOAK] settings after the cycle has already started, turn the power off and on it back.
4.1 Model NA-F80B1 / NA-F80T1 / NA-F90T1 / NA-F1011T
RESERVE
•Press the [RESERVE] button to set how many
hours later you would like the wash to be completed.
SOAK (EXCEPT NA-F80B1)
•Operations course for heavily washed laundry. •You can adjust soak time based on the
condition of dirt.
•You can choose your soak time from 1, 3, 5, 8 hours.
OFF/ON
•The power automatically turns off when total
operations is finished.
•The power automatically turns off if [START/
HOLD] button is not pressed within 10 minutes after turning on the power.
WASH/SPIN
•Press this button, and the pre-set laundry
cycle display will turn off allowing you to choose your own laundry setting.
WATER LEVEL (Water volume display)
•The appropriate WATER LEVEL for the size
and type of your laundry will be displayed.
•You can adjust the WATER LEVEL according
to your desired level.
RINSE
•Press this button, and the pre-set laundry
cycle display will turn off allowing you to choose your own laundry setting.
•At “REFILL”selection, water will be supplied
while “RINSE”process is in operation.
Time display
•When the machine is in operation, the time
display shows how much time (in minutes) is left.
•When the programmable timer has been
set, this display shows how much time is left until the wash is finished by pressing the [RESERVE] button.
•Timer indication on the panel will show longer
time than selected time as it includes water feeding, draining, etc.
START/HOLD
•Press this to start. •Press this to stop in the middle of the cycle.
PROGRAM (Course Select)
•According to type of laundry and stain, you
can select suitable course yourself.

9
4.2 Model NA-F80H1 / NA-F90H1
Ag Shower
•Press this button to have an effect with Ag+ to
coliform bacillus, a staphyococcus, etc. which course food poisoning.
•Suits for clothing (underwear, baby’s clothing,
etc.) to wash hygienically.
4. OPERATIONS PANEL
Operations Panel Fuzzy logic control is used to recommend the proper water level and amount of detergent for
the amount of laundry being done.
Caution: If you need to change the [PROGRAM] and [SOAK] settings after the cycle has already started, turn the power off and on it back.
RESERVE
•Press the [RESERVE] button to set how many
hours later you would like the wash to be completed.
SOAK
•Operations course for heavily washed laundry. •You can adjust soak time based on the
condition of dirt.
•You can choose your soak time from 1, 3, 5, 8 hours.
OFF/ON
•The power automatically turns off when total
operations is finished.
•The power automatically turns off if [START/
HOLD] button is not pressed within 10 minutes after turning on the power.
Time display
•When the machine is in operation, the time
display shows how much time (in minutes) is left.
•When the programmable timer has been
set, this display shows how much time is left until the wash is finished by pressing the [RESERVE] button.
•Timer indication on the panel will show longer
time than selected time as it includes water feeding, draining, etc.
START/HOLD
•Press this to start. •Press this to stop in the middle of the cycle.
PROGRAM (Course Select)
•According to type of laundry and stain, you
can select suitable course yourself.
WASH, SPIN
•Press this button, and the pre-set laundry
cycle display will turn off allowing you to choose your own laundry setting.
WATER LEVEL (Water volume display)
•The appropriate WATER LEVEL for the size
and type of your laundry will be displayed.
•You can adjust the WATER LEVEL according
to your desired level.
RINSE
•Press this button, and the pre-set laundry
cycle display will turn off allowing you to choose your own laundry setting.
•At “REFILL”selection, water will be supplied
while “RINSE”process is in operation.

10
5. WIRING DIAGRAM
5.1 MODEL NA-F80B1 / NA-F80T1 / NA-F90T1 / NA-F1011T
5.2 MODEL NA-F80H1 / NA-F90H1
THIS IS SAFETY PART SIGN.
PLEASE USE SPECIFIC PARTS FOR SAFETY MAINTENANCE
WHEN YOU REPLACE IT.
/
BROWN
/
THIS IS SAFETY PART SIGN.
PLEASE USE SPECIFIC PARTS FOR SAFETY MAINTENANCE
WHEN YOU REPLACE IT.

11
•Check if abnormalities listed below are seen in the external water hose.
•Is the hose connected?
•Is it clogged with lint?
•Is it crushed?
•Is the tip soaked in water?
•Is a part of hose at a height of over 10 cm midway?
•Is the extension hose longer than 3 m?
•Is the hose being used too small?
6. TABLE OF ERRORS
Error Indication
If the following indications appear on the display panel (buzzer sounds, U and H Characters appear).
Restart with
opening
and closing
the lid.
•Check if the lid is opened.
•Close the lid.
•Is the washing machine is an unsteady position, or is it on an inclined floor surface?
•Is the laundry unevenly distributed in the tub?
•Arrange the laundry evenly in the tub, then close the lid.
•Check if you have forgotten to connect the water hose and
to turn on the faucet.
•Is the water supply cut off?
Restart with opening
and closing the lid.
•Check if lid is open when draining operation of the [CHILD LOCK] program is ON.
•In case of H displays such as “H01”, with no buzzer sounds pull out the power plug, and
contact your dealer for service.

12
7. TROUBLESHOOTING
7.1 Table of Troubleshooting
Corresponding device
Problem
(have to check)
Others
Machine
does not work
No light at the dial 0
Dial light is on 0 0
Unusual
amount of
water inside
machine
No sound of water from inlet valve 0 0
There is sound of water from inlet valve Check water
supply
Not enough water flow Check water
supply
Water never stops flowing in 0 0 0
Washing
system
does not work
Pulsator does not spin (no sound of motor) 0 Motor
Pulsator does not spin (there is sound of
motor)
0 0 Belt, Motor
Pulsator spins only one way 0 0 Pulley, Motor
Pulsator spins slowly 0 Belt, Motor
Unusual
draining
No draining 0
Drains slowly 0 0 0
Unusual
spinning
system
No spinning (no sound of motor) 0
No spinning (Pulsator spins) 0 0
No force in spinning (tub spins slowly) 0
Unusual loud
noise
Loud noise during washing Belt, Motor
Loud noise during dry spinning 0 Check installation
Water leak Water leaks from drain pipe 0 0 Something clogged
Water leaks at the bottom of machine Drain pipe A,
Pulsator
Incorrect
working
Water is supplied during spinning Unbalanced tub,
leaning
Rinses more than 3 times 0 0 Unbalanced tub,
leaning
Pulsator spins despite no water 0 Air pipe clogged
Cannot change function program 0 0 Description of
usage
Water does not flow out of a filter Description of
usage
No overflow during water filling as rinsing Description of
usage
Selected washing program cannot be memorized Description of
usage
Fabric softener flows away too fast Description of
usage
Pulsator spins in short range as washing and rinsing Description of
usage
Works at low wash level then supplies water again Description of
usage
Control panel Water Inlet Valve Water level sensor
Safety switch Gear motor Capacitor Mechanism case Holding spring Packing valve

13
7.2 The following symptoms are not trouble.
Symptoms
Machine begins filling water in
the middle of the wash.
Causes
•When the laundry amount is large at the HIGH water level, the machine
sometimes fills automatically. When level goes down, the machine fills
automatically.
7. TROUBLESHOOTING
The water level is too high for
the amount of laundry being
washed.
•When the laundry is already soaked with water before the wash is
started, or if there is water in the tub before the wash is started, the
water level will sometimes be higher.
The water level is too low for the
amount of laundry being
washed.
•With light laundry made of synthetic or blended fabric, the water level
will sometimes be lower.
Midway during spinning, the
operation suddenly changes to
rinsing.
•When the laundry is unbalanced during spin, rinsing and automatic
correction of unbalanced laundry will begin. Later spinning will return to
normal condition.
Water does not flow through the
lint filter. Double Cascade does
not operate.
•When the water level is set to very low, water sometimes will not flow
through the lint filter. Double Cascade does not operate when these
settings have been selected.
Softener spills out from softener
drawer.
•Keep the level of the softener indicated to prevent the softener from
flowing immediately.
•If you close the softener drawer forcefully, softener may spill out of the
drawer.
During draining, the laundry and
the spinner rotates with irregular
movements.
•To suppress soap suds build-up, the washing tub turns slowly and
quickly.
The buttons do not work.
•Only the [WATER LEVEL] button is available after the machine begins
washing.
•To change the setting, press the [START/HOLD] button or press the
[POWER OFF/ON] button and reconfigure the setting.
If you start with the rinse cycle,
the tub is not filled with water.
•When there is water in the tub, the operation starts with the draining.
After spin cycle is finished, the tub will be filled with water.
Washing machine does not run
at all.
•Check if there is power failure.
•Check if the power fuse has blown out or the breaker is actuated.
•Check if the power plug is plugged in thoroughly.
•Check if the “power switch”has been pressed.
•Has the water faucet been turned on?
•Check if the [START/HOLD] button has been pressed.
•Has the machine been programmed under [RESERVE] timer?

14
7. TROUBLESHOOTING
7.2 The following symptoms are not trouble.
Symptoms
Machine begins filling water in
the middle of the wash.
Causes
•When the laundry amount is large at the HIGH water level, the machine
sometimes fills automatically. When level goes down, the machine fills
automatically.
Water is not supplied.
•Check if the water faucet is turned on.
•Is the water supply cut off?
•Check if the connection of the water supply hose is clogged with dirt.
•Check if the lid is opened. Close the lid.
Washing operation still continue
even though the expected
finishing time had passed on
Reserve Program.
•Washing time will be longer because of laundry unbalance, water
feeding and draining condition.
Buzzer sounds followed by a
draining when opening the lid
during wash and rinse.
•In the case when open the lid after setting the [CHILD LOCK] mode, it
will force the draining process. Pull out power plug from the outlet and
replug it after 5 seconds.
Tub shaking with the sound of
water.
•This is the sound of the liquid to maintain the balance during spinning.
Water supply failure.
•Normally after the water supply failure, the water will become muddy.
Detach the water feeding hose and turn on the water faucet to release
to due muddy water. Fix water hose and start washing.

15

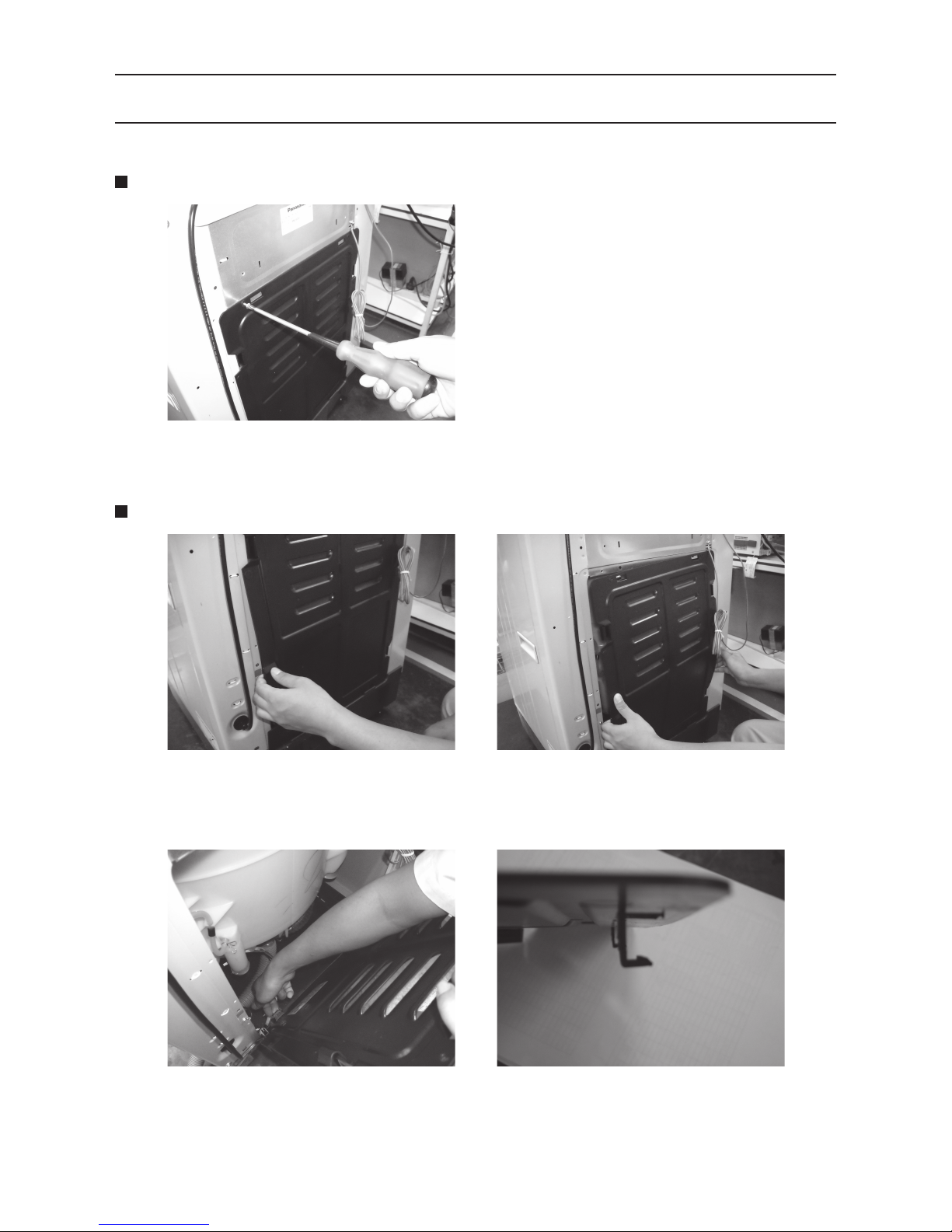

8. DISASSEMBLY INSTRUCTION
MODEL : NA-F80B1 / NA-F80, 90T1 / NA-F1011T / NA-F80, 90H1
8.1 Remove Screws of Back Panel out
8.2 Remove Back Panel out
- Take out by use screwdriver.
- Insert fingers through inside of Back Panel (Fig. 2).
- Pull it back a little for Hooks at upside loose (Fig. 3).
- Use the finger for pull end of Hook (Fig. 5) loose from the Base Unit (Fig. 4)
- After Hook loose 1 side / We can remove it by twist Back Panel a little.
- If it is difficult to remove / Have to use the finger to pull another side.
Fig. 1
Fig. 2 Fig. 3
Fig. 4 Fig. 5

16
9. LOCATION OF PARTS AND REPLACEMENT PARTS
9.1 Location of Parts - A
NA-F80B1 / NA-F80T1 / NA-F80H1 / NA-F90T1 / NA-F90H1 / NA-F1011T
A8
2
A7
A4
A2
A18
A6
A16
A15 A11
A17
A10
A9
A3
A12
A14
A23
3
NA-F80H1/NA-F90H1
NA-F80H1/NA-F90H1 NA-F80B1, T1/
NA-F90T1
A13
A5
A19
A1
A20 A21 A22
A8
A7
A24
A25
A26
A1
A27
NA-F80H1/NA-F90H1
NA-F80B1/NA-F80T1/
NA-F90T1
NA-F80H1/NA-F90H1

17
9. LOCATION OF PARTS AND REPLACEMENT PARTS
9.2.1 Replacement of Parts List - A
REPLACEMENT PARTS LIST
Important safety notice :
Components identified by mark have special characteristics important for safety.
When replacing any of these components, use only manufacturer’s specified part.
Parts List - A of NA-F80B1
Ref.
No. Part Name Part No. Safety Countries Remark
Thai Viet Mal Sin-Lo India Sin-Ex
J0LB70310WXAALENAP1A 111111
A2 PANEL FACE B AXW01467FZ00 1
AXW01467FZ50 1 1 1 1 1
J1KB72010WXABYDOB3A 111111
J1ZF7G100WXATINUDIL4A S111111
111111
111111
111111
111111
111111
111111
111111
111111
111111
111111
111111
111111
111111
111111
A5 LID PACKING A AXW01646UP00
A7 SPINNER LID LABEL
222222
222222
0AKD63530WXARELEV
EL6A
AXW11177BK5A
AXW11177BK0A 1
1
1
111
AKKB77111WXA
A8 FEEDING PORT PACKING AXW02676UP00
A9 CONTROLLER UNIT AXW024C7FZ06 S
A10 CONNECTOR LEAD WIRE UNIT AXW014A7BL00 S
609021292WXAFEEDING VALVE11A S
A12 PRESSURE SENSOR UNIT AXW024T02810 S
A13 LID HINGE SHAFT AXW01937BK00
A14 SUB DRAIN HOSE UNIT AXW002Q6XB20
A15 DETERGENT CASE UNIT AXW021B6XC10
A16 SAFETY SWITCH AXW166123700 S
A17 LID HINGE SPRING AXW11167BK00
A18 PANEL FACE C AXW01477FV00
A19 DETERGENT CASE B AXW21516XC0J
A24 INSTRUCTION B AXW99597BK0J
A25 NOZZLE HOLDER AXW08396XC0J
Screws
Ref. Part Name Part No. Safety
No.
Countries
Remark
Thai Viet Mal Sin-Lo India Sin-Ex
SPECIAL TAPPING SCREW 2 2 2 2 2 2
222222
222222
222222
222222
BODY B ~ BODY AU
BINDING TAPPING SCREW 7 7 7 7 7 7 PANEL FACE UNIT
XTB4+15CFJ
XTB4+12CFJ
XTWAXW469J
SAFETY SW. ~ BODY B
XTB4+15CFJ
FEEDING VALVE ~ BODY B
XTB4+15CFJ HOSE HOLDER A
XTV3+8GFK 1 1 1 1 1 1
CONTROLLER CASE LID~
INSULATION SPACER A
XTV3+8GFK CONTROLLER COVER ~
INSULATION SPACER B

18
9. LOCATION OF PARTS AND REPLACEMENT PARTS
9.2.2 Replacement of Parts List - A
REPLACEMENT PARTS LIST
Important safety notice :
Components identified by mark have special characteristics important for safety.
When replacing any of these components, use only manufacturer’s specified part.
Parts List - A of NA-F80T1 / NA-F90T1 / NA-F1011T
Ref.
No. Part Name Part No. Safety
seirtnuoCledoM
F80T1 F90T1 F1011T Thai Indo Viet Mal Sin-Lo India Sin-Ex Fiji Phi Tahiti UAE-Lo Kuw Oman Qatar UAE-Ex
D0LB70310WXAALENAP1A
 
1111 1 1 1 11 1 1 1 1 1 1
A2 PANEL FACE B

1
AXW01467FW50
AXW01467FW00

111 1 1111 1 111 1
AXW01467FY00

1
AXW01467FY50

111 1 1111 1 111 1
AXW01467GW00

1
1
D1KB72010WXABYDOB3A
 
1111 1 1 1 11 1 1 1 1 1 1
1111 1 1 1 11 1 1 1 1 1 1
A1WF7G100WXATINUDIL4A S
AXW001G7FY1D
AXW01646UP00
AXW11177BK1D
S

11111
A5 LID PACKING
 
0AKD63530WXARELEVEL6A
 
1111 1 1 1 11 1 1 1 1 1 1
A7 SPINNER LID LABEL

1
AXW11177BK6D
AXW292120906
 
1111111111111
AXW11177BKLD
AXW02676UP00
AXW024C7FW06

1
A8 FEEDING PORT PACKING
 
1111 1 1 1 11 1 1 1 1 1 1
A9 CONTROLLER UNIT S


1111 1 1 11 1 1 1 1 1
AXW024C7FY06
AXW014A7BL00
S

11111
A10 CONNECTOR LEAD WIRE UNIT S
 
1111 1 1 1 11 1 1 1 1 1 1
A11 FEEDING VALVE S
 
1111 1 1 1 11 1 1 1 1 1 1
A12 PRESSURE SENSOR UNIT S
 
1111 1 1 1 11 1 1 1 1 1 1
AXW024T02810
A13 LID HINGE SHAFT AXW01937BK00
AXW002Q6XB20
AXW021B6XC10
AXW166123700
AXW11167BK00
AXW01477FV00
AXW21516XC0J
AXW99597BK0J
AXW08396XC0D
 
2222 2 2 2 22 2 2 2 2 2 2
2222 2 2 2 22 2 2 2 2 2 2
A14 SUB DRAIN HOSE UNIT
 
1111 1 1 1 11 1 1 1 1 1 1
A15 DETERGENT CASE UNIT
 
1111 1 1 1 11 1 1 1 1 1 1
A16 SAFETY SWITCH S
Remark
Remark
 
1111 1 1 1 11 1 1 1 1 1 1
A17 LID HINGE SPRING
 
1111 1 1 1 11 1 1 1 1 1 1
A18 PANEL FACE C
 
1111 1 1 1 11 1 1 1 1 1 1
A19 DETERGENT CASE B
 
1111 1 1 1 11 1 1 1 1 1 1
A24 INSTRUCTION B
 
1111 1 1 1 11 1 1 1 1 1 1
A25 NOZZLE HOLDER
 
 
 
 
 
 
 
 
1111 1 1 1 11 1 1 1 1 1 1
Screws
Ref.
No. Part Name Part No. Safety
CountriesModel
F80T1 F90T1 F1011T Thai Indo Viet Mal Sin-Lo India Sin-Ex Fiji Phi Tahiti UAE-Lo Kuw Oman Qatar UAE-Ex
222222222222222
XTWAXW469J
SPECIAL TAPPING SCREW
777777777777777
XTB4+12CFJ
BINDING TAPPING SCREW
333333333333333
XTB4+15CFJ
222222222222222
XTB4+15CFJ
222222222222222
XTB4+15CFJ
111111111111111
XTV3+8GFK
XTV3+8GFK 22
2222222222222

19
9. LOCATION OF PARTS AND REPLACEMENT PARTS
9.2.3 Replacement of Parts List - A
REPLACEMENT PARTS LIST
Important safety notice :
Components identified by mark have special characteristics important for safety.
When replacing any of these components, use only manufacturer’s specified part.
Parts List - A of NA-F80H1 / NA-F90H1
Ref.
No. Part Name Part No. Safety seirtnuoCledoM
F80H1 F90H1
Thai Viet Mal Sin-Lo India Sin-Ex UAE-Lo Kuw Oman Qatar UAE-Ex
A1KB70310WXAALENAP1A

111111 1 11 1 1
A2 PANEL FACE B

1
AXW01467FV50
AXW01467FV00
AXW11177BK0A

11 1 1 1 1 1 1 1
AXW01467FX00

1
222222 2222 2
AXW01467FX50

11111
111111
111
A1KB72010WXABYDOB3A

111111 1 11 1 1
A1VF7G100WXATINUDIL4A S

111111 1 11 1 1
A5 LID PACKING A AXW01646UP00

0AKD63530WXARELEVEL6A

111111 1 11 1 1
A7 SPINNER LID LABEL

1
AXW11177BK5A


1111 1 11 1 1
AXW11177BKKA
AXW024C7FV06

1
1100PU67620WXAGNIKCAPTROPGNIDEEF8A 1111 1 11 1 1
A9 CONTROLLER UNIT S

111 1
AXW024C7FX06
AXW014A7BK00
S

111111111
A10 CONNECTOR LEAD WIRE UNIT S

111111 1 11 1 1
609021292WXAFEEDING VALVE11
PRESSURE SENSOR UNIT
A
A12
S

111111 1 11 1 1
S

111111 1 11 1 1
AXW024T02810
AXW01937BK00
AXW002Q6XB20
AXW021B7BK10
AXW166123700
AXW11167BK00
AXW01477FV00
AXW21516XB0J
AXW07537BK00
AXW99597BK0J
AXW08396XB2J
AXW11637BK1A
AXW99607BK00
A13 LID HINGE SHAFT

222222 2 22 2 2
A14 SUB DRAIN HOSE UNIT

111111 1 11 1 1
A15 DETERGENT CASE UNIT

111111 1 11 1 1
A16 SAFETY SWITCH S

111111 1 11 1 1
A17 LID HINGE SPRING

111111 1 11 1 1
A18 PANEL FACE C

111111 1 11 1 1
A19 DETERGENT CASE B

111111 1 11 1 1
00KB75012WXAWODNIW02A

111111 1 11 1 1
A21 LABEL PLATE

111111 1 11 1 1
00KB7E700WXATINUELBAT22A

111111 1 11 1 1
A23 NOZZLE UNIT AXW008E7BK00

111111 1 11 1 1
A24 INSTRUCTION B

111111 1 11 1 1
A25 NOZZLE HOLDER

111111 1 11 1 1
A26 PANEL A SEAL

111111 1 11 1 1
A27 INSTRUCTION C








1
Screws
Ref.
No. Part Name Part No. Safety Remark
Remark
seirtnuoCledoM
F80H1 F90H1
Thai Viet Mal Sin-Lo India Sin-Ex UAE-Lo Kuw Oman Qatar UAE-Ex
22J964WXAWTXSPECIAL TAPPING SCREW 2222 2 22 2 2
77JFC21+4BTXBINDING TAPPING SCREW 7777 7 77 7 7
33JFC51+4BTX 3333 3 33 3 3
22JFC51+4BTX 2222 2 22 2 2
22JFC51+4BTX 2222 2 22 2 2
11KFG8+3VTX 1111 1 11 1 1
22KFG8+3VTX 2222 2 22 2 2

20
9. LOCATION OF PARTS AND REPLACEMENT PARTS
9.3 Location of Parts List - B
B17
B8
B16
B10
B17
B1
B4
B3
Accessories 1
5
5
5
5
6
3
2
2
2
2
B18
B2
B16 B7
B9
B2
B13 B12
B5
B6
B4
B4
B14 B15
B20
B11
DRAIN INSTRUCTION
B19
B21
