Panasonic NA-FS16G2 User manual

CONTENTS
1.Specifications……………………………………………………………………………
1
2.Technical Descriptions……………………………………………………………………………
2
3.How to Install……………………………………………………………………………
3
4.Operation Instruction……………………………………………………………………………
4
5.Test Mode……………………………………………………………………………
6
6.Troubleshooting Guide……………………………………………………………………………
8
7.Disassembly Instructions…………………………………………………………
10
8.Wiring Diagram……………………………………………………………………………
15
9.Parts Location & Replacement Parts List……………………………………………………………………………
16
ORDER NO. TAM1202001CE
NA-FS16G2/NA-FS14G2
© 2012 Panasonic Taiwan Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
‧Product Color
‧Destination
: Sliver / White
: Panama
Page

1.Specifications
NA-FS16G2 NA-FS14G2
Power source AC 110-120 V , 60 Hz AC 110-120 V , 60 Hz
Power consumption 430 W 420 W
(Motor) Output 200 W 185 W
Laundry amount 16 kg 14 kg
Spin (Clothes load) 610 ~ 630 rpm 610 ~ 630 rpm
Pulsator (Clothes load) 60 ~ 130 rpm 60 ~ 130 rpm
Dimension(mm) Width: 640 / Depth:667 / Height:1032 Width: 640 / Depth:667 / Height:1032
Water level(L) 99 / 92 / 86 / 80 / 74 / 68 / 62 / 56 / 50 / 45 / 40 98 / 92 / 86 / 80 / 74 / 68 / 62 / 56 / 50 / 45 / 40
Standardized water consumption 190 L 185 L
Operating Water pressure
3×104- 1×106 Pa 3×104- 1×106 Pa
Machine weight 54 kg 54 kg
Safety switch Lid and unbalance switch Lid and unbalance switch
Buzzer Cycle-end buzzer, Give an alarm Cycle-end buzzer, Give an alarm
Bleach inlet Providing Providing
Lint filter Providing Providing
Softener Dispenser Providing Providing
Auto power off Providing Providing
Accessories
Water Supply Hose
(One each for cold and hot water)
Water Supply Hose
(One each for cold and hot water)
Water Tap Adaptor Water Tap Adaptor
Drain Hose Drain Hose
Events Model
-1-

2.Technical Explanation
2.1 The water flow of pulsator
2.2 Air Dry Course
When the tub is rotationg, it can suck dry air inlet and keep the tub dry.
Purpose to prevent the mould growth on the surface of the tub and
the outer tub.
Rotating fins on the bottom suck in water
which is pumped to the upper nozzle and
released as a high-pressure splash.
Bottom
Strong splashes are
A powerful motor rotates the Big Beat (BB)
Flapper to create a vortex.
(1)Stream of a big horizontal rotation is made
from the big outer blades of Large Pulsator.
(2)The stream of a small horizontal rotation is
made fromthe small blades in the center part
of Large Pulsator.
(3)The stream in the vertical direction made
from the blades of Small Pulsator (Pulsator
cap), it is pushed in the direction of the
perimeter of the tub by a small horizontal
rotation stream of the above-mentioned of
(2), and it becomes a diagonal stream.
Top
Beat Screw
Beat Flash
Beat Tide
-2-

3.How to install
2m
29 - 980 kPa
nut.
To connect the drain hose
1.Connect the drain hose securely to the drain
hose connection of the washing machine .
And move the hose band next to the body.
2. Follow the limits of maximum height (1.10m)
and minimum (0.70m) for installation of
drain hose.
-3-

4.Operation Instruction

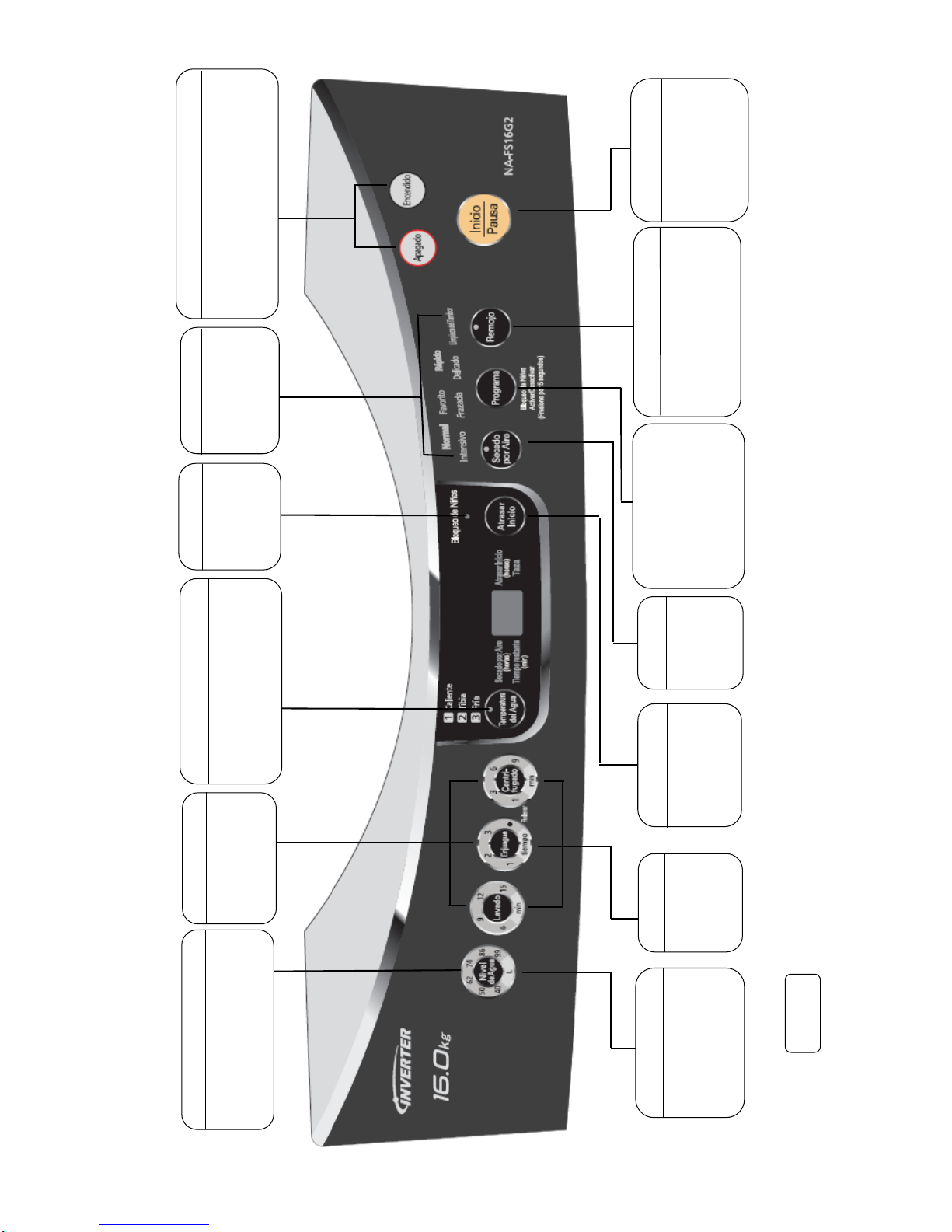

4.1 Indicators and buttons
Attention : If you need to change the setting after the cycles has already started, turn the power off and then back on.
-4-
Indicates the appropriate waterlevel according to the laundry amount.
Water Level / Volume Indicator
Indicates the cycle in progress by flashing.
Progress Indicator
The power automatically turns off when a course is finished, or if washing is not begun within 10 min. turning the power on.
Power Switch
According to laundry volume and stain, you can select a suitable course by yourself.
Program
You can choose the finishing time either after 2 to 24 hourse.
Reserve
The lamp will light when Child lock mode is set.
Child lock
Setting can be changed according to your preference.
Water Level
Custom cycles can be chosen.
Process
Use to select wash water temperature Press button to select 01(hot),02(warm),03(cold).
Temperature
Push this botton to start. Push this botton to stop during the cycle.
Start / Pause
Drying the tub to prevent mould growth.
Air Dry
It is suitable for washing stained laundry and soiled collar and wrist portions of dress shirts .
Soak
Indicates which Course has been selected.
Course Indicator

4.2 Wash cycle
Process
COURSE SOAK
WATER
LEVEL
WASH
TIME
RINSE
CYCLE
SPIN
TIME
NORMAL ○*１
6~15 min.
*１
1~3 times
(Refill)
1~9 min.
*１
MY FAVORITE ○*１
6~15 min.
*１
1~3 times
(Refill)
1~9 min.
*１
SPEEDY ─*１
6 or 9 min.
2 times
(Refill)
3 min.
*１
EXTRA RINSE ○*１6~15 min.
*１
1~3 times
(Refill)
1~9 min.
*１
COMFORTER ○86L~99L 6~15 min.
*１
1~3 times
(Refill)
1~9 min.
*１
DELICATE ─50L~62L
6 min.
1~3 times
(Refill)
1 min.
TUB HYGIENE ─99L
15 min. 3 times 3 min.
*１It is setting by laundry amount detects.
W
A
S
H
C
O
U
R
S
E
S
E
L
E
C
T
-5-

5. Test Mode
1.Set the power switch to "off".
2.Press and hold both the "Water lever" and "Wash" buttons with one hand.
3.Press the power switch to "on".
4.Release your fingers from the buttons and power switch which you pressed in steps (2) and (3) .
(Check A can be carried out in this state with your fingers released)
5.Within three seconds press the "Water lever " button to set the desirer check procedure.
(Carry out checks B, C, E, M, G and H)
Check Contents
• When the end buzzer sounds three
• Cycle end buzzer times, the lamps will simultaneously
0 A • Timer indicator flash on and off in the remaining
• Auto power off time display, and the power will auto-
matically be switched off immediately
after operation is finished.
• Even if there is no water in the tub, the washing
• Washing operation will continue for 6 minutes.
1 B operation • Press the "wash" button once FV-1 operates,
and press twice to operate FV-2.
• If the PCB fault occurred, an error indication
"H05" will display.
• The spinning operation will continue for 7 minutes.
• Spin operation **Check the lid & SF switch operation
2 C • Lid/SF switch *While opening lid
1) "74L" lights up … Lid switch working
2) "86L" lights up … SF switch working
Operation condition
Check
Procedure
Lamp illumination condition
Number of timers
the "Water lever"
button is pressed
Check H
Check G
Check M
Check E
Check A
Check B
Check C
(2)
(3)
(1)
-6-

Check Contents
• Press the "WASH" button to adjust L0 (initial
mode) to L1 (1-rank higher water level).
• Press "STAR/PAUSE" button to confirm.
• In case to change PCB or remove the V-belt.
set the V-belt tension to initail mode for useing
below procedure.
M• The initial display will be indicated "b0"
after that, press "START / PAUSE" button once,
it shall be listened click sound six times to
set properly.
• "Digit lights" shall be indicated "E" initially,
Press "WASH" button to show the last error,
and press the wash botton again to return
to initial mode.
G• If any error message occurred in the
past, "H" or "U" and some number shall
be indicated alternately.
If no error message occurred, the light
indicates "00".
‧"Digit lights" shall be indicated "C" initially,
Press "WASH" button to change "Indication
Hof dight" of operation times.
Press once: Digit "Thousand‧Hundred"
Press twice: Digit "Ten‧One"
Operation condition
Check
Procedure
Lamp illumination condition
•Set to initial
mode for
tension of the
Belt
Number of times
the "Water lever"
button is pressed
3
E
4
• Indicate the
error message
of the last time.
• Indicate the
operation
times.
• Adjust the
water amount
against laundry
amount
detection
5
6
-7-

6.Troubleshooting Guide
6.1 "U--" Error indication
*If there is an operation error, or if there is a problem with the washing machine, such as faulty draining,
spinning etc; operation will stop, the warning buzzer will sound, and an error indication will be displayed
Content Method to clear
Check if abnormalities listed below are seen in the
external water hose
*Is something wrong with the drain hose?
*Is the clogging with lint ?
Malfunction of *Is it crushed ? Restart by opening
drain *Is the tip soaked in water ? and close of the lid.
*Is a small pipe used ?
*Is a part of hose at a height of over 10cm in midway?
*Is the extension hose longer than 2 meter ?
*Is the drain hose lay down ?
*Is the lid is open ? Close the lid
*Check If condition of contact point of the lid switch.
*Is the washing machine in an unstead position, or is on
an inclined floor surface ? Open the lid and
*Is the adjustable knob loose ? redistribute the load.
*Is the laudry unevenly distributed in the tub ?
*Check if you have forgotten to connect the water hose
and to turn on the faucet.
*The water supply cut off?
Malfunction of *Check if the water supply and the water supply hose Opening and closing
water supply are frozen. the lid to return to
*Check if the connection of the water supply hose on initial stage of water
feed valve is clogged with dirt. supply.
*it is alarmed increase it is takes over 50 min. to reach
selected water level.
1.Remove the power cord
Child lock *Check if you condition of remaining water in the tub. plug and close the lid.
operated *No remaining water in the tub. 2.After plug in and press
-->Child lock fuction has operated. "POWER" switch to "ON"
position.
Indication
Check point
U99
U11
U12
U13
U14
The lid is open
Unbalanced load
-8-

6.2 "H--" Error indication
‧If there is an operation error, or if there is a problem with the washing machine,
(1)All the switchs can not be operated.
(2)An error indication will be displayed.
Indication Method to clear
H01 The PS switch is abnormal. *Pull out the power plug .
H09 *Pull out the power plug .
H55
*Malfuntion of over current of
inverter circuit.
*In case if overcurrent(above 10A)flow to the
inverter circuit,replace the PCB(Power side).
*Check if short circuit of the motor's coil,
replace the motor.
*Pull out the power plug .
H57
*Malfuntion of motor's current.
*Check if movement of the motor,
and replace the motor.
*Pull out the power plug .
*Pull out the power plug .
H52
*Malfuntion of high voltage.
*In case the input voltage to the PCB has been
detected over AC 150V,check input voltage
by test meter.
*Indicate 5 sec and auto power off.
*Pull out the power plug .
H53
*Malfuntion of low voltage.
*In case the input voltage to the PCB has been
detected below AC 65V,check input voltage
by test meter.
*Pull out the power plug .
*Check if you condition of the connectors.
*Replace the PS switch .
*Replace PCB board(Power side)
*Check if you condition of the power sw.
*Replace PCB board(Power side)
*Check if lead wire condition of P.C.
Boards between power and operation
side, and replace one of P.C. Board's.
H51
*Malfuntion of over load.
*Check if over load of laundry.
*Check if condition of connectors for motor
and rotary detector,necessary adjustment.
*Check if movement of the motor,replace it.
*Check if output voltage of the PCB(Power side)
,replace the PCB.
H25
The Motorized Drain Valve
(For draining water) is abnormal.
*In case the motorized drain valve won't operate
within 20 sec, after drain mode has started.
*Check if condition of connectors for motorized
drain valve, replace the motorized drain valve
*Check output voltage of the PCB(Power side)
and replace the PCB.
H21
*Pull out the power plug .
Check point
Content
The memory circuit of the I.C is
abnormal.
*Replace PCB board(Power side)
Open circuit of P.C. Board's
communication line.
H04
The power sw circuit is abnormal.
H05
*Pull out the power plug .
H07
*Malfuntion of over flow.
*Clean the diaphragm inside of the feed valve
or replace the the feed valve.
*Check output voltage of the PCB(Power side)
*Operate motorized drain valve and drain water
*Pull out the power plug .
*Pull out the power plug .
The rotary detector is abnormal.
*Check if condition of connectors for rotary
detector and leadwires
*Movement of the mechanism motor
*Replace PCB board(Power side)
*Pull out the power plug .
-9-

7.Disassembly Instructions
7.1 Warning
Before attempting to servics or adjust any part of the machine,
disconnect the electrical power suppy from the outlet.
7.2 Caution
Electronic components of the print circuit board is MOS TYPE FET. When replace and
trouble shooting of the print circuit board, make sure body is grounded before beginning
repair work. But, in case can not ground, touch to the plug and earth wire, and remove
the potential difference between the set and body of the worker completely.
7.3 The display PCB replacement
1. Remove 4 screws mounting the Body B,
then raise the Body B.
2. Remove 4 screws mounting the bottom
of Body B
3. Lift the Panel Face B upward to remove it.
4. Remove the connector and 10 screws
mounting the PC Board.
5. Remove the display PCB.
Display PCB
-10-

7.4 The POWER PCB, NOISE PCB, PS SWITCH, SF SWITCH and FEED VALVE replacement
1. Remove the window and 2 screws mounting the PANEL A, then remove the PANEL A.
2. The POWER PCB replacement.
a. Remove 1 screws mounting the PCB.
b. Pull the PCB out.
c. Remove the PCB Cover, then remove
the lead wire connector.
3. PS SWITCH replacement.
a. Remove lead wire connector.
b. Remove the SUB HOSE A.
4. SF SWITCH replacement.
a. Remove lead wire connector.
b. Remove 2 screws mounting the SF SWITCH.
SF Switch
Sub Hose A Lead Wire Connector PS Switch Power supply PCB
PCB Cover
Pull
-11-

5. FEED VALVE replacement.
a. Take DETERGENT CASE B out.
b. Remove LEAD WIRE CONNECTOR.
c. Remove 4 screws mounting the DETERGENT
CASE AU and FEED VALVE SUPPORT .
d. Pull DETERGENT CASE AU out.
e. Remove 2 screws mounting the FEED VALVE
(for clod water).
f. Move the spring by pliers than pull the FEED
VALVE (for hot water) out of the FEED HOSE.
6. The NOISE PCB replacement.
a. Remove 1 screws mounting the PCB.
b. Pull the PCB out.
c. Remove the PCB Cover, then remove
the lead wire connector.
Feed
Lead Wire
PULL
NOISE PCB
PCB Cover
PULL OUT
PULL OUT
-12-

7.5 The MECHANISM U replacement
1. Remove 4 screws mounting the Body B, then raise the Body B.
2. Remove 8 screws mounting the OUTER TUB COVER.
3. Remove the special screw mounting the PULSATOR.
‧Do not remove the special screw from PULSATOR completely
then hold the screw head to pull the PULSATOR upward to remove.
4. Remove the SHAFT BUSHING、D SHAFT FLANGE NUT and D FLANGE WASHER B,
then pull the TUB upward to remove.
5. Turn the machine upside down.
6. Remove 4 screws(M8) mounting
the SPINNER PLATE B.
7. Remove 4 screws (M13)mounting
the MECHANISM U.
SHAFT BUSHING
D SHAFT FLANGE NUT
D FLANGE WASHER B
SPINNER PLATE B
MECHANISM U
-13-

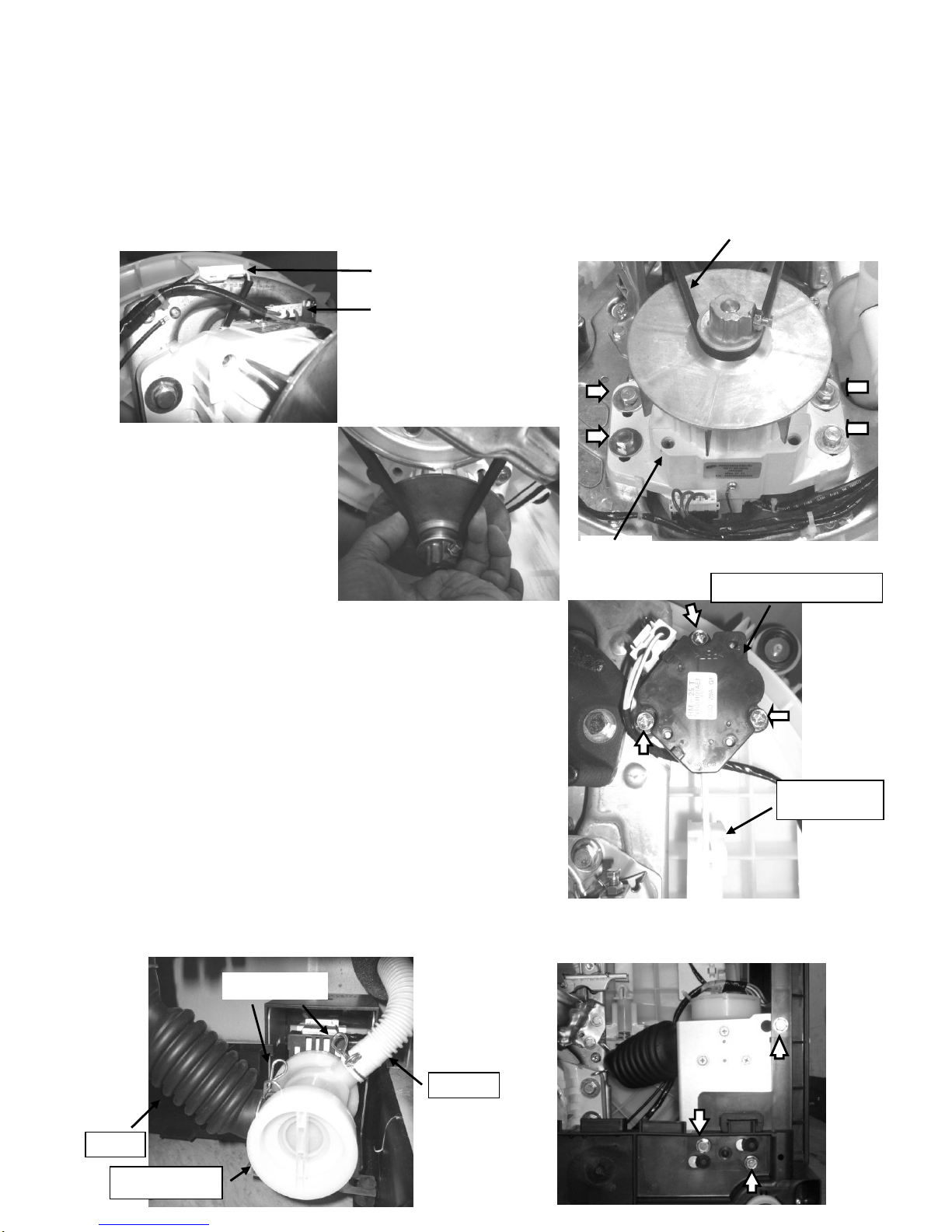

7.6 The MOTOR replacement
1. Lay down the washing machine on it right side.
2. Remove both lead wire connectors from the MOTOR and the ROTARY SENSOR.
3. Loosen four bolts (M13) mounting the motor by using HW-18, and remove V-belt.
4. Remove four bolt mounting the MOTOR, and remove the motor.
Note: After replace the motor, adjust tension of the V-belt properly.
And then, set micro-processor to initial mode of V-belt tension by operating
Test-No water / Check procedure-E.
7.7 MOTORIZED DRAIN VALVE replacement
1. Lay down the washing machine on it left side.
2. Remove connector from the MOTORIZED
DRAIN VALVE.
3. Remove three screws mounting the
MOTORIZED DRAIN VALVE.
4. Remove slider portion of the MOTORIZED
DRAIN VALVE from the COCK ROD A.
7.8 PUMP replacement
1. Lay down the washing machine on it left side.
2. Loosen clamp and remove two hoses from the PUMP CASING.
3. Remove three screws mounting the PUMP BRACKET.
Connector of
Connector of rotary
Motor
V-belt
Checking tension
of the V-belt
Motorized drain valve
Hose
Hose clamp
Pump casing
Cock rod A
Hose
-14-

8. Wiring Diagram
-15-

9. Parts Location & Replacement Parts List
9.1 Small standardized metal parts
Ref
No.
Part Name Part No. Q'ty Remarks
1 BIND TAPPING SCREW XTB3+10BFJ 10 AXW24S+AXW145
2 BIND TAPPING SCREW X-T0405 4 AXW145+AXW102
3 BIND TAPPING SCREW XTB4+12CFJ 2 AXW1661+AXW102
4 BIND TAPPING SCREW XTB4+12CFJ 1 AXW24C+AXW102
5 BIND TAPPING SCREW XTB4+14CFJ 2 AXW2921+AXW20T
6 BIND TAPPING SCREW XTB4+12CFJ 2 AXW20T+AXW102
7
SPECIAL TAPPING SCREW
X-T0405 2 AXW102+AXW1A
8
SPECIAL TAPPING SCREW
X-T0405 2 AXW102+AXW1A+AXW0130
9 BIND TAPPING SCREW XTB4+12CFJ 1 AXW24V+AXW102
10
TRUSS TAPPING SCREW
XTT4+14AFJ 1 AXW337+AXW301
11
SPECIAL TAPPING SCREW
XTT4+14ABN 1 AXW2D+AXW301
12
TRUSS TAPPING SCREW
XTT4+14AFJ 8 AXW301+AXW1A
13 SPECIAL SCREW C4585-480JB 5 AXW156+AXW1A
14
SPECIAL TAPPING SCREW
XTWAXW511 2 AXW9D+AXW1201
15
SPECIAL TAPPING SCREW
XTWAXW511 4 AXW1202+AXW1201
16
SPECIAL TAPPING SCREW
XTWAXW6502J 8 AXW1202+AXW1201
17
TRUSS TAPPING SCREW
XST4+8FY 1 AXW3F+AXW1202
18
SPECIAL TAPPING SCREW
XTWAXW6506J 6 AXW3482+AXW1201
19 SPECIAL BOLT AXWX-V0825AJ 4 AXW20A+AXW1202
20
HEXAGON SPECIAL BOLT
XVG7A22GXJ 1 AXW410+AXW401
21 HEXAGON NUT XNG7BSFJ 1 AXW410+AXW401
22 SPECIAL BOLT AXWX-V0640AJ 4 AXW401+AXW1202
23 SPECIAL BOLT AXWX-V0825AJ 2 AXW1231+AXW1202
24 SPECIAL BOLT AXWX-V0624J 4 AXW3232+AXW1202
25
TRUSS TAPPING SCREW
X-T0407 4 AXW12T+AXW201
26
TRUSS TAPPING SCREW
X-T0407 4 AXW12U+AXW201
27
SPECIAL TAPPING SCREW
XTWAXW520 8 AXW35A+AXW201
28
SPECIAL TAPPING SCREW
XTWAXW507 12 AXW1504+AXW201
29 SPRING WASHER XWA5BFJ 2 AXW5D+AXW20A
30 SPECIAL SCREW XSSAXW676E 1 AXW5D+AXW20A
31
TRUSS TAPPING SCREW
XTT4+18ABN 8 AXW3224+AXW1201
-16-

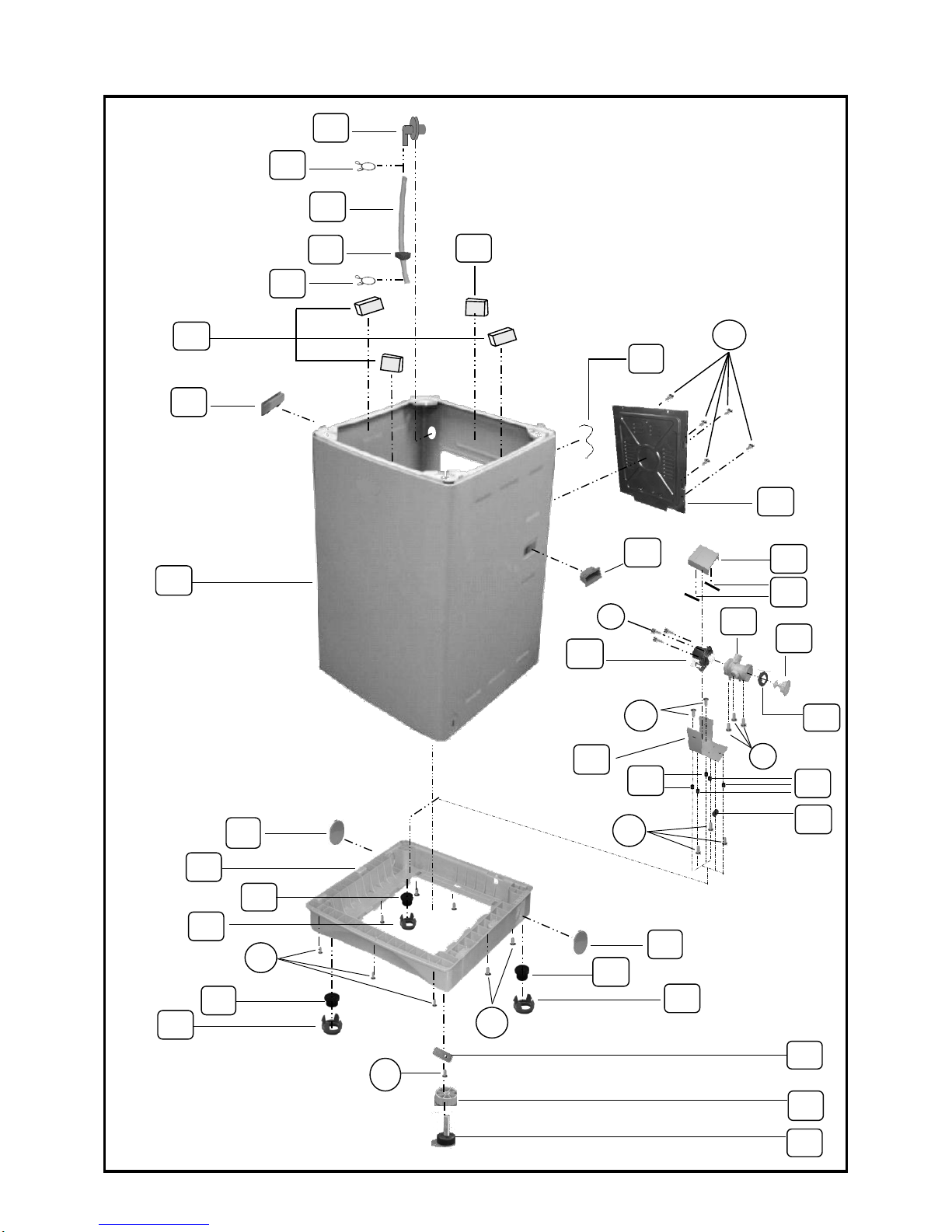

9.2.1 Location of Parts-A
A31
A2
A3
A4
A25
A5
A1
A28
A17
A26
A10
A9
4
5
7
3
A11
A12
A24
A27
A29
A30
A33
1
A32
A7
A8
A6
A34
8
A31
A15
A13
A14
A16
2
9
A35
6
A18
A19
A20
A21
A22
A23
-17-

9.2.2 Replacement parts list-A
Ref
No.
Part Name Part No. Q'ty FS14G2 FS16G2
A1 BODY B W0102-F6G50SW 1 ○X
BODY B(P) W0102-F6G50P 1 X ○
A2 PANEL FACE A W0145-B5S51SW 1 ○X
W0145-B5T00P 1 X ○
A3 PANEL FACE B W0146-F4G00 1 ○X
W0146-F6G00 1 X ○
A4 CONTROLLER U W024S-F4G00 1 ○X
W024S-F6G00 1 X ○
A5 LEAD WIRE U W014A-F6G00 1 ○ ○
A6 LEVEL W0353-15R00 1 ○ ○
A7 PS SWITCH W024T-03800 1 ○ ○
A8 SF SWITCH W1661-23210 1 ○ ○
A9 CONTROLLER U W024C-F4G00 1 ○X
W024C-F6G00 1 X ○
A10 CONTROLLER CASE COVER W0486-B5S01 1 ○ ○
A11 FIREPROOFING BRACKET A W1349-B5S00 1 ○ ○
A12 FIREPROOFING BRACKET B W1350-B5S00 1 ○ ○
A13 CONTROLLER CU W024V-F6G00 1 ○ ○
A14 CASE COVER-NOISE W2427-B5S00 1 ○ ○
A15 FIREPROOFING BRACKET A W1352-B5S00 1 ○ ○
A16 FIREPROOFING BRACKET B W1353-B5S00 1 ○ ○
A17 DETERGENT CASE AU W20T-F6G00 1 ○ ○
A18 JOINT PACKING W1292-6H000 2 ○ ○
A19 FEED VALVE W2921-16801 1 ○ ○
A20 FEED VALVE W2921-11901 1 ○ ○
A21 FEED VALVE SUPPORT W0195-F6G00 1 ○ ○
A22 FEED HOSE W1260-F6G00 1 ○ ○
A23 HOSE CLAMP W0245-F6G00 2 ○ ○
A24 DETERGENT CASE B W2151-B5S01SW 1 ○X
W2151-B5S01HA 1 X ○
A25 DETERGENT CASE COVER W2192-B5S00MG 1 ○ ○
A26 LID SPRING W1116-B5S00 1 ○ ○
A27 SF LEVER W1192-B5T00 1 ○ ○
A28 PANEL AU W0130X-F4G00 1 ○X
W0130X-F6G00 1 X ○
A29 POWER CORD U W004A-F6G00 1 ○ ○
A30 FUSE U W014C-13X00 1 ○ ○
A31 LID UX W001G-F4G00 1 ○X
W001G-F6G00 1 X ○
A32 LID HINGE SHAFT W0193-105B2 2 ○ ○
A33 BODY B COVER W0163-1DH00SW 2 ○X
W0163-1DH00MH 2 X ○
A34 SF CUSHION W9047-13G00 1 ○ ○
A35 INDUCTOR W034L-B5S30 1 ○ ○
-18-

9.3.1 Location of Parts-B
B24
B1
B2
B12
B13
B14
B9
B8
B11
5
9
5
B2
B3
B4
B10
B9
B6
B5
B7
B10
B13
B11
B11
5
B15
B20
B23
B21
B16
B19
B18
B26
B7
7
23
6
23
B20
B25
B27
B22
-19-
